Wedding and Event Lighting Solutions for Venues and Banquet Halls
Professional wedding and event lighting solutions for five-star hotels, banquet halls, wedding venues and multifunction event spaces. JC LIGHT provides stage lighting equipment, custom system design, OEM support and wholesale supply for venue projects.
- Suitable for weddings, banquets, ceremonies, gala dinners and hotel venues
- Custom design based on stage width, height, depth and venue standards
- Supports LED stage lights, moving head lights, beam lights, laser lights and follow spotlights
- Designed for high stability, good compatibility and future expansion
Typical Venue Example
This sample project is based on a five-star hotel wedding venue with an 11 m stage width, 6 m stage height and 6 m stage depth. The system is designed according to high-end banquet hall standards and combines practicality, stability, compatibility and scalability.
The solution mainly uses professional LED film and television stage lights, moving head lights, moving head beam lights, laser lights and follow spotlights, together with reliable supporting equipment.

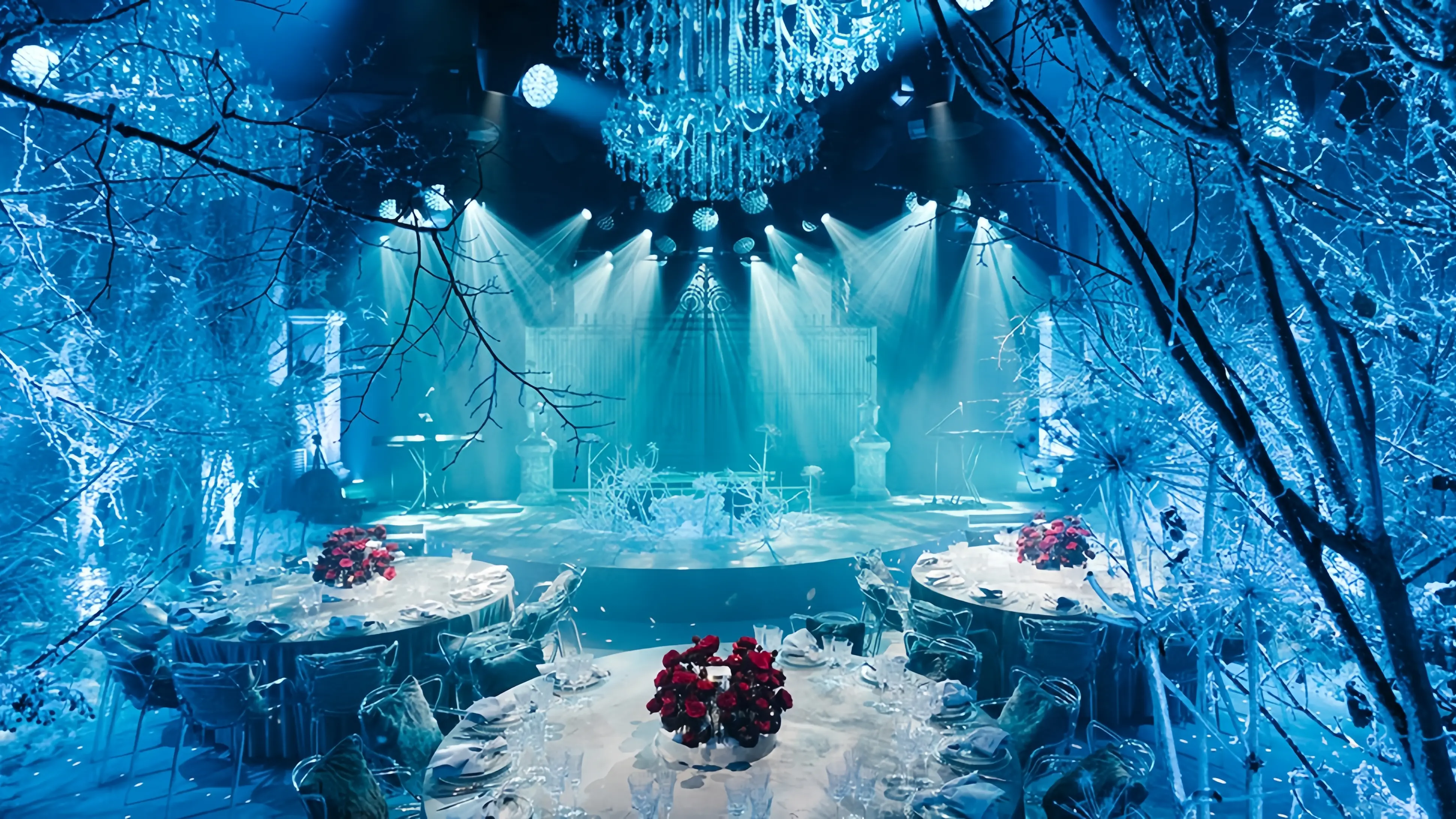

Overview of Wedding and Event Lighting Project
A wedding and banquet hall lighting system should not only deliver attractive visual effects, but also meet the practical requirements of stage performance, hosting, photography, banquet service and venue operation. For high-end hotel and banquet hall projects, the lighting system needs to balance performance quality with long-term stability.
In this project example, the lighting design is developed according to high-end domestic banquet hall requirements while also referencing the strengths of comparable systems in international markets. The final configuration emphasizes professional LED stage lighting, moving head fixtures, beam effects, laser lights and follow spotlights to create a complete and modern venue lighting system.
The result is a scientifically planned lighting solution with strong technical performance, reliable system stability, practical operation and good expansion potential for future management and upgrade needs.
Wedding and Event Lighting Design Basis
- Wedding Architectural Design Code
- Architectural Design Code for Fire Protection
- Lighting and Light Pollution Limitation Standards for Cabaret Halls
- Testing and Evaluation of Optical Quality of Stage Lighting
- Safety Requirements for Ventilated Luminaires
- Design Code for Integrated Wiring Engineering of Buildings and Building Groups
- Code for Acceptance of Integrated Wiring System Engineering for Buildings and Building Groups
- Code for Construction and Acceptance of Electrical Lighting Devices in Electrical Installation Engineering
- Code for Construction Quality Acceptance of Grounding Devices in Electrical Installation Projects
- Code for Design of Low-Voltage Distribution Devices and Circuits
- Design Code for Power Supply and Distribution System
- Low Voltage Distribution Design Code
- Architectural Lighting Design Standards
- Electrical Design Code for Civil Buildings
Core Principles of Wedding and Event Lighting Design
Advancement
The equipment selected for the project follows advanced design thinking and uses professional lighting products that meet leading performance standards in the domestic market.
Practicality
The system must satisfy the main needs of wedding and banquet venues while also supporting multiple event functions and flexible operation.
High Stability
All products must be able to operate safely for long periods, even in demanding venue environments with continuous use.
Compatibility
Lighting products should work safely and stably when integrated with other venue equipment and control systems.
Scalability
Equipment planning must reserve space for future system upgrades, maintenance and expansion.
Economy
The design should avoid unfocused spending and instead allocate budget to the areas that most directly improve venue performance and visual quality.

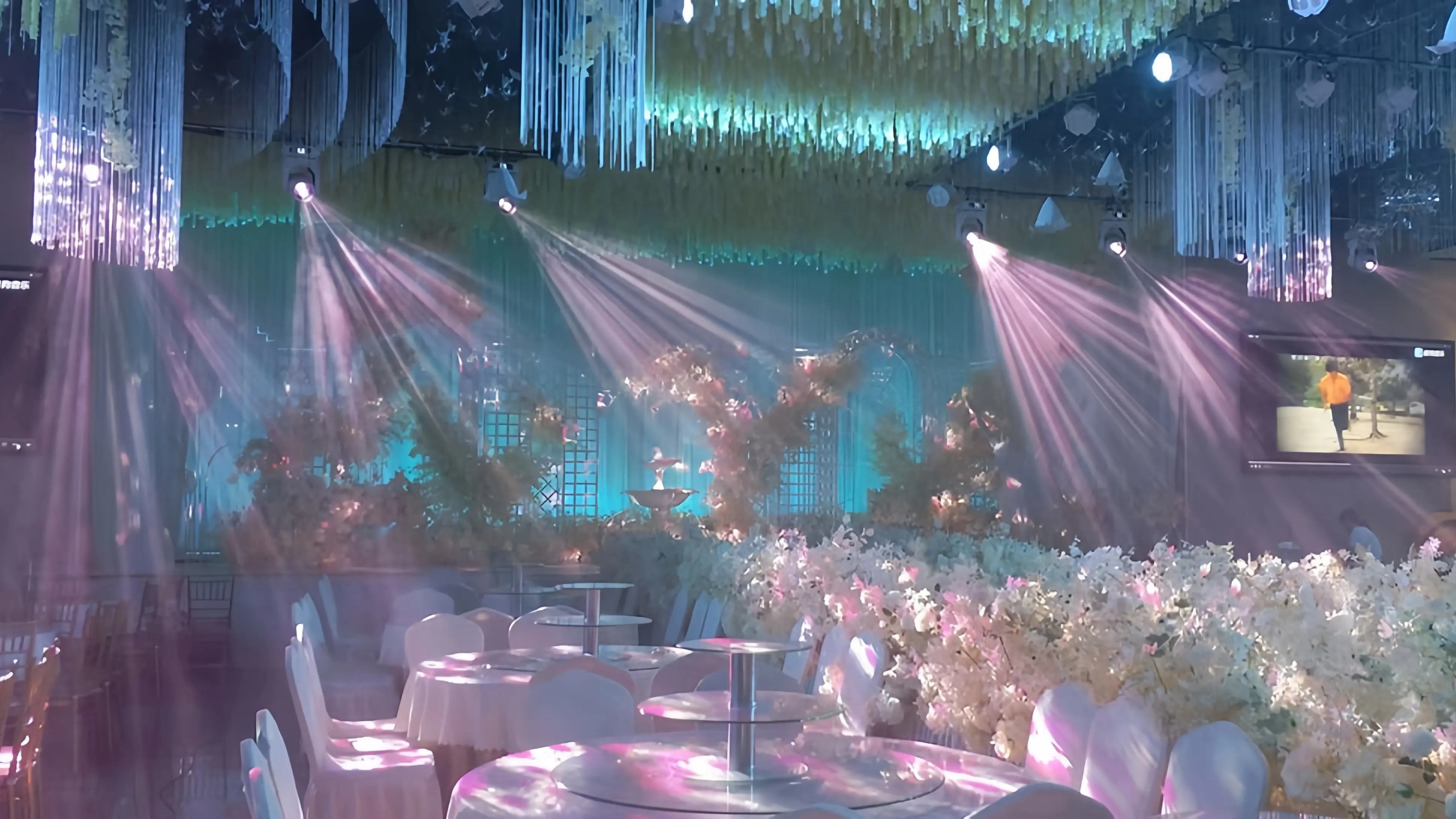

Wedding and Event Lighting Design Ideas
In weddings and banquets, music, singing and dancing often become the main body of entertainment, while lighting plays a supporting yet highly influential role. Lighting uses brightness, color, beam shape and scene changes to support sound and help guests fully enter the emotional atmosphere of the event.
The rhythm of lighting changes must align with the rhythm and tone of the program. If the lighting system cannot adapt properly, it may weaken the event atmosphere rather than enhance it. For this reason, flexible control and maintainability are major priorities in wedding and banquet hall lighting design.
This solution reserves room for future management and system upgrades while ensuring commonality and compatibility with other venue equipment. Structural rationality and standardized engineering design also help shorten maintenance time and improve long-term service reliability.
Instructions for Lamp Position Layout
Advanced and reasonable lighting system configuration is the prerequisite for achieving the overall stage lighting design goals. The arrangement of lamp positions is an important sign of lighting design level. In this solution, stage lighting positions are designed in an all-round three-dimensional distribution.
Surface light, side light, top light, backlight and follow spotlight areas form a full lighting array. Distribution points are arranged across the stage to eliminate dead zones and support flexible combinations according to performance needs.
Surface Light Design Configuration
Surface light is mainly used to illuminate the front area of the stage and provide front lighting for performers. In this plan, 10 LED stage wash lights are used to ensure uniform light distribution and stable illumination.
- Vertical projection for even front-stage lighting
- Cross projection for stronger center brightness and stage depth
- Key projection for local performance enhancement
Top Light and Backlight Configuration
Top lights are arranged every 2 meters above the stage. This design uses LED stage soft lights, LED stage spotlights, moving head computer lights and animated laser effects.
- First top light: 8 LED soft lights and 3 moving head lights
- Second top light: 8 LED soft lights and 3 moving head lights
- Third top light: 8 LED soft lights and 3 moving head lights
- Backlight: 10 LED stage spotlights and 2 animated laser lights
Side Light Configuration
Side lights create stronger directionality and help shape three-dimensional stage modeling. In this plan, each left and right side light area is equipped with 6 LED stage soft light fixtures.
- Improves character contour
- Enhances scene hierarchy
- Supports unilateral and bilateral modeling effects
Follow Spotlight Configuration
Follow spotlights are used to track actors, speakers or performers and increase audience focus. This plan includes 2 remote and high-efficiency follow spotlights.
- Supports half-body and full-body tracking
- Suitable for speeches, ceremonies and featured performances
- Can also support abstract and dramatic stage effects
Stage Floor Effect Configuration
To improve dynamic stage effects, 4 moving head beam lights are used. In addition, 2 digital haze machines are arranged to enrich atmosphere and enhance beam visibility.
- 4 moving head beam lights
- 2 digital haze machines
- Professional lighting console for scene programming
System Conclusion
This solution fully considers reliability, advancement, rationality and economy, and builds an intelligent lighting system with flexible control, convenient operation and complete functions for wedding and banquet applications.
Example Wedding and Event Lighting Equipment Configuration
Front Stage Lighting
- 10 LED stage wash lights
- Uniform front coverage for ceremonies and speeches
- Supports character shaping and three-dimensional effect
Top and Back Lighting
- 24 LED stage soft lights
- 9 moving head computer lights
- 10 LED stage spotlights
- 2 animated laser lights
Side and Follow Lighting
- 12 LED stage soft lights for side lighting
- 2 high-efficiency follow spotlights
- 4 moving head beam lights
- 2 digital haze machines

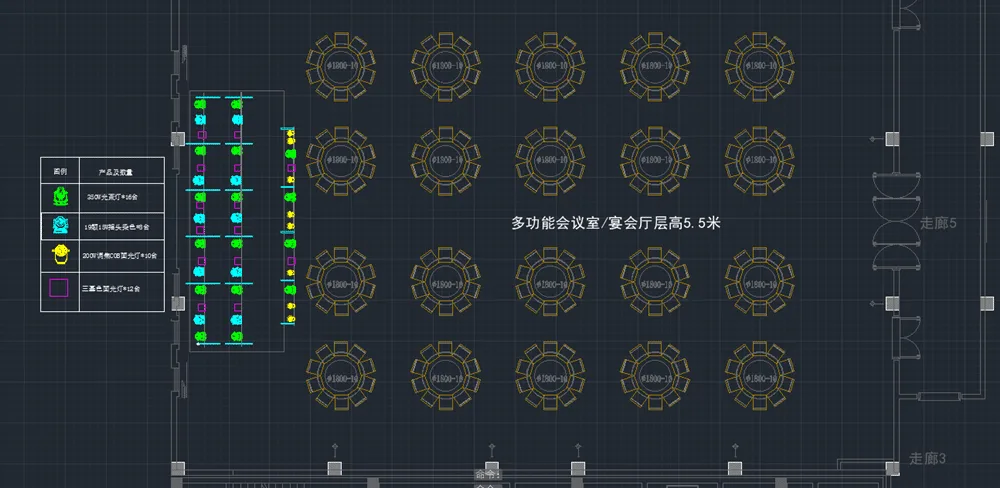

Wedding Lighting Design CAD Drawing
You can place your CAD drawing image, stage lighting layout plan or venue design drawing here. For better conversion, it is recommended to use the real project CAD image from your completed wedding and banquet hall case.

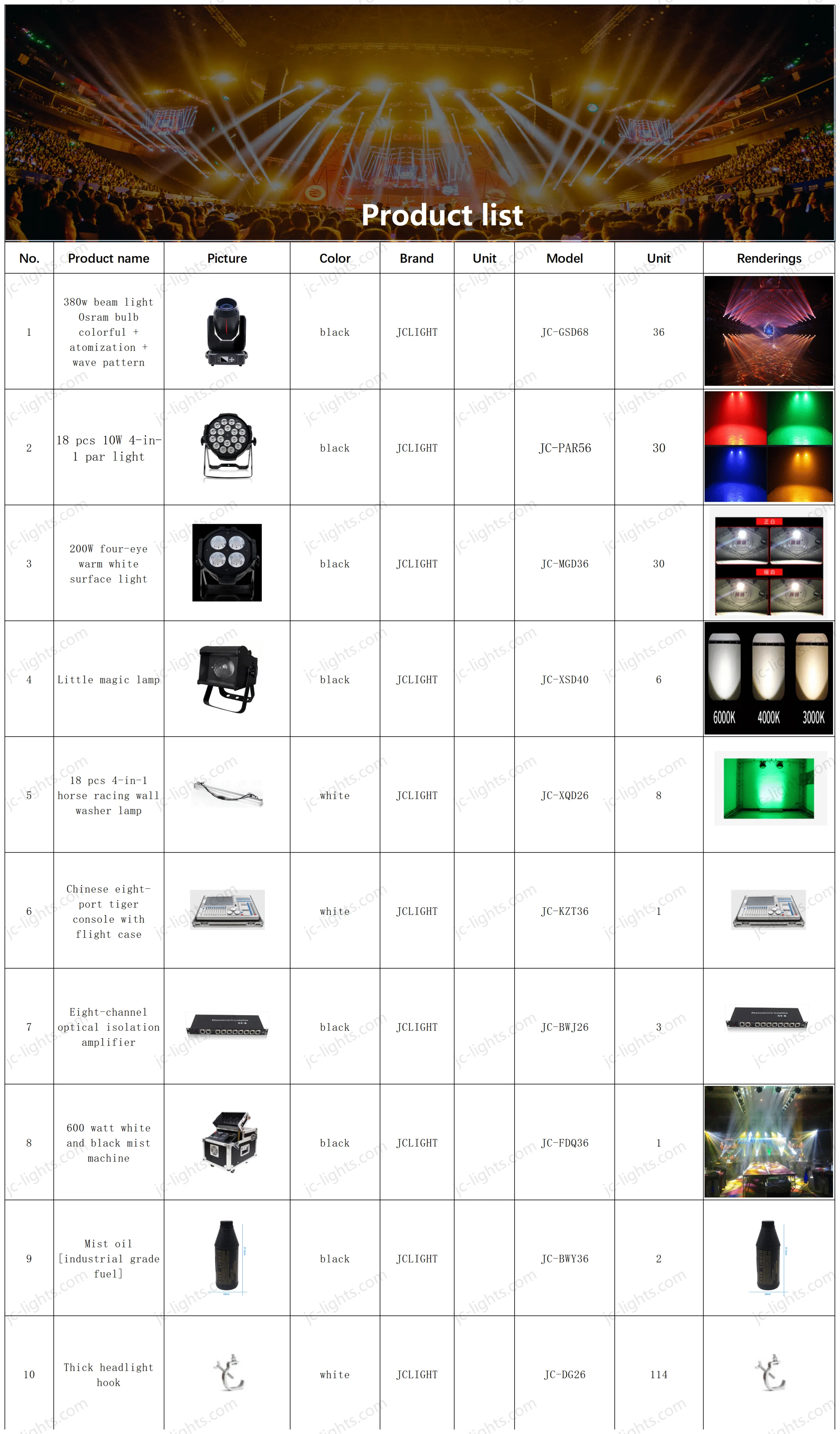

Wedding Lighting Equipment Quotation List
You can place the project equipment quotation list image, fixture quantity table or pricing sheet here. A quotation screenshot or structured table can strengthen B2B trust and increase inquiry conversion.
Frequently Asked Questions
Wedding and banquet hall projects commonly use LED stage wash lights, LED soft lights, moving head lights, beam lights, laser lights, follow spotlights and supporting control equipment. The final configuration depends on stage size, venue layout, visual effect goals and budget.
Yes. JC LIGHT can provide custom wedding and event lighting solutions based on venue dimensions, stage size, ceiling height, performance requirements and project budget.
Yes. JC LIGHT supports OEM, ODM, wholesale supply and project-based lighting equipment solutions for distributors, contractors and venue buyers.
Please provide venue dimensions, stage width and depth, ceiling height, event application, required lighting effects and budget range. This helps us recommend a more accurate system plan.
