Description
Effect:
200W LED Beam Moving Head Light with Gobo, Prism and Wash Effect

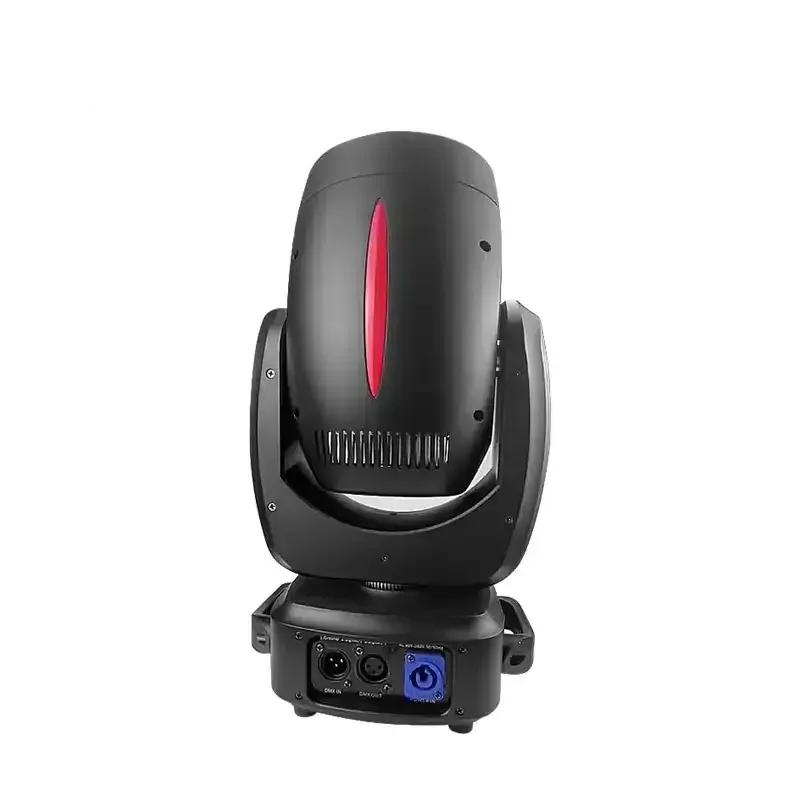

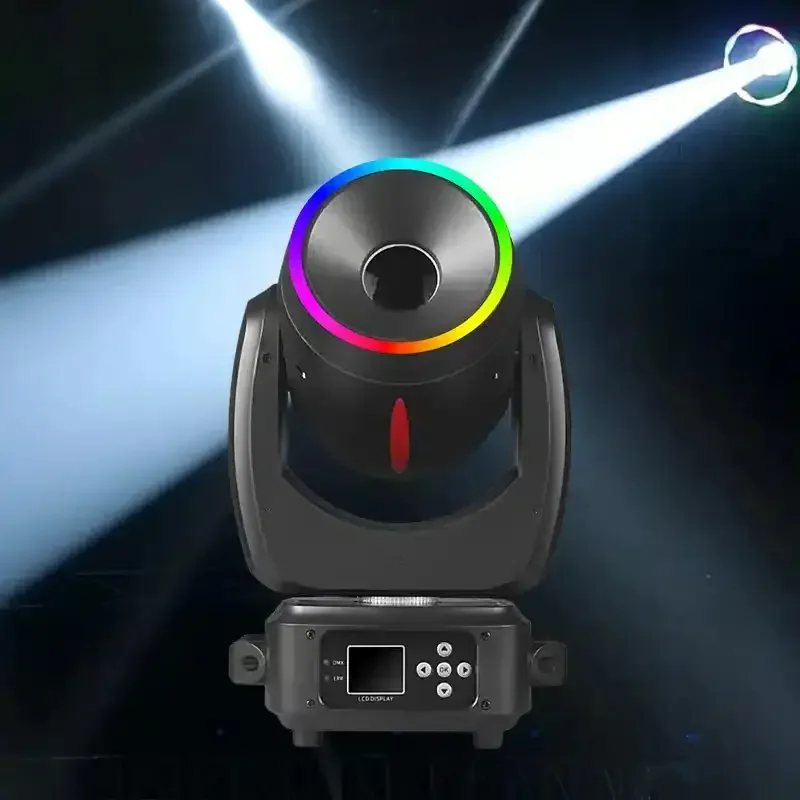

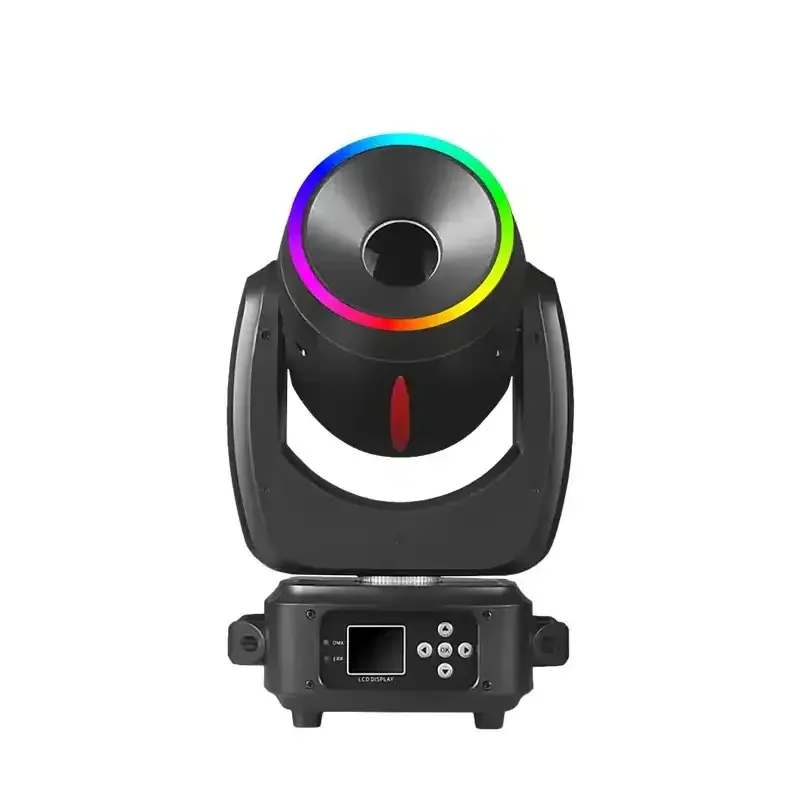

The JC LIGHT YDF200 200W LED Beam Moving Head Light is a compact professional lighting fixture designed for concerts, clubs, stages, weddings and entertainment applications. Featuring a high-output 200W LED source, narrow 1.8-2.4° beam angle, gobo projection, prism effects and atomizing wash effects, it delivers versatile lighting performance in a lightweight design.
Equipped with 11 colors plus white, 14 gobos, rotatable 6+12 prism, 0-100% linear dimming and 1-25Hz strobe, the YDF200 provides dynamic aerial beam effects and creative stage visuals. It supports DMX512, master-slave, auto-run and sound control modes for flexible operation.
Key Features
- 200W professional LED beam moving head light
- Ultra-narrow 1.8-2.4° beam angle
- 11 colors plus white color wheel
- 14 gobo wheel plus open
- 6+12 rotatable prism effect
- Rainbow color effect
- Atomizing mirror for wash effect
- 0-100% linear dimming
- 1-25Hz adjustable strobe effect
- 540° pan movement
- 270° tilt movement
- DMX512 control
- Master-slave operation
- Auto-run mode
- Sound control mode
- Compact and lightweight design
Technical Specifications
| SKU | YDF200 |
| Product Type | LED Beam Moving Head Light |
| Input Voltage | AC100-240V, 50/60Hz |
| Rated Power | 200W |
| Light Source | 200W LED |
| Optical Angle | 1.8-2.4° |
| Color Wheel | 11 Colors + White |
| Gobo Wheel | 14 Gobos + Open |
| Prism | 6+12 Rotatable Prism |
| Special Effects | Rainbow Effect + Atomizing Wash Effect |
| Dimming | 0-100% Linear Dimming |
| Strobe | 1-25 Flashes/Second |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Control Modes | DMX512 / Master-Slave / Auto-Run / Sound |
| DMX Channel | 13CH |
| Product Size | 18.5 × 24 × 40 cm |
| Package Size | 47 × 31 × 27 cm |
| Net Weight | 7.00 kg |
| Gross Weight | 8.63 kg |
200W High Output LED Beam Source
The YDF200 uses a 200W LED light source combined with a narrow 1.8-2.4° optical system to create concentrated beam effects suitable for stage shows, clubs and entertainment environments.
Ultra Narrow Beam Effect
The narrow beam design produces sharp aerial light rays with strong visual impact, making it suitable for atmospheric lighting effects in dark environments and large entertainment spaces.
11 Colors Plus White Color System
The integrated color wheel provides 11 colors plus white, allowing lighting designers to create colorful beam scenes and dynamic color transitions.
14 Gobo Projection Effects
The fixture includes a 14 gobo wheel plus open position, providing patterned projections for stage decoration, events and entertainment lighting designs.
Rotatable 6+12 Prism Effect
The 6+12 rotatable prism system splits the beam into multiple rays, creating expanded aerial effects and richer visual patterns.
Rainbow and Wash Effects
The YDF200 features a six-color rainbow effect and an atomizing mirror system that creates a soft wash effect, allowing one fixture to achieve both beam and wash-style lighting effects.
Professional Movement System
The fixture provides 540° pan and 270° tilt movement, allowing flexible positioning and accurate movement programming for professional lighting systems.
Linear Dimming and Strobe Effects
With 0-100% linear dimming and adjustable 1-25Hz strobe, the fixture supports smooth fades and dynamic flashing effects.
Flexible Control Modes
The YDF200 supports DMX512, master-slave, auto-run and sound control modes, making it suitable for professional console operation or standalone use.
Compact and Lightweight Design
With a net weight of only 7kg, the YDF200 is easy to transport and install, making it suitable for mobile DJs, rental companies and small-to-medium stage applications.
Application Scenarios
- Concert stages
- Nightclubs
- DJ performances
- Wedding events
- Live entertainment shows
- Bars and clubs
- Small and medium stage productions
- Rental lighting systems
- Event decoration lighting
Why Choose JC LIGHT
- Professional LED beam moving head manufacturer
- 200W compact beam lighting solution
- Ultra-narrow 1.8-2.4° beam output
- Gobo, prism and wash effects integrated
- Lightweight design for easy transportation
- Multiple control modes
- Suitable for rental companies and event suppliers
- OEM and ODM lighting solutions available
YDF200 200W LED Beam Moving Head Light FAQ
What is the power of the YDF200 moving head light?
The YDF200 uses a 200W LED light source.
What is the beam angle of this LED beam light?
The fixture provides an ultra-narrow 1.8-2.4° optical beam angle.
How many gobos does the fixture have?
The fixture includes a 14 gobo wheel plus open position.
What prism effects are included?
It includes a 6+12 rotatable prism system.
Does the YDF200 support wash effects?
Yes. The fixture includes an atomizing mirror wash effect.
What control methods are supported?
It supports DMX512, master-slave, auto-run and sound control.
How much does the YDF200 weigh?
The net weight is 7.00kg, making it suitable for mobile and rental applications.
Where can the YDF200 LED beam light be used?
It is suitable for concerts, clubs, DJ events, weddings, stages and professional rental lighting applications.
