JC LIGHT Three Heads Fire Machine OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT Three Heads Fire Machine OEM
Get factory pricing, OEM support and delivery information for this product.
- Description
- Details
Description
Effect:
Video:

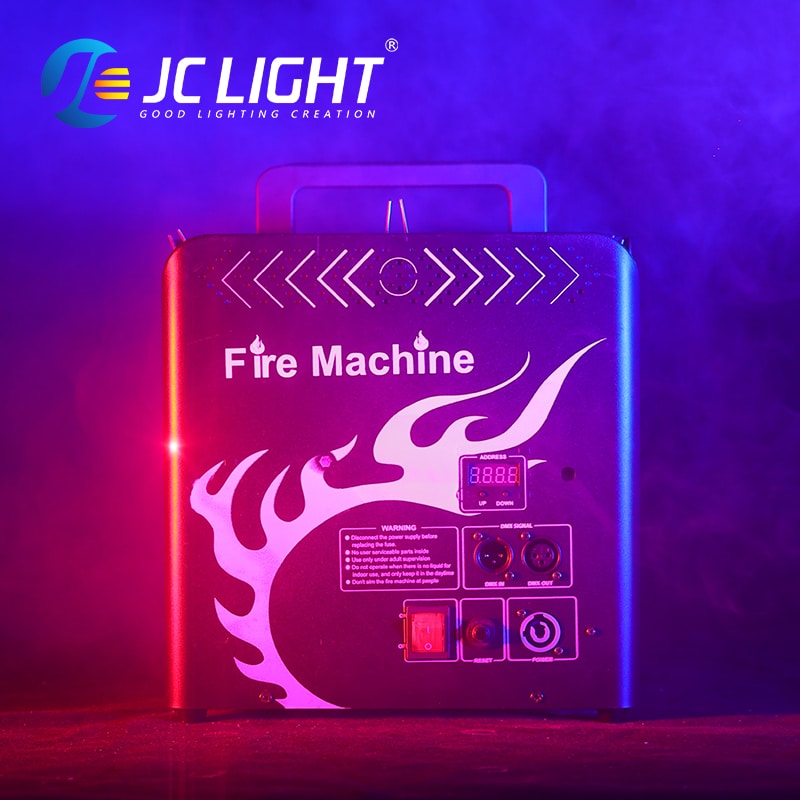

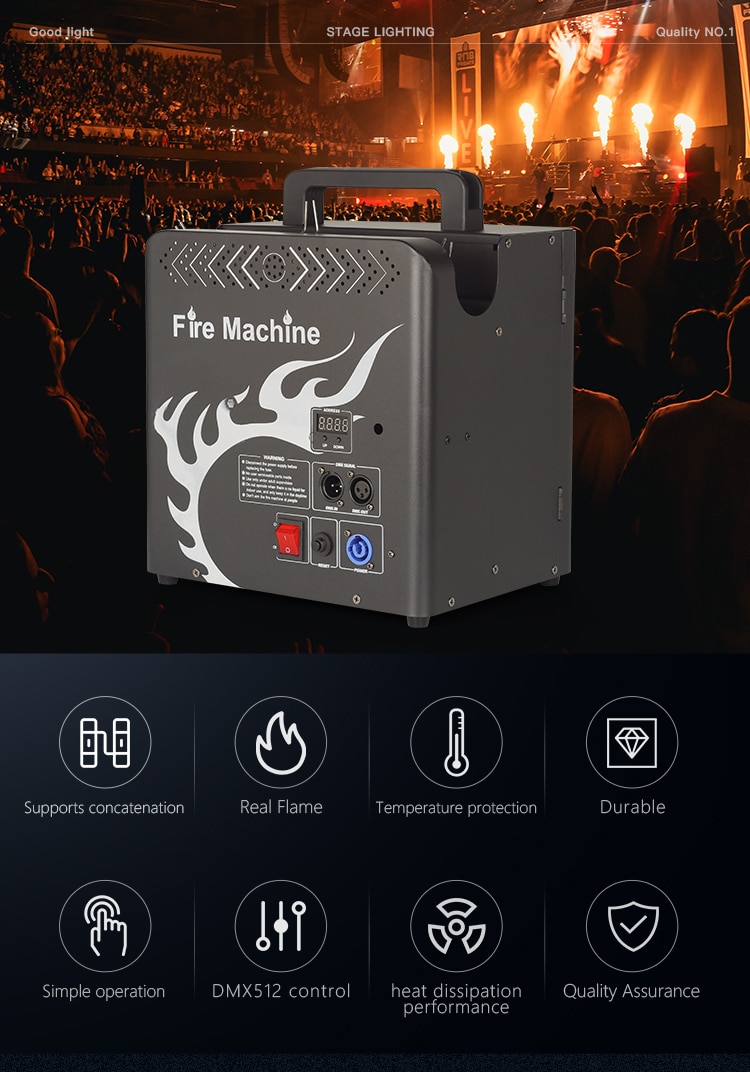

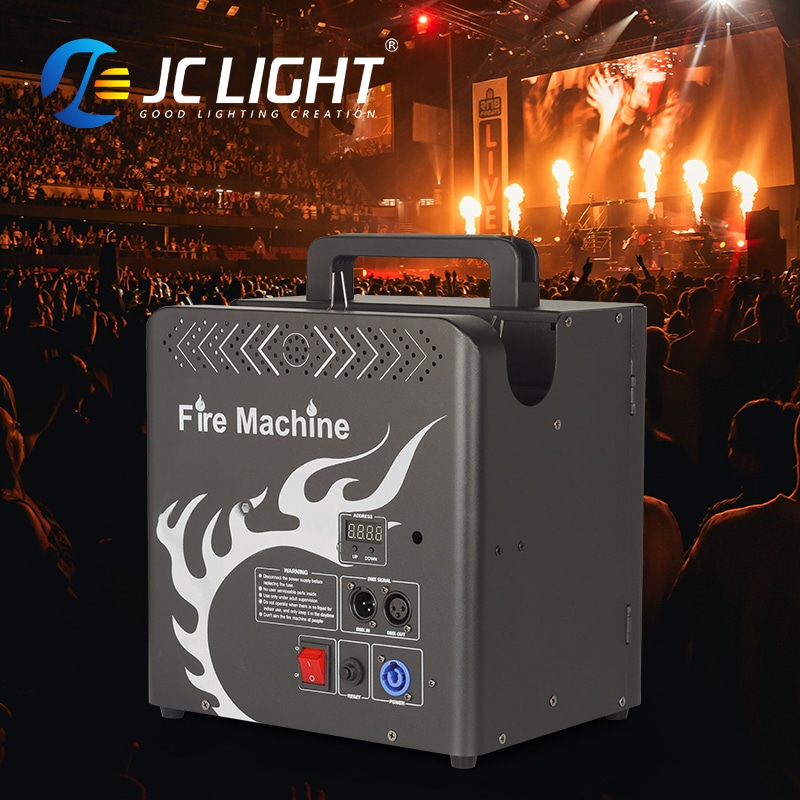

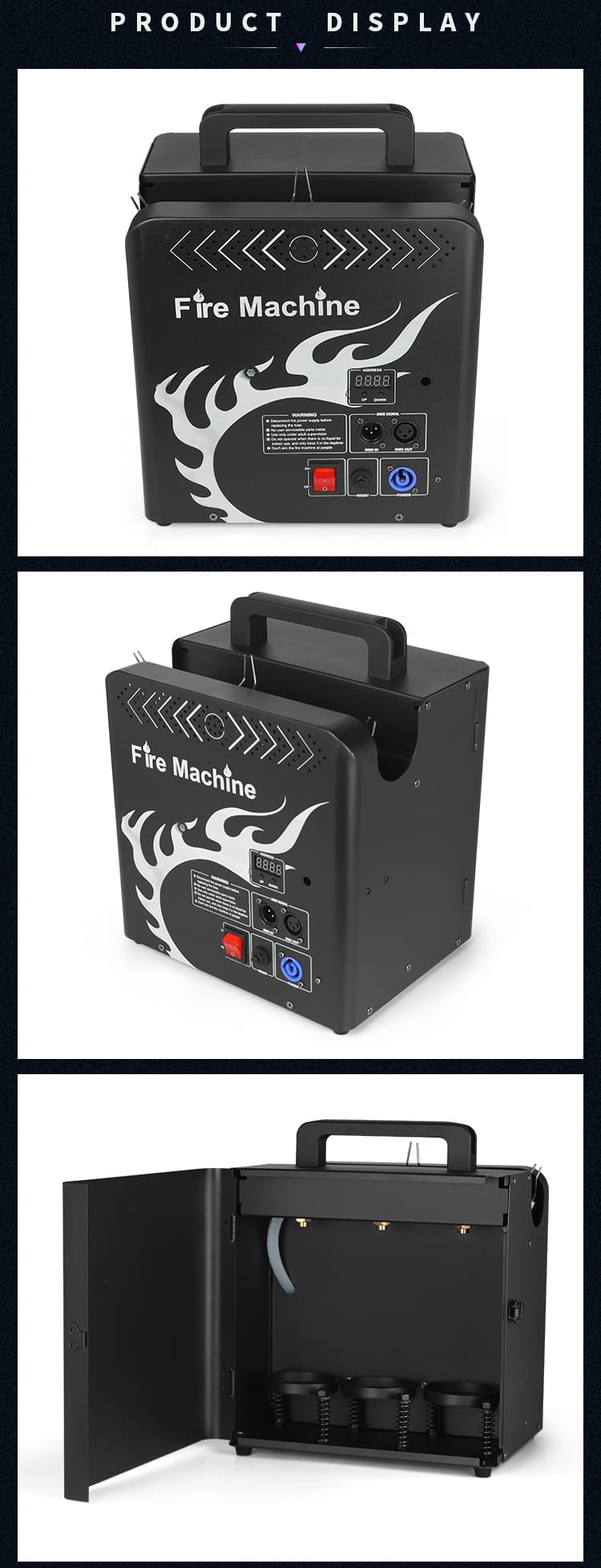

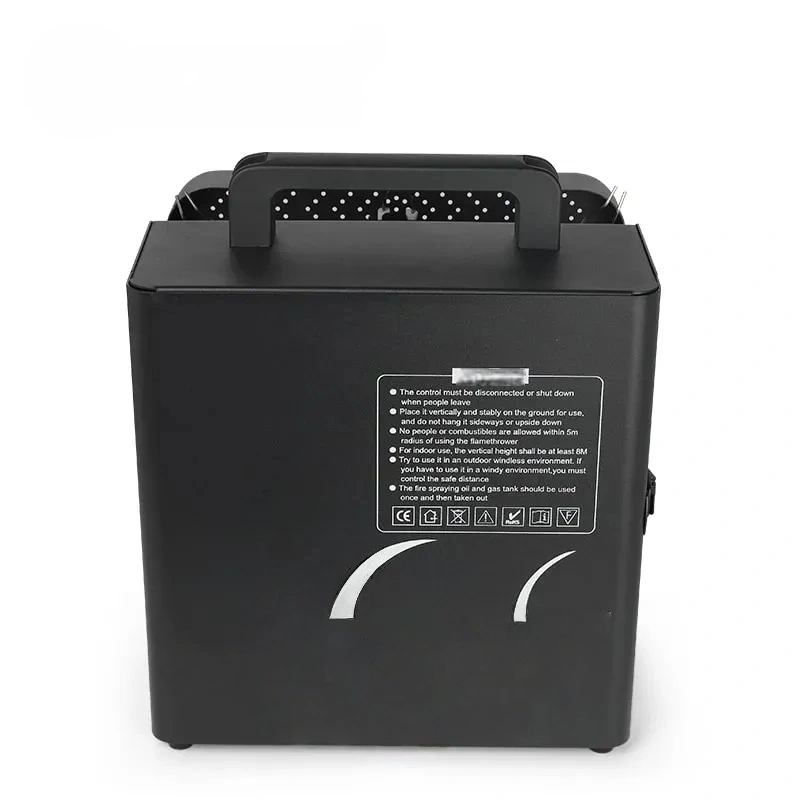

K38 300W Three-Nozzle Flame Machine with DMX Control
The JC LIGHT K38 300W Three-Nozzle Flame Machine is a professional stage effect fixture designed for concerts, festivals, clubs, live performances and event productions. Featuring three independently controlled nozzles, it can create dramatic 3-4 meter fireball effects and 2-3 meter fire column effects.
With 5-channel DMX control, each nozzle can be triggered individually or all three can operate together. The fixture also provides point-spray and continuous-spray modes, giving stage designers flexible control over different flame effect sequences.
Key Features
- 300W professional stage flame effect machine
- Three-nozzle flame effect design
- Fireball height approximately 3-4 meters
- Fire column height approximately 2-3 meters
- Independent control of left, middle and right nozzles
- Three-nozzle simultaneous firing control
- Point-spray mode
- Continuous-spray mode up to 5 seconds
- 5-channel DMX control
- DMX address adjustment through display buttons
- Compact design for stage and event installations
Technical Specifications
| Short Model Number | K38 |
| Product Type | Three-Nozzle Flame Machine |
| Voltage | AC220V, 50/60Hz |
| Power Consumption | 300W |
| Fireball Height | 3-4 Meters |
| Fire Column Height | 2-3 Meters |
| DMX Channel | 5CH |
| Channel 1 | Left Nozzle |
| Channel 2 | Middle Nozzle |
| Channel 3 | Right Nozzle |
| Channel 4 | Three Nozzles Together |
| Channel 5 | Mode Switching: Default Point Spray; Push Up for Continuous Spray, Maximum 5 Seconds |
| DMX Address Setting | Plus / Minus Buttons at the Bottom of the Display Screen |
| Product Size | 29 × 23 × 34 cm |
| Package Size | 36 × 30 × 39 cm |
| Gross Weight | 8.3 kg |

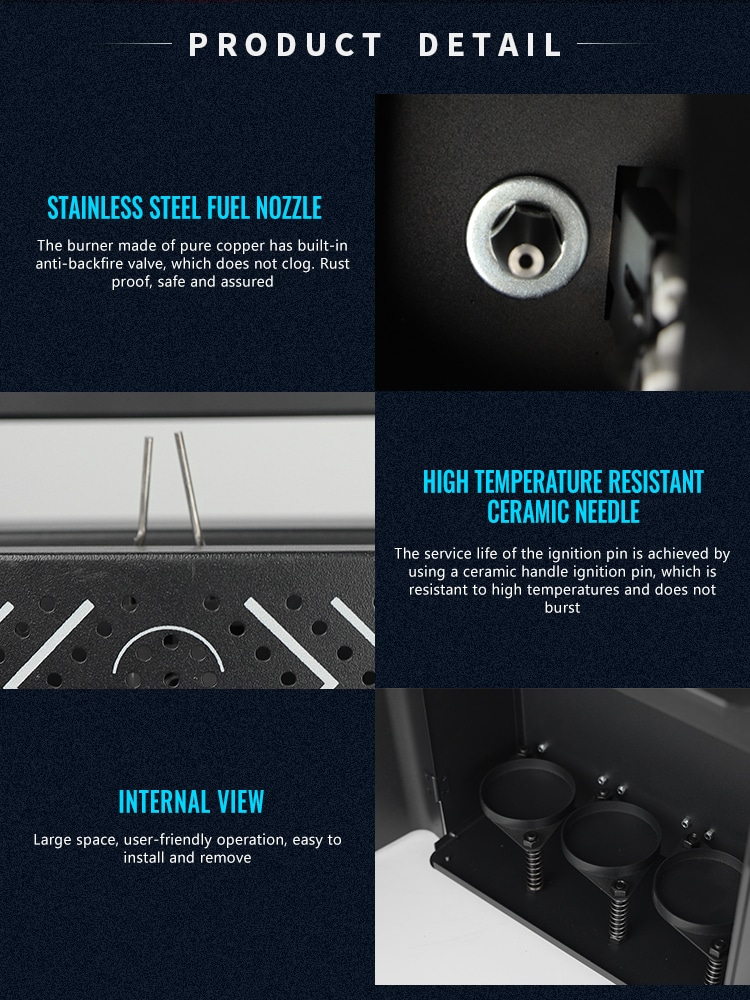

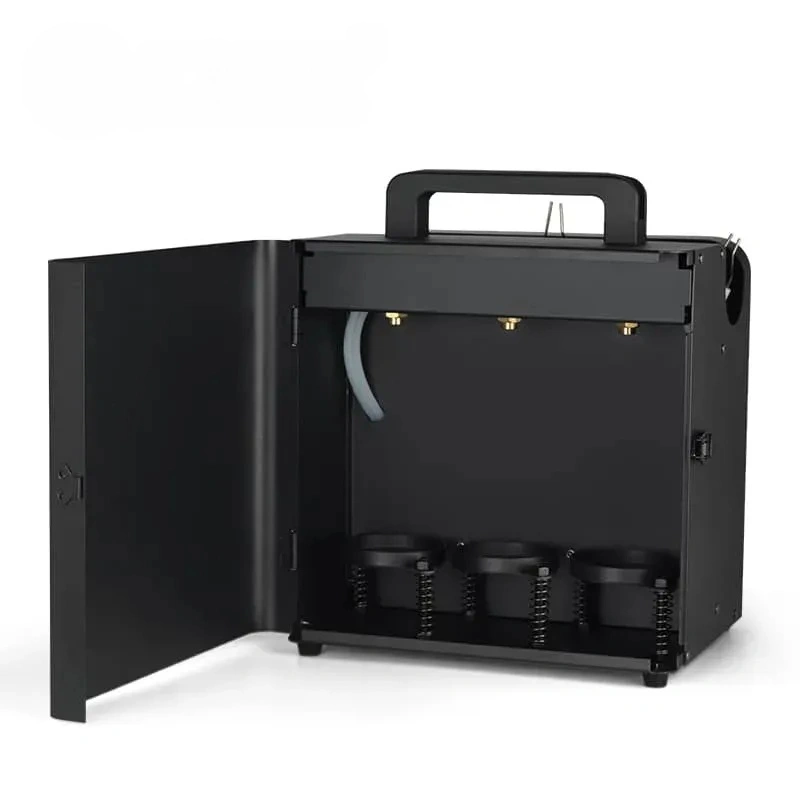

Three-Nozzle Flame Effect Design
The K38 features three separately controlled nozzles, allowing operators to trigger the left, middle and right flame effects independently or activate all three together for stronger visual impact.

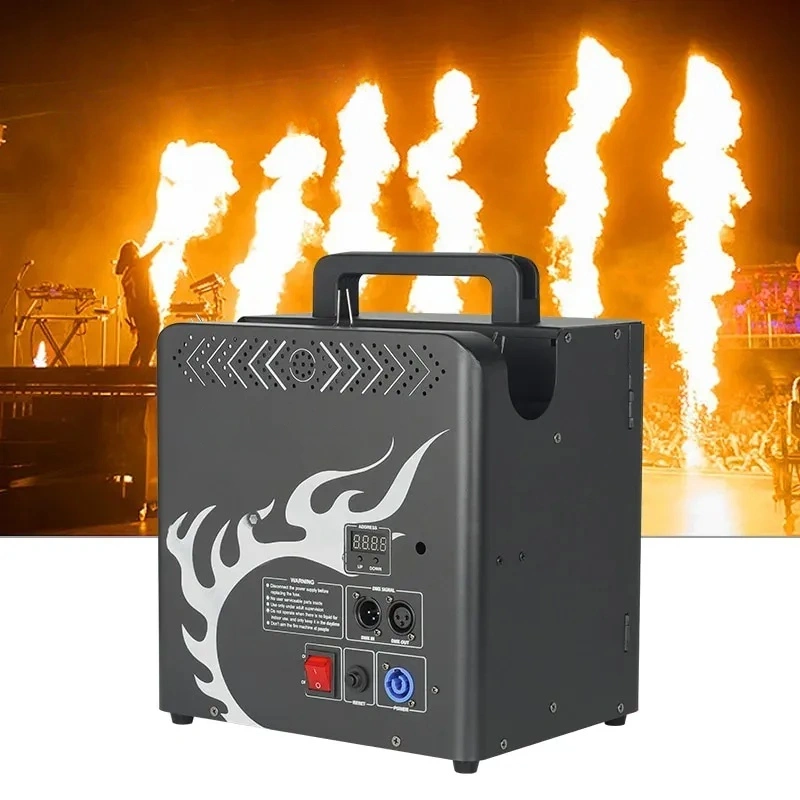

Fireball and Fire Column Effects

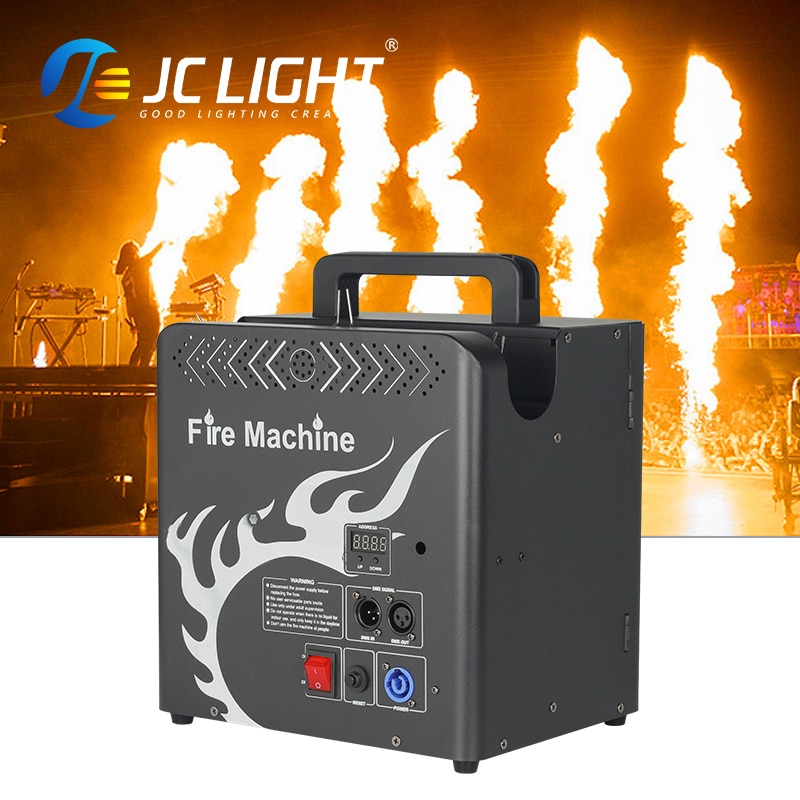

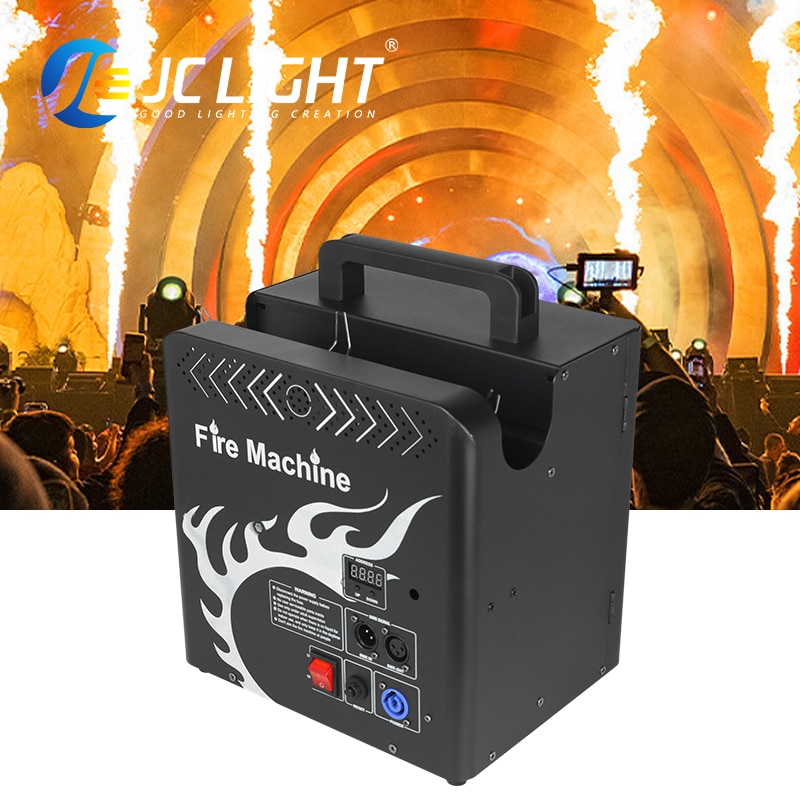

The fixture can produce 3-4 meter fireball effects and 2-3 meter fire column effects, creating dramatic visual moments for stage performances and live entertainment productions.
5-Channel DMX Control
The K38 uses a 5-channel DMX configuration. Channels 1-3 control the individual nozzles, Channel 4 activates all three nozzles together, and Channel 5 switches between spray modes.
Point and Continuous Spray Modes
The default mode is point spray. Through Channel 5, the fixture can switch to continuous spray mode, with a maximum continuous duration of 5 seconds.
Simple DMX Address Setting
DMX address values can be adjusted using the plus and minus buttons located at the bottom of the display screen, simplifying setup during stage installation.

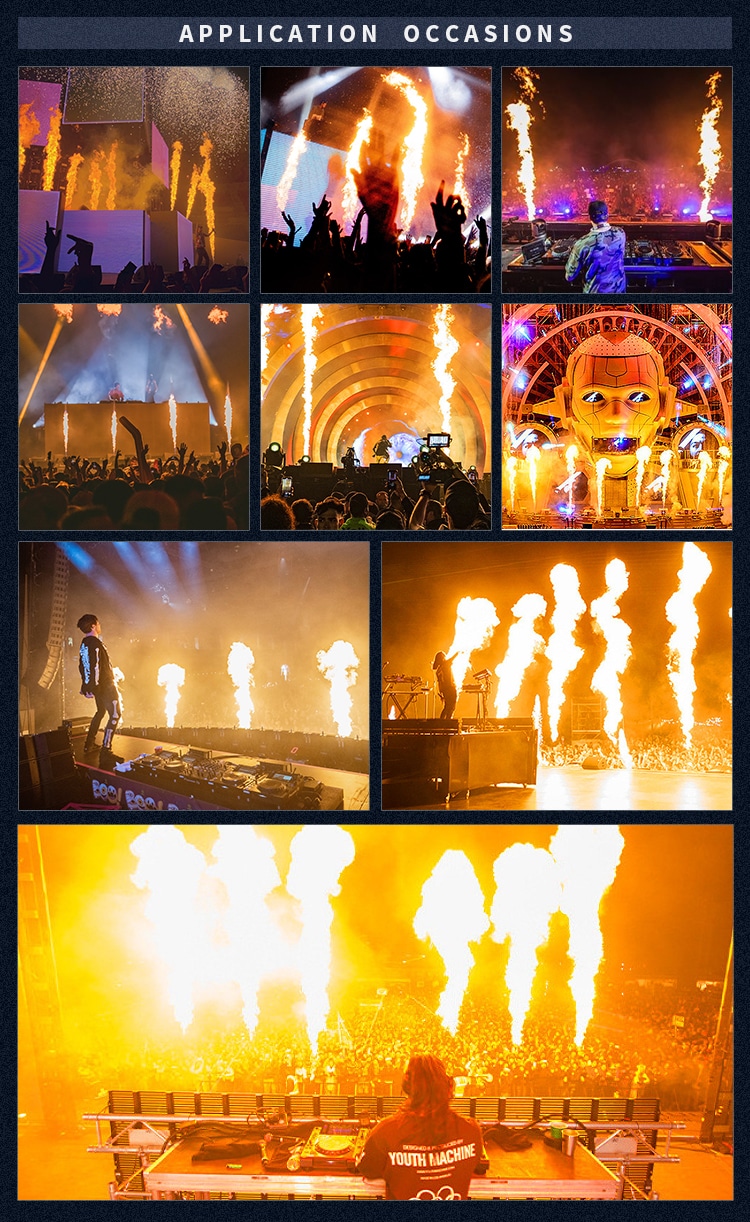

Application Scenarios
- Concert stages
- Music festivals
- Nightclubs
- DJ performances
- Live shows
- Stage productions
- Entertainment venues
- Professional event rental projects
Why Choose JC LIGHT
- Professional stage effect equipment manufacturer
- Three-nozzle flame effect solution
- Independent DMX nozzle control
- Multiple flame effect modes
- Compact stage effect design
- Suitable for event and rental projects
- OEM and ODM stage effect solutions available
K38 300W Three-Nozzle Flame Machine FAQ
How many nozzles does the K38 flame machine have?
The K38 features three flame nozzles.
How high is the fireball effect?
The specified fireball height is approximately 3-4 meters.
How high is the fire column effect?
The specified fire column height is approximately 2-3 meters.
Can the three nozzles be controlled separately?
Yes. Channels 1, 2 and 3 control the left, middle and right nozzles individually.
Can all three nozzles fire together?
Yes. Channel 4 controls all three nozzles together.
Does the K38 support continuous spray?
Yes. Channel 5 can switch from the default point-spray mode to continuous spray mode for up to 5 seconds.
How many DMX channels does the K38 use?
The K38 uses 5 DMX channels.
Where can the K38 flame machine be used?
It is suitable for concerts, festivals, clubs, live shows, stage productions and professional event rental projects.
Need wholesale pricing for the JC LIGHT K38 Three-Nozzle Flame Machine? Contact JC LIGHT for OEM, ODM and professional stage effect project solutions.
