JC LIGHT Waterproof 10x40W LED Pixel Zoom Matrix Light OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT Waterproof 10x40W LED Pixel Zoom Matrix Light OEM
Get factory pricing, OEM support and delivery information for this product.
- Description
Description
Effect:
Video:

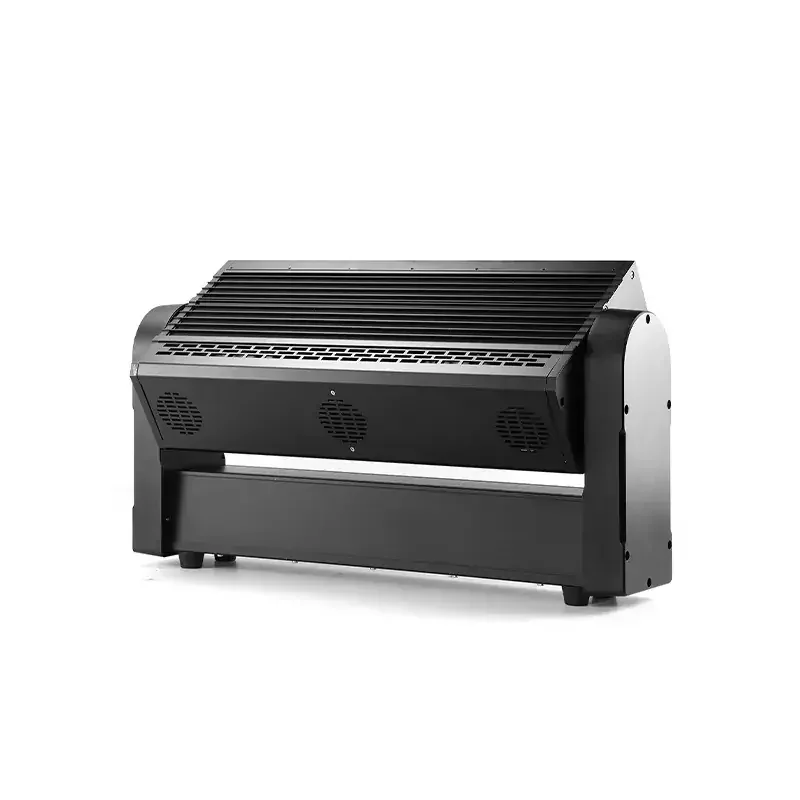

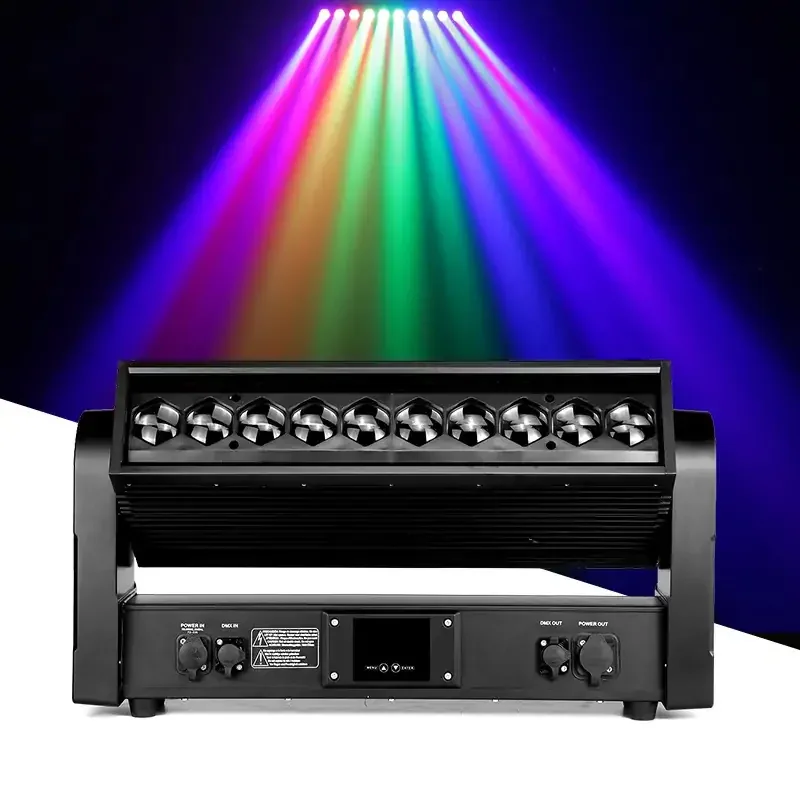

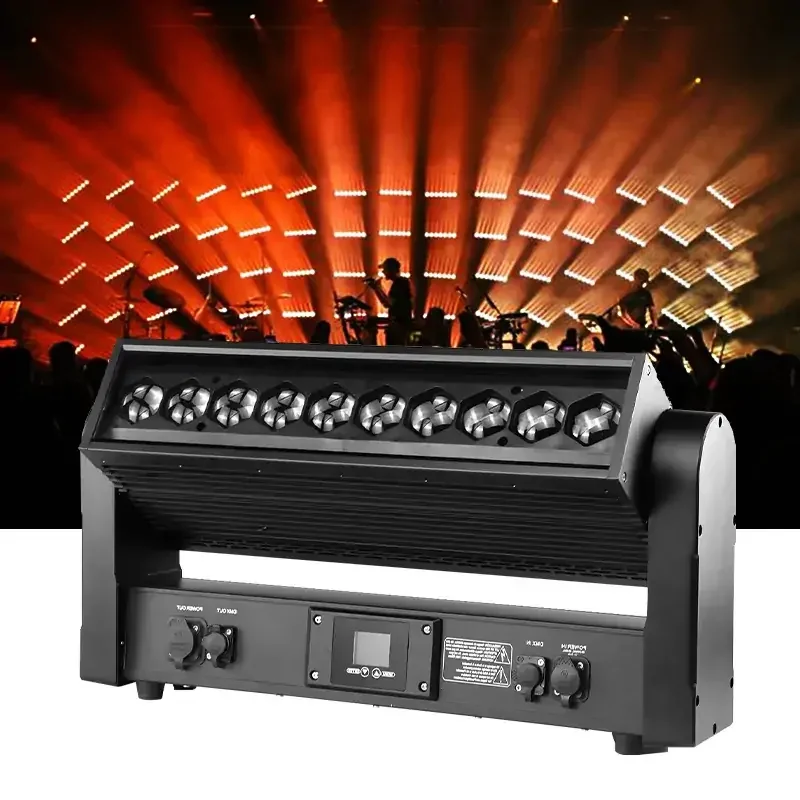

450W 10x40W RGBW IP65 Moving Bar Light with 5.8°-60° Zoom
This professional 450W RGBW moving bar light is equipped with 10 × 40W RGBW 4-in-1 LEDs and combines beam and wash effects in one fixture. With a wide 5.8°-60° zoom range, independent LED control and 240° tilt movement, it is designed for concerts, festivals, touring productions, clubs and professional rental lighting systems.
The fixture features 32-bit linear dimming, multiple DMX channel modes, DMX and power input/output connections and IP65 protection. Its aluminum alloy housing provides a durable structure for professional indoor and outdoor stage lighting applications.
Key Features
- 450W professional RGBW moving bar light
- 10 × 40W RGBW 4-in-1 LEDs
- Individual LED control
- 5.8°-60° zoom range
- Beam and wash effects
- 32-bit 0-100% linear dimming
- 240° tilt movement
- DMX512 control
- Master-slave mode
- Auto-run mode
- Sound control mode
- Multiple DMX channel configurations
- 3-pin XLR DMX input and output
- Power input and output
- Black aluminum alloy housing
- IP65 protection rating
- Suitable for professional indoor and outdoor lighting applications
Technical Specifications
| Product Type | RGBW Moving Bar Light |
| Input Voltage | AC85-265V, 50/60Hz |
| Power Consumption | 450W |
| Light Source | 10 × 40W RGBW 4-in-1 LEDs |
| LED Control | Individual LED Control |
| Zoom | 5.8°-60° |
| Effects | Beam / Wash |
| Dimming | 32-Bit 0-100% Linear Dimming |
| Tilt Movement | 240° |
| Control Modes | DMX512 / Master-Slave / Auto / Sound |
| DMX Channels | 33 / 19 / 34 / 28 / 29 / 48 / 49CH |
| DMX Connection | 3-Pin XLR Input / Output |
| Power Connection | Power Input / Output |
| Housing Material | Aluminum Alloy |
| Housing Color | Black |
| IP Rating | IP65 |
| Product Size | 62 × 123 × 35 cm |
| Net Weight | 15.7 kg |
10x40W RGBW 4-in-1 LED System
The fixture uses 10 × 40W RGBW 4-in-1 LEDs, combining red, green, blue and white output for flexible color mixing. Independent LED control allows more detailed programming across the fixture for dynamic stage effects.
5.8°-60° Zoom for Beam and Wash Effects
A wide 5.8°-60° zoom range allows the fixture to transition from a concentrated beam effect to broad wash coverage. This makes it suitable for different stage sizes, mounting positions and lighting designs.
Individual LED Control
Each LED can be controlled independently, allowing lighting programmers to create pixel-style sequences, segmented color effects and dynamic chases across the fixture.
240° Tilt Movement
The fixture provides 240° tilt movement, allowing the light output to sweep vertically across the stage and create moving beam and wash effects during live performances.
32-Bit Linear Dimming
A 32-bit 0-100% linear dimming system provides smooth intensity transitions for fades, scene changes and programmed effects.
Multiple DMX Channel Modes
The fixture offers 19, 28, 29, 33, 34, 48 and 49-channel DMX modes, giving programmers flexibility between simplified operation and more detailed control.
DMX and Power Input / Output
The unit is equipped with 3-pin XLR DMX input and output together with power input and output connections, simplifying integration into multi-fixture stage lighting systems.
IP65 Outdoor Protection
With an IP65 protection rating, the fixture is suitable for professional indoor and outdoor event environments where protection against dust and water exposure is required.
Application Scenarios
- Concert stages
- Music festivals
- Touring productions
- Outdoor event stages
- Indoor live performances
- Nightclubs and entertainment venues
- DJ events
- Wedding and event lighting
- Large ceremony stages
- Professional rental lighting systems
- Fixed stage lighting installations
Why Choose JC LIGHT
- Professional moving bar light manufacturer
- 10 × 40W RGBW 4-in-1 LED configuration
- Individual LED control
- Wide 5.8°-60° zoom range
- Beam and wash effects in one fixture
- 240° tilt movement
- Multiple DMX channel modes
- IP65 protection
- Suitable for distributors, rental companies and lighting contractors
- OEM and ODM professional stage lighting solutions available
450W 10x40W RGBW IP65 Moving Bar Light FAQ
What light source does this moving bar light use?
The fixture uses 10 × 40W RGBW 4-in-1 LEDs with a total power consumption of 450W.
Does the fixture have zoom?
Yes. It provides a 5.8°-60° zoom range, allowing it to create both narrow beam and wide wash effects.
Can each LED be controlled independently?
Yes. The fixture supports individual LED control, allowing more detailed segmented and dynamic effects.
What is the tilt movement range?
The fixture provides 240° tilt movement.
What DMX channel modes are available?
The available DMX modes are 19CH, 28CH, 29CH, 33CH, 34CH, 48CH and 49CH.
Does the fixture support DMX and power daisy chaining?
The fixture includes DMX input/output and power input/output connections, allowing convenient integration with multiple fixtures in professional stage lighting systems.
Is this moving bar light suitable for outdoor use?
Yes. The fixture has an IP65 protection rating, making it suitable for professional indoor and outdoor event lighting when installed and operated correctly.
Where can this 450W RGBW moving bar light be used?
It is suitable for concerts, festivals, touring productions, clubs, weddings, outdoor stages and professional rental lighting systems.
Need wholesale pricing for this JC LIGHT 450W 10x40W RGBW IP65 Moving Bar Light? Contact JC LIGHT with your required quantity and project requirements for OEM, ODM, rental-grade and professional stage lighting solutions.
