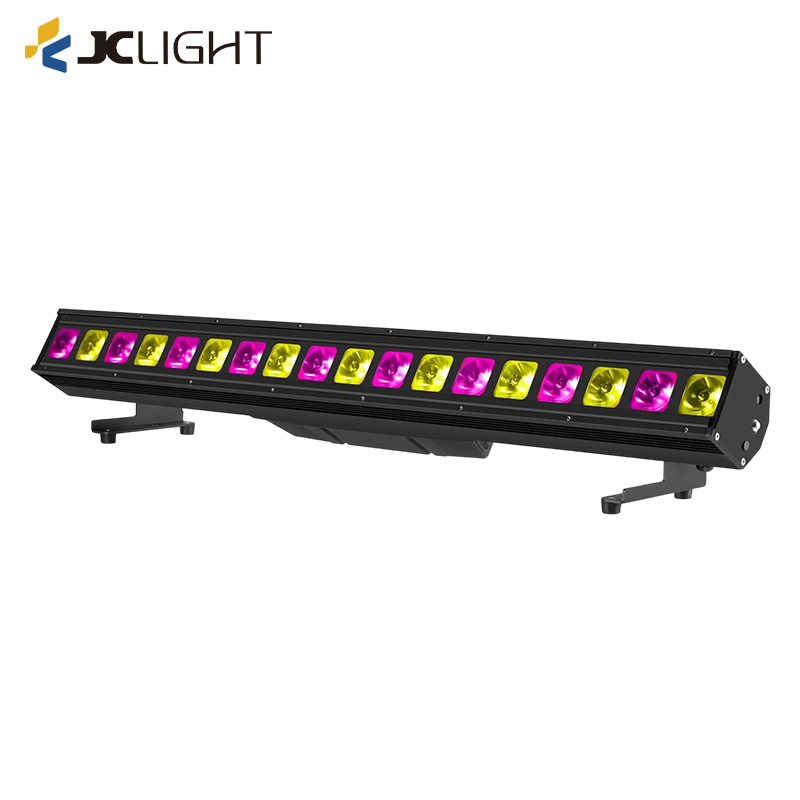

18PCS 24PCS 20W RGBW Waterproof LED Linear Bar Light with Pixel Control
The JC LIGHT F18X/F24X LED linear bar light is a high-performance outdoor fixture designed for stage, architectural and event lighting. Available in 18 or 24 high-power RGBW LEDs, it delivers strong brightness, precise beam control and dynamic pixel effects for professional lighting applications.
Featuring an IP66 waterproof design and a unique square lens optical system, this linear light provides uniform output and flexible beam angles. With multiple installation options and splice capability, it is ideal for large-scale lighting projects, building facades and stage designs.
Key Features
- 18 or 24 × 20W RGBW high brightness LEDs
- Multiple beam angles: 6° / 10° / 20° / 40°
- Unique square lens optical system for uniform output

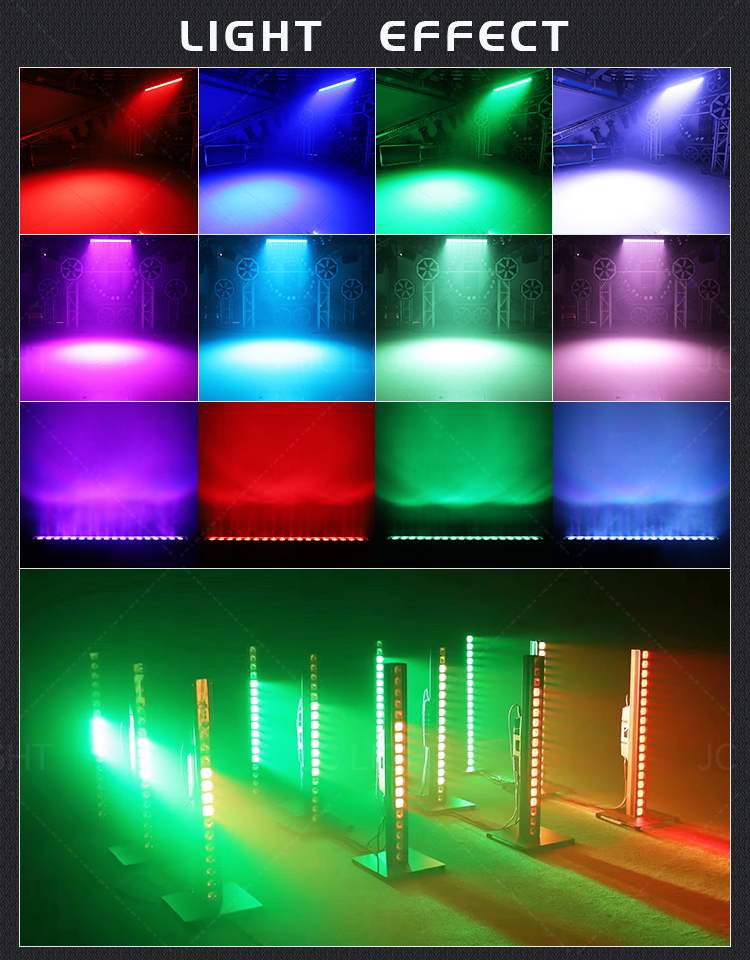

- Pixel control capability for dynamic lighting effects
- IP66 waterproof design for outdoor use
- Supports DMX512 and RDM control protocols
- Multiple DMX channel modes for flexible programming
- OLED display with touch control interface
- Software upgrade via DMX connection

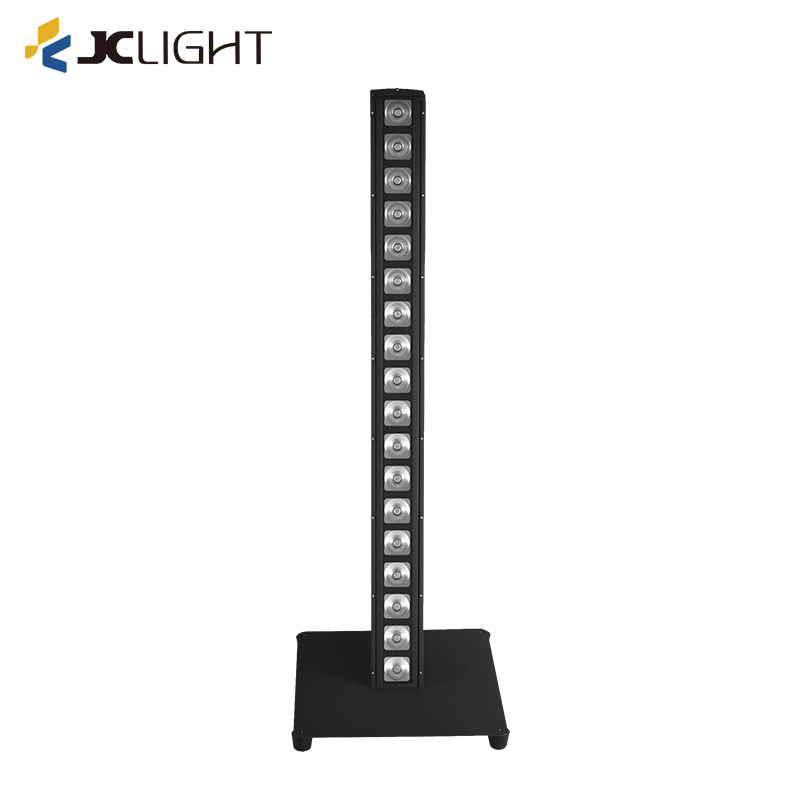

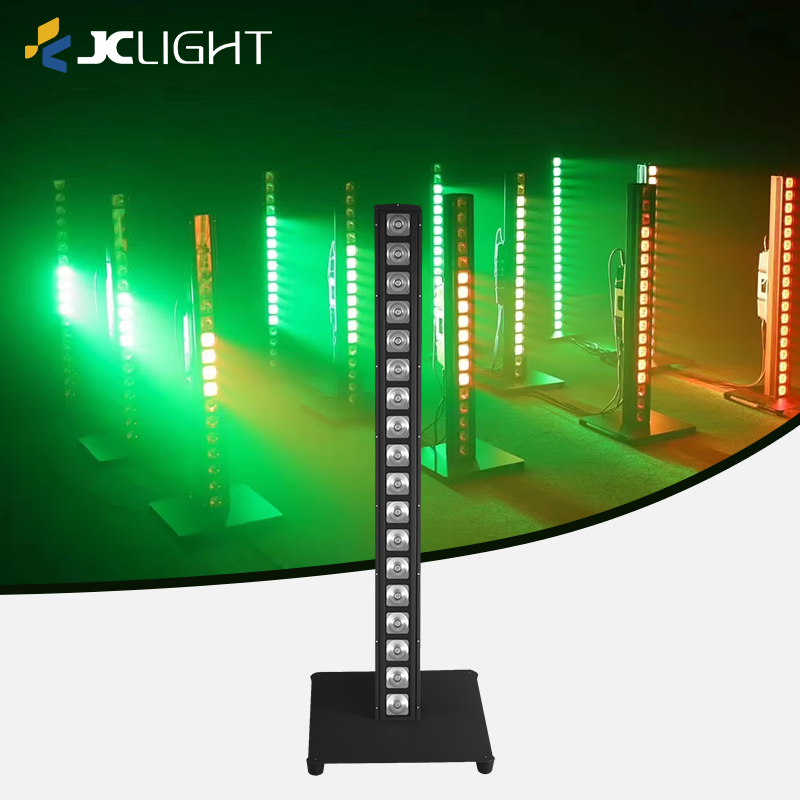

- Supports horizontal and vertical installation
- Spliceable design for large lighting installations
Technical Specifications
| Voltage | AC100-240V, 50/60Hz |
| Power | 400W / 500W |
| Light Source | 18pcs / 24pcs × 20W RGBW LED |
| Beam Angle | 6° / 10° / 20° / 40° |
| Optical System | Square lens optical design |

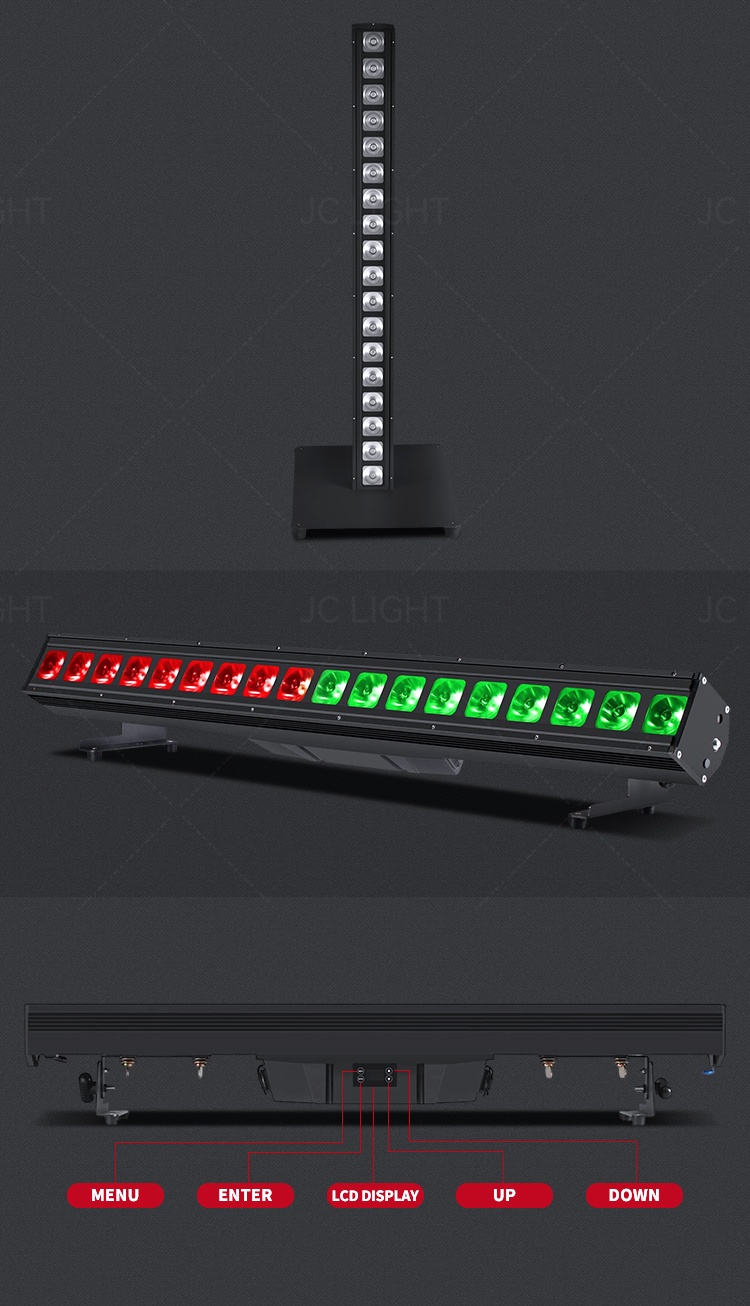

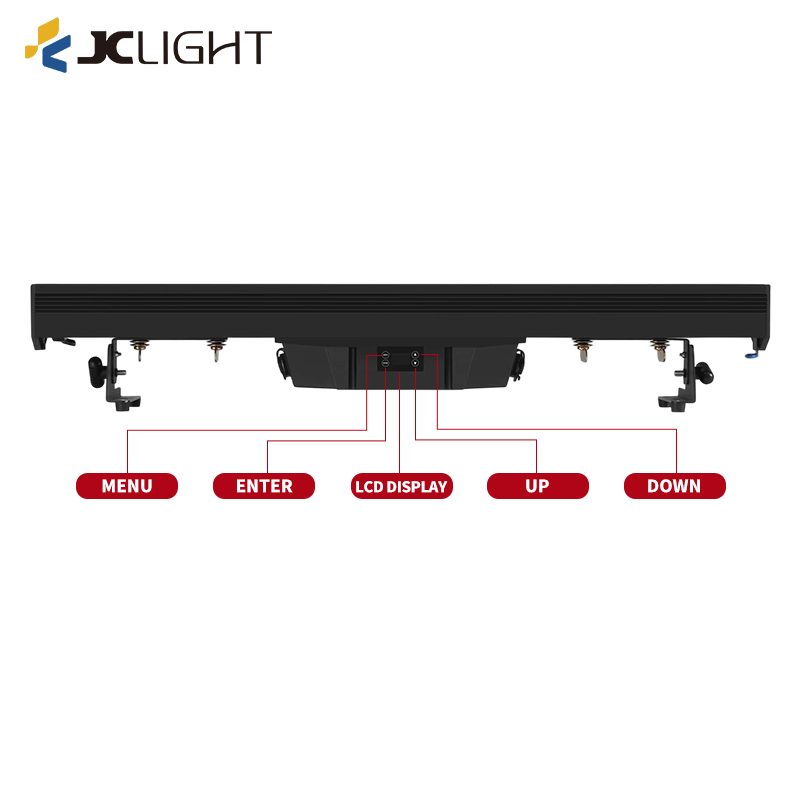

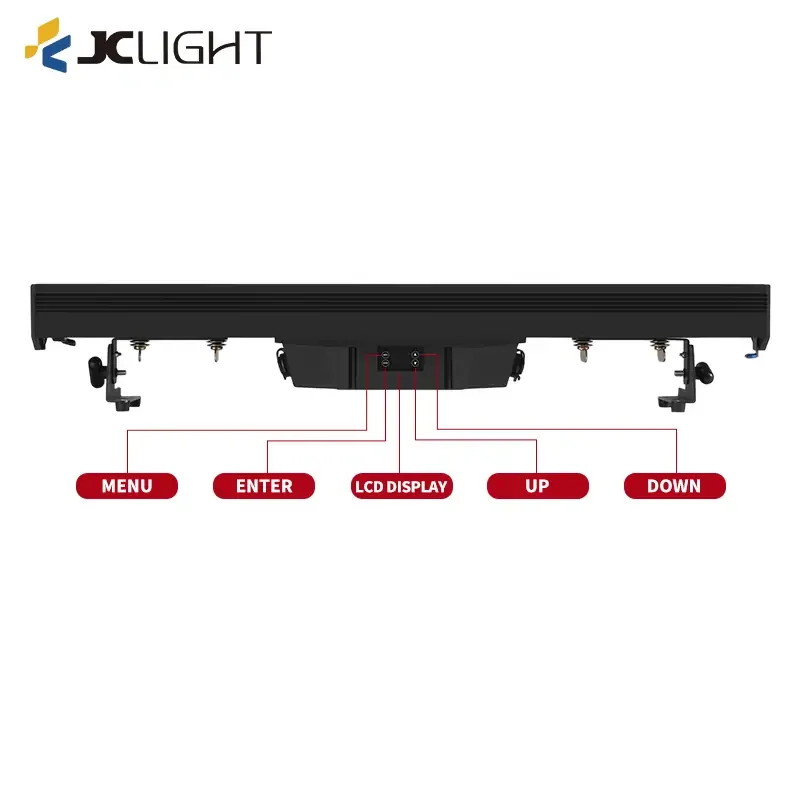

| Control Panel | OLED display + 4 touch keys |
| Control Protocol | DMX512 / RDM |
| Channel Mode | Multiple modes |
| Control Channels | 4 / 6 / 9 / 72 / 74CH |
| Software Upgrade | Supported via DMX |
| Installation | Horizontal / Vertical / Spliceable |
| Accessories | Splicing joints, frost filter, barn doors, vertical brackets (optional) |
| Protection Rating | IP66 |
| Product Size | 1020 × 106 × 277 mm |
| Net Weight | 9.5 kg |
| SKU | F18X / F24X |

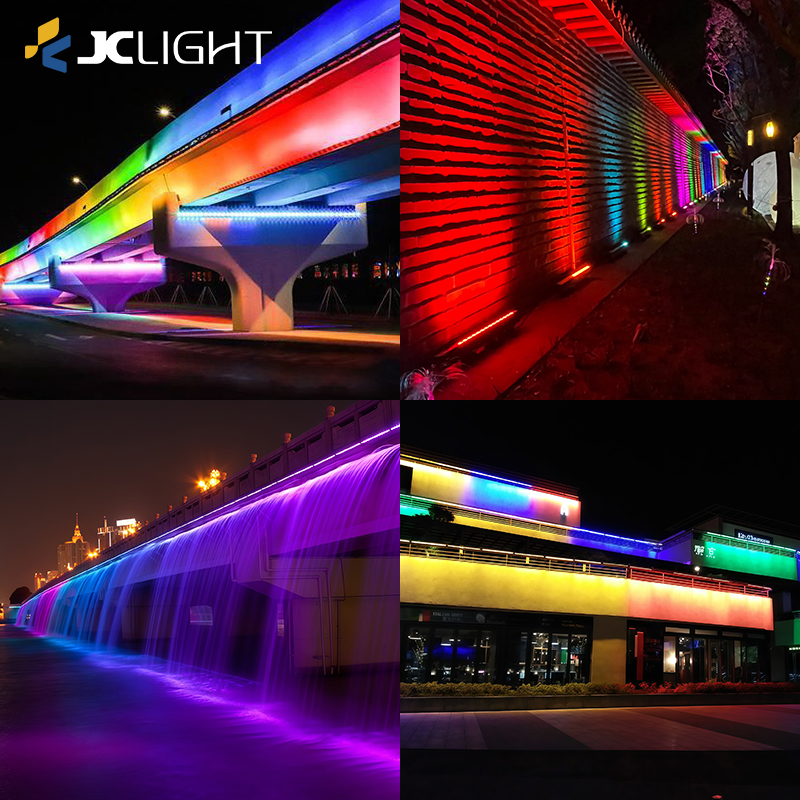

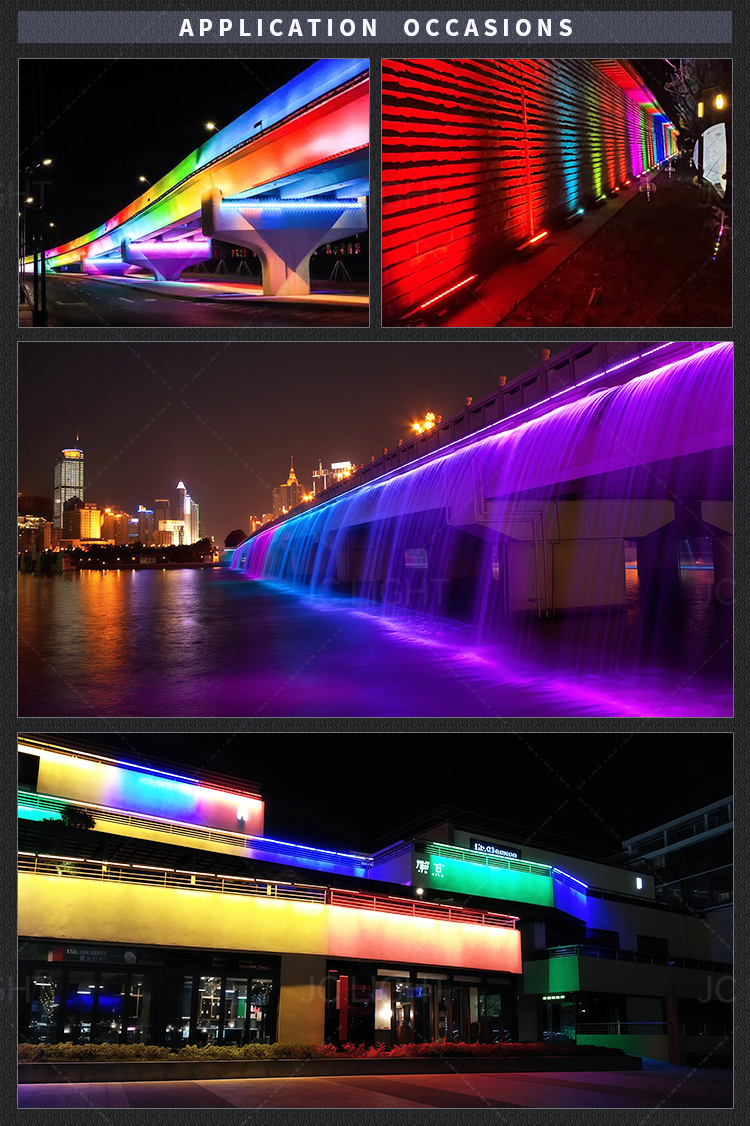

Application Scenarios

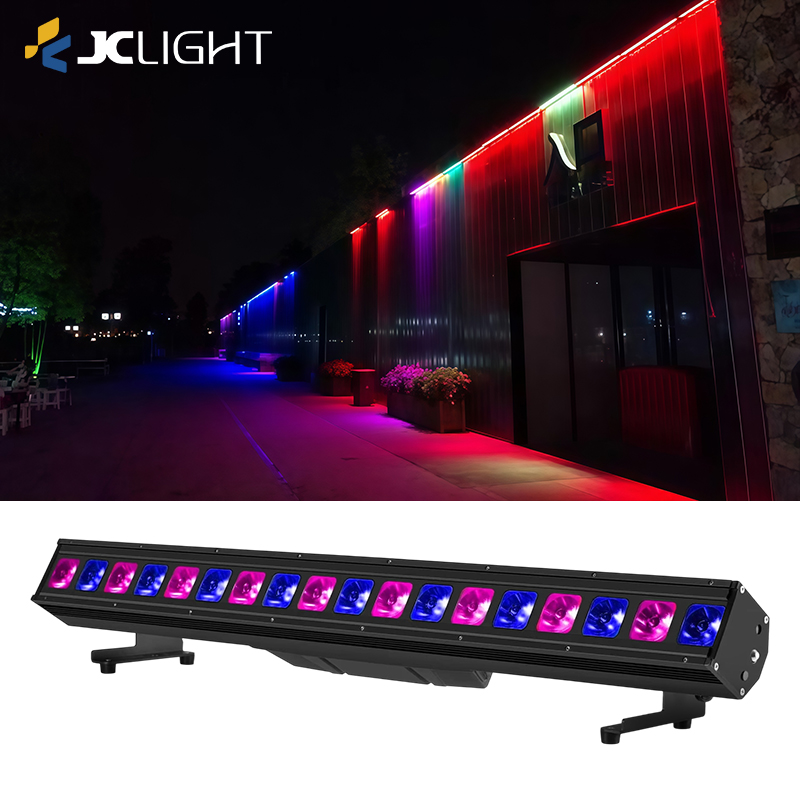

- Outdoor architectural and facade lighting
- Stage and concert linear lighting design
- Event and festival lighting installations

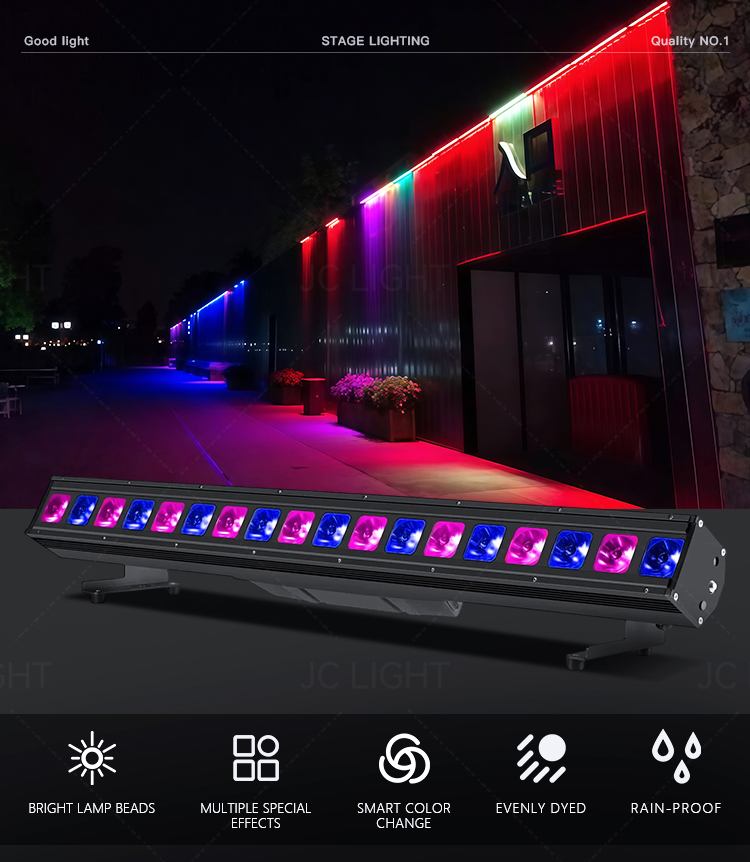

- Building contour and wall wash lighting
- Rental and large-scale lighting projects
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- Strong OEM and ODM customization capability
- Reliable waterproof lighting solutions for outdoor projects
- Flexible installation and scalable system design
- Fast response and technical support for project integration
RGBW Waterproof LED Linear Bar Light FAQ
Is this LED bar light suitable for outdoor use?
Yes. With IP66 waterproof protection, it is suitable for outdoor architectural lighting, stage setups and event installations.
What beam angles are available?
The fixture supports 6°, 10°, 20° and 40° beam angles, allowing flexible use for different lighting applications.
Does it support pixel control?
Yes. The light supports pixel control, enabling dynamic lighting effects and advanced programming.
Can multiple units be connected together?

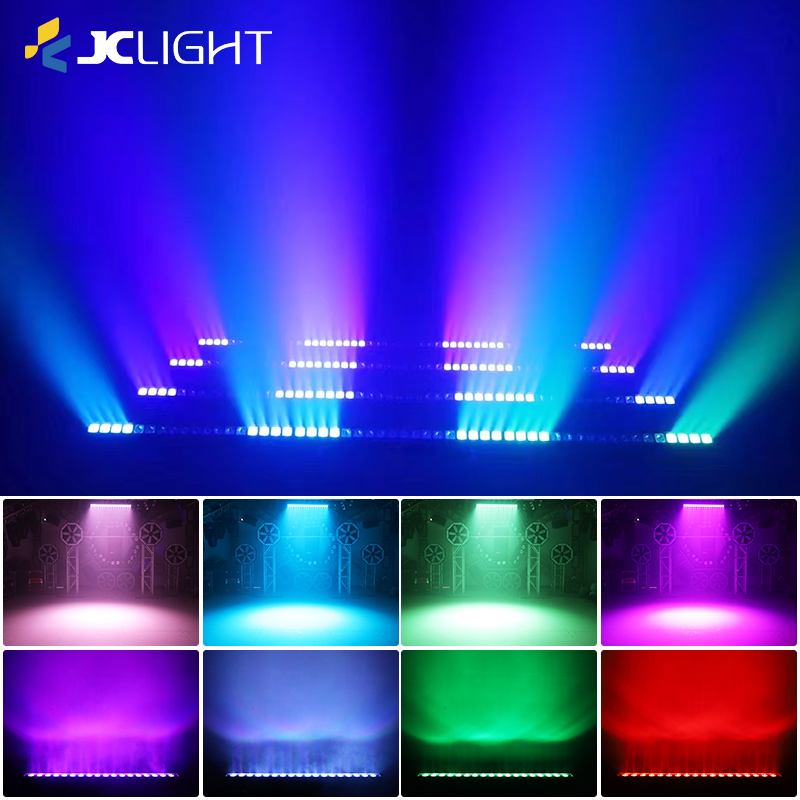

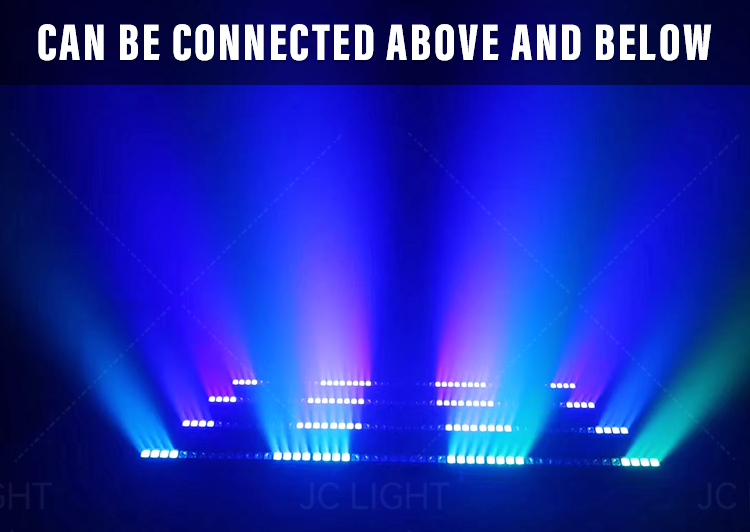

Yes. The fixture supports left and right splicing, allowing multiple units to be combined for large-scale installations.
Does it support professional control systems?
Yes. It supports DMX512 and RDM, making it compatible with professional lighting consoles.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding, packaging and configuration customization.
