Description
Effect:

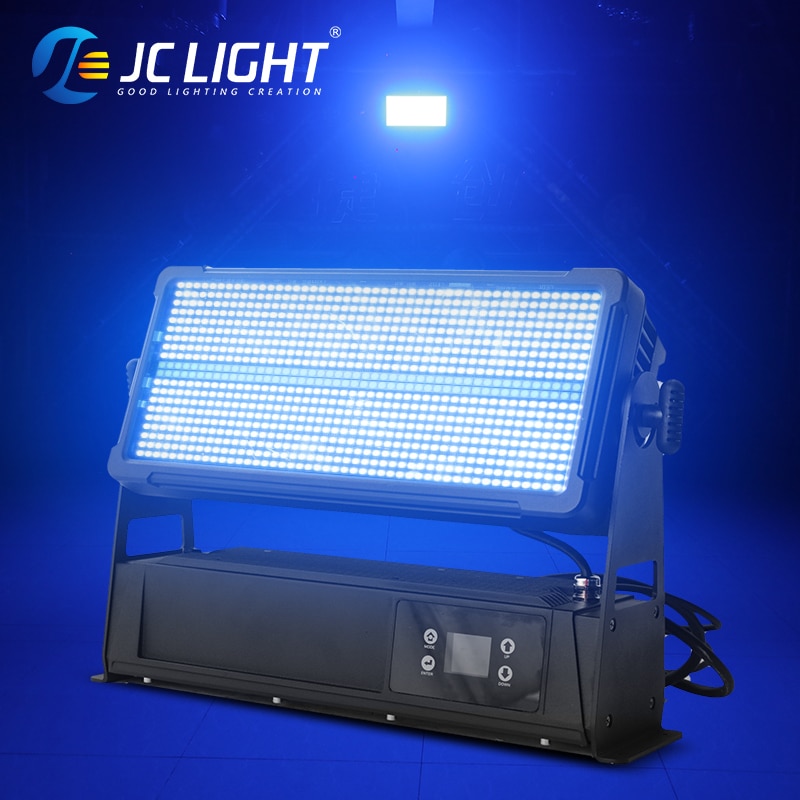

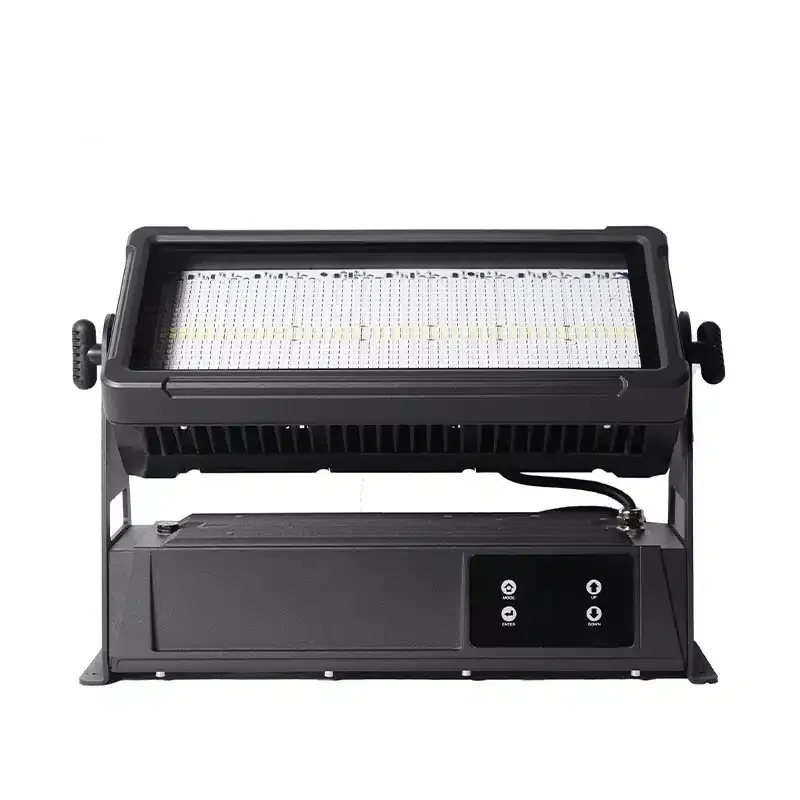

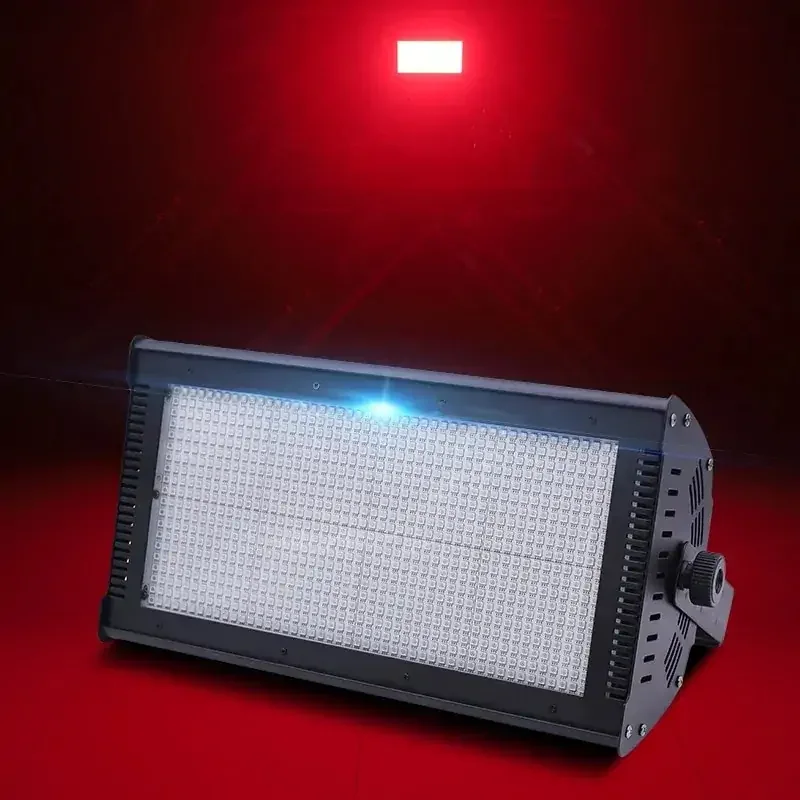

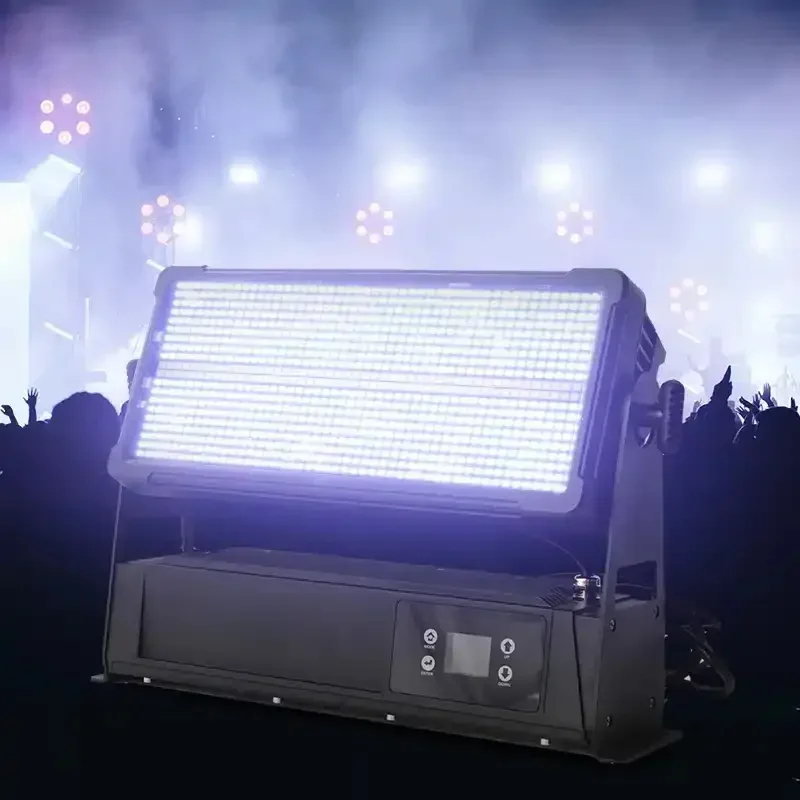

1000W RGBW Pixel Strobe Wash Light with 24-Segment Control
This professional 1000W RGBW pixel strobe wash light combines 576 × 0.5W SMD5050 RGB LEDs with 144 × 5W white LEDs to create powerful color wash, white strobe and segmented pixel effects. The RGB LEDs are divided into 16 segments, while the white LEDs are divided into 8 segments, providing a total of 24 controllable lighting segments for dynamic stage programming.
The fixture features 0-100% linear dimming, four dimming modes, electronic strobe up to 20Hz and multiple built-in effect programs. With 11CH, 15CH, 59CH and 71CH DMX modes plus IP65 DMX and power input/output connections, it is designed for concerts, festivals, touring productions, clubs and professional rental lighting systems.
Key Features
- 1000W professional RGBW pixel strobe wash light
- 576 × 0.5W SMD5050 RGB LEDs
- 144 × 5W white LEDs
- 16 RGB lighting segments
- 8 white lighting segments
- 24 segmented lighting zones in total
- RGB color wash effects
- High-output white strobe effects
- Segmented pixel effects
- 0-100% linear dimming
- Four dimming modes
- Electronic strobe up to 20Hz
- Multiple built-in effect programs
- DMX512 control
- Master-slave operation
- Auto-run mode
- Sound control mode
- 11CH / 15CH / 59CH / 71CH DMX modes
- IP65 DMX cable input and output
- IP65 power cable input and output
Technical Specifications
| Product Type | RGBW Pixel Strobe Wash Light |
| Input Voltage | AC110-240V, 50/60Hz |
| Power | 1000W |
| RGB Light Source | 576 × 0.5W SMD5050 RGB LEDs |
| White Light Source | 144 × 5W White LEDs |
| LED Source Type | LED Module |
| Color System | RGBW |
| RGB Segments | 16 Segments |
| White Segments | 8 Segments |
| Total Segments | 24 Segments |
| Dimming | 0-100% Linear Dimming |
| Dimming Modes | 4 Modes |
| Built-In Effects | Multiple Effect Programs |
| Strobe | Electronic Strobe, Maximum 20Hz |
| Control Modes | DMX512 / Master-Slave / Auto / Sound |
| DMX Channels | 11CH / 15CH / 59CH / 71CH |
| Signal Connection | IP65 DMX Cable Input / Output |
| Power Connection | IP65 Power Cable Input / Output |
| Product Size | 35 × 48 × 14 cm |
| Net Weight | 10.0 kg |
| Gross Weight | 12.5 kg |

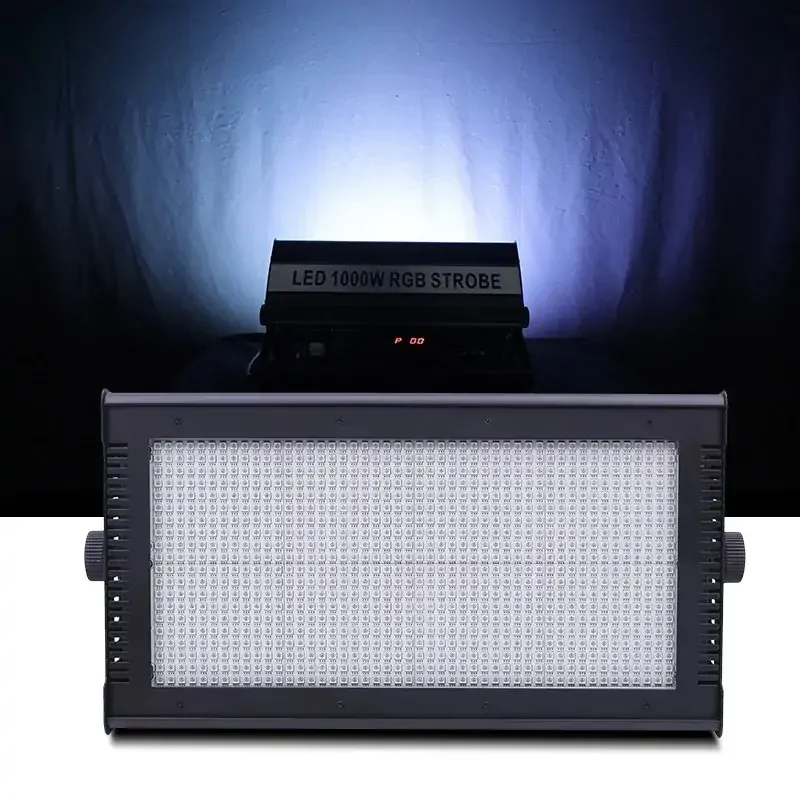

576 RGB LEDs and 144 White LEDs
The fixture combines 576 × 0.5W SMD5050 RGB LEDs with 144 × 5W white LEDs. This dual-source configuration enables colorful wash effects together with powerful white flash and strobe effects from a single fixture.
24-Segment Lighting Control
The RGB LEDs are arranged into 16 segments, while the white LEDs are divided into 8 segments. This 24-segment structure provides lighting designers with greater flexibility for creating sectional effects, chases and dynamic stage sequences.
RGBW Wash and Strobe Effects
By combining RGB color output with dedicated white LEDs, the fixture can create color wash, white flash and strobe effects for high-energy concerts, festivals, DJ performances and entertainment productions.
Four Dimming Modes
In addition to 0-100% linear dimming, the fixture provides four dimming modes, giving lighting programmers additional flexibility when creating different fades and intensity transitions.
Electronic Strobe up to 20Hz
The integrated electronic strobe supports frequencies up to 20Hz, enabling fast flash effects for music-driven performances and dynamic live show programming.
Built-In Effect Programs
Multiple built-in effect programs provide ready-to-use dynamic lighting sequences for standalone operation and can also support faster programming for entertainment applications.
11CH, 15CH, 59CH and 71CH DMX Modes
Four DMX channel configurations are available: 11CH, 15CH, 59CH and 71CH. These modes allow operators to select an appropriate level of control according to the complexity of the lighting design.
DMX512 and Standalone Control
The fixture supports DMX512, master-slave, auto and sound control modes, making it suitable for both professional console-controlled systems and standalone entertainment lighting setups.

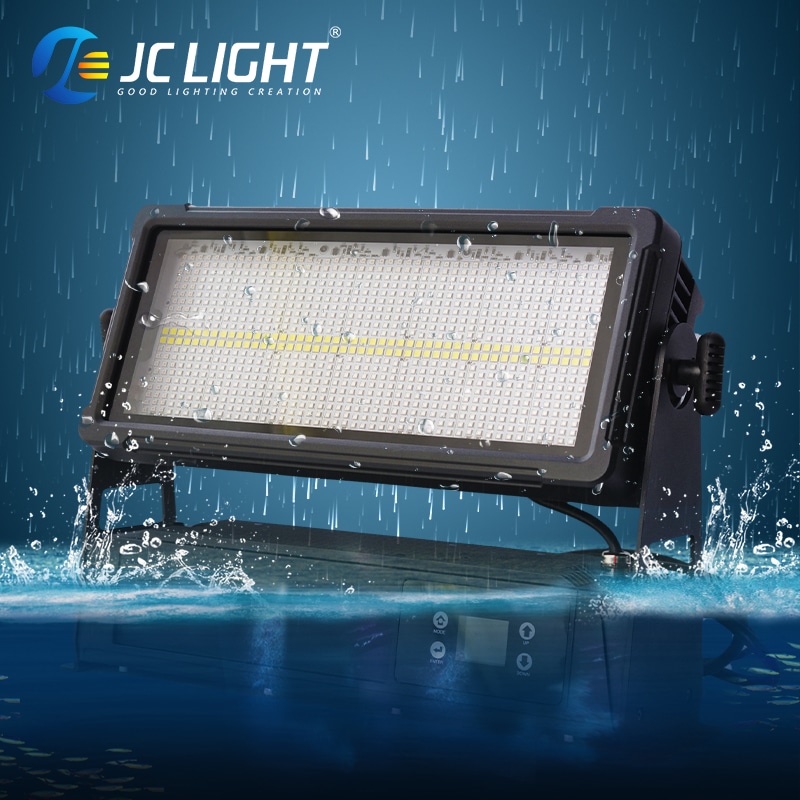

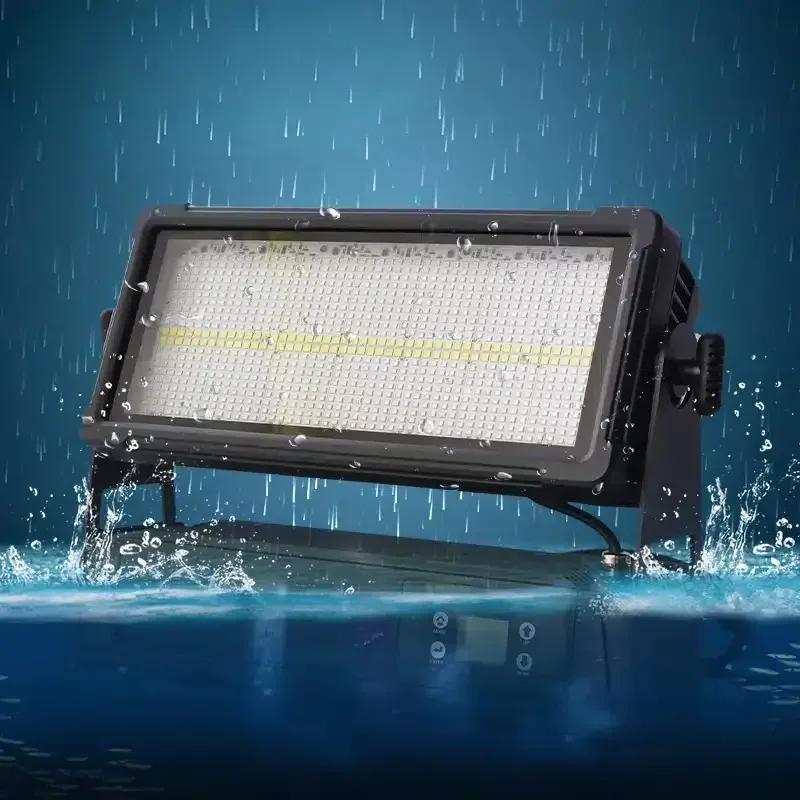

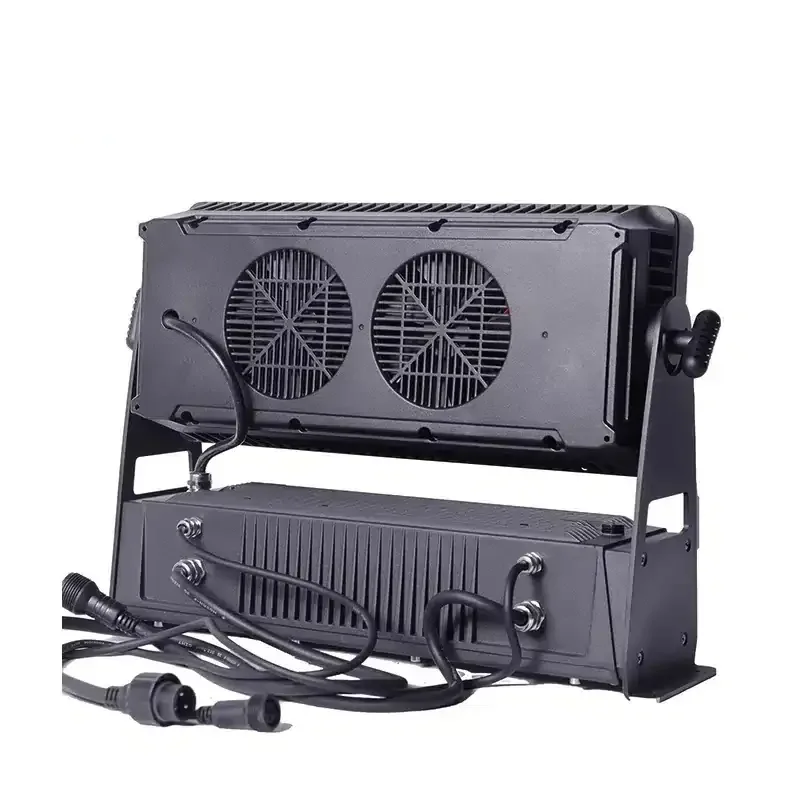

IP65 Signal and Power Connections
The supplied configuration includes IP65 DMX cable input/output and IP65 power cable input/output, providing protected signal and power connections for professional stage lighting installations.

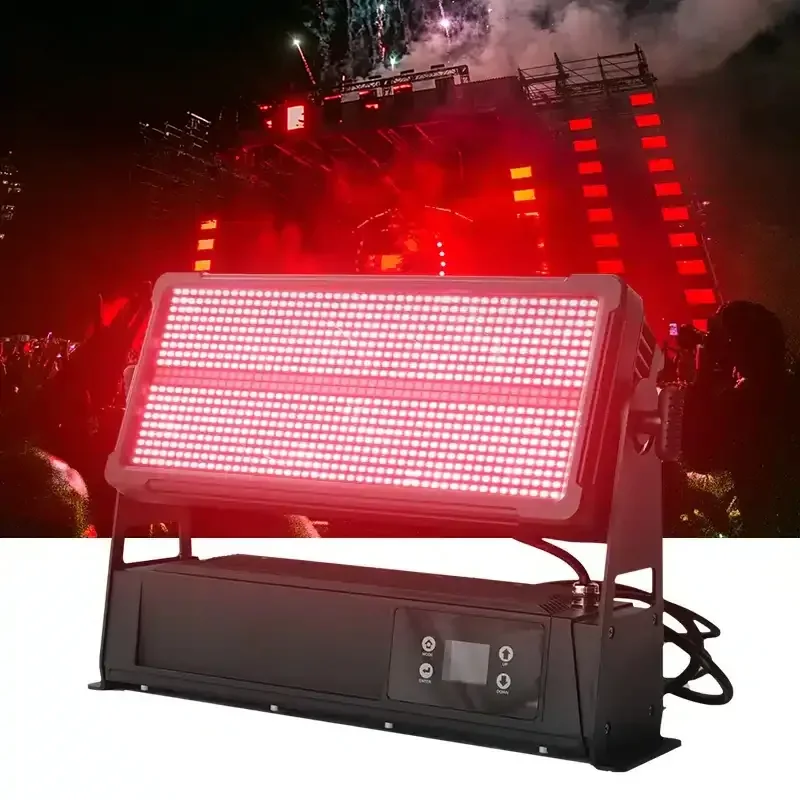

Application Scenarios
- Concert stages
- Music festivals
- DJ performances
- Nightclubs and entertainment venues
- Live performance stages
- Touring productions
- Wedding and event stages
- Large ceremony stages
- TV and entertainment productions
- Professional rental lighting systems
- Stage effect installations
Why Choose JC LIGHT
- Professional LED strobe and wash light manufacturer
- 1000W high-power fixture configuration
- 576 RGB LEDs plus 144 dedicated white LEDs
- 16 RGB segments and 8 white segments
- RGB wash, white flash and strobe effects
- Four dimming modes
- Electronic strobe up to 20Hz
- Multiple built-in effect programs
- Four DMX channel configurations
- IP65 DMX and power connections
- Suitable for distributors, rental companies and lighting contractors
- OEM and ODM professional stage lighting solutions available
1000W RGBW Pixel Strobe Wash Light FAQ
What LED configuration does this 1000W strobe wash light use?
The fixture uses 576 × 0.5W SMD5050 RGB LEDs together with 144 × 5W white LEDs.
How many lighting segments does the fixture have?
The supplied specification divides the RGB LEDs into 16 segments and the white LEDs into 8 segments, providing 24 segmented lighting zones in total.
What effects can this RGBW fixture create?
The combination of RGB and dedicated white LEDs allows the fixture to create color wash, segmented effects, white flash and electronic strobe effects.
What is the maximum strobe frequency?
The electronic strobe operates at up to 20Hz.
Does the fixture have different dimming modes?
Yes. It provides 0-100% linear dimming and four dimming modes.
What DMX channel modes are available?
The fixture supports 11CH, 15CH, 59CH and 71CH DMX modes.
Are the DMX and power connections IP65 rated?
The supplied specification lists IP65 DMX cable input/output and IP65 power cable input/output. An overall fixture IP rating was not separately specified.
Where can this 1000W RGBW strobe wash light be used?
It is suitable for concerts, festivals, clubs, DJ shows, touring productions, large events and professional rental lighting systems.
