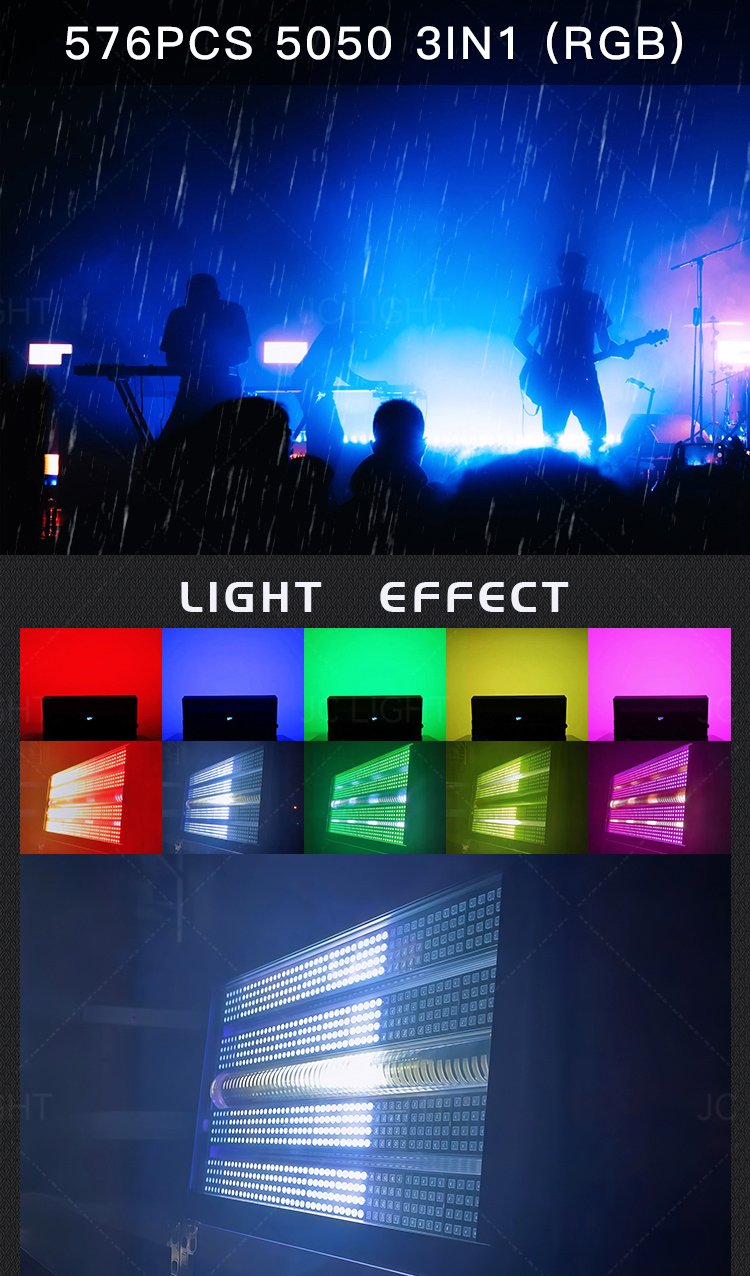

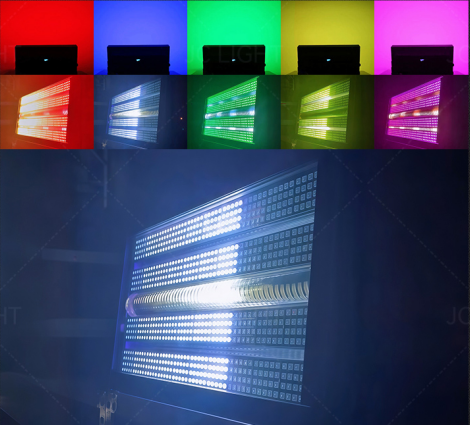

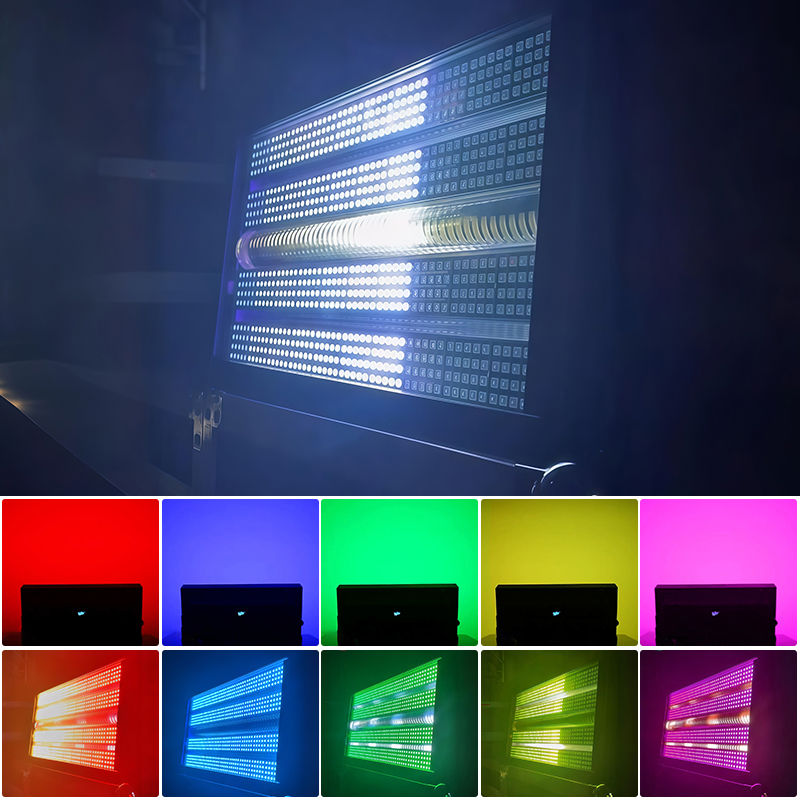

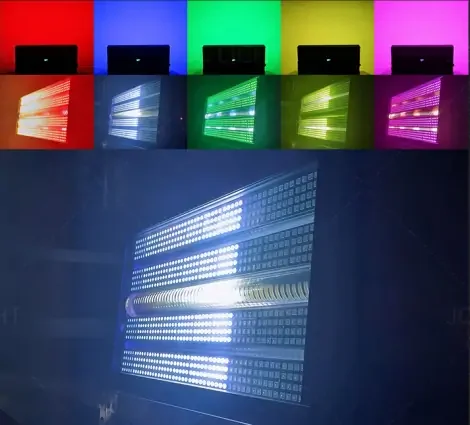

Effect:
Video:

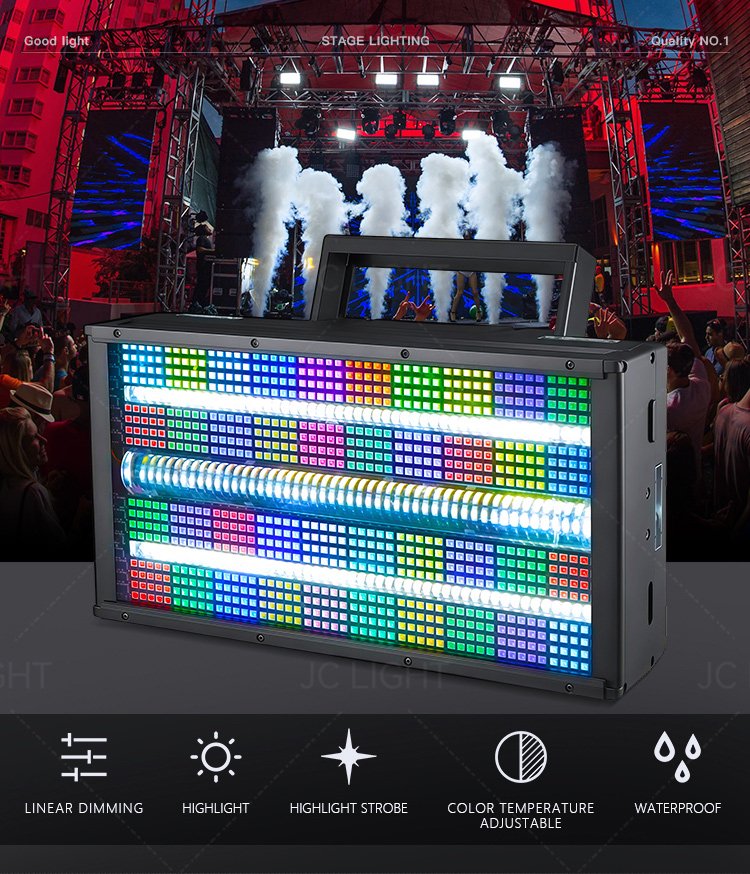

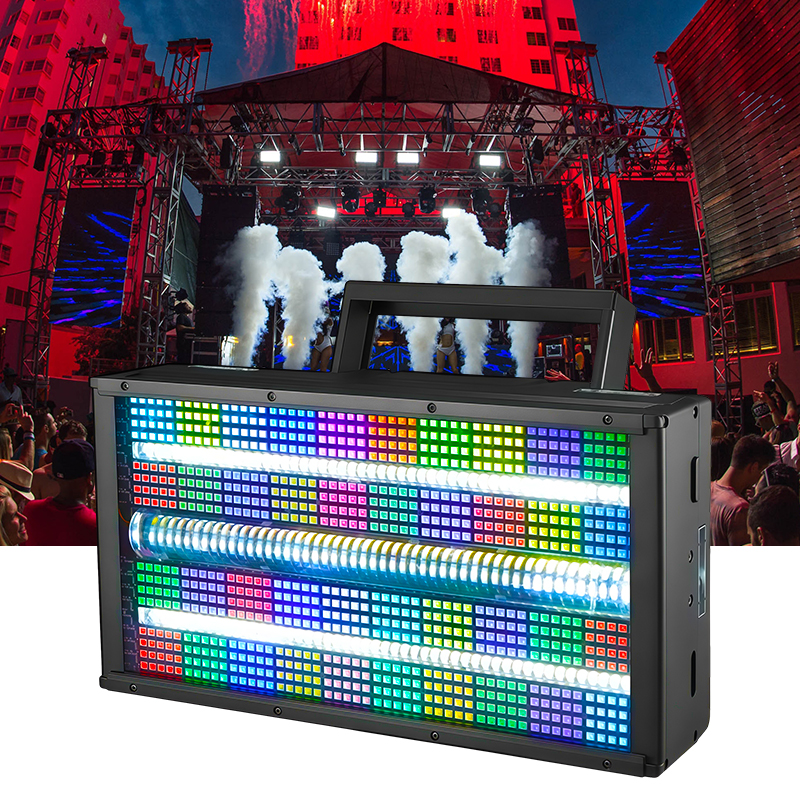

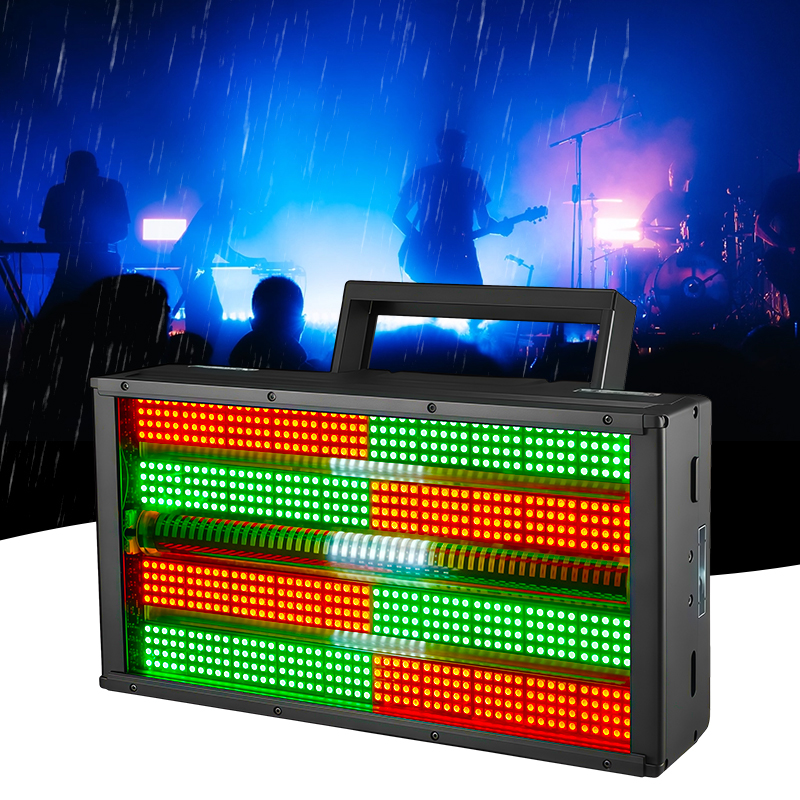

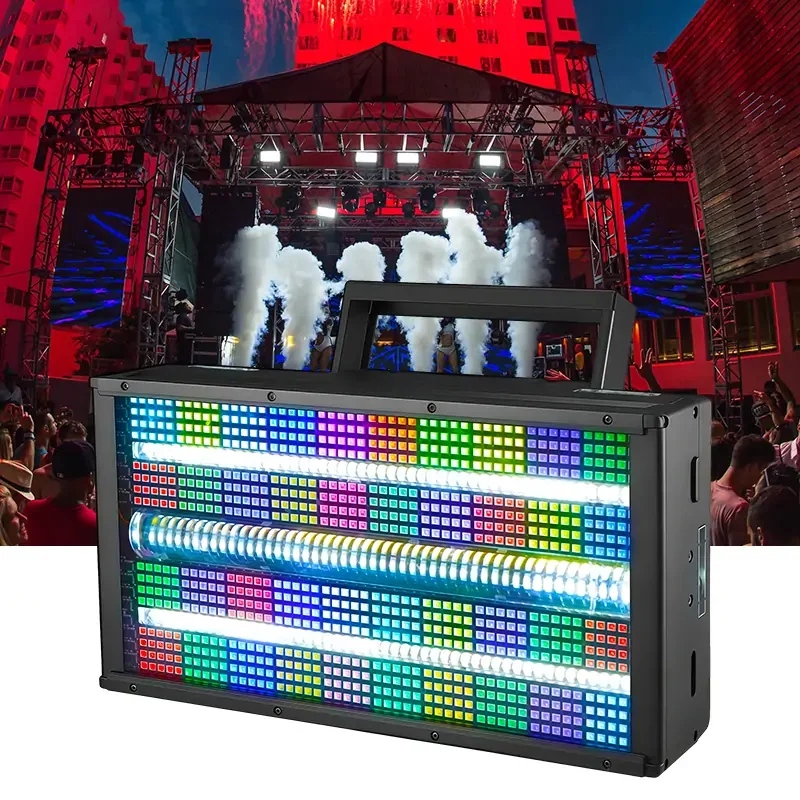

IP67 Waterproof Pixel LED Bar Light with RGB Pixel Control and Dynamic Effects

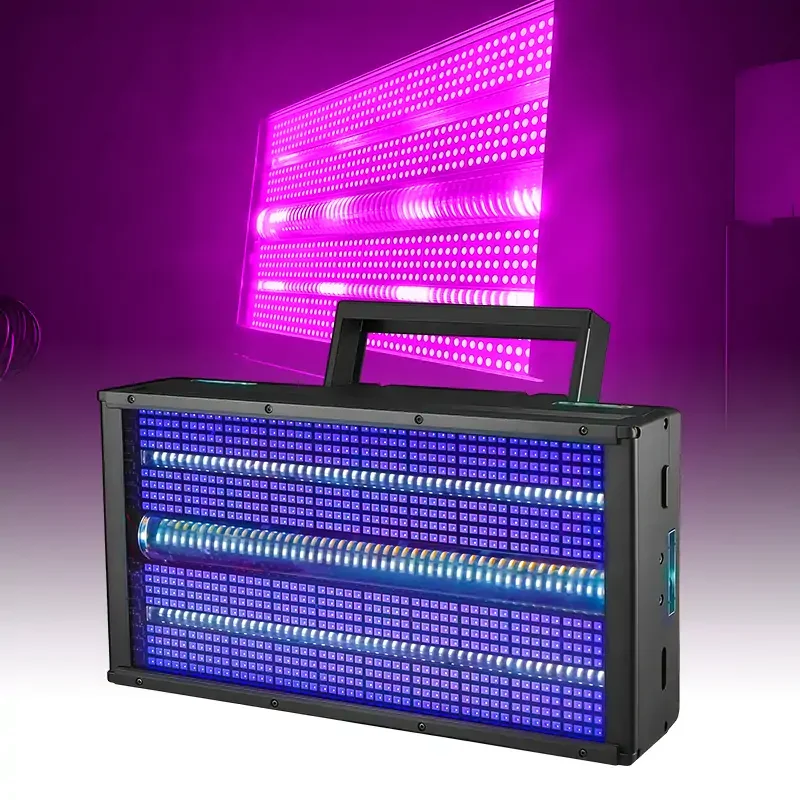

The JC LIGHT FP800B is a professional IP67 waterproof pixel LED bar light designed for outdoor stage lighting, architectural illumination, concerts and entertainment projects. Featuring 800pcs RGB 5050 LED pixels and 200pcs high-power monochrome LEDs, it delivers powerful wash effects, pixel animations, horse running effects and dynamic flashing effects.
With advanced pixel mapping control, multiple DMX channel modes and a durable aluminum and glass housing, this fixture provides flexible creative lighting solutions for outdoor performances and large-scale installations.
Key Features
- IP67 waterproof design for outdoor applications
- High-density pixel LED control system
- 800pcs RGB 5050 0.5W LEDs with 4×10 segment control
- 200pcs 3535 3W monochrome LEDs with 3×10 segment control
- RGB pixel effects, horse running effects and dynamic flash effects
- 16-bit smooth linear dimming system
- Multiple DMX channel modes for flexible programming
- Wide operating temperature range from -30℃ to 50℃

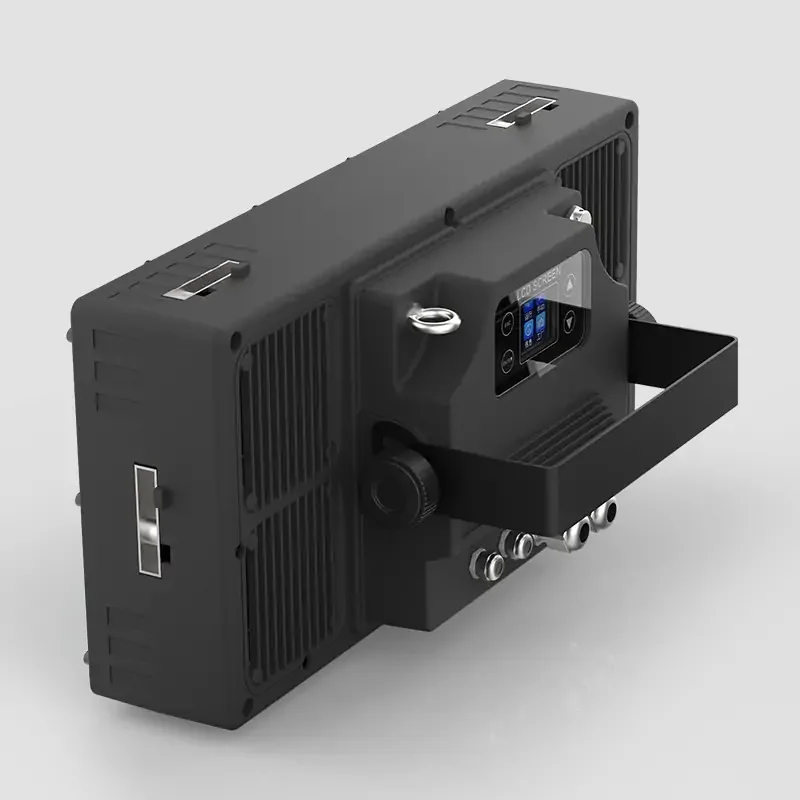

- Aluminum + glass housing for outdoor durability
- Supports DMX512, RDM and manual control
- Power and DMX input/output connection design
Technical Specifications
| Model | FP800B |
| Version | RGB / 576pcs LED Version Available |
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 600W |
| RGB Light Source | 800pcs 5050 0.5W RGB 3in1 LEDs (4×10 Segments) |
| Monochrome Light Source | 200pcs 3535 3W LEDs (3×10 Segments) |
| Dimming | 16-bit 0-100% Linear Dimming |
| Lighting Effects | Pixel, Horse Running, Flash, Wash Effects |
| Operating Temperature | -30℃ to 50℃ |
| Strobe Frequency | 1-30Hz |
| Housing Material | Aluminum + Glass |
| Control Mode | DMX512 / Master-Slave / Auto / Sound / Manual / RDM |
| DMX Channels | 04CH / 06CH / 12CH / 17CH / 32CH / 62CH / 122CH / 129CH |
| Connection | DMX Input/Output, Power Input/Output |
| Protection Rating | IP67 |
| Product Size | 41 × 17 × 28 cm |
| Package Size | 50 × 39 × 29 cm |
| Net Weight | 9.0 kg |
| Gross Weight | 10.5 kg |

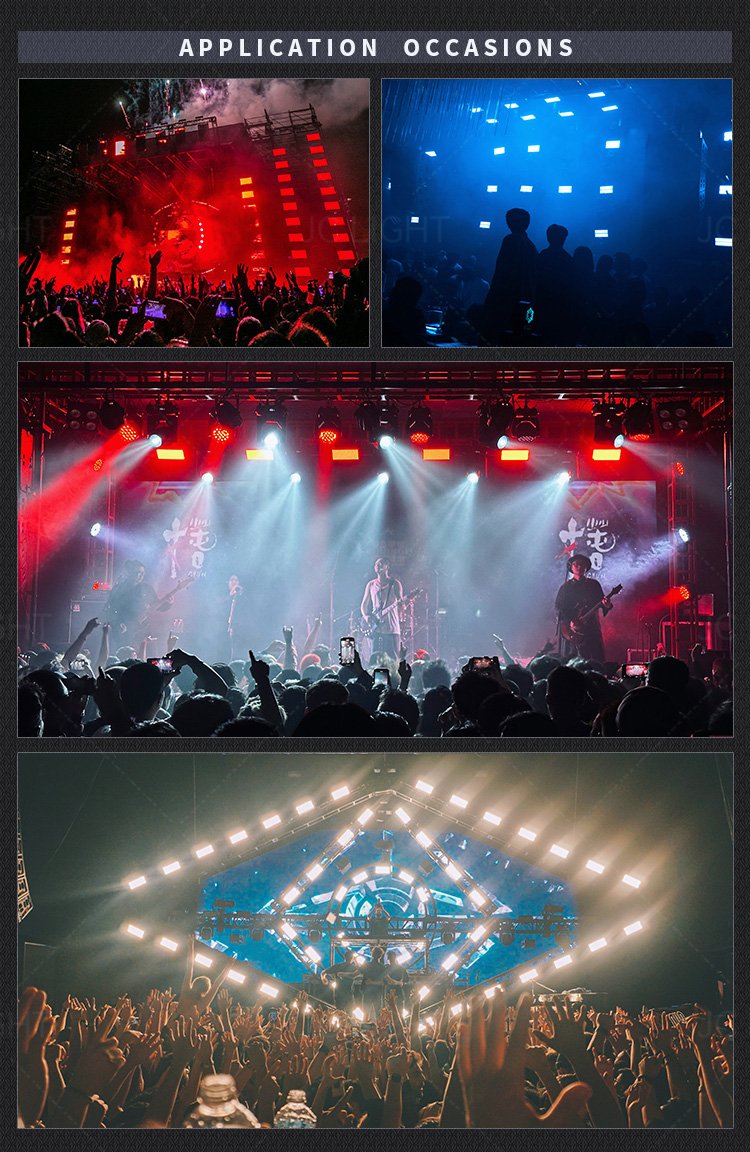

Application Scenarios
- Outdoor concert stage lighting
- Festival and live event lighting
- Architectural facade illumination
- Theme park and cultural tourism projects
- Outdoor commercial lighting installations
- Professional rental lighting systems
Why Choose JC LIGHT
- Professional waterproof LED pixel lighting manufacturer
- High-density pixel control for creative lighting effects
- IP67 protection for outdoor environments
- Flexible DMX programming options for complex shows
- OEM and ODM customization support available
IP67 Waterproof Pixel LED Bar Light FAQ
Is this pixel LED bar light suitable for outdoor use?
Yes. The fixture features an IP67 waterproof rating and is designed for outdoor stages, events and architectural lighting projects.
What LED sources are used in FP800B?
It uses 800pcs RGB 5050 LEDs and 200pcs 3535 high-power monochrome LEDs to create pixel and wash effects.
What lighting effects can this LED bar create?
It supports RGB pixel effects, horse running effects, flashing effects and wash lighting.
Does it support pixel mapping control?
Yes. Multiple DMX channel modes allow professional pixel programming and individual segment control.
What control protocols are supported?
It supports DMX512, RDM, master-slave, auto, sound and manual control modes.
Do you provide OEM customization?
Yes. JC LIGHT provides OEM and ODM services for professional stage and architectural lighting products.
