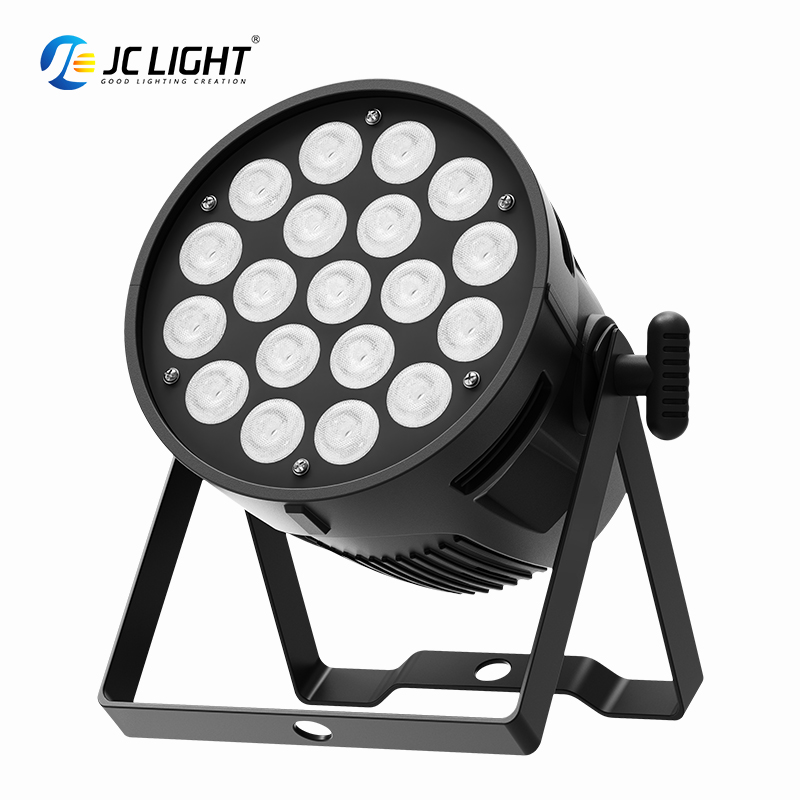

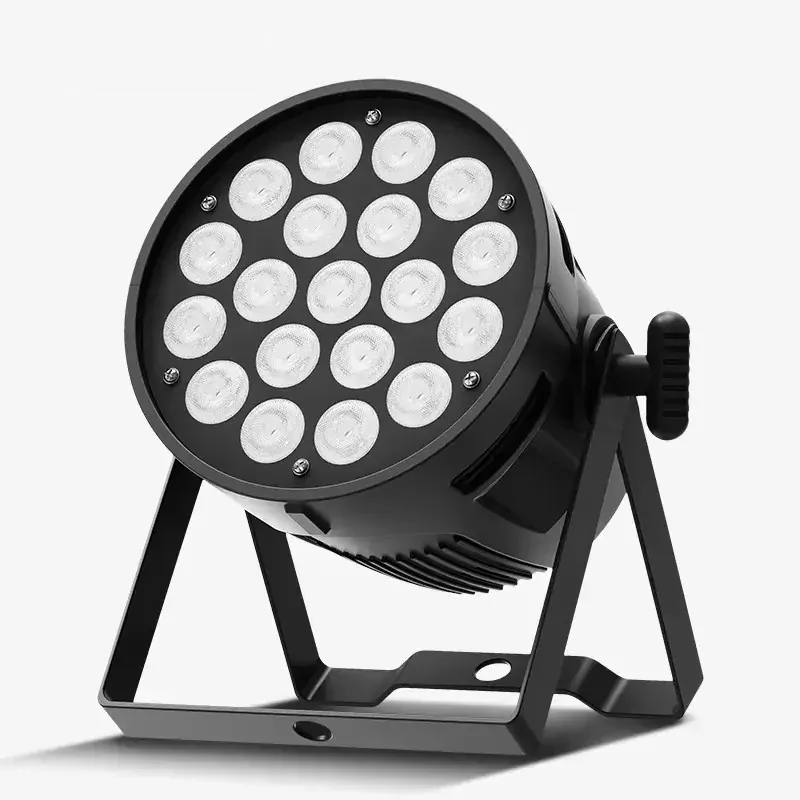

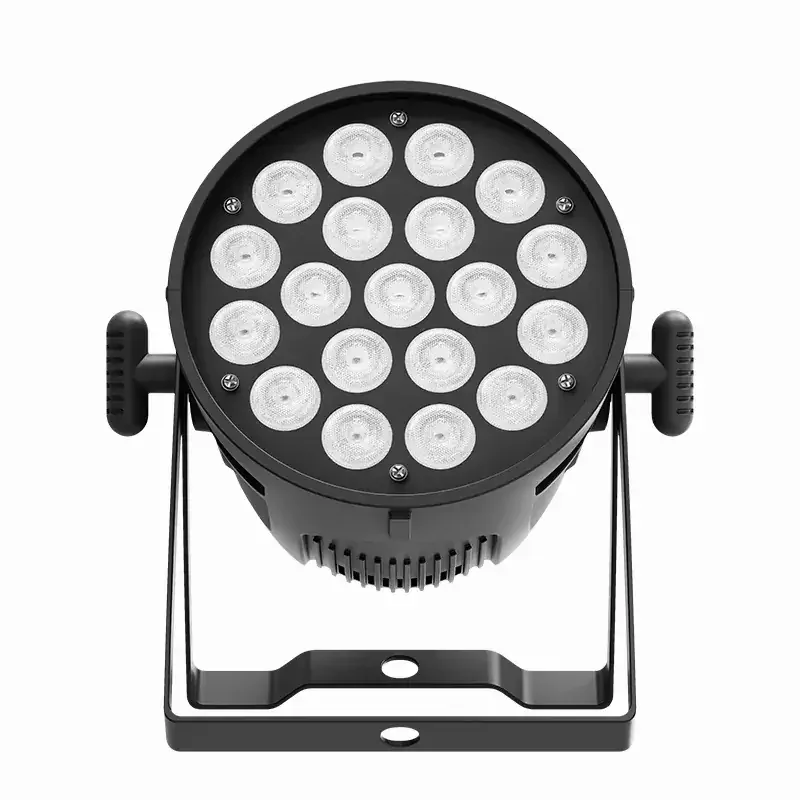

210W 19x10W RGBW LED Par Light with RDM and 25° / 45° Beam Options
The JC LIGHT LS194 is a professional 210W RGBW LED Par Light equipped with 19 × 10W RGBW 4-in-1 LEDs. With a standard 45° beam angle and optional 25° configuration, the fixture provides flexible coverage for stage performances, theatres, clubs, weddings, events and professional lighting installations.
The LS194 features a thickened cast aluminum housing, RDM support, signal-holding function and 7CH / 12CH DMX modes. Its hand-in-hand signal and power connection design makes the fixture practical for multi-unit installations, while the cooling system is designed to provide stable heat dissipation during professional use.
Key Features
- 210W professional RGBW LED Par light
- 19 × 10W RGBW 4-in-1 LEDs
- 45° standard beam angle
- 25° beam angle optional
- LED lifespan of 60,000-100,000 hours
- Thickened cast aluminum housing
- Metal PG connector
- 1.5-meter hand-in-hand series copper cable
- Bakelite plug and iron XLR connector
- High Color Rendering Index lamp beads
- Low-noise fan cooling
- DMX512 control
- RDM program support
- Master-slave operation
- Sound control mode
- Auto-run mode
- 7CH / 12CH DMX modes
- Signal-holding function
- Split crossflow motherboard design
- IP25 protection rating
Technical Specifications
| SKU | LS194 |
| Input Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 210W |
| Light Source | 19 × 10W RGBW 4-in-1 LEDs |
| LED Lifespan | 60,000-100,000 Hours |
| Beam Angle | 45° Standard / 25° Optional |
| Housing Material | Cast Aluminum |
| Cooling | Fan Cooling |
| Control Modes | DMX512 / Master-Slave / Sound / Auto |
| RDM | Supported |
| DMX Channels | 7CH / 12CH |
| Signal Holding | Supported |
| Connector | Metal PG Connector / Iron XLR / Bakelite Plug |
| Series Cable | 1.5 m Copper Cable |
| Motherboard | Split Crossflow Motherboard |
| IP Rating | IP25 |
| Product Size | 28 × 21 × 30 cm |
| Package Size – 1 Unit | 27 × 27 × 38 cm |
| Package Size – 2 Units | 53 × 28 × 38 cm |
| Package Size – 4 Units | 53 × 53 × 39 cm |
| Package Size – 6 Units | 79 × 53 × 39 cm |
| Net Weight | 3.2 kg |
| Gross Weight | 3.6 kg |

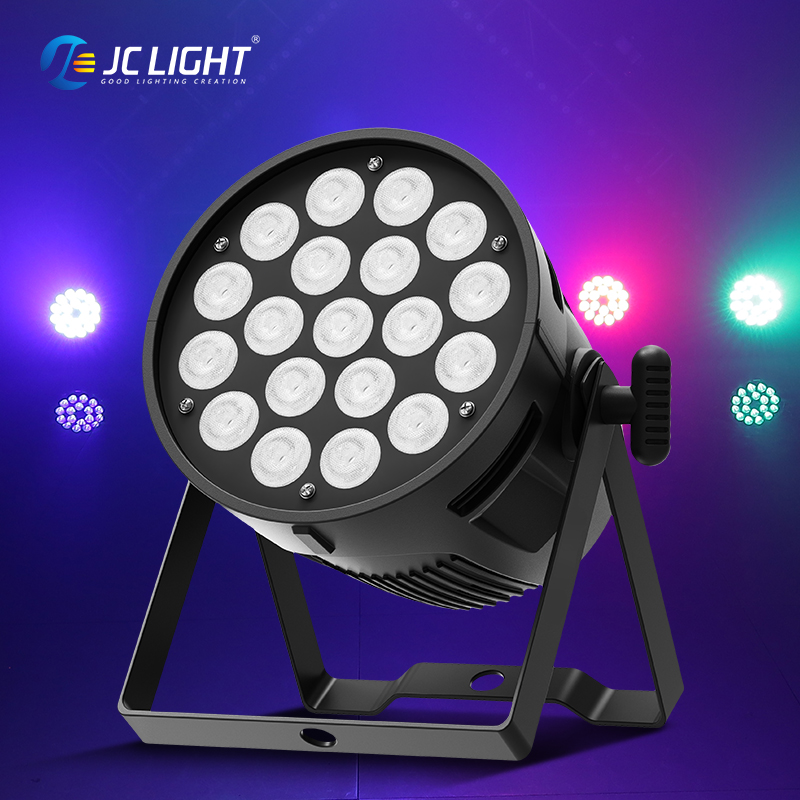

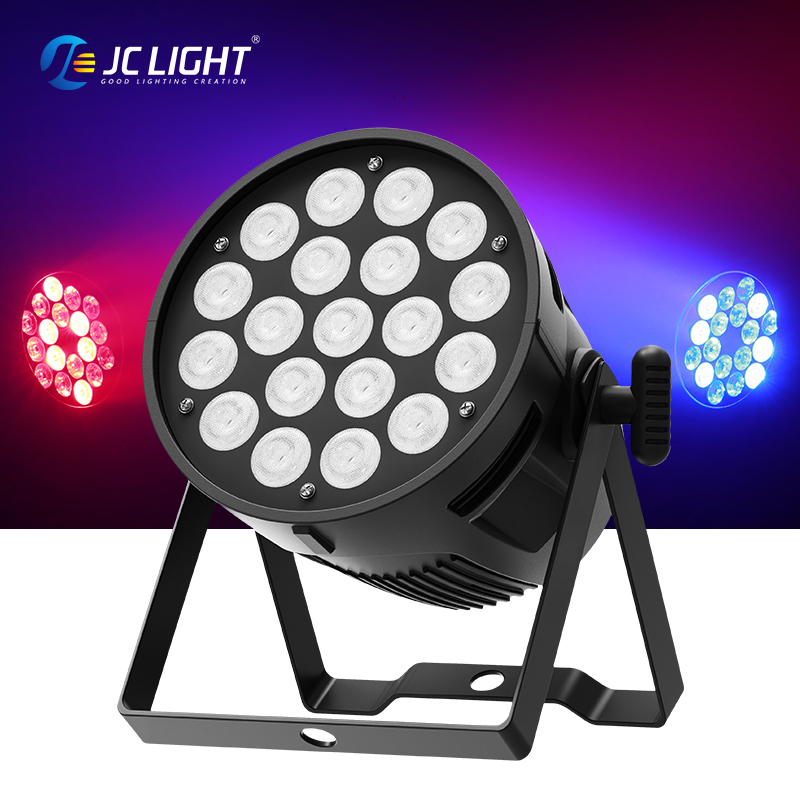

19x10W RGBW 4-in-1 LED Light Source
The LS194 uses 19 × 10W RGBW 4-in-1 LEDs, combining red, green, blue and white within each LED package. This configuration provides flexible color mixing and white-light output for stage wash and venue lighting applications.
25° and 45° Beam Angle Options
The standard LS194 configuration provides a 45° beam angle for wider wash coverage. A 25° optical configuration is also available for applications requiring a more concentrated lighting area.

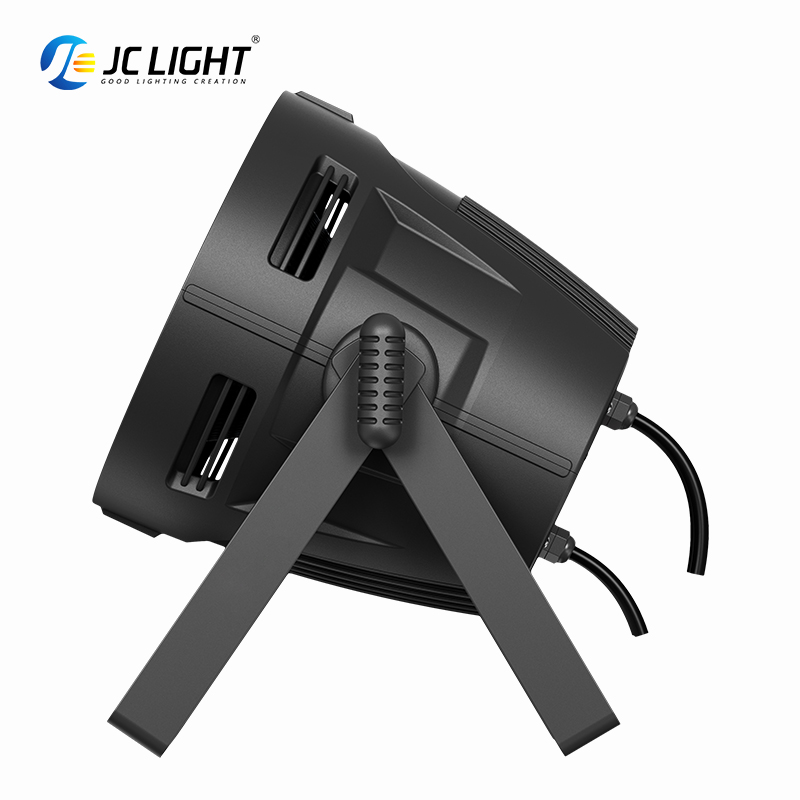

Thickened Cast Aluminum Housing
A thickened cast aluminum housing provides a durable structure for professional stage and rental applications. The fixture also incorporates metal PG connectors, an iron XLR connector and a bakelite plug.

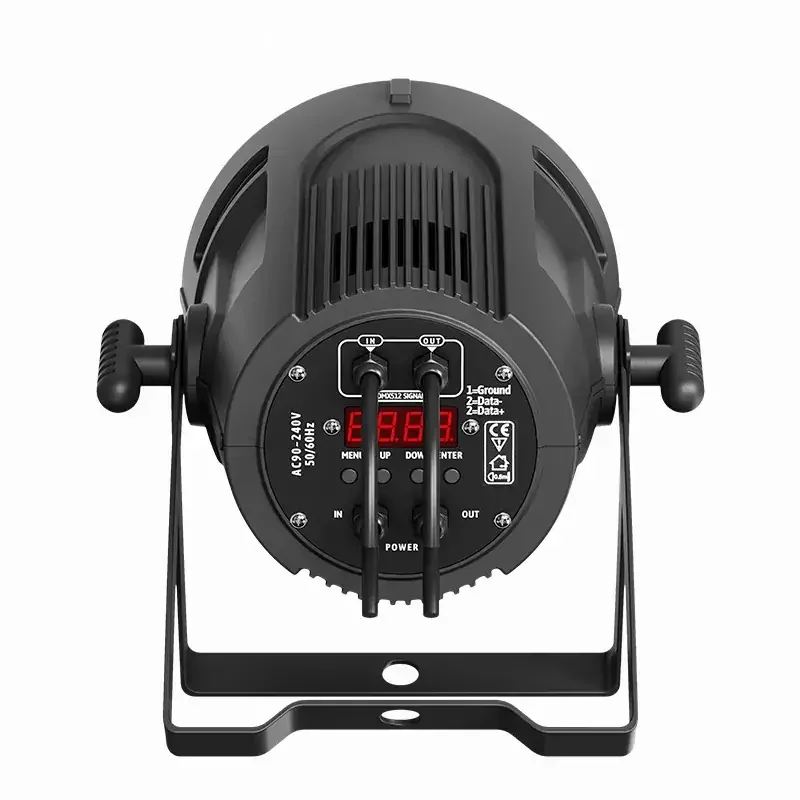

RDM and DMX512 Control
The LS194 supports DMX512 and RDM with 7CH and 12CH channel modes. Master-slave, sound and auto-run modes are also available, providing flexible control for both programmed lighting systems and standalone applications.
Signal-Holding Function
The built-in signal-holding function allows the fixture to maintain its current operating state if the control signal is interrupted, helping avoid an immediate unwanted change in the lighting scene.
Professional Hand-in-Hand Connection Design
The fixture is equipped with a 1.5-meter copper series cable and professional connection hardware, supporting convenient hand-in-hand installation when multiple LED Par fixtures are deployed in a lighting system.
Cooling and Internal Design
The LS194 uses fan-assisted heat dissipation together with a split crossflow motherboard design. The cooling system is designed for low-noise operation while supporting heat management during professional use.

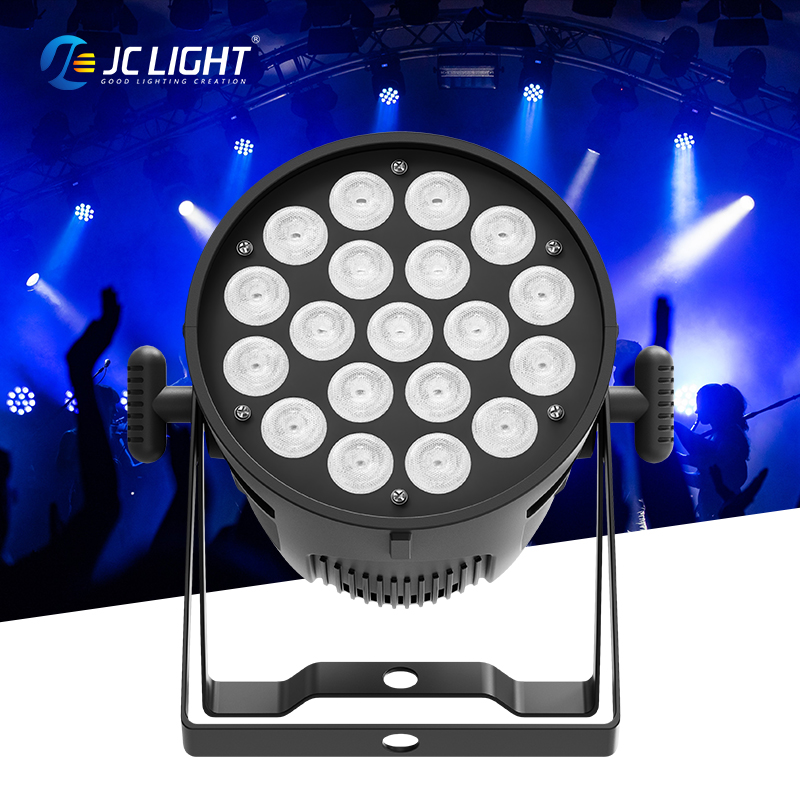

Application Scenarios
- Concert stage wash lighting
- Theatre lighting
- Wedding and event lighting
- DJ and nightclub lighting
- Live performance stages
- Banquet hall lighting
- Church and worship lighting
- Entertainment venues
- Professional rental lighting systems
- Fixed stage lighting installations
Why Choose JC LIGHT
- Professional LED Par light manufacturer
- 19 × 10W RGBW 4-in-1 LED configuration
- 25° and 45° optical options
- Thickened cast aluminum housing
- DMX512 and RDM support
- Signal-holding function
- Professional hand-in-hand connection design
- Suitable for distributors, rental companies and lighting contractors
- OEM and ODM stage lighting solutions available
LS194 210W 19x10W RGBW LED Par Light FAQ
What light source does the LS194 use?
The LS194 uses 19 × 10W RGBW 4-in-1 LEDs with a total fixture power consumption of 210W.
What beam angles are available for the LS194?
The standard beam angle is 45°, while a 25° option is also available.
Does the LS194 support RDM?
Yes. The LS194 supports RDM functionality together with standard DMX512 control.
What DMX channel modes are available?
The fixture provides 7CH and 12CH DMX control modes.
What happens if the DMX signal is lost?
The LS194 includes a signal-holding function that allows the fixture to maintain its current state when no control signal is received.
What material is the LS194 housing made from?
The fixture uses a thickened cast aluminum housing designed for professional stage lighting applications.
Is the LS194 waterproof?
The LS194 has an IP25 protection rating. It should not be treated as a fully waterproof outdoor fixture and should be appropriately protected from direct rain and severe weather exposure.
Can multiple LS194 LED Par lights be connected together?
The fixture includes a 1.5-meter hand-in-hand series copper cable and professional connection hardware for multi-fixture stage lighting installations.
