Description
Effect:
Video:
800W 12x40W RGBW Bee Eye Beam Wash Moving Head Light with 200W LED

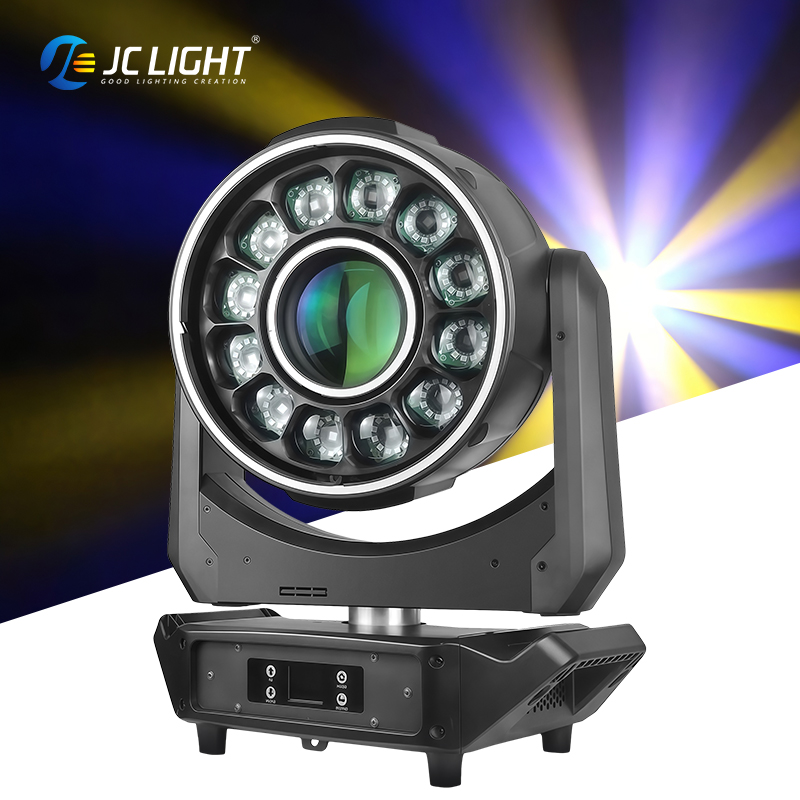

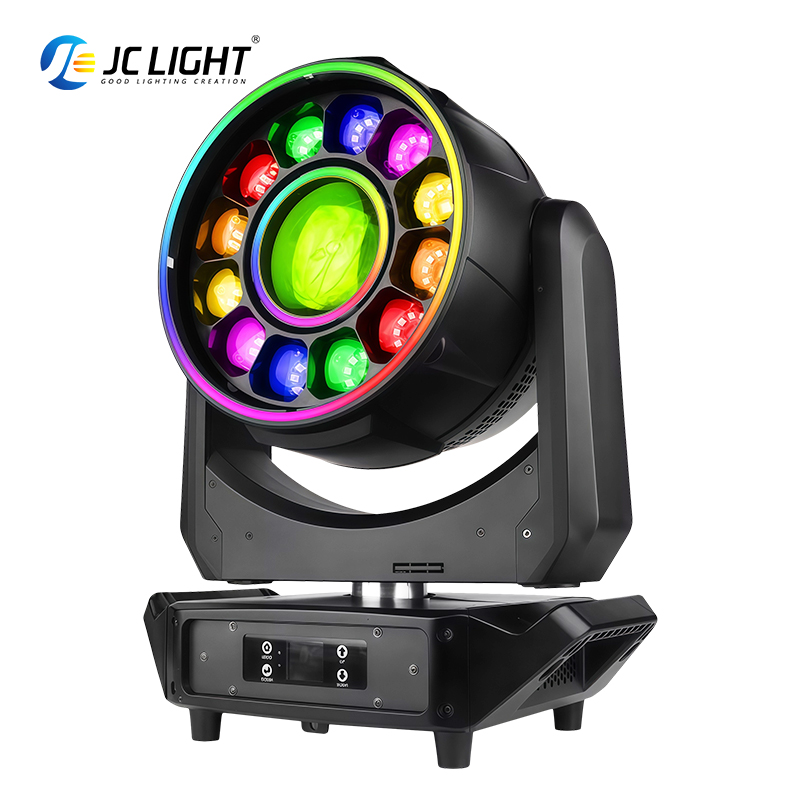

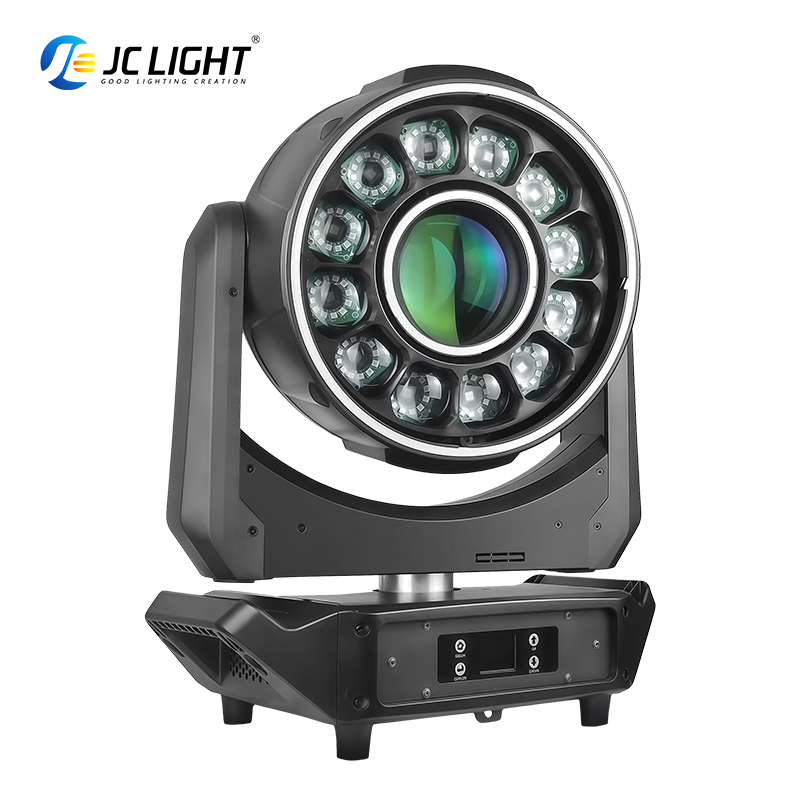

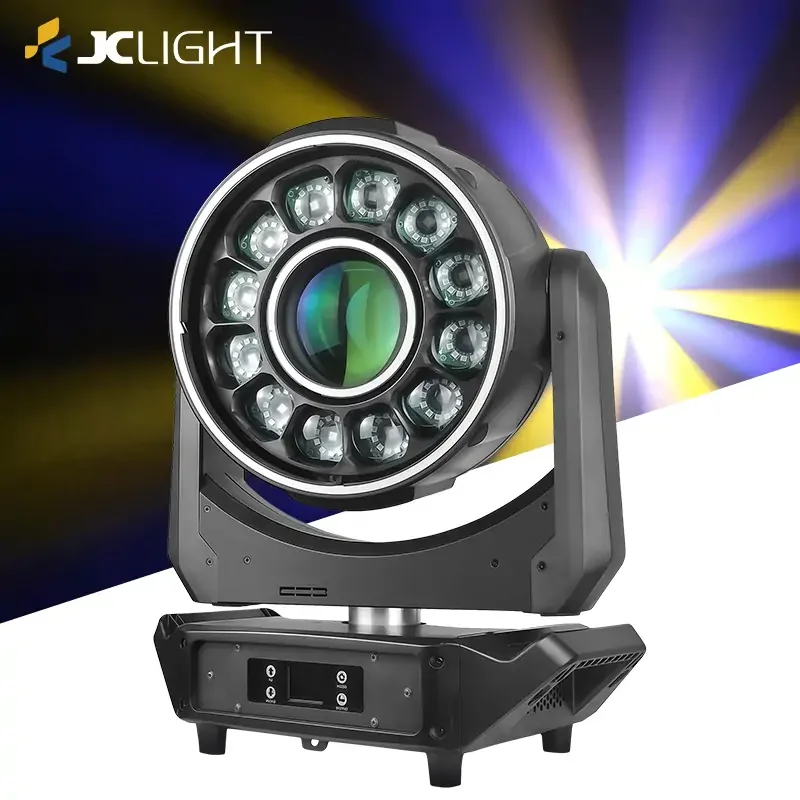

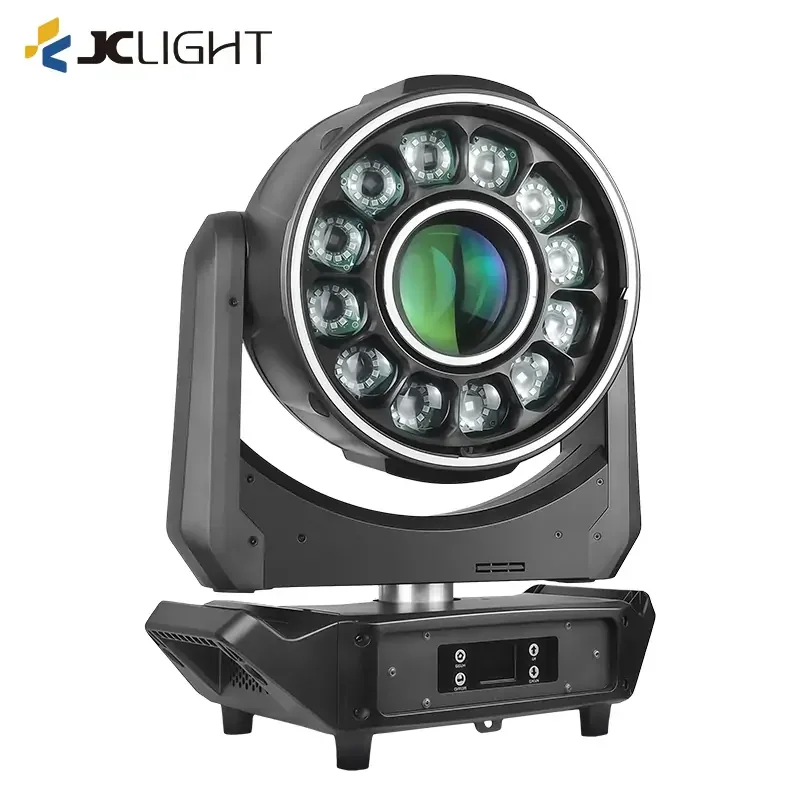

The JC LIGHT 800W Bee Eye Beam Wash Moving Head Light combines 12pcs 40W RGBW 4-in-1 wash LEDs with a powerful 200W inner-ring LED module. The dual light-source design integrates a 3° center beam, 4°-51° RGBW zoom wash, gobos, dual rotating prisms, bee-eye rotation and individual point control into one multifunction professional moving head fixture.

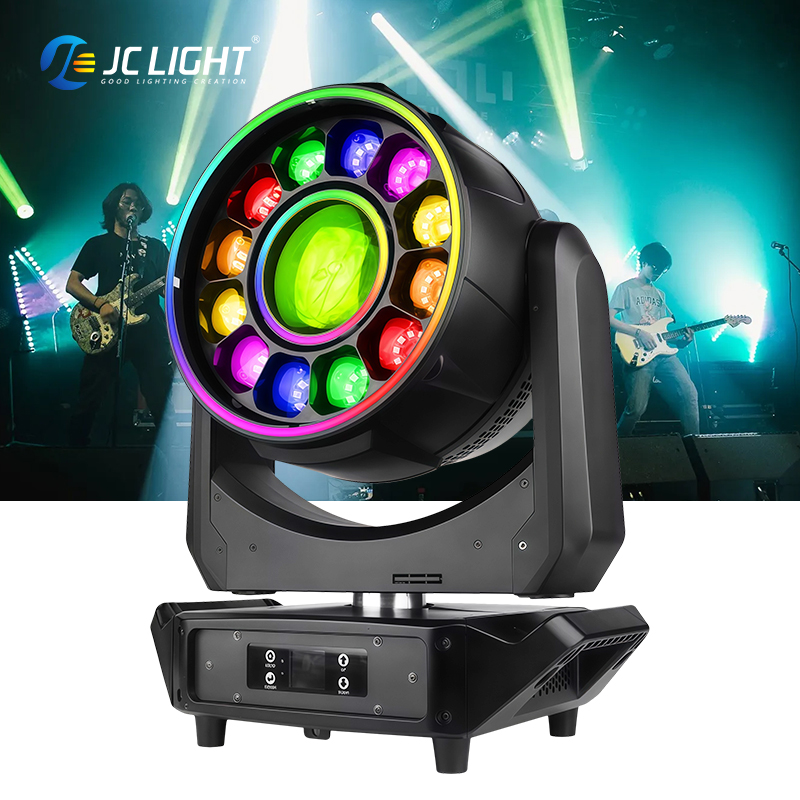

Designed for concerts, clubs, festivals, live shows and professional rental productions, the fixture features inner and outer LED rings for layered visual effects. The outer ring provides zoom and bee-eye rotation, while the 200W inner beam provides fixed colors, gobos and prism effects. Linear CTO adjustment from 2500K to 8000K, smooth dimming, multiple-speed strobe and flicker-free performance under HD cameras further expand its applications for professional stage and broadcast productions.
Key Features
- 800W professional beam, wash and bee-eye moving head light
- 12pcs 40W RGBW 4-in-1 LEDs for wash and bee-eye effects
- 200W inner-ring LED module for concentrated beam effects
- 3° narrow center beam from the 200W LED module
- 4°-51° zoom range from the RGBW outer-ring LEDs
- Outer-ring zoom and bee-eye rotation functions
- Individual point control for creative pixel effects
- 13 fixed colors + white with rainbow effect
- 6 gobos + 3 effect gobos + white/open position
- Dual prism system with 8-facet and 16-facet prisms
- Both prisms support bidirectional rotation
- 2500K-8000K linear CTO color temperature adjustment
- Electric focusing system
- Multiple-speed strobe effects
- 0-100% smooth dimming
- Built-in firefly, Hot Wheels and other special effects
- Color macro effects for creative stage programming
- Flicker-free performance under HD cameras

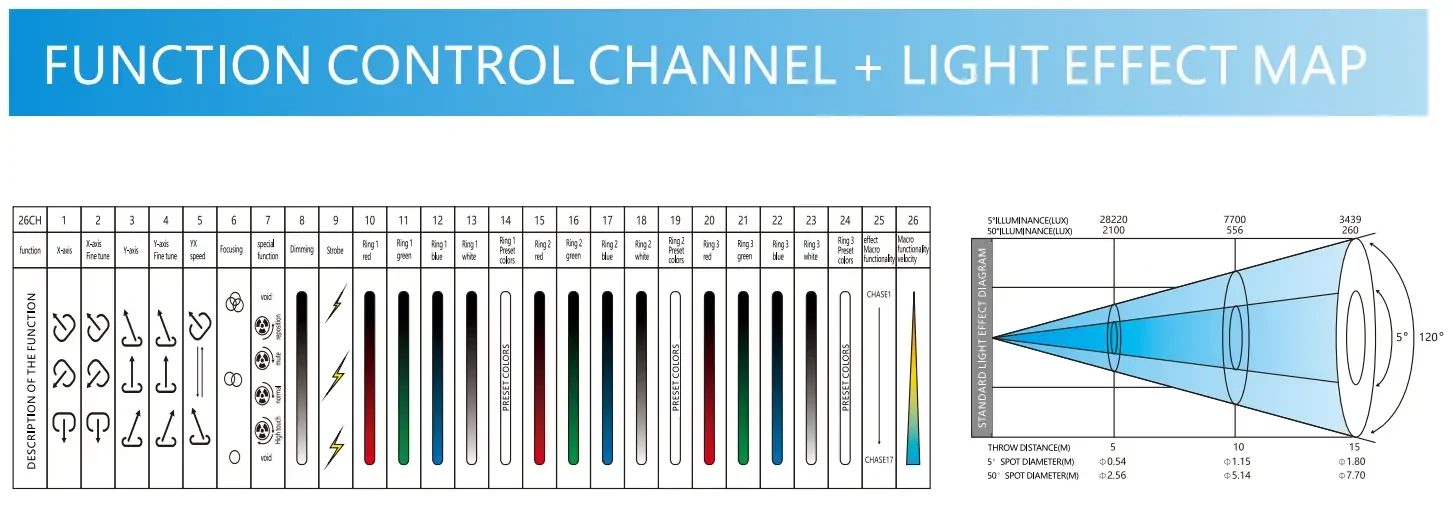

- 34-channel DMX control
Technical Specifications
| Input Voltage | AC90-240V, 50/60Hz |
| Rated Power | 800W |
| Wash Light Source | 12 × 40W RGBW 4-in-1 LED |
| Inner Beam Light Source | 200W LED Module |
| 200W LED Luminous Flux | 5,000 lm |
| Inner Beam Angle | 3° (200W LED) |
| RGBW Zoom Angle | 4°-51° (40W RGBW LED) |
| Color Wheel | 13 Fixed Colors + White, with Rainbow Effect |
| Gobo | 6 Gobos + 3 Effect Gobos + White/Open |
| Prism | Dual Prism: 8-Facet + 16-Facet |
| Prism Rotation | Bidirectional Rotation |
| CTO | 2500K-8000K Linear Color Temperature Adjustment (40W RGBW LED) |
| Focusing | Electric Focusing System |
| Bee Eye Effect | Outer-Ring Bee Eye Rotation |
| Pixel Control | Individual Point Control |
| Dimming | 0-100% Smooth Dimming |
| Strobe | Multiple-Speed Strobe Effects |
| Special Effects | Firefly, Hot Wheels and Other Preset Effects |
| Camera Performance | Flicker-Free Under HD Camera |
| Control Mode | DMX512 / Master-Slave / Auto Run / Sound |
| DMX Channels | 34CH |
| IP Rating | IP20 |
| Product Size | 46 × 28 × 52 cm |
| Package Size | 68 × 45 × 55 cm |
| Net Weight | 24 kg |
200W Center Beam with 3° Narrow Projection
The inner ring uses a dedicated 200W LED module with a 3° beam angle and specified luminous flux of 5,000 lm. It includes 13 fixed colors plus white, rainbow effects, gobos and dual prisms, providing a concentrated center beam for aerial and mid-air stage effects.
12x40W RGBW Wash with 4°-51° Zoom
Surrounding the center beam are 12pcs 40W RGBW 4-in-1 LEDs with a wide 4°-51° zoom range. Lighting designers can move from tighter RGBW effects to broad wash coverage, allowing the fixture to adapt to different stage sizes, scenes and performance requirements.
Bee Eye Rotation and Individual Point Control

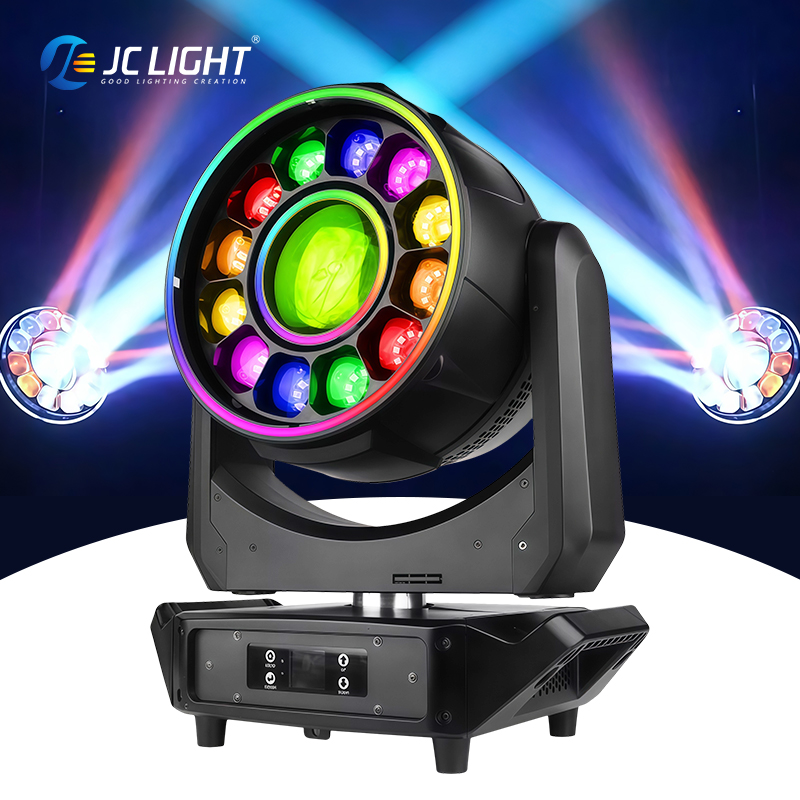

The outer LED ring combines bee-eye rotation with individual point control, enabling dynamic rotating patterns, pixel sequences and color macro effects. Together with the inner and outer ring structure, the fixture can create layered visual effects that go beyond a conventional moving head wash.
Gobo and Dual Prism Effects
The 200W beam section includes 6 gobos, 3 effect gobos and a white/open position. An 8-facet prism and 16-facet prism provide additional beam-splitting effects, with both prisms supporting bidirectional rotation for more dynamic aerial patterns.
2500K-8000K Linear CTO Adjustment
The RGBW section supports linear CTO adjustment from 2500K to 8000K, giving lighting designers a broad range of warm-to-cool white looks in addition to RGBW color mixing. This is useful for stage scenes that require flexible color temperature control.
Flicker-Free Performance for HD Cameras
Flicker-free operation under HD cameras makes the fixture suitable for productions where stage lighting is captured on video, including television shows, livestream productions, concerts and other camera-based entertainment applications.
Application Scenarios
- Concert and touring stage lighting
- Nightclub and DJ lighting systems
- Music festivals and live performances
- TV studios and broadcast productions
- Livestream and filmed stage productions
- Wedding and event lighting
- Theatre and entertainment venues
- Professional rental lighting projects
Why Choose JC LIGHT
- Professional beam and wash moving head light manufacturer
- 12 × 40W RGBW LEDs plus dedicated 200W center beam module
- Beam, wash, zoom, bee-eye, gobo and prism effects in one fixture
- Individual point control for advanced stage programming
- 4°-51° RGBW zoom plus 3° center beam
- 2500K-8000K linear CTO adjustment
- Flicker-free operation for HD camera applications
- OEM and ODM customization for distributors, rental companies and project contractors
800W RGBW Bee Eye Beam Wash Moving Head Light FAQ
What light sources does this beam wash moving head use?
The fixture combines 12pcs 40W RGBW 4-in-1 LEDs for wash and bee-eye effects with a separate 200W LED module in the inner ring for concentrated beam effects.
What are the beam and zoom angles?
The inner 200W LED module provides a 3° beam angle, while the 12pcs 40W RGBW LEDs provide a 4°-51° zoom angle.
Does this moving head light support individual LED control?
Yes. The fixture supports individual point control, allowing lighting programmers to create detailed pixel, color and dynamic visual effects.
Does the fixture have bee-eye rotation?
Yes. The outer LED ring provides bee-eye rotation together with zoom and point-control functions for dynamic rotating stage effects.
What gobo and prism effects are included?
The 200W beam section includes 6 gobos, 3 effect gobos and a white/open position. It also features an 8-facet prism and a 16-facet prism, both supporting bidirectional rotation.
Can the color temperature be adjusted?
Yes. The 40W RGBW LED section supports 2500K-8000K linear CTO color temperature adjustment.
Is this moving head suitable for TV and camera productions?
Yes. The fixture is designed for flicker-free performance under HD cameras, making it suitable for TV, livestream, filmed concerts and other professional production environments.
Need wholesale pricing for the 800W 12x40W RGBW Bee Eye Beam Wash Moving Head Light with 200W LED? Contact JC LIGHT with your required quantity and project requirements.
