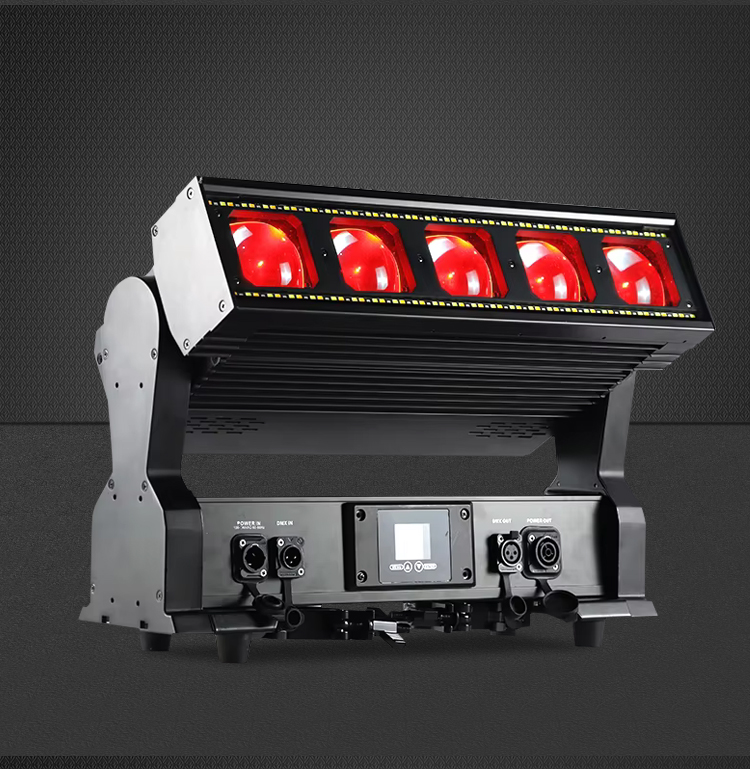

5x60W RGBW Waterproof Beam Wash Light with CW WW RGB Matrix and Zoom

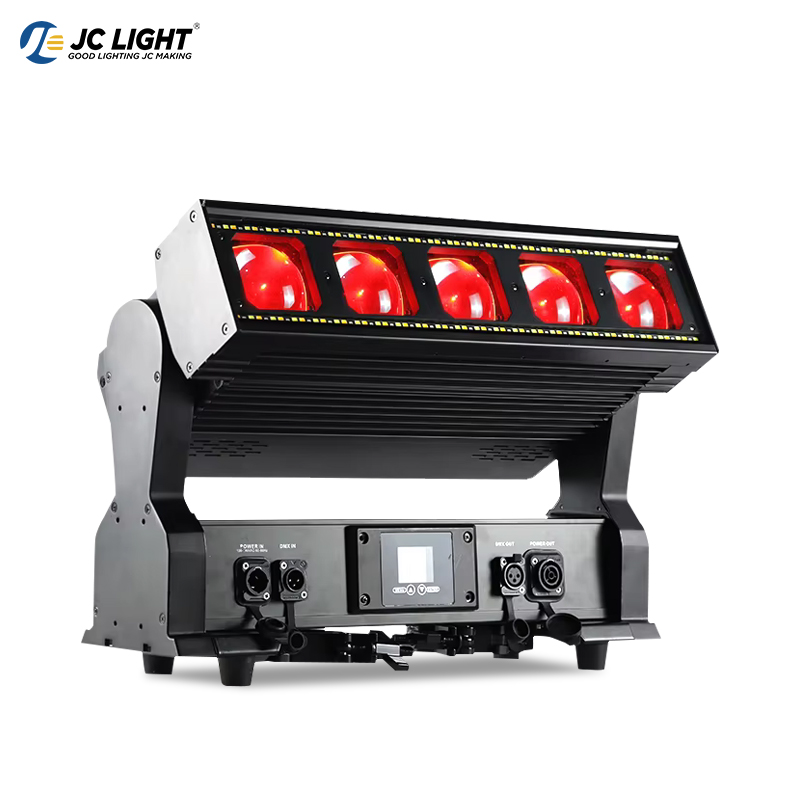

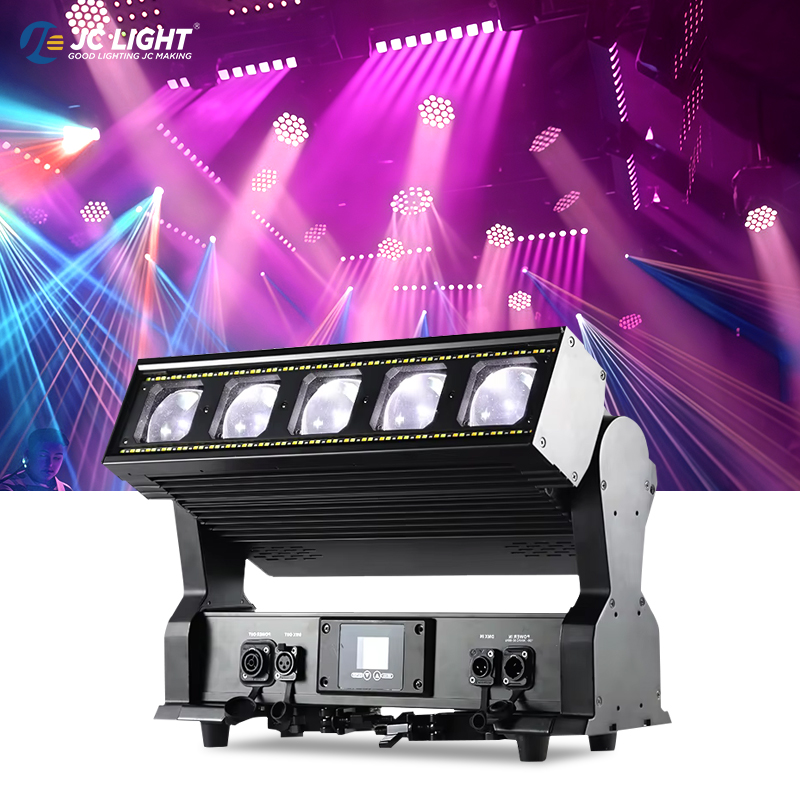

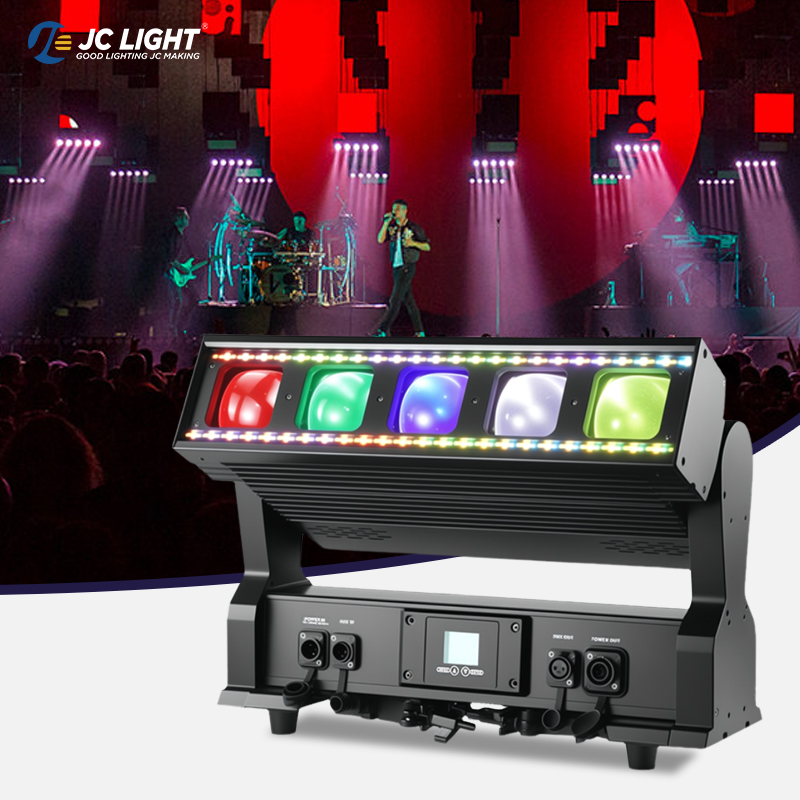

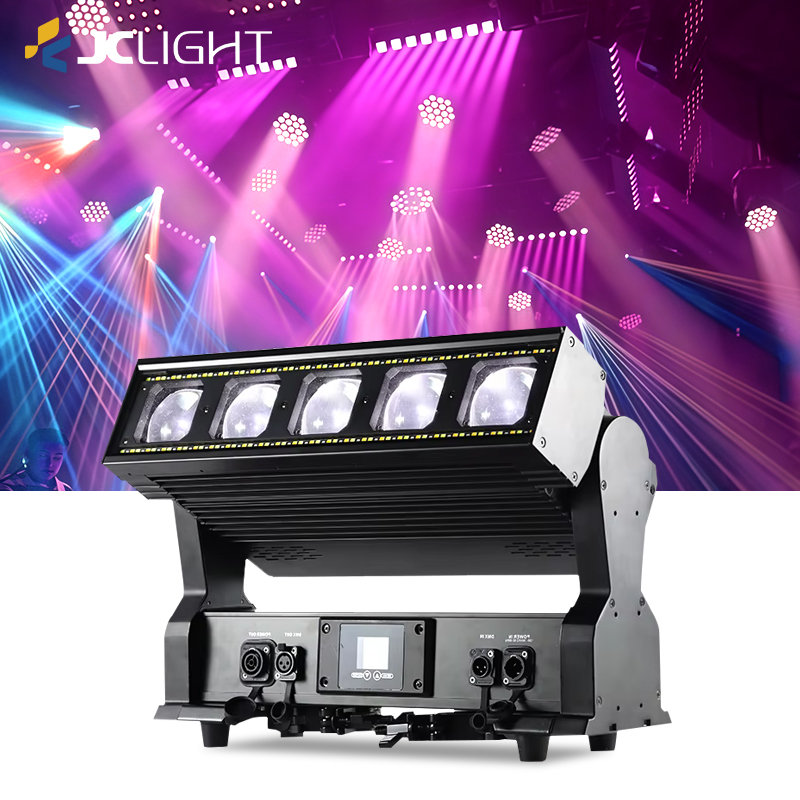

The JC LIGHT F560G is a high-performance outdoor beam wash fixture designed for concerts, stage lighting and architectural applications. Combining powerful RGBW main LEDs with multi-segment auxiliary lighting, it delivers dynamic beam, wash and matrix effects in one versatile unit.
With independent pixel control, wide color temperature range and motorized zoom, this fixture enables creative lighting design and flexible programming. Its IP65 waterproof construction ensures reliable performance in outdoor environments.
Key Features
- 5×60W RGBW LEDs with individual pixel control
- Auxiliary LEDs: cold white, warm white and RGB segmented control

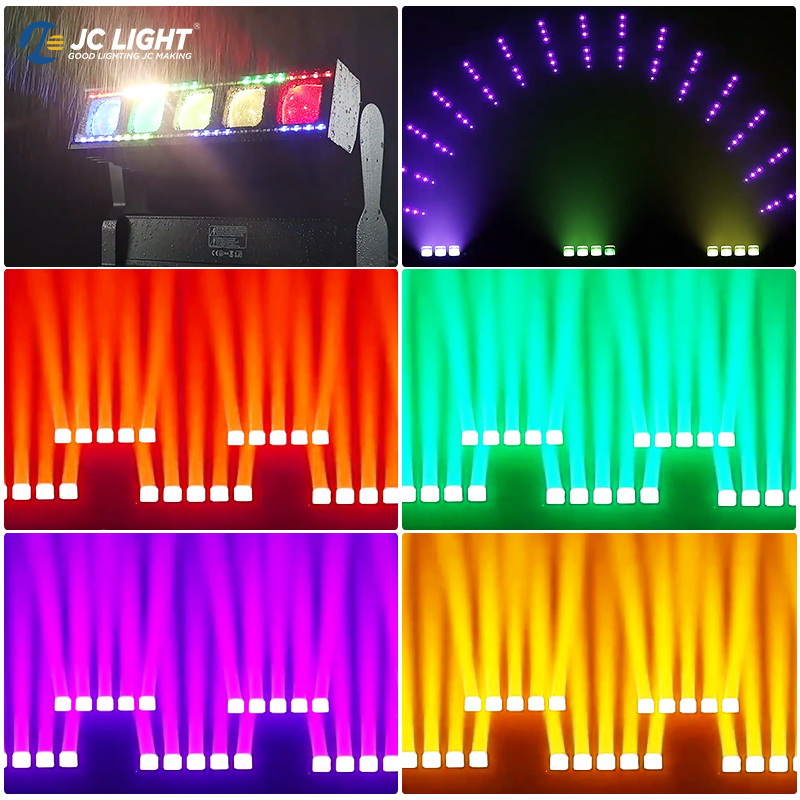

- Beam + wash + matrix + color mixing effects
- Wide color temperature range from 2500K to 8000K
- Motorized zoom from 3° to 25°
- High brightness output with 4850 lumens
- 0–100% smooth linear dimming
- Adjustable strobe up to 25Hz
- Y-axis movement with 16-bit precision
- IP65 waterproof design for outdoor use
Technical Specifications
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 600W |
| Main Light Source | 5×60W RGBW LEDs |
| Auxiliary Light | 48×3W CW + 48×3W WW + 48×0.5W RGB LEDs |
| Color Temperature | 2500K – 8000K adjustable |
| Zoom | 3° – 25° motorized zoom |
| Dimming | 0–100% linear dimming |
| Strobe | 0–25Hz |
| Luminous Flux | 4850 lm |
| Movement | Y-axis 180° (16-bit) |
| LED Lifespan | 50,000 hours |
| Display | LCD display with touch buttons |
| Control Mode | DMX512 / Master-slave / Auto / Sound / RDM |
| Channel | 17 / 27 / 55 / 58 / 88 / 90CH |

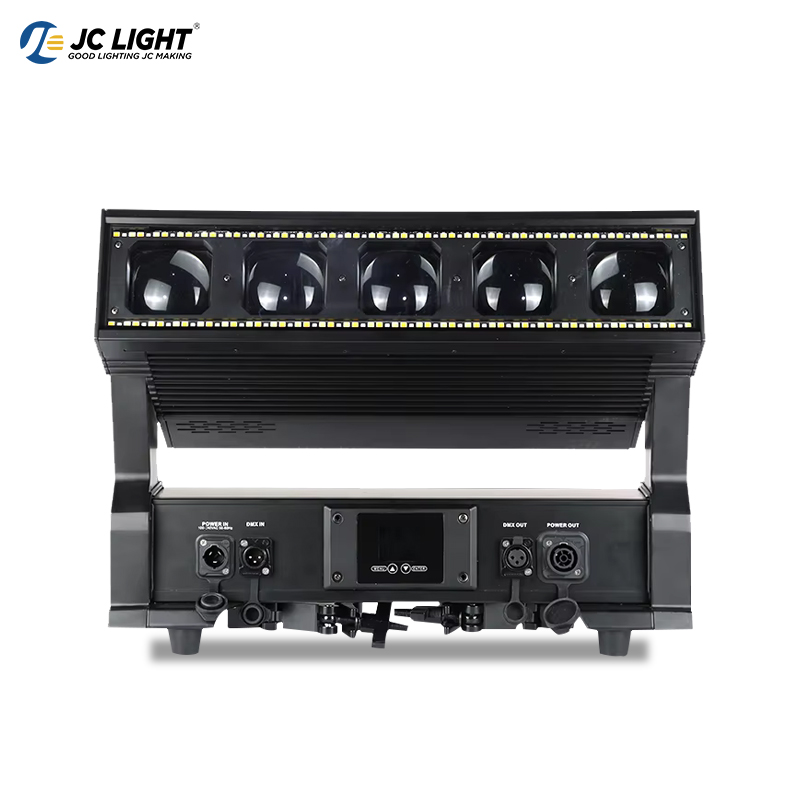

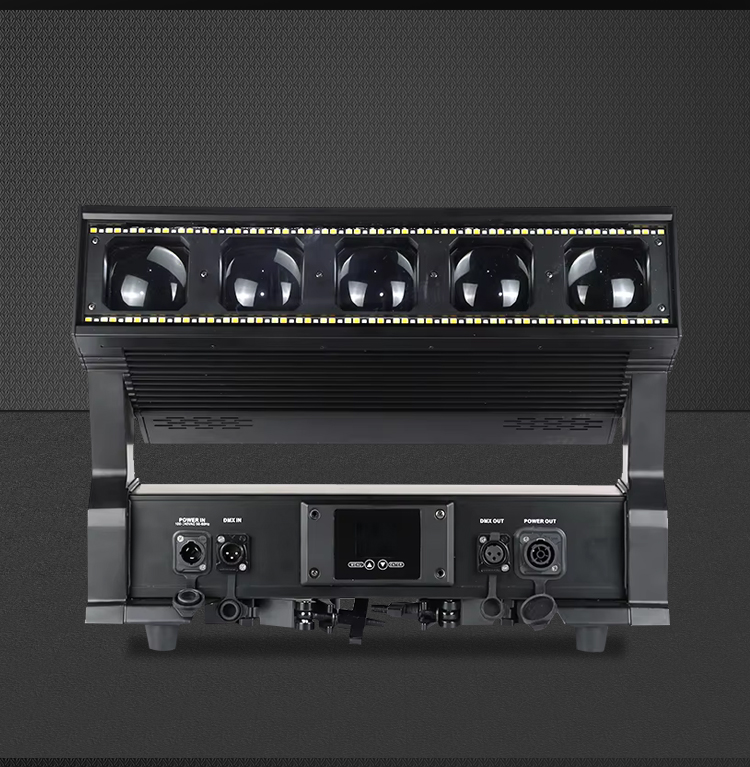

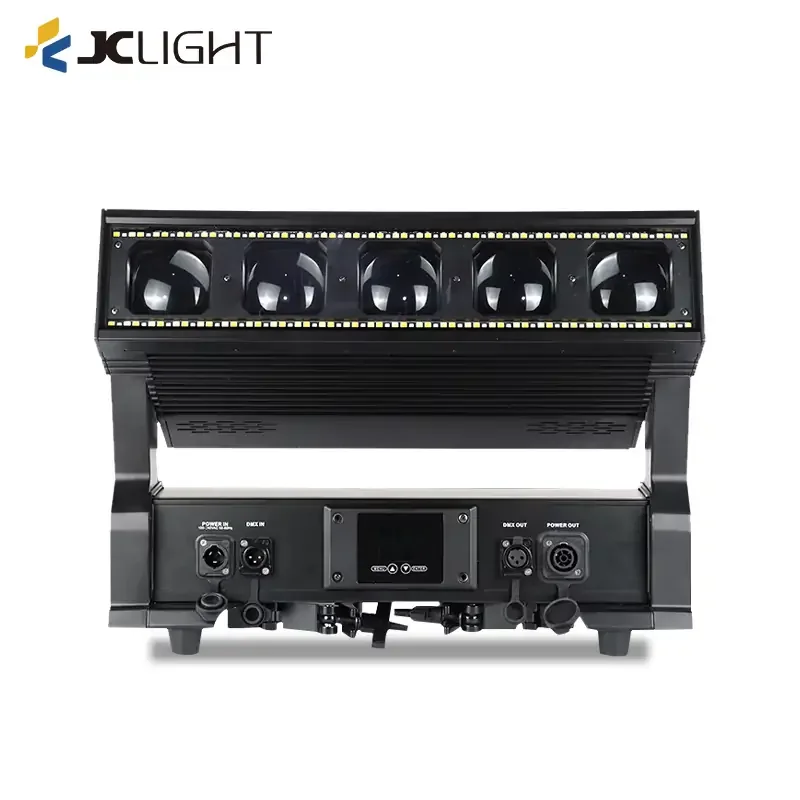

| Connection | Powercon in/out, 3-pin XLR DMX |
| Software Upgrade | DMX upgrade supported |
| Material | Aluminum alloy |
| IP Rating | IP65 |

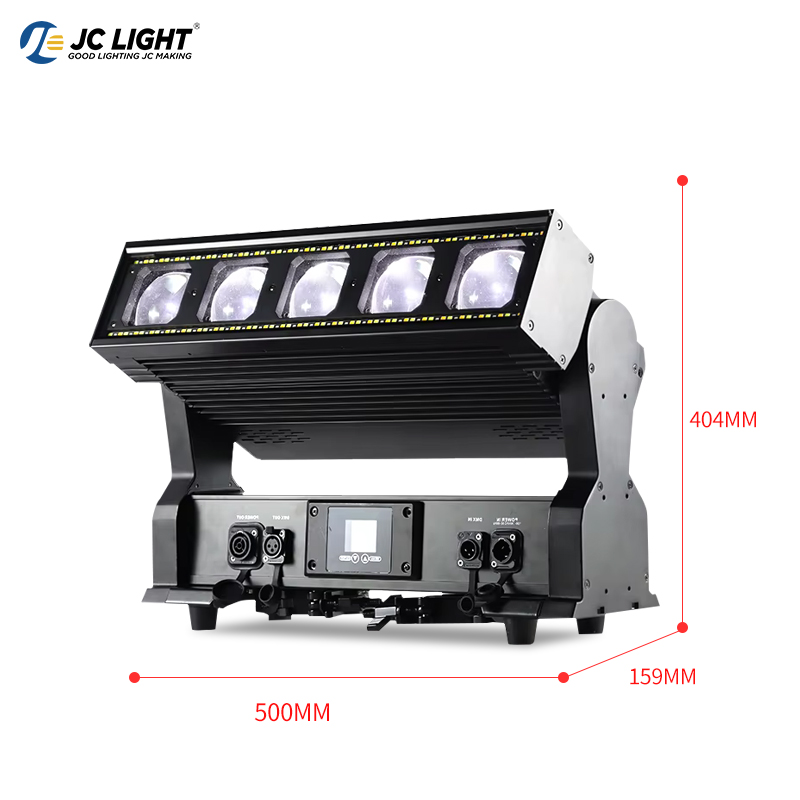

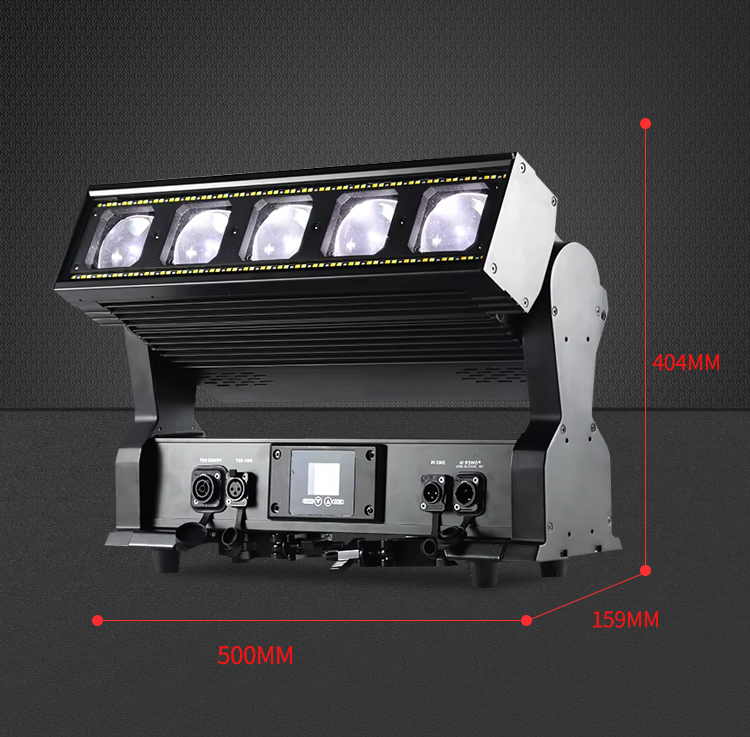

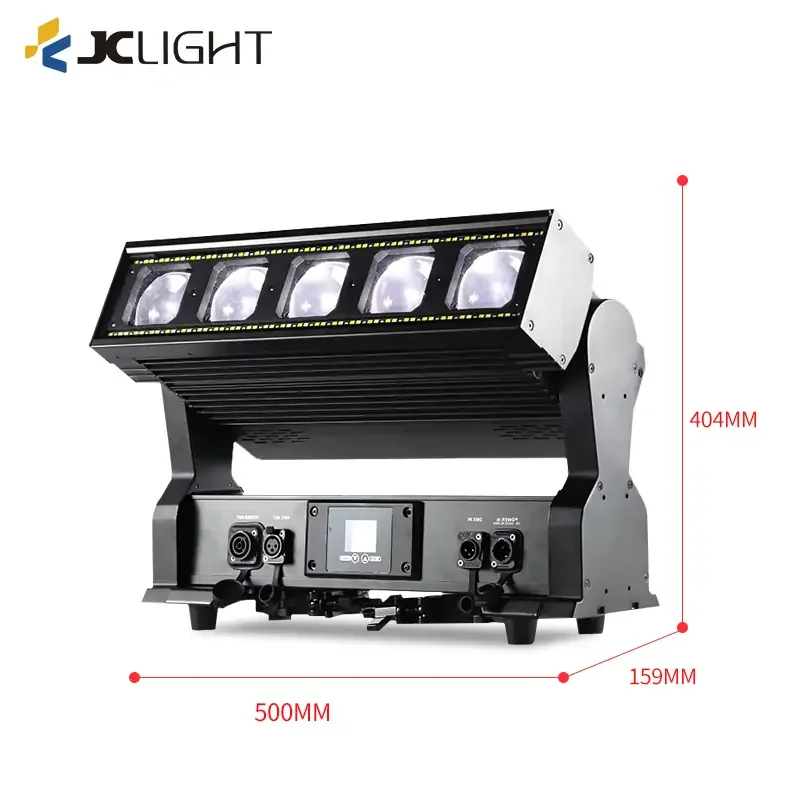

| Product Size | 500 × 159 × 404 mm |
| Net Weight | 18.5 kg |
| SKU | F560G |

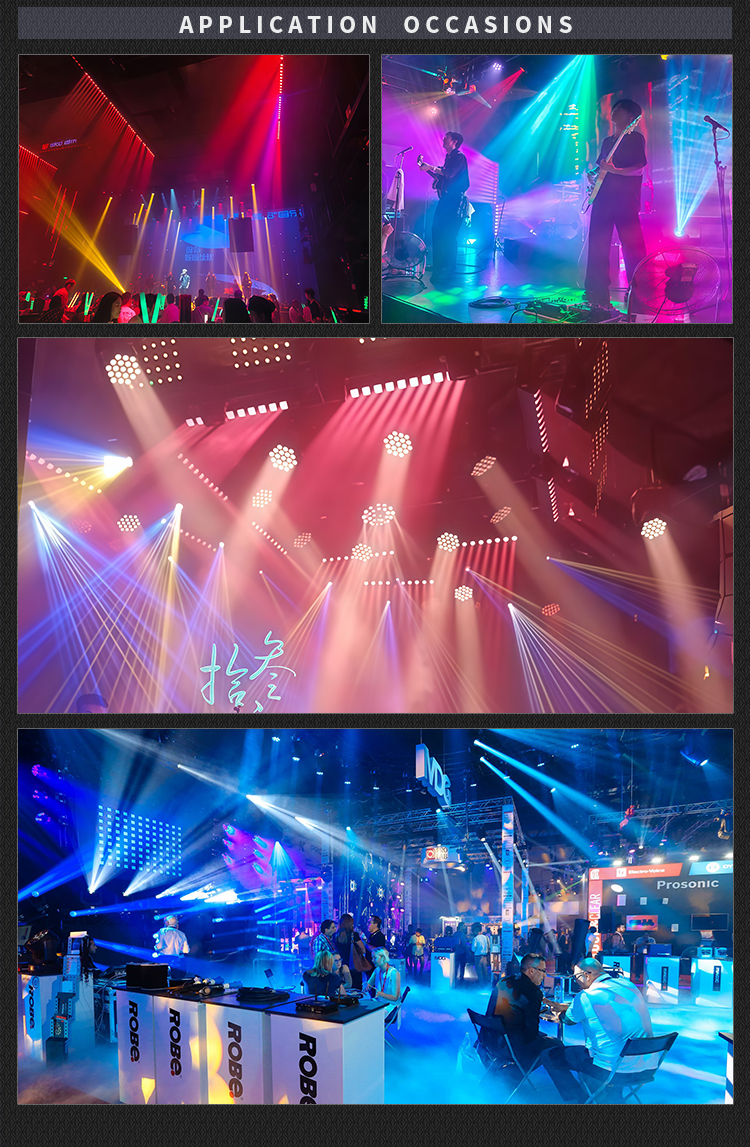

Application Scenarios
- Outdoor stage and concert lighting systems
- Festival and event lighting installations
- Architectural and facade lighting projects
- Stage truss and background matrix lighting
- Professional rental and touring applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- Advanced waterproof lighting solutions for outdoor use
- Strong OEM and ODM customization capability
- Pixel control and multi-effect integrated design
- Fast response and technical support for projects
Waterproof Beam Wash Matrix Light FAQ
Is this fixture suitable for outdoor use?
Yes. With IP65 waterproof protection, it is designed for outdoor stage and event environments.
Does it support pixel control?
Yes. Both the main LEDs and auxiliary LEDs support segmented and pixel-level control.
What effects does this light provide?
It combines beam, wash, color mixing, zoom and matrix effects in one fixture.
What is the zoom range?
The motorized zoom ranges from 3° to 25°, allowing flexible beam shaping.
Does it support professional control systems?
Yes. It supports DMX512 and RDM, compatible with professional lighting consoles.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and configuration customization.
