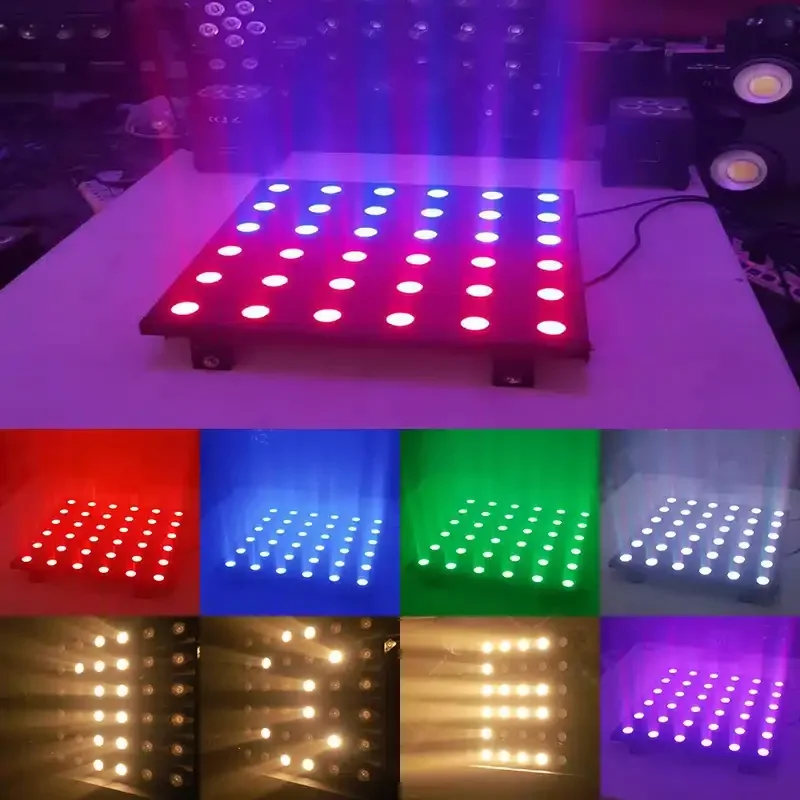

JC LIGHT 36PCS Gold LED Matrix Effect Light China Factory
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT 36PCS Gold LED Matrix Effect Light China Factory
Get factory pricing, OEM support and delivery information for this product.
- Description
- Details
Description
Effect:
130W LED Wall Wash Light with 36 LED Sources and Narrow Beam Effect
The JC LIGHT JZ36F / JZ36B / JZ36A LED Wall Wash Light is a compact professional lighting fixture designed for stage decoration, architectural lighting, churches, theaters, exhibitions and event applications. Equipped with 36 × 3W imported LED lamp beads, it delivers high brightness output with excellent color consistency and long-term reliability.
Supporting 2600K warm white, 3-in-1 RGB and 4-in-1 RGBW LED configurations, this fixture provides flexible lighting solutions for different projects. With a 4° narrow beam angle, 0-100% linear dimming, 5CH/36CH DMX modes and 50,000-hour LED lifespan, it is suitable for professional stage and architectural lighting systems.
Key Features
- 130W professional LED wall wash light
- 36 × 3W imported LED lamp beads
- 2600K warm white / 3-in-1 / 4-in-1 LED options
- 50,000-hour LED lifespan
- 4° narrow beam angle design
- 0-100% linear dimming
- 0-10Hz strobe effect
- DMX512 professional control
- Master-slave control mode
- Auto-run and sound control modes
- 5CH and 36CH DMX channel modes
- Aluminum alloy + plastic panel housing
- Free cooling system without fan noise
- Compact panel design for easy installation
Technical Specifications
| SKU | JZ36F / JZ36B / JZ36A |
| Product Type | LED Wall Wash Light |
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 130W |
| Light Source | 36 × 3W Imported LED Lamp |
| LED Configuration | 2600K Warm White / 3-in-1 / 4-in-1 |
| LED Lifespan | 50,000 Hours |
| Beam Angle | 4° |
| Dimming | 0-100% Linear Dimming |
| Strobe | 0-10Hz |
| IP Rating | IP20 |
| Control Mode | DMX512 / Master-Slave / Auto / Sound |
| DMX Channel | 5CH / 36CH |
| Material | Aluminum Alloy + Plastic Panel |
| Cooling System | Free Cooling |
| Product Size | 55 × 55 × 10 cm |
| Package Size | 56 × 56 × 14 cm (1pcs); 58 × 58 × 32 cm (2pcs) |
| Gross Weight | 7 kg |
36×3W Imported LED Light Source
The JZ36 series adopts 36 high-quality 3W imported LED lamp beads, providing stable brightness output and excellent color performance. The LED lifespan reaches up to 50,000 hours, reducing maintenance costs for long-term installations.
Multiple LED Color Options
Available LED configurations include 2600K warm white, 3-in-1 RGB and 4-in-1 RGBW, allowing users to select the ideal lighting solution for stage, architectural and decorative applications.
Ultra Narrow 4° Beam Effect
The 4° beam angle creates concentrated and precise lighting effects, making it suitable for highlighting structures, stage elements and specific performance areas.
Professional Dimming and Strobe Control
The fixture supports 0-100% linear dimming for smooth brightness adjustment and 0-10Hz strobe effects for dynamic lighting scenes.
DMX512 Professional Control
Supporting DMX512, master-slave, auto-run and sound modes, the JZ36 series can work with professional lighting consoles or operate independently for small events.
Fanless Free Cooling Design
The free cooling structure eliminates fan noise, making it suitable for environments requiring quiet operation such as theaters, churches and studios.
Compact Aluminum Alloy Structure
The combination of aluminum alloy housing and plastic panel provides a lightweight but durable structure, making installation and transportation easier.
Application Scenarios
- Stage background lighting
- Theaters
- Church lighting
- Architectural lighting
- Wedding venues
- Exhibition halls
- Conference rooms
- Entertainment venues
- Event lighting projects
- Professional rental lighting systems
Why Choose JC LIGHT
- Professional LED wall wash light manufacturer
- 130W high-efficiency LED solution
- Multiple LED color options available
- 50,000-hour long lifespan
- Precision 4° beam output
- Fanless silent operation
- DMX512 professional control
- Suitable for stage and architectural projects
- OEM and ODM lighting solutions available
JZ36F JZ36B JZ36A LED Wall Wash Light FAQ
What LED source does the JZ36 series use?
The fixture uses 36 × 3W imported LED lamp beads.
What LED colors are available?
It supports 2600K warm white, 3-in-1 RGB and 4-in-1 RGBW configurations.
What is the beam angle of this wall wash light?
The fixture provides a concentrated 4° beam angle.
How long is the LED lifespan?
The LED lifespan is approximately 50,000 hours.
Does it support DMX512 control?
Yes. It supports DMX512, master-slave, auto-run and sound control.
What DMX channels are supported?
The fixture supports 5CH and 36CH DMX modes.
Is this fixture noisy during operation?
No. It uses a free cooling design without fan noise.
Where can this LED wall wash light be used?
It is suitable for stages, theaters, churches, exhibitions, architectural lighting and professional events.
Need wholesale pricing for the JC LIGHT JZ36F/JZ36B/JZ36A LED Wall Wash Light? Contact JC LIGHT for OEM, ODM and professional stage lighting solutions.
