JC LIGHT Waterproof 10x60W LED Beam Zoom Moving Head Light OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
- Description
- Details
Description
10x60W RGBW Waterproof Beam Wash Bar Light with Pixel Control and Zoom

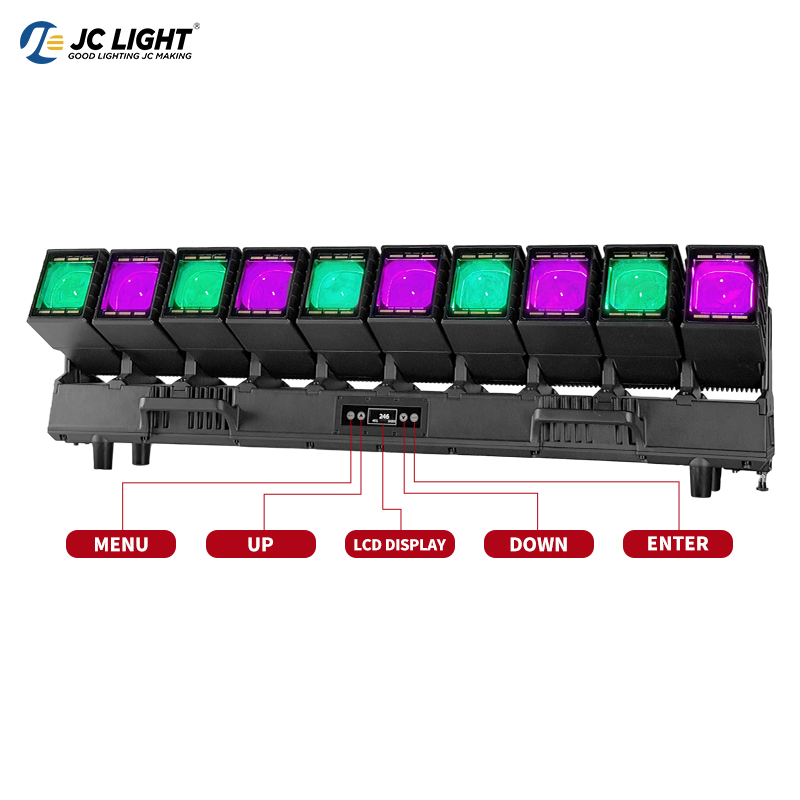

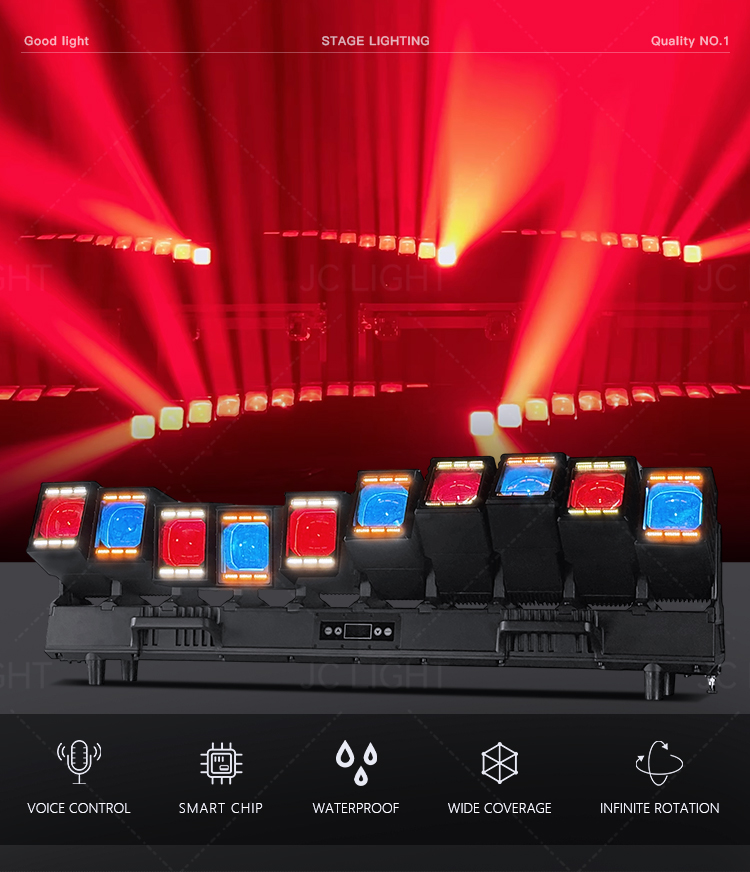

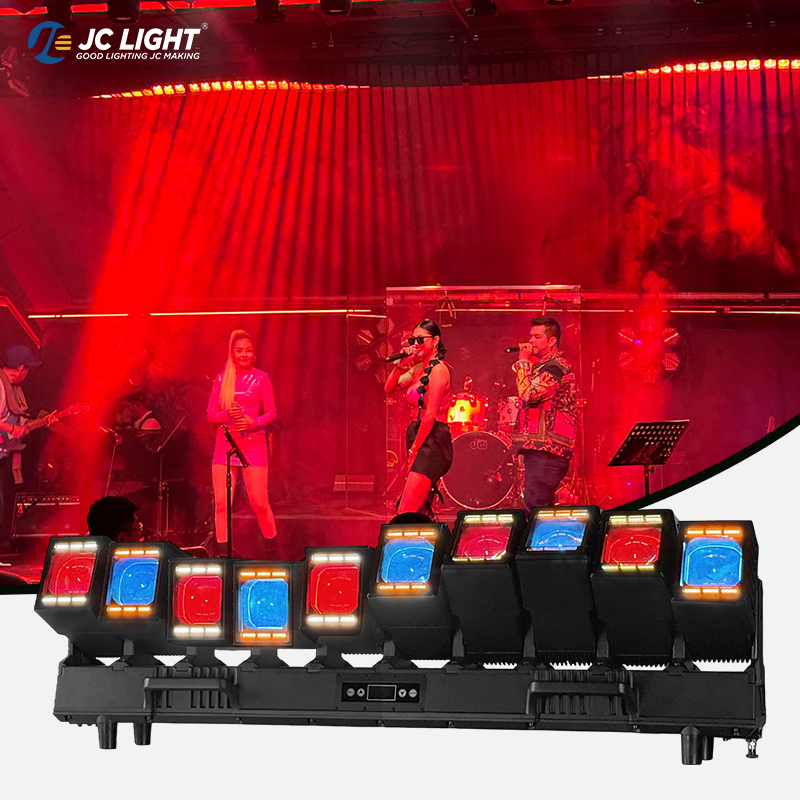

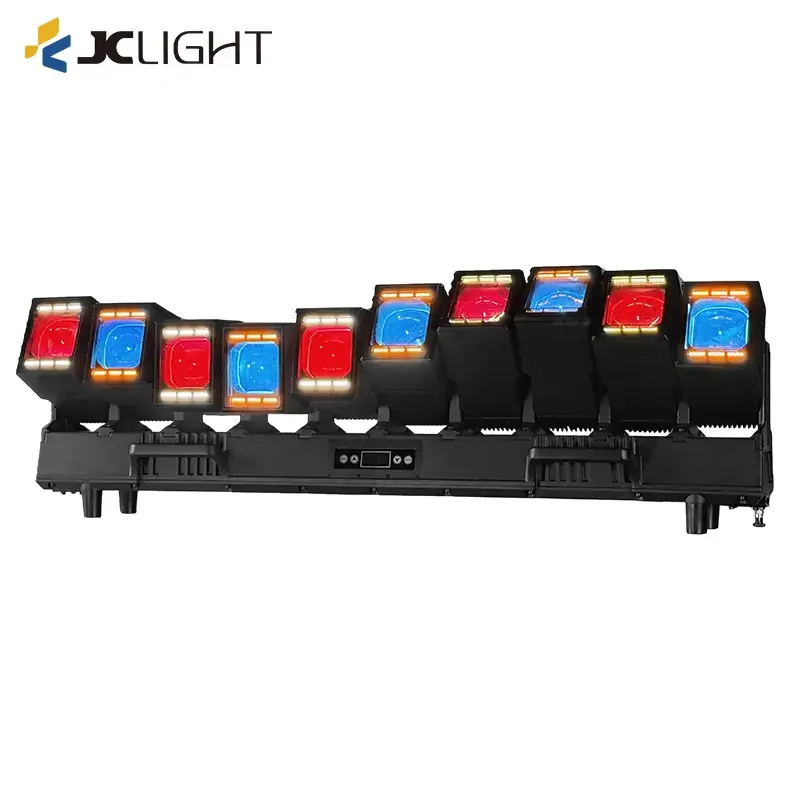

The JC LIGHT V10F is a high-power outdoor linear moving light designed for stage, concert and architectural lighting. Featuring 10 RGBW LEDs combined with a warm white auxiliary ring, it delivers powerful beam, wash and strobe effects in one integrated fixture.
With IP66 waterproof protection, electric zoom and pixel-level control, this fixture is ideal for large-scale outdoor performances and professional lighting projects. Its Y-axis movement and multi-channel control enable dynamic lighting effects and creative programming flexibility.
Key Features
- 10×60W RGBW 4-in-1 LEDs for high brightness output
- 120×2W warm white outer ring for auxiliary effects

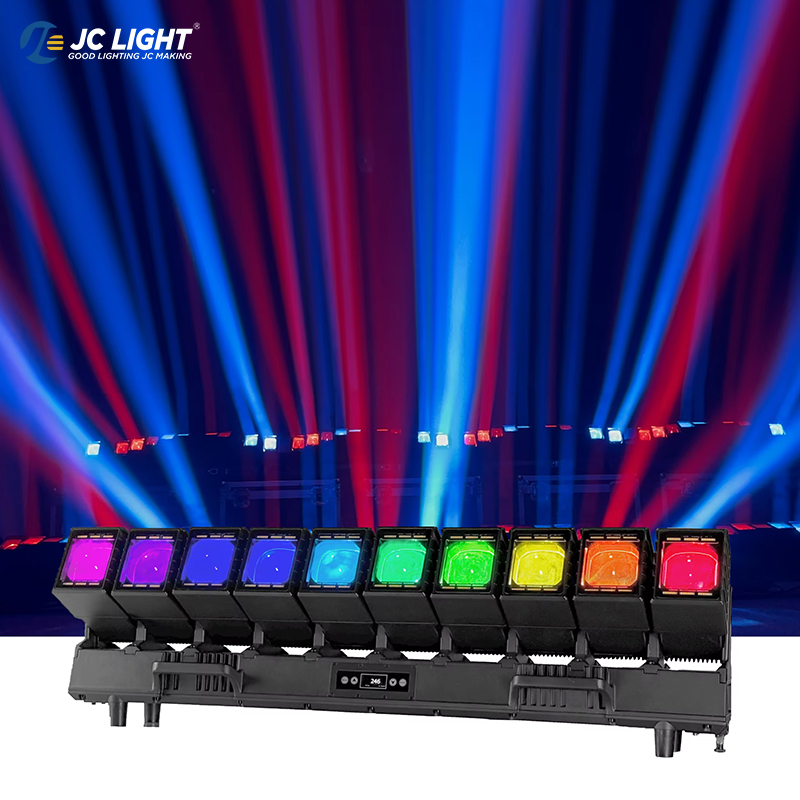

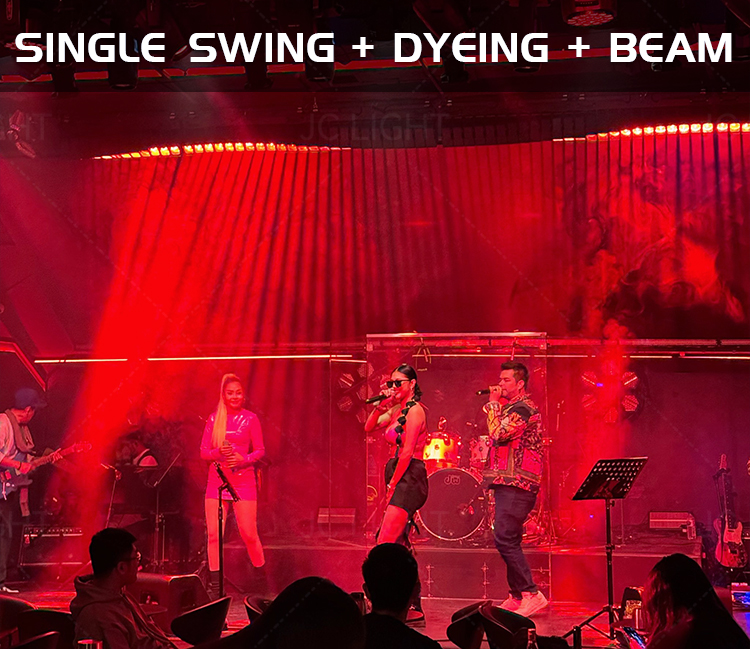

- Beam + wash + strobe + auxiliary lighting combination
- Pixel control for dynamic lighting effects
- Electric zoom with adjustable beam angle
- 32-bit smooth linear dimming (0–100%)
- High-speed strobe with multiple modes
- Y-axis movement with adjustable range
- Supports DMX512 and RDM control protocols
- IP66 waterproof design for outdoor use
Technical Specifications
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 900W |
| Light Source | 10×60W RGBW LEDs + 120×2W warm white LEDs |
| Beam Angle | 4.5°–36° (main light), 120° (auxiliary) |
| Color Mixing | RGBW / CMY effects |
| Dimming | 32-bit 0–100% linear dimming |
| Strobe | 1–25Hz adjustable |
| Movement | Y-axis 16-bit, adjustable 90° / 150° / 200° |
| Zoom | Electric zoom |
| Control Mode | DMX512 / Master-slave / Auto / Sound / RDM |
| DMX Channels | Multiple modes (29 / 56 / 142 / 216 / 247 / 262 / 282CH) |

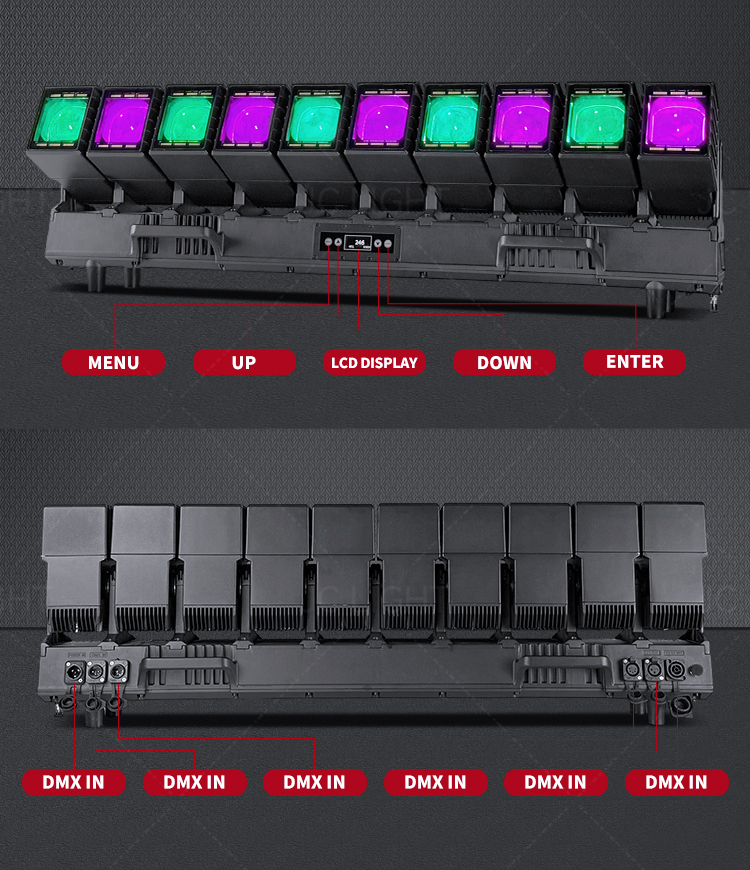

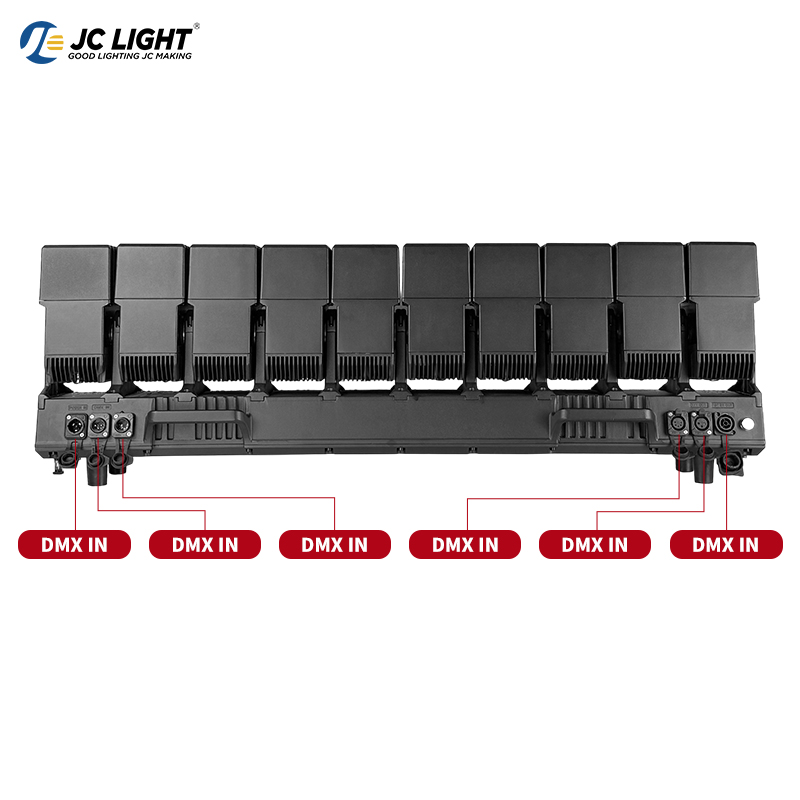

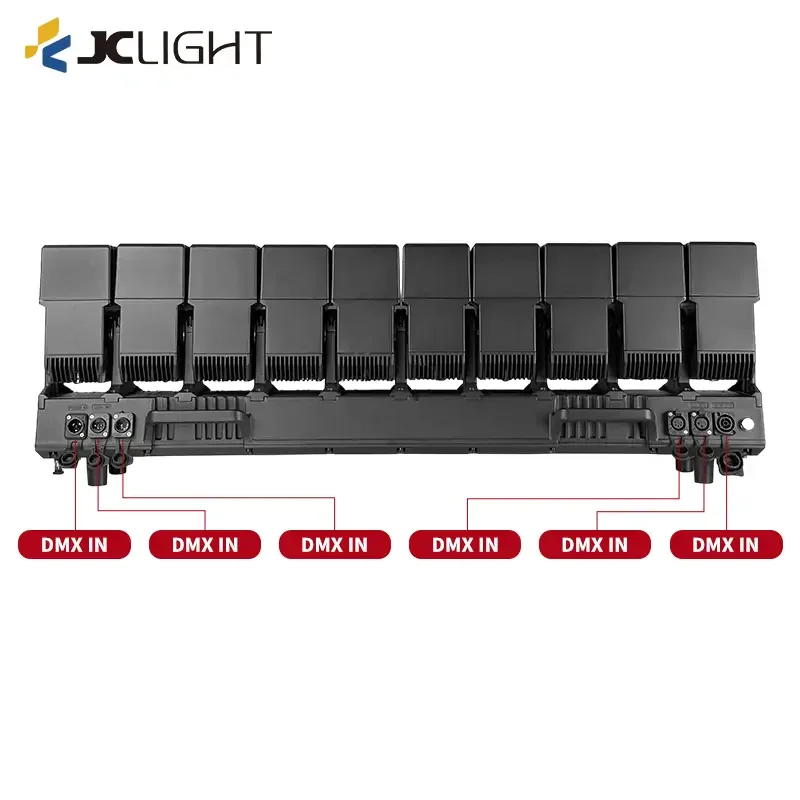

| Connection | DMX input/output, Power input/output |
| Protection Rating | IP66 |
| Product Size | 105 × 17 × 30 cm |
| Package Size | 109 × 38 × 25 cm |
| Net Weight | 26.5 kg |
| Gross Weight | 28.5 kg |
| SKU | V10F |

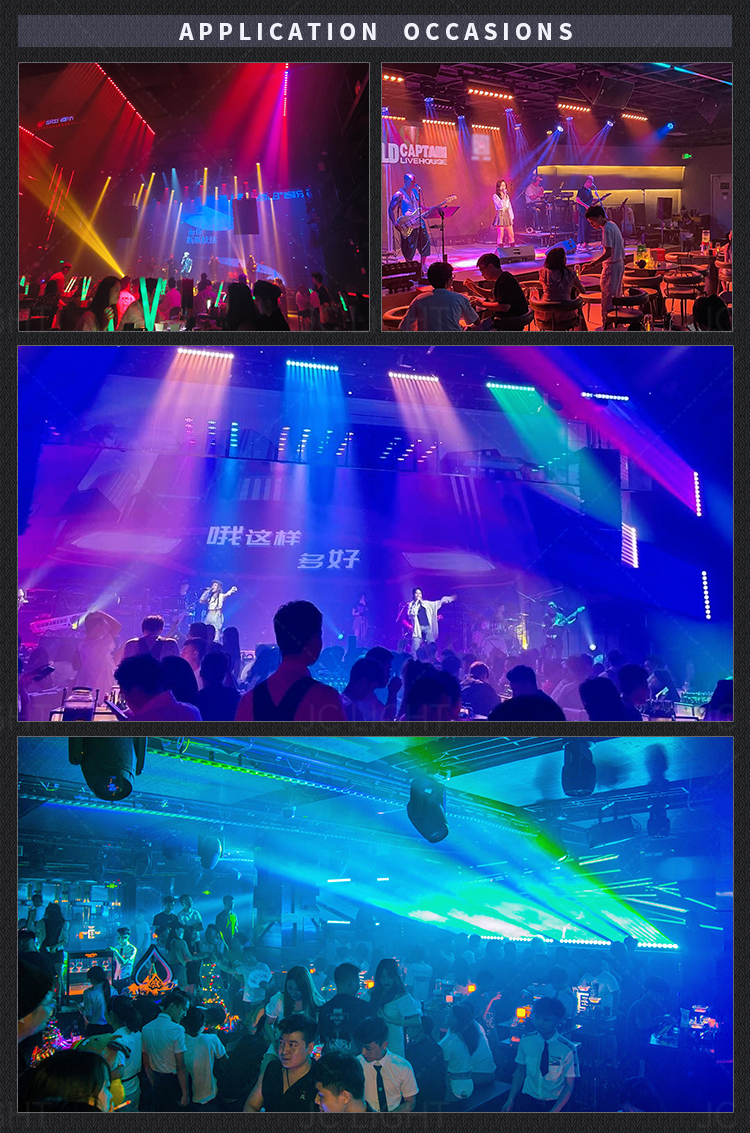

Application Scenarios
- Outdoor stage and concert lighting systems
- Festival and large-scale event lighting
- Architectural and facade lighting projects
- Stage truss and background lighting effects
- Professional rental and touring lighting setups
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- Reliable waterproof lighting solutions for outdoor use
- Strong OEM and ODM customization capability
- Advanced pixel control and multi-effect design
- Fast response and technical support for projects
Waterproof Beam Wash Bar Light FAQ
Is this light suitable for outdoor use?
Yes. With IP66 waterproof protection, it is designed for outdoor stage and event environments.
What effects does this fixture provide?
It combines beam, wash, strobe and auxiliary lighting with pixel control for dynamic effects.
Does it support pixel control?
Yes. Each LED can be controlled independently, allowing advanced pixel mapping effects.
What is the beam angle range?
The main beam supports 4.5° to 36° with electric zoom, while auxiliary light provides wide coverage.
Does it support professional control systems?
Yes. It supports DMX512 and RDM, compatible with professional lighting consoles.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and configuration customization.
Need a quick quotation? Contact us with your project requirements and quantity. We will provide fast pricing and suitable lighting solutions.
