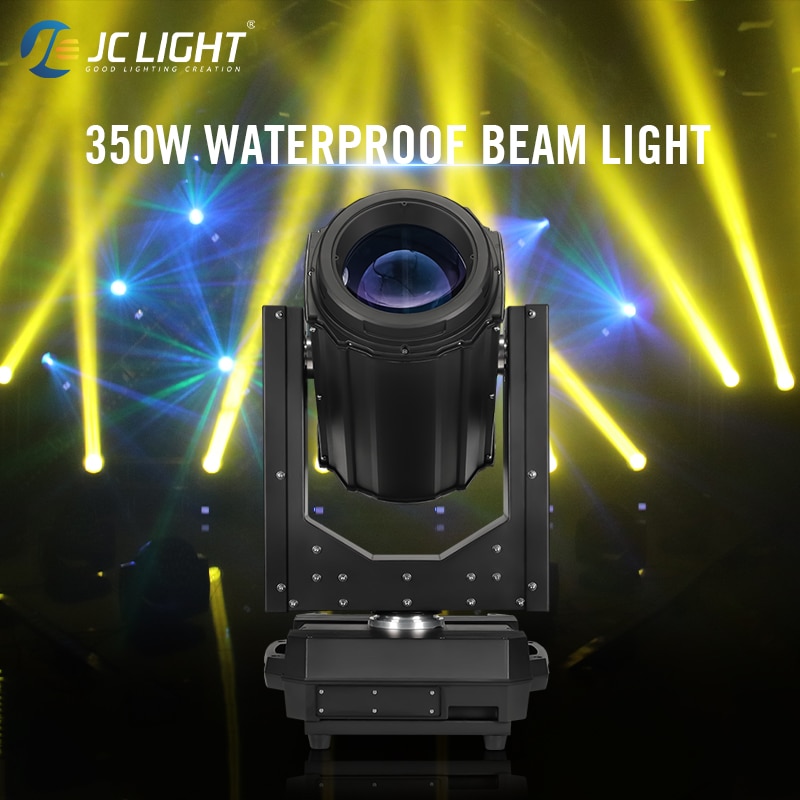

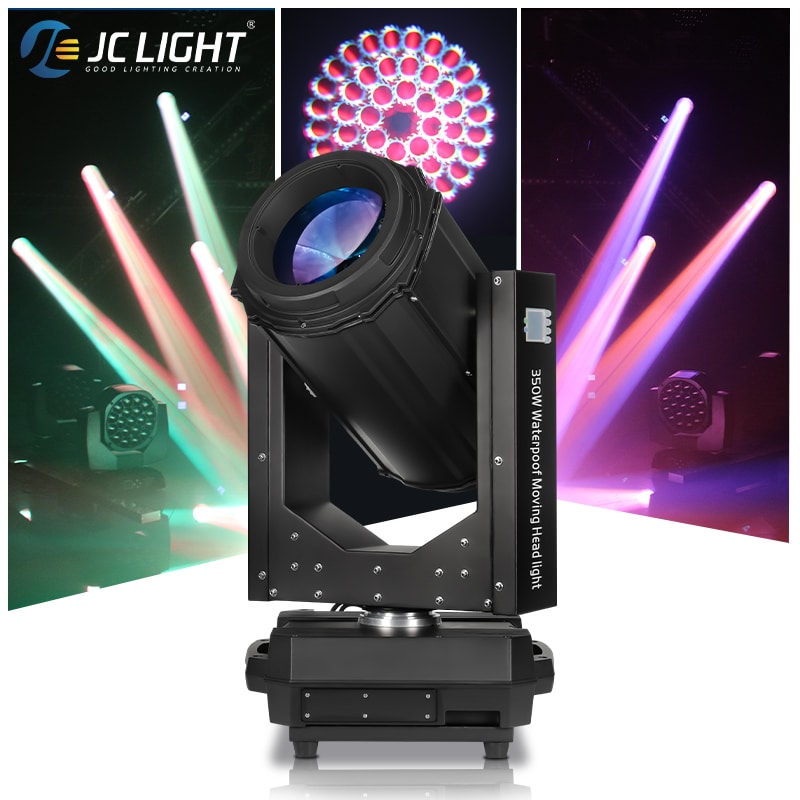

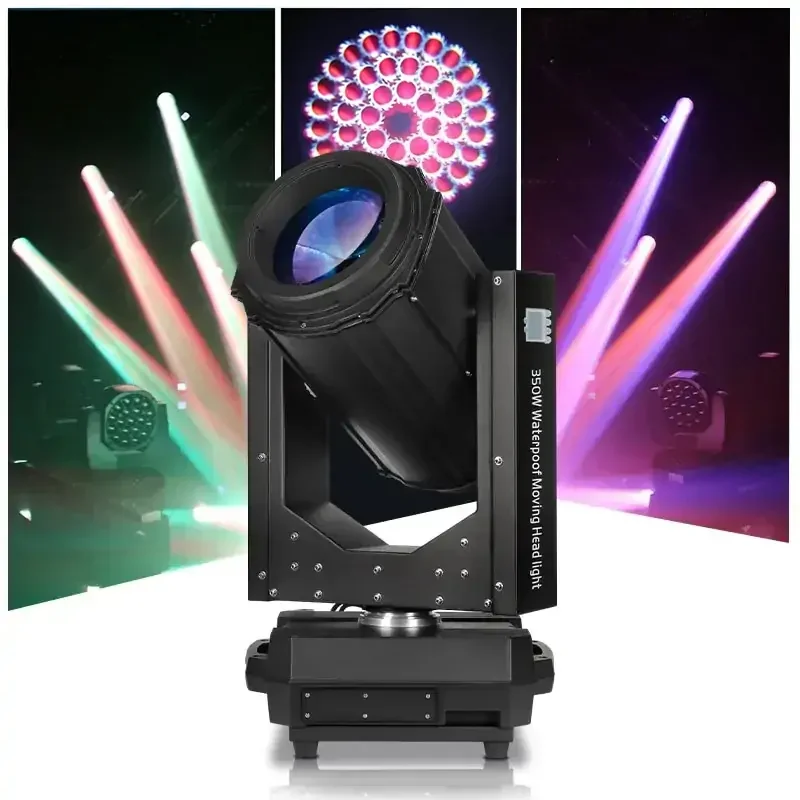

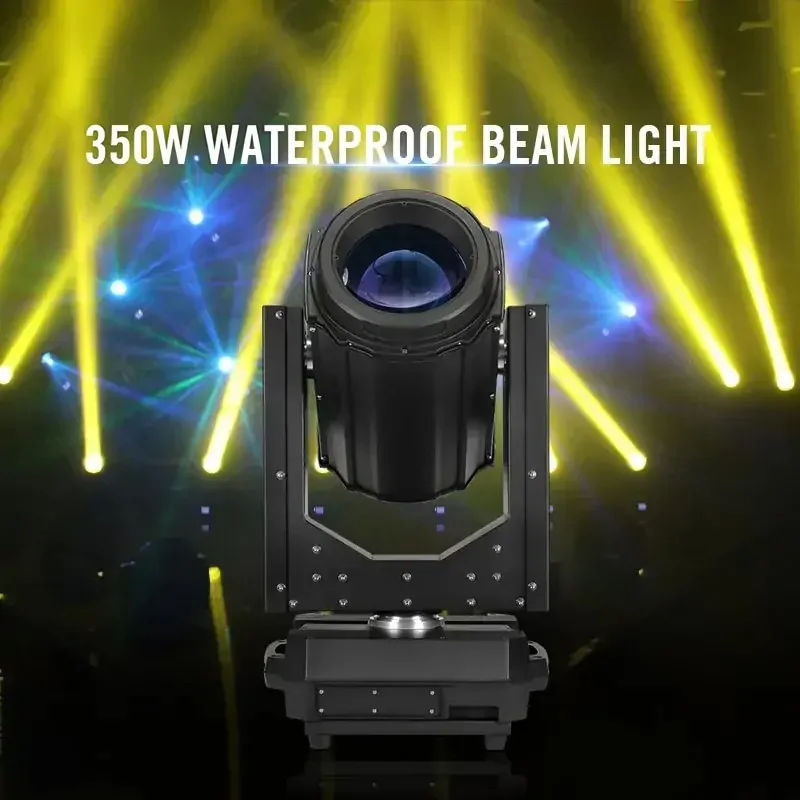

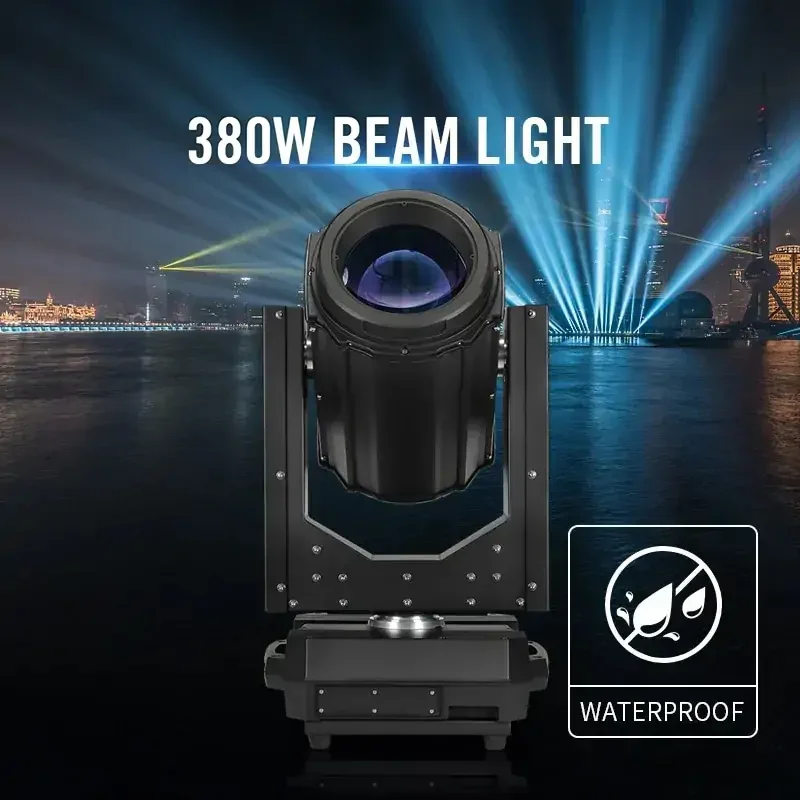

WATERPROOF 230/260/350/380W BEAM LIGHT

VOLTAGE:AC100-240V/50-60Hz
POWER CONSUMPTION:450w
Lamp bead: OSRAM 7R/9R/17R/18R 230w/260w/350w/380w CCT:8000K
Color wheel:14 color + white,rainbow effect with bidirectional rotation, full color effect and half-color effect modes switch
Gobo wheel:17 fixed gobo
Effect wheel: 9 effect gobo
Prism: 8+16+24 prism, 16 prism
Color+CTO: no CMY infinite color mixing
Focus: linear focus
Atomization: 15%-60% atomization soft light effect
Dimmer:0-100% electronic dimming
Strobe: 0-13t/s
IP Rating:IP66
Pan& tilt: 540°Pan scaning,270°Tilt scanning(16bit accurate scanning)
Control: DMX512/master-slave/Auto-run/sound/built-in RDM program
Channel: 16/20CH
Product Size: 370X350X700mm
Package Size: 550X440X680mm
N.W: 25.00KGS
G.W: 27.00KGS

Short model number: A21

Description

Parameters


Waterproof beam light outdoor irradiation distance:
230w: 300-500m

260w: 500-700m
350w: 1000-1200m
380w: 1200-1500m
440w: 1500-1800m
460w: 1800m-2000m

OPTICAL SYSTEM
Light source: 18R 380W YODN/Philips/Osram bulb, Lifespan: 6000-10000H
Beam Angle: 0-2°
Lamp bead: OSRAM 7R/9R/17R/18R 230w/260w/350w/380w

COLOR SYSTEM
Multicolor: 6 multicolor
CCT:8000K
Color wheel:14 color + white,rainbow effect with bidirectional rotation, full color effect and half-color effect modes switch

GOBO SYSTEM
Gobo wheel:17 fixed gobo
Effect wheel: 9 effect gobo

EFFECTS
Focus: linear focus
Color+CTO: no CMY infinite color mixing
Prism: 8+16+24 prism, 16 prism
Atomization: 15%-60% atomization soft light effect
Dimmer:0-100% electronic dimming
Strobe: 0-13t/s

MOVEMENT PARAMETER
Rotation Angle: 0-3.8°
Pan& tilt: 540°Pan scaning,270°Tilt scanning(16bit accurate scanning)

CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound/built-in RDM program
Channel: 16/20CH

POWER SUPPLY
VOLTAGE:AC100-240V/50-60Hz
POWER CONSUMPTION:450w

DIMENSION AND WEIGHT
Product Size: 370X350X700mm
Package Size: 550X440X680mm
N.W: 25.00KGS
G.W: 27.00KGS

IP RATE
IP Rating:IP66

SHORT MODEL NUMBER: A12

Excellent color mixing effect


WATERPROOF 230260350380W BEAM LIGHT

WATERPROOF 230260350380W BEAM LIGHT

WATERPROOF 230260350380W BEAM LIGHT
