JC LIGHT 380W 480W Beam Moving Head Light China Manufacturer
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT 380W 480W Beam Moving Head Light China Manufacturer
Get factory pricing, OEM support and delivery information for this product.
- Description
- MORE
Description
Parameters
OPTICAL SYSTEM
Light source: original Osram 371W/420W lamp, CCT:7200k
Optics: 152mm large diameter
COLOR SYSTEM
Color wheel: 11 colors + white+ linear CTO color temperature adjustment
Color+CTO: no CMY infinite color mixing
GOBO SYSTEM
Gobo wheel: 11 fixed gobo, 6 effect gobo
Effect wheel: 9 effect gobo
EFFECTS
Prism: double prism, 8 prism, 24 prism,which can be overlay and rotation
Atomization: electronic 0-100% linear atomization soft light effect, Independent single-sided high transmittance atomizing lens, achieved by electric focusing, atomizing spot uniform and soft.
Dimmer: 0-100% electronic dimming
Strobe: 0-14 t/s
MOVEMENT PARAMETER
Pan& tilt: 540°Pan scaning,270°Tilt scanning;8/16-bit smooth and accurate Pan/Tilt rotation
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound/Built-in RDM program
Channel: 16CH
XY Motor: three-phase motor (fast running speed, accurate positioning)
Display system: 20 million pixel color LCD touch screen; Touch key
POWER SUPPLY
Voltage: AC90-260V/50-60Hz
Power consumption: 500w/650W
DIMENSION AND WEIGHT
Product Size: 31x27x55cm
Package Size: 53x40x41cm
N.W: 16.0KGS
G.W: 18.5KGS
Technical Specifications
| Item | Q380 | Q480 |
|---|---|---|
| Voltage | AC90–260V, 50/60Hz | AC90–260V, 50/60Hz |
| Power Consumption | 500W | 650W |
| Light Source | Original Osram 371W, CCT 7200K | Original Osram 420W, CCT 7200K |
| Optics | 152mm large diameter; motorized focus; high-transmittance lens | |
| Color Wheel | 11 colors + white + linear CTO | |
| Gobo Wheel | 11 fixed gobos + 6 effect gobos | |
| Prism | Double / 8 / 24 facets; overlay & rotation | |
| Frost | 0–100% electronic linear frost; independent high-transmittance frost lens | |
| Dimmer / Strobe | 0–100% electronic dimming; 0–14 t/s strobe | |
| Pan / Tilt | Pan 540°, Tilt 270°; 8/16-bit fine control | |
| Display | 20M px color LCD touch screen; touch key | |
| Control | DMX512 / Master-Slave / Auto-run / Sound / Built-in RDM | |
| Channel | 16CH | |
| Size | Product: 31×27×55cm; Package: 53×40×41cm | |
| Weight | N.W. 16.0kg; G.W. 18.5kg | |
Excellent color mixing effect
Video

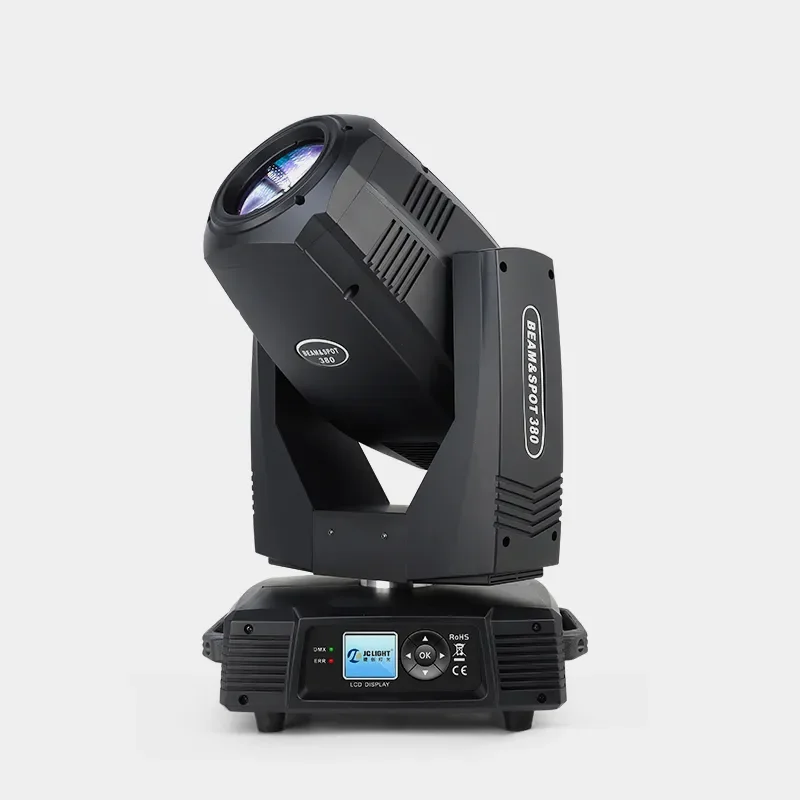

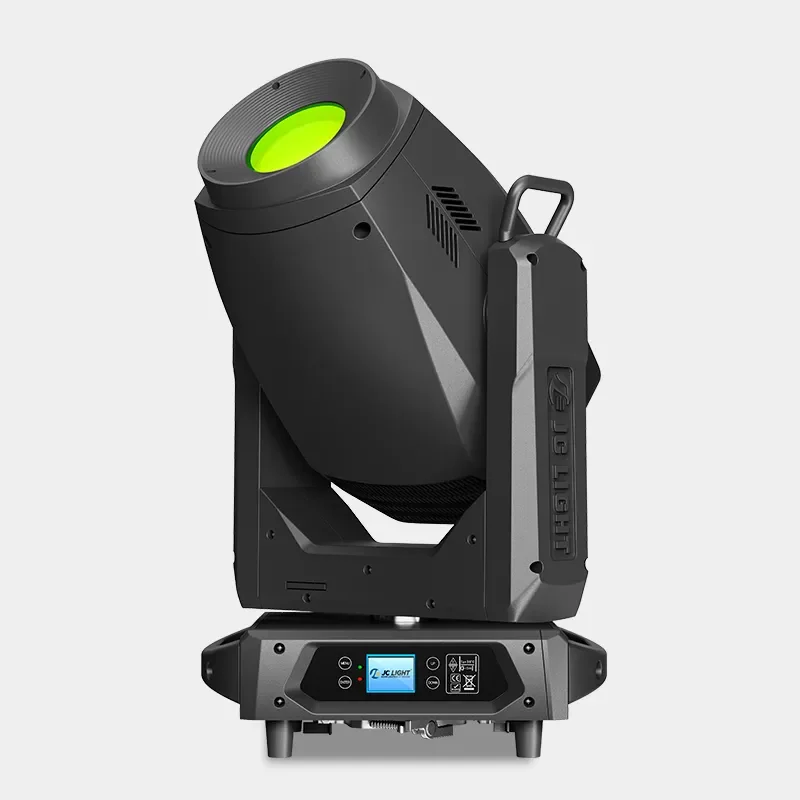

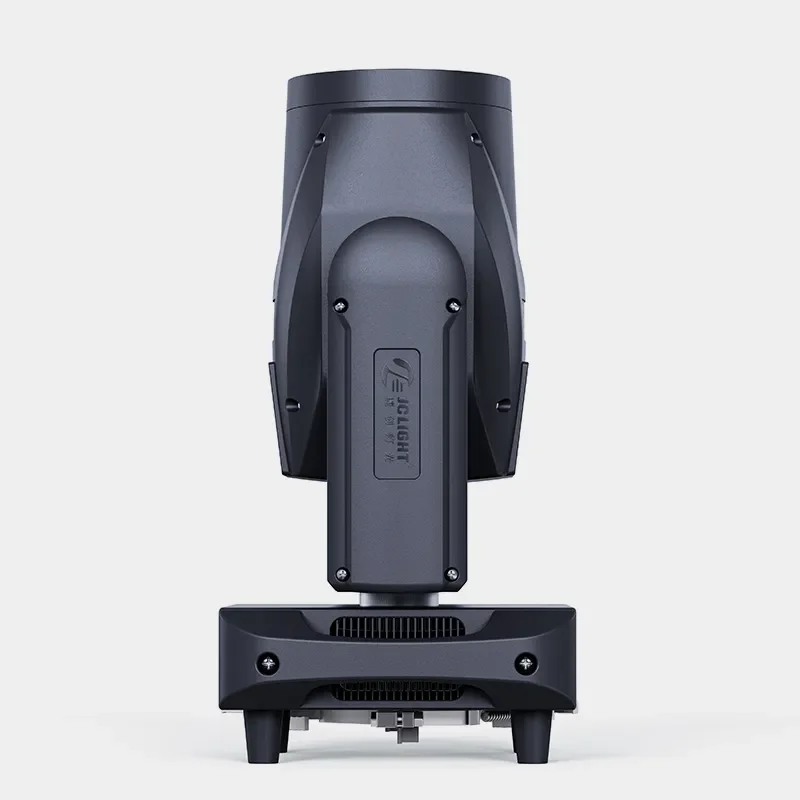

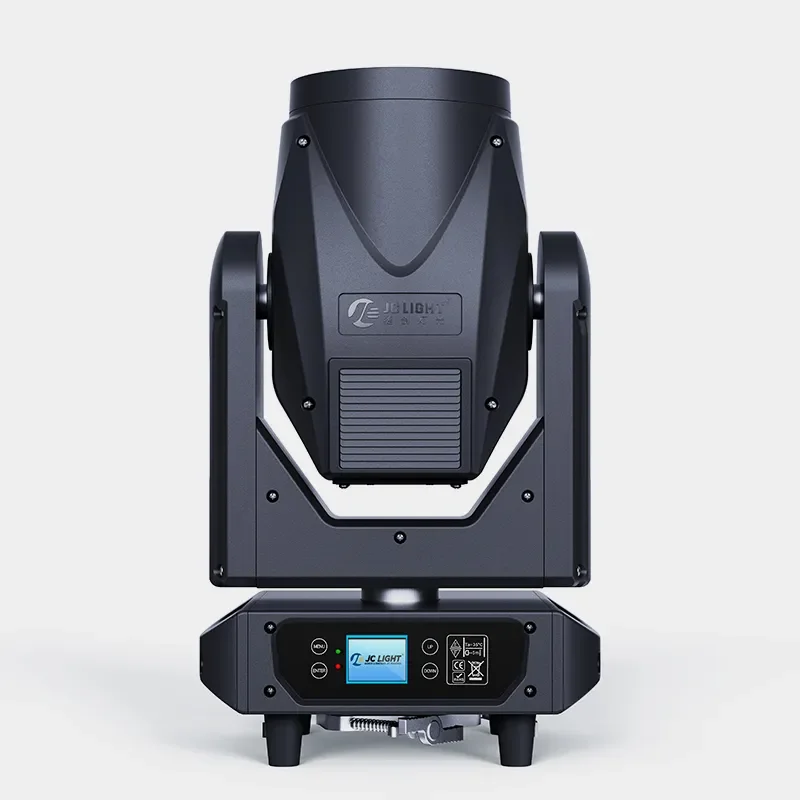

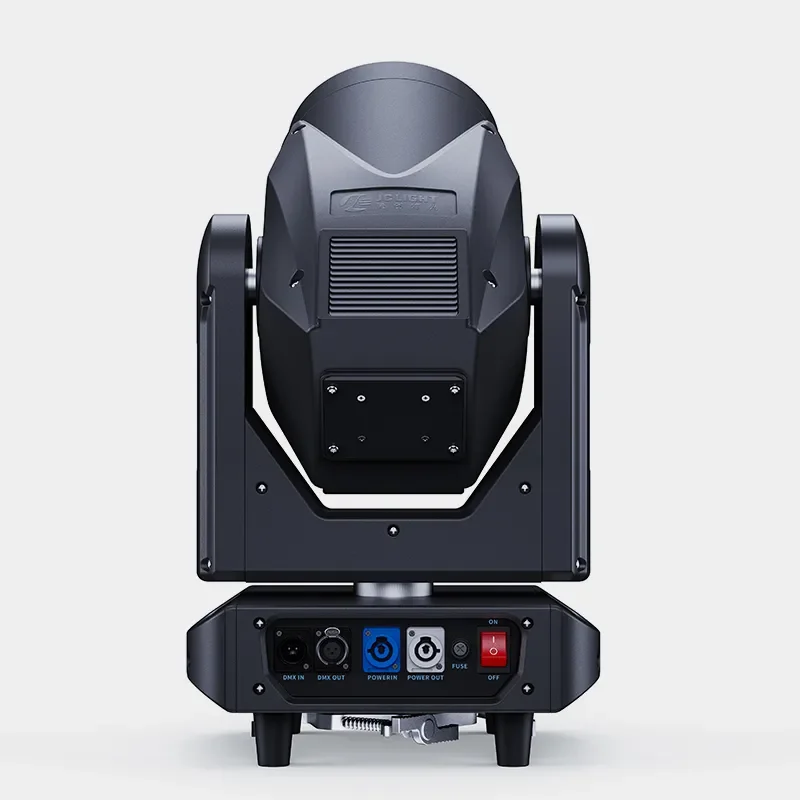

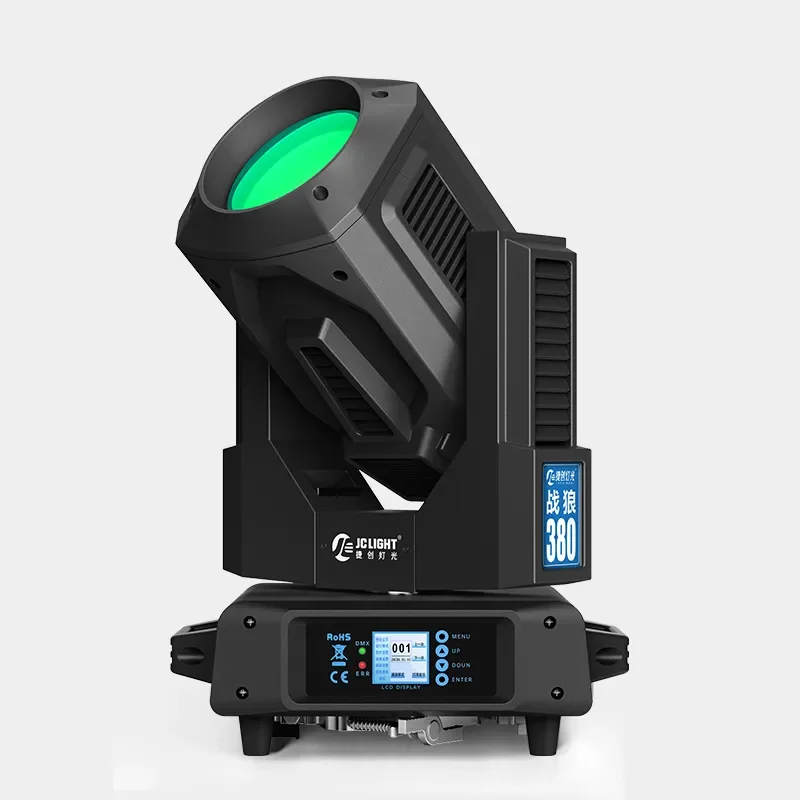

380W / 480W Lightweight Beam Moving Head Light with OSRAM Light Source
The JC LIGHT Q380 / Q480 Series is a professional 380W / 480W beam moving head light designed for indoor and outdoor event lighting applications. Equipped with an OSRAM light source and available in two power configurations, the series delivers high-color-temperature beam effects for concerts, festivals, clubs, touring productions and professional rental lighting systems.
The Q380 / Q480 Series combines linear focus, frost soft-light effects and adjustable strobe with a compact and lightweight fixture design. Its portable construction makes transportation, installation and repeated event setup more convenient for rental companies, stage contractors and professional lighting teams.
Key Features
- 380W / 480W professional beam moving head light series
- Q380 and Q480 model options
- OSRAM light source
- High color temperature beam output
- Linear focus
- Frost soft-light effect
- Adjustable strobe
- Powerful beam effects
- Compact fixture design
- Lightweight construction
- Easy transportation and installation
- Suitable for indoor and outdoor event applications
- Designed for professional rental and touring use
Model Options
| SKU | Power | Light Source | Product Type |
| Q380 | 380W | OSRAM | Lightweight Beam Moving Head Light |
| Q480 | 480W | OSRAM | Lightweight Beam Moving Head Light |
Technical Specifications
| SKU | Q380 / Q480 |
| Product Type | Lightweight Beam Moving Head Light |
| Power Options | 380W / 480W |
| Light Source | OSRAM |
| Color Temperature | High Color Temperature Options |
| Focus | Linear Focus |
| Frost | Soft-Light Frost Effect |
| Strobe | Adjustable |
| Design | Compact and Lightweight |
| Application | Indoor and Outdoor Event Lighting |
380W and 480W Beam Options
The series is available in 380W and 480W configurations, allowing buyers to select the appropriate model according to venue size, lighting design and project requirements.
OSRAM Light Source
Both models feature an OSRAM light source designed to produce a bright, high-color-temperature beam for professional entertainment and stage lighting applications.
Linear Focus
The Q380 / Q480 Series features linear focus adjustment, allowing the beam to be optimized according to projection distance and different stage lighting requirements.
Frost Soft-Light Effect
An integrated frost effect provides a softer and more diffused output when the lighting design requires an alternative to the concentrated beam effect.
Adjustable Strobe Effect
The fixtures include an adjustable strobe function for creating dynamic flash effects and rhythmic lighting sequences during concerts, DJ performances and live events.
Compact and Lightweight Design
The Q380 / Q480 Series is designed around a compact and lightweight structure, helping simplify fixture handling, transportation and installation. This makes the series particularly suitable for rental companies and touring productions where lighting equipment is frequently moved between venues.
Designed for Indoor and Outdoor Events
The Q380 / Q480 Series is designed for a wide range of indoor and outdoor event applications, including concerts, festivals, live shows, clubs, weddings and temporary event stages.
Application Scenarios
- Concert stages
- Music festivals
- Touring productions
- Indoor live events
- Outdoor event stages
- Nightclubs and entertainment venues
- DJ performances
- Wedding and event stages
- Opening ceremonies
- Professional rental lighting systems
- Stage lighting installations
Why Choose JC LIGHT
- Professional beam moving head light manufacturer
- 380W and 480W model options
- OSRAM light source
- High color temperature beam output
- Linear focus adjustment
- Frost soft-light effect
- Adjustable strobe function
- Compact and lightweight construction
- Suitable for distributors, rental companies and lighting contractors
- OEM and ODM professional stage lighting solutions available
Q380 / Q480 Lightweight Beam Moving Head Light FAQ
What is the difference between the Q380 and Q480?
The series is available in two power configurations: the Q380 is the 380W model and the Q480 is the 480W model. Both are designed as compact and lightweight professional beam moving head lights.
What light source does the Q380 / Q480 use?
The Q380 / Q480 Series uses an OSRAM light source with high color temperature options.
Does the Q380 / Q480 support focus adjustment?
Yes. Both models feature linear focus for adapting the beam to different projection and stage requirements.
Does this beam moving head have a frost effect?
Yes. The Q380 / Q480 Series includes a frost soft-light effect for creating a more diffused lighting output when required.
Does the Q380 / Q480 have a strobe function?
Yes. The fixtures provide an adjustable strobe function for dynamic stage and entertainment lighting effects.
Is the Q380 / Q480 suitable for outdoor events?
The supplied product information describes the Q380 / Q480 Series as suitable for indoor and outdoor events. For permanent or weather-exposed outdoor installations, confirm the exact environmental protection requirements for your project before installation.
Is the Q380 / Q480 suitable for rental companies?
Yes. The compact and lightweight design is particularly useful for rental companies and touring productions that require frequent transportation, installation and removal of stage lighting equipment.
Where can the Q380 / Q480 beam moving head light be used?
The series is suitable for concerts, festivals, clubs, touring productions, weddings, ceremonies, live shows and professional rental lighting systems.
Need wholesale pricing for the JC LIGHT Q380 / Q480 Lightweight Beam Moving Head Light? Contact JC LIGHT with your preferred 380W or 480W configuration, required quantity and project requirements for OEM, ODM, rental and professional stage lighting solutions.
