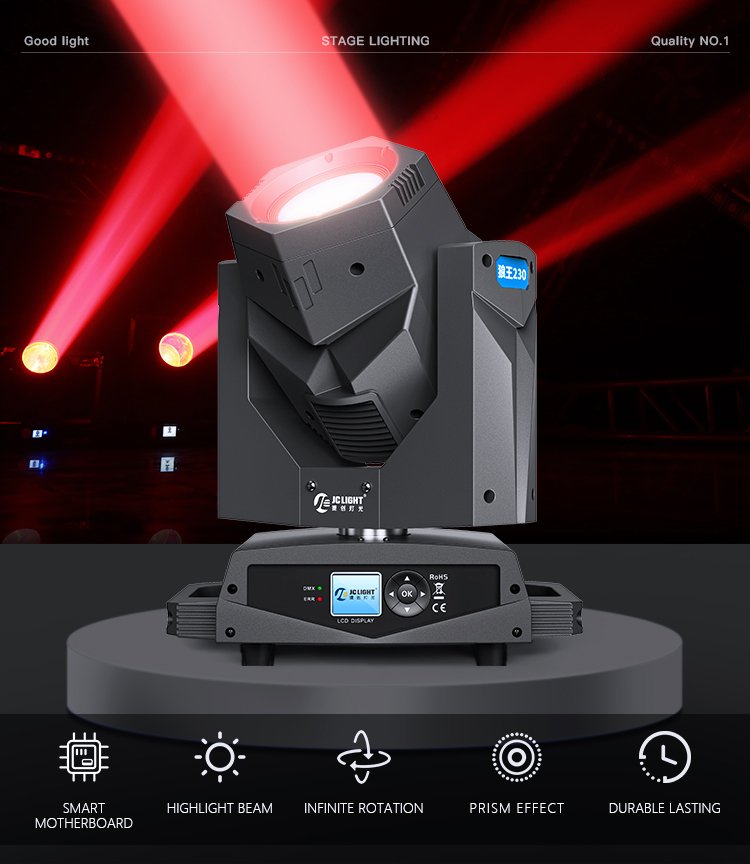

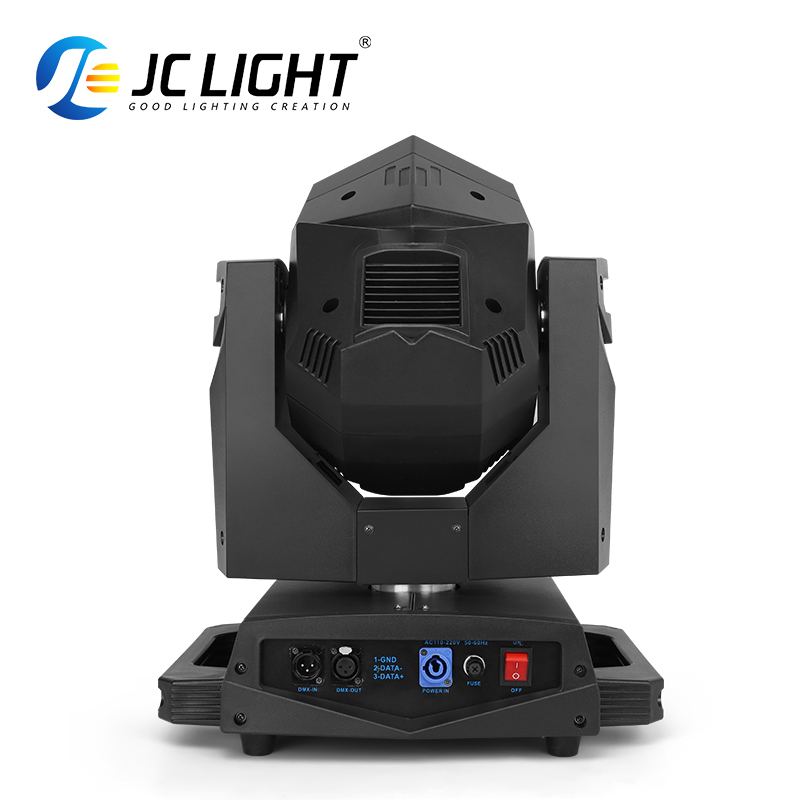

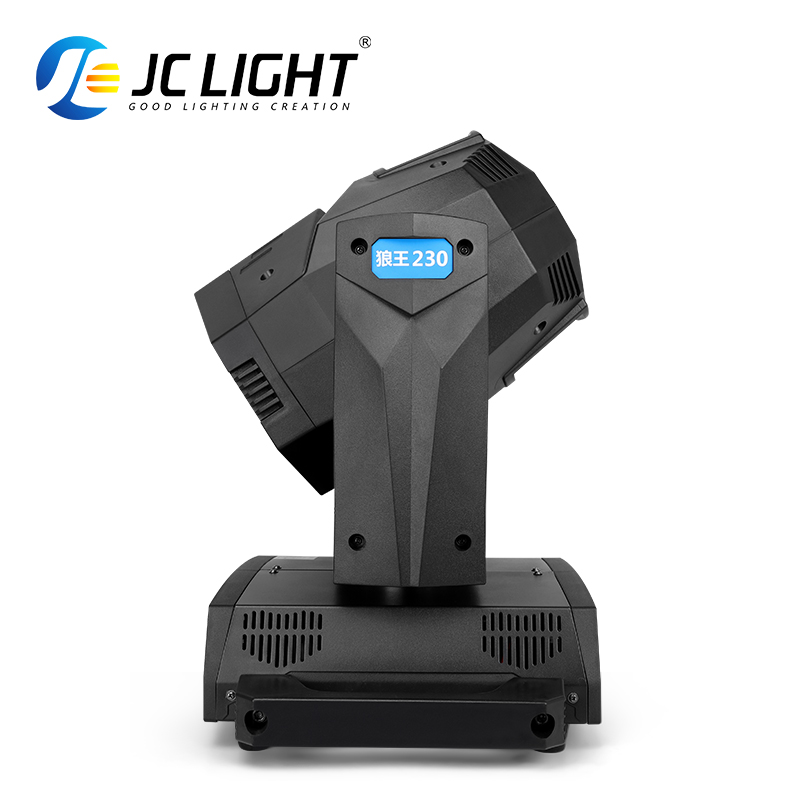

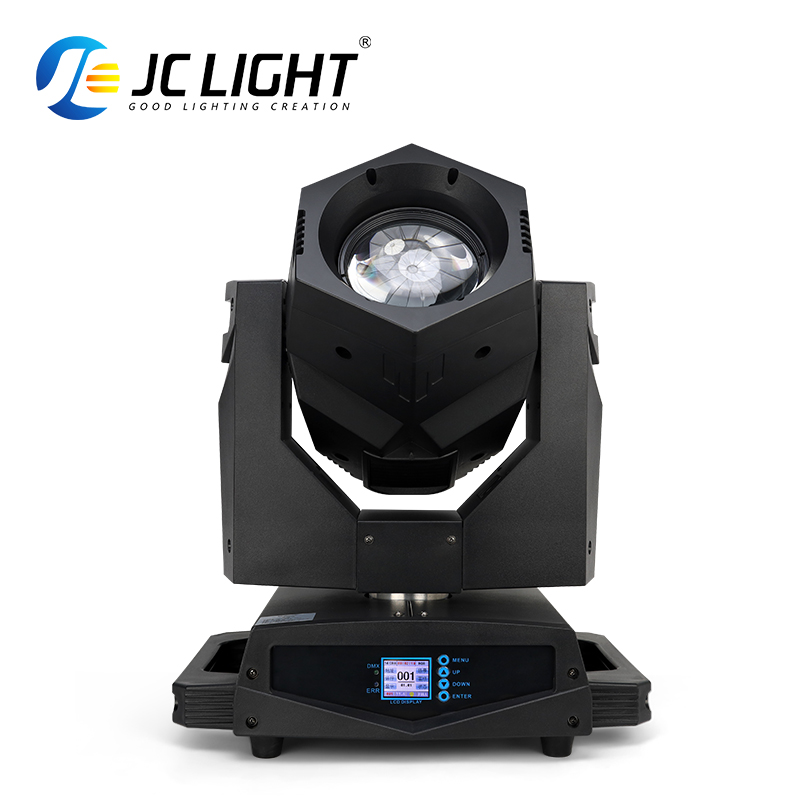

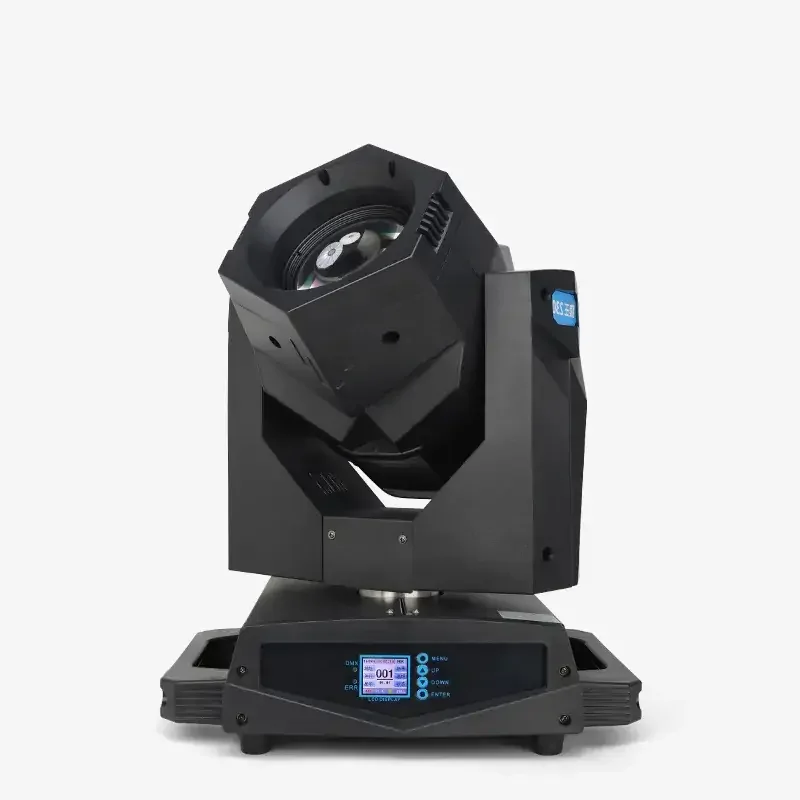

7R 230W BEAM LIGHT(THE WOLF KING)
※※※※※EXTREMELY COST-EFFECTIVE with Factory Direct Sales※※※※※

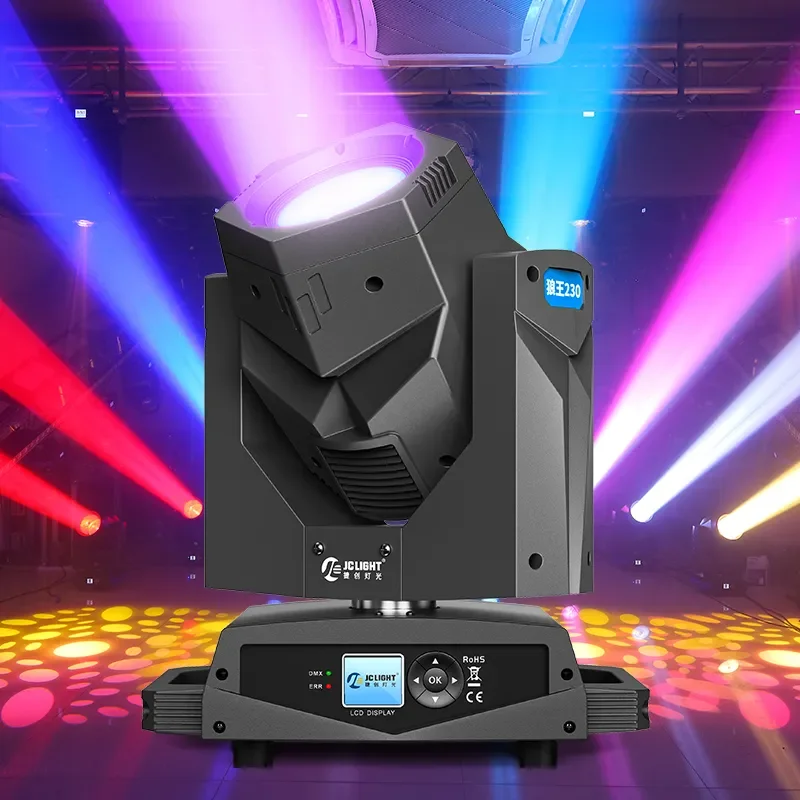

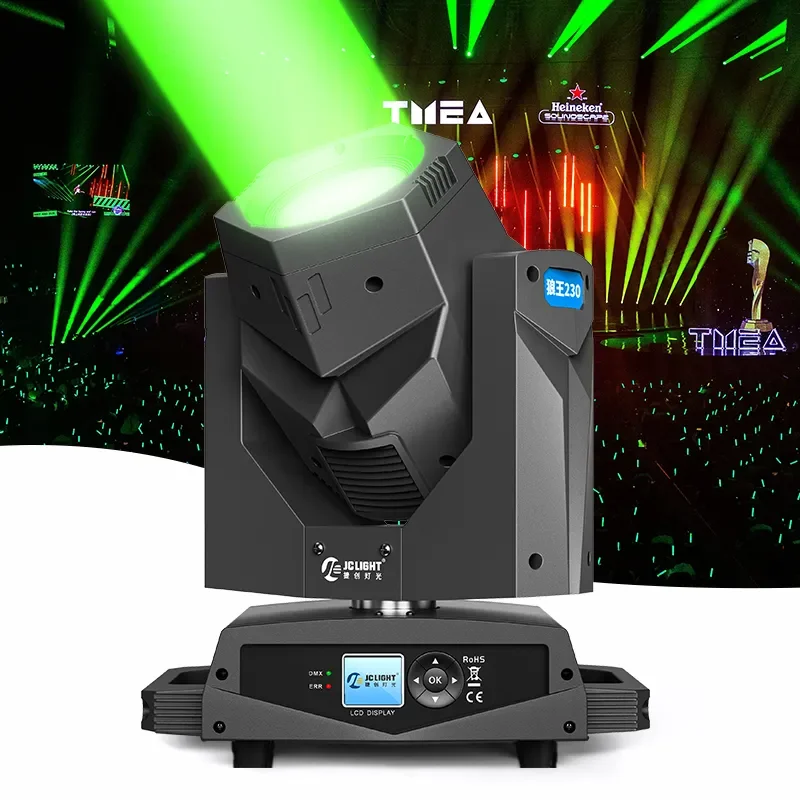

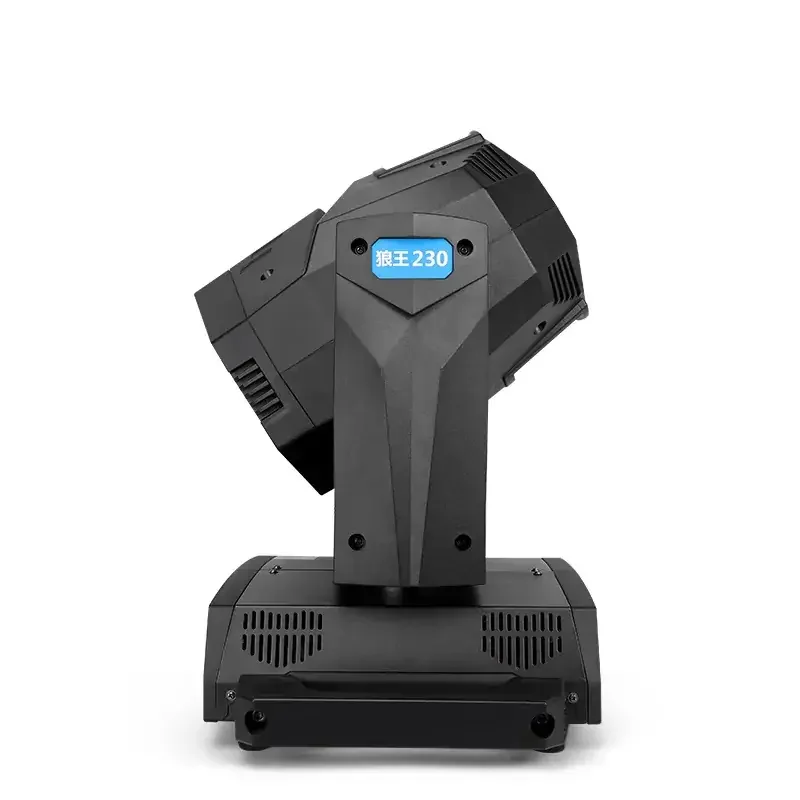

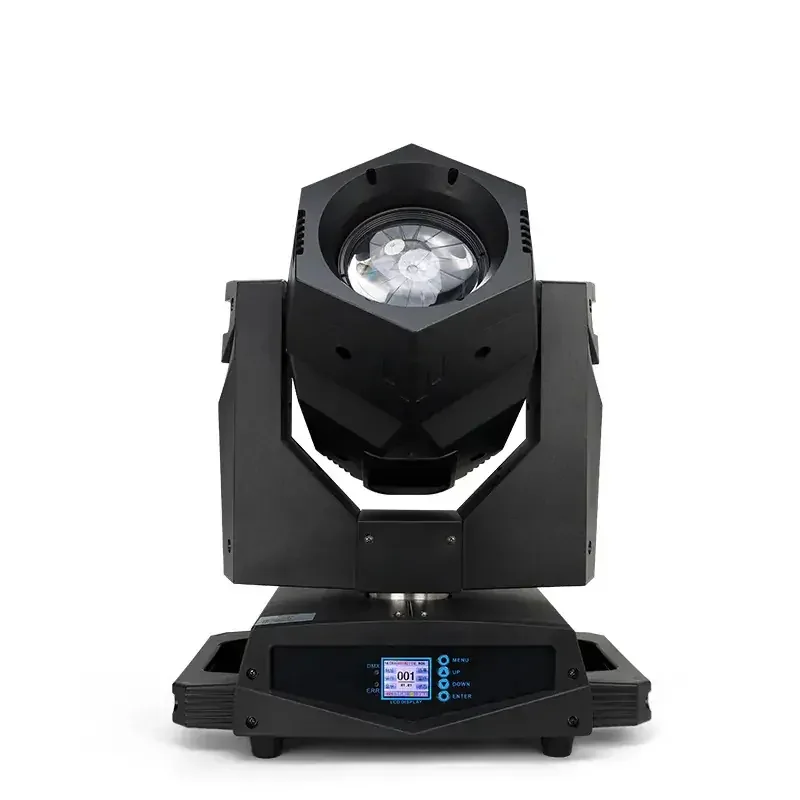

7R 230W WOLF KING BEAM is a moving head beam light equipped with 230w lamp. It owns 2 groups optics lens, bringing in strong and highly focused beam light which likes the laser effects. When illuminating towards the sky, the penetration of the beam light will bring you very impressive visual effects. The average life time reaches 2500 hours for the lamp. This fixture has 14 colors, 17 gobos, 1 8+6+24-facet rotating prism, 1 frost effect and beam angle of 0°-4° . The Pan/Tilt is driven by 3-phase motor, moving fast and noiselessly. The rated power is 355w, which will decrease by 50w when the shutter is closed.
※※※※※WOLF KING IS ONE OF OUR TOP FETURED※※※※※
- Description
- Download
Description
OPTICAL SYSTEM
Light source: Yodn/ Philips /Germany Osram bulb
Lamp: 7R 230W
COLOR SYSTEM
CCT: 8500K

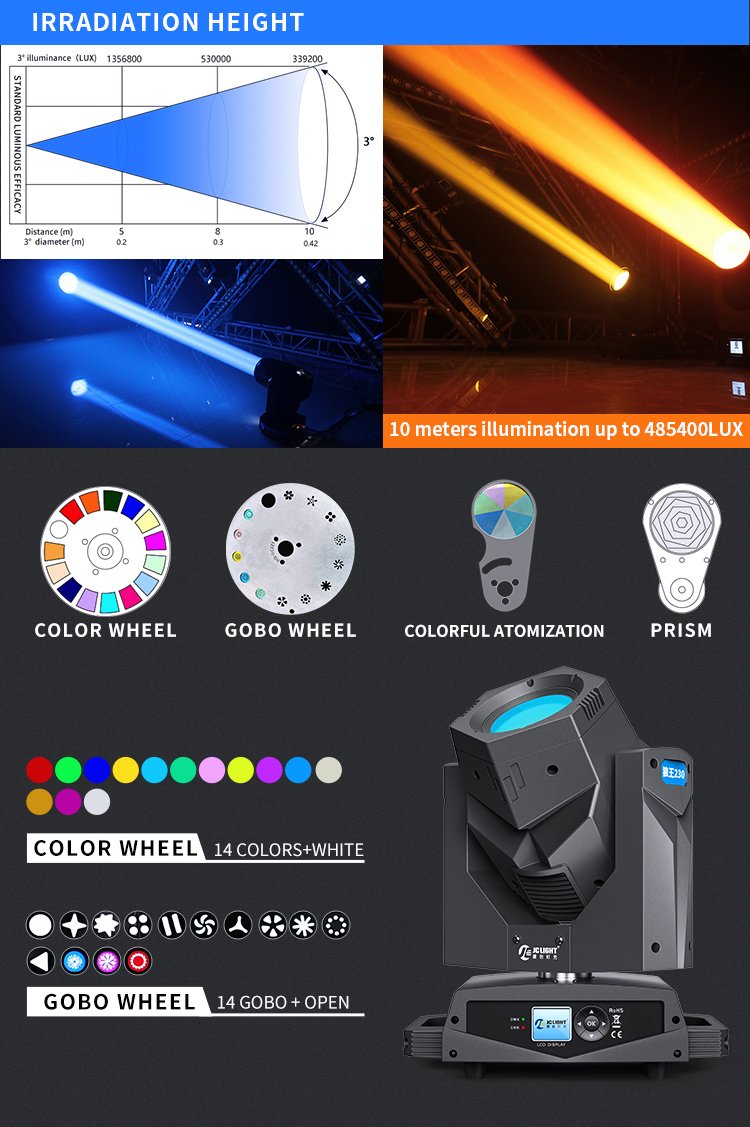

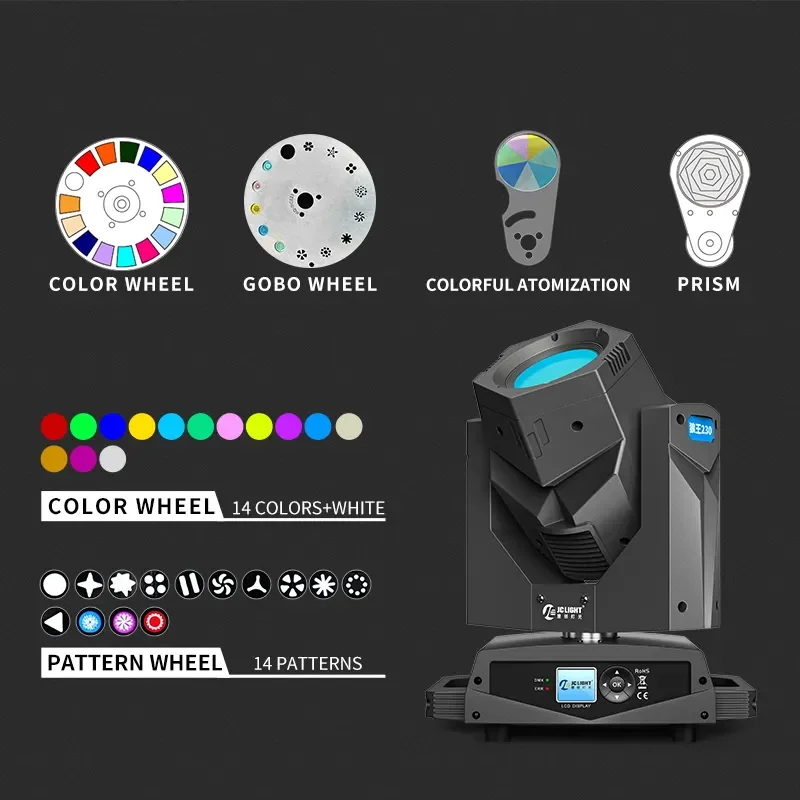

Color wheel: 14 dichroic colors + open, rainbow effect with bidirectional rotation, full color effect and half color effect modes switch
GOBO SYSTEM
Gobos: 1 fixed gobo wheel, 17 gobos+white, with gobo fast shaking effect
EFFECTS
Prism: 8+16+24 prism, rotating prism can be positioned
Atomization: independent atomization effect
Dimming: 0%-100% linear dimming
Strobe: 0.3-13 t/s
MOVEMENT PARAMETER

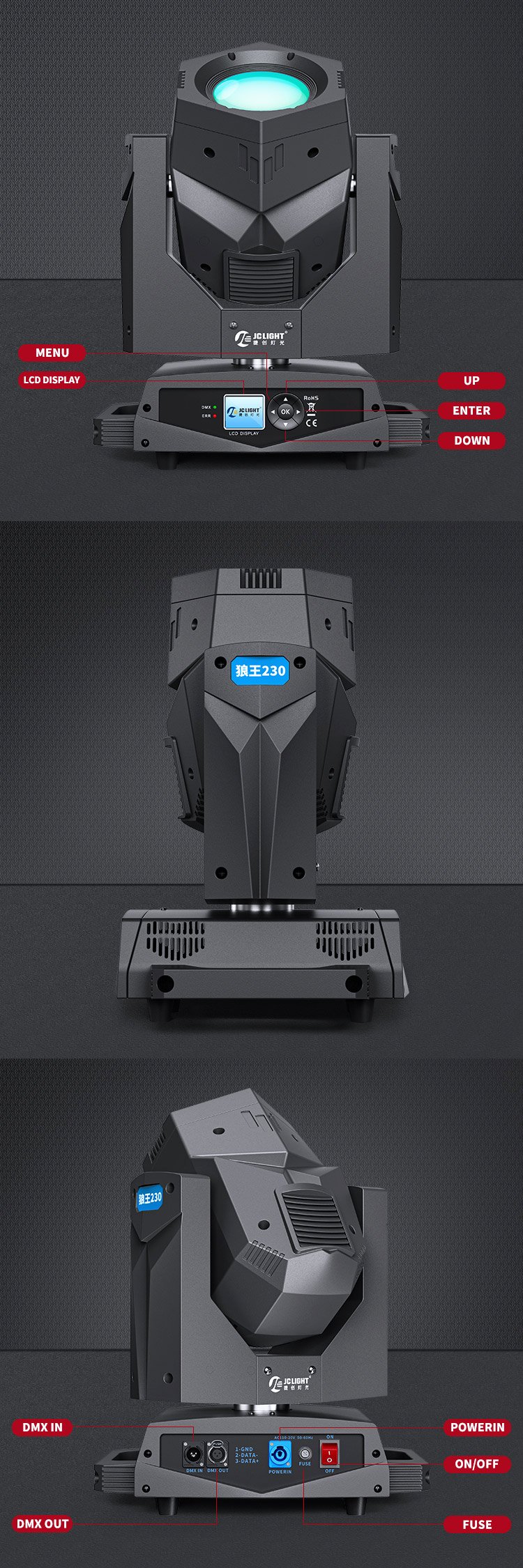

Display: LCD display, can be reversed 180° display
Pan& tilt: Pan 540°/ Tilt 270°(8bit/16bit)
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 16CH
POWER SUPPLY
Ballast: Electronic ballast
Voltage: AC110-220V/50-60HZ
Power consumption: 350W
DIMENSION AND WEIGHT
Package size: 53x41x45cm
N.W: 17.4kgs
G.W: 19.0kgs
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: A3
EFFECT:
