20R 420W 480W Beam Moving Head Light with Prism and Gobo Effects

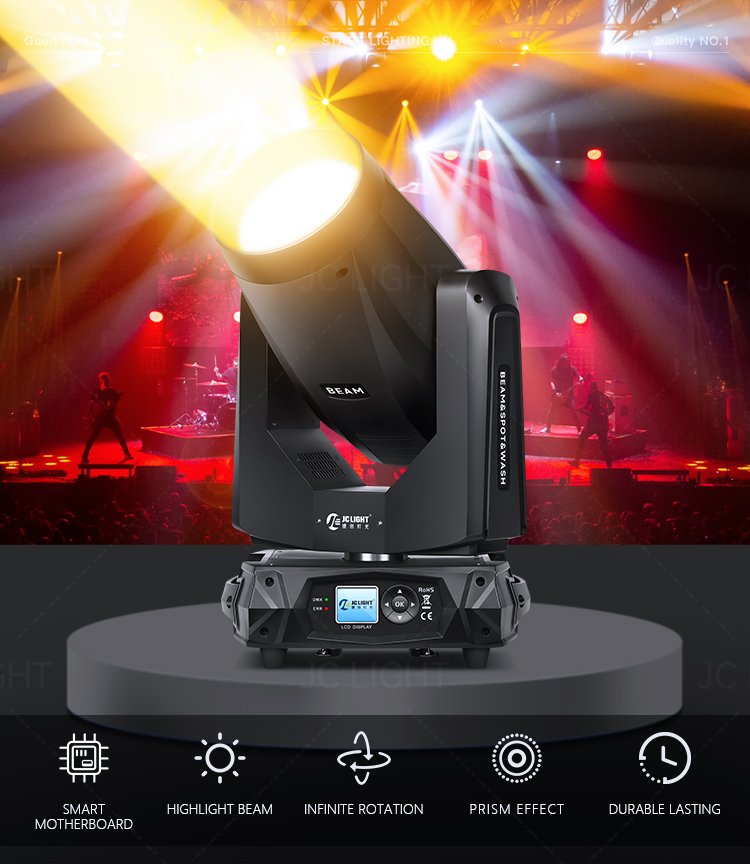

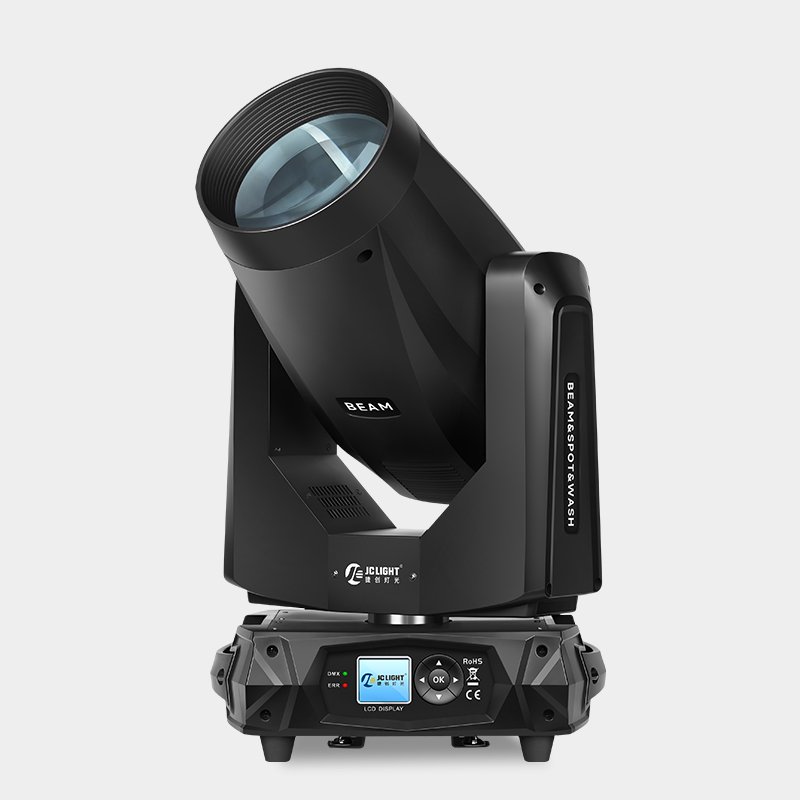

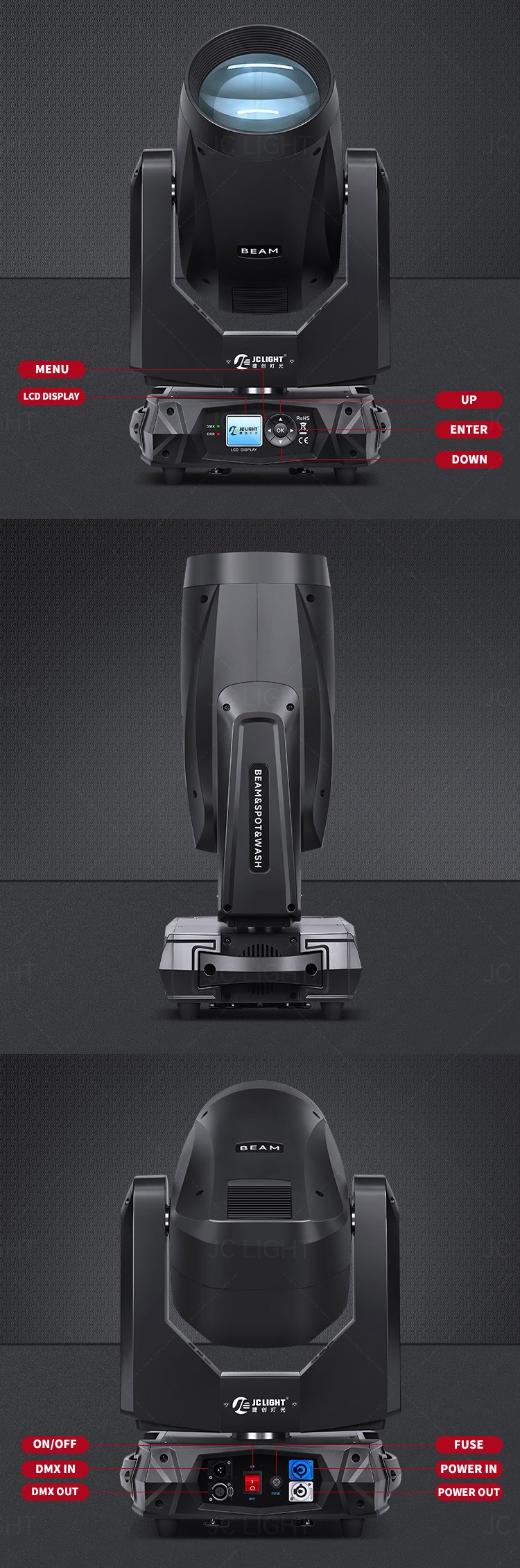

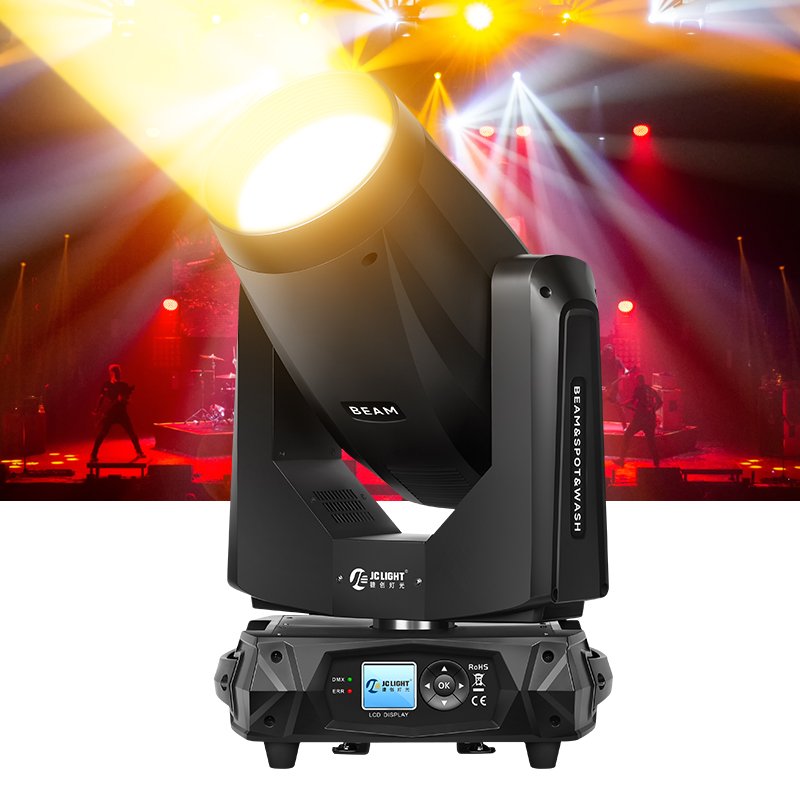

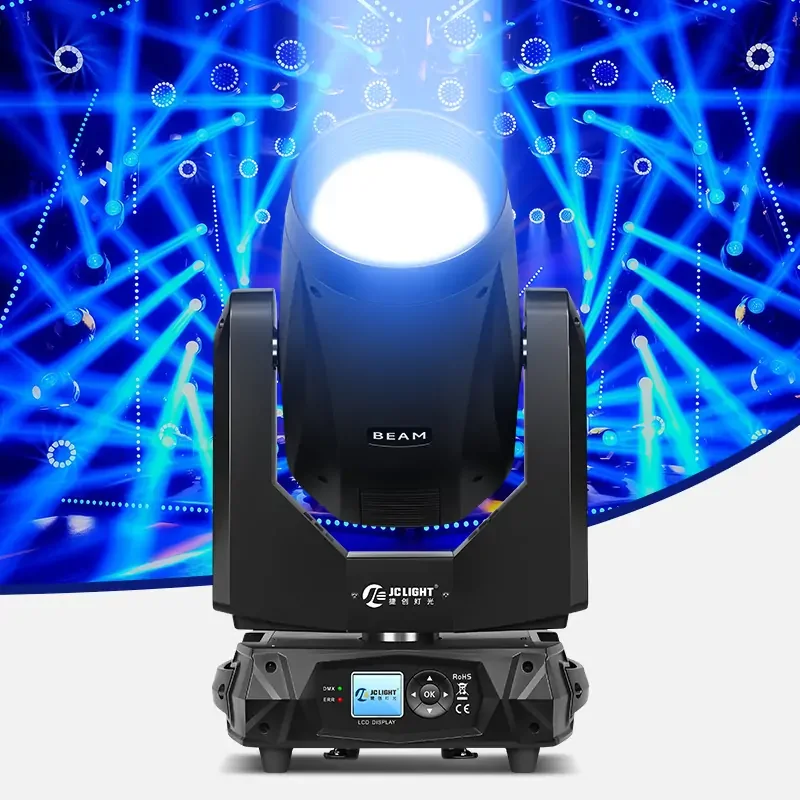

The JC LIGHT Y480 / Y480S (A19) is a professional 20R beam moving head designed for concerts, stage lighting and large-scale event applications. Featuring high-performance USHIO 420W or Osram 480W lamps, it delivers ultra-bright beams, sharp projection and dynamic lighting effects.
Equipped with advanced color mixing, multiple prism combinations and precise motor control, this fixture offers powerful beam performance and flexible programming for professional lighting designers.
Key Features
- High-performance 20R lamp options (420W USHIO / 480W Osram)
- Ultra-bright beam output for long-distance projection

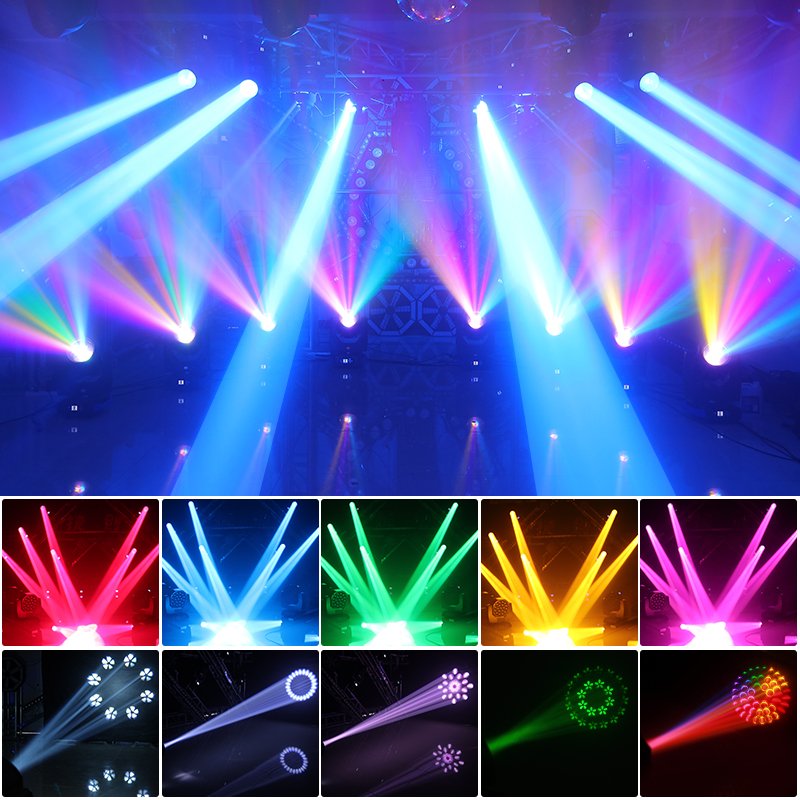

- 13 colors + white with bidirectional rainbow effect
- 17 gobos + white with jitter effect

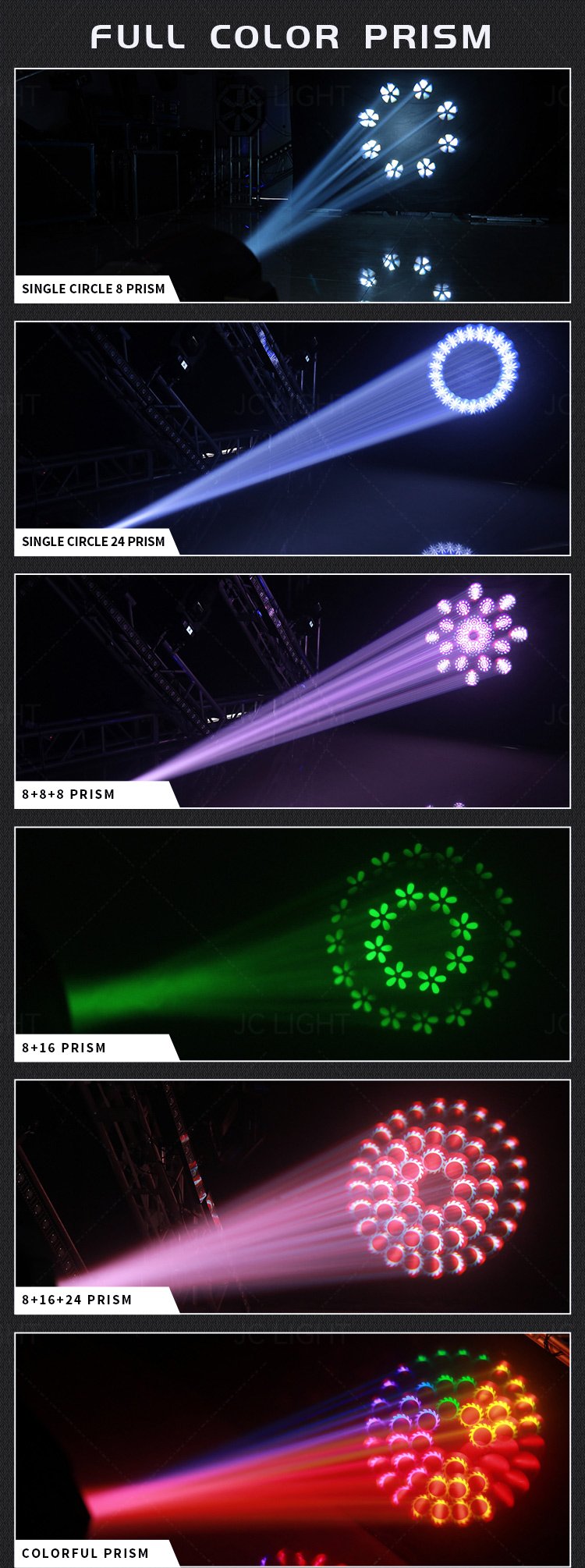

- Multiple prism combinations (8, 16, 24 facets)
- Independent rotating prism with positioning
- Electronic focusing for sharp beam control
- 0–99% frost effect for soft beam transitions
- 0–100% smooth linear dimming
- High-speed strobe from 1–13Hz
- Three-phase motor for fast and accurate movement
- 16-bit precision pan and tilt control
Technical Specifications
| Model | Light Source |
|---|---|
| Y480 | 420W USHIO lamp |
| Y480S | 480W Osram lamp |
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 600W |
| Motor | Three-phase motor |
| Color Wheel | 13 colors + white |
| Gobo Wheel | 17 gobos + white |
| Prism | 8+16 prism, 8+16+24 prism (overlay and rotation) |
| Focus | Electronic focus |
| Frost | 0–99% linear frost effect |
| Dimming | 0–100% linear dimming |
| Strobe | 1–13Hz |
| Pan / Tilt | 540° / 270° (16-bit precision) |

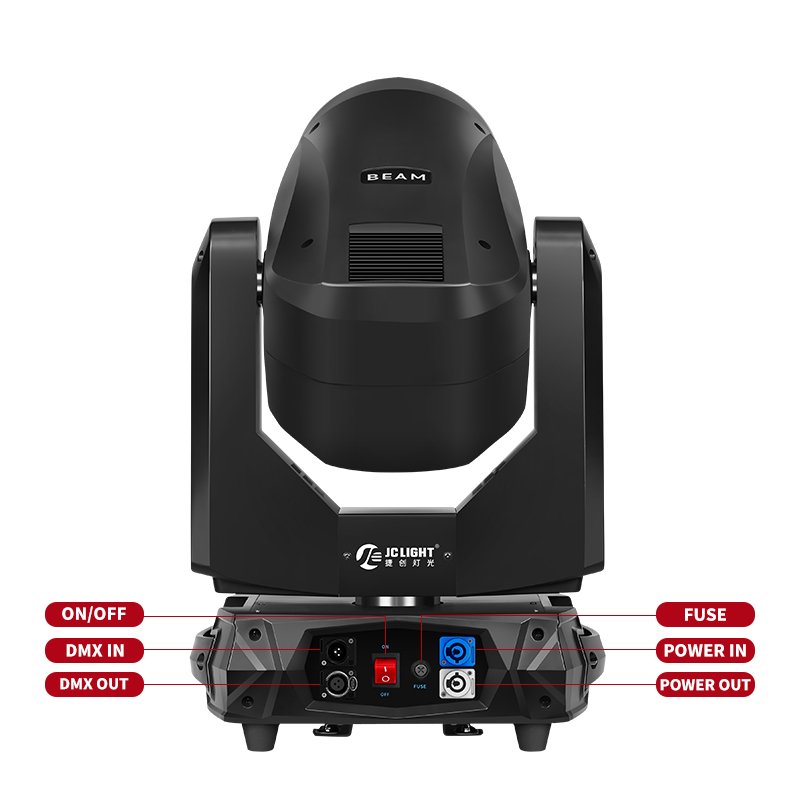

| Control Mode | DMX512 / Master-slave / Auto / Sound |
| Channel | 16CH / 20CH |
| IP Rating | IP20 (indoor use) |
| Model | A19 |
| SKU | Y480 / Y480S |

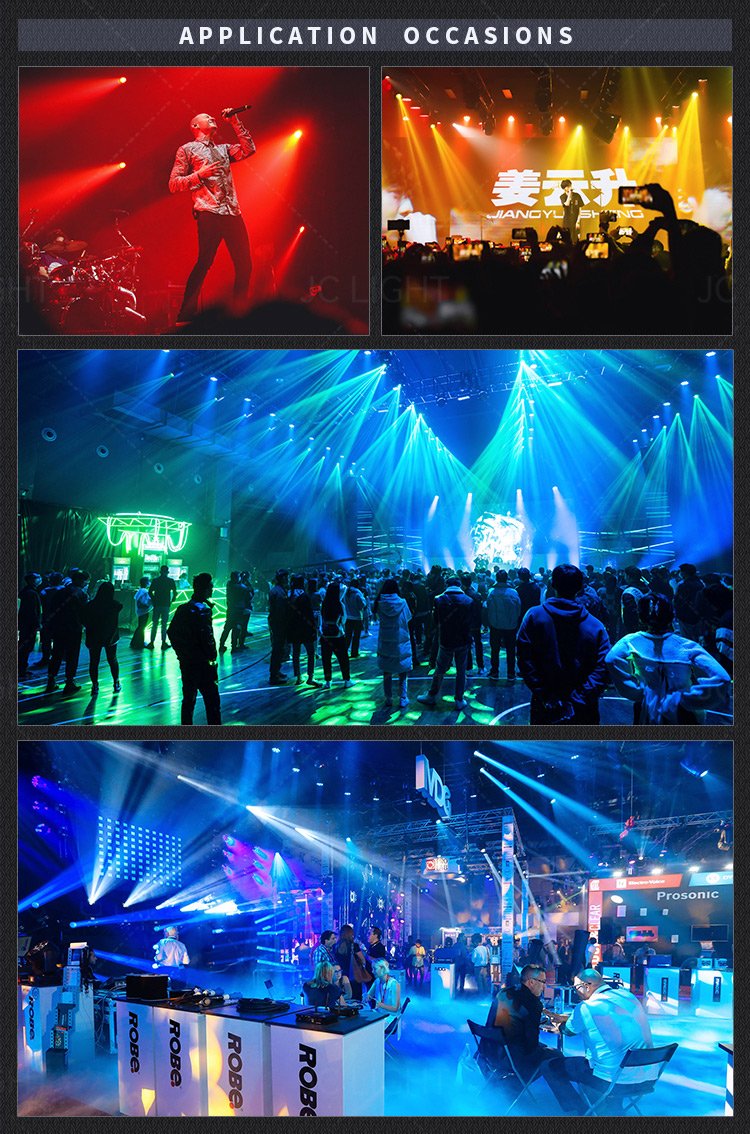

Application Scenarios
- Concert and large stage lighting systems
- DJ and nightclub beam lighting setups
- Festival and live event lighting
- Stage performance and touring productions
- Professional rental lighting applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- High-intensity beam lighting solutions for large venues
- Strong OEM and ODM customization capability
- Stable performance for long-duration use
- Fast response and technical support for projects
20R Beam Moving Head Light FAQ
What is the difference between Y480 and Y480S?
The difference lies in the lamp type and brightness: Y480 uses a 420W USHIO lamp, while Y480S uses a 480W Osram lamp.
What effects does this fixture provide?
It supports beam, gobo, prism, frost and strobe effects for dynamic stage lighting.
Does it support prism combinations?
Yes. It supports multiple prism overlays (8, 16, 24 facets) with rotation and positioning.
Is it suitable for large venues?
Yes. Its high brightness makes it ideal for concerts and large stage applications.
Does it support DMX control?
Yes. It supports DMX512 along with auto, sound and master-slave modes.
