Description
Effect:
250W 5x50W COB LED Par Light with 15° / 25° / 45° / 60° Beam Options

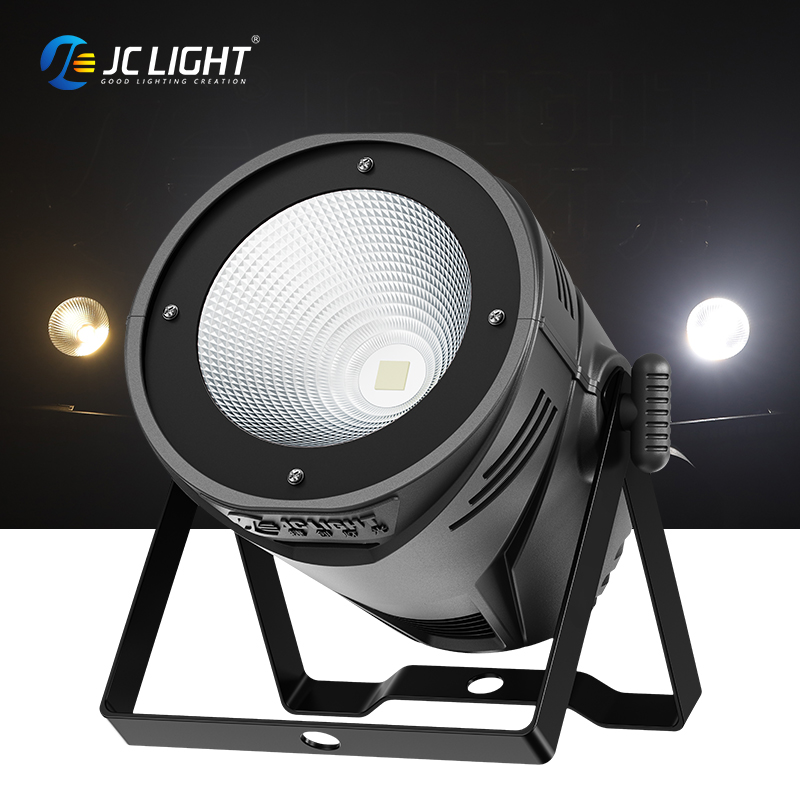

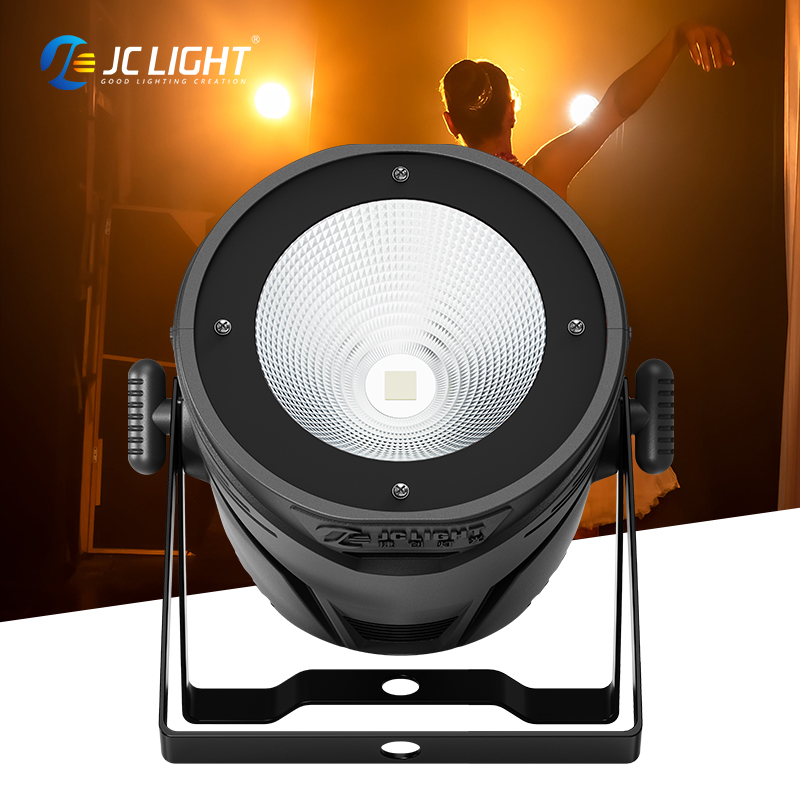

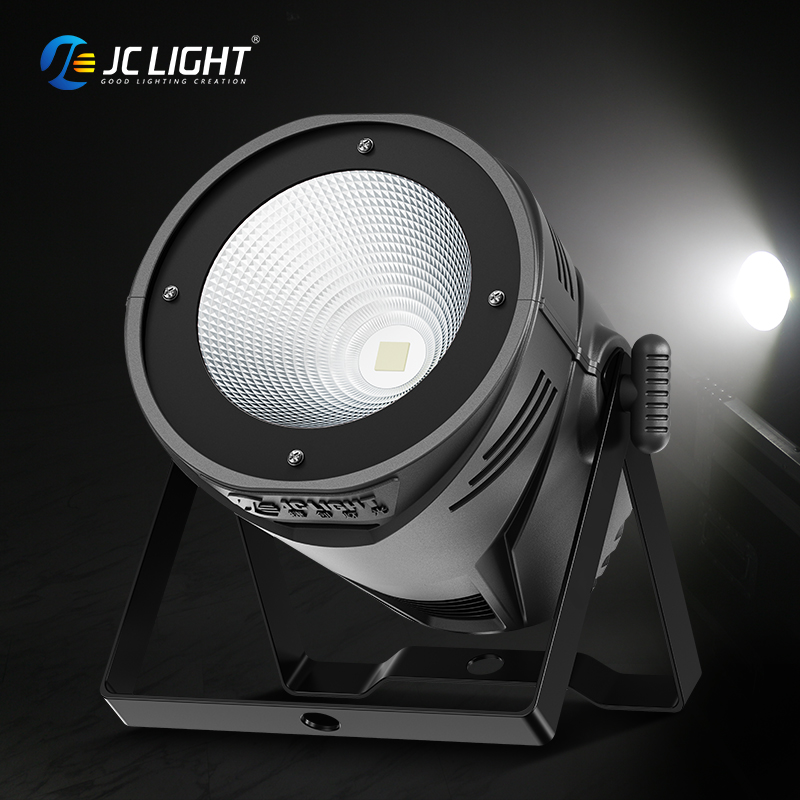

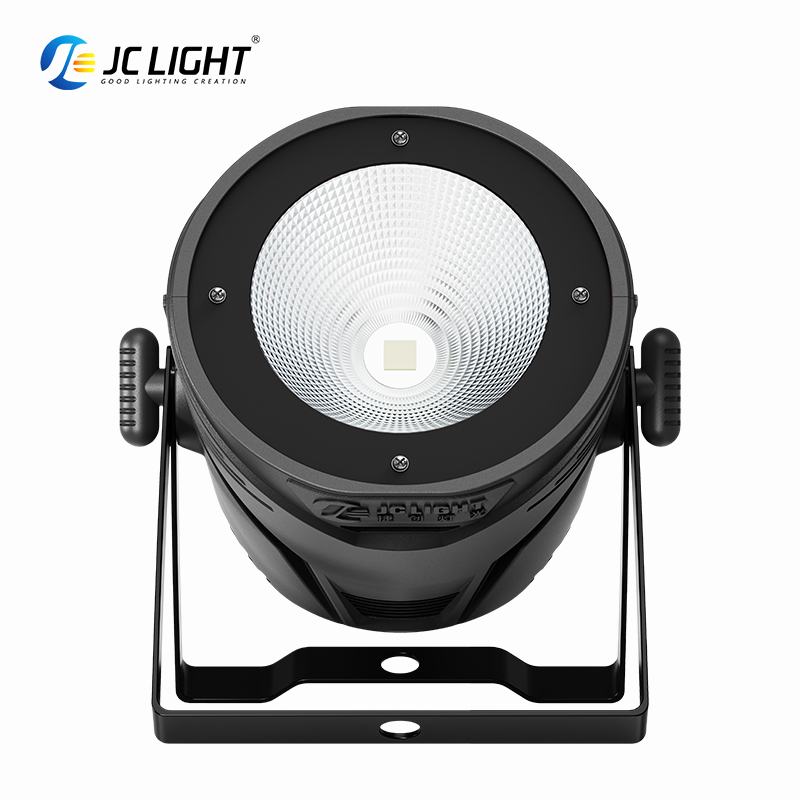

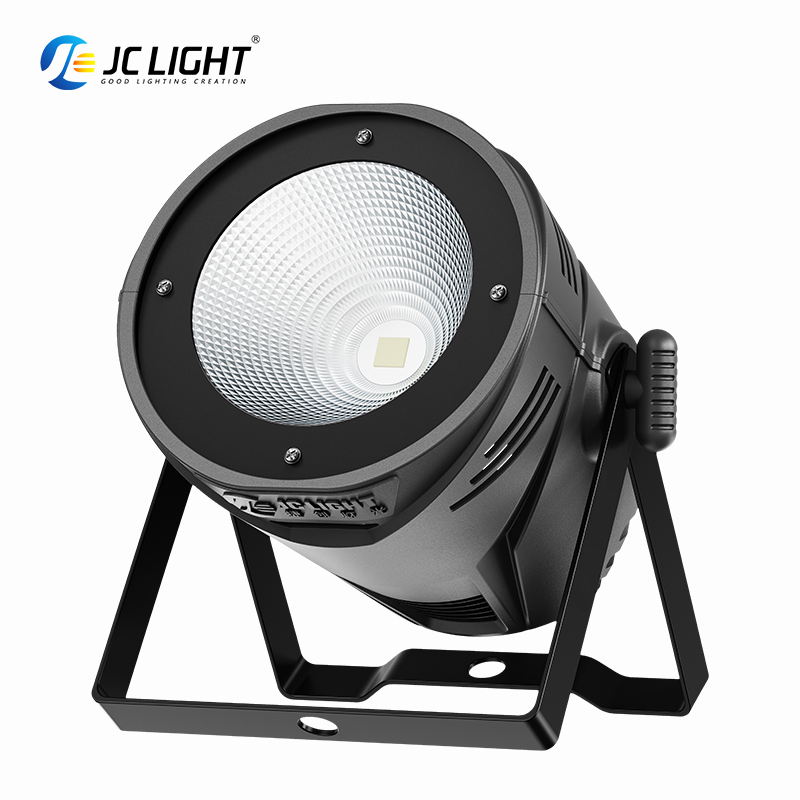

The JC LIGHT TLX200S is a professional 250W COB LED Par Light equipped with 5 × 50W COB LEDs and available in warm white, cool white or 2-in-1 configurations. With selectable 3200K warm white and 6500K cool white color temperatures, the fixture is suitable for stage wash, theatre, events, churches, studios and professional rental applications.
The TLX200S uses a durable die-cast aluminum housing and offers multiple beam angle options including 15°, 25°, 45° and 60°. It supports DMX512, master-slave, auto-run and sound control modes, together with smooth dimming and adjustable strobe effects for flexible stage lighting operation.
Key Features
- 250W professional COB LED Par light
- 5 × 50W COB LED light source
- Warm white / cool white / 2-in-1 versions available
- 3200K warm white color temperature
- 6500K cool white color temperature
- 15° / 25° / 45° / 60° beam angle options
- 0-100% dimming
- 1-20 flashes per second strobe
- DMX512 control
- Master-slave mode
- Auto-run mode
- Sound control mode
- Die-cast aluminum housing
- Compact and lightweight design
- LED lifespan rated at 60,000-100,000 hours
Technical Specifications
| SKU | TLX200S |
| Input Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 250W |
| Light Source | 5 × 50W COB LED |
| LED Version | Warm White / Cool White / 2-in-1 |
| Cool White CCT | 6500K |
| Warm White CCT | 3200K |
| Beam Angle | 45° Standard; 15° / 25° / 60° Optional |
| Dimming | 0-100% |
| Strobe | 1-20 Flashes/s |
| Control Mode | DMX512 / Master-Slave / Auto Run / Sound |
| Housing Material | Die-Cast Aluminum |
| LED Lifespan | 60,000-100,000 Hours |
| Product Size | 29 × 21 × 32 cm |
| 1-Piece Package Size | 25 × 25 × 36.5 cm |
| 2-Piece Package Size | 53 × 28 × 38 cm |
| 4-Piece Package Size | 53 × 53 × 39 cm |
| 6-Piece Package Size | 79 × 53 × 39 cm |
| Net Weight | 2.80 kg |
| Gross Weight | 3.20 kg |
5x50W COB LED Output
The TLX200S uses five 50W COB LED sources to produce an even stage wash. Warm white, cool white and 2-in-1 configurations are available, allowing buyers to select the version that best matches their venue or lighting system requirements.
3200K and 6500K Color Temperature Options
The warm white version provides a 3200K color temperature, while the cool white version provides 6500K. The available color temperature options make the fixture suitable for both warm theatrical scenes and brighter cool-white stage illumination.

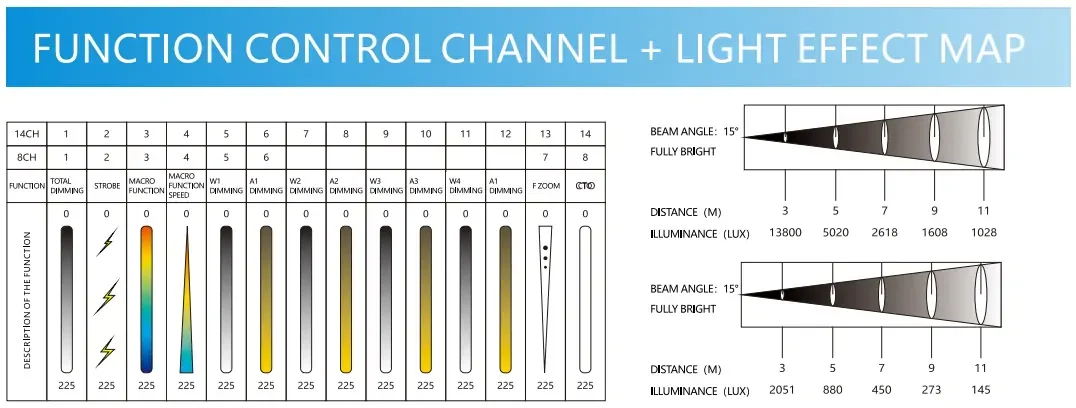

Multiple Beam Angle Options
A 45° beam angle is available as the standard configuration, with 15°, 25° and 60° options also offered. Narrower angles can be selected for more concentrated coverage, while wider angles are suitable for broader wash applications.

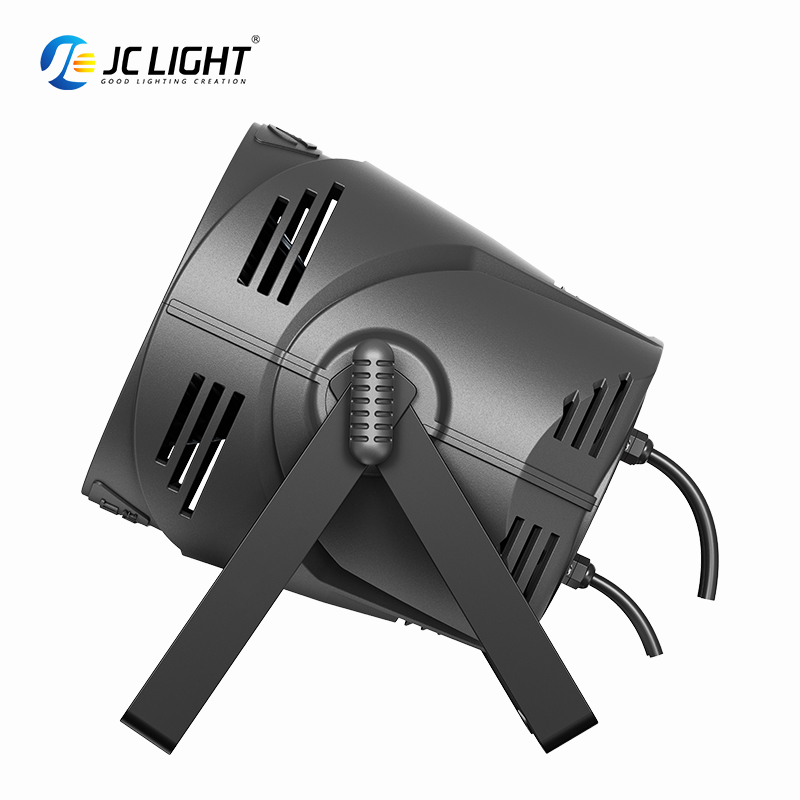

Compact Die-Cast Aluminum Housing
The fixture uses a die-cast aluminum housing for a compact and durable structure. With a net weight of only 2.80 kg, the TLX200S is convenient for installation, transportation and repeated rental use.

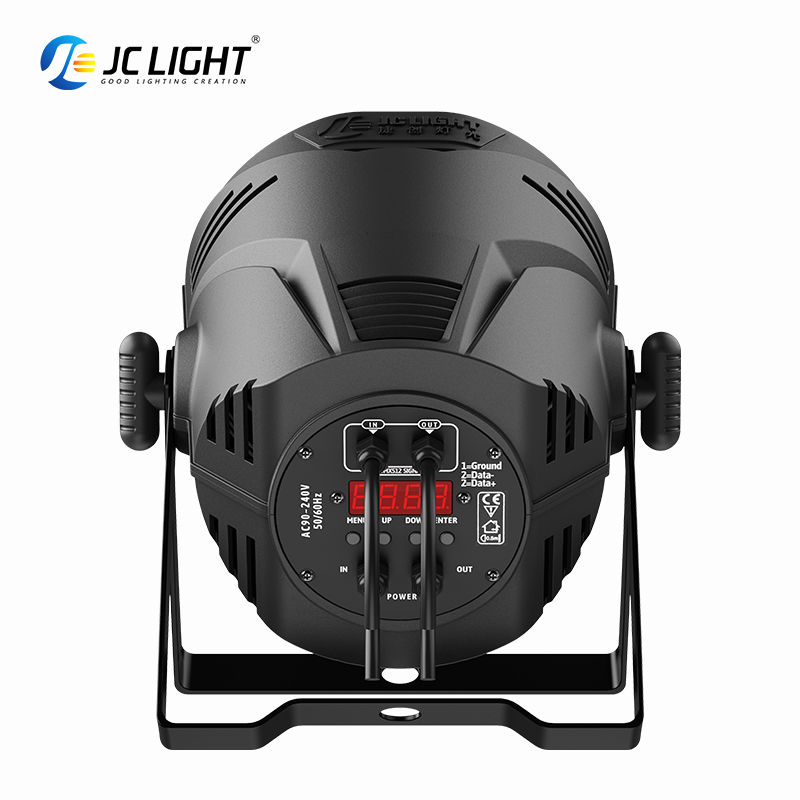

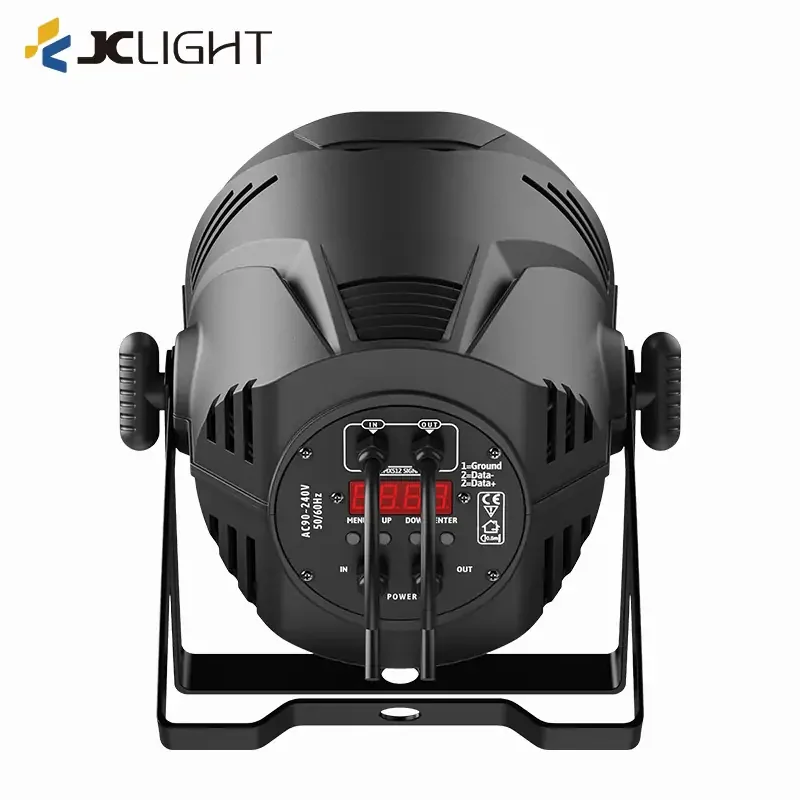

Flexible DMX and Standalone Control
The TLX200S supports DMX512, master-slave, auto-run and sound control, allowing it to operate as part of a programmed lighting system or in standalone event setups.
Application Scenarios
- Stage wash lighting
- Theatre and auditorium lighting
- Church and worship lighting
- Wedding and event lighting
- Live performance venues
- TV and studio lighting
- DJ and entertainment venues
- Professional rental lighting systems
Why Choose JC LIGHT
- Professional COB LED Par light manufacturer
- Warm white, cool white and 2-in-1 configurations
- Multiple beam angle options for different applications
- Compact die-cast aluminum housing
- DMX and standalone control modes
- Lightweight design for rental and mobile applications
- OEM and ODM customization for distributors and project contractors
TLX200S 250W COB LED Par Light FAQ
What light source does the TLX200S use?
The TLX200S uses 5 × 50W COB LEDs with a total fixture power consumption of 250W.
What color temperature options are available?
The fixture is available with 3200K warm white and 6500K cool white light sources, as well as a 2-in-1 configuration.
What beam angles are available for the TLX200S?
The standard beam angle is 45°, with 15°, 25° and 60° configurations also available.
Does this COB Par light support dimming and strobe?
Yes. The fixture supports 0-100% dimming and a 1-20 flashes per second strobe effect.
What control modes does the TLX200S support?
It supports DMX512, master-slave, auto-run and sound control.
Is the TLX200S suitable for rental applications?
Yes. Its compact die-cast aluminum housing and 2.80 kg net weight make it suitable for professional rental, mobile events and repeated installation.
Can JC LIGHT supply different beam angles and LED configurations?
Yes. JC LIGHT can supply the TLX200S with different beam angle and warm white, cool white or 2-in-1 LED configurations according to project requirements.
