200W LED Profile Spotlight with Manual Focus and Adjustable Beam Angle

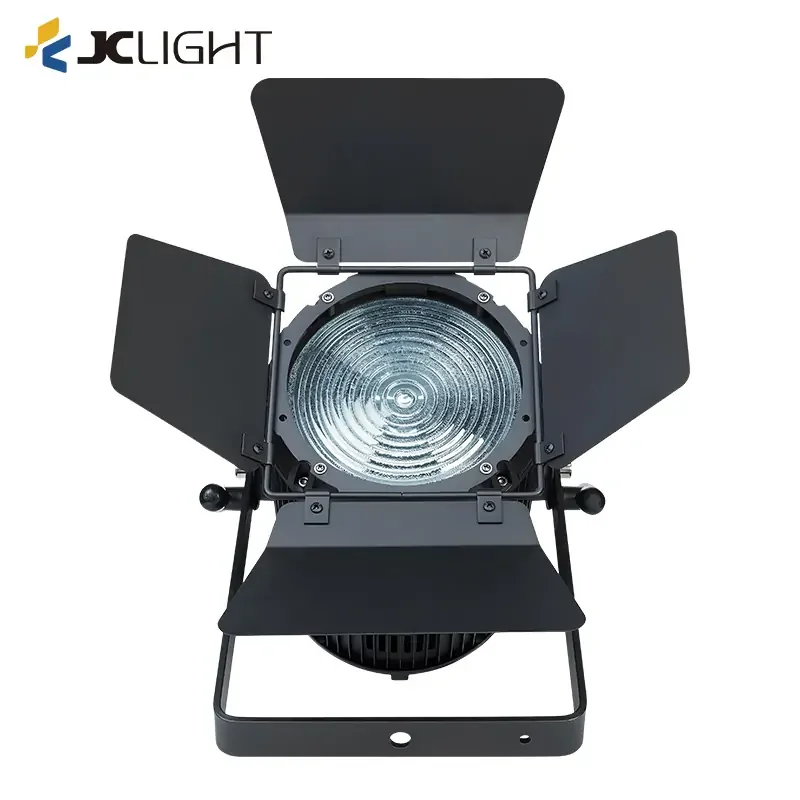

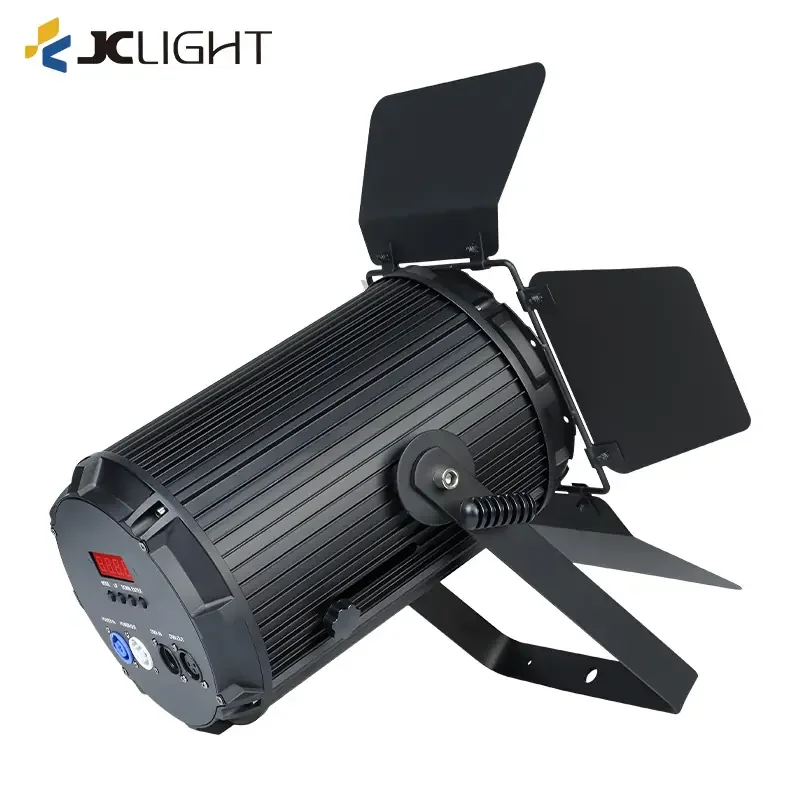

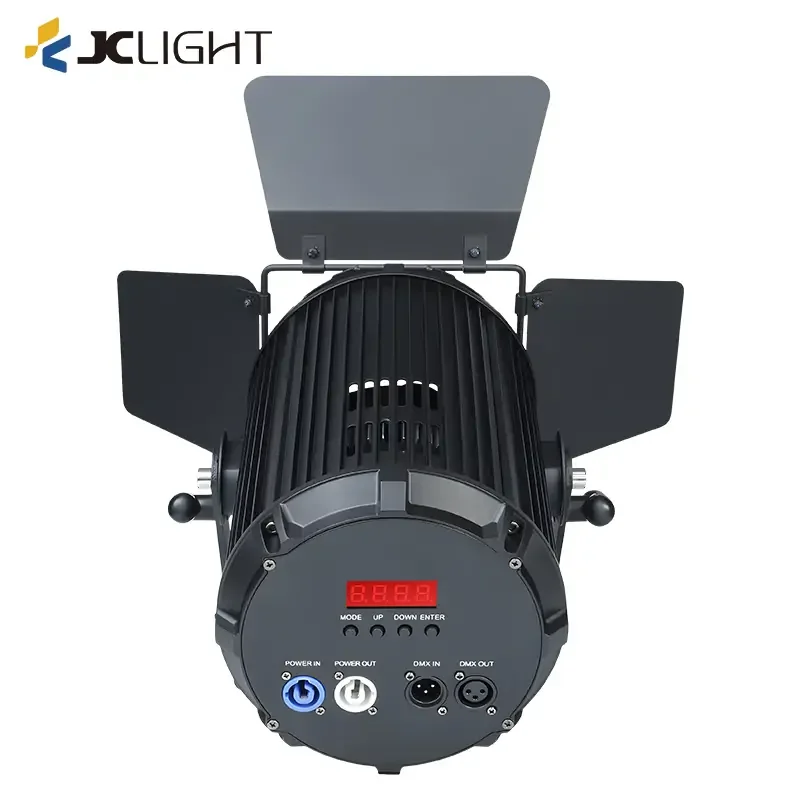

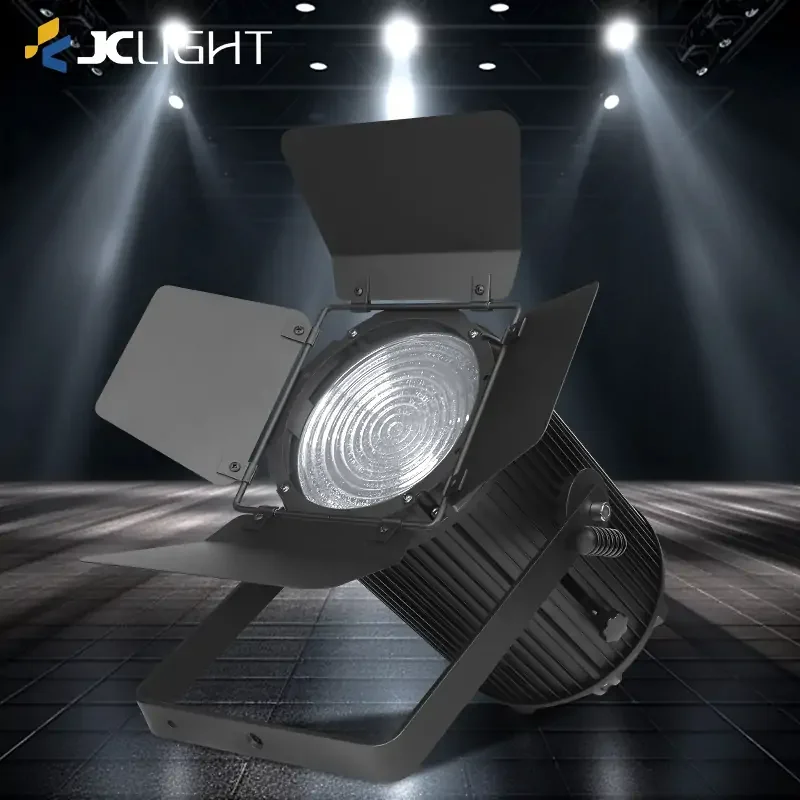

The JC LIGHT YSD200A / YSD200B / YSD200C is a professional 200W LED Profile Spotlight designed for theatres, churches, studios, exhibitions and stage lighting applications. Featuring a high-performance LED light source, adjustable beam angle and manual focusing system, it provides clear projection, smooth dimming and reliable lighting performance.
Built with an aluminum alloy housing, silent cooling system and flexible DMX512 control, this LED profile spotlight offers an efficient and practical lighting solution for professional venues requiring accurate projection and stable operation.
Key Features
- 200W high-power LED profile spotlight
- Available in warm white, white and 2in1 LED versions
- Adjustable 20°–50° beam angle
- Manual focus adjustment for precise light shaping
- 100% electronic smooth dimming
- Aluminum alloy housing for durability and heat dissipation
- Silent fan and aluminum radiator cooling system
- Compact design for flexible installation
- DMX512 and manual control modes
- Suitable for professional stage and architectural lighting
Technical Specifications
| Model | YSD200A / YSD200B / YSD200C |
| Voltage | AC90-240V, 50/60Hz |
| Power Consumption | 200W |
| Light Source | 200W Warm White / White / 2in1 LED |
| LED Beam Angle | 20°–50° Adjustable |
| Optical System | Manual Focus Optical System |
| Focusing Method | Manual Focus Knob Adjustment |
| Dimming | 100% Electronic Dimming |
| Housing Material | Aluminum Alloy |
| Cooling System | Silent Fan + Aluminum Radiator |
| Display | LCD Display |
| Control Mode | DMX512 / Manual |
| DMX Channel | 1CH / 2CH |
| Product Size | 31 × 27 × 30 cm |
| Net Weight | 6.5 kg |
Application Scenarios
- Theatre and auditorium lighting
- Church stage lighting
- TV studio and broadcasting applications
- Exhibition and commercial display lighting
- Conference and corporate event lighting
- Stage performance projection lighting
Why Choose JC LIGHT
- Professional LED profile spotlight manufacturer
- High-efficiency LED optical solutions
- Stable cooling design for long operation
- Flexible beam adjustment and manual focus control
- Reliable DMX512 control compatibility
- OEM and ODM customization support available
200W LED Profile Spotlight FAQ
What LED versions are available for YSD200?
The series is available in warm white, white and 2in1 LED versions to meet different lighting requirements.
Can the beam angle be adjusted?
Yes. The spotlight supports an adjustable 20°-50° beam angle.
Does this LED profile spotlight support DMX control?
Yes. It supports DMX512 control and manual operation mode.
How is the focus adjusted?
The fixture uses a manual focusing system. Users can adjust the focus knobs on both sides of the housing to control light convergence and projection clarity.
Where can this spotlight be used?
It is suitable for theatres, churches, studios, exhibitions and professional stage lighting projects.
Do you provide OEM customization?
Yes. JC LIGHT provides OEM and ODM services for professional lighting equipment.
