Description
Video:

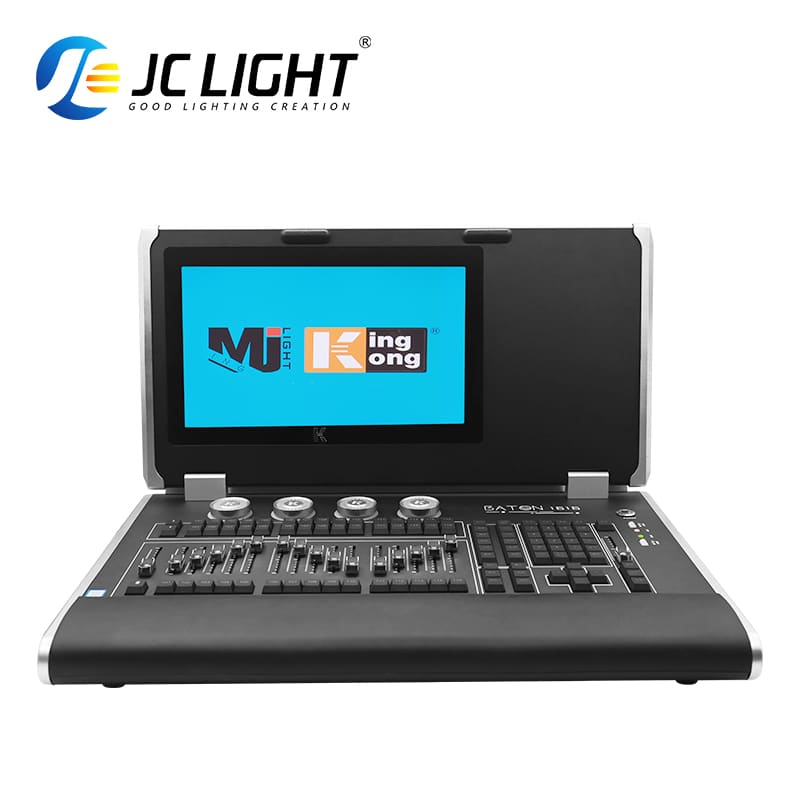

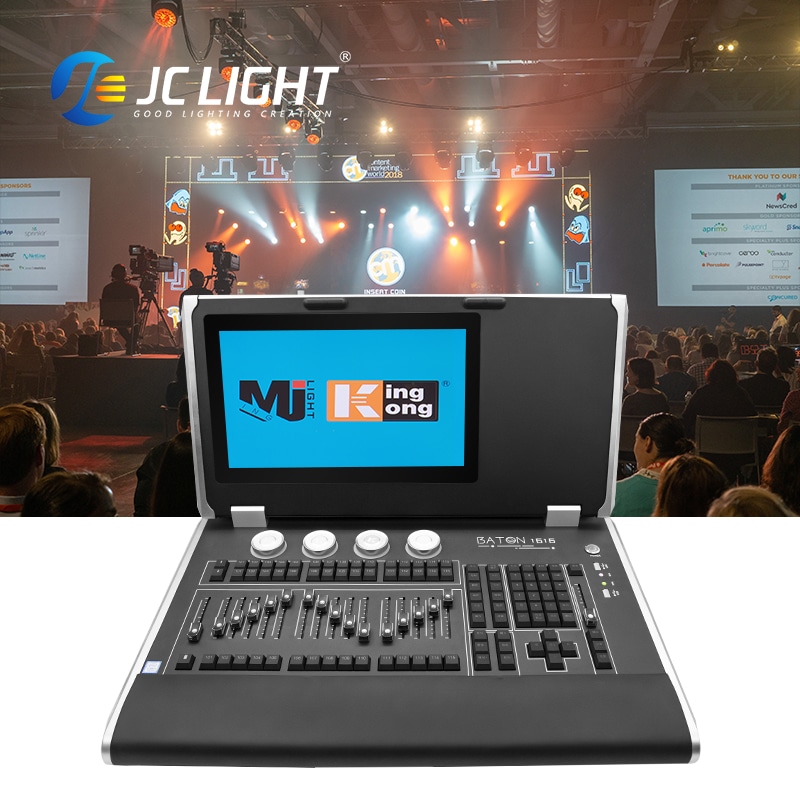

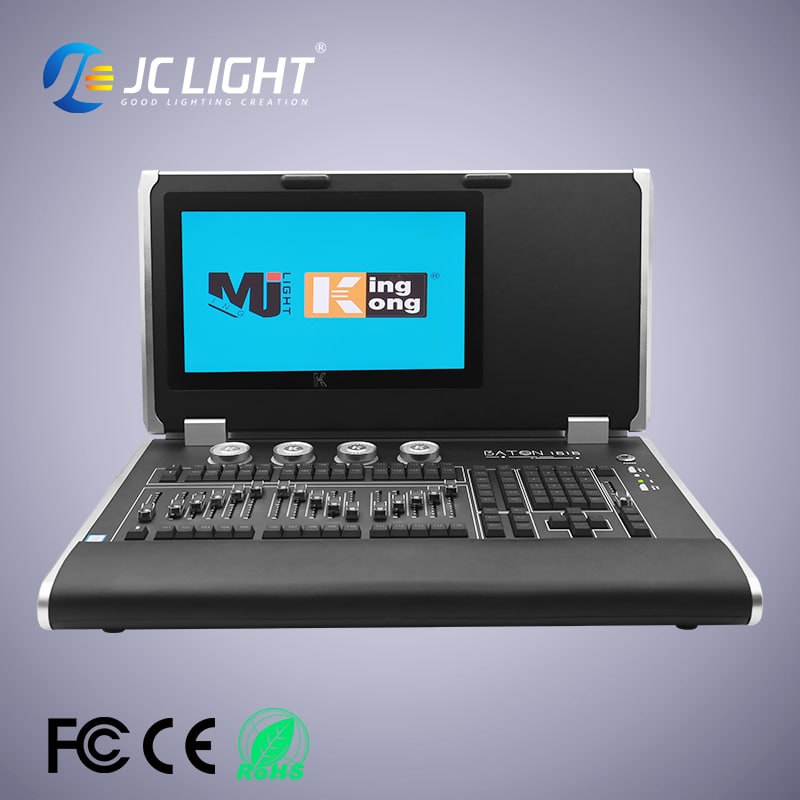

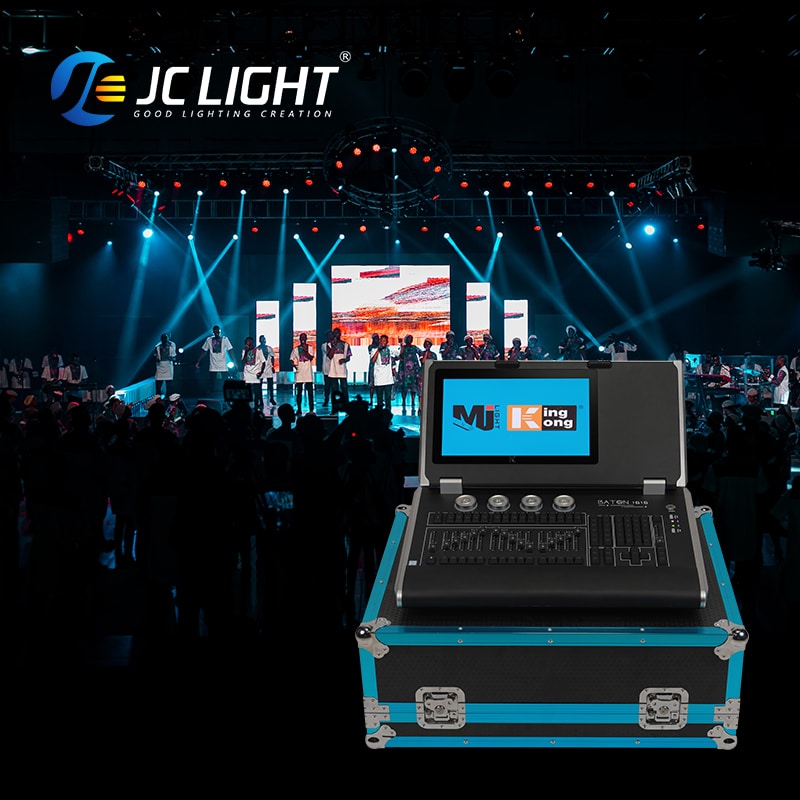

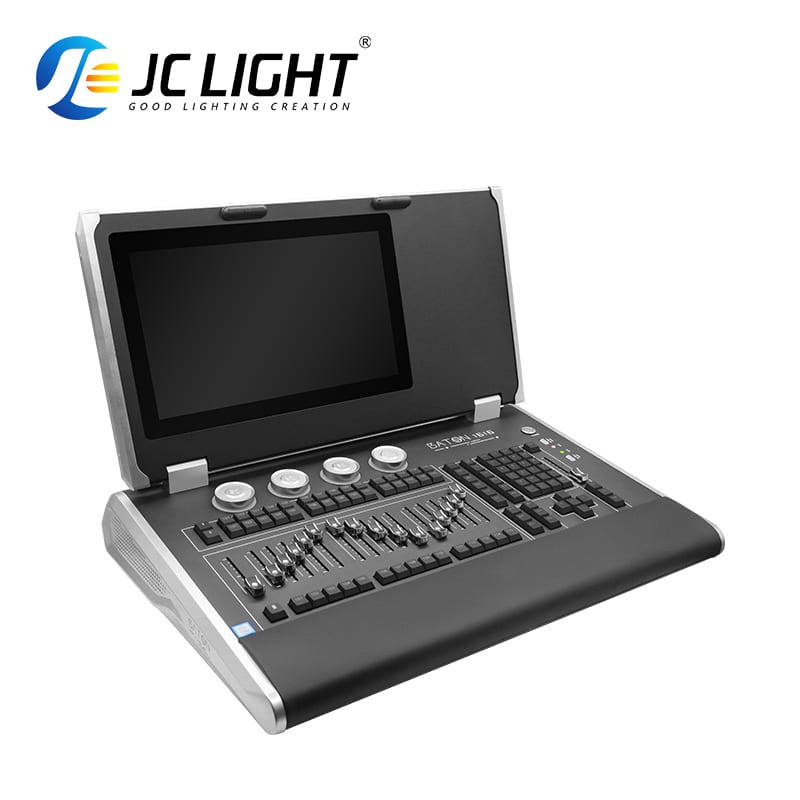

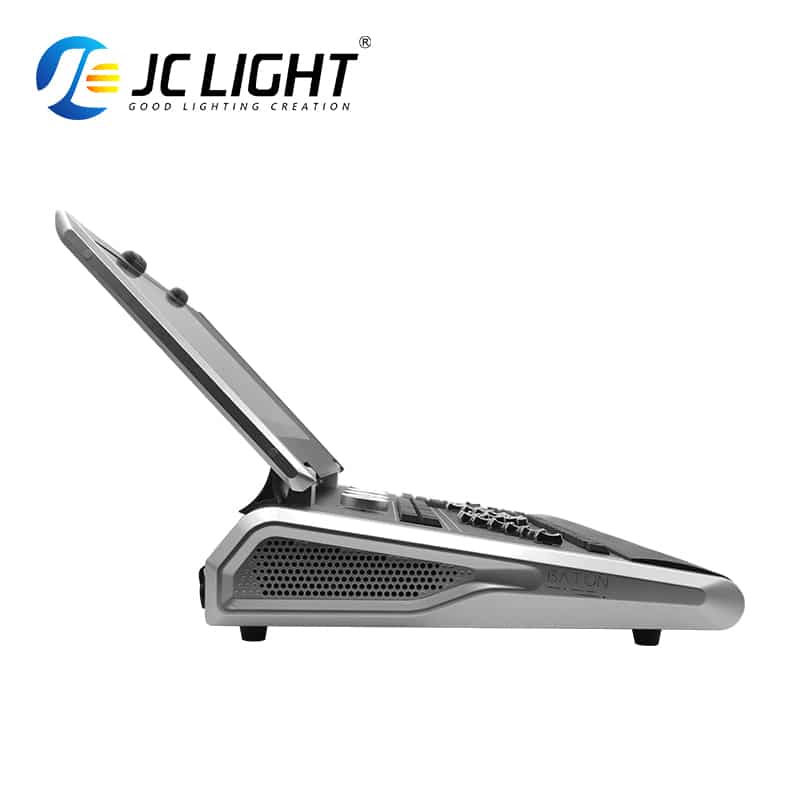

L22 Professional Linux Stage Lighting Console with 3584 DMX Channels and 15.6-Inch Touch Screen
The JC LIGHT L22 Professional Stage Lighting Console is a high-capacity lighting control system designed for concerts, theaters, festivals, live productions and professional rental applications. Built around a customized Linux operating system, it combines an Intel Core i3 9th generation processor, ASUS motherboard, Samsung DDR4 memory and Kingston 120GB SSD for professional lighting programming and real-time control.
Equipped with a 15.6-inch BOE capacitive touch screen, 7 DMX output ports and 3584 DMX512 channels, the L22 can be expanded to 32 DMX outputs and 16,384 DMX channels. It also supports large fixture libraries, advanced scene programming, built-in graphics, ART-Net networking, XML fixture libraries and remote control by mobile phone or iPad.
Key Features
- Professional Linux-based stage lighting console
- Intel Core i3 9th generation processor
- Processor configuration customizable
- ASUS motherboard
- Samsung DDR4 memory
- 4GB memory and 120GB Kingston SSD
- 15.6-inch BOE capacitive touch screen
- Chinese and English language switching
- 7 DMX output ports
- 3584 DMX512 channels
- Expandable to 32 DMX outputs and 16,384 DMX channels
- Supports up to 6000 fixtures
- Supports storage of up to 600 fixture groups
- Supports up to 3000 materials
- Supports storage of up to 2700 scenes
- Unlimited steps for multi-step scenes
- 163 built-in fixed graphics
- 43 built-in curve effects
- Up to 60 graphic effects can be loaded simultaneously
- 6 fan modes
- Supports storage of up to 400 programs
- Built-in music player
- Graffiti handwriting and custom naming support
- XML-format fixture library
- Built-in fixture library editing software
- Wired and wireless ART-Net support
- Mobile phone and iPad remote control support
Technical Specifications
| Short Model Number | L22 |
| Product Type | Professional Stage Lighting Console |
| Operating System | Customized Linux System |
| Processor | Intel Core i3 9th Generation, Customizable |
| Motherboard | ASUS Motherboard |
| Memory | 4GB Samsung DDR4 |
| Storage | 120GB Kingston SSD |
| Touch Screen | 15.6-Inch BOE Capacitive Touch Screen |
| Language | Chinese / English |
| DMX Output Ports | 7 |
| DMX512 Channels | 3584 Channels |
| DMX Expansion | Up to 32 Outputs / 16,384 Channels |
| Maximum Fixture Capacity | Up to 6000 Fixtures |
| Fixture Groups | Up to 600 Groups |
| Material Categories | 15 Categories |
| Materials per Category | 200 |
| Total Material Storage | 3000 Materials |
| Scene Storage | Up to 2700 Scenes |
| Multi-Step Scene Capacity | Unlimited Steps |
| Scene Window Playback | Up to 20 Scenes Simultaneously |
| Fader Playback | 15 Simultaneously, Expandable to 30 |
| Built-In Fixed Graphics | 163 |
| Curve Effects | 43 |
| Simultaneous Graphic Effects | Up to 60 |
| Fan Modes | 6 |
| Program Storage | 400 Programs |
| Color Adjustment | Color Board / Color Fader / Color Preset |
| Vector Bitmap Function | Supported |
| Scalable Working Windows | Supported |
| Paragraph Operation | Supported |
| Built-In Music Player | Supported |
| Graffiti / Custom Naming | Supported |
| Fixture Library Format | XML |
| Fixture Library Editor | Built-In, Supports Console and Computer Editing |
| Fixture Library Segment Setting | Supported |
| Wired ART-Net | Supported |
| Wireless ART-Net | Supported |
| Remote Control | Mobile Phone / iPad |

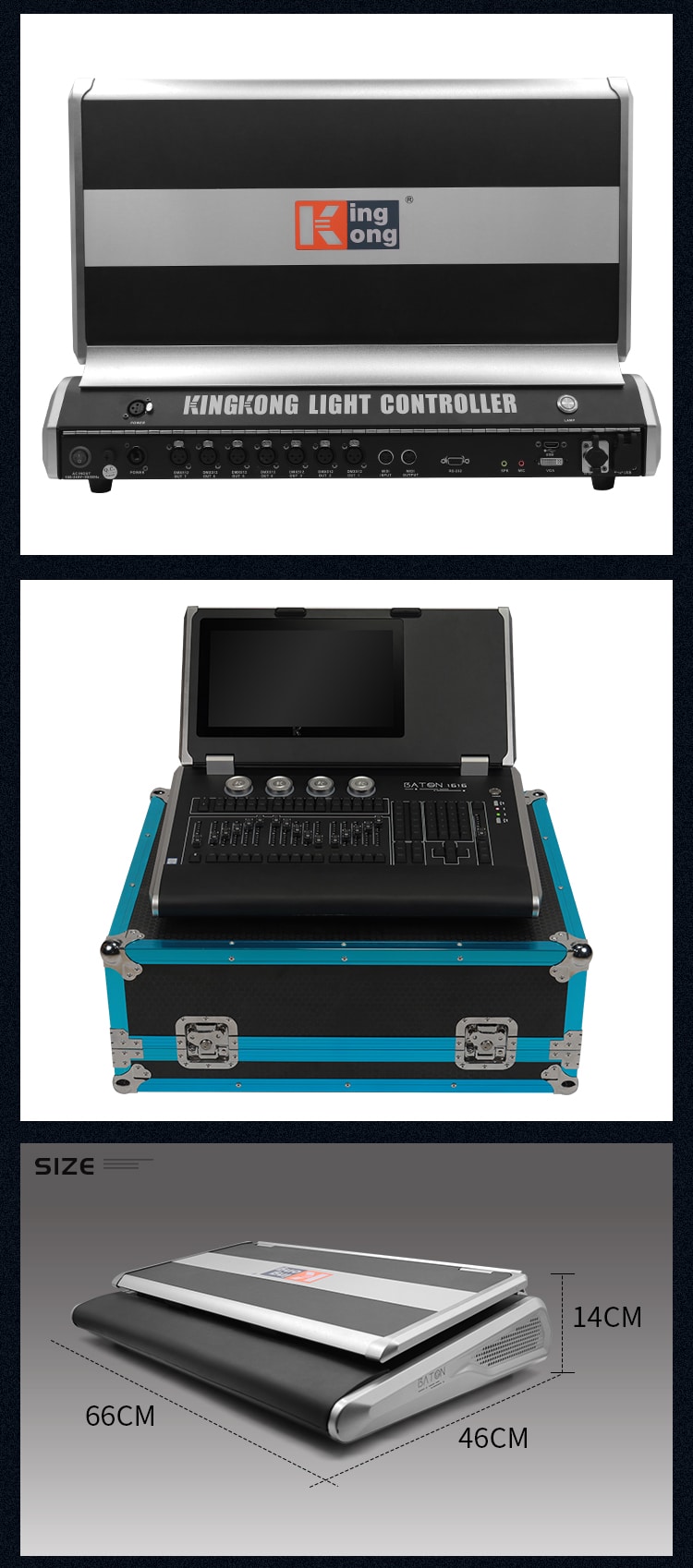

| Product Size | 66 × 46 × 14 cm |
| Net Weight | 22 kg |
3584 DMX Channels with Expansion Capability
The L22 provides 7 DMX output ports and 3584 DMX512 channels. The system can be expanded to 32 DMX outputs and 16,384 DMX channels for larger professional lighting systems.

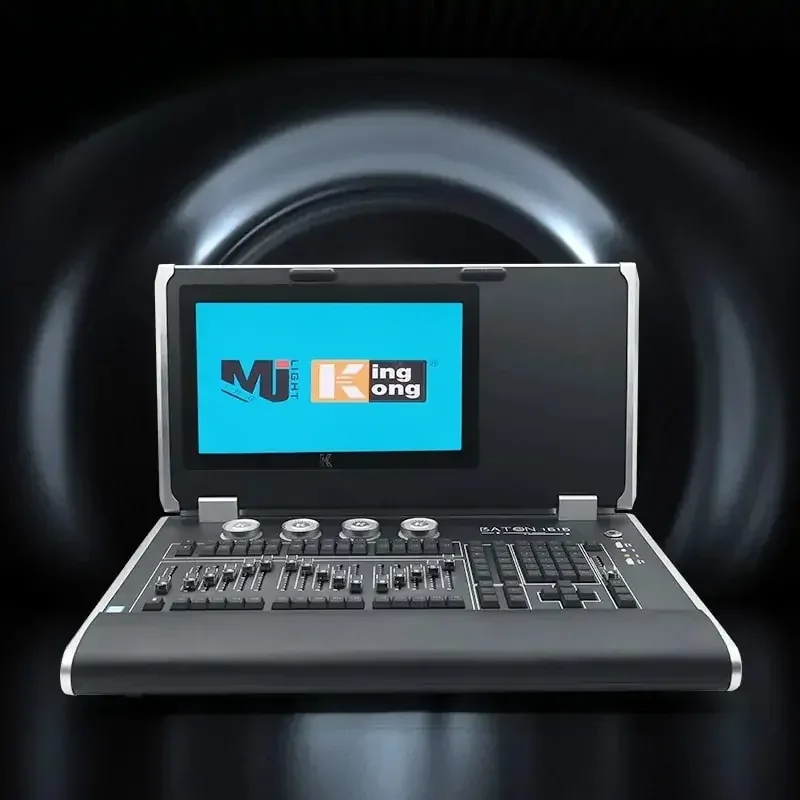

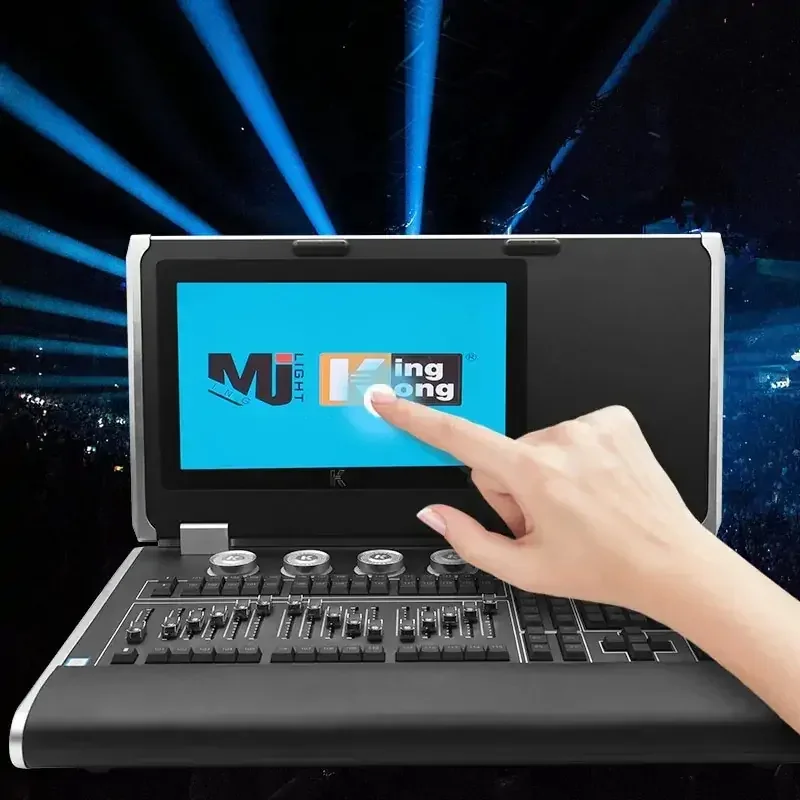

15.6-Inch BOE Capacitive Touch Screen
The console uses a 15.6-inch BOE capacitive touch screen. According to the supplied specification, its sensitivity is higher than traditional resistive screens and it is designed for responsive lighting control operation.
Large Fixture and Group Capacity
The L22 supports up to 6000 fixtures and can store up to 600 fixture groups, making it suitable for large lighting systems and complex event productions.
3000 Material Storage Capacity
Materials are divided into 15 categories, with each category supporting up to 200 materials, providing a total storage capacity of 3000 materials.
Advanced Scene Programming
The console can store up to 2700 scenes, while multi-step scenes support unlimited steps. The scene window can run up to 20 scenes simultaneously, while fader playback supports 15 scenes and can be expanded to 30.
Built-In Graphics and Curve Effects
The L22 includes 163 commonly used fixed graphics and 43 curve effects. Parameters can be modified, and up to 60 graphic effects can be loaded simultaneously for more complex programming.
Flexible Color Programming
A dedicated color dialog allows operators to quickly adjust color through the color board, color fader or color preset, improving programming efficiency during live productions.
Vector Bitmap and Workspace Functions
The built-in vector bitmap function can simulate fixture layout positions, while each working window can be scaled and saved as a view for repeated use.
XML Fixture Library Management
The L22 uses an XML-format fixture library and includes built-in fixture library editing software. Fixture libraries can be edited directly on the console or on a computer and then copied into the console.
Wired and Wireless ART-Net
The console supports both wired and wireless ART-Net. The wired function can be used for lighting simulation and practice programming, while wireless ART-Net supports remote control from a mobile phone or iPad.
Application Scenarios
- Concert stages
- Theaters
- Music festivals
- Live events
- Nightclubs
- Performance venues
- Event production companies
- Professional rental lighting companies
- Large stage lighting systems
Why Choose JC LIGHT
- Professional stage lighting control solutions
- High-capacity DMX512 and ART-Net control
- Large fixture, material and scene storage capacity
- Professional capacitive touch screen operation
- Advanced graphics and programming functions
- Flexible XML fixture library management
- Suitable for large rental and production projects
- OEM and ODM lighting control solutions available
L22 Professional Stage Lighting Console FAQ
How many DMX channels does the L22 support?
The L22 provides 3584 DMX512 channels and can be expanded to 16,384 DMX channels.
How many DMX outputs does the L22 have?
It has 7 DMX output ports and can be expanded to up to 32 outputs.
How many fixtures can the L22 control?
The supplied specification supports up to 6000 fixtures.
How many fixture groups can be stored?
The console can store up to 600 fixture groups.
How many materials can the L22 store?
It supports 3000 materials across 15 categories.
How many scenes can be stored?
The L22 can store up to 2700 scenes, including multi-step scenes with unlimited steps.
Does the L22 support ART-Net?
Yes. It supports both wired and wireless ART-Net.
Can the console be controlled from a mobile device?
Yes. The supplied specification supports remote operation using a mobile phone or iPad through wireless ART-Net.
What fixture library format does the L22 use?
It uses an XML-format fixture library and includes editing software for console or computer use.
Where can the L22 lighting console be used?
It is suitable for concerts, theaters, festivals, live events and professional lighting rental systems.
