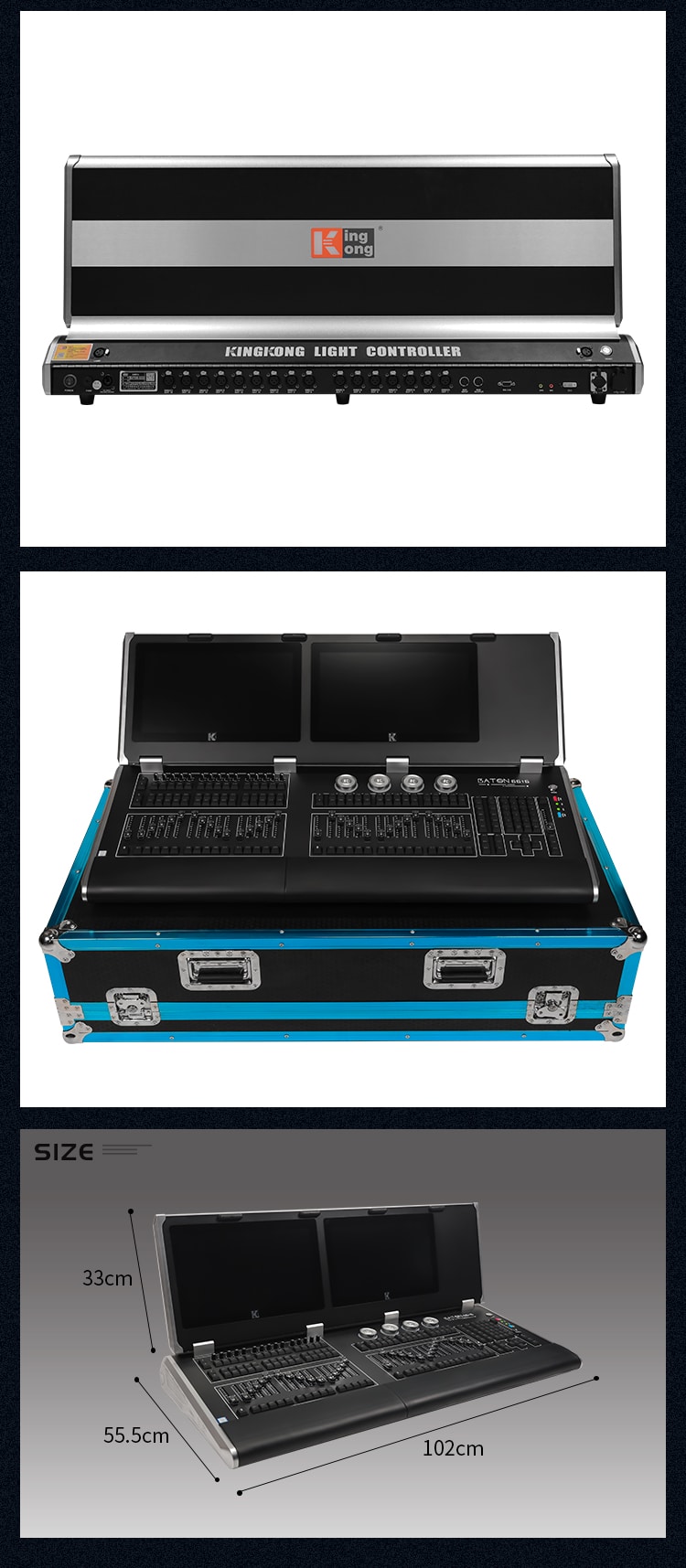

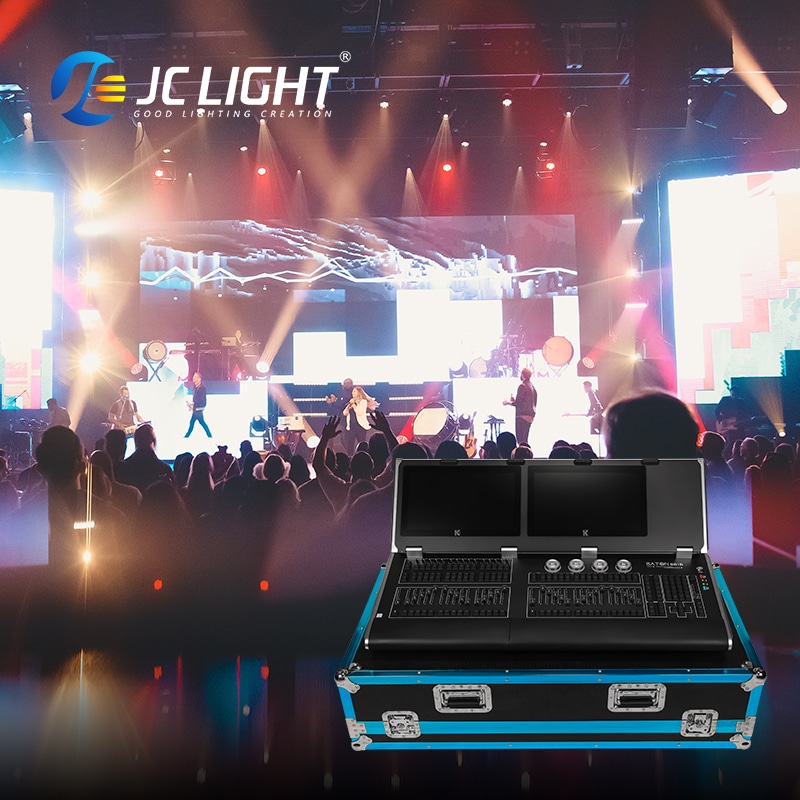

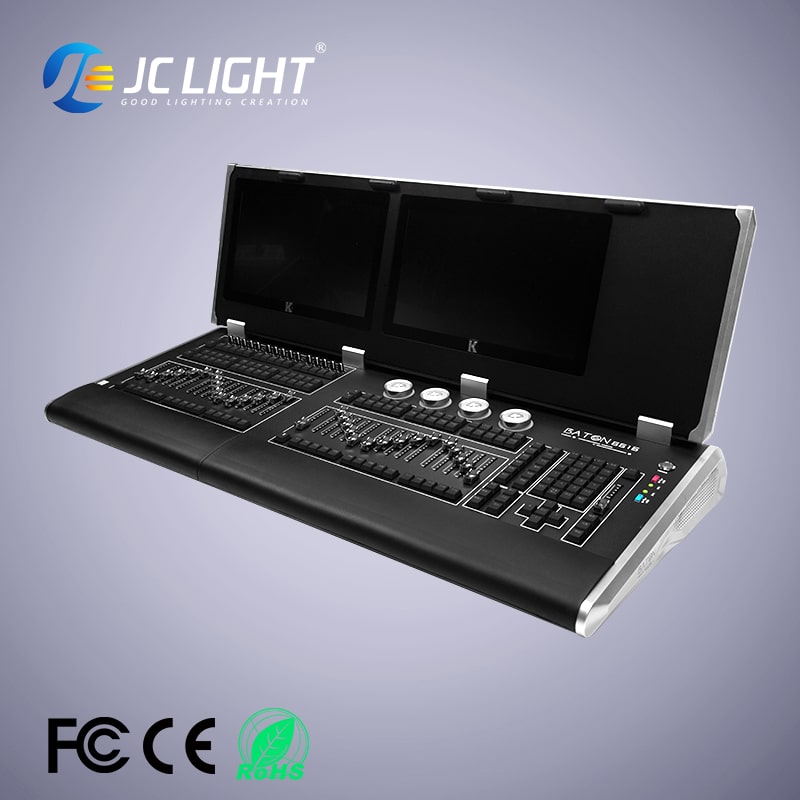

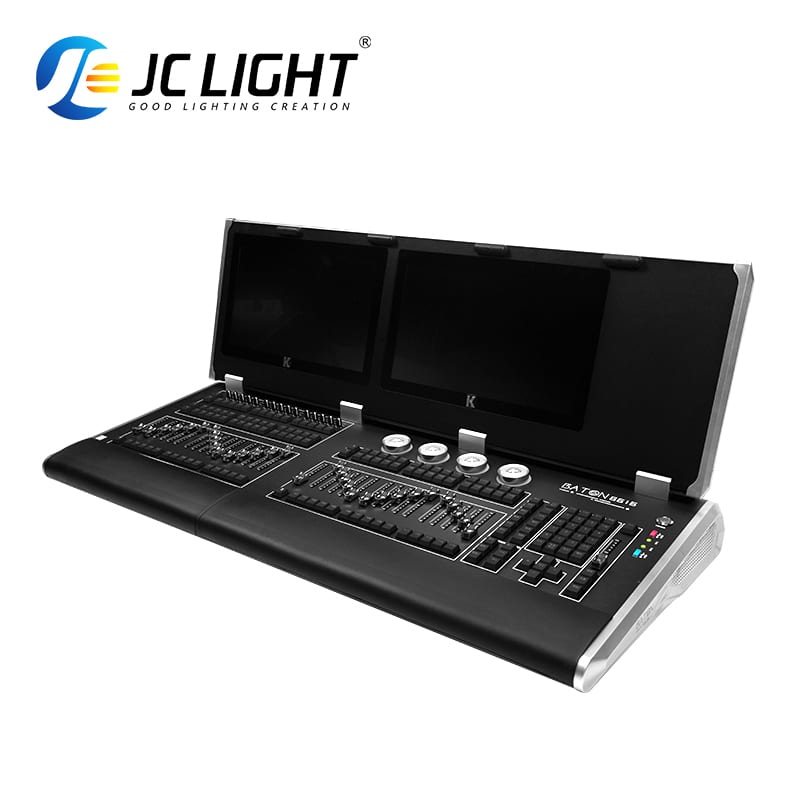

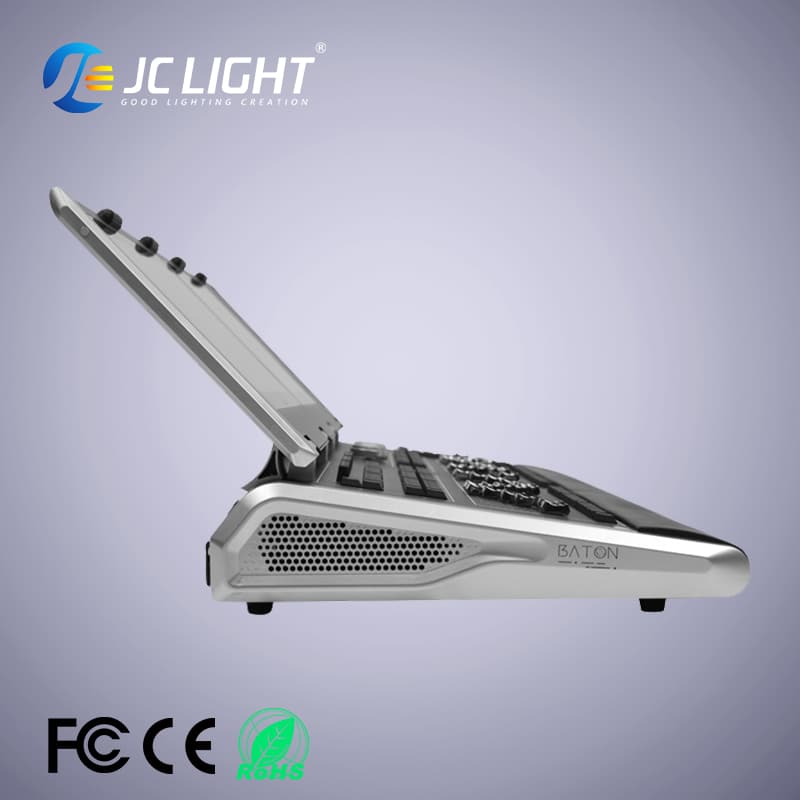

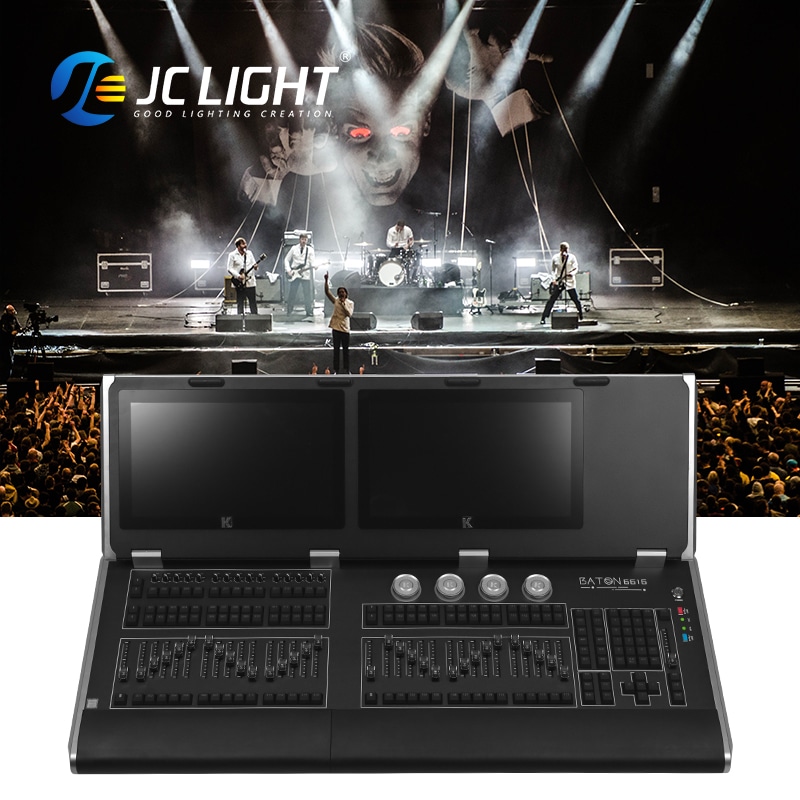

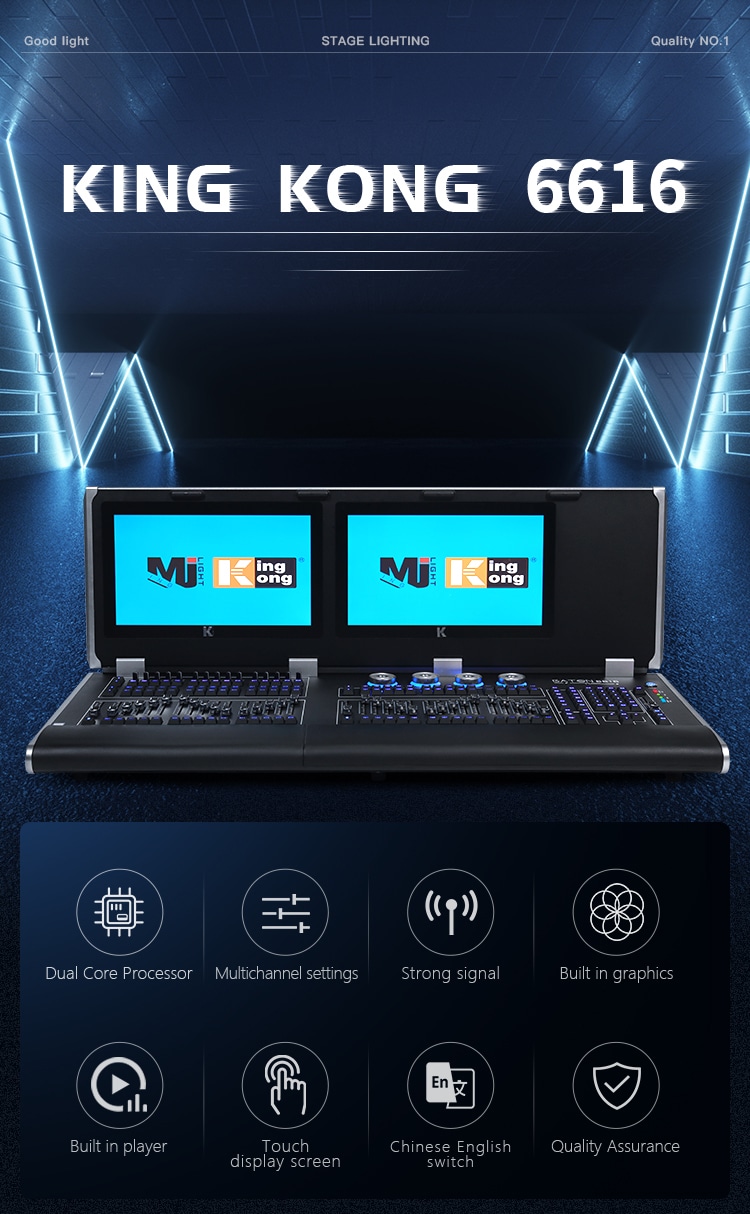

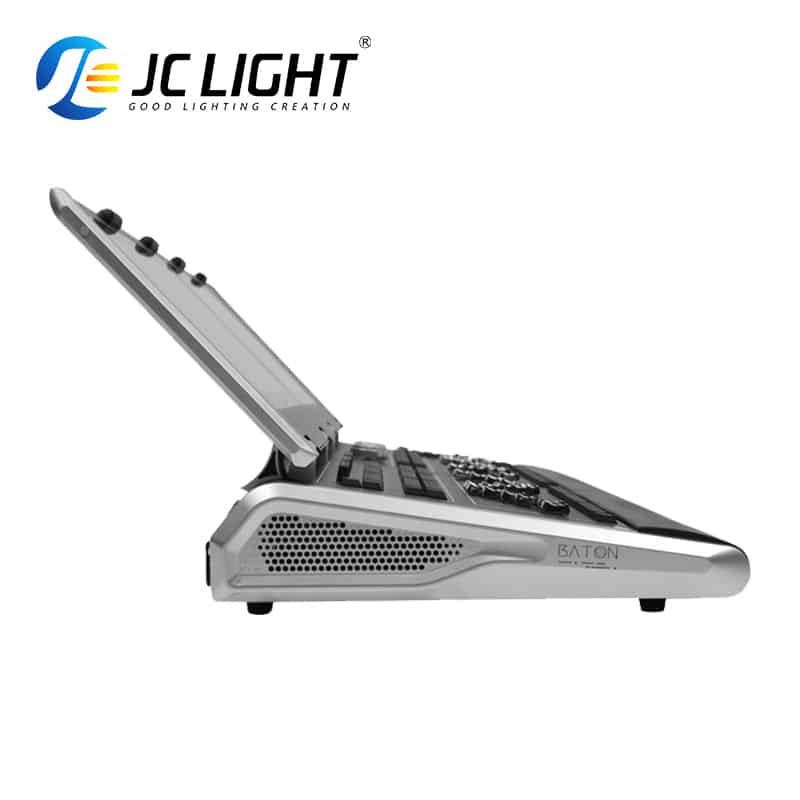

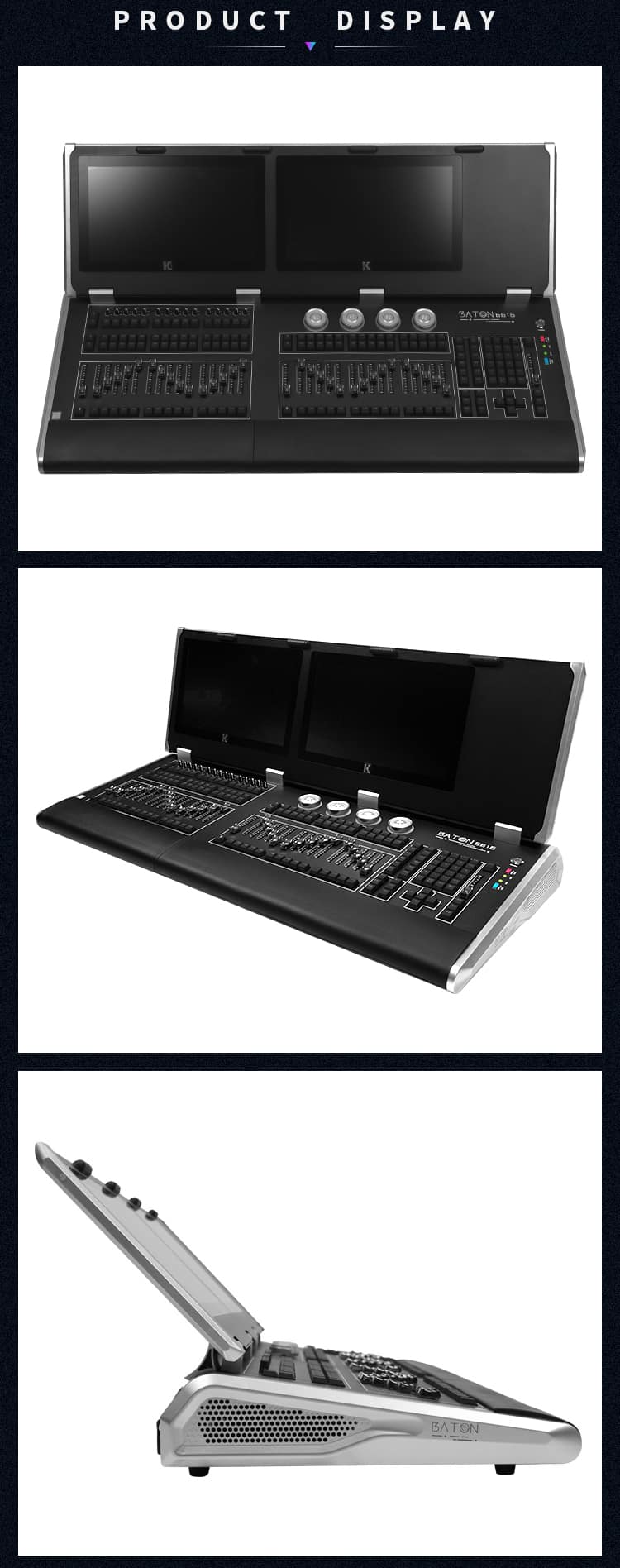

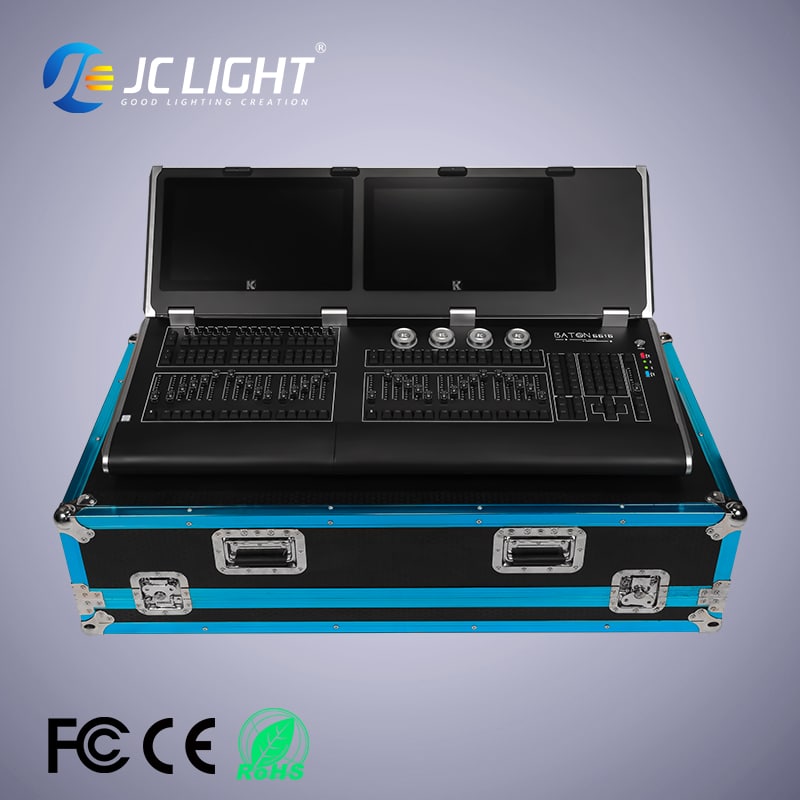

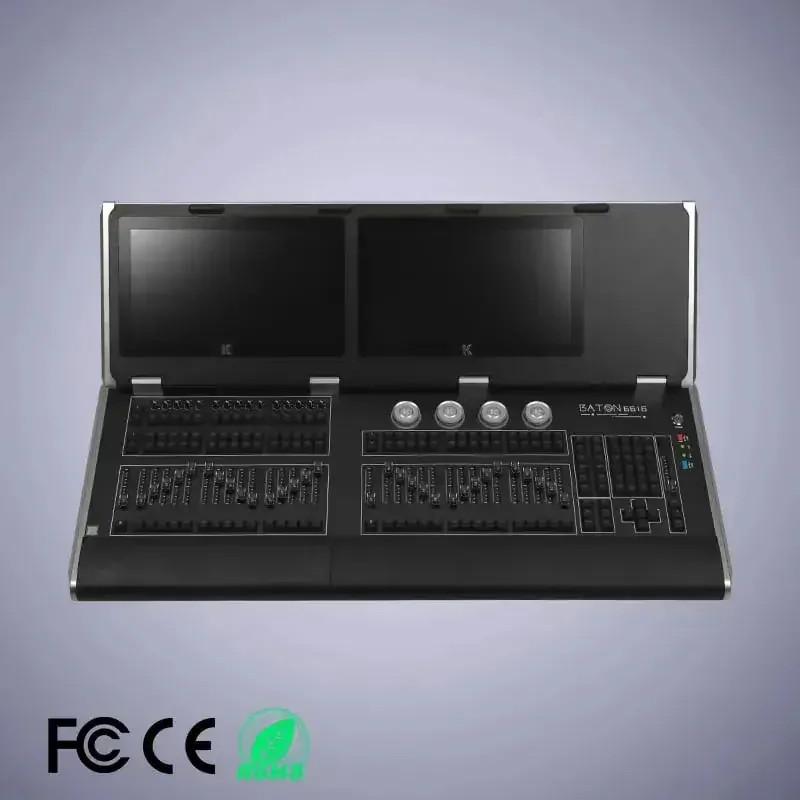

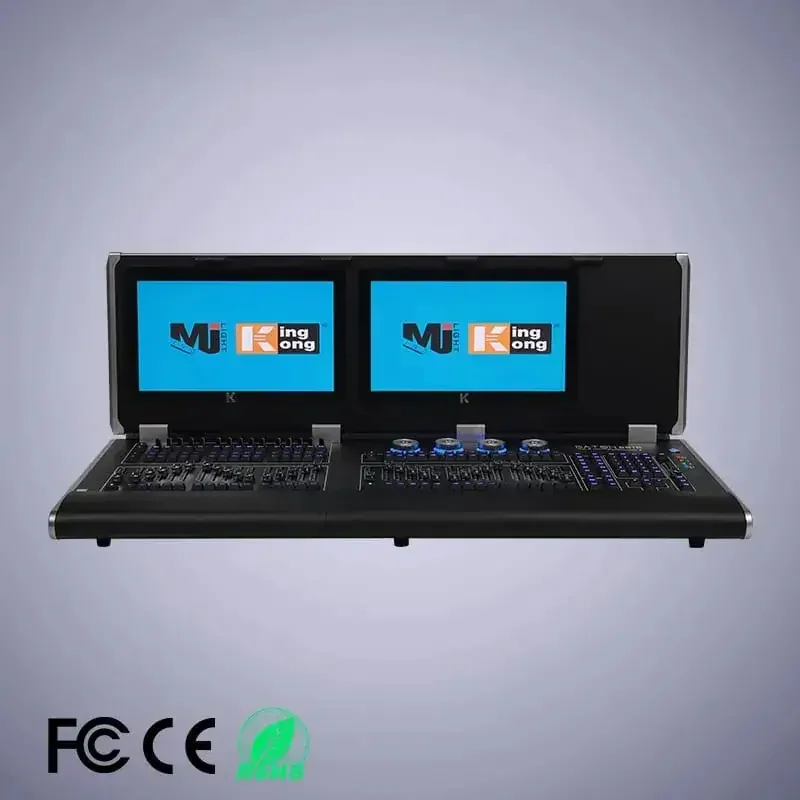

L23 Professional Linux Stage Lighting Console with 8192 DMX Channels and Dual 15.6-Inch Touch Screens

The JC LIGHT L23 Professional Stage Lighting Console is a large-capacity lighting control system designed for concerts, theaters, festivals, live productions and professional rental applications. Built around a customized Linux operating system, it combines an Intel Core i3 9th generation processor, ASUS motherboard, Samsung DDR4 memory and Kingston 120GB SSD for professional lighting programming and real-time control.

Equipped with two 15.6-inch BOE capacitive touch screens, 16 physical DMX outputs and 8192 DMX512 channels, the L23 can be expanded through the network to 64 outputs and 32,768 channels. It also integrates advanced scene programming, graphics, ART-Net, fixture library management, backup functions and remote control capabilities.

Key Features

• Professional Linux-based stage lighting console
• Intel Core i3 9th generation processor
• ASUS motherboard
• Samsung DDR4 memory
• 4GB memory and 120GB Kingston SSD
• Hardware configuration customizable
• Dual 15.6-inch BOE capacitive touch screens
• Chinese and English operating interface
• 16 physical DMX outputs
• 8192 DMX512 channels
• Expandable through network to 64 outputs and 32,768 channels
• Supports up to 6000 fixtures
• Supports storage of up to 600 fixture groups
• Supports up to 1800 materials
• Supports storage of up to 2700 scenes
• Up to 65 scenes can run simultaneously
• 400 program storage capacity
• Built-in graphics and curve effects
• Wired and wireless ART-Net support
• Mobile phone and iPad remote control support
• Built-in UPS uninterruptible power supply
• XML-format fixture library
• Project file import and export support
• External backup and automatic file saving

Technical Specifications

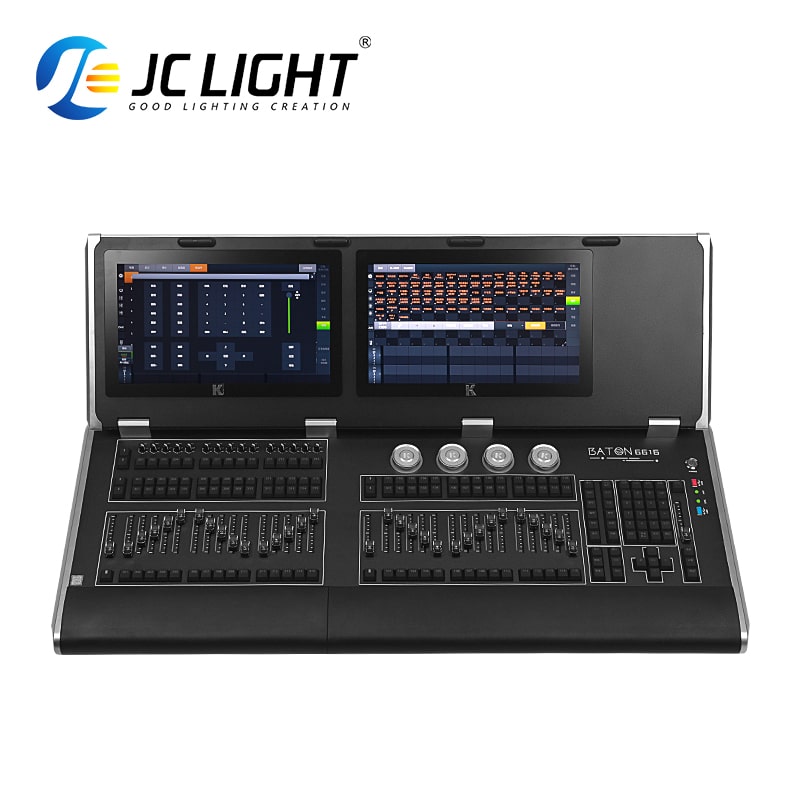

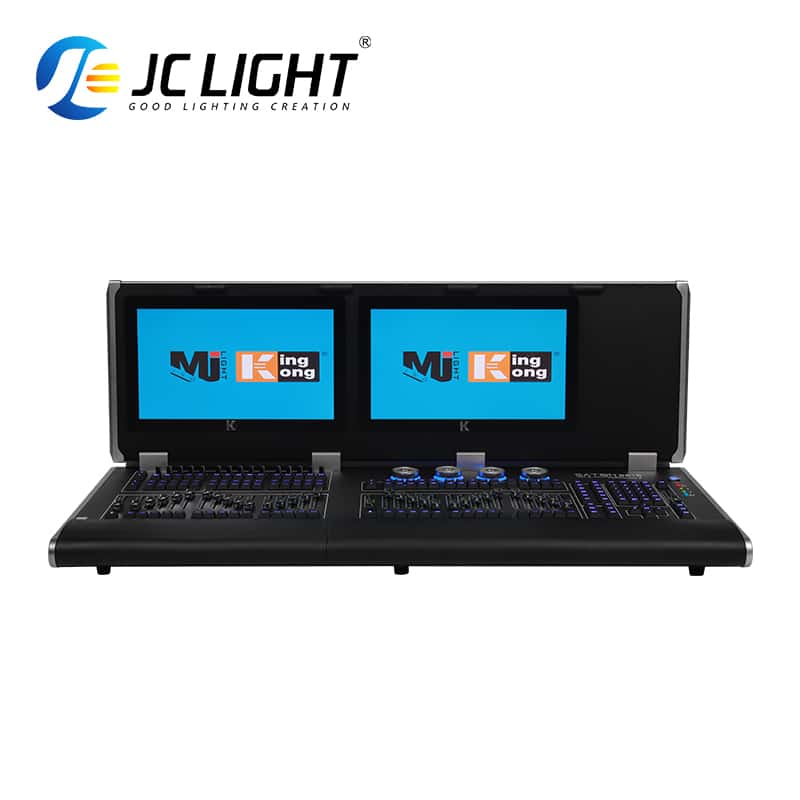

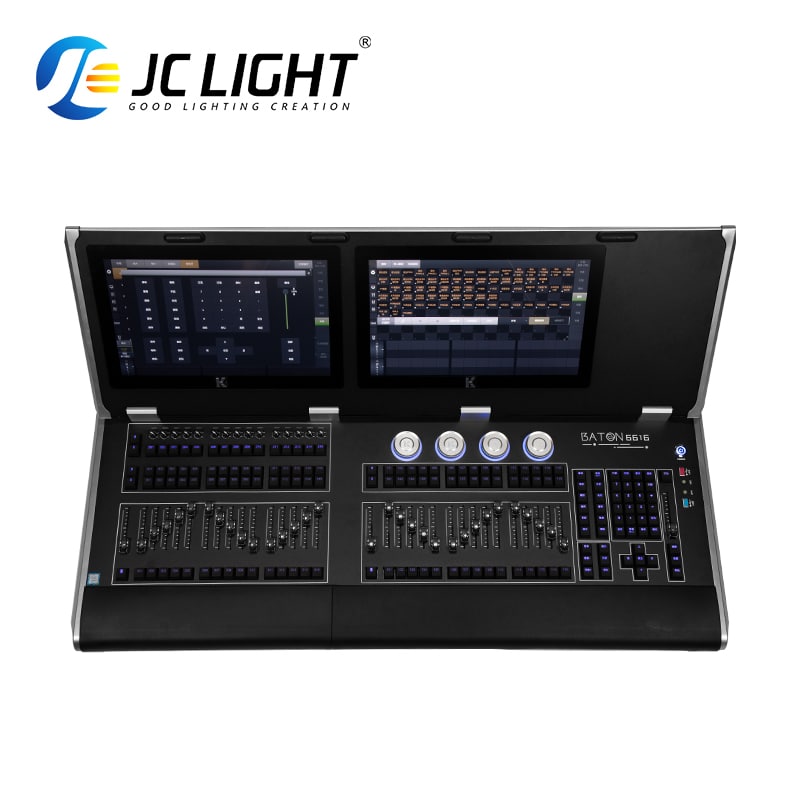

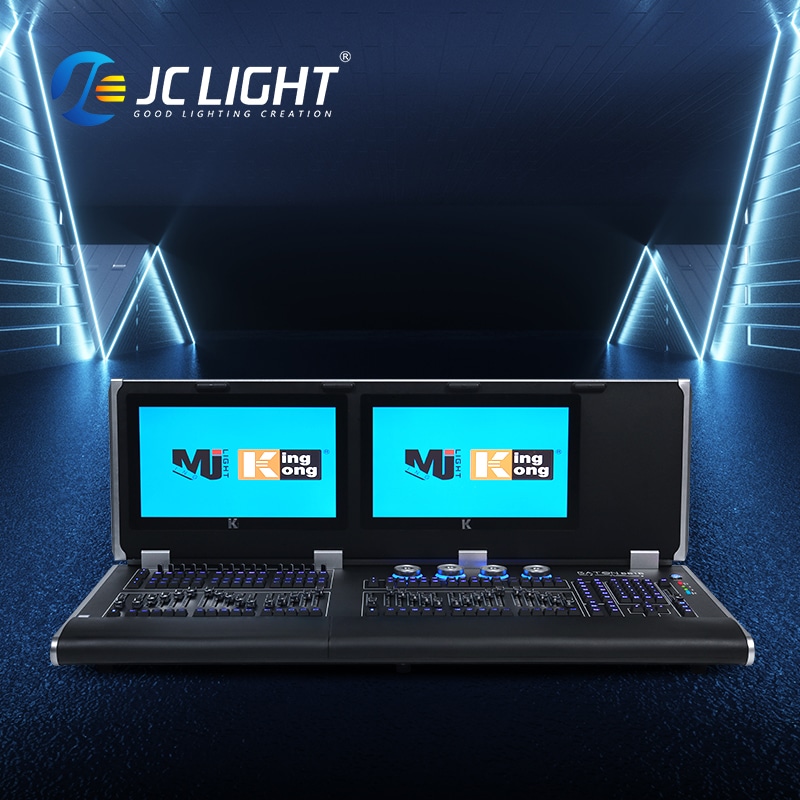

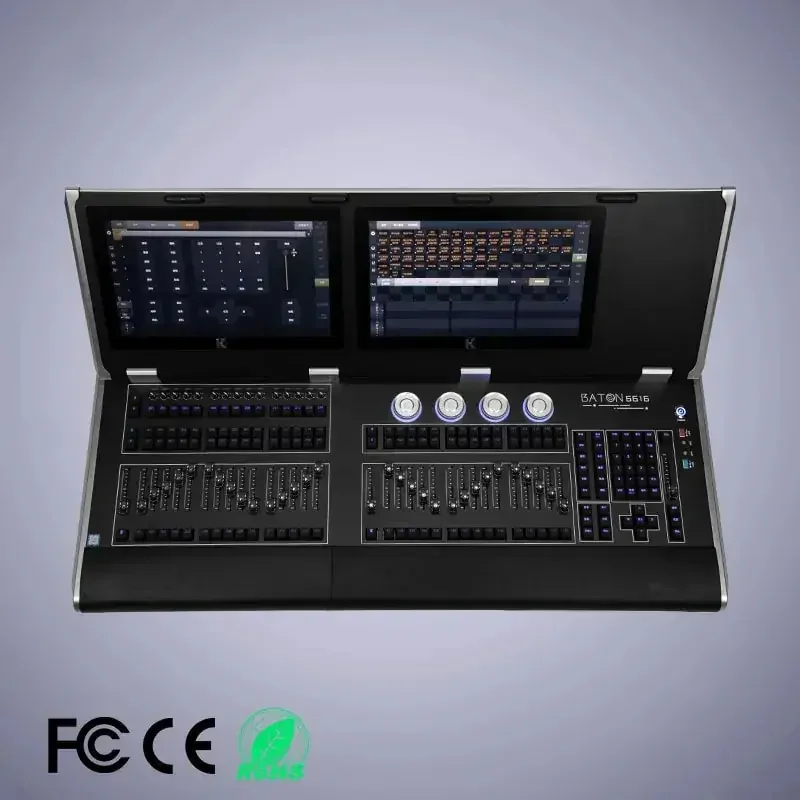

Dual 15.6-Inch BOE Capacitive Touch Screens

The L23 is equipped with two 15.6-inch BOE capacitive touch screens. According to the supplied specification, the screens provide higher sensitivity than traditional resistive screens and are designed for responsive console operation.

8192 DMX Channels with Network Expansion

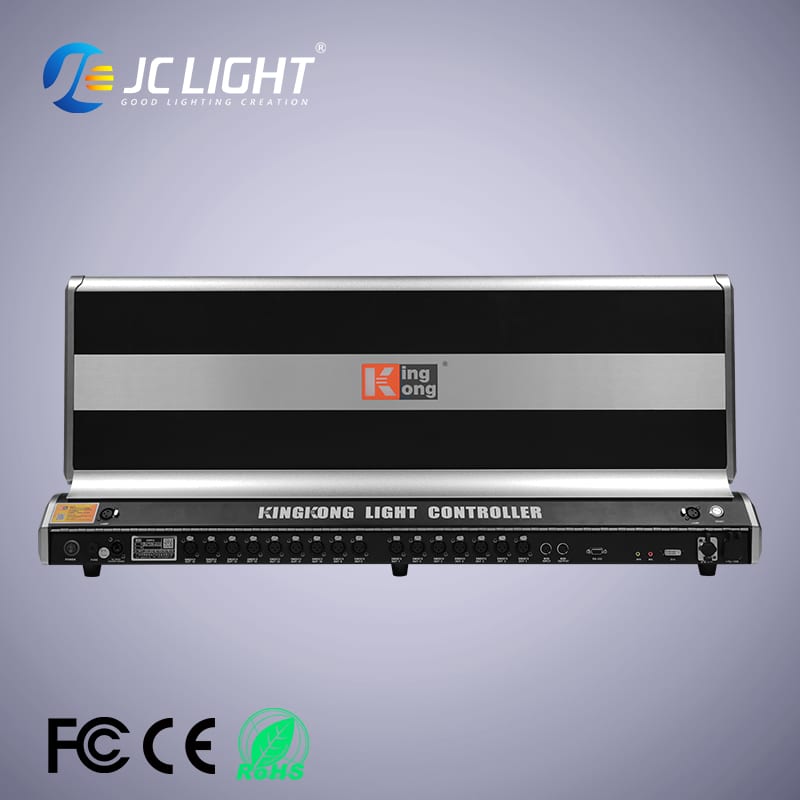

The console includes 16 physical DMX outputs and 8192 DMX512 channels. Through network expansion, the system can support up to 64 outputs and 32,768 channels for larger lighting systems.

Large Fixture and Programming Capacity

The L23 supports up to 6000 fixtures, 600 fixture groups, 1800 materials, 2700 scenes and 400 programs, providing extensive programming capacity for complex productions.

Advanced Scene Playback

Up to 65 scenes can run simultaneously, including 20 scenes in the scene window and 45 scenes through the faders. Multi-step scenes support unlimited steps according to the supplied specification.

Built-In Graphics and Curve Effects

The console includes 43 commonly used fixed graphics and 31 curve effects. Parameters can be modified, effects can be grouped, and up to 60 graphic effects can be loaded simultaneously for creative programming.

Fixture Library Management

The L23 uses an XML-format fixture library. Fixture libraries can be created directly on the console or prepared on a computer and copied into the console. Segment settings can also be added for faster fixture attribute selection.

Wired and Wireless ART-Net

The console supports both wired and wireless ART-Net functions, enabling network-based lighting control, simulation programming and remote operation from a mobile phone or iPad.

Real-Time Backup and Data Protection

Two consoles can be connected for control and real-time backup. Performance files can also be backed up to external drives, while automatic timed saving and console password protection help protect programming data.

Built-In UPS Power Protection

The built-in UPS uninterruptible power supply helps the console continue operating during sudden power interruptions and supports more reliable live event operation.

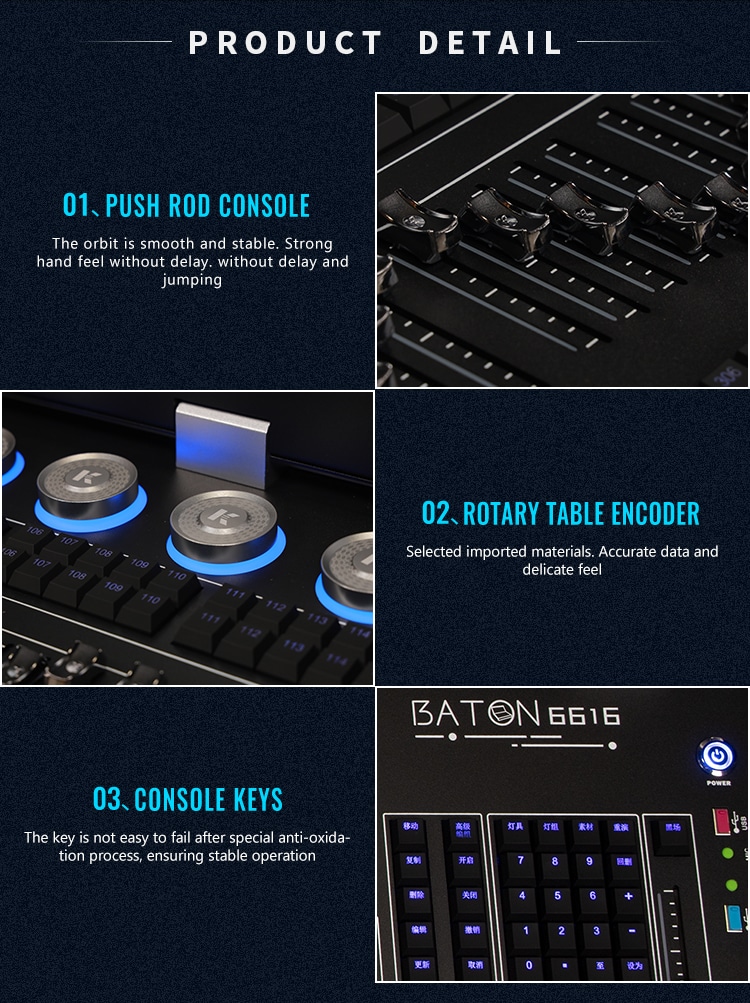

Professional Control Hardware

The supplied specification includes imported-material faders, Japanese rotary encoders and German-material buttons. The fader colors can also be customized to assist performance-page identification.

Application Scenarios

• Large concert productions
• Theaters
• Music festivals
• Live events
• TV and performance productions
• Nightclubs
• Event production companies
• Professional lighting rental companies
• Large stage lighting systems

Why Choose JC LIGHT

• Professional stage lighting control solutions
• High-capacity DMX and ART-Net control system
• Large fixture, scene and programming storage capacity
• Dual capacitive touch screen operation
• Built-in UPS and real-time backup functions
• Flexible fixture library and project file management
• Suitable for large rental and production projects
• OEM and ODM lighting control solutions available
