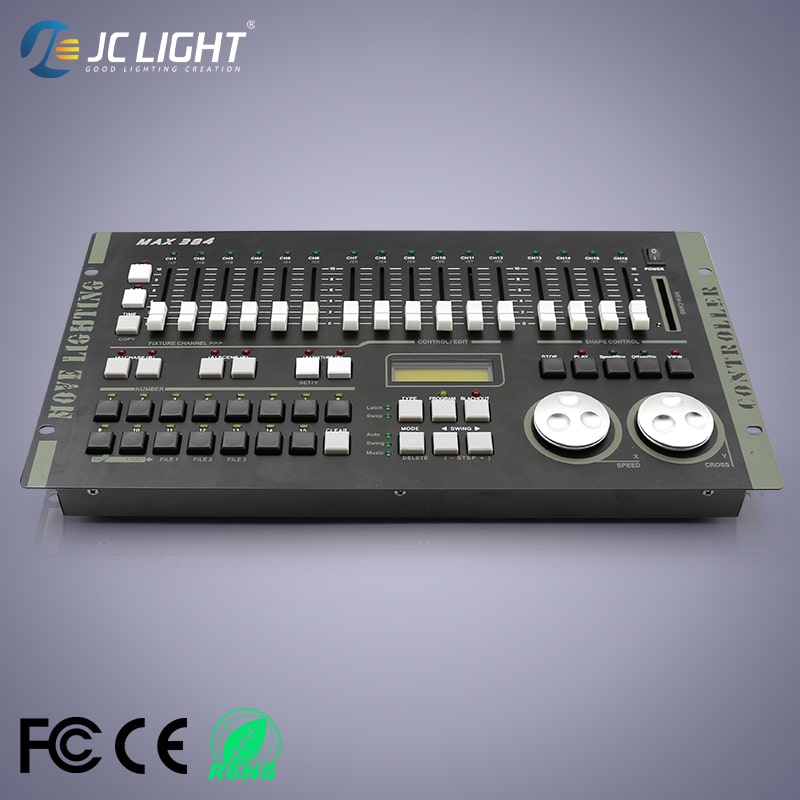

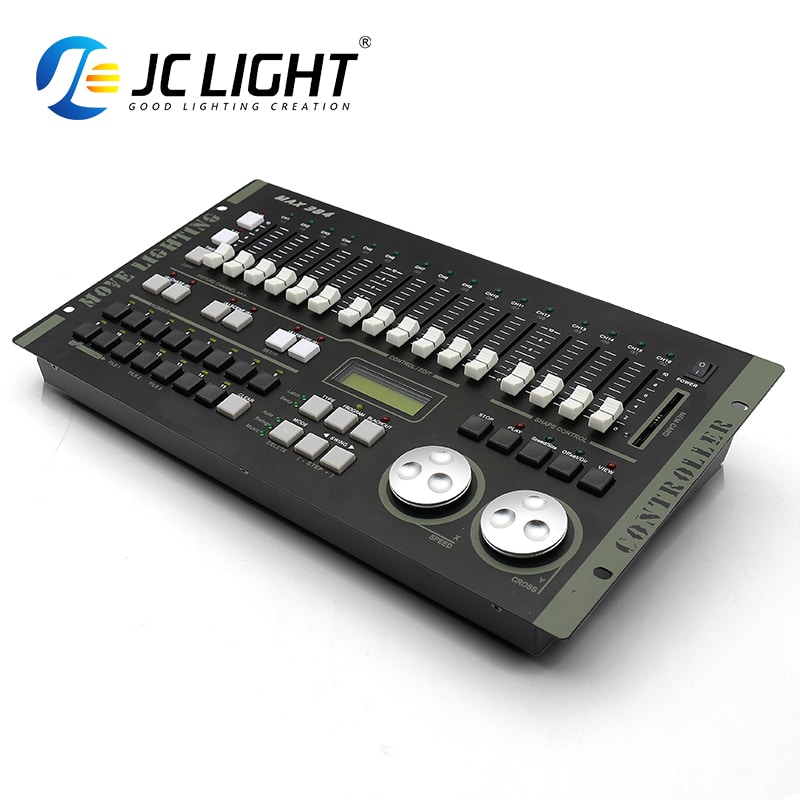

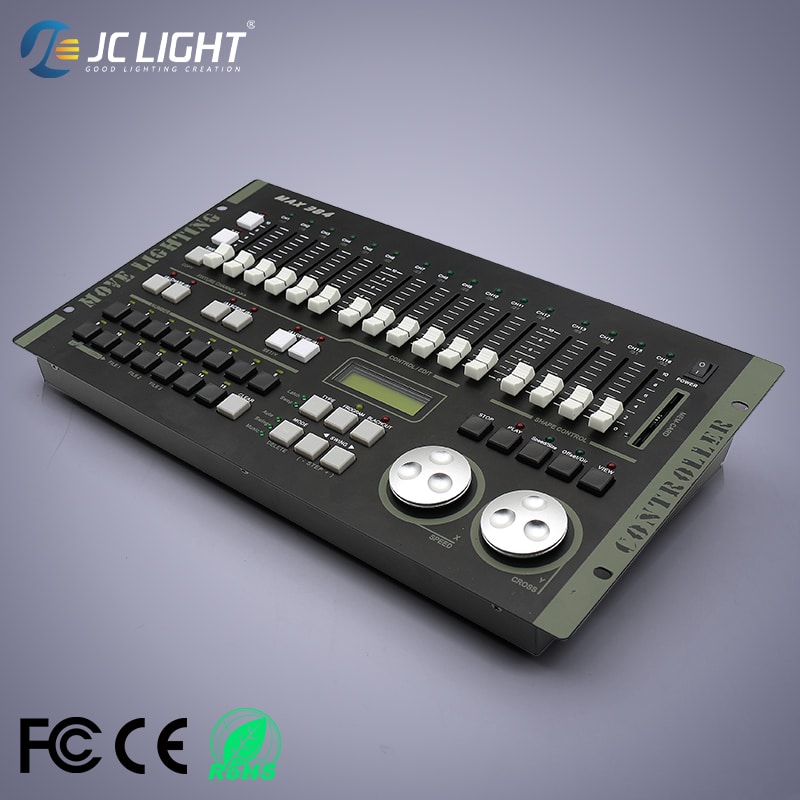

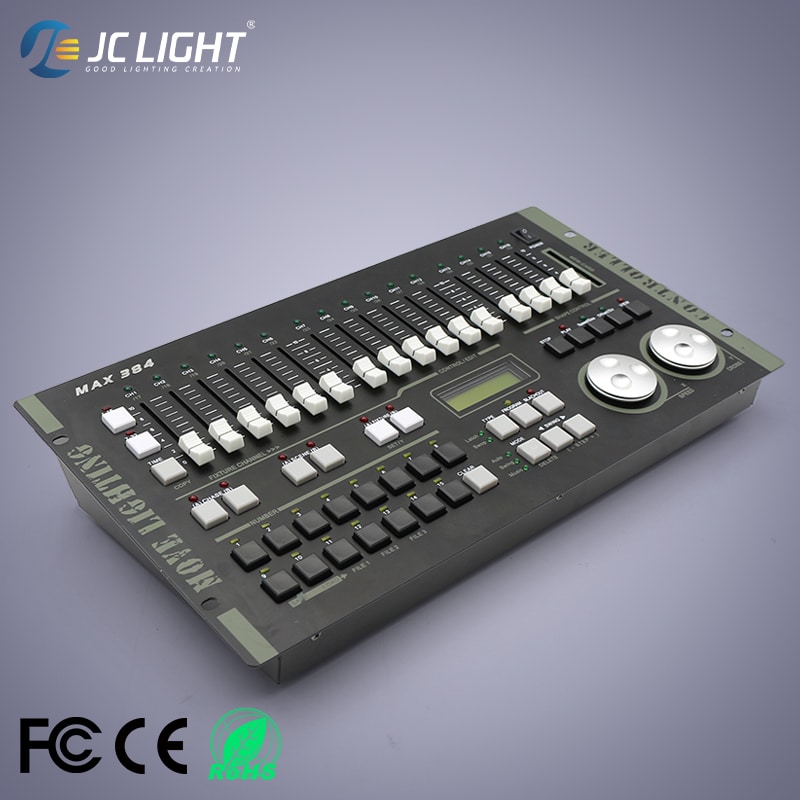

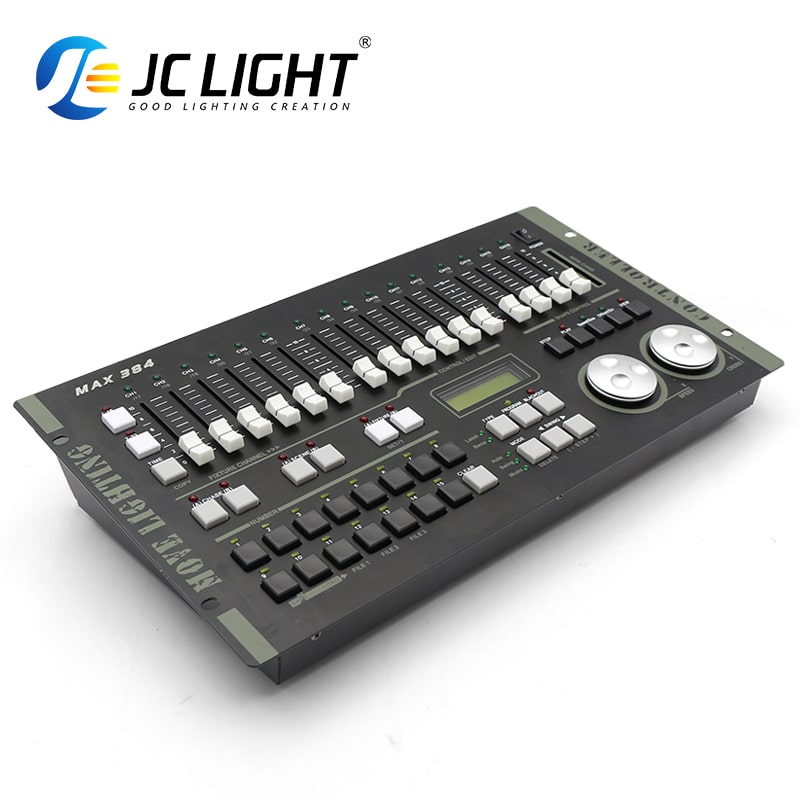

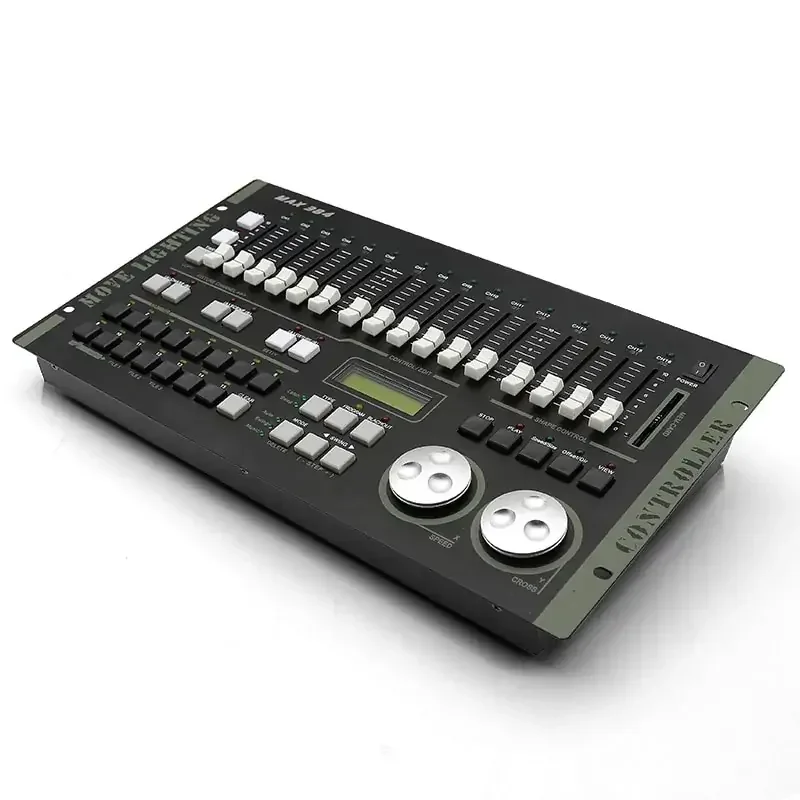

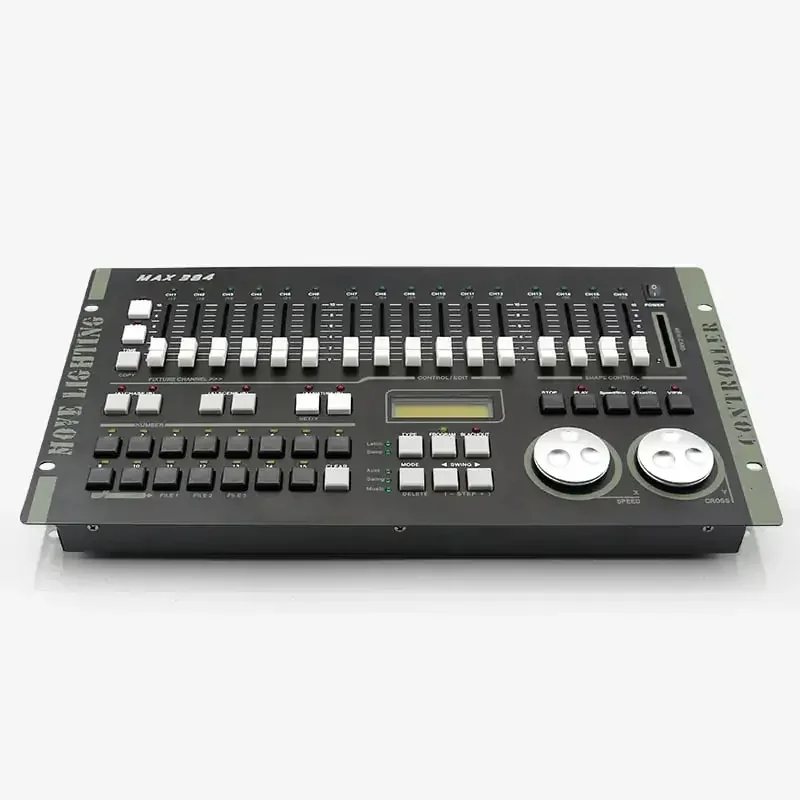

L26 384-Channel DMX512 Lighting Controller with Shape Generator and 30 Chases
The JC LIGHT L26 DMX512 Lighting Controller is a professional stage lighting console designed for weddings, bars, live stages and entertainment venues. Based on the DMX512/1990 standard, it provides 384 DMX channels with optically isolated output for reliable lighting control.
The controller can manage up to 30 intelligent fixtures, with a maximum of 32 channels per fixture. It also includes 50 built-in shape track generators, 30 chases, scene control and Flash memory card storage, making it suitable for programming moving lights and automated stage lighting effects.
Key Features
- DMX512/1990 standard lighting controller
- 384 DMX channels
- Optically isolated DMX output
- Supports up to 30 intelligent fixtures
- Maximum 32 channels per intelligent fixture
- 50 built-in shape track generators
- Built-in circle, line, wave and other shape effects
- Independent shape parameter adjustment
- 30 chases with up to 100 steps each
- Music synchronous, auto and manual speed trigger modes
- 2 chases and 30 scenes can operate simultaneously
- Up to 30 intelligent fixtures can be selected simultaneously
- Flash memory card slot for controller data storage
- Backlit LCD display
- Wide AC90-250V power input
Technical Specifications
| Short Model Number | L26 |
| Product Type | DMX512 Lighting Controller |
| DMX Standard | DMX512/1990 |
| DMX Channels | 384 Channels |
| Output | Optically Isolated |
| Intelligent Fixture Capacity | Up to 30 Fixtures |
| Maximum Channels per Fixture | 32 Channels |
| Shape Track Generator | 50 Built-In Shape Track Generators |
| Shape Effects | Circle / Lines / Wave / Other Effects |
| Shape Parameters | Independently Adjustable |
| Chases | 30 Chases |
| Maximum Steps per Chase | 100 Steps |
| Chase Trigger Modes | Music Synchronously / Auto / Manual Speed |
| Simultaneous Chase Operation | 2 Chases |
| Simultaneous Scene Operation | 30 Scenes |
| Simultaneous Fixture Selection | Up to 30 Intelligent Fixtures |
| Memory | Flash Memory Card Slot |
| Display | Backlit LCD Display |
| Channel | 32CH |
| Power Supply | AC90-250V, 50/60Hz |
| Product Size | 485 × 267 × 85 mm |
| Package Size | 59 × 36 × 19.5 cm (Flight Case) |
| Net Weight | 5.1 kg |
| Gross Weight with Carton | 6.0 kg |
| Gross Weight with Flight Case | 12.0 kg |
| Applications | Stage / Wedding / Bar |

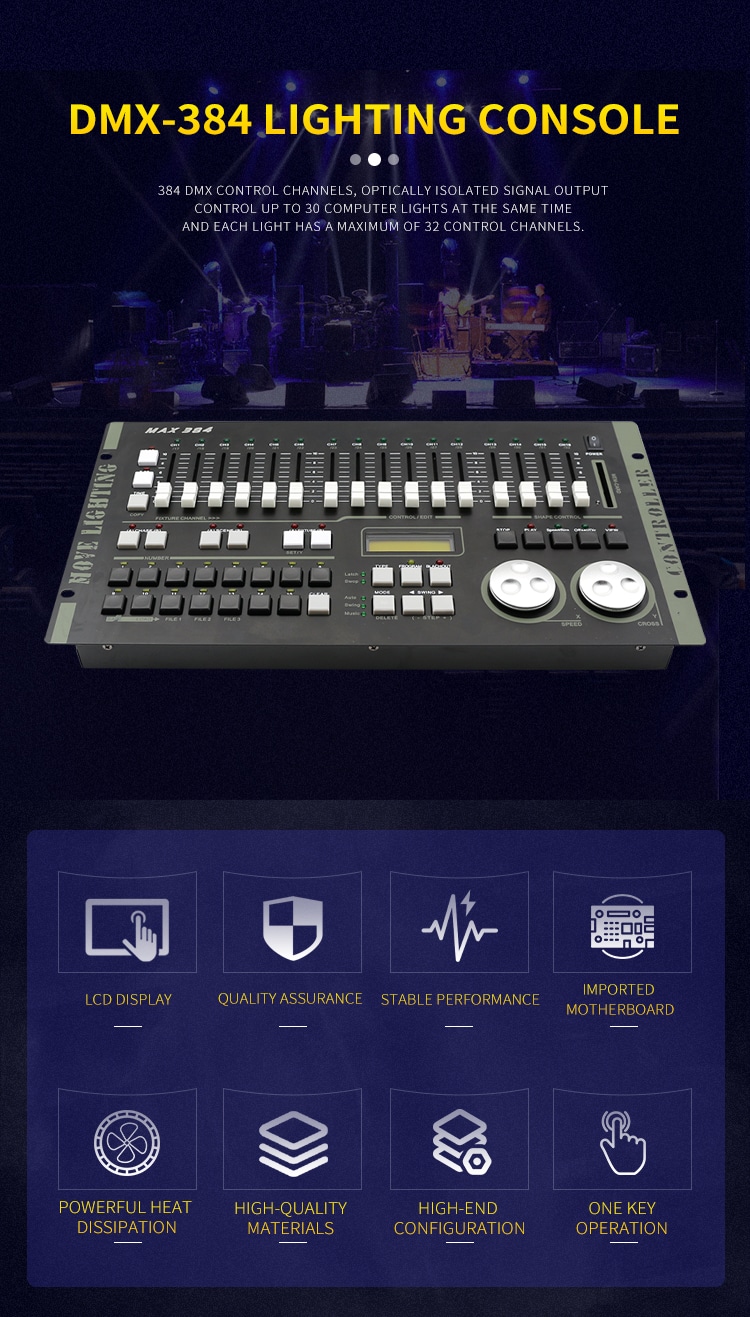

384-Channel DMX512 Control
The L26 follows the DMX512/1990 standard and provides 384 DMX channels. Its optically isolated output improves signal separation for professional lighting control systems.
Control Up to 30 Intelligent Fixtures
The controller can connect up to 30 intelligent fixtures, with each fixture supporting a maximum of 32 channels. Up to 30 intelligent fixtures can also be selected simultaneously.

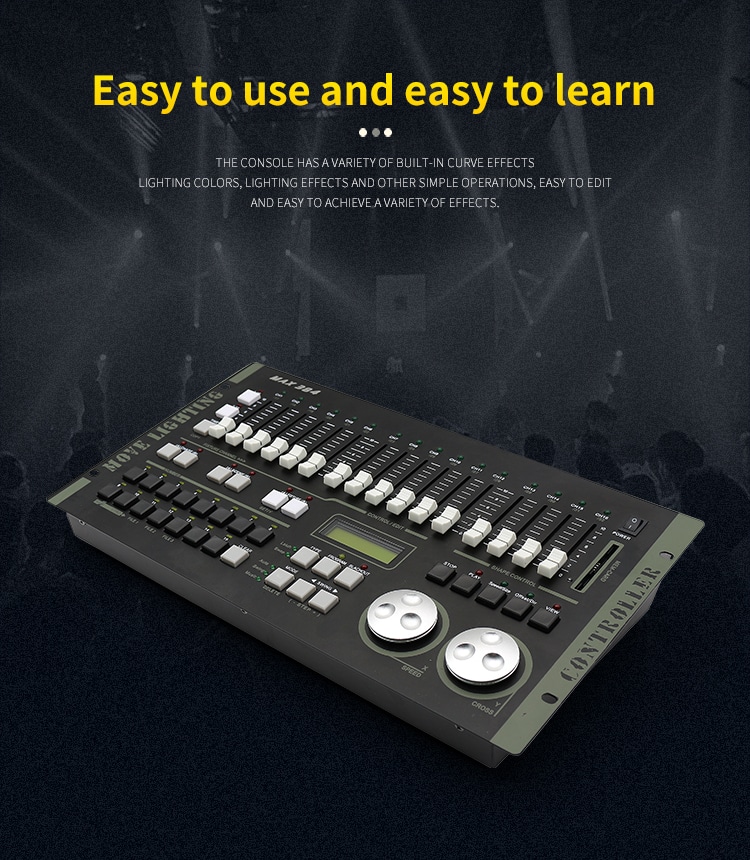

50 Built-In Shape Track Generators
The L26 includes 50 built-in shape track generators for programming moving light effects such as circles, lines and waves. Shape parameters can be adjusted independently to create different movement patterns.
30 Chases with Up to 100 Steps
The controller provides 30 chases, with up to 100 steps per chase. Trigger modes include music synchronization, automatic operation and manual speed control.
Simultaneous Chase and Scene Playback
The L26 supports simultaneous operation of 2 chases and 30 scenes, providing flexible playback options for stage performances and programmed lighting sequences.
Flash Memory Card Data Storage
A built-in Flash memory card slot allows the controller data to be recorded and stored on a memory card, making backup and data transfer more convenient.
Backlit LCD Display
The controller features a backlit LCD display for viewing settings and programming information during stage operation.

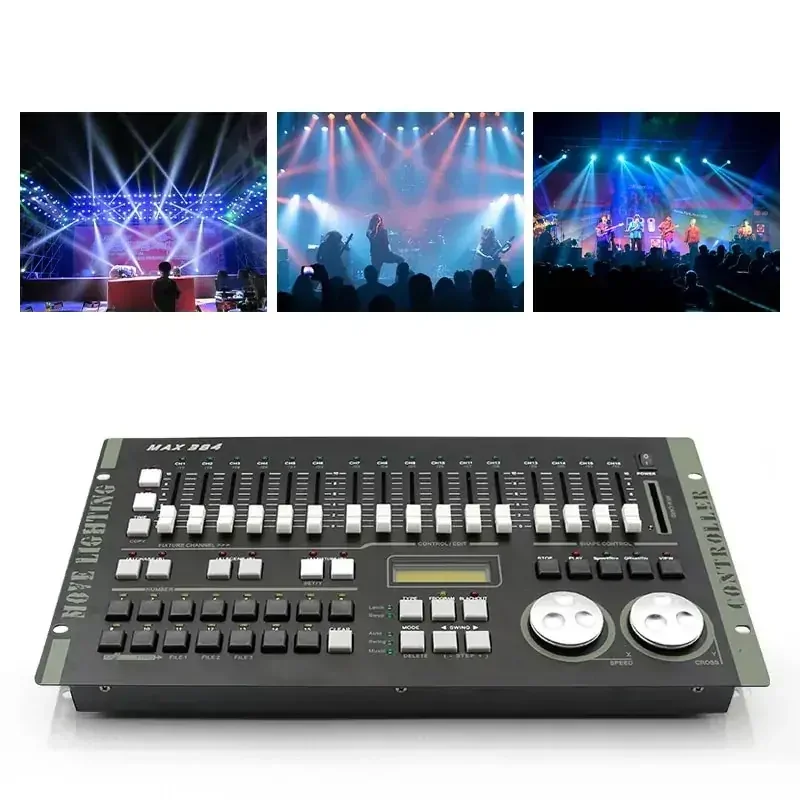

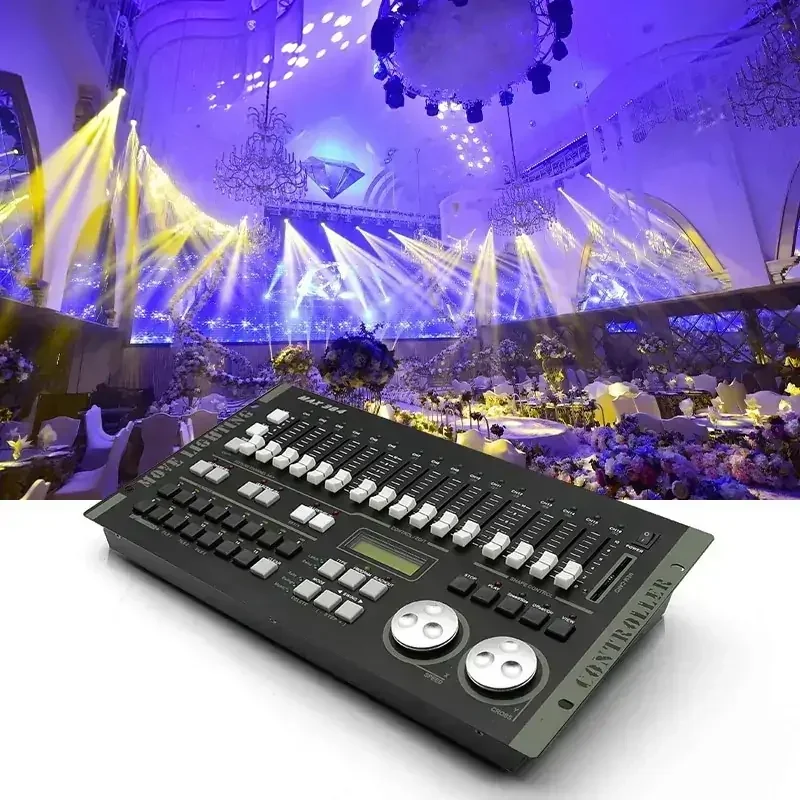

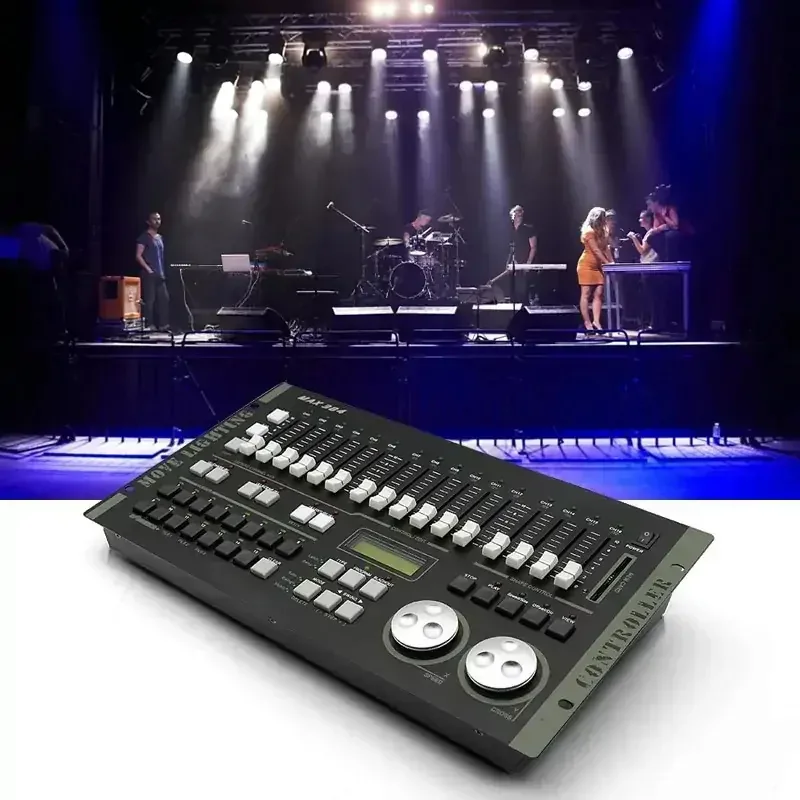

Application Scenarios
- Stage performances
- Wedding events
- Bars
- Nightclubs
- DJ shows
- Live events
- Entertainment venues
- Professional rental lighting systems
Why Choose JC LIGHT
- Professional stage lighting control solutions
- DMX512/1990 compatible controller
- 384-channel lighting control capacity
- Built-in shape and chase programming functions
- Flash memory card data storage support
- Suitable for stage, wedding and entertainment projects
- OEM and ODM lighting control solutions available
L26 384-Channel DMX512 Lighting Controller FAQ
How many DMX channels does the L26 support?
The L26 provides 384 DMX channels.
How many intelligent fixtures can the L26 control?
It can control up to 30 intelligent fixtures, with a maximum of 32 channels per fixture.
Does the L26 have built-in movement effects?
Yes. It includes 50 built-in shape track generators, including circle, line and wave effects.
How many chases can be programmed?
The L26 provides 30 chases, with up to 100 steps per chase.
What chase trigger modes are available?
Available modes include music synchronization, auto and manual speed control.
Can chases and scenes run at the same time?
Yes. The controller can operate 2 chases and 30 scenes simultaneously.
Does the L26 support external data storage?
Yes. It includes a Flash memory card slot for storing the controller’s data.
Where can the L26 DMX controller be used?
It is suitable for stages, weddings, bars, clubs, DJ shows and professional lighting rental applications.
