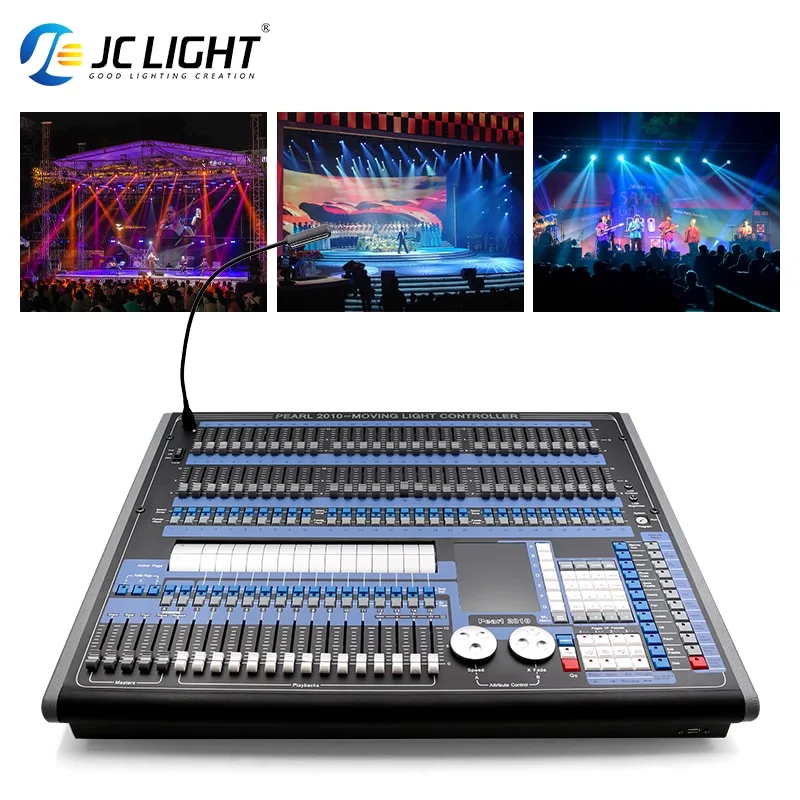

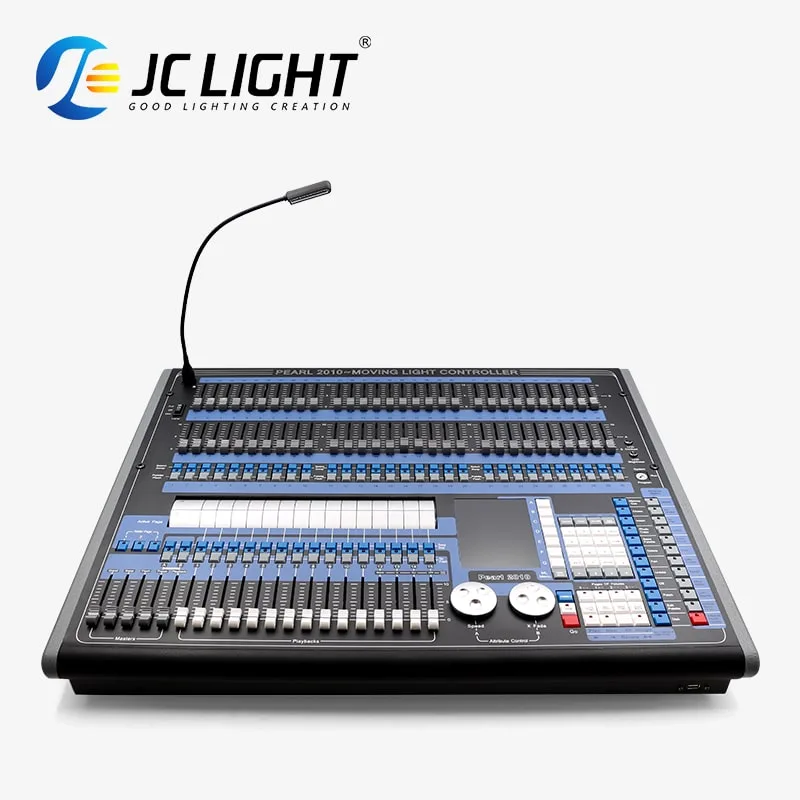

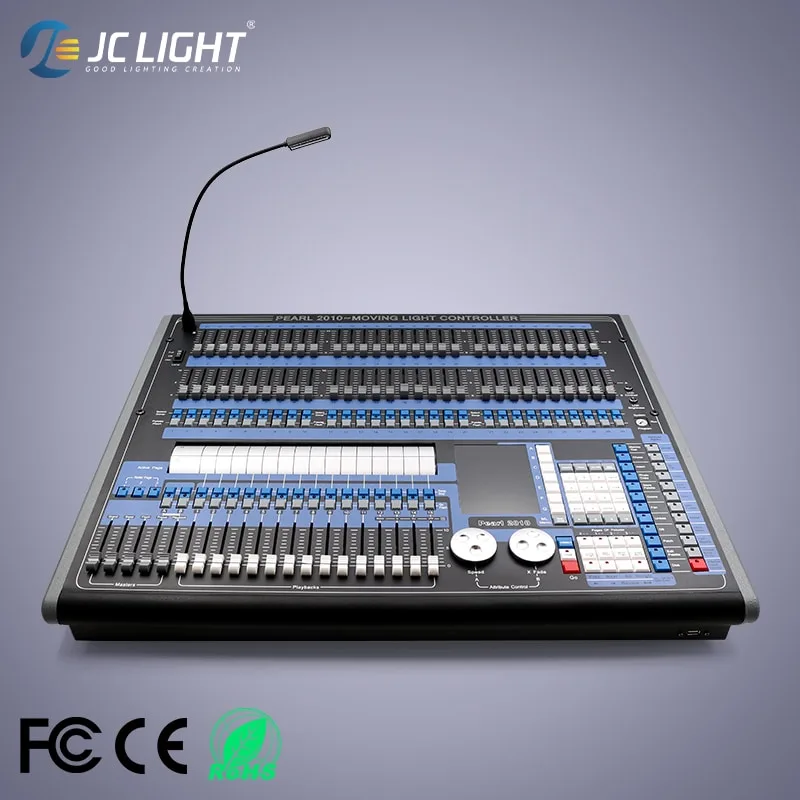

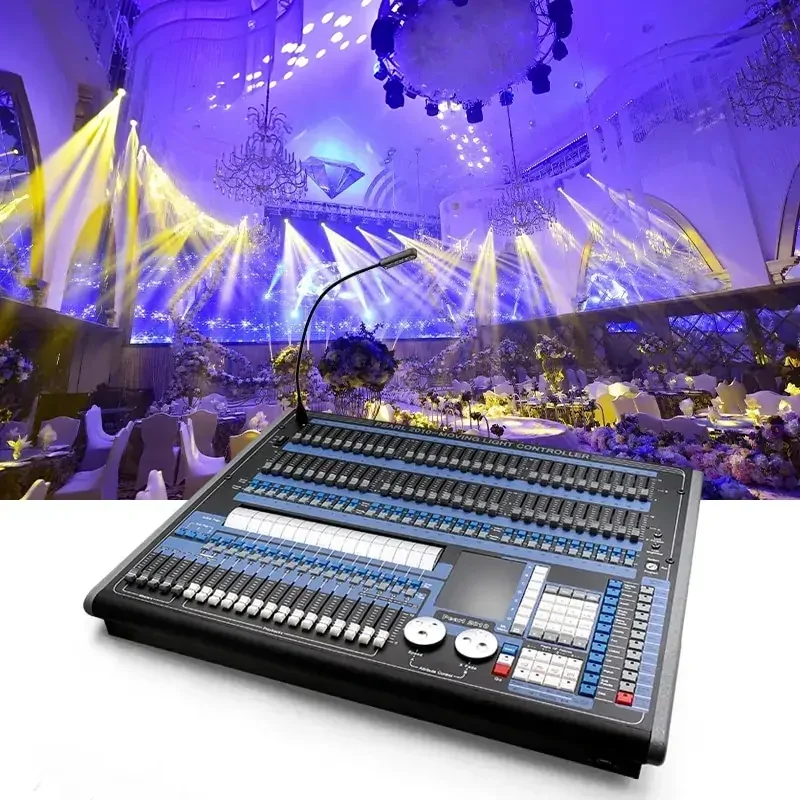

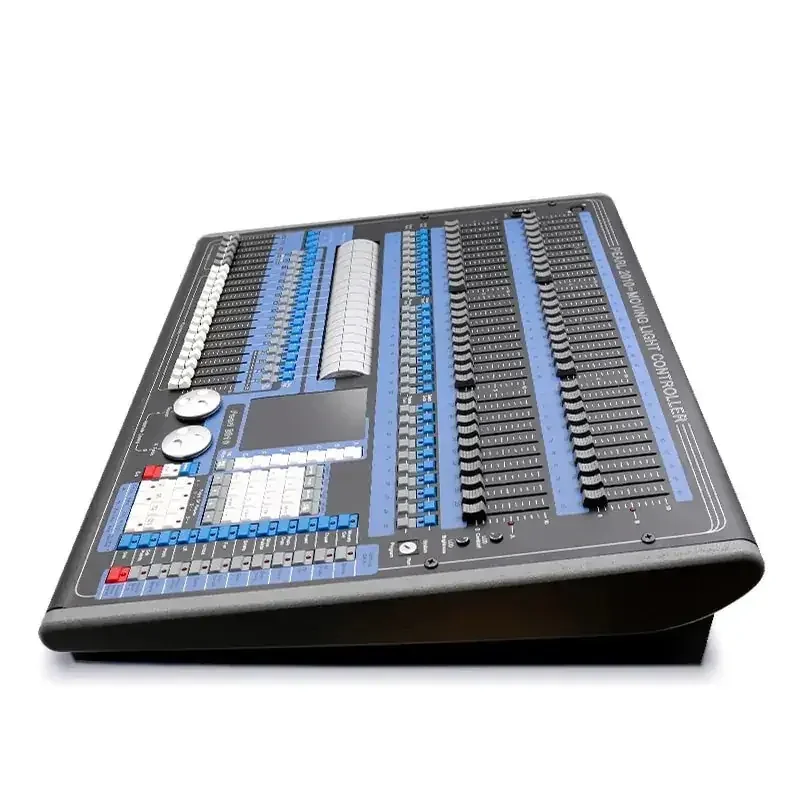

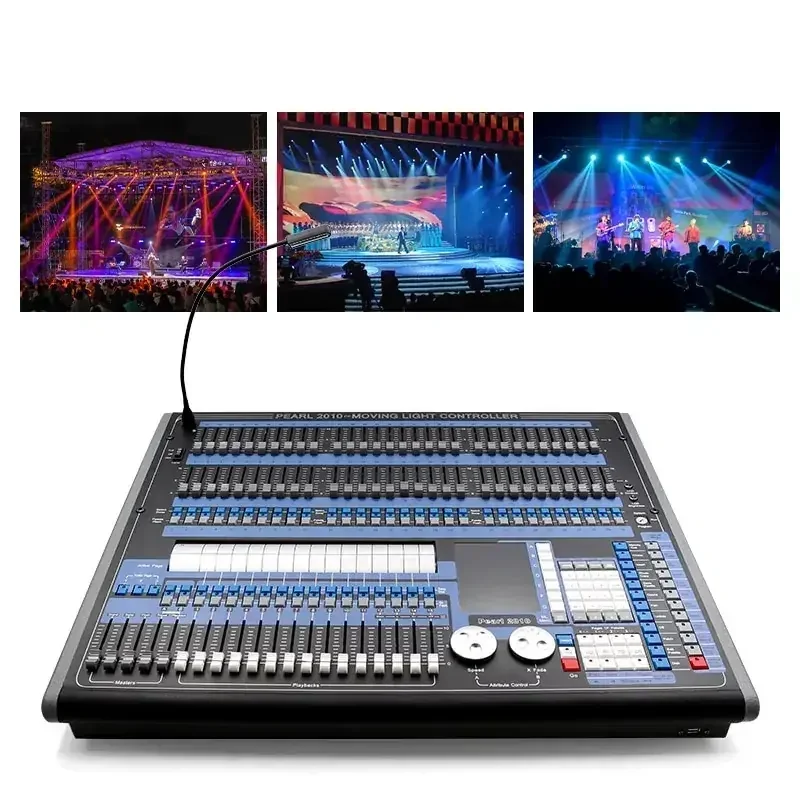

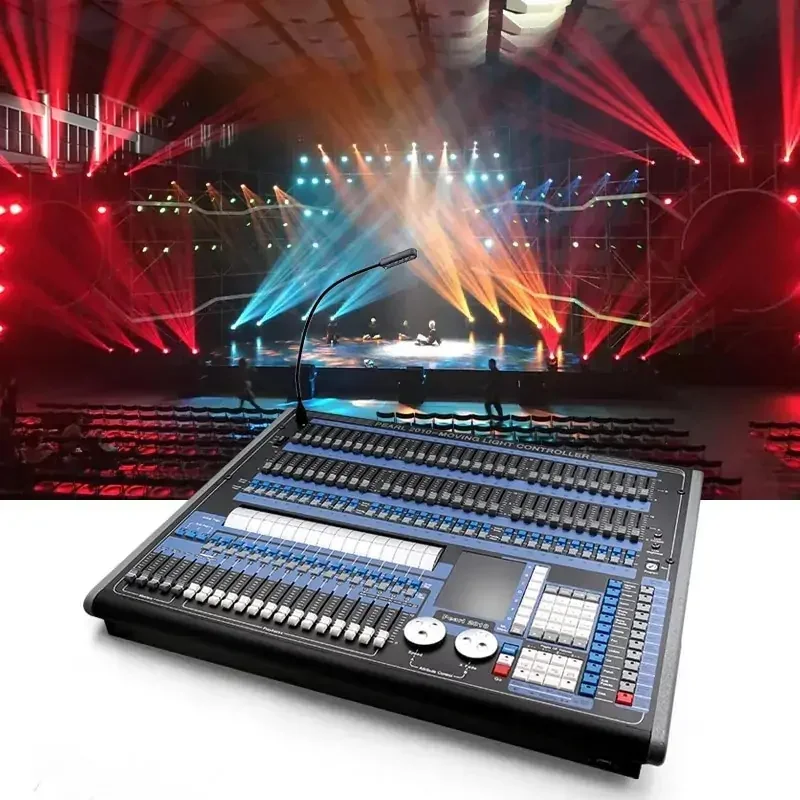

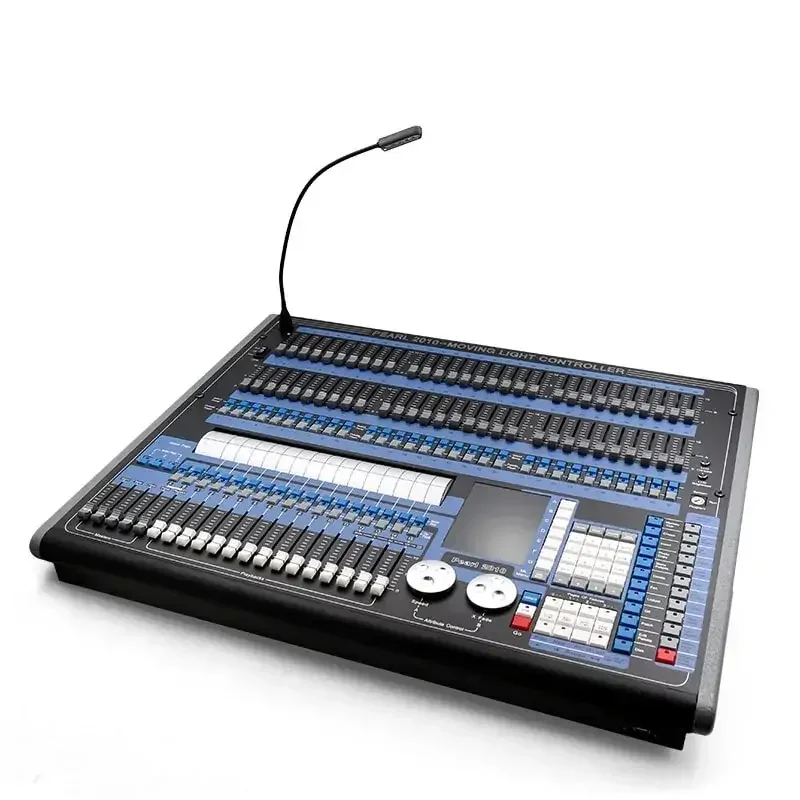

JC LIGHT Pearl 2010 Console OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT Pearl 2010 Console OEM
Get factory pricing, OEM support and delivery information for this product.
- Description
- Details
Description

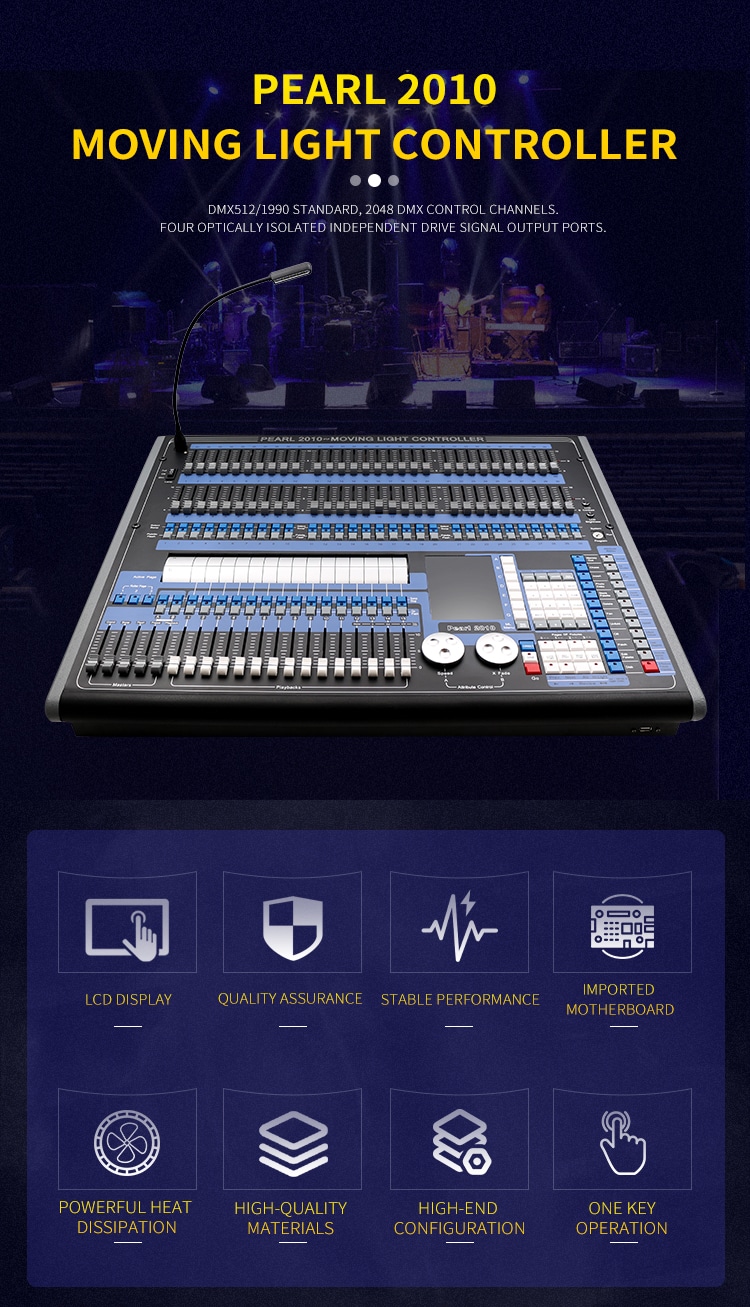

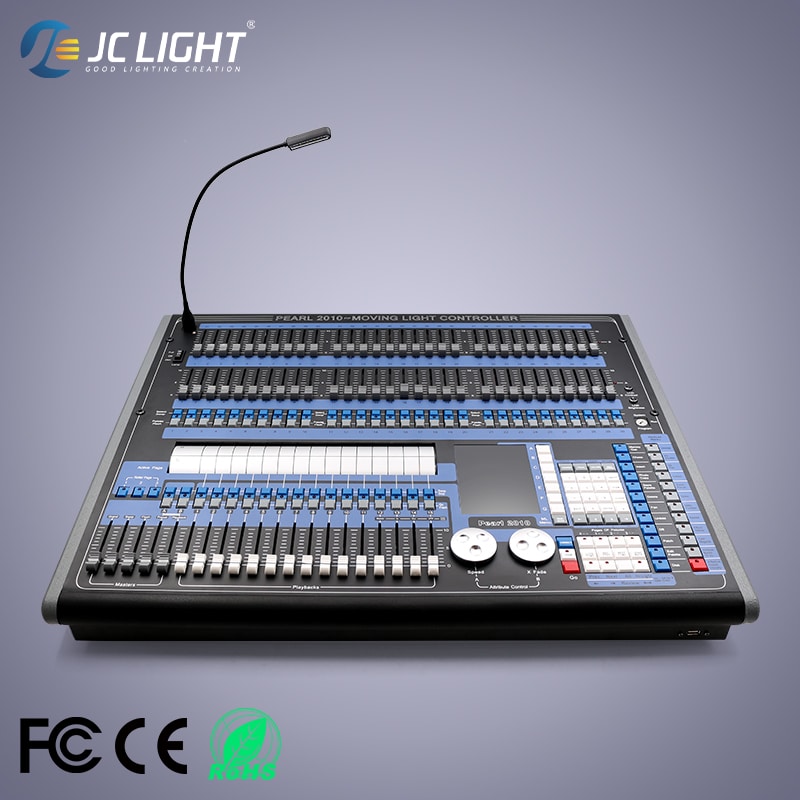

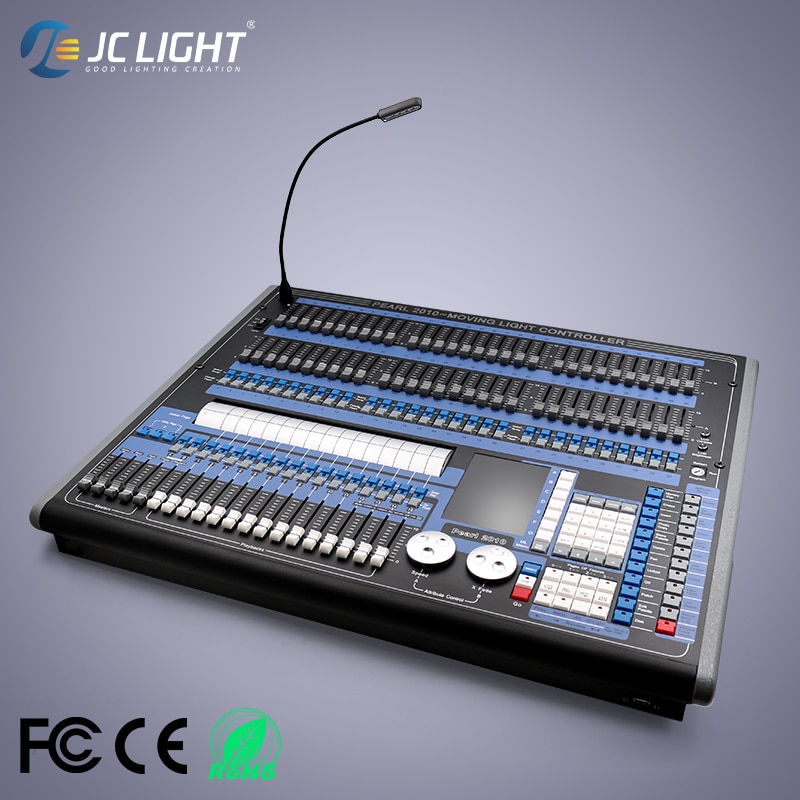

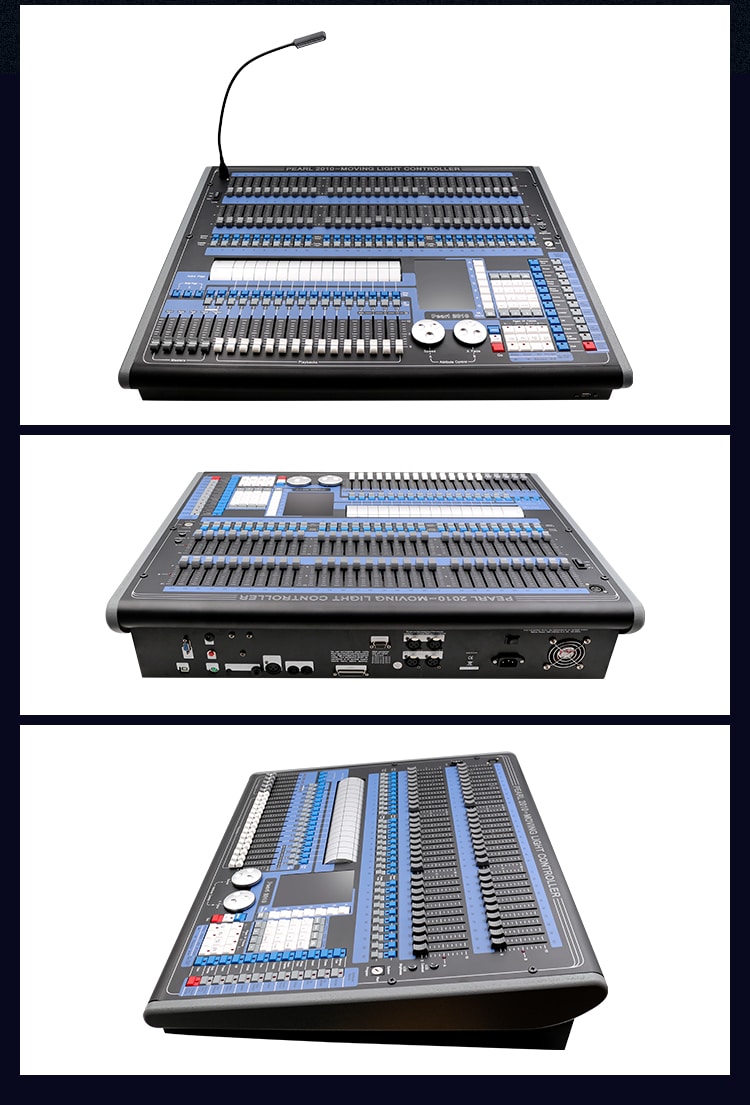

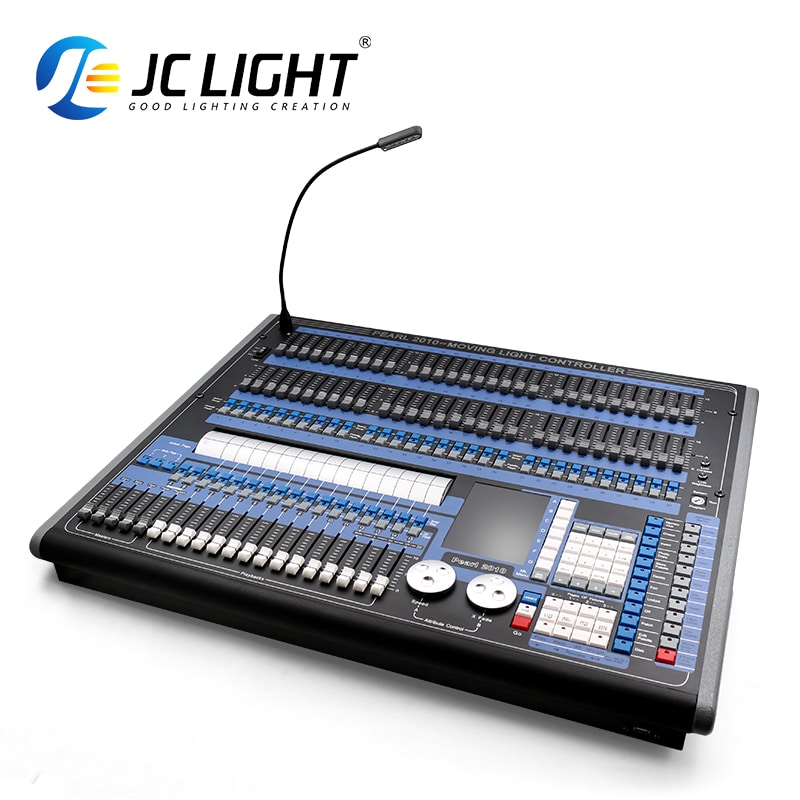

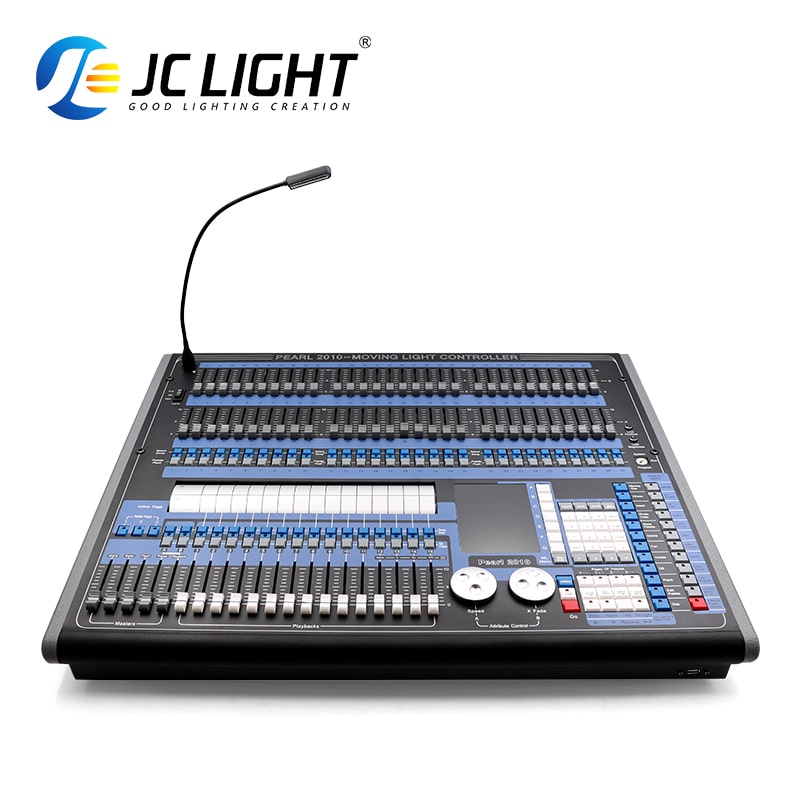

L16 2048-Channel DMX512 Lighting Console with 4 Isolated Outputs and Built-In Effects
The JC LIGHT L16 DMX512 Lighting Console is a professional lighting controller designed for stage performances, theaters, concerts, rental companies and large-scale entertainment projects. Based on the DMX512/1990 standard, it provides 2048 DMX control channels with four independent photoelectric isolation signal output ports for stable and reliable lighting transmission.
Supporting control of up to 240 moving lights and 240 dimmers, the L16 features a large 320×240 display, built-in fixture library, 450 programmable knobs, XY smooth control and multiple built-in special effect programs for professional lighting programming.
Key Features
- DMX512/1990 standard lighting console
- 2048 DMX control channels
- Four independent photoelectric isolation output ports
- Up to 2000VRMS electrical shock resistance
- Independent power supply and signal system
- Supports up to 240 intelligent fixtures
- Supports up to 240 dimmers
- 40-channel fixture control capability
- 320×240 large display screen
- 450 programmable program knobs
- Adjustable timing parameters
- Smooth XY movement control
- Channel item list copy function
- Independent system lock function
- Built-in fixture library with more than 200 fixtures
- Built-in special effect programs
- USB memory support for saving stage data
- Audio input interface
Technical Specifications
| Short Model Number | L16 |
| Product Type | Professional DMX512 Lighting Console |
| DMX Standard | DMX512/1990 |
| DMX Channels | 2048 Channels |
| Signal Output | 4 Independent Photoelectric Isolation Output Ports |
| Isolation Protection | Up to 2000VRMS Electrical Shock Resistance |
| Fixture Control | Up to 240 Intelligent Fixtures and 240 Dimmers |
| Maximum Control Channels | 40 Channels per Fixture |
| Display | 320×240 Large Screen Display |
| Program Storage | 450 Program Knobs |
| XY Control | Natural Smooth Movement Control |
| Fixture Library | Built-In More Than 200 Fixtures |
| Special Effects | Built-In Multiple Curing Special Effects Programs |
| Data Storage | USB Memory Support |
| Audio Input | XLR-D3FX2 |

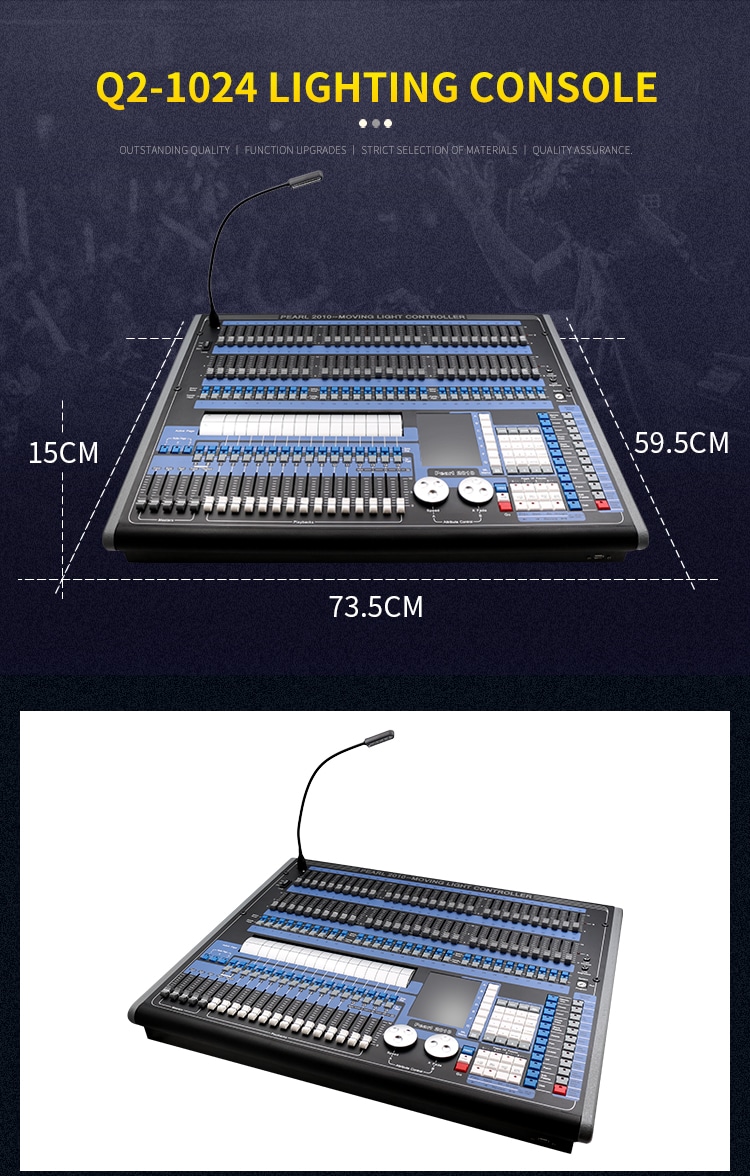

| Product Size | 735 × 595 × 150 mm |
| Package Size | 76 × 68 × 26 cm |
| Net Weight | 21.3 kg |
| Gross Weight | 31.0 kg |
2048 DMX Channel Professional Control
The L16 provides 2048 DMX control channels based on the DMX512/1990 standard, allowing professional operators to manage complex lighting systems with multiple fixtures.
Four Independent Isolated DMX Outputs
Equipped with four independent photoelectric isolation signal output ports, the L16 improves signal stability and provides protection against electrical interference. Each output can resist up to 2000VRMS electrical shock.
Control Up to 240 Moving Lights and Dimmers
The console supports up to 240 intelligent fixtures and 240 dimmers, with up to 40 channels per fixture, making it suitable for professional stage lighting systems.

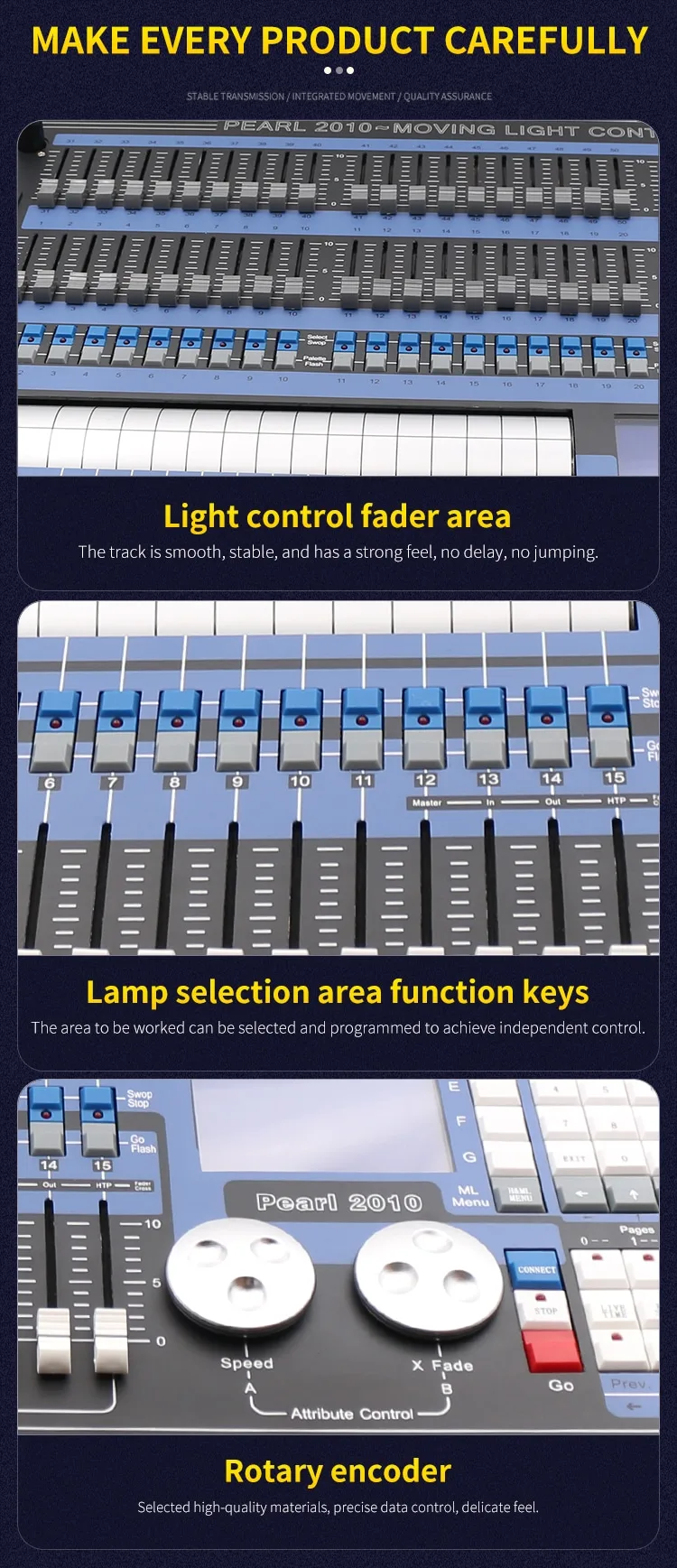

450 Programmable Program Knobs
The L16 supports storage of up to 450 program knobs. Time parameters can be adjusted independently, allowing flexible programming for different performance requirements.
Smooth XY Movement Control
The integrated XY control system provides natural and smooth movement adjustment for moving head fixtures and automated lighting equipment.
Large 320×240 Display Screen
The large display screen shows operation information, parameter changes and output status, improving programming efficiency during live events.

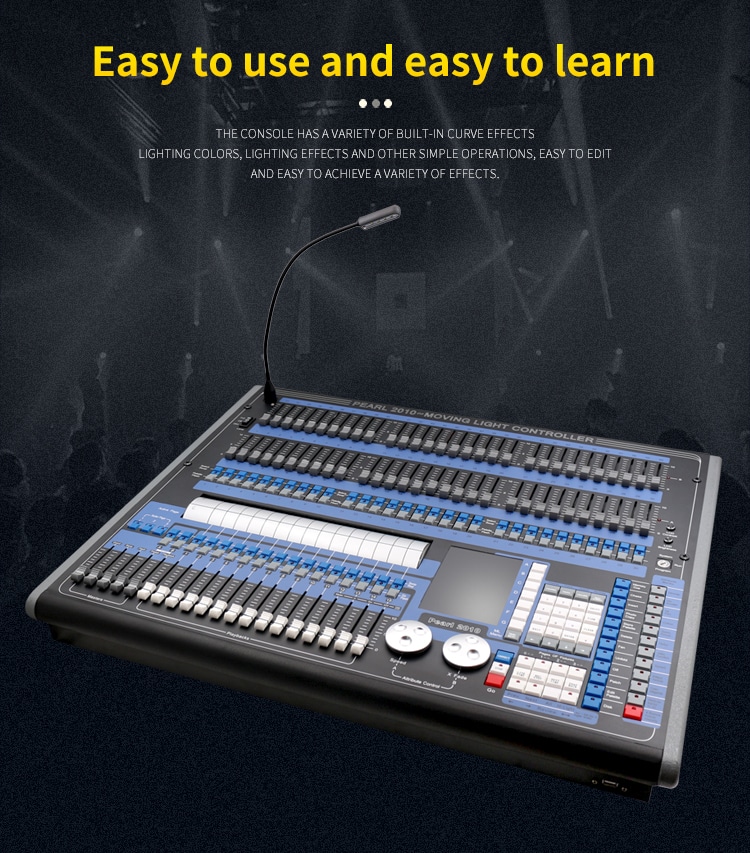

Built-In Fixture Library and Effects
The L16 includes a built-in fixture library with more than 200 lighting fixtures and multiple built-in special effect programs to simplify stage programming.
USB Data Storage and System Protection
The console supports USB memory storage for saving on-site data. An independent system lock function helps prevent accidental operation during performances.

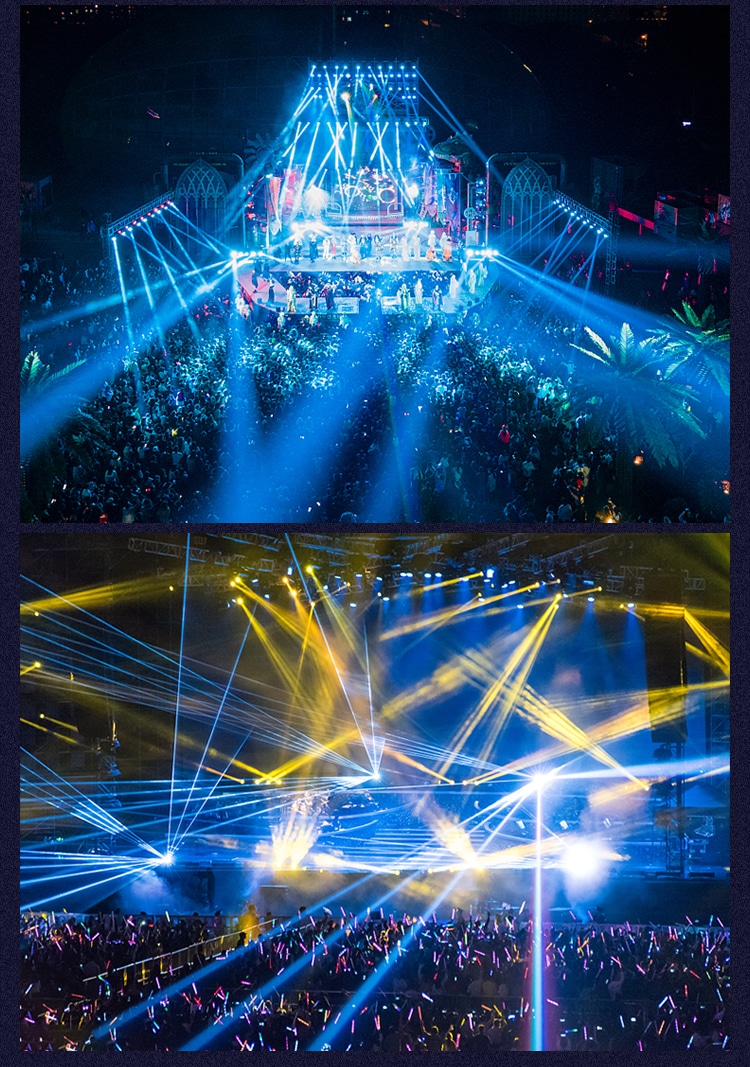

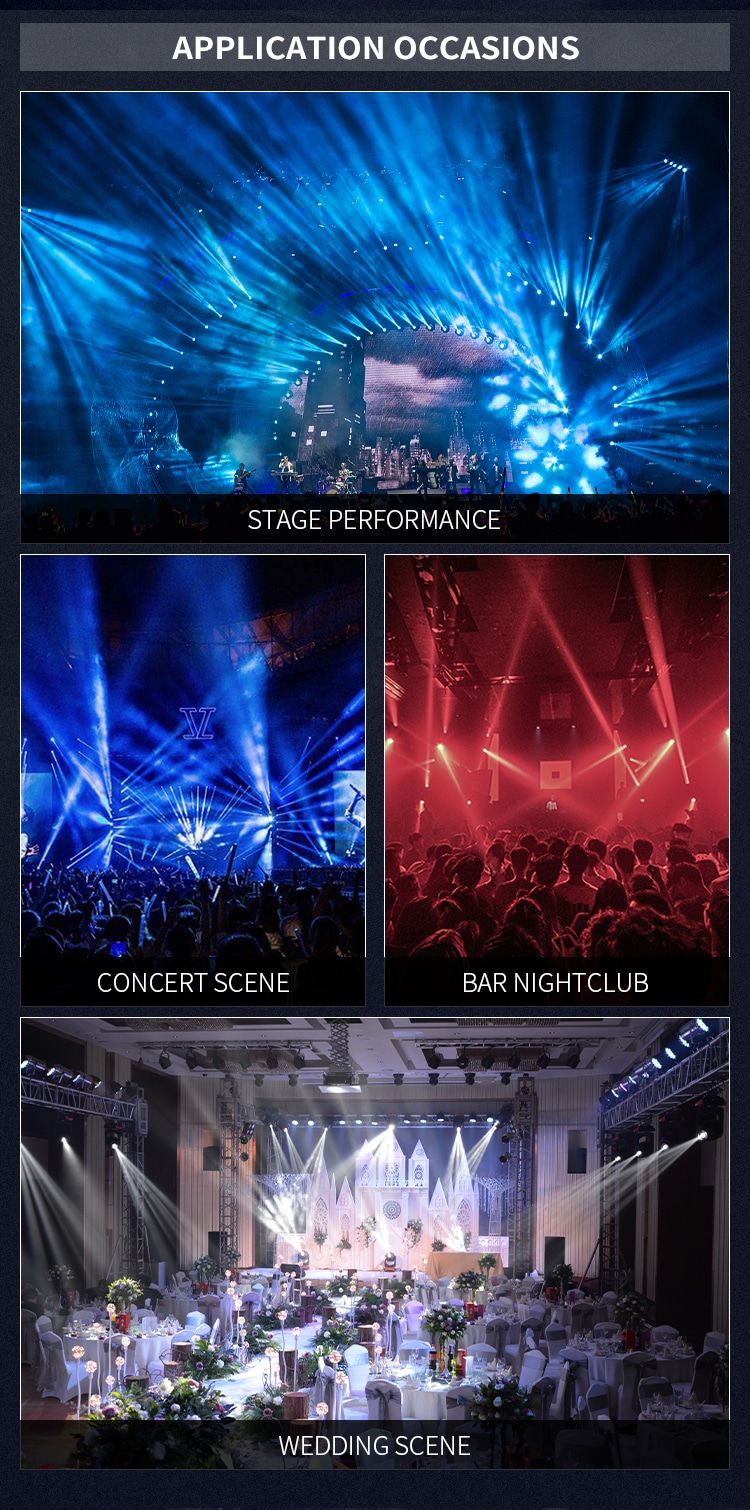

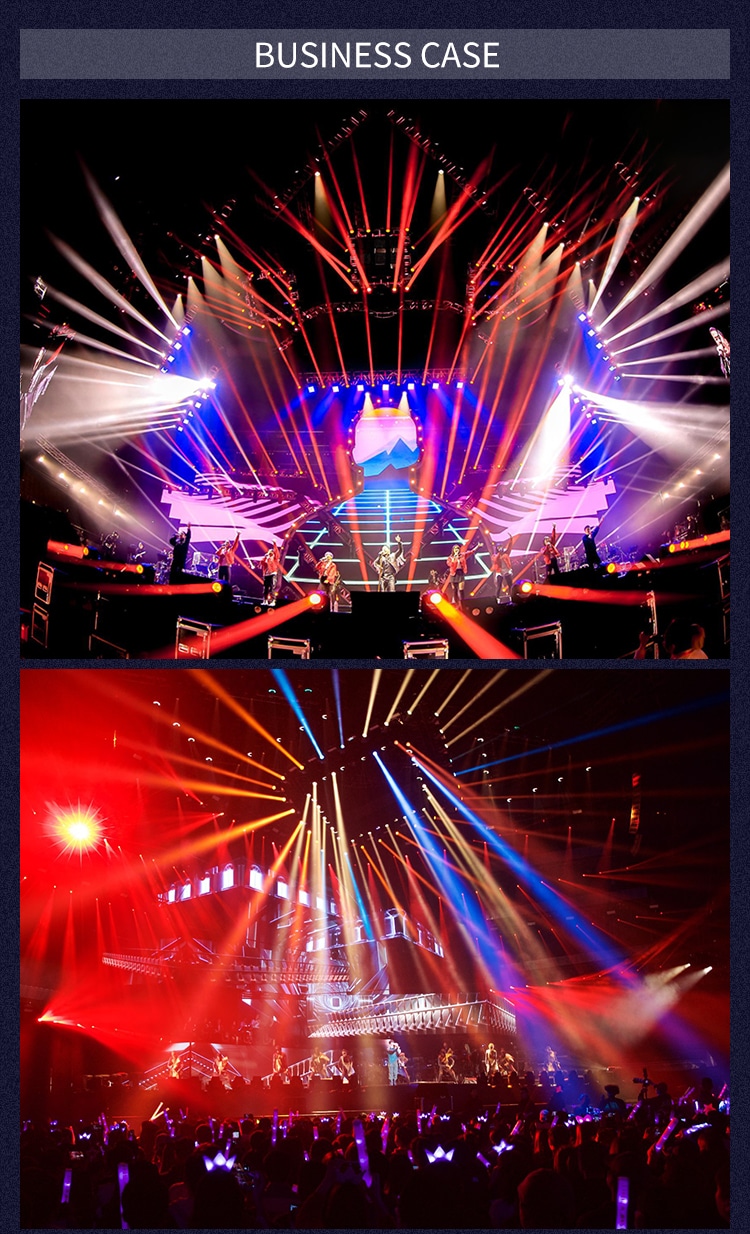

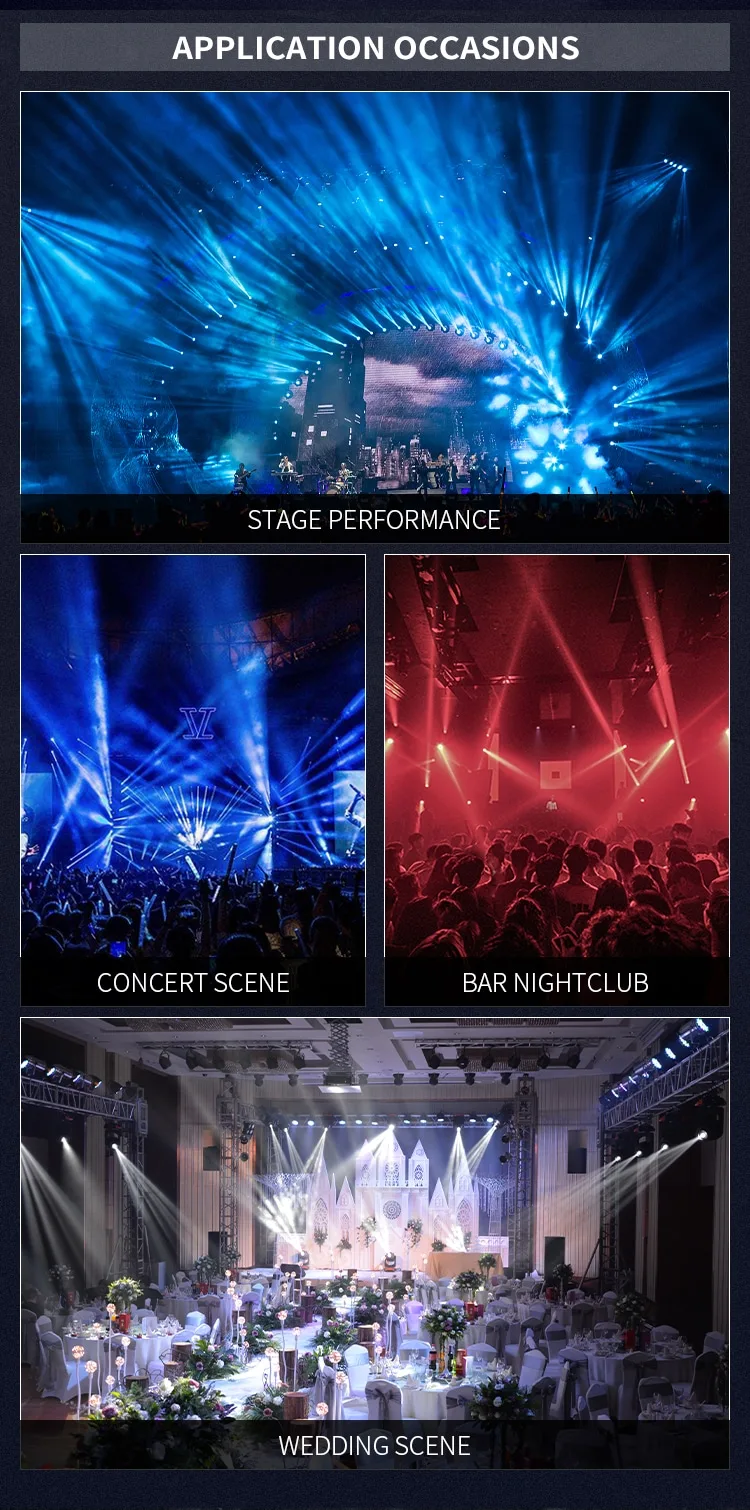

Application Scenarios
- Concert stages
- Theaters
- TV studios
- Large events
- Wedding productions
- Nightclubs
- Professional rental companies
- Entertainment venues
Why Choose JC LIGHT
- Professional DMX lighting control solutions
- High-capacity 2048-channel control system
- Multiple isolated DMX outputs
- Large fixture compatibility
- Built-in effects and fixture library
- Reliable solution for professional stage projects
- OEM and ODM lighting control solutions available
L16 2048-Channel DMX512 Lighting Console FAQ
How many DMX channels does the L16 support?
The L16 provides 2048 DMX control channels.
How many DMX outputs does the L16 have?
It includes four independent photoelectric isolation output ports.
How many fixtures can the L16 control?
It supports up to 240 intelligent fixtures and 240 dimmers.
Does the L16 support moving head control?
Yes. It supports intelligent fixtures with XY movement control and smooth programming.
How many programs can be stored?
The L16 supports storage of up to 450 program knobs.
Does the L16 have a built-in fixture library?
Yes. It includes a fixture library with more than 200 fixtures.
Does the console support USB data storage?
Yes. USB memory can be used to save on-site performance data.
Where can the L16 DMX console be used?
It is suitable for concerts, theaters, weddings, clubs, events and professional lighting rental projects.
