Description
Excellent color mixing effect
400W / 480W / 580W IP67 Beam Spot Moving Head Light with 2.8°-38° Zoom

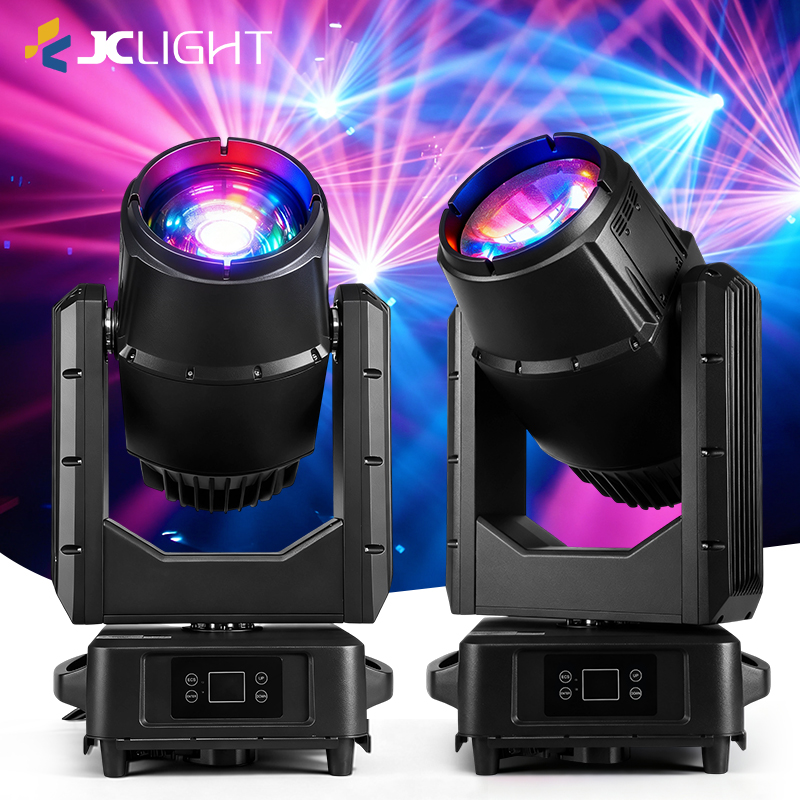

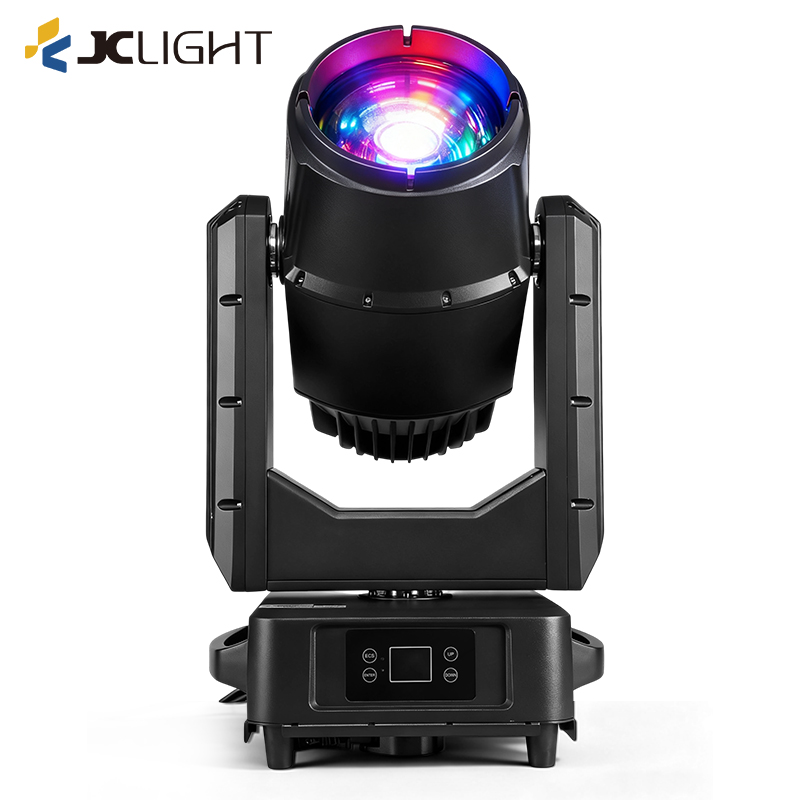

The JC LIGHT F380A / F480A / F580A is a professional IP67 waterproof beam spot moving head light series powered by 380W, 420W and 461W USHIO lamps. With a wide 2.8°-38° beam range, fixed and rotating gobos, dual prism effects and linear dimming, the series combines concentrated beam effects with flexible pattern projection for concerts, festivals, touring productions and outdoor stage lighting projects.
Designed for demanding professional environments, the fixture features a full waterproof structure, UV resistance, high-temperature resistance and intelligent temperature monitoring. A three-motor XY drive system provides faster, more stable and quieter movement, while horizontal and vertical locking mechanisms make transportation and maintenance more convenient. The same product family also includes F400A and F500A LED versions for buyers requiring LED-source configurations.
Key Features
- F380A / F480A / F580A discharge lamp versions
- F400A / F500A LED versions available
- 380W / 420W / 461W USHIO lamp options
- 3000-5000 hour lamp lifespan
- IP67 full waterproof protection
- Wide 2.8°-38° beam range
- 13 colors + white with rainbow effects
- Atomization effect
- 14 fixed gobos + open
- 9 rotating gobos with customized logo support
- Linear pattern zoom effects
- 8-facet prism with rotation and macro effects
- Additional circular 8-prism effect wheel
- Mechanical and adjustable strobe effects
- Strobe macro function
- 0-100% linear dimming
- 540° pan and 270° tilt
- 8-bit / 16-bit precision movement
- Three-motor XY drive system
- Automatic error-correction reset function
- Horizontal and vertical locking system
- Low-noise fan drive system
- LCD display
- DMX512, auto-run, master-slave and sound control
Model Options
| Model | Fixture Power | Light Source |
| F380A | 400W | 380W USHIO Lamp |
| F480A | 480W | 420W USHIO Lamp |
| F580A | 580W | 461W USHIO Lamp |
| F400A | LED Version | |
| F500A | LED Version | |
Technical Specifications
| SKU | F380A / F480A / F580A |
| LED Versions | F400A / F500A |
| Input Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 400W / 480W / 580W |
| Light Source | 380W / 420W / 461W USHIO Lamp |
| Lamp Lifespan | 3000-5000 Hours |
| Beam Angle | 2.8°-38° |
| Color Wheel | 13 Colors + White |
| Color Effects | Rainbow Effect |
| Atomization | Supported |
| Fixed Gobo Wheel | 14 Fixed Gobos + Open |
| Rotating Gobo Wheel | 9 Rotating Gobos |
| Rotating Gobo Diameter | 13.5 mm |
| Effective Gobo Inner Diameter | 12 mm |
| Custom Gobo | Customized Logo Supported |
| Pattern Effect | Linear Zoom In / Out |
| Main Prism | 8-Facet Prism |
| Prism Functions | Rotation, Overlay and Macro Effects |
| Effect Wheel | Rotating Circular 8-Prism Effect |
| Strobe | Mechanical Strobe + Adjustable Strobe + Strobe Macro |
| Dimming | 0-100% Linear Dimming |
| Pan | 540° |
| Tilt | 270° |
| Movement Precision | 8-bit / 16-bit |
| XY Drive | Three-Motor Electric Drive System |
| Control Mode | DMX512 / Auto Run / Master-Slave / Sound |
| DMX Channels | 17CH |
| Display | LCD Display |
| Material | Die-Cast Magnesium Alloy |
| IP Rating | IP67 |
| Product Size | 550 × 440 × 680 mm |
| Package Size | 600 × 500 × 850 mm |
| Net Weight | 28 kg |
| Gross Weight | 36 kg |
2.8°-38° Beam Range for Flexible Stage Effects
The 2.8°-38° optical range gives lighting designers flexibility to move from a concentrated long-distance beam to a considerably wider projected effect. This makes the fixture suitable for productions that require both powerful aerial beam looks and broader gobo or effect projection from the same moving head.
USHIO Lamp Options for Professional Productions
The F380A, F480A and F580A use 380W, 420W and 461W USHIO lamps respectively. The lamp versions are designed for professional productions that require a strong, concentrated beam and high-impact mid-air effects.
Fixed and Rotating Gobo Effects
The optical effect system includes 14 fixed gobos plus open and 9 rotating gobos. The rotating gobos have a diameter of 13.5 mm with a 12 mm effective inner diameter, and customized logo gobos are supported for branded events and project applications.
Dual 8-Prism Effect System
An 8-facet prism provides rotating, overlay and macro effects, while an additional effect wheel can create a rotating circular 8-prism effect. These optical elements expand a single beam into more complex aerial patterns for concerts, clubs and festival stages.

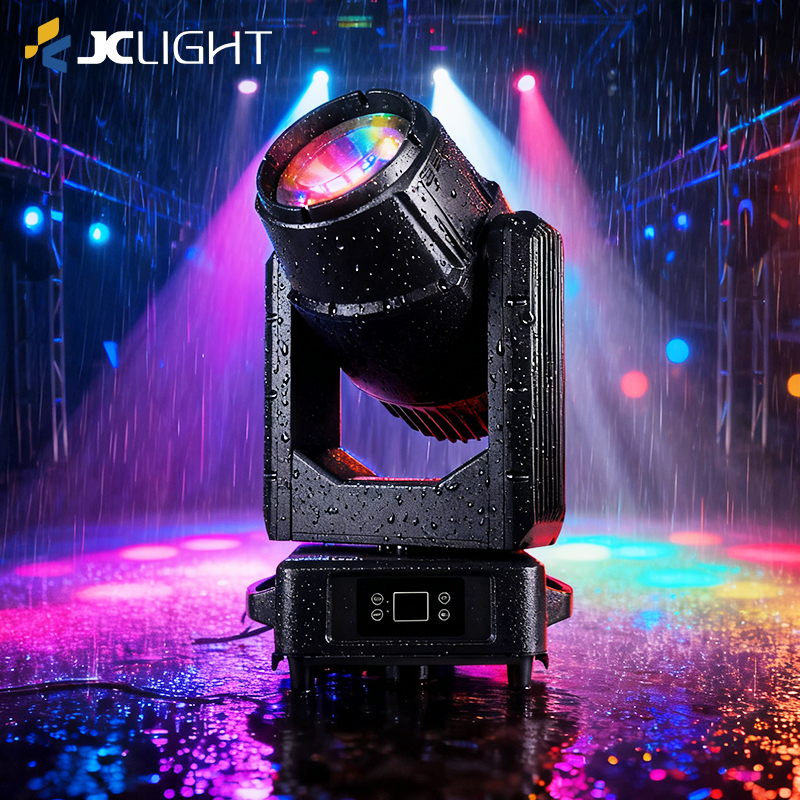

IP67 Waterproof Housing
The fixture features a full IP67 waterproof structure designed for demanding indoor and outdoor applications. The housing is also designed for resistance to UV exposure, high temperatures and aging, helping the fixture adapt to professional touring and outdoor event environments.
Fast and Stable Three-Motor XY System
The pan and tilt mechanism uses a three-motor electric drive system designed for powerful, fast, stable and quiet movement. Pan provides 540° travel and tilt provides 270°, with 8-bit and 16-bit scanning options for different positioning requirements.
Intelligent Cooling and Automatic Reset
Wind-guided cooling and intelligent temperature monitoring help manage heat during operation, while the low-noise fan drive is designed for professional performance environments. An automatic error-correction reset function helps restore fixture positioning when required.
Transport and Maintenance Friendly Design
Horizontal and vertical locking controls help secure the moving parts during transportation and servicing. This design is particularly useful for touring productions and stage lighting rental companies where fixtures are frequently installed, removed and transported between venues.
Application Scenarios
- Outdoor concerts and music festivals
- Touring stage productions
- Large live performance venues
- Nightclub and DJ lighting systems
- Event and entertainment productions
- Professional rental lighting projects
- Indoor and outdoor stage installations
- Logo and custom gobo projection applications
Why Choose JC LIGHT
- Professional IP67 waterproof moving head light manufacturer
- Multiple USHIO lamp configurations for different project requirements
- F400A and F500A LED versions also available
- Wide 2.8°-38° optical range
- Fixed gobos, rotating gobos and custom logo support
- Dual 8-prism effect system for rich aerial effects
- Three-motor XY drive for stable professional movement
- Waterproof and temperature-monitoring design for demanding applications
- OEM and ODM customization for distributors, rental companies and project contractors
F380A / F480A / F580A IP67 Beam Spot Moving Head Light FAQ
What is the difference between the F380A, F480A and F580A?
The main difference is the lamp and fixture power. The F380A uses a 380W USHIO lamp with 400W fixture power, the F480A uses a 420W USHIO lamp with 480W fixture power, and the F580A uses a 461W USHIO lamp with 580W fixture power.
Are LED versions of this waterproof moving head available?
Yes. The same series also includes F400A and F500A LED versions. LED-source specifications can be selected according to the required configuration.
Can the F380A / F480A / F580A be used outdoors?
Yes. The series has an IP67 protection rating and a full waterproof structure designed for both indoor and outdoor professional stage applications.
What is the beam angle of this moving head light?
The fixture provides a 2.8°-38° optical range, allowing lighting designers to create both concentrated beam effects and wider projected looks.
Does this fixture support customized logo gobos?
Yes. The rotating gobo system supports customized logo and pattern gobos. The rotating gobo diameter is 13.5 mm with a 12 mm effective inner diameter.
What prism effects are included?
The fixture includes an 8-facet prism with rotation, overlay and macro functions, together with an additional effect wheel capable of producing a rotating circular 8-prism effect.
Does the moving head have pan and tilt locking?
Yes. Horizontal and vertical locking controls are included to make transportation, servicing and handling more convenient for professional rental applications.
Do you provide OEM and ODM services for IP67 beam moving head lights?
Yes. JC LIGHT provides OEM and ODM customization for stage lighting distributors, rental companies, event contractors and professional lighting projects.
