Description
Effect:

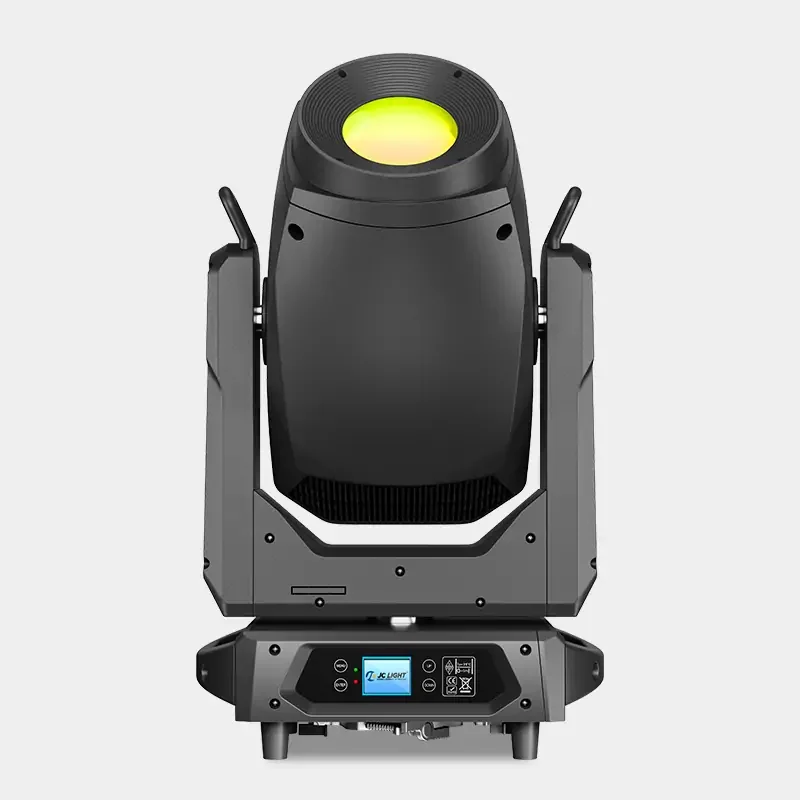

1000W / 1100W / 1300W / 1500W LED Profile Moving Head Light with CMY CTO and Framing System

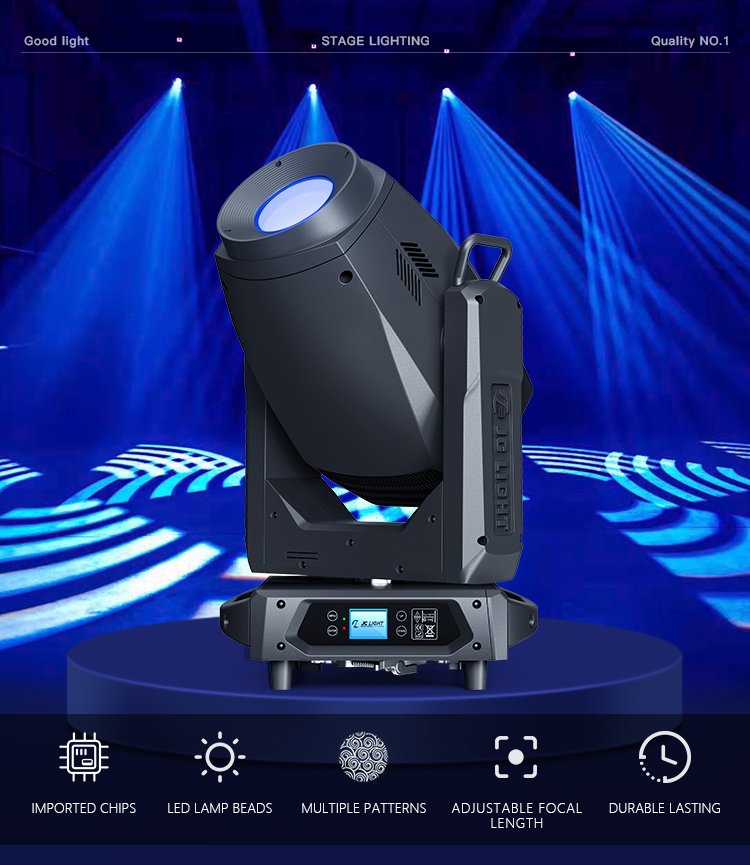

The JC LIGHT high-power LED Profile Moving Head Light series is available in 1000W, 1100W, 1300W and 1500W power versions, using 880W, 1000W, 1200W and 1400W LED modules respectively. With a 6200K light source, CRI ≥90 and high-CRI mode up to 95, the series is designed for large concerts, theatres, TV productions, touring shows and professional rental applications requiring powerful output and precise optical control.

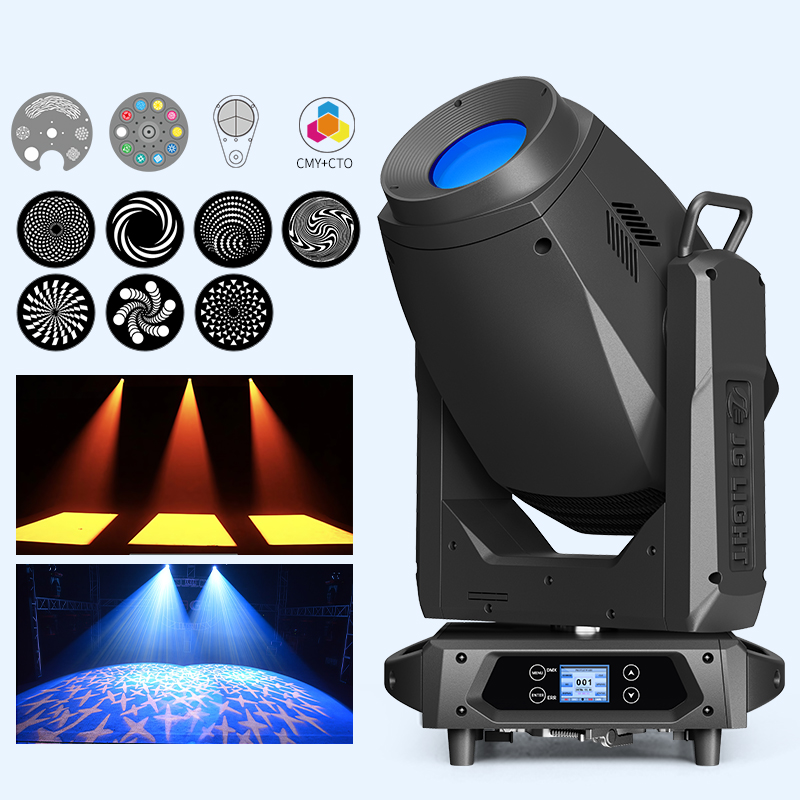

The fixture integrates a complete CMY + CTO color mixing system, framing shutters, dual gobo wheels, dynamic effect wheel, dual prism system, electronic focus and 4.5°-50° linear zoom. It also provides linear frost, adjustable aperture, 16-bit pan and tilt precision, RDM support and multiple safety protection functions for demanding professional stage lighting systems.
Key Features
- 1000W / 1100W / 1300W / 1500W power versions
- 880W / 1000W / 1200W / 1400W high-power LED modules
- 6200K color temperature
- CRI ≥90, high-CRI mode up to 95
- R9 up to 95
- LED lifespan over 20,000 hours
- CMY + CTO color mixing system
- 6 fixed colors + white with half-color and rainbow effects
- 7 fixed gobos + white
- 7 rotating gobos + white
- Dynamic flame and water effect wheel
- 4-facet prism + 4-row prism with overlay and positioning
- 4.5°-50° linear zoom
- Electronic focus with ultra-fine adjustment
- 0-100% linear frost with light and heavy frost effects
- 5-100% smooth aperture adjustment
- 4-blade framing system with 150° rotation
- 0-100% linear dimming
- Up to 25Hz strobe with random and pulse effects
- 540° / 630° pan and 270° tilt
- 16-bit precision movement
- DMX512 with RDM function
- Input signal isolation protection
- Automatic high-temperature protection
Model Options
| Power Consumption | LED Module | Color Temperature |
| 1000W | 880W LED Module | 6200K |
| 1100W | 1000W LED Module | 6200K |
| 1300W | 1200W LED Module | 6200K |
| 1500W | 1400W LED Module | 6200K |
Technical Specifications
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 1000W / 1100W / 1300W / 1500W |
| Light Source | 880W / 1000W / 1200W / 1400W High-Power LED Module |
| Color Temperature | 6200K |
| LED Lifespan | >20,000 Hours |
| CRI | ≥90 |
| High CRI Mode | Up to 95 |
| R9 | Up to 95 |
| Color Mixing | CMY + CTO |
| Color Wheel | 6 Fixed Colors + White, Half-Color Effect, Positioning and Bidirectional Rainbow Rotation |
| Static Gobo Wheel | 7 Pluggable Fixed Gobos + White |
| Rotating Gobo Wheel | 7 Pluggable Rotating Gobos + White, with Jitter and Positioning |
| Dynamic Effect Wheel | Simulated Moving Flame and Water Effects |
| Prism | Rotating 4-Facet Prism + 4-Row Prism |
| Prism Functions | Bidirectional Rotation, Positioning and Overlay |
| Focusing | Electronic Focus with Ultra-Fine Smooth Adjustment |
| Zoom | 4.5°-50° Linear Zoom |
| Frost | 0-100% Linear Frost, Light Frost and Heavy Frost |
| Aperture | 5-100% Smooth Adjustment |
| Framing System | 4 Controllable Framing Blades |
| Framing Rotation | Up to 150° |
| Dimming | 0-100% Linear Dimming |
| Strobe | Up to 25Hz, Random and Pulse Strobe |
| Pan | 540° / 630° |
| Tilt | 270° |
| Movement Precision | 16-bit Precision Scan |
| Control Mode | DMX512 / Auto Run / Master-Slave / Sound / RDM |

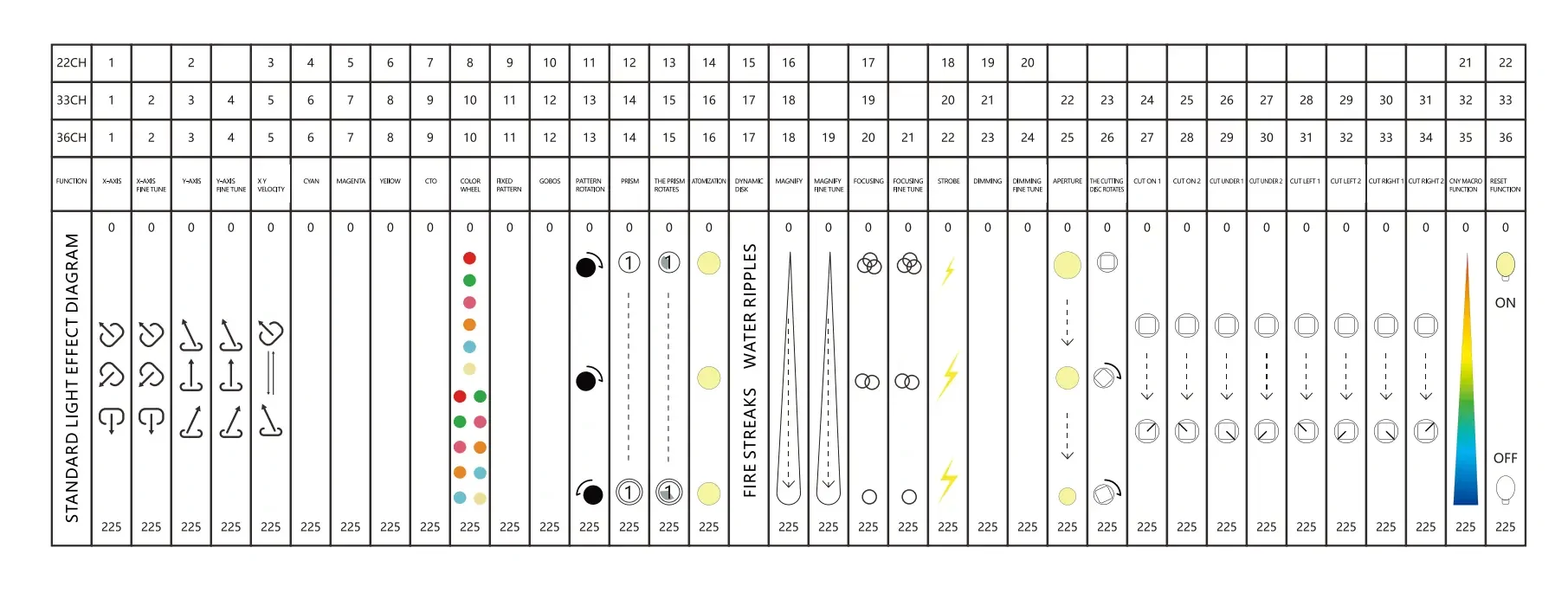

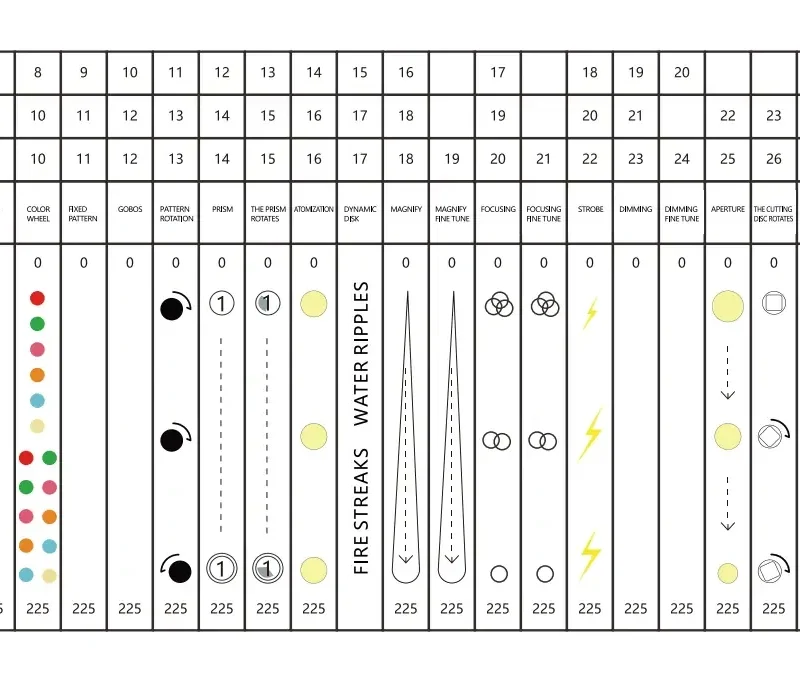

| DMX Channels | 42CH / 40CH / 65CH |
| Protection Functions | Input Signal Isolation Protection + Automatic High-Temperature Protection |

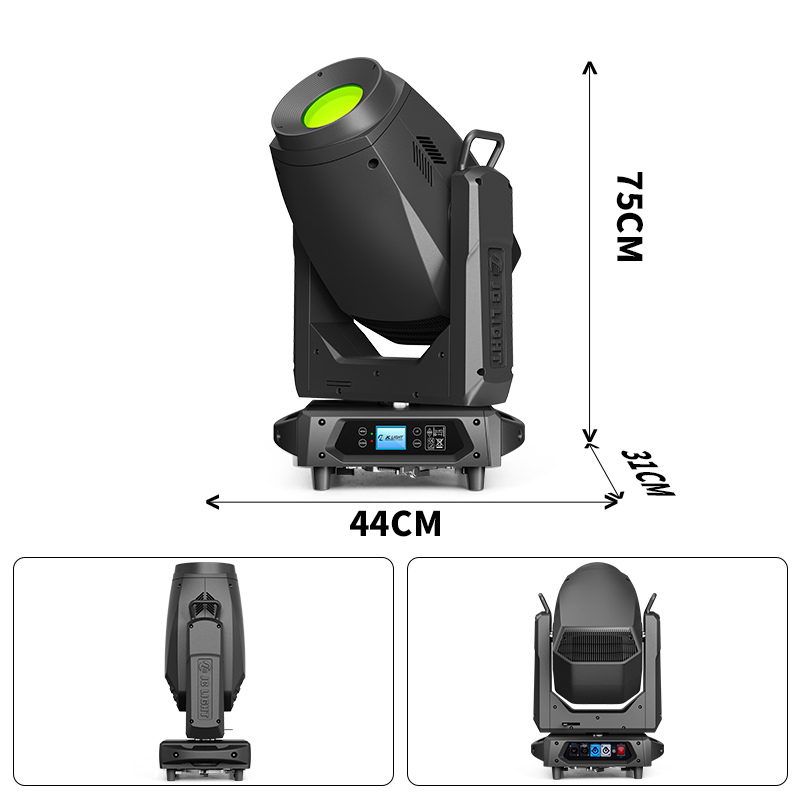

| Product Size | 46.7 × 36.8 × 85.4 cm |
| Package Size | 58.0 × 50.5 × 98.0 cm |
| Net Weight | 35 kg |
| Gross Weight | 38 kg |
High-Power LED Engine with High CRI
This series uses high-power LED modules ranging from 880W to 1400W, with a 6200K color temperature and CRI ≥90. High-CRI mode can reach up to 95, with R9 values up to 95, making the fixture suitable for stage productions where accurate color reproduction is important.

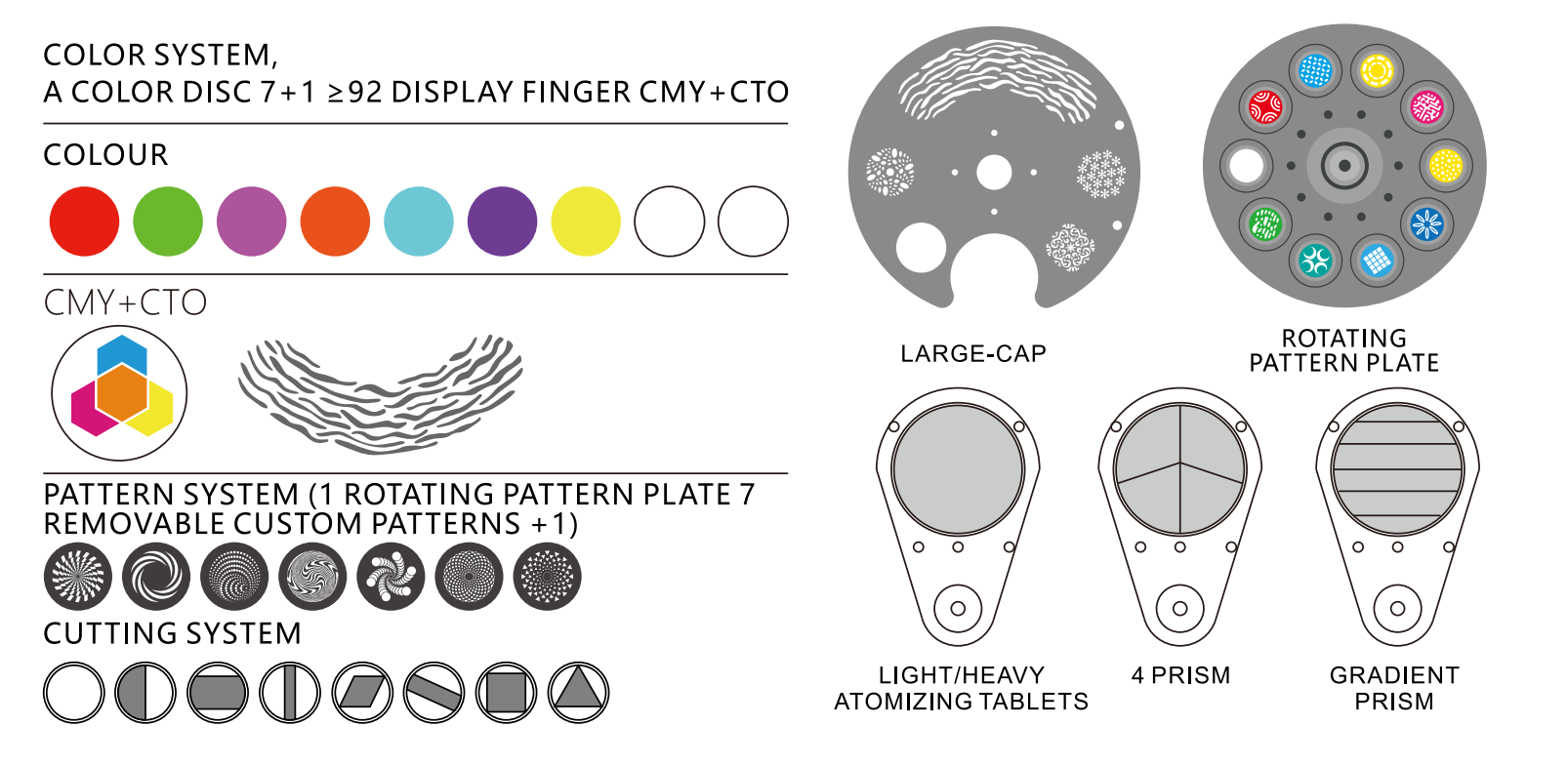

CMY and CTO Color Mixing System
The integrated CMY + CTO color system provides continuous color mixing and flexible color temperature control. A separate fixed color wheel adds 6 colors plus white, half-color effects and bidirectional rainbow rotation for additional creative options.
Professional Framing and Aperture Control
A four-blade framing system allows lighting designers to shape and control the projected beam for theatres, studios, concerts and architectural stage scenes. The framing system supports up to 150° rotation, while the 5-100% adjustable aperture provides further control over the projected light area.

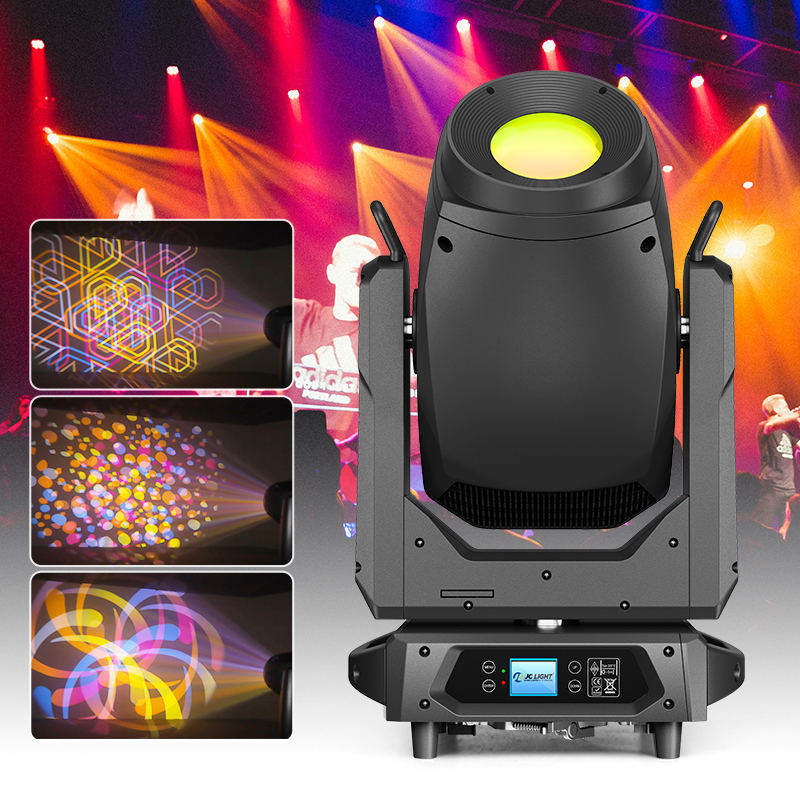

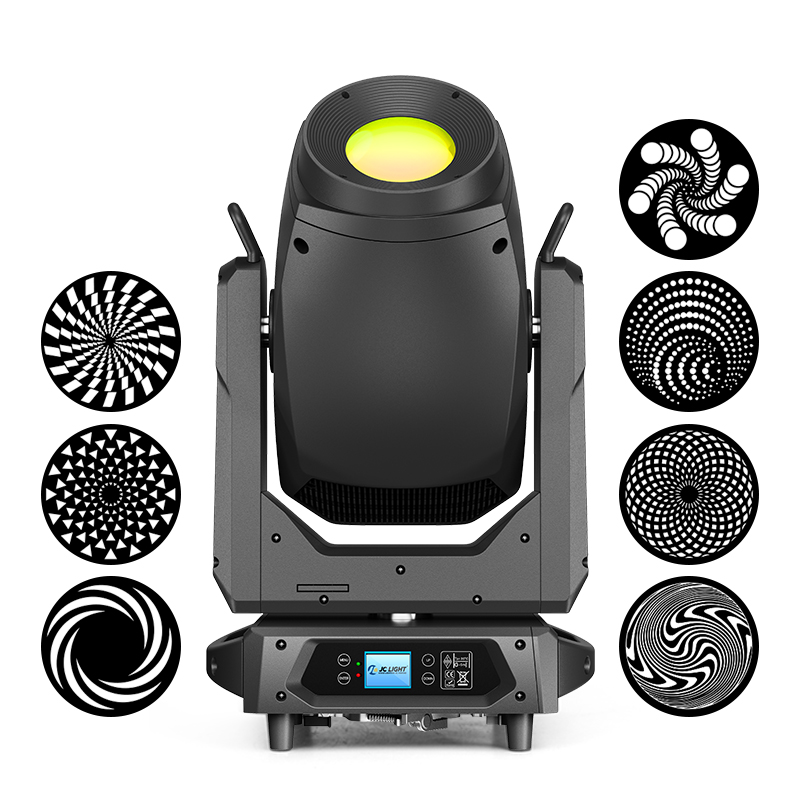

Dual Gobo and Dynamic Effect System
The fixture includes separate static and rotating gobo wheels. The static wheel provides 7 pluggable gobos + white, while the rotating wheel provides 7 pluggable rotating gobos + white with jitter and positioning. A separate dynamic effect wheel adds simulated moving flame and water effects for more creative projections.
Dual Prism Overlay for Rich Beam Effects
The optical system includes a 4-facet prism and 4-row prism. Both prisms support bidirectional rotation and positioning, and can be overlaid to create more complex and layered beam patterns.

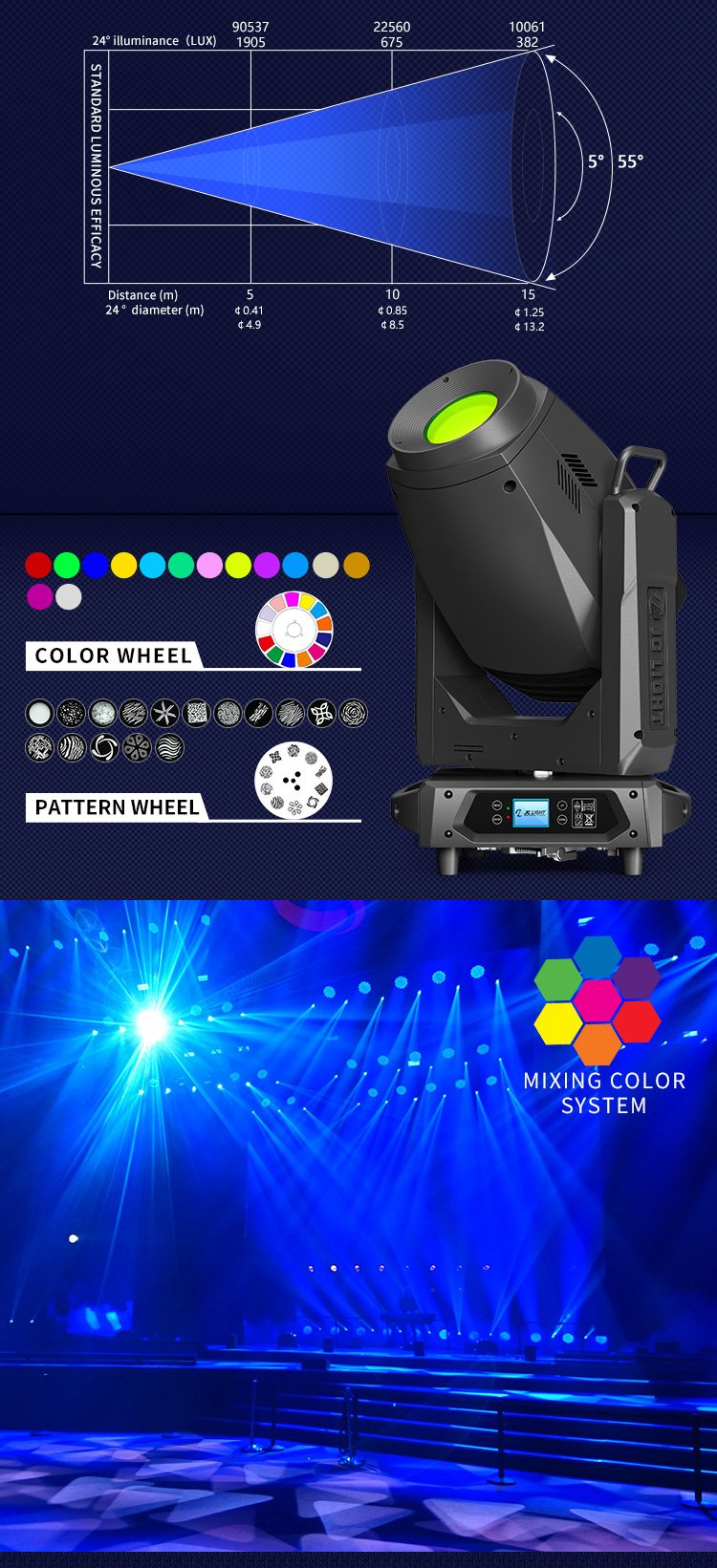

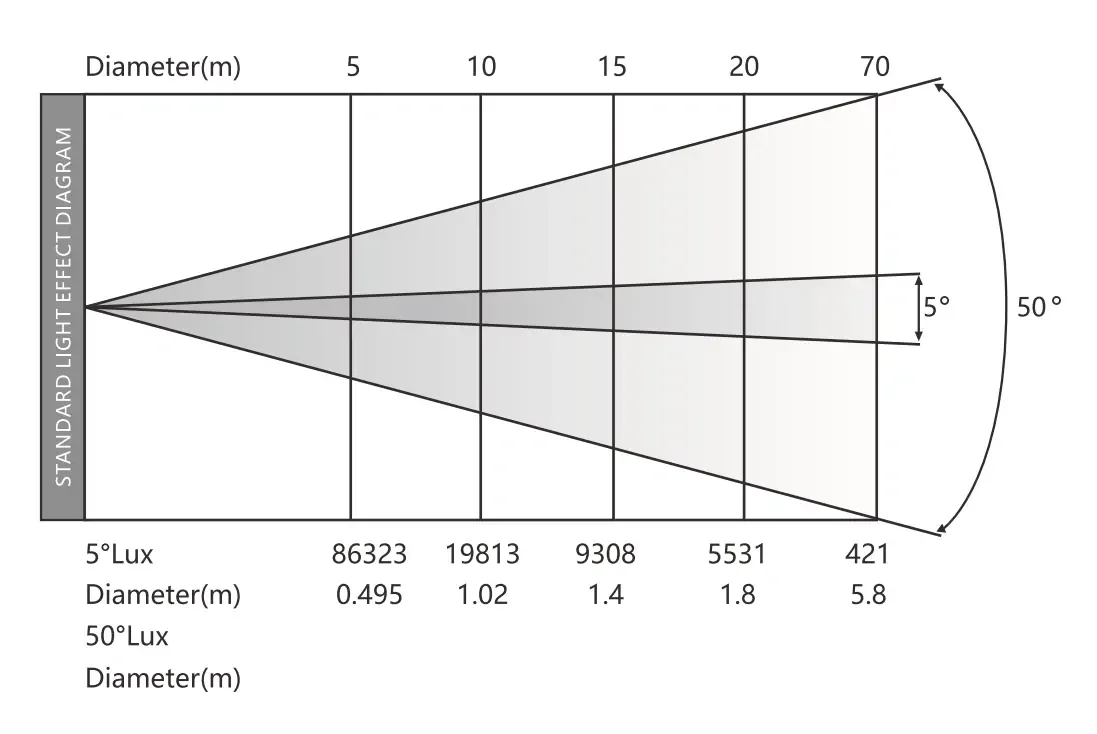

4.5°-50° Linear Zoom and Electronic Focus
The wide 4.5°-50° linear zoom range allows the fixture to move from tighter beam and projection effects to broad stage coverage. Electronic focus provides ultra-fine smooth adjustment for gobos, framing and projection effects across different throw distances.

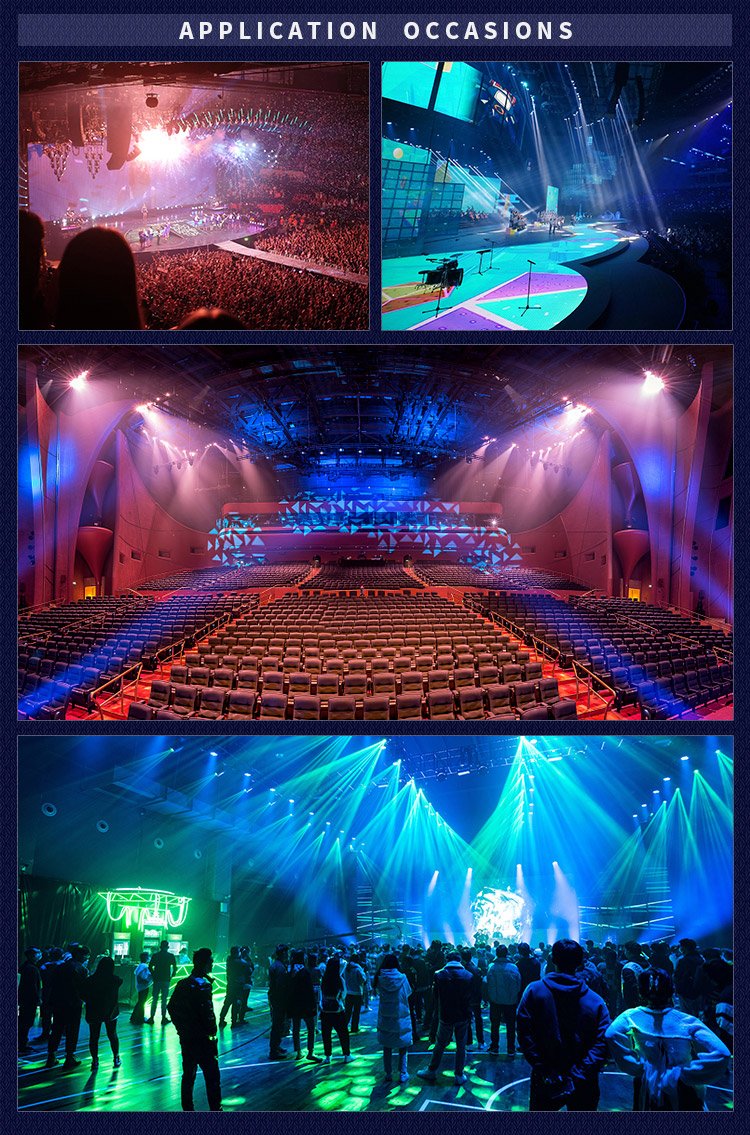

Application Scenarios
- Large concert and touring productions
- Theatre and auditorium lighting
- TV studio and broadcast productions
- Music festivals and live events
- Large entertainment venues
- Corporate shows and event productions
- Professional rental lighting projects
- High-end stage and performance installations
Why Choose JC LIGHT
- Professional high-power LED profile moving head manufacturer
- Multiple 1000W-1500W fixture configurations
- High CRI performance for professional stage and camera applications
- CMY + CTO color mixing with independent color wheel
- Framing, gobo, prism, frost, aperture and dynamic effects in one fixture
- Wide 4.5°-50° zoom for flexible stage applications
- RDM and professional protection functions
- OEM and ODM customization for distributors, rental companies and project contractors
1000W-1500W LED Profile Moving Head Light FAQ
What power versions are available?
The series is available in 1000W, 1100W, 1300W and 1500W fixture versions, using 880W, 1000W, 1200W and 1400W LED modules respectively.
What is the CRI of this LED profile moving head light?
The standard CRI is ≥90. High-CRI mode can reach up to 95, while R9 can also reach up to 95.
Does the fixture have a framing system?
Yes. It includes a four-blade controllable framing system with up to 150° rotation for precise beam shaping.
What is the zoom range?
The fixture provides a 4.5°-50° linear zoom range, allowing both tighter projection effects and wider stage coverage.
What gobo and prism effects are available?
It includes 7 fixed gobos + white, 7 rotating gobos + white, a dynamic flame and water effect wheel, and a dual-prism system consisting of a 4-facet prism and 4-row prism.
Can the two prisms be used together?
Yes. The two prisms support overlay, positioning and bidirectional rotation, allowing more complex beam effects to be created.
Does this profile moving head support RDM?
Yes. The fixture supports RDM together with DMX512, auto-run, master-slave and sound control modes.
