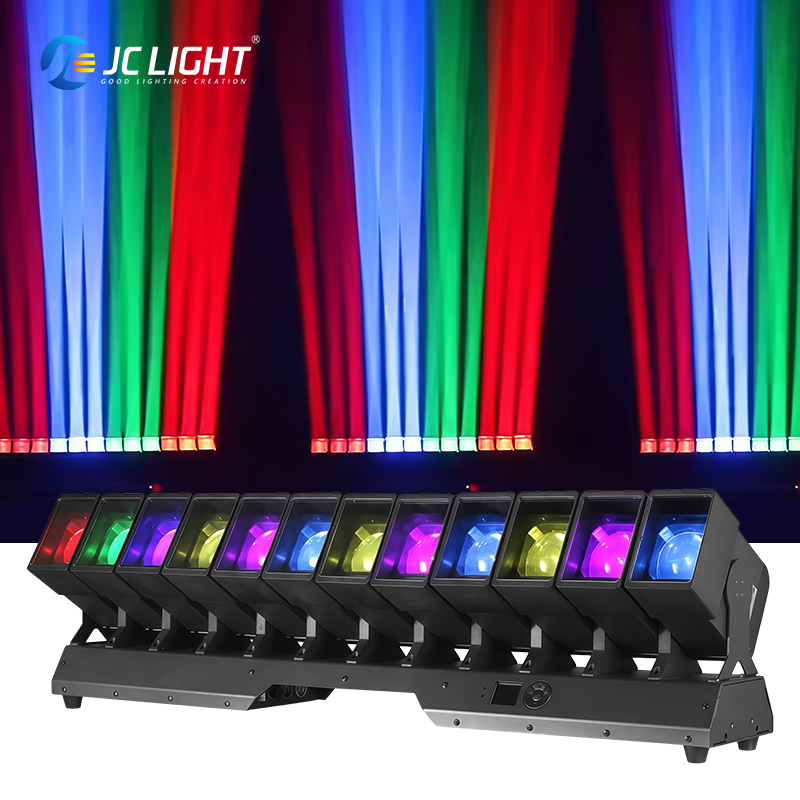

800W 12x60W RGBW XY Moving Head Bar Light with Beam, Wash and Strobe

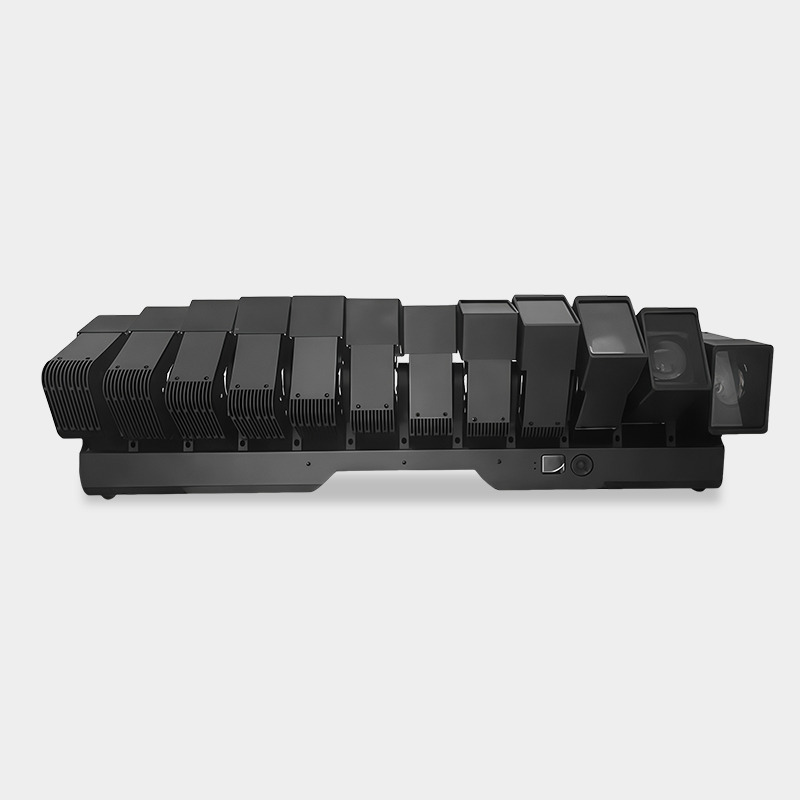

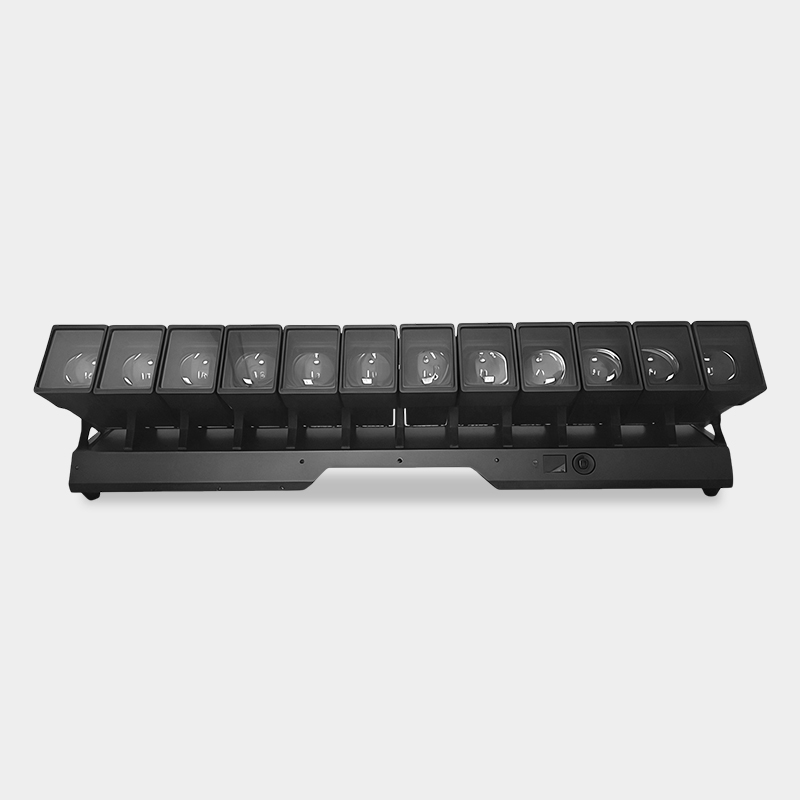

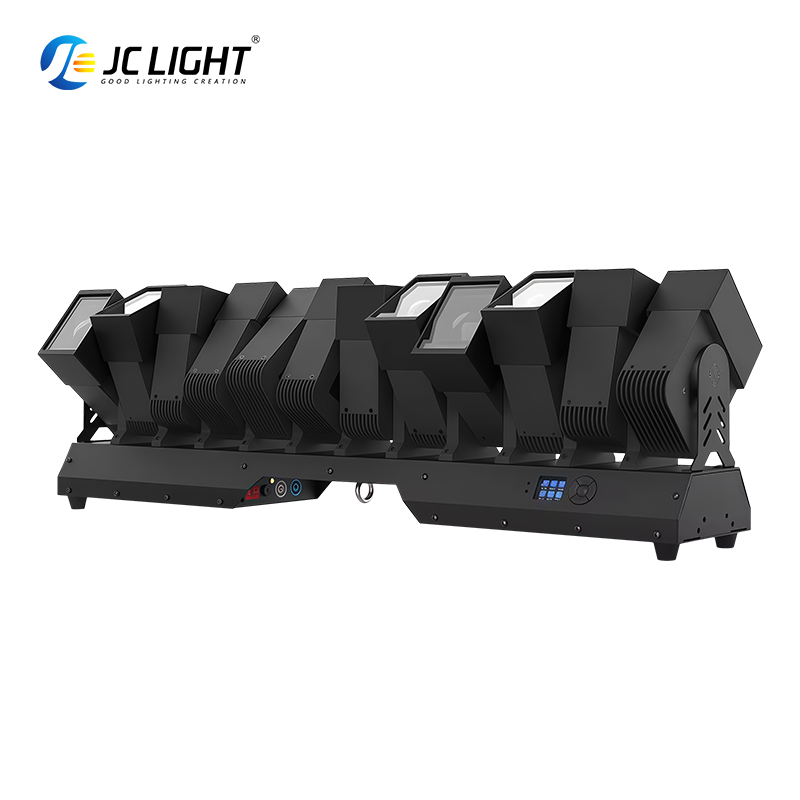

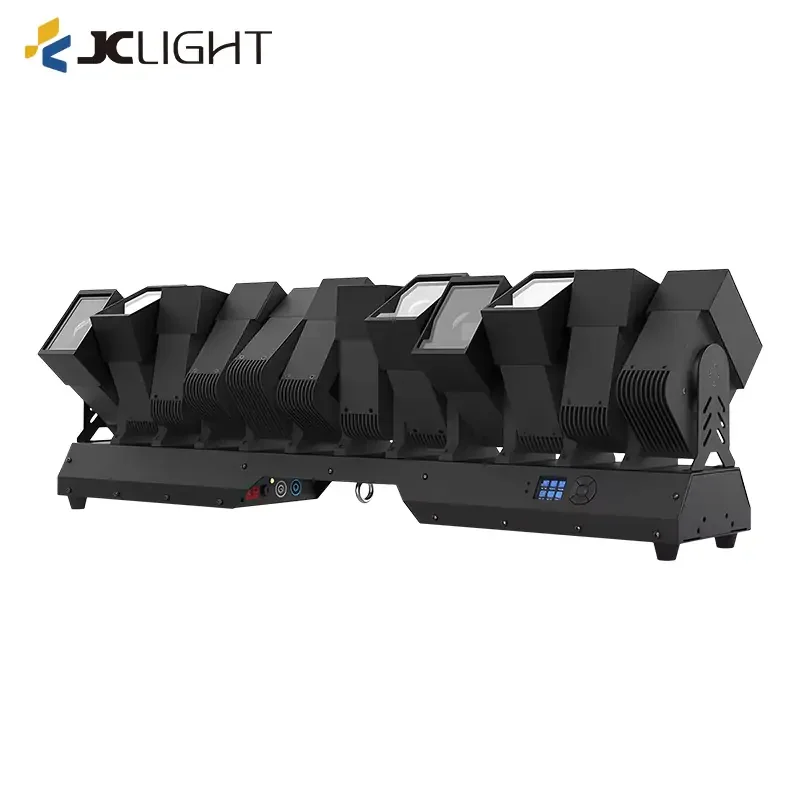

The JC LIGHT V12 is a professional 800W RGBW XY Moving Head Bar Light equipped with 12pcs 60W RGBW 4-in-1 LEDs. It combines XY movement, beam, wash and high-speed strobe effects in one fixture, while individual point control allows each LED source to be programmed separately for complex pixel and movement effects.
Designed for concerts, festivals, nightclubs, touring productions and professional rental applications, the V12 supports multiple DMX channel modes from 20CH up to 179CH, giving lighting programmers flexible control over movement, color and individual pixels. It also features 32-bit smooth dimming, 1-30Hz strobe, RDM support and professional DMX and power input/output connections.
Key Features
- 800W professional XY moving head bar light
- 12pcs 60W RGBW 4-in-1 LEDs
- XY shaking head movement effect
- Beam + wash + flash multifunction design
- Individual point control for all 12 LED sources
- 32-bit 0-100% smooth linear dimming
- 1-30Hz adjustable strobe frequency
- Multiple DMX channel modes for different programming levels
- DMX512 control with RDM function
- DMX512 input/output and power input/output

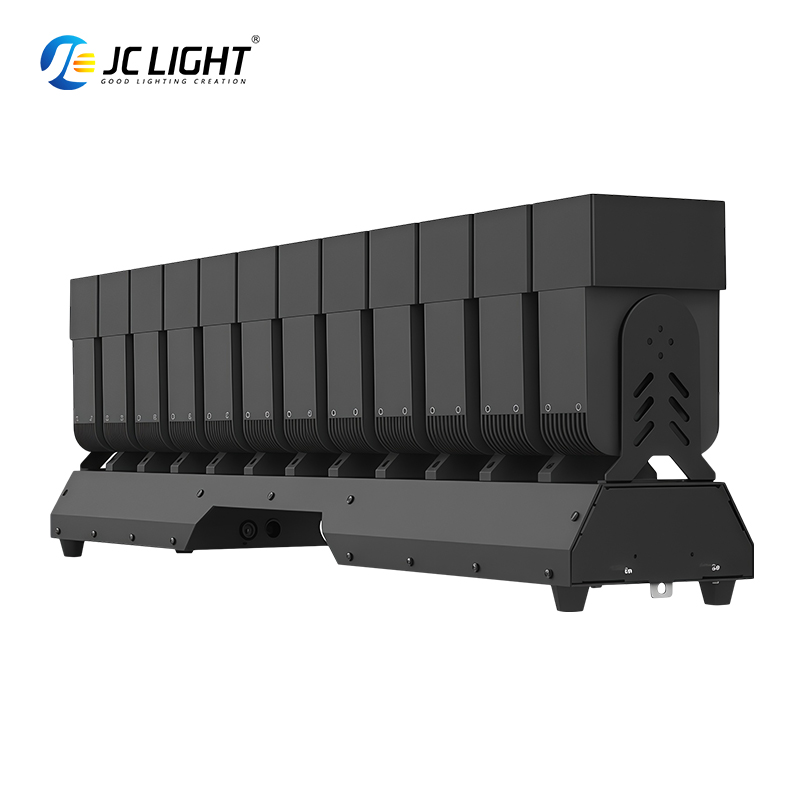

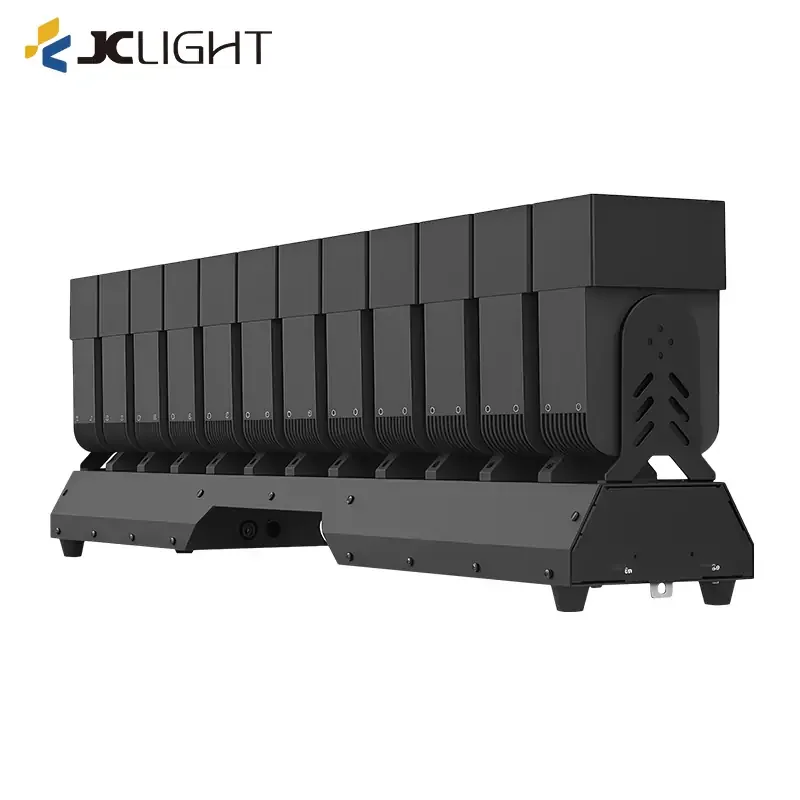

- Durable black metal housing
- Suitable for concerts, clubs, events and rental productions
Technical Specifications
| Model / SKU | V12 |
| Rated Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 800W |
| Light Source | 12 × 60W RGBW 4-in-1 LED |
| Pixel Control | Individual Point Control |
| Main Effects | XY Shaking Head + Wash + Beam + Flash |
| Dimming | 32-bit 0-100% Linear Dimming |
| Strobe Frequency | 1-30Hz |
| Control Mode | DMX512 / Master-Slave / Auto / Sound / RDM |
| DMX Channels | 20CH / 169A / 169B / 53CH / 101CH / 155CH / 179CH |
| Connection | DMX512 Input/Output, Power Input/Output |
| Housing | Metal, Black |
| Product Size | 105 × 17 × 30 cm |
| Package Size | 109 × 38 × 25 cm |
| Net Weight | 26.5 kg |
| Gross Weight | 31.0 kg |

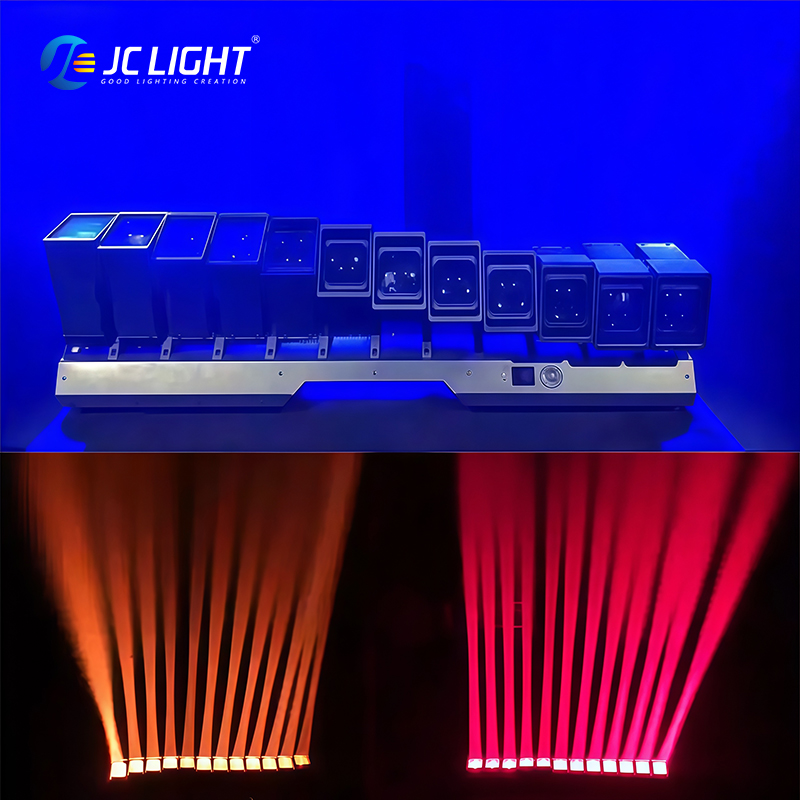

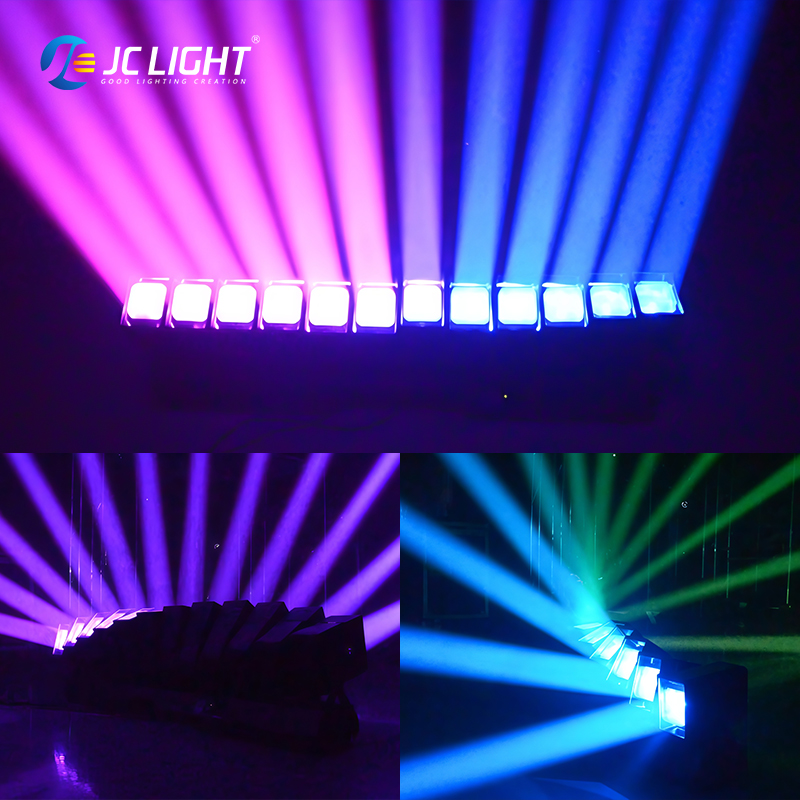

12 Pixel RGBW Individual Control

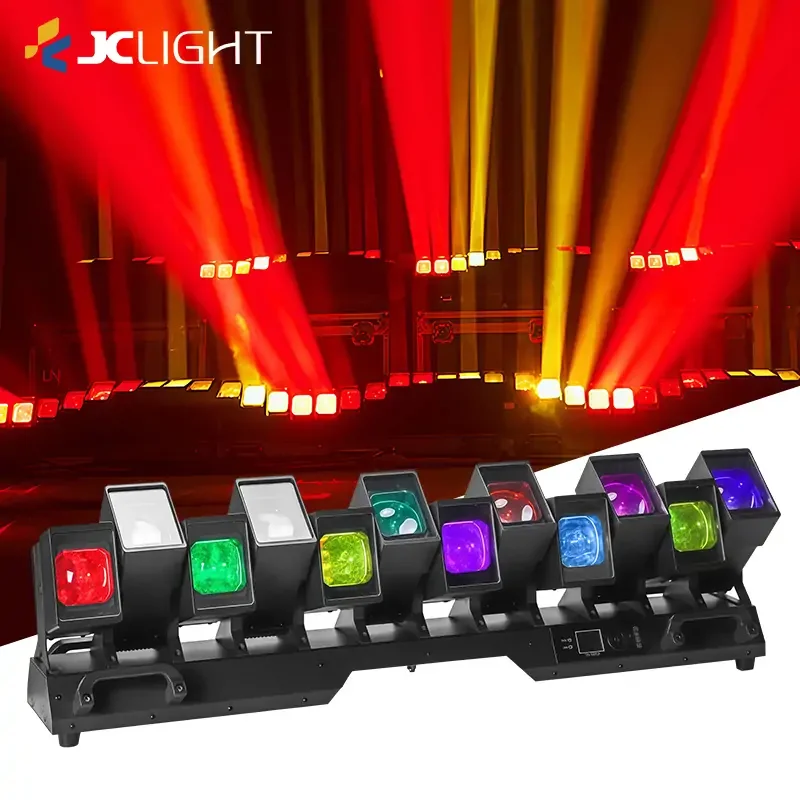

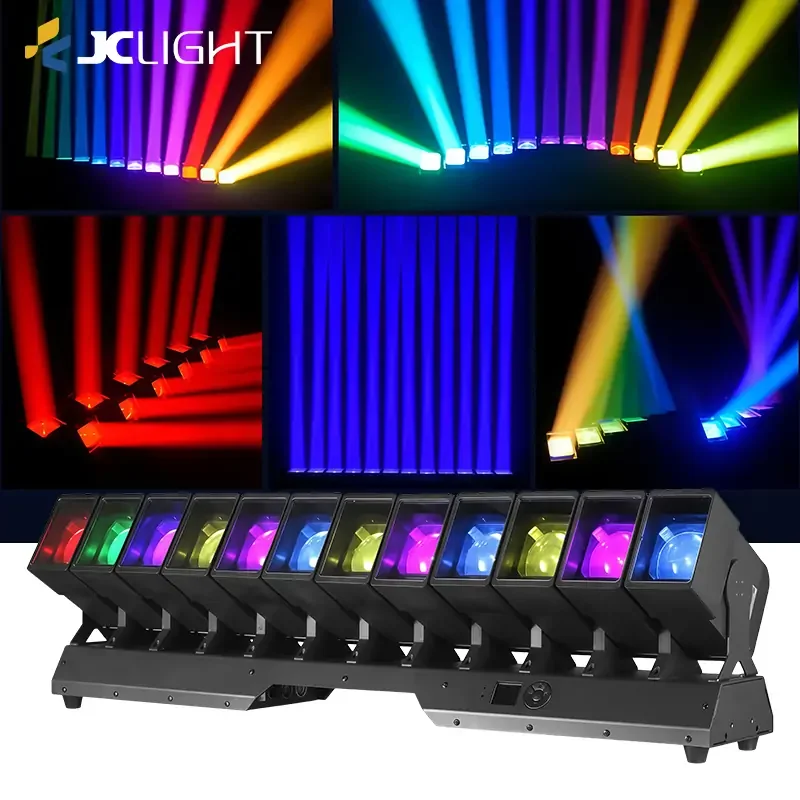

Each of the 12 RGBW LED sources can be controlled individually, allowing lighting programmers to create pixel chases, color waves, sequential flashes and complex synchronized effects across the full fixture. The high-channel DMX modes provide detailed access to individual LED functions for advanced show programming.

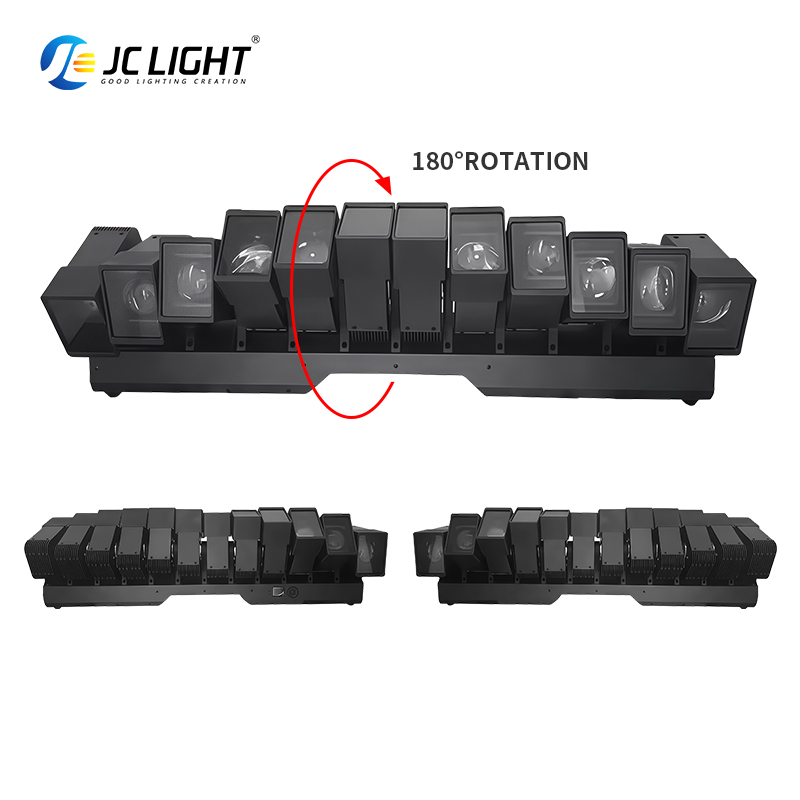

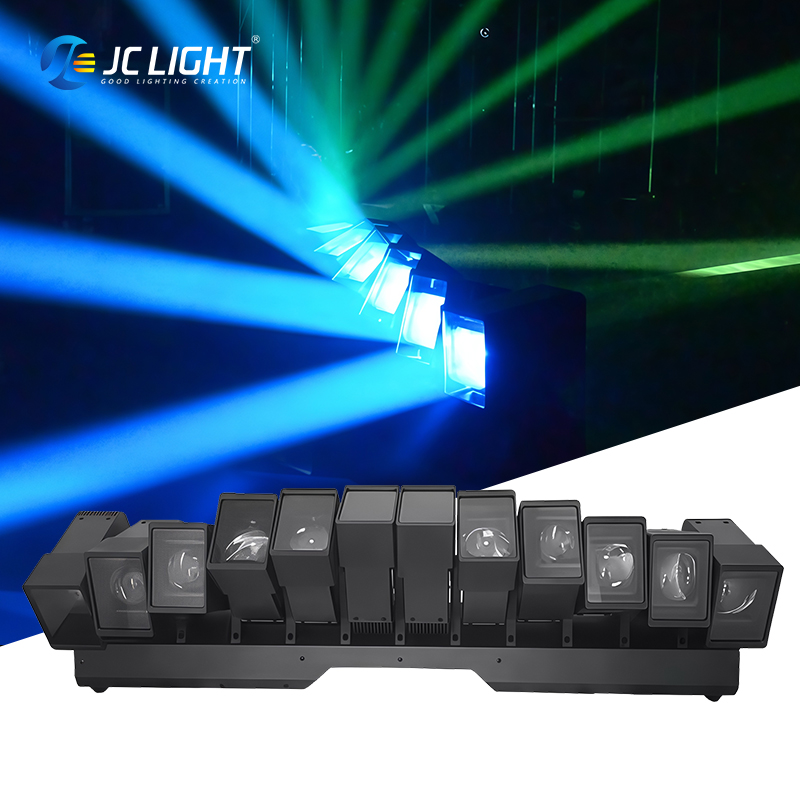

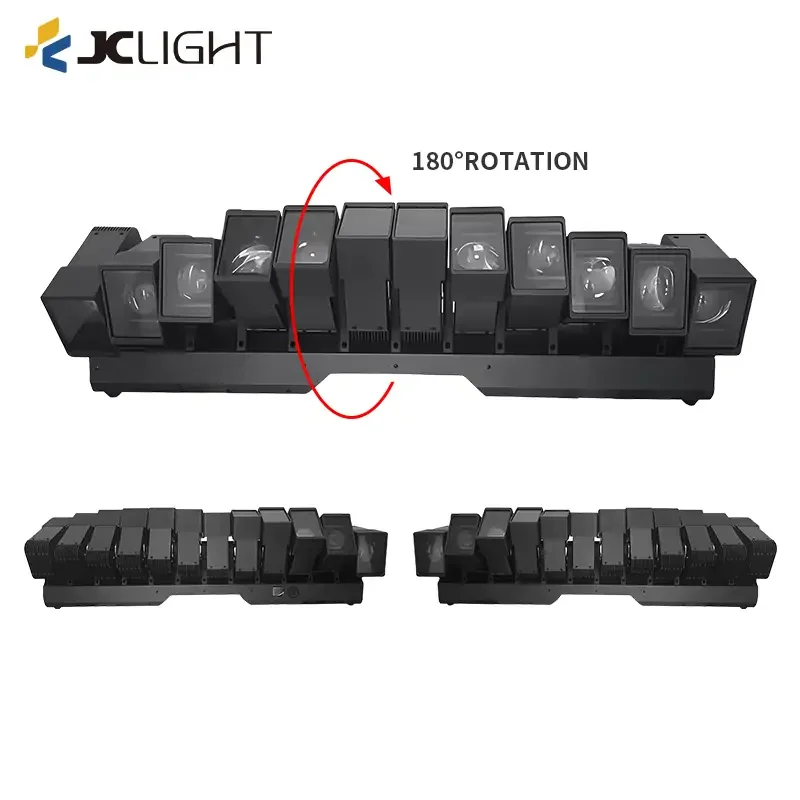

XY Movement with Beam and Wash Effects

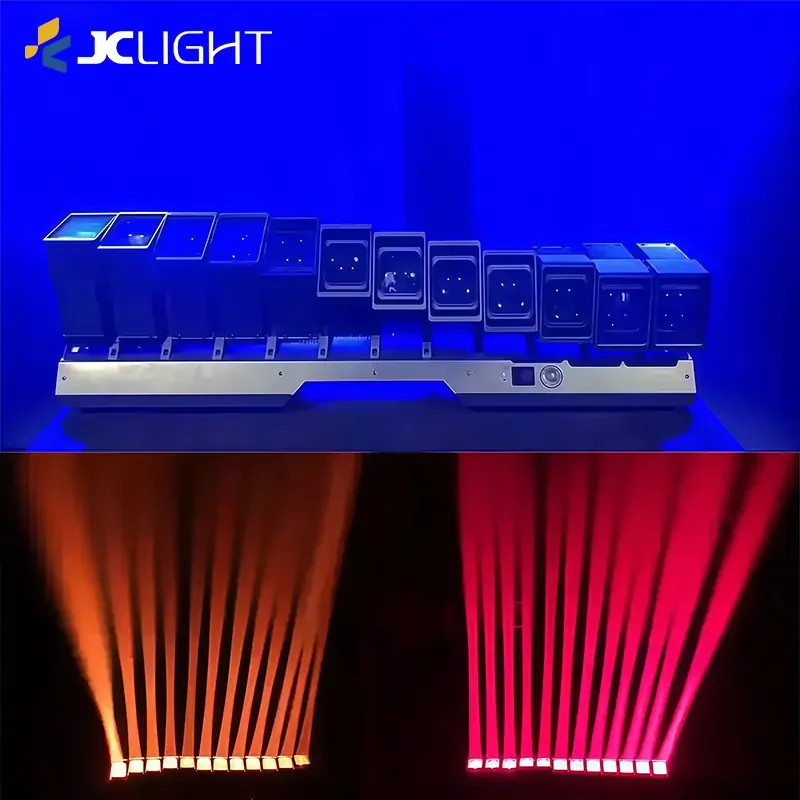

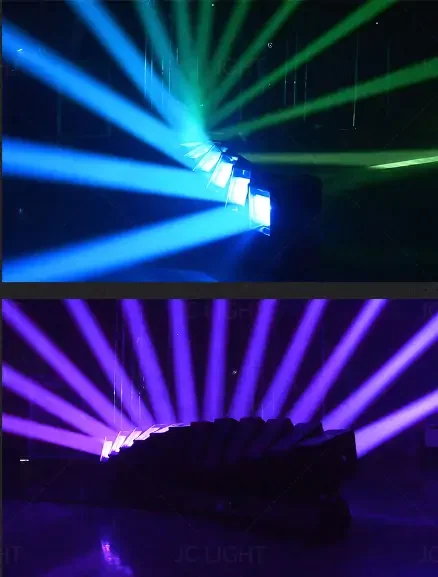

The V12 combines XY shaking movement with beam and wash output, creating dynamic sweeping effects across the stage. This multi-effect structure allows one fixture to produce movement, color, beam and wash effects at the same time, making it suitable for energetic live productions.
High-Speed Strobe and 32-Bit Dimming
A 1-30Hz strobe range provides flexible flash effects for different music and performance styles, while 32-bit linear dimming delivers smooth transitions from 0-100% for professional stage programming.
Application Scenarios
- Concert and touring stage lighting
- Music festival lighting systems
- Nightclub and DJ lighting
- Live performance stage effects
- Wedding and event productions
- TV shows and entertainment productions
- Professional rental lighting projects
- Large indoor stage installations
Why Choose JC LIGHT
- Professional RGBW moving head effect light manufacturer
- 12 × 60W high-power RGBW LEDs
- Independent point control for advanced pixel programming
- XY movement, beam, wash and strobe integrated into one fixture
- Multiple DMX modes up to 179 channels
- RDM support for professional lighting system management
- OEM and ODM customization for distributors and rental companies
V12 800W 12x60W RGBW XY Moving Head Bar Light FAQ
What light source does the V12 use?
The V12 uses 12pcs 60W RGBW 4-in-1 LEDs, providing red, green, blue and white color mixing for professional stage effects.
Can each LED on the V12 be controlled individually?
Yes. The V12 supports individual point control for all 12 LED sources, allowing detailed pixel effects, color chases and custom programming.
What effects can the V12 create?
The fixture combines XY shaking movement, beam, wash and flash effects, providing multiple visual functions from a single professional stage light.
What DMX channel modes does the V12 support?
The V12 supports 20CH, 169A, 169B, 53CH, 101CH, 155CH and 179CH control modes for different programming requirements.
Does the V12 support RDM?
Yes. The fixture supports DMX512 with RDM function for professional lighting system configuration and management.
What is the strobe frequency of the V12?
The fixture provides an adjustable 1-30Hz strobe frequency for slow pulse effects and fast high-energy stage flashes.
Do you provide OEM and ODM services for the V12?
Yes. JC LIGHT provides OEM and ODM customization for stage lighting distributors, rental companies, event production companies and professional lighting projects.
