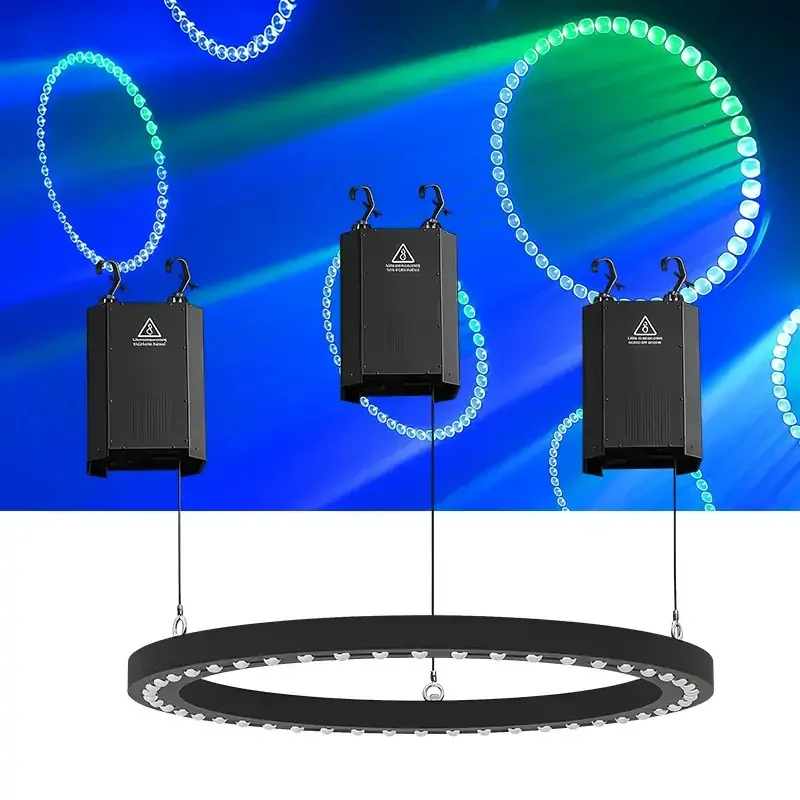

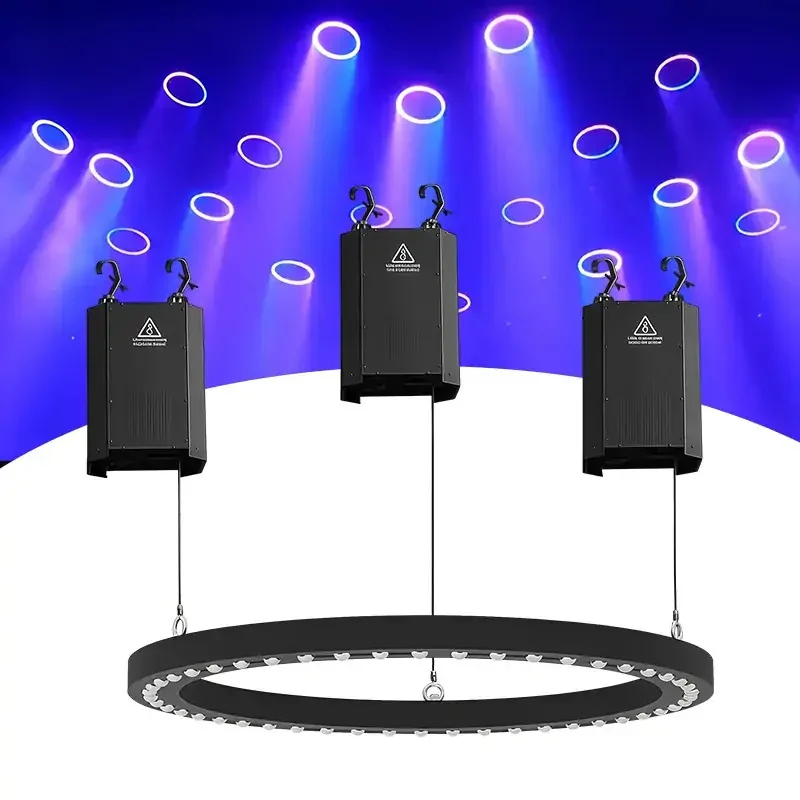

SJQ45 Vertical Hoist LED Beam Ring with 1-6m Lifting Height and 48x15W RGBW LEDs
The JC LIGHT SJQ45 is a professional vertical hoist LED beam ring system designed for weddings, stage shows, nightclubs, concerts, ceremonies, bars and entertainment venues. The system combines a motorized lifting winch with a 1.1-meter RGBW beam ring, allowing the lighting effect to move vertically from 1 to 6 meters.
The lifting unit features electronic anti-fall protection and a drive-shaft brake, while the RGBW beam ring uses 48 × 15W LEDs with a narrow 3° beam angle. DMX512 control, master-slave, auto-run and sound modes provide flexible programming for dynamic stage installations.
Key Features
- Professional vertical hoist LED beam ring system
- 1-6 meter lifting height, customizable
- 0.5 m/s lifting speed
- 0.5-8 kg lifting load capacity
- Vertical hoisting installation
- Electronic anti-fall protection
- Drive-shaft braking system
- 1.77-inch Chinese and English LCD display
- Aluminum alloy winch housing
- 48 × 15W RGBW LED beam ring
- 3° beam angle
- 1.1-meter ring diameter
- Point control
- Hose racing effect
- DMX512 control
- 18CH / 74CH DMX modes
- Master-slave, auto-run and sound control
- Rated lifespan ≥50,000 hours

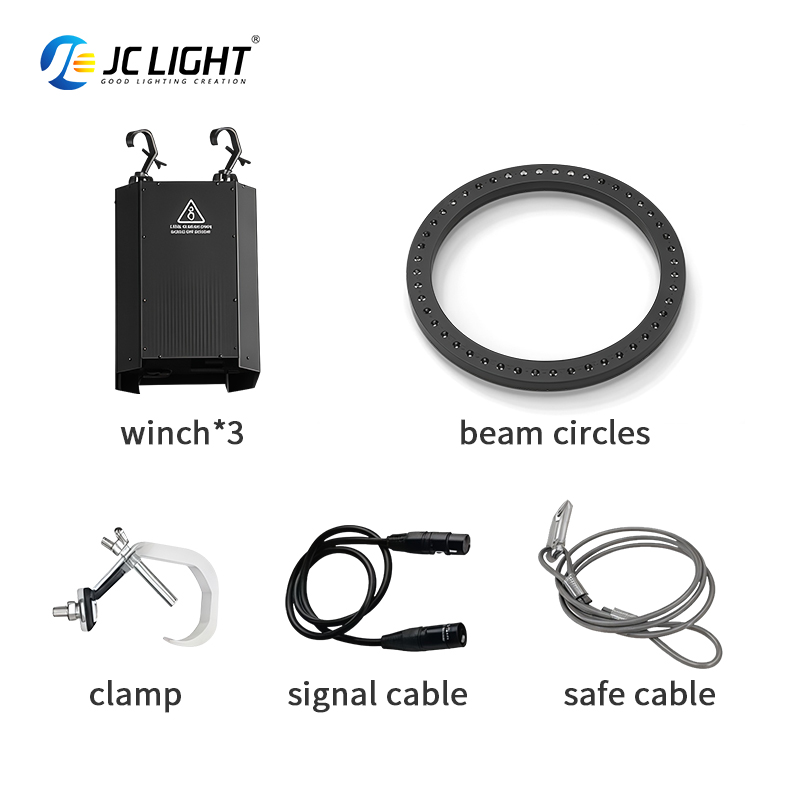

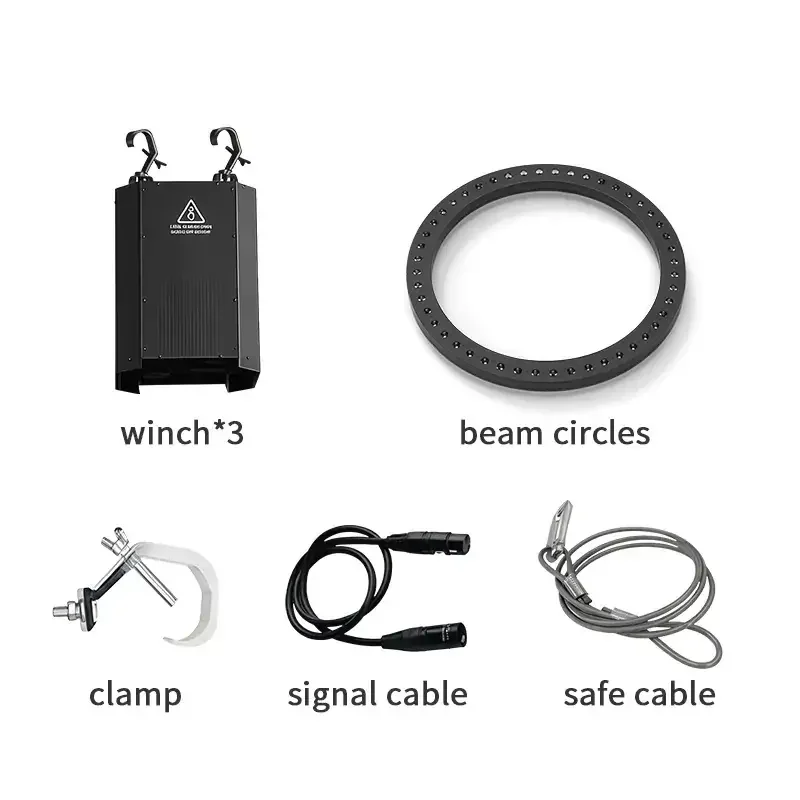

System Configuration
| Component | Main Specification |
| Vertical Hoist Winch | 350W, 1-6m lifting height, 0.5 m/s lifting speed |
| LED Beam Ring | 450W, 48 × 15W RGBW LEDs, 3° beam angle |
Technical Specifications
| SKU | SJQ45 |
| Input Voltage | AC100-240V, 50/60Hz |
| Winch Power Consumption | 350W |
| Installation Method | Vertical Hoisting |
| Rated Lifespan | ≥50,000 Hours |
| Lifting Height | 1-6 m, Customizable |
| Lifting Speed | 0.5 m/s |
| Lifting Load | 0.5-8 kg Maximum |
| Winch Housing | Aluminum Alloy |
| Protection | Electronic Anti-Fall / Drive-Shaft Brake |
| Display | 1.77-Inch LCD, Chinese and English |
| Control Modes | DMX512 / Master-Slave / Auto Run / Sound |
| DMX Channels | 18CH / 74CH |
| Winch Size | 381 × 153 × 293 mm |
| Winch Net Weight | 12 kg |
| LED Beam Ring Power Consumption | 450W |
| LED Beam Ring Light Source | 48 × 15W RGBW LEDs |
| Beam Angle | 3° |
| Beam Ring Features | Point Control / Hose Racing Effect |
| Beam Ring Diameter | 1.1 m |
| Beam Ring Net Weight | 8.5 kg |
1-6 Meter Vertical Lifting Effect
The SJQ45 provides a 1-6 meter lifting range, allowing the RGBW beam ring to move vertically during shows. The lifting height can also be customized according to venue and project requirements.
0.5 m/s Motorized Hoist Movement
With a lifting speed of 0.5 m/s, the winch can create smooth vertical movement for stage entrances, music drops, wedding moments and synchronized lighting sequences.
Electronic Anti-Fall and Brake Protection
The lifting system includes electronic anti-fall protection and a drive-shaft brake, providing additional protection for suspended stage-effect installations.

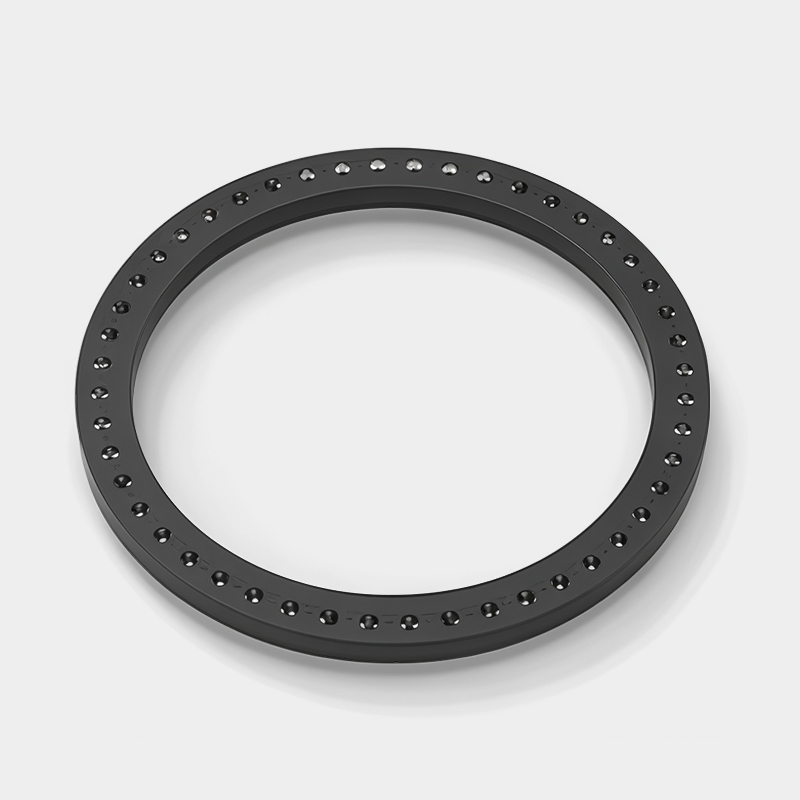

48x15W RGBW LED Beam Ring
The 1.1-meter beam ring uses 48 × 15W RGBW LEDs and consumes 450W. The RGBW configuration enables colorful beam effects for concerts, weddings, clubs and entertainment venues.
3° Narrow Beam Angle
A narrow 3° beam angle produces concentrated beams that are especially effective when used with atmospheric effects in professional stage productions.
Point Control and Hose Racing Effects
The LED beam ring supports point control and hose racing effects, allowing programmers to create dynamic chasing and animated lighting patterns around the circular fixture.
DMX512 Control with 18CH and 74CH Modes
The SJQ45 supports DMX512 with 18CH and 74CH control modes. Master-slave, auto-run and sound modes are also available for different professional lighting applications.
Application Scenarios
- Wedding stage lighting
- Concert productions
- Nightclub installations
- Stage shows
- Opening and award ceremonies
- Bar and entertainment venue lighting
- Cafe and themed venue installations
- Live performance stages
- Professional rental lighting systems
- Creative kinetic lighting installations
Why Choose JC LIGHT
- Professional kinetic and stage lighting manufacturer
- Integrated vertical hoist and LED beam ring system
- Customizable 1-6 meter lifting height
- Electronic anti-fall and mechanical brake protection
- 48 × 15W RGBW LED beam ring
- Narrow 3° beam output
- Point-control and racing effects
- DMX512 professional control
- Suitable for rental companies, venues and project contractors
- OEM and ODM stage lighting solutions available
SJQ45 Vertical Hoist LED Beam Ring FAQ
What is the lifting height of the SJQ45?
The SJQ45 supports a 1-6 meter lifting height, and the lifting range can be customized according to project requirements.
How fast does the LED beam ring move?
The specified lifting speed is 0.5 meters per second.
What is the maximum lifting load?
The lifting system supports a specified load range of 0.5-8 kg maximum.
What safety protection does the lifting system include?
The winch includes electronic anti-fall protection and a drive-shaft brake.
What light source does the beam ring use?
The beam ring uses 48 × 15W RGBW LEDs with a total power consumption of 450W.
What is the beam angle of the LED ring?
The LED beam ring has a narrow 3° beam angle.
What DMX channel modes are available?
The SJQ45 supports 18CH and 74CH DMX control modes, together with master-slave, auto-run and sound control.
Where can the SJQ45 vertical hoist beam ring be used?
It is suitable for weddings, stage shows, nightclubs, concerts, ceremonies, bars, cafes and professional entertainment venues.
