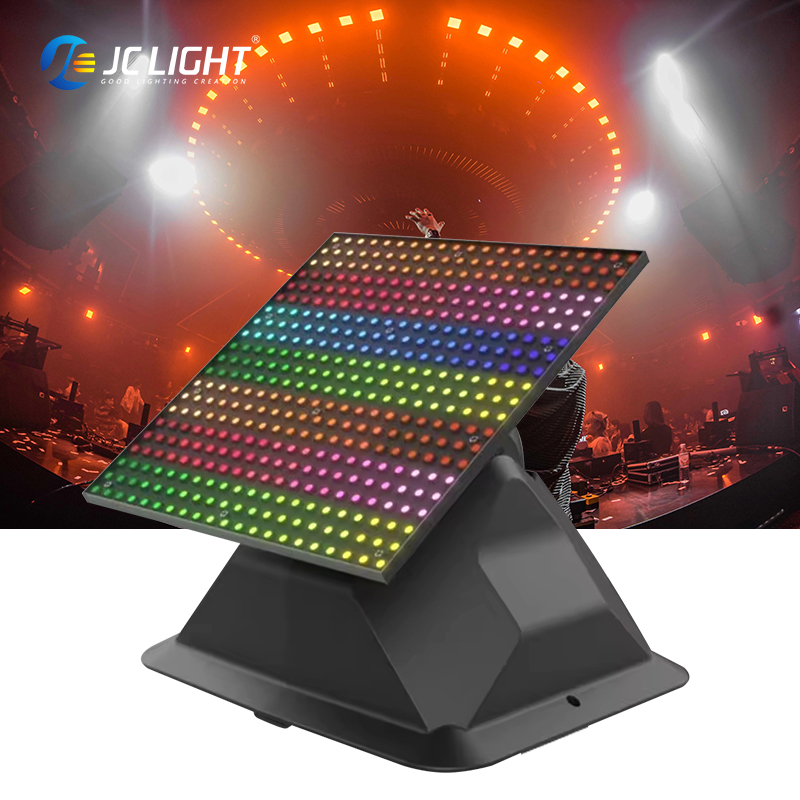

90W RGB Pixel XY Moving Head Strobe Wash Light with 441 LEDs
The JC LIGHT 90W RGB Pixel XY Moving Head Strobe Wash Light uses 441 × 0.2W SMD5050 RGB 3-in-1 LEDs to combine wash, flash and XY shaking-head effects in one compact stage fixture. With multiple DMX channel modes and high-density RGB pixel control, it is suitable for concerts, DJ stages, clubs, live shows and professional rental productions.
The fixture features 32-bit 0-100% linear dimming, a 1-30Hz strobe system and RDM support. DMX512 signal input/output and power input/output simplify integration into multi-fixture stage systems, while the available 154CH and 162CH modes provide detailed programming options for complex RGB effects.
Key Features
- 90W professional RGB pixel moving head effect light
- 441 × 0.2W SMD5050 RGB 3-in-1 LEDs
- XY shaking-head effect
- Wash lighting effect
- High-speed flash and strobe effects
- 32-bit 0-100% linear dimming
- 1-30Hz strobe frequency
- Multiple DMX channel modes: 1 / 18 / 154 / 162CH
- DMX512 control
- RDM function
- Master-slave operation
- Auto-run mode
- Sound control mode
- DMX512 XLR input and output
- Power input and output
- Metal black housing
- IP20 protection rating
Technical Specifications
| Input Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 90W |
| Light Source | 441 × 0.2W SMD5050 RGB 3-in-1 LEDs |
| Main Effects | XY Shaking Head + Flash + Wash |
| Dimming | 32-Bit 0-100% Linear Dimming |
| Strobe | 1-30Hz |
| Control Modes | DMX512 / Master-Slave / Auto / Sound |
| RDM | Supported |
| DMX Channels | 1CH / 18CH / 154CH / 162CH |
| Signal Connection | DMX512 XLR Input / Output |
| Power Connection | Power Input / Output |
| Housing | Metal, Black |
| IP Rating | IP20 |
| Inner Package Size | 31 × 31 × 34 cm |
| Carton Package Size | 64 × 64 × 37 cm, 4 Units per Carton |
| Net Weight | 4.1 kg |
| 4-in-1 Carton Gross Weight | 17.2 kg |
441 RGB LED Pixel Matrix
The fixture integrates 441 SMD5050 RGB 3-in-1 LEDs into a high-density lighting surface. This LED configuration allows the fixture to produce colorful wash, flash and programmable visual effects for dynamic stage designs.
XY Shaking Head Effects
The integrated XY shaking-head function adds physical movement to the RGB lighting output, creating a more dynamic visual effect than a conventional static LED strobe or wash fixture.
Wash, Flash and Pixel Effects in One Fixture
By combining RGB wash, high-speed flash and moving effects, the fixture can serve multiple functions within a professional lighting system. It can be used for background color, rhythmic strobe sequences and animated stage effects.
154CH and 162CH Advanced DMX Programming
Four DMX channel modes are available: 1CH, 18CH, 154CH and 162CH. The simplified modes are useful for basic control, while the high-channel modes provide lighting programmers with additional control options for more detailed RGB effect programming.
32-Bit Linear Dimming
The fixture uses 32-bit 0-100% linear dimming for precise brightness adjustment and smoother intensity transitions during programmed stage scenes.
1-30Hz High-Speed Strobe
An adjustable 1-30Hz strobe system supports everything from slower rhythmic flashes to rapid high-energy effects for concerts, DJ performances and entertainment venues.
DMX512 and RDM Control
Professional control options include DMX512 and RDM, together with master-slave, auto-run and sound modes. DMX XLR input/output and power input/output make it easier to connect multiple fixtures within a stage lighting installation.
Application Scenarios
- Concert stage lighting
- DJ and nightclub lighting
- Music festival productions
- Live performance stages
- Wedding and event lighting
- Entertainment venues
- Stage background effects
- Professional rental lighting systems
- Multi-fixture pixel effect installations
Why Choose JC LIGHT
- Professional stage effect lighting manufacturer
- High-density 441 RGB LED lighting surface
- Wash, flash and XY shaking-head effects in one fixture
- 32-bit linear dimming
- Multiple DMX channel modes for simple and advanced programming
- DMX512 and RDM support
- DMX and power input/output connections
- Suitable for distributors, rental companies and lighting contractors
- OEM and ODM stage lighting solutions available
90W RGB Pixel XY Moving Head Strobe Wash Light FAQ
How many LEDs does this RGB pixel effect light use?
The fixture uses 441 × 0.2W SMD5050 RGB 3-in-1 LEDs.
What effects can this fixture produce?
It combines XY shaking-head movement, RGB wash and flash effects in one stage lighting fixture.
What DMX channel modes are available?
The fixture provides 1CH, 18CH, 154CH and 162CH control modes for different programming requirements.
Does the fixture support RDM?
Yes. It supports RDM functionality together with DMX512 control.
What is the strobe speed?
The fixture supports an adjustable 1-30Hz strobe frequency.
Does this LED effect light support smooth dimming?
Yes. It provides 32-bit 0-100% linear dimming for precise intensity control.
Can several fixtures be connected together?
Yes. The fixture provides DMX512 XLR input/output and power input/output for integration into multi-fixture professional stage lighting systems.
Is this fixture designed for outdoor use?
The fixture has an IP20 rating, so it is primarily intended for indoor use or professionally protected stage environments rather than direct exposure to rain or weather.
