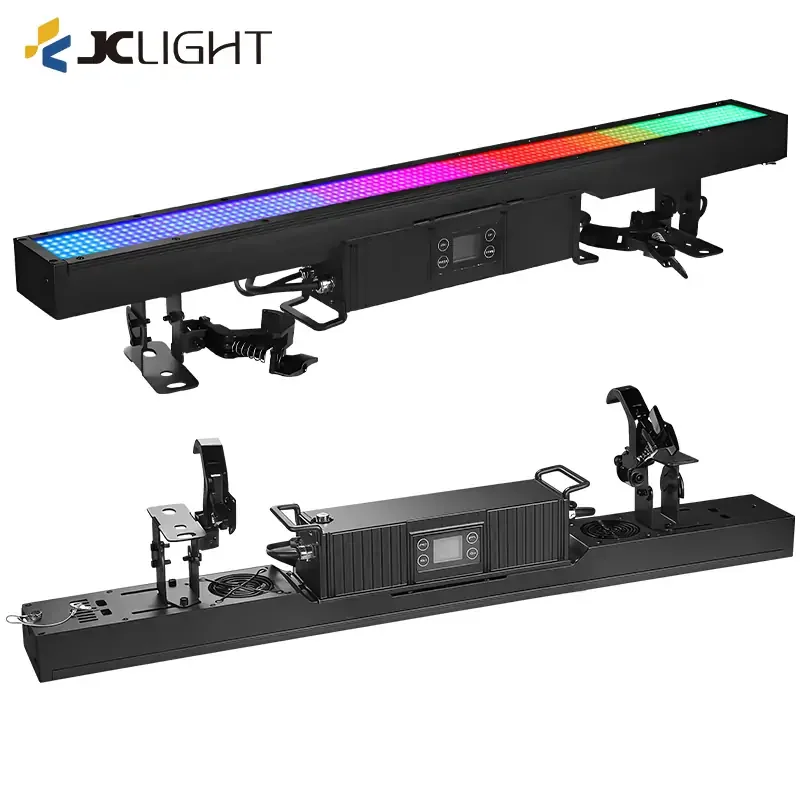

JC LIGHT Waterproof LED Pixel Strobe Light Bar OEM
Voltage：AC110-240V, 50/60Hz
Power consumption: 600W
Light Source：672pcs*0.5W RGB LEDs+112pcs*3W White LED
Frost：Electronic frost
Dimming：Electronic linear dimming 0~100%
Strobe frequency: 1~30HZ
Material: cast aluminum, black
Segment：32 segments RGB+16 segments WHITE, can be controlled individually
Advantages: Convenient handling on both sides, side cover splicing, efficient heat dissipation
Features: Running horse+explosion flash+flowing water 32 segment RGB+16 segment white light
Control Mode：DMX512/mater-slave/auto/sound,with RDM function
IP Rating：IP65
Product Size: 100x15x32cm
Package Size: 105x14x25cm
Net weight: 9.7kgs
Gross weight: 10.5kgs
- Description
- Details
Description
Effect:
600W IP65 RGBW Pixel Strobe Bar Light with 48 Segment Control
The JC LIGHT 600W IP65 RGBW Pixel Strobe Bar Light is a professional stage effect fixture combining 672pcs RGB LEDs and 112pcs high-power white LEDs. With 32 independently controllable RGB segments and 16 independently controllable white segments, the fixture can create detailed pixel effects, running horse effects, flowing water animations and powerful explosion-style flashes.
Designed for concerts, festivals, touring productions, clubs and professional rental projects, the fixture features IP65 weather protection, electronic frost, 0-100% linear dimming and adjustable 1-30Hz strobe. Its cast aluminum housing, efficient heat dissipation, side-cover splicing design and convenient handles on both sides make it practical for large-scale stage installations and frequent rental use.
Key Features
- 600W professional RGBW pixel strobe bar light
- 672pcs 0.5W RGB LEDs
- 112pcs 3W white LEDs
- 32 independently controllable RGB segments
- 16 independently controllable white segments
- 48 total individually controllable lighting segments
- Running horse, explosion flash and flowing water effects

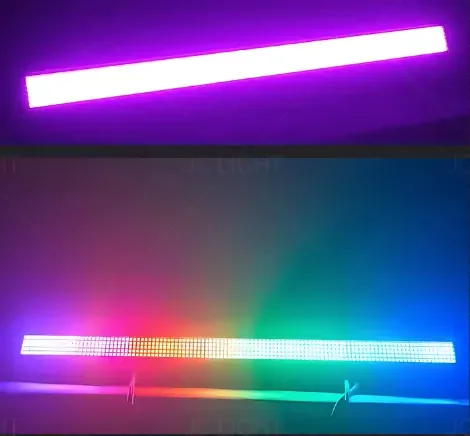

- Electronic frost for softer lighting effects
- 0-100% electronic linear dimming
- 1-30Hz adjustable high-speed strobe
- DMX512 control with RDM function
- DMX512, master-slave, auto and sound control modes
- IP65 protection for indoor and outdoor stage applications
- Durable black cast aluminum housing
- Side-cover splicing design for multi-fixture installations
- Handles on both sides for convenient transportation and installation
- Efficient heat dissipation for professional applications
Technical Specifications
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 600W |
| RGB Light Source | 672 × 0.5W RGB LED |
| White Light Source | 112 × 3W White LED |
| RGB Segments | 32 Individually Controllable Segments |
| White Segments | 16 Individually Controllable Segments |
| Total Segment Control | 32 RGB + 16 White Segments |
| Built-In Effects | Running Horse + Explosion Flash + Flowing Water |
| Frost | Electronic Frost |
| Dimming | 0-100% Electronic Linear Dimming |
| Strobe Frequency | 1-30Hz |
| Control Mode | DMX512 / Master-Slave / Auto / Sound / RDM |
| Material | Cast Aluminum, Black |
| Installation Design | Side-Cover Splicing |
| Handling | Handles on Both Sides |
| Heat Dissipation | Efficient Heat Dissipation Design |
| IP Rating | IP65 |
| Product Size | 100 × 15 × 32 cm |
| Package Size | 105 × 14 × 25 cm |
| Net Weight | 9.7 kg |
| Gross Weight | 10.5 kg |

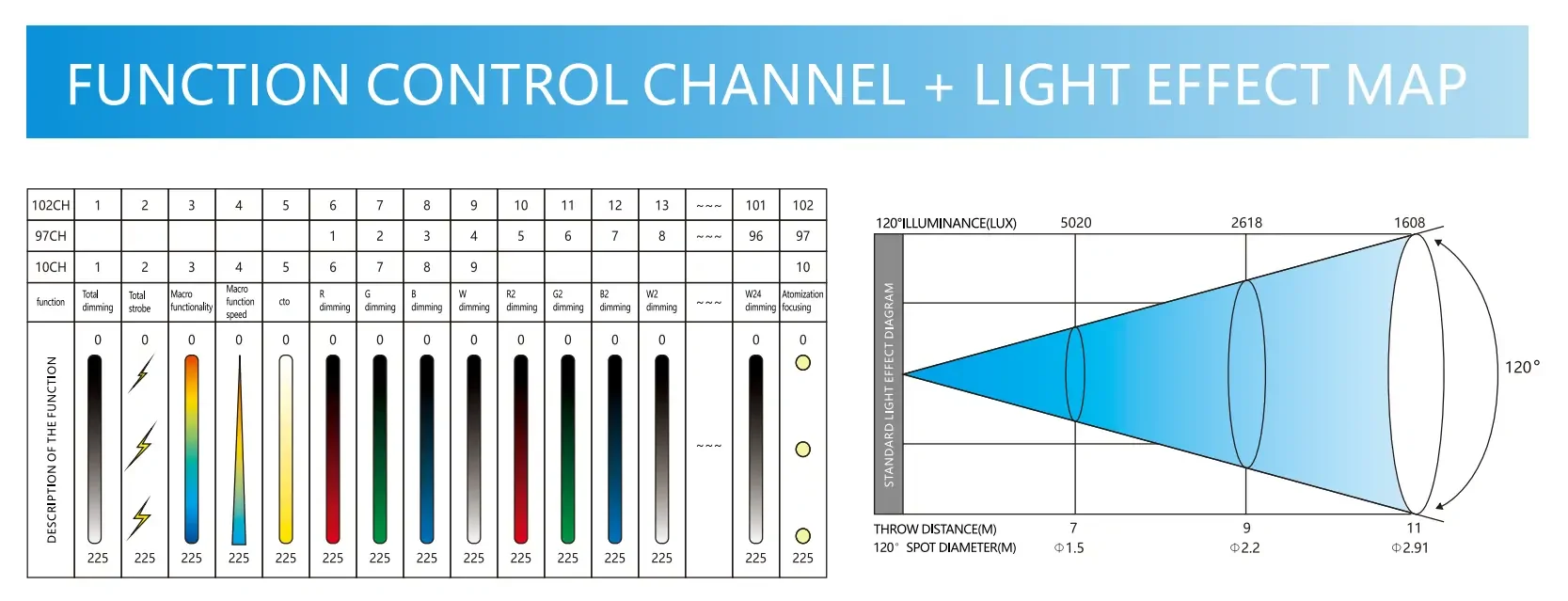

48 Segment RGBW Pixel Control
The fixture divides its light sources into 32 RGB segments and 16 white segments, with each segment individually controllable. This segmented architecture gives lighting programmers greater flexibility to create pixel chases, flowing animations, alternating RGB and white patterns and synchronized visual sequences across the full length of the fixture.
Powerful Strobe and Dynamic Pixel Effects
The combination of RGB pixel LEDs and high-power white LEDs allows the fixture to produce colorful running effects together with intense white strobe output. Built-in running horse, explosion flash and flowing water effects, combined with an adjustable 1-30Hz strobe frequency, provide multiple options for concerts, electronic music events and other high-energy productions.

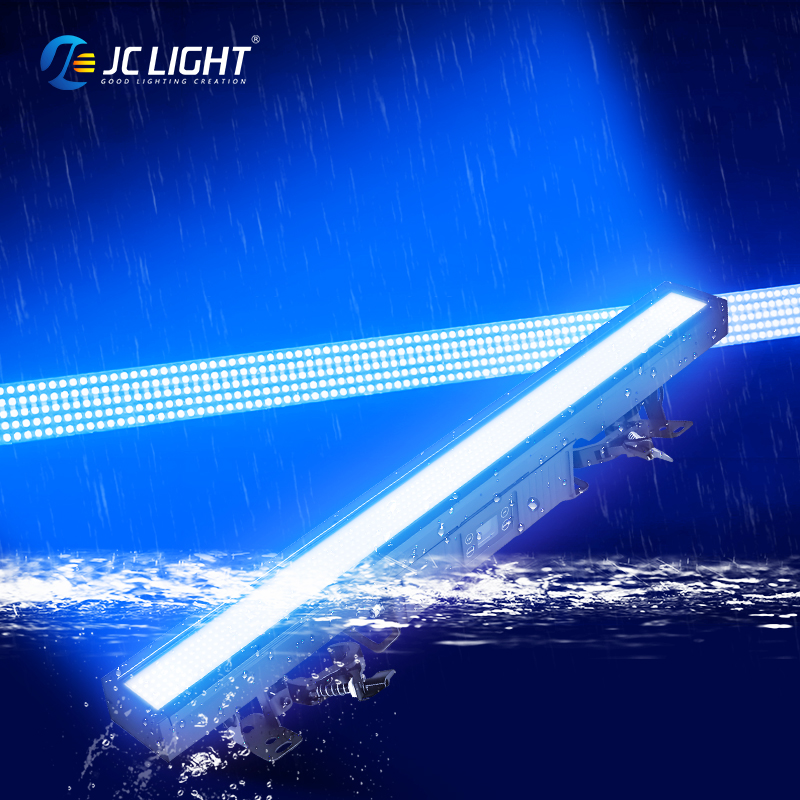

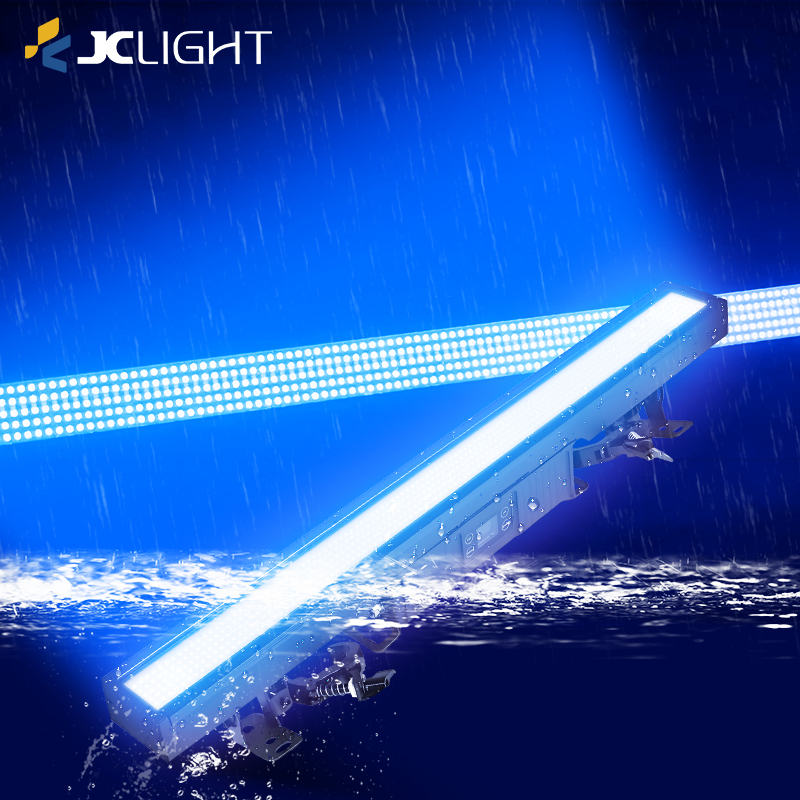

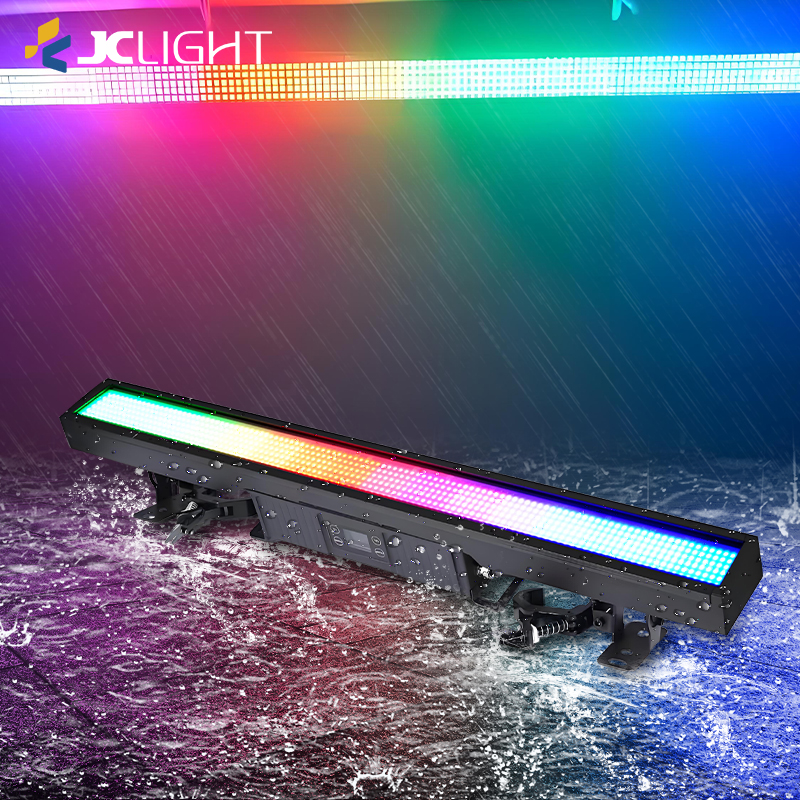

IP65 Design for Indoor and Outdoor Stages
With an IP65 protection rating, this LED pixel strobe bar can be used for both indoor and outdoor professional stage applications. The cast aluminum housing also provides a durable structure and efficient heat dissipation for demanding event and rental environments.

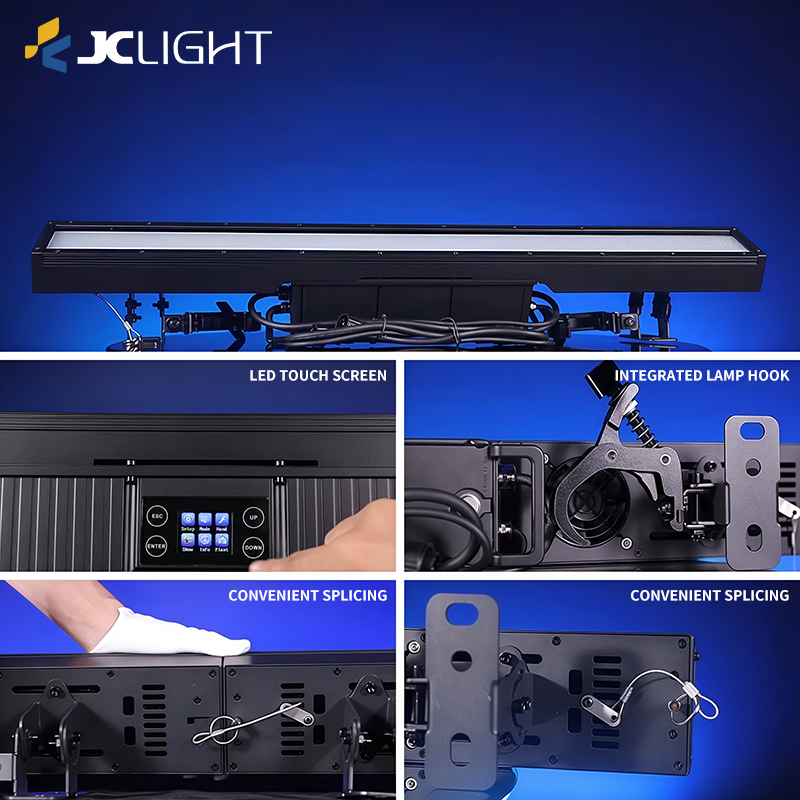

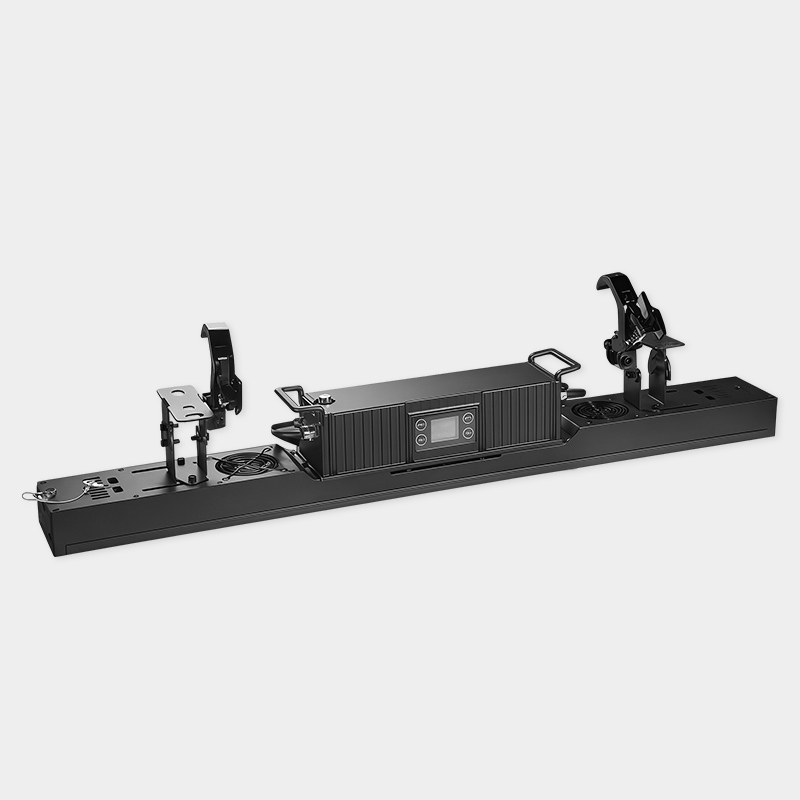

Splicing Design for Large Stage Installations
The side-cover splicing structure allows multiple fixtures to be arranged together for larger lighting installations. Lighting designers can combine multiple units to create extended linear effects, stage borders, lighting walls and synchronized pixel arrays for large concert and festival productions.

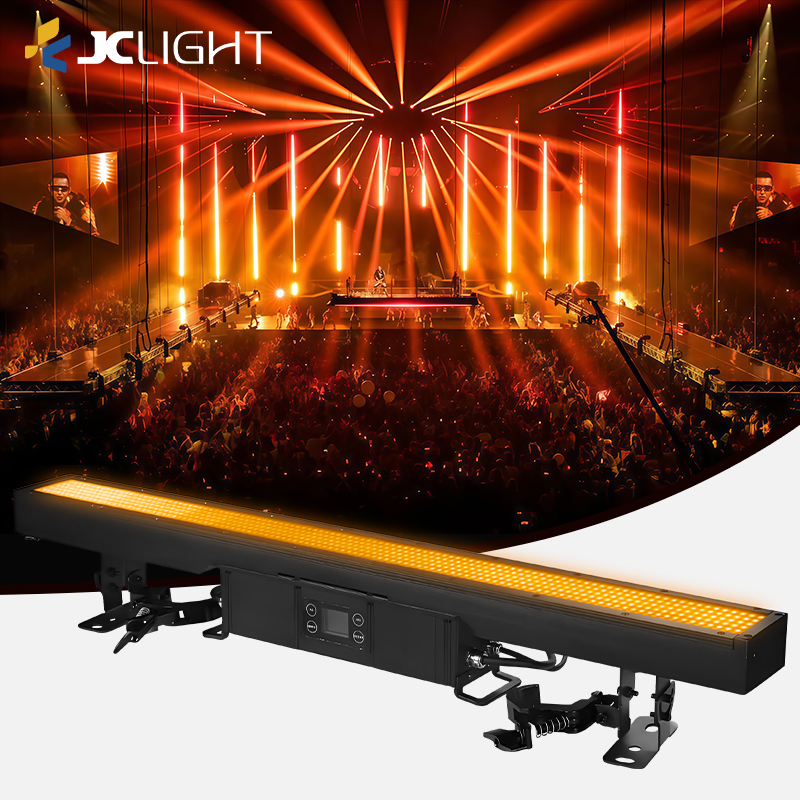

Application Scenarios
- Concert and touring stage lighting
- Outdoor festival lighting
- Electronic music and DJ events
- Nightclub lighting installations
- Live performance stage effects
- TV shows and entertainment productions
- Professional rental lighting projects
- Large RGBW pixel and strobe installations
Why Choose JC LIGHT
- Professional LED pixel strobe light manufacturer
- RGB pixel effects and high-power white strobe integrated into one fixture
- 48 individually controllable segments for detailed programming
- IP65 protection for indoor and outdoor professional applications
- Splicing design suitable for large-scale stage installations
- RDM support for professional lighting system management
- OEM and ODM customization for distributors, rental companies and project contractors
600W IP65 RGBW Pixel Strobe Bar Light FAQ
What LEDs does this 600W pixel strobe bar use?
The fixture combines 672pcs 0.5W RGB LEDs with 112pcs 3W white LEDs for colorful pixel effects and powerful white strobe effects.
How many individually controllable segments does the fixture have?
It provides 32 individually controllable RGB segments and 16 individually controllable white segments, giving a total of 48 segmented control zones.
What pixel and strobe effects can it create?
The fixture supports running horse, explosion flash and flowing water effects, while individual segment control allows lighting programmers to create additional custom pixel sequences through DMX.
Can this LED strobe bar be used outdoors?
Yes. The fixture has an IP65 protection rating, making it suitable for both indoor and outdoor professional stage lighting applications.
Can multiple fixtures be connected together for a larger installation?
Yes. The fixture features a side-cover splicing design, making it convenient to arrange multiple units into extended linear stage lighting installations.
Does this pixel strobe light support RDM?
Yes. It supports DMX512 with RDM function for professional lighting system configuration and management.
Do you provide OEM and ODM services for LED pixel strobe lights?
Yes. JC LIGHT provides OEM and ODM customization for stage lighting distributors, rental companies, event contractors and professional lighting projects.
Need wholesale pricing for the 600W IP65 RGBW Pixel Strobe Bar Light? Contact JC LIGHT with your required quantity, installation layout and project requirements.
