JC LIGHT Ma Notebook OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT Ma Notebook OEM
Get factory pricing, OEM support and delivery information for this product.
- Description
- Details
Description
Video:

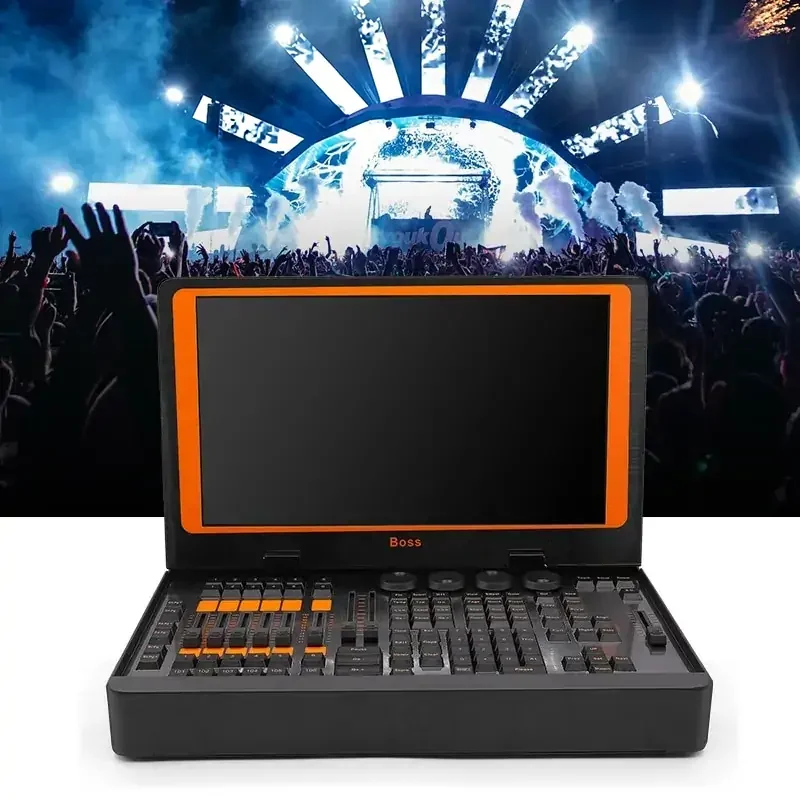

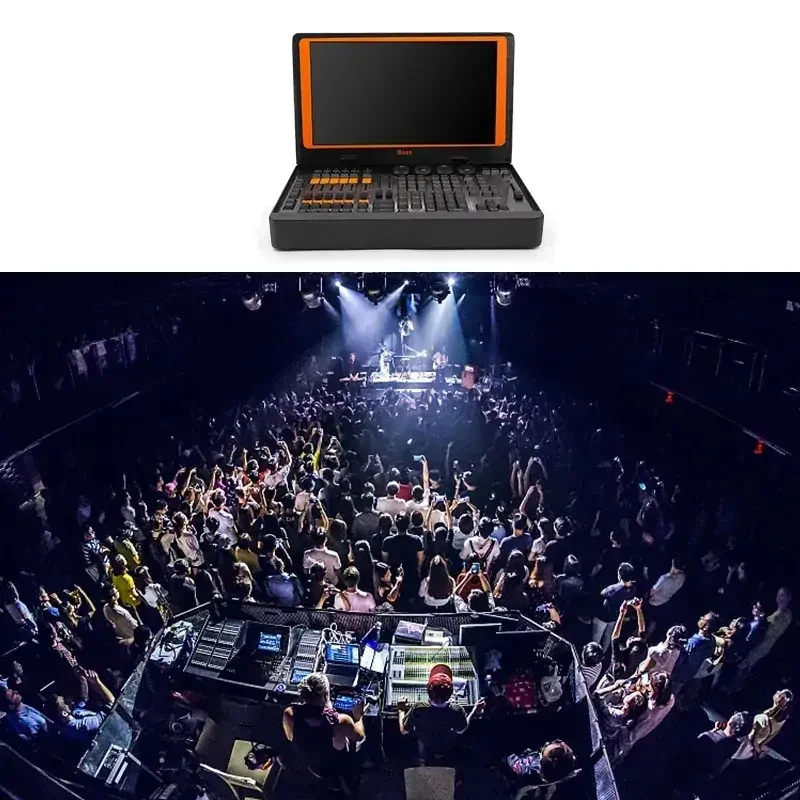

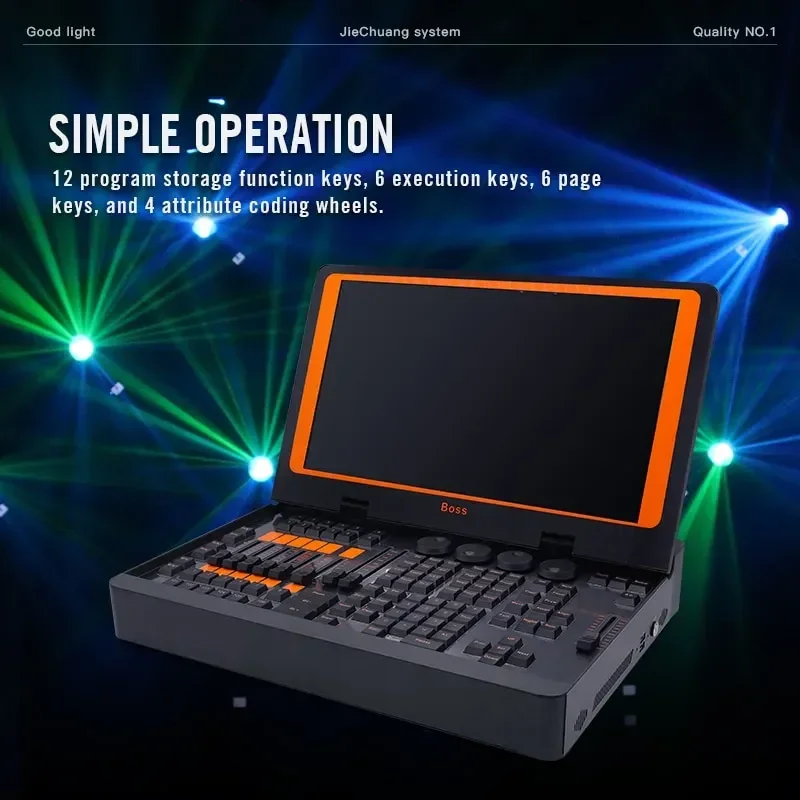

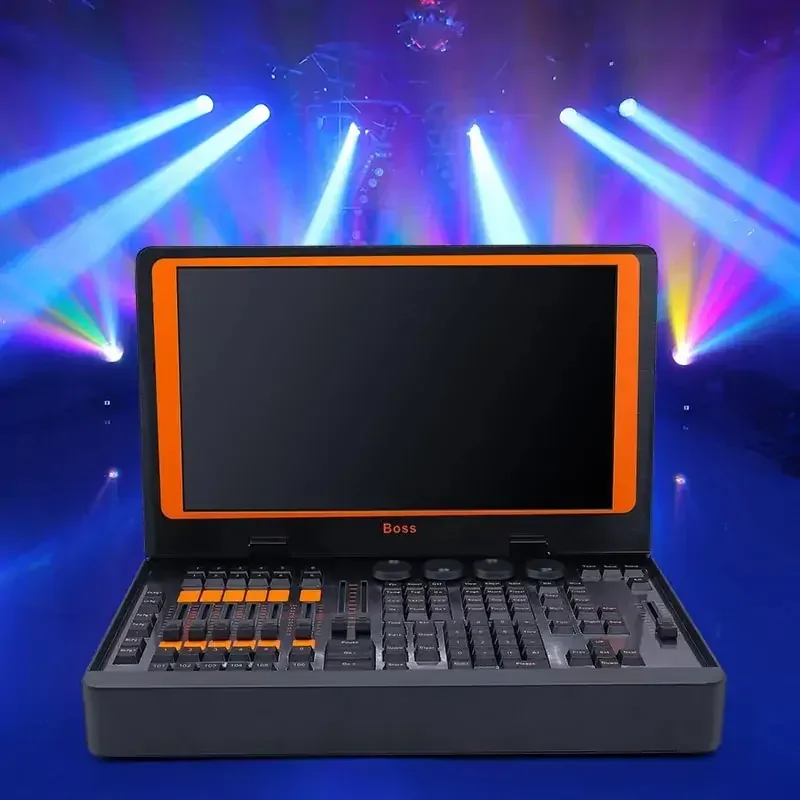

L11 Professional Lighting Console with MA3D and WYSIWYG 3D Visualization Support
The JC LIGHT L11 Professional Lighting Console is a compact and powerful stage lighting controller designed for professional lighting programming, rental companies, theaters, concerts and live event productions. Equipped with an Intel Core i5 processor, 4GB RAM, 120GB SSD and built-in UPS power supply, it delivers stable performance for advanced lighting control and visualization applications.
Supporting MA3D and WYSIWYG 3D software advanced rendering, the L11 allows lighting designers to pre-program and visualize complex lighting shows before connecting to the actual lighting system. With DMX input/output interfaces, MIDI and LTC time code support, it provides a complete solution for professional stage lighting control.
Key Features
- Intel Core i5 CPU
- 4GB RAM memory
- 120GB SSD storage
- Supports MA3D advanced rendering
- Supports WYSIWYG 3D software advanced rendering
- 19-inch widescreen touch display
- 2 DMX-512 output interfaces
- 1 DMX-512 input interface (composite)
- 1 LTC time code input interface
- 1 MIDI time code input interface
- Master dimmer wheel
- 4 attribute encoder wheels
- 1 master push rod
- 2 AB push rods
- 6 program playback faders
- 12 program storage function keys
- 4 USB interfaces
- 1 audio interface
- 1 network interface
- Built-in UPS uninterruptible power supply
Technical Specifications
| Short Model Number | L11 |
| Product Type | Professional Stage Lighting Console |
| Processor | Intel Core i5 CPU |
| Memory | 4GB RAM |
| Storage | 120GB SSD |
| Display | 19-Inch Widescreen Touch Display |
| DMX Output | 2 × DMX-512 Output Interfaces |
| DMX Input | 1 × DMX-512 Input Interface (Composite) |
| Time Code Input | LTC and MIDI Time Code Input |
| Control Wheels | 1 Master Dimmer Wheel + 4 Attribute Encoder Wheels |
| Faders | 1 Master Fader + 2 AB Faders |
| Playback Control | 6 Program Playback Faders |
| Program Storage | 12 Program Storage Function Keys |
| USB Ports | 4 USB Interfaces |
| Audio Interface | 1 Audio Interface |
| Network Interface | 1 Network Interface |
| Power Supply | 110V~220V 50~60Hz |
| UPS | Built-In UPS Uninterruptible Power Supply |
| Product Size | 52 × 35 × 9 cm |
| Net Weight | 9.2 kg |
| Package Size | 57.5 × 45.5 × 21.5 cm |
| Package Weight | 12.5 kg |
MA3D and WYSIWYG 3D Visualization Support
The L11 lighting console supports MA3D and WYSIWYG 3D visualization software, allowing designers to create, simulate and optimize lighting shows before live installation.
Professional Touch Screen Operation
Equipped with a 19-inch widescreen touch display, the L11 provides convenient operation for lighting programming, parameter adjustment and show management.
Flexible DMX and Time Code Control
The console provides 2 DMX-512 outputs and 1 DMX-512 input, together with LTC and MIDI time code interfaces for professional synchronization between lighting, music and performance systems.
Advanced Programming Controls
The L11 includes a master dimmer wheel, four attribute encoder wheels, AB faders and playback controls, providing precise adjustment for moving heads, LED fixtures and intelligent lighting equipment.
Built-In UPS Protection
The integrated UPS uninterruptible power supply helps protect the lighting system and allows stable operation during unexpected power interruptions.
Compact Design for Professional Applications
With a compact body design and lightweight structure, the L11 is easy to transport and suitable for mobile productions, rental projects and professional stage applications.
Application Scenarios
- Concert stages
- Theaters
- Live performances
- Wedding events
- TV studios
- Nightclubs
- Lighting rental projects
- Professional stage productions
Why Choose JC LIGHT
- Professional stage lighting control solutions
- Supports MA3D and WYSIWYG visualization workflow
- Reliable DMX512 control system
- Compact and portable design
- Built-in UPS power protection
- Suitable for professional lighting designers and rental companies
- OEM and ODM solutions available
L11 Professional Lighting Console FAQ
What software does the L11 lighting console support?
The L11 supports MA3D and WYSIWYG 3D lighting visualization software.
What processor does the L11 use?
The console uses an Intel Core i5 CPU.
How much storage does the L11 have?
It includes a 120GB SSD and 4GB RAM.
How many DMX outputs does the L11 provide?
The L11 provides 2 DMX-512 output interfaces.
Does the L11 support MIDI and LTC time code?
Yes. It supports both LTC and MIDI time code input.
Does the L11 have a touch screen?
Yes. It features a 19-inch widescreen touch display.
Does the L11 include UPS protection?
Yes. It includes a built-in UPS uninterruptible power supply.
What lighting fixtures can the L11 control?
It can control professional stage lighting equipment including moving heads, LED fixtures and intelligent DMX lighting systems.
Where can the L11 lighting console be used?
It is suitable for concerts, theaters, weddings, TV studios, clubs and professional rental projects.
Need wholesale pricing for the JC LIGHT L11 Professional Lighting Console? Contact JC LIGHT for OEM, ODM and professional stage lighting control solutions.
