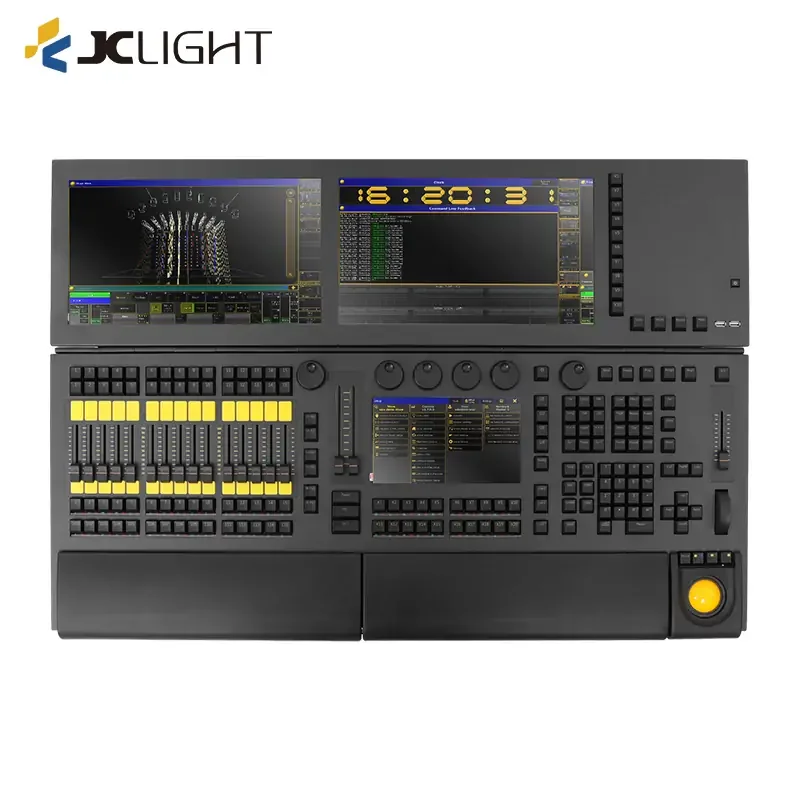

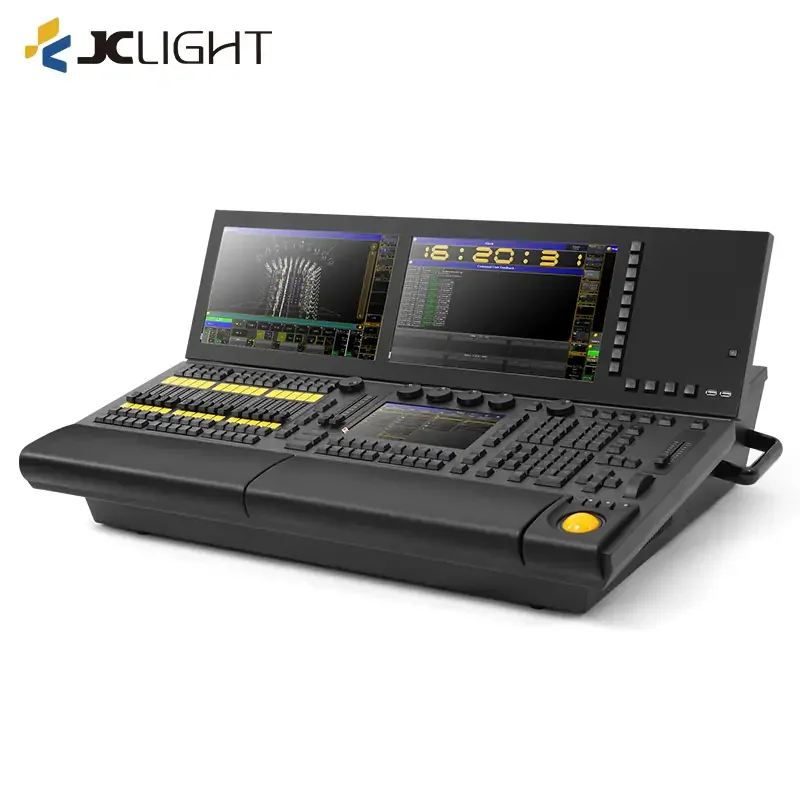

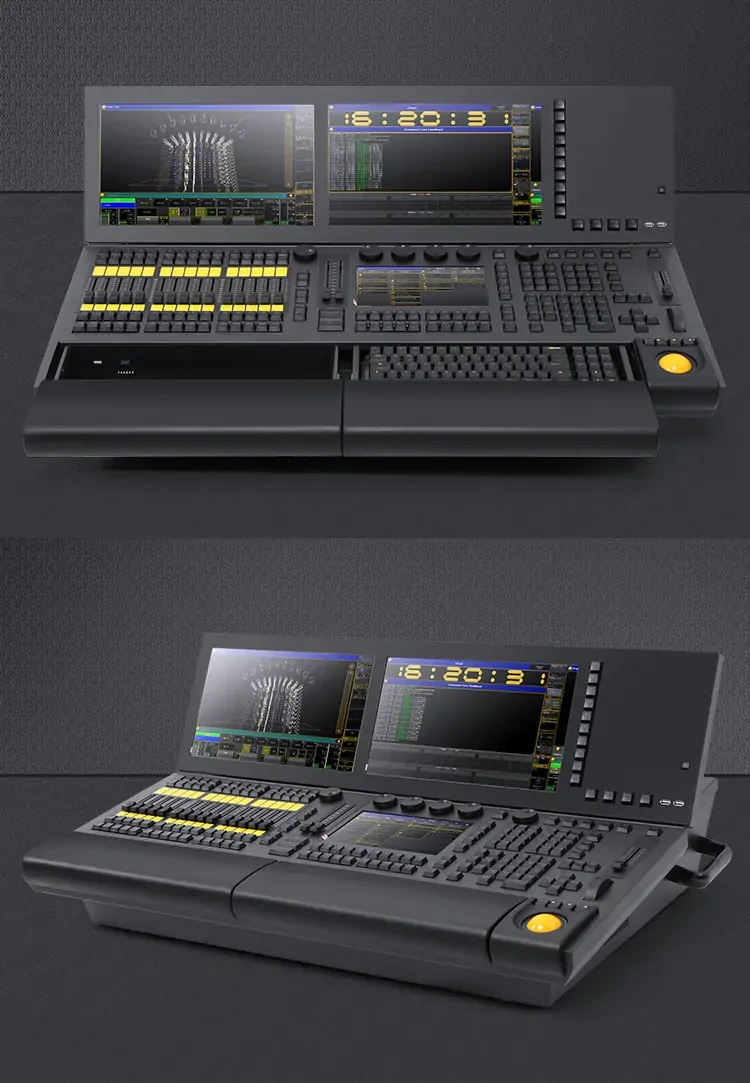

Professional Windows Lighting Console with 3 Touch Screens and 6 DMX Outputs

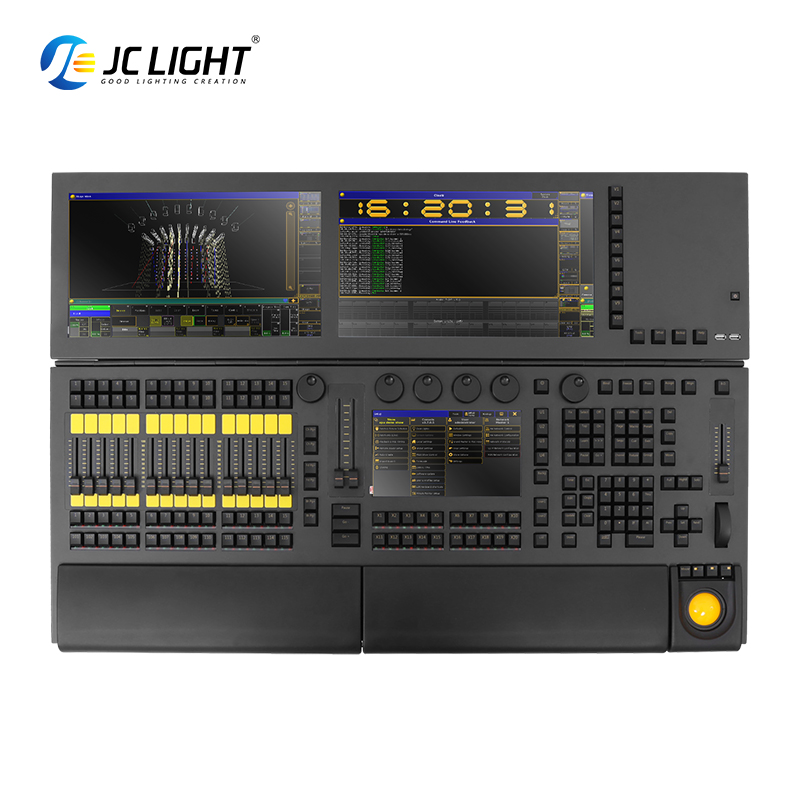

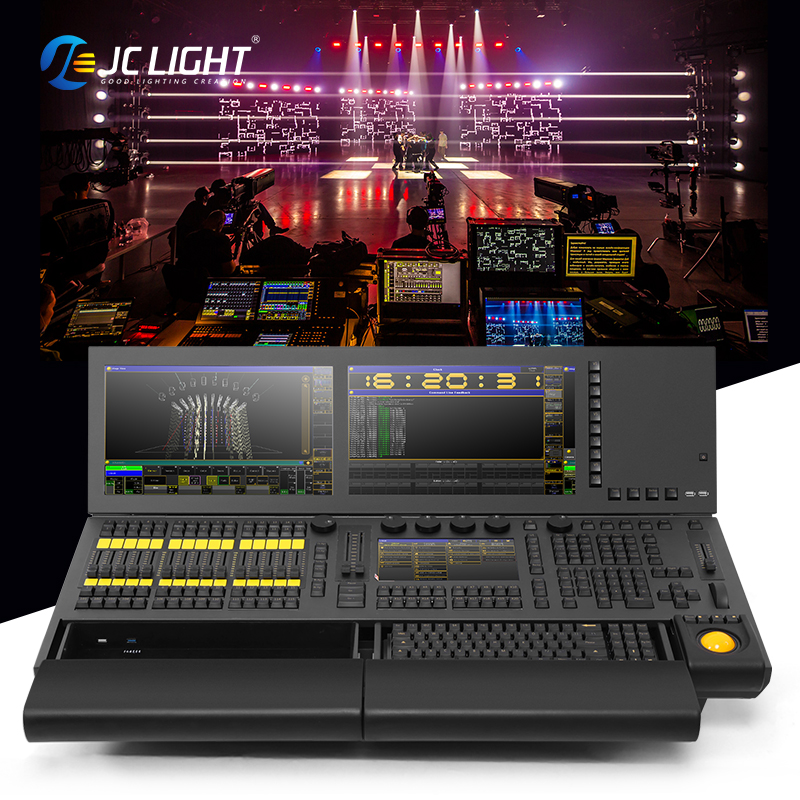

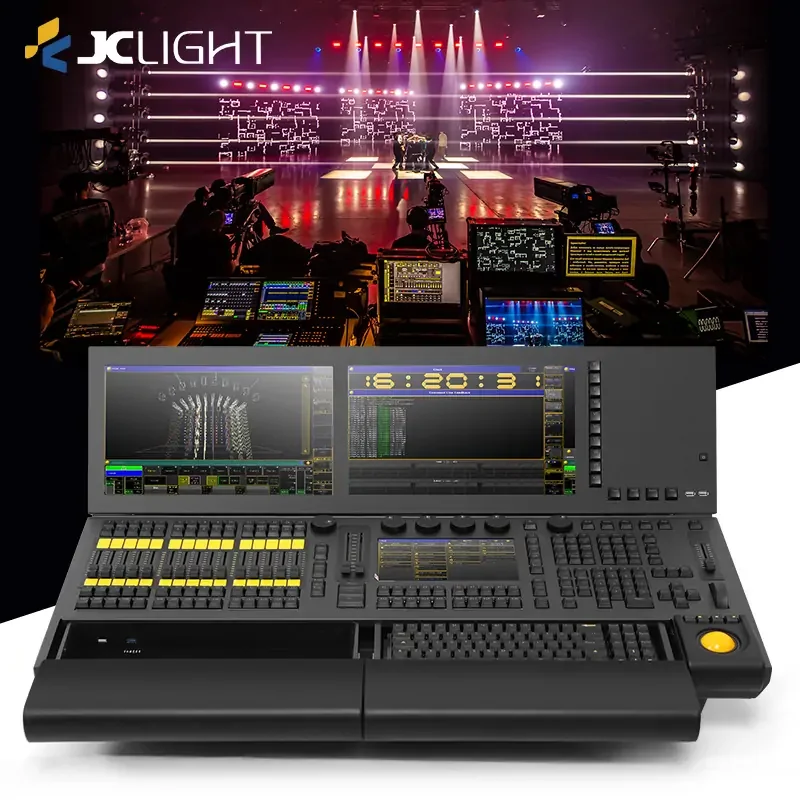

This professional lighting console is built on a Windows operating system and powered by an Intel Core i5-6500 processor, 8GB memory and a 240GB Kingston SSD. It combines one 9-inch touch screen with two 15.4-inch electric lifting widescreen touch displays, providing a large multi-screen workspace for complex stage lighting programming and live show operation.

The console supports Art-Net expansion up to 256 universes and includes 6 built-in DMX512 outputs plus 1 DMX512 input. It also integrates LTC and MIDI timecode, a sensitive trackball, playback faders, attribute encoders, dedicated USB connectivity, an independent isolated HIFI sound card and a built-in UPS, making it suitable for concerts, theatres, rental productions, festivals, broadcast shows and professional entertainment venues.

Key Features

• Windows operating system
• Intel Core i5-6500 CPU
• 8GB memory
• 240GB Kingston SSD
• 1 × 9-inch touch screen
• 2 × 15.4-inch electric lifting widescreen touch screens
• Fixed display window operation
• Built-in independent isolated HIFI-level sound card
• Built-in 18W fast-charging USB port
• Supports physical-button window closing and operation of other lighting software
• X1-X20, User1 and User2 button LEDs support synchronized program indication
• Art-Net network expansion up to 256 universes
• Network signal output without requiring an NPU
• Supports 1 external HDMI display
• Built-in high-power UPS uninterruptible power supply
• 6 built-in DMX512 output interfaces
• 1 built-in DMX512 input interface
• Expandable up to 256 DMX output interfaces
• High-sensitivity trackball

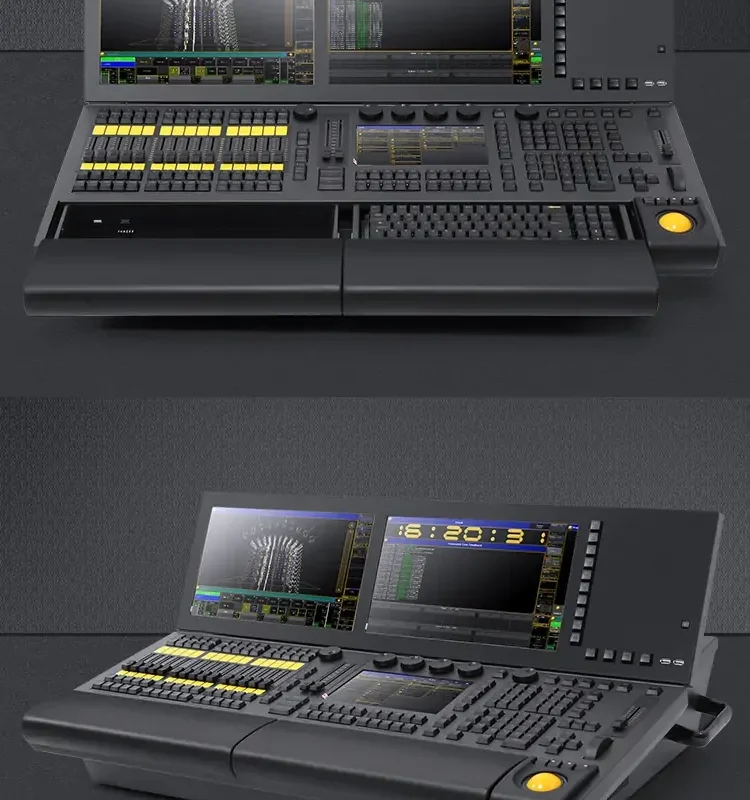

• Built-in keyboard drawer
• LTC timecode input
• MIDI timecode input
• 15 program playback faders
• 30 program storage function keys
• 4 attribute encoder wheels
• Master dimmer wheel and master fader
• 2 AB faders

Technical Specifications

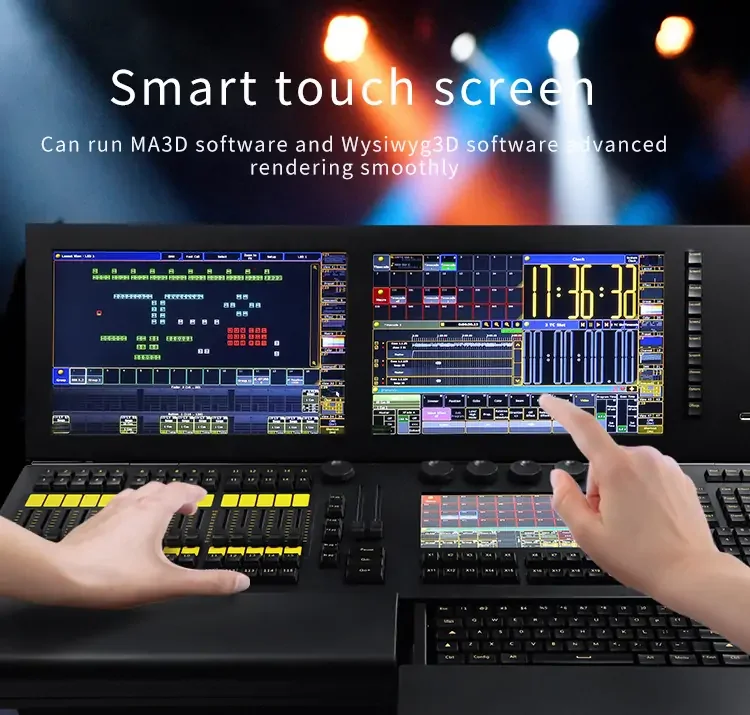

Three-Screen Professional Programming Workspace

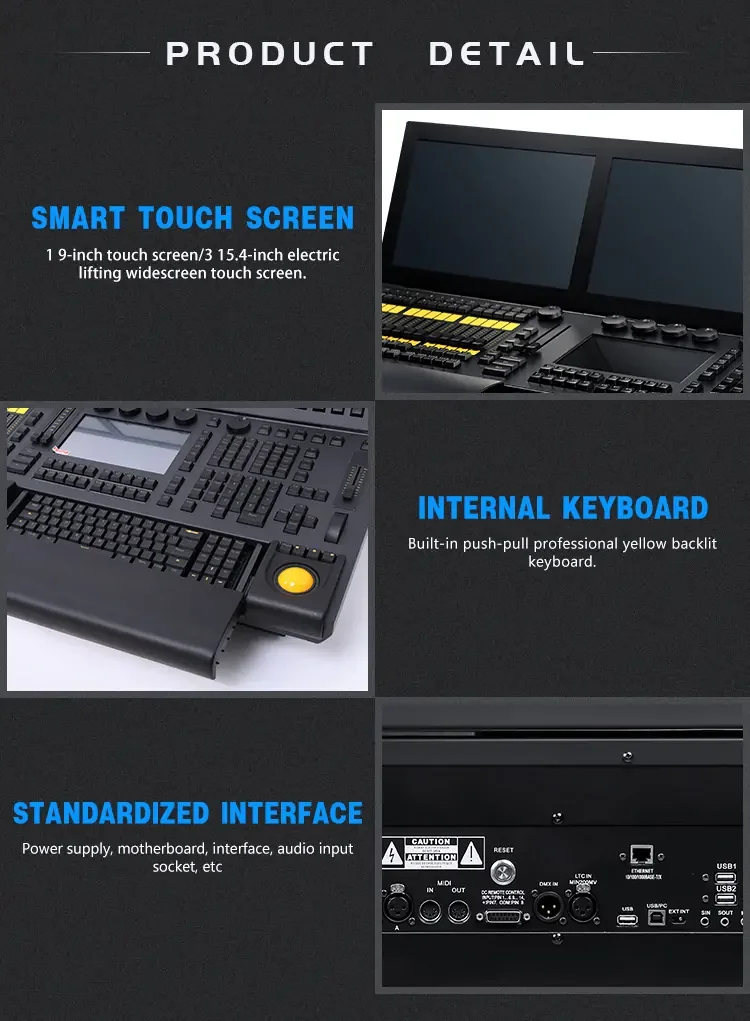

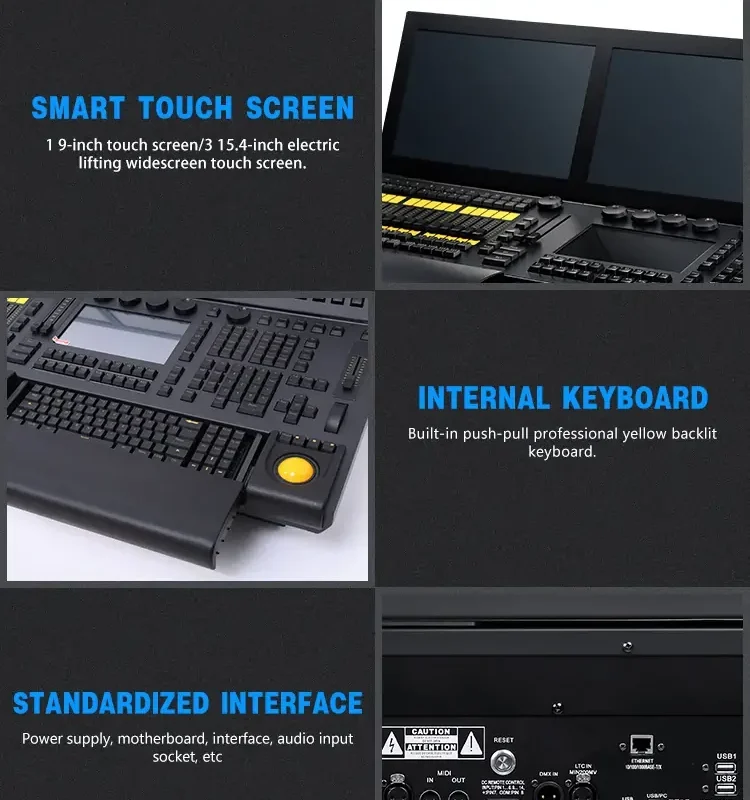

The console combines one 9-inch touch screen and two 15.4-inch electric lifting touch screens, providing operators with a large visual workspace for fixture selection, playback control, programming and show monitoring. An additional HDMI output allows one external display to be connected when more screen space is required.

Art-Net Expansion up to 256 Universes

The console supports Art-Net network expansion up to 256 universes. Network signals can be output directly without requiring an NPU, giving system integrators and lighting programmers greater flexibility when building large-scale lighting control networks.

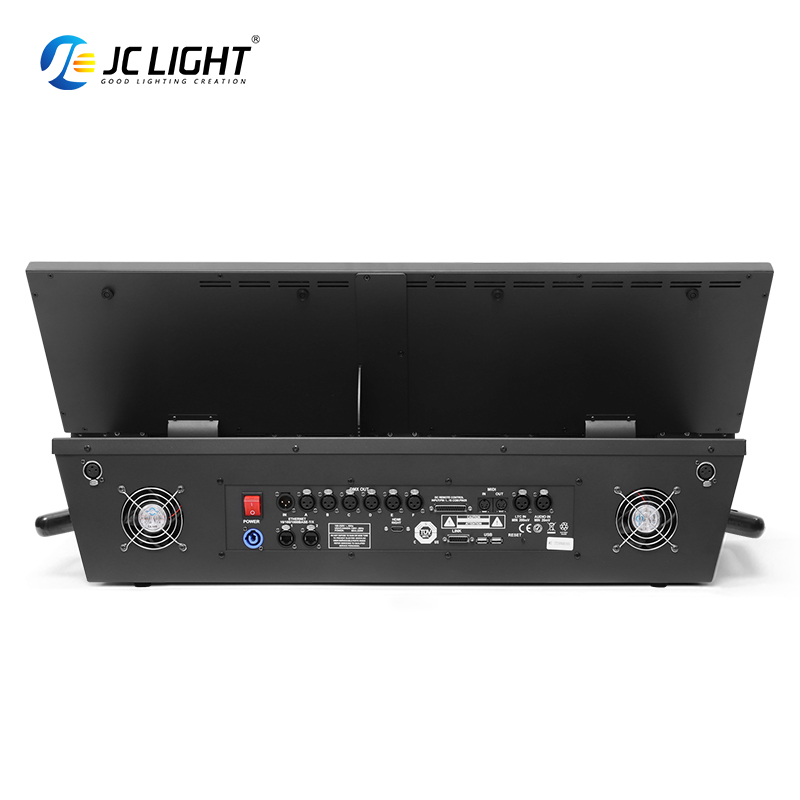

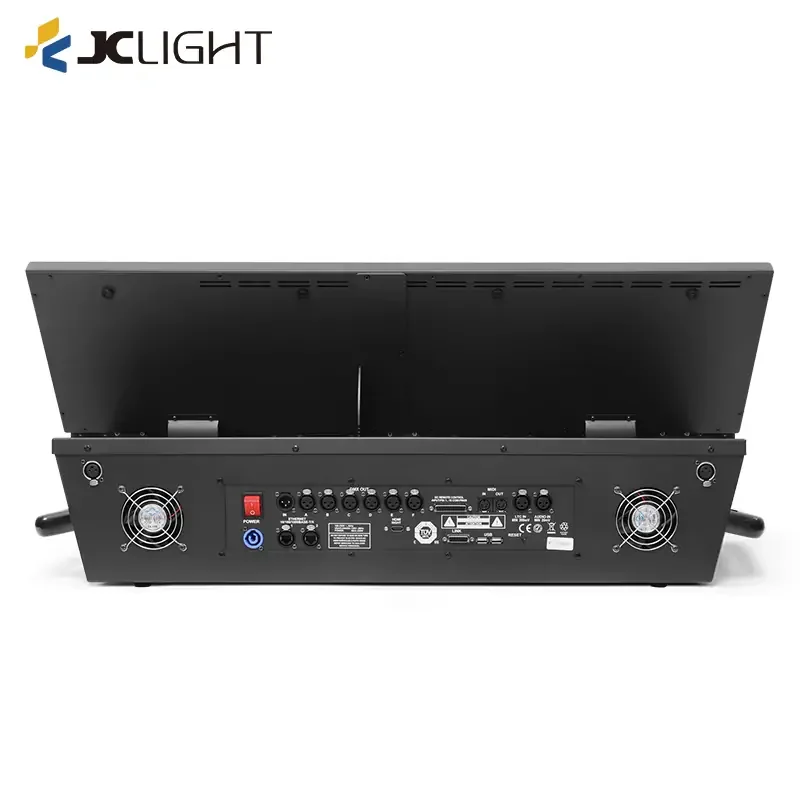

6 Built-In DMX Outputs and Expandable DMX Control

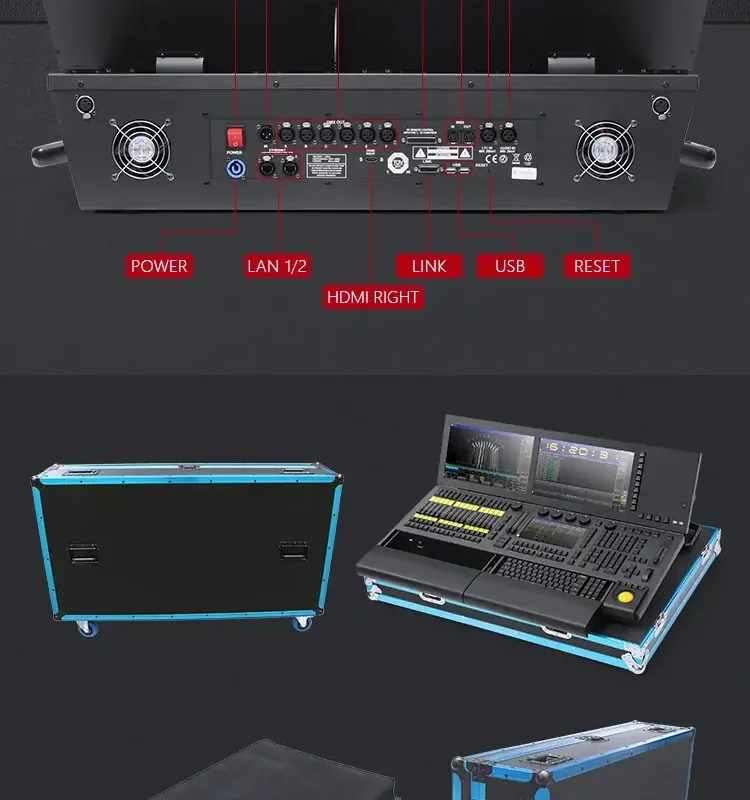

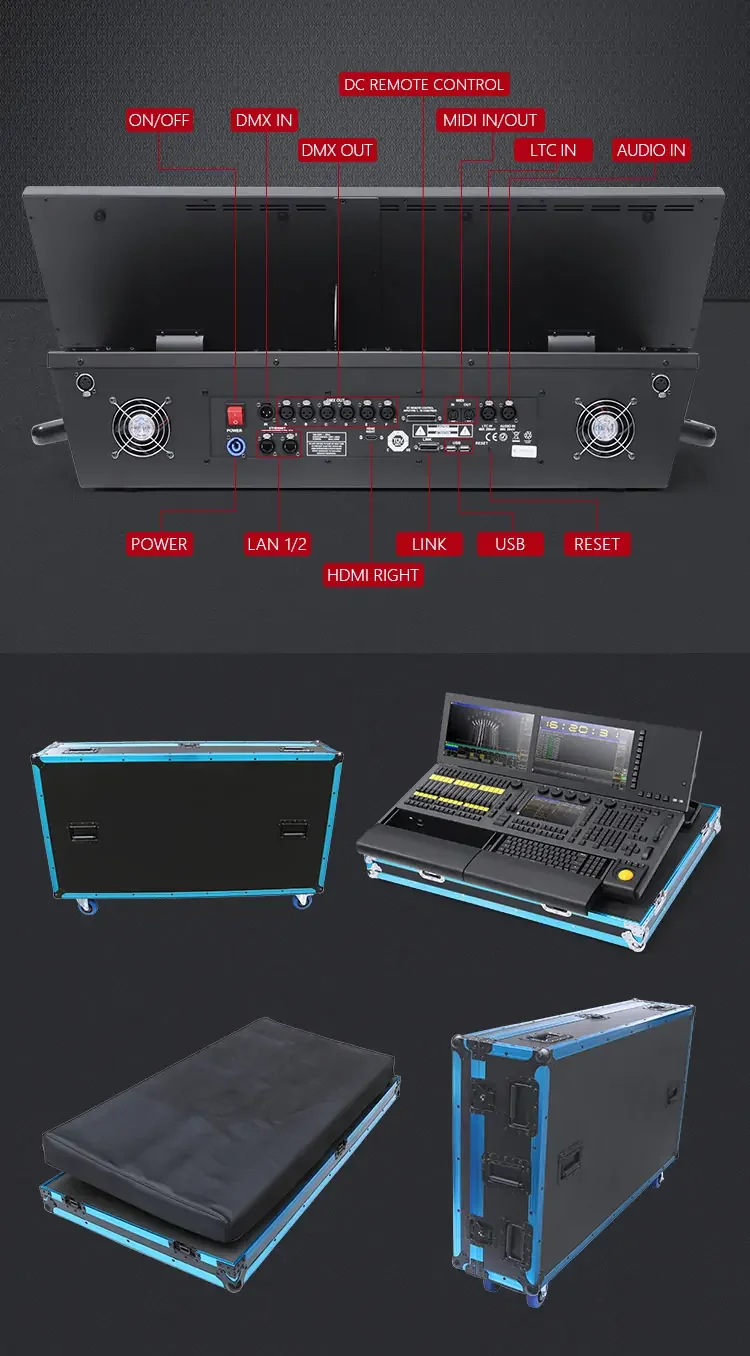

Six DMX512 output interfaces and one DMX512 input interface are integrated directly into the console. The system can be expanded to support up to 256 DMX output interfaces, making it suitable for both medium-sized productions and larger networked lighting systems.

Professional Playback and Programming Controls

The control surface includes 15 program playback faders, 30 program storage keys, four attribute encoder wheels, a master dimmer wheel, a master fader and two AB faders. A high-sensitivity trackball and built-in keyboard drawer provide additional control for detailed programming and live operation.

LTC and MIDI Timecode Support

Dedicated LTC and MIDI timecode inputs allow the lighting console to synchronize programmed lighting cues with music, video and other show-control systems. This makes it suitable for concerts, touring productions, theatre performances and multimedia events that require precise cue timing.

Independent Audio System and Built-In UPS

The console includes an independent isolated HIFI-level sound card designed to reduce interference associated with motherboard-integrated audio. A built-in high-power UPS provides additional power protection for professional show environments.

Application Scenarios

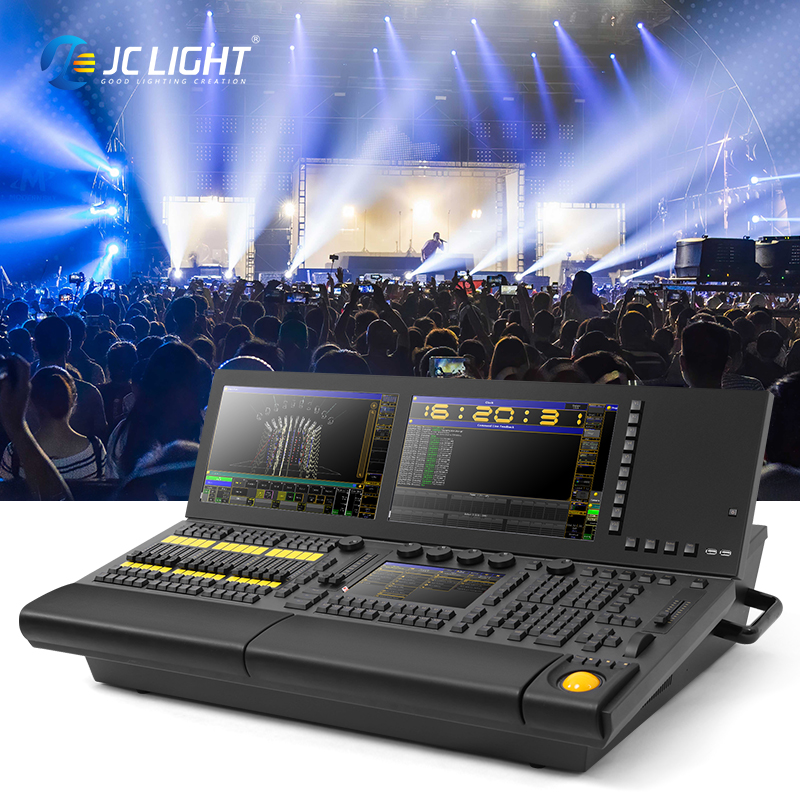

• Concert and touring lighting control
• Large music festivals
• Theatre and auditorium productions
• Nightclubs and entertainment venues
• TV studio and broadcast productions
• Corporate events and live shows
• Professional rental lighting systems
• Large Art-Net and DMX lighting networks

Why Choose JC LIGHT

• Professional stage lighting console supplier
• Three integrated touch screens for efficient programming
• Intel Core i5 platform with SSD storage
• Up to 256 Art-Net universes
• 6 built-in DMX outputs with extensive network expansion capability
• LTC and MIDI timecode for synchronized productions
• Built-in UPS for professional show operation
• OEM and ODM solutions for distributors, rental companies and system integrators
