Description
Parameters
OPTICAL SYSTEM
Light source: 100w/120w laser light source, lifespan:20,000-30,000 hours
Optics: 168mm diameter
Beam Angle :2°

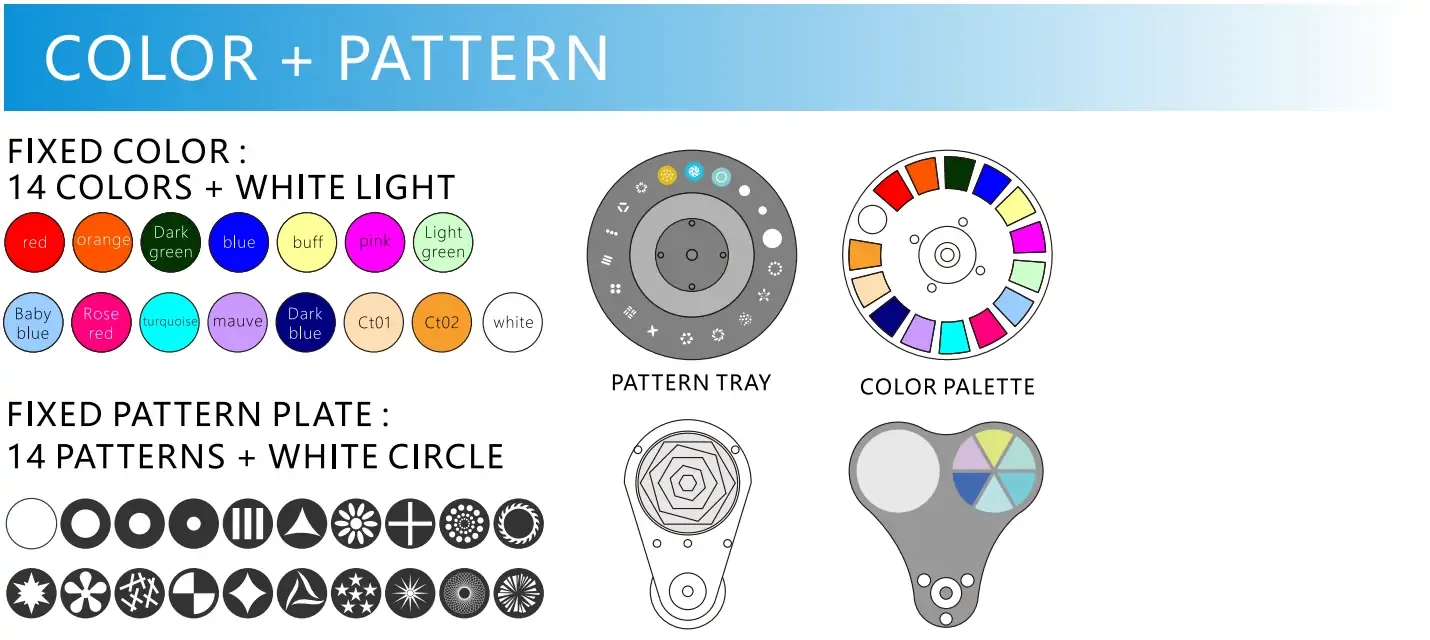

COLOR SYSTEM

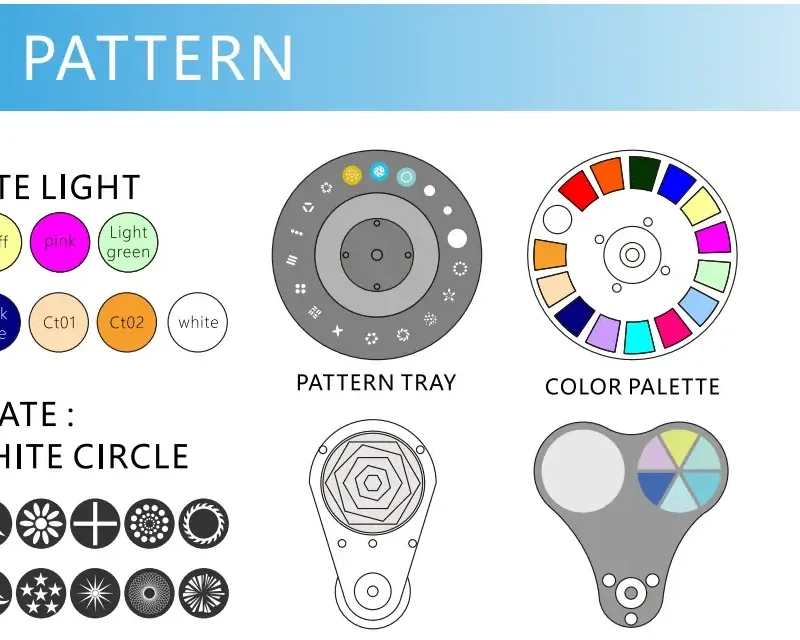

Color wheel:13 colors+white, rainbow effect
GOBO SYSTEM
Gobo wheel :13 fixed gobo+ white light,with jitter effect
EFFECTS
Prism :8+24 superposition can be rotated bidirectional and speed adjustable
Focus: Electronic linear HD focus, using a high density glass optical lens
Atomization: Support colorful atomization effect
Dimming: 0%-100% linear dimming
Stroboscopic :0.5-20 Hz stroboscopic, speed adjustable
Macro screen :LCD display adapts to different installation positions
Apperance material: outdoor corrosion resistant, high temperature resistant plastic steel shell
Installation: ground mount, side hanging, hanging mount
MOVEMENT PARAMETER
Horizontal/vertical: horizontal 540°, vertical 270°, high speed and smooth

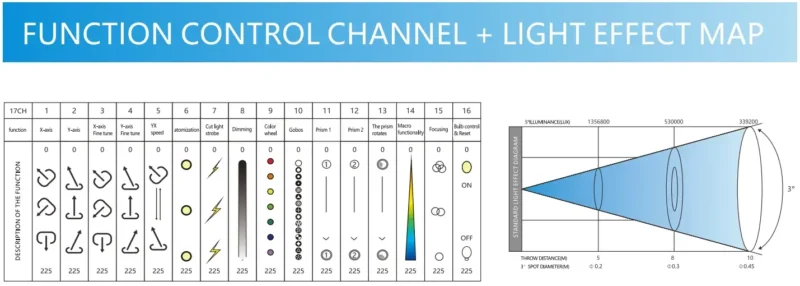

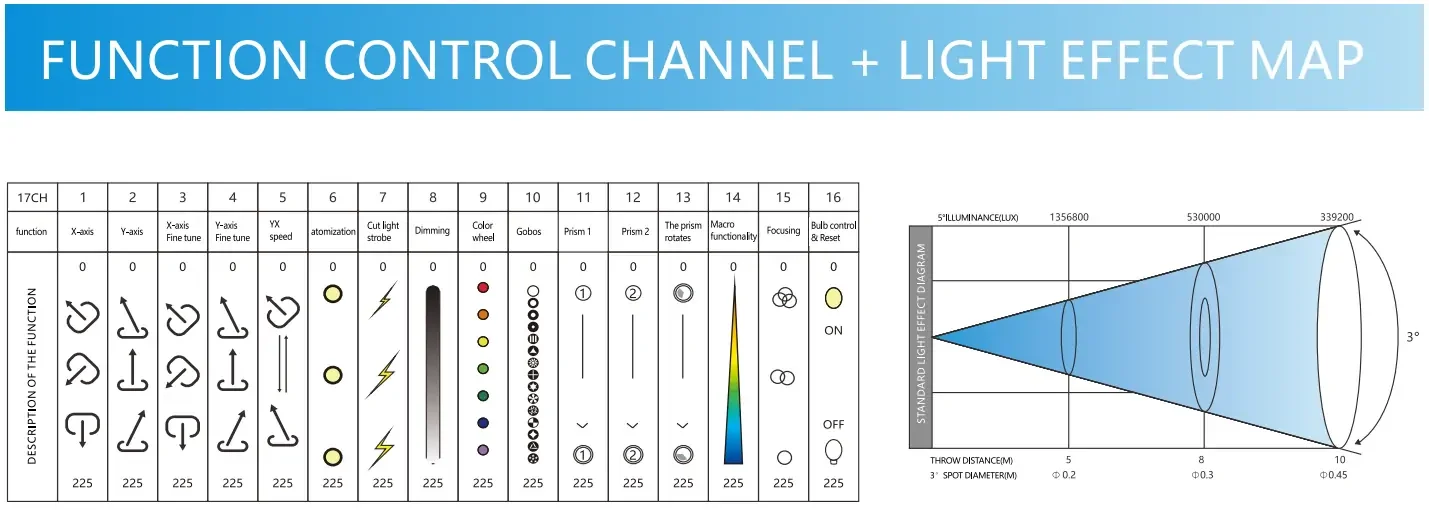

CONTROL AND PROGRAMMING
Control :DMX512/master-slave/Auto-run/sound

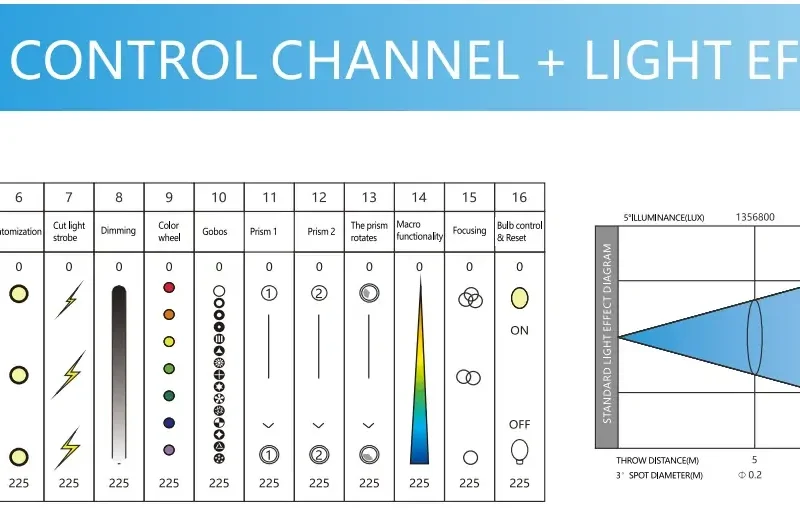

Channel: Standard DMX512 signal,16/20 channel
XY Motor: three-phase silent motors
POWER SUPPLY
Rated voltage :110V-240V, 50/60HZ
Power consumption: 160W/200W
DIMENSION AND WEIGHT
Product size :55*33*35CM
Weight :18KG
IP Rating
IP Rating: IP66
Excellent color mixing effect
Video:

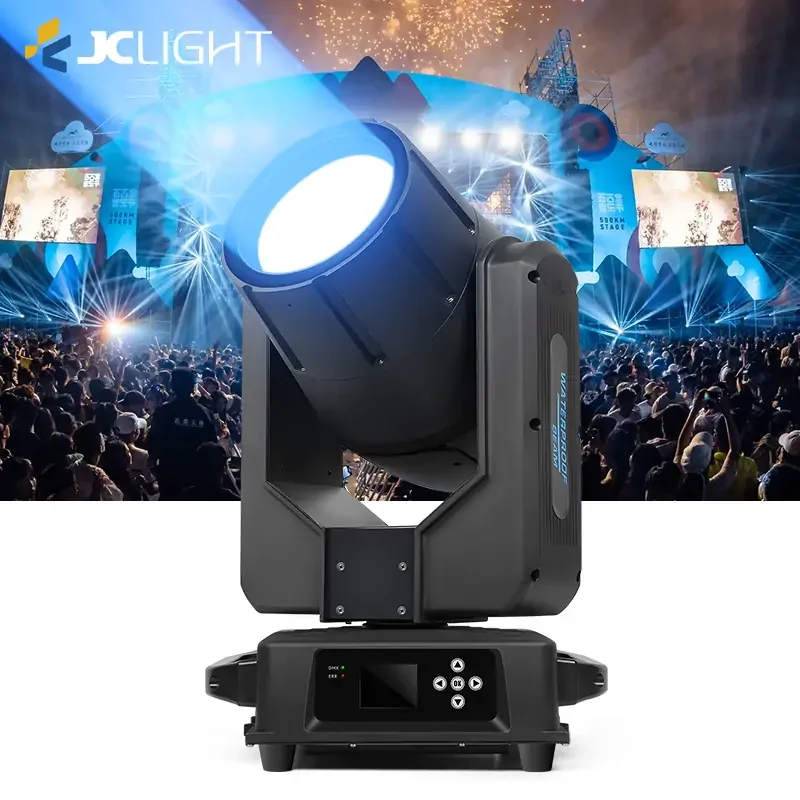

100W / 120W IP66 Waterproof Laser Beam Moving Head Light
The JC LIGHT 100WF / 120WF is a lightweight IP66 waterproof laser beam moving head light designed for professional indoor and outdoor stage applications. Available in 100W and 120W versions, the fixture combines a compact lightweight structure with a powerful beam effect, making it suitable for concerts, festivals, outdoor events, clubs, touring productions and rental lighting projects.
Featuring an OSRAM light source, the 100WF / 120WF provides high color temperature options and vivid color effects for dynamic stage designs. Linear focusing, atomization soft-light effects and adjustable strobe functions give lighting designers greater flexibility when switching between sharp beam effects and softer atmospheric looks. Its IP66-rated housing provides protection for demanding outdoor performance environments.
Key Features
- Available in 100W and 120W configurations
- Professional laser beam moving head light
- OSRAM light source for stage applications
- IP66 waterproof protection for indoor and outdoor use
- High color temperature options
- Powerful and concentrated beam effects
- Linear focusing for flexible beam adjustment
- Atomization function for soft-light effects
- Adjustable strobe for dynamic stage effects
- Vibrant color effects for different lighting designs
- Compact and lightweight housing design
- Easy to transport, install and deploy for touring productions
- Suitable for concerts, festivals, outdoor events and rental projects
Model Options
| Specification | 100WF | 120WF |
| Power Version | 100W | 120W |
| Light Source | OSRAM | OSRAM |
| Fixture Type | Laser Beam Moving Head | Laser Beam Moving Head |
| Waterproof Rating | IP66 | IP66 |
| Focus | Linear Focus | Linear Focus |
| Atomization | Soft-Light Effect | Soft-Light Effect |
| Strobe | Adjustable | Adjustable |
| Application | Indoor / Outdoor | Indoor / Outdoor |
Technical Specifications
| Model / SKU | 100WF / 120WF |
| Power Options | 100W / 120W |
| Light Source | OSRAM |
| Light Type | Laser Beam Moving Head Light |
| Color Temperature | High Color Temperature Options |
| Focus | Linear Focus |
| Atomization | Soft-Light Effect |
| Strobe | Adjustable Strobe |
| Protection Rating | IP66 |
| Design | Compact and Lightweight |
| Application Environment | Indoor and Outdoor |

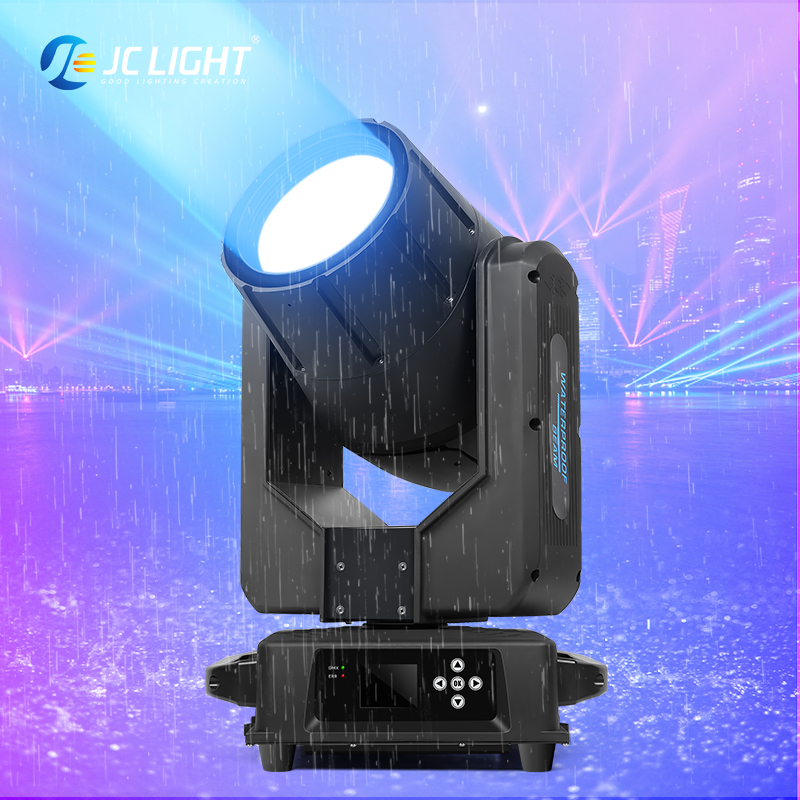

IP66 Waterproof Design for Outdoor Events
With an IP66 waterproof rating, the 100WF / 120WF is designed for professional lighting projects that require reliable operation in outdoor environments. It can be used for outdoor concerts, festivals, event stages and other temporary or fixed entertainment installations where conventional indoor beam fixtures may not be suitable.
Beam, Focus and Soft-Light Effects
The fixture combines a concentrated beam output with linear focusing and atomization effects. Lighting designers can create sharp aerial beam effects or introduce a softer visual appearance depending on the scene, while the adjustable strobe function adds additional rhythmic effects for live performances.
Lightweight Design for Rental and Touring
The compact and lightweight structure makes the 100WF / 120WF easier to transport and install across different venues. This design is particularly useful for stage lighting rental companies, touring productions and event contractors that frequently load, transport, install and remove lighting equipment.
Application Scenarios
- Outdoor concert lighting
- Music festivals and live events
- Touring stage productions
- Nightclub and DJ lighting systems
- Wedding and event productions
- Outdoor entertainment venues
- Professional rental lighting projects
- Indoor stage and performance lighting
Why Choose JC LIGHT
- Professional waterproof moving head light manufacturer
- 100W and 120W versions for different project requirements
- IP66 protection for indoor and outdoor applications
- Compact and lightweight design for easier transportation
- Beam, focus, atomization and strobe effects in one fixture
- OEM and ODM customization for distributors, rental companies and project contractors
100WF / 120WF Waterproof Laser Beam Moving Head Light FAQ
What is the difference between the 100WF and 120WF?
The series is available in 100W and 120W versions. Both models share the same core waterproof beam moving head concept, allowing buyers to select a configuration according to their project requirements.
Is the 100WF / 120WF suitable for outdoor events?
Yes. The fixture has an IP66 waterproof rating and is designed for both indoor and outdoor stage lighting applications.
What light source does this waterproof beam moving head use?
The 100WF / 120WF series uses an OSRAM light source and is available in different wattage configurations.
Does this beam moving head have a focus function?
Yes. It features linear focusing, allowing the beam focus to be adjusted for different stage effects and projection requirements.
Can the fixture create softer lighting effects?
Yes. An atomization soft-light effect is included, providing additional flexibility beyond concentrated beam effects.
Is this model suitable for stage lighting rental companies?
Yes. Its IP66 protection, compact structure and lightweight design make it suitable for rental companies and touring productions that frequently transport and install lighting equipment.
Do you provide OEM and ODM services for waterproof moving head lights?
Yes. JC LIGHT provides OEM and ODM customization for stage lighting distributors, rental companies, event contractors and professional lighting projects.
Need wholesale pricing for the JC LIGHT 100WF / 120WF IP66 Waterproof Laser Beam Moving Head Light? Contact JC LIGHT with your required model, quantity and project requirements.
