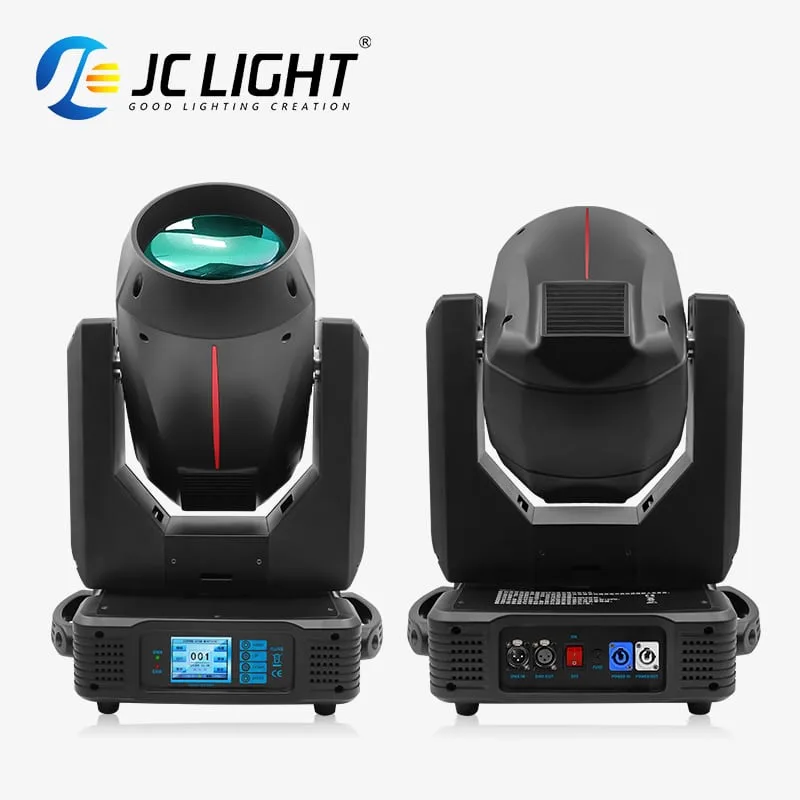

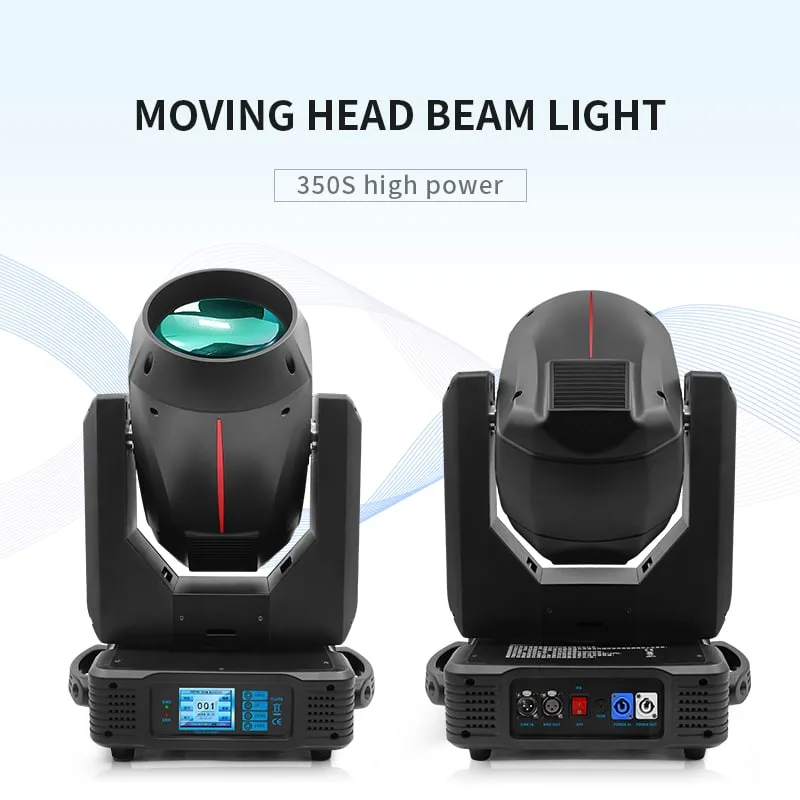

350W BEAM LIGHT(FIRE KYLIN)

Voltage:AC110-240V/50-60Hz
Power consumption:450W
Light source:17R 350W YODN/ Philips/Osram bulb
Beam Angle: 0-2°
Color wheel:13 color + white+ colrful,rainbow effect with bidirectional rotation,full color effect and half color effect modes switch
Static Gobo wheel:13 static gobo
Gobo Wheel: 3 rotating gobo
Prism: double prism, 24 prism, 3 layer 8+16+24 prism, which can be overlay and rotating
Focus: focus and zoom in function
Atomization: 0%-100%, atomization angle 15°- 60°
Dimmer: 0%-100% linear dimming
Lifespan:20000H
Strobe:0-30 t/s,random strobe and pulse strobe are not available
Pan& tilt: 540°Pan scaning,270°Tilt scanning;8/16-bit smooth and accurate Pan/Tilt rotation
Optical lens: color coated lens
Control: DMX512/master-slave/Auto-run/sound
Channel: 18CH
Product Size:59X59X30cm
Package Size: 58x46x42cm(carton)
Flight case package:
460×36.5×66.5cm(1pcs),72×45.6×66.5cm(2pcs),84x72x66.5cm(4pcs)
N.W:18.5KGS
G.W:20.5KGS

Short model number: A15-2

Description

Parameters


OPTICAL SYSTEM
Light source:17R 350W YODN/ Philips/Osram bulb
Beam Angle: 0-2°

COLOR SYSTEM
Multicolor: 6 multicolor
CCT: 8400K
Color wheel:13 color + white+ colrful,rainbow effect with bidirectional rotation,full color effect and half color effect modes switch
Optical lens: color coated lens

GOBO SYSTEM
Static Gobo wheel:13 static gobo
Gobo Wheel: 3 rotating gobo

EFFECTS
Focus: focus and zoom in function
Prism: double prism, 24 prism, 3 layer 8+16+24 prism, which can be overlay and rotating
Atomization: 0%-100%, atomization angle 15°- 60°
Dimmer: 0%-100% linear dimming
Strobe:0-30 t/s,random strobe and pulse strobe are not available
Lifespan:20000H

MOVEMENT PARAMETER
Rotation Angle: 0-3.8°
Pan& tilt: 540°Pan scaning,270°Tilt scanning;8/16-bit smooth and accurate Pan/Tilt rotation

CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 18CH

POWER SUPPLY
Voltage:AC110-240V/50-60Hz
Power consumption:450W

DIMENSION AND WEIGHT
Product Size:59X59X30cm
Package Size: 58x46x42cm(carton)
Flight case package:
460×36.5×66.5cm(1pcs),72×45.6×66.5cm(2pcs),84x72x66.5cm(4pcs)
N.W:18.5KGS
G.W:20.5KGS

IP RATE
IP Rating: IP20

SHORT MODEL NUMBER: A15-2

Excellent color mixing effect
