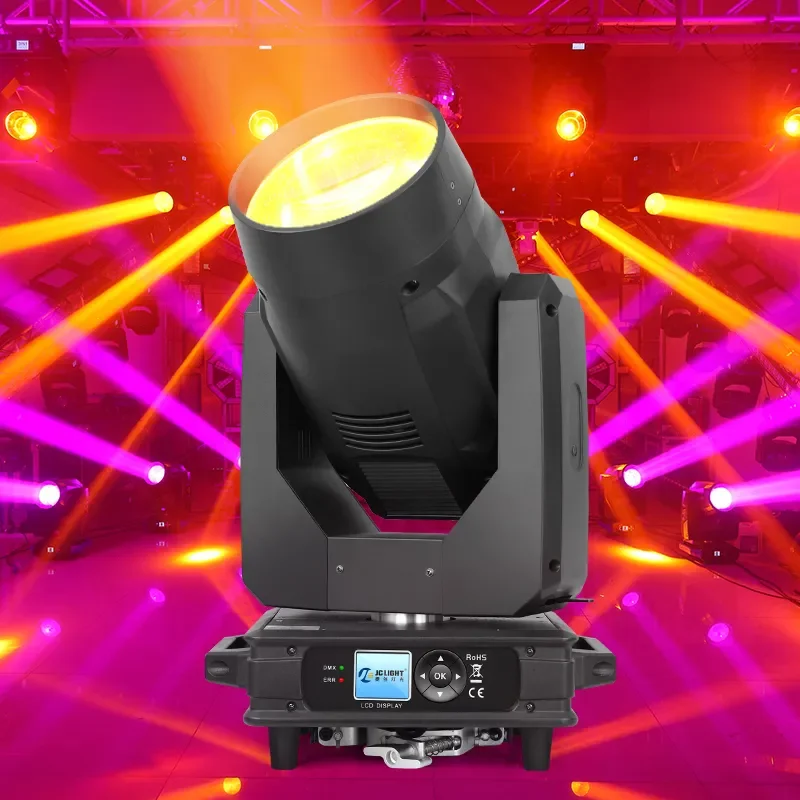

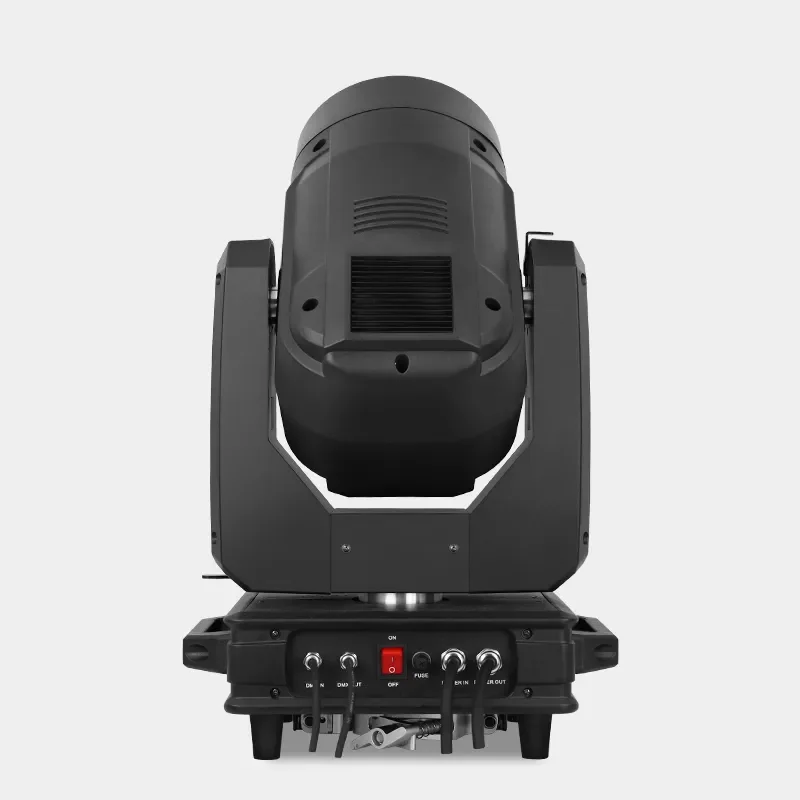

JC LIGHT 580S Beam Light Yangwang OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT 580S Beam Light Yangwang OEM
Get factory pricing, OEM support and delivery information for this product.
- Description
- Details
Description
Parameters
OPTICAL SYSTEM
Light source: 20R original Osram 420w
Motor: three-phase motor (fast running speed, accurate positioning)
COLOR SYSTEM
Color wheel:13 color+white, rainbow effect with bidirectional rotation, full color effect and half color effect modes switch
GOBO SYSTEM
Gobo wheel:17 gobo+ white, jitter effect
EFFECTS
Focus: electronic focus
Prism: 8+16 prism, 8+16+24 prism, which can be overlay, independent rotating prism can be positioned.
Atomization: 0-99% atomization soft light effect
Dimmer:0-100% linear dimming
Strobe: 1-13t/s
MOVEMENT PARAMETER
Pan& tilt: 540°Pan scaning,270°Tilt scanning(16bit accurate scanning)
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 16/20CH
POWER SUPPLY
Voltage：AC110-240V/50-60Hz
Power consumption：600W
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: A19
Excellent color mixing effect
Video:

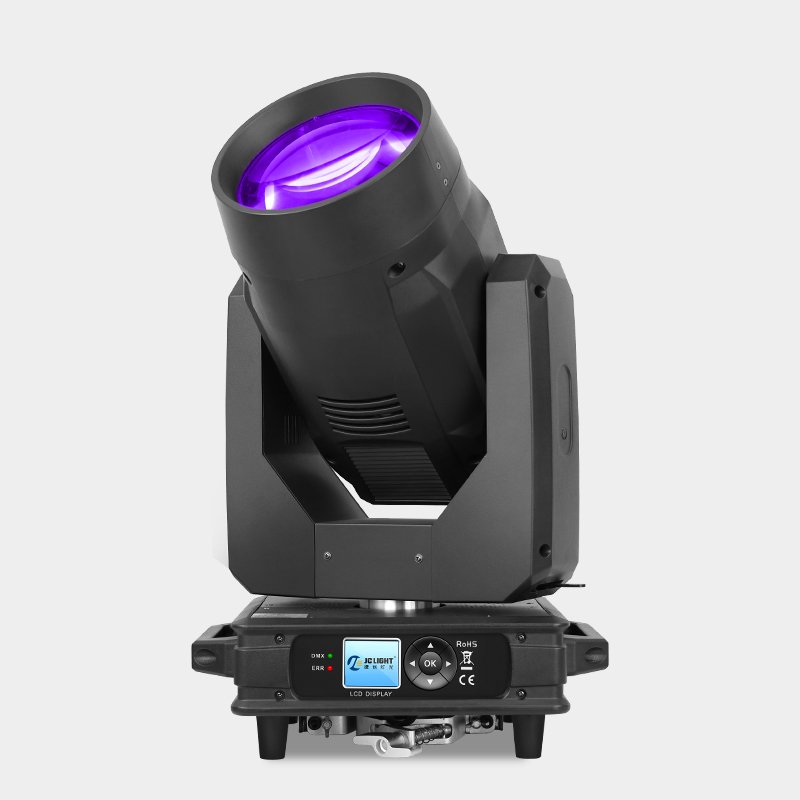

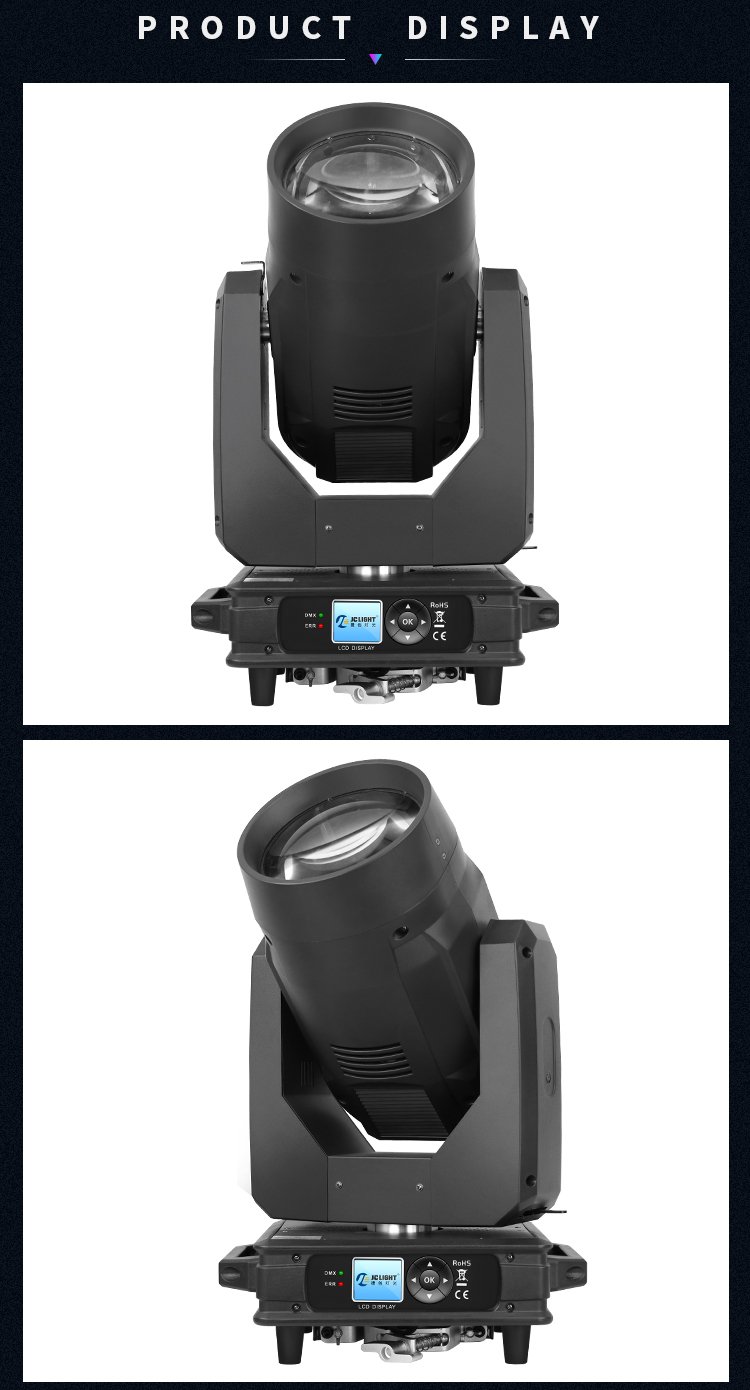

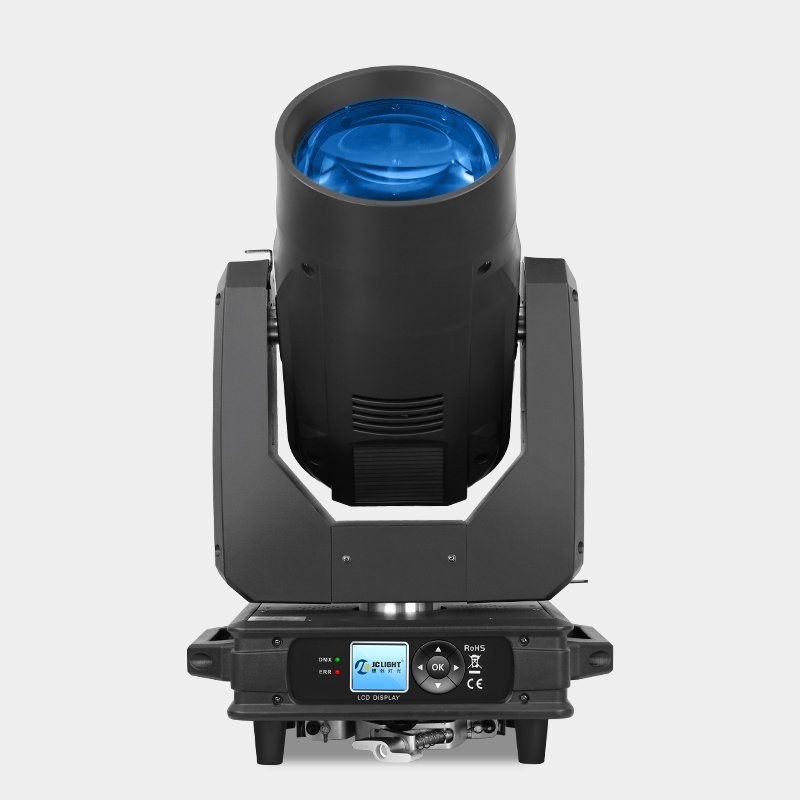

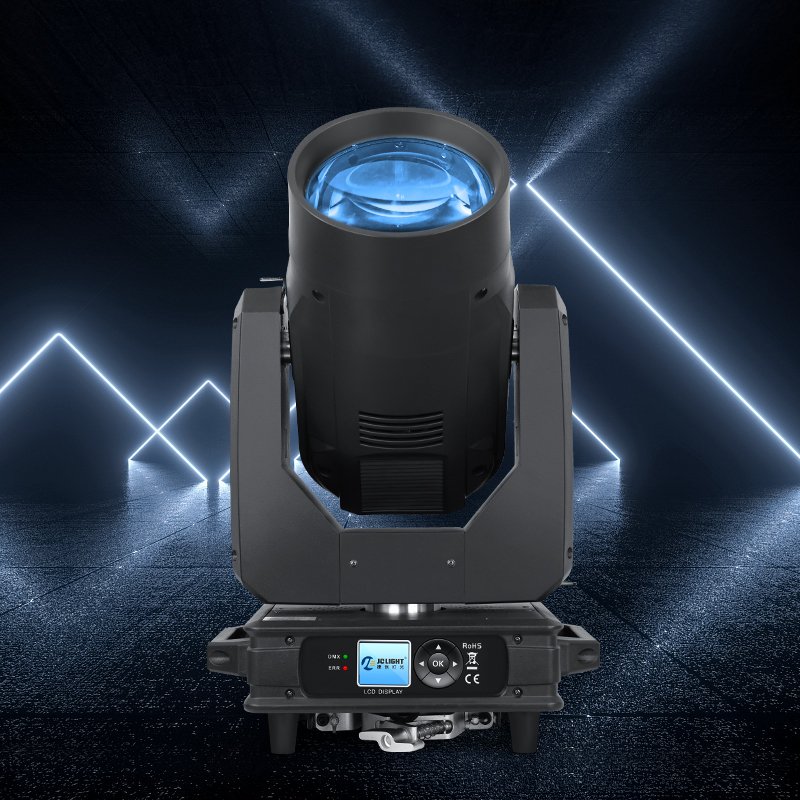

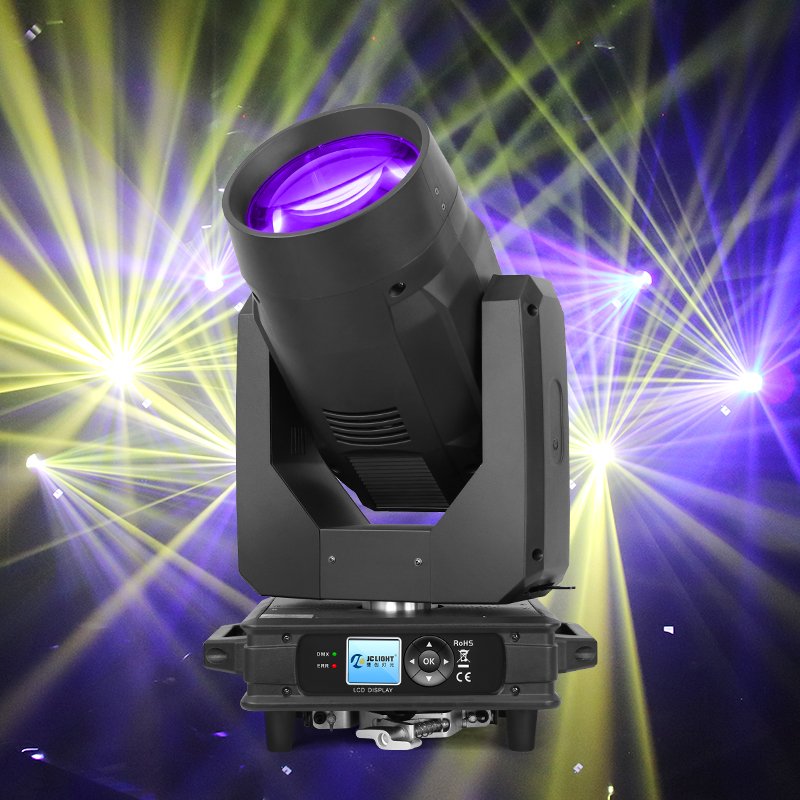

A19 600W Beam Moving Head Light with OSRAM 20R Lamp and Dual Prism System
The JC LIGHT A19 600W Beam Moving Head Light is a professional high-output stage lighting fixture designed for concerts, clubs, festivals, theaters and rental productions. It is equipped with a 20R OSRAM 480W light source and a three-phase motor system for fast movement and accurate positioning.
Featuring 13 colors plus white, 17 gobos plus white, multiple prism combinations, electronic focus and atomization effects, the A19 provides rich beam effects and flexible programming for professional stage lighting applications.
Key Features
- 600W professional beam moving head light
- 20R OSRAM 480W light source
- Three-phase motor for fast movement and accurate positioning
- 13 colors + white color wheel
- Bidirectional rainbow effect
- Full-color and half-color effect modes
- 17 gobos + white
- Gobo jitter effect
- 8+16 prism and 8+16+24 prism combinations
- Overlay prism effects supported
- Independent rotating prism positioning
- Electronic focus
- 0-99% atomization soft light effect
- 0-100% linear dimming
- 1-13t/s strobe
- 540° pan and 270° tilt movement
- 16-bit precision scanning
- DMX512, master-slave, auto-run and sound control
Technical Specifications
| Short Model Number | A19 |
| SKU | Y580 |
| Product Type | Beam Moving Head Light |
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 600W |
| Light Source | 20R OSRAM 480W |
| Motor | Three-Phase Motor for Fast Running Speed and Accurate Positioning |
| Color Wheel | 13 Colors + White, Bidirectional Rainbow Effect, Full-Color and Half-Color Effect Modes |
| Gobo Wheel | 17 Gobos + White, Jitter Effect |
| Prism | 8+16 Prism / 8+16+24 Prism, Overlay Supported, Independent Rotating Prism Positioning |
| Focus | Electronic Focus |
| Atomization | 0-99% Atomization Soft Light Effect |
| Dimming | 0-100% Linear Dimming |
| Strobe | 1-13t/s |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Movement Precision | 16-Bit Accurate Scanning |
| Control Mode | DMX512 / Master-Slave / Auto-Run / Sound |
| DMX Channel | 16CH / 20CH |
20R OSRAM 480W Light Source
The A19 uses a 20R OSRAM 480W light source, providing powerful beam output for professional entertainment and stage lighting applications.
Three-Phase Motor System
The fixture uses a three-phase motor designed for fast running speed and accurate positioning, supporting dynamic movement effects during live performances.
Color Wheel and Rainbow Effects
The color wheel includes 13 colors plus white and supports bidirectional rainbow rotation together with full-color and half-color effect modes.
17-Gobo Effect System
With 17 gobos plus white, the A19 provides multiple projection patterns and includes a jitter effect for dynamic beam visuals.
Multiple Prism Combinations
The fixture supports 8+16 prism and 8+16+24 prism combinations. Prism effects can be overlaid, and the independent rotating prism can be positioned for more creative beam patterns.
Electronic Focus and Atomization
The A19 includes electronic focus and a 0-99% atomization soft light effect, giving operators greater control over beam sharpness and softness.
Professional Pan and Tilt Movement
The moving head provides 540° pan and 270° tilt scanning with 16-bit precision for smooth and accurate stage positioning.
Flexible DMX Control
Supporting 16CH and 20CH DMX modes, together with master-slave, auto-run and sound control, the A19 can be integrated into professional lighting systems or used in standalone applications.
Application Scenarios
- Concert stages
- Nightclubs
- Music festivals
- DJ performances
- Theaters
- Live stage productions
- Entertainment venues
- Professional rental lighting projects
Why Choose JC LIGHT
- Professional beam moving head light manufacturer
- OSRAM 20R light source solution
- Multiple prism and gobo effects
- Electronic focus and atomization functions
- Fast and accurate motor movement
- Professional DMX512 control support
- OEM and ODM stage lighting solutions available
A19 Y580 600W Beam Moving Head Light FAQ
What light source does the A19 use?
The A19 uses a 20R OSRAM 480W light source.
How many colors does the A19 have?
It features 13 colors plus white, with bidirectional rainbow, full-color and half-color effects.
How many gobos are included?
The fixture includes 17 gobos plus white and supports a jitter effect.
What prism effects does the A19 support?
It supports 8+16 prism and 8+16+24 prism combinations, with overlay and independent rotation positioning functions.
Does the A19 have electronic focus?
Yes. It includes electronic focus.
What pan and tilt movement does it support?
It supports 540° pan and 270° tilt scanning with 16-bit precision.
What DMX channel modes are available?
The A19 supports 16CH and 20CH DMX modes.
Where can the A19 beam moving head be used?
It is suitable for concerts, clubs, festivals, theaters, DJ shows and professional rental lighting projects.
Need wholesale pricing for the JC LIGHT A19 Y580 Beam Moving Head Light? Contact JC LIGHT for OEM, ODM and professional stage lighting project solutions.
