JC LIGHT Waterproof 800W Beam Moving Head Light WDC China Factory
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT Waterproof 800W Beam Moving Head Light WDC China Factory
Get factory pricing, OEM support and delivery information for this product.
- Description
Description
Parameters
OPTICAL SYSTEM
Light source: original Osram 550w lamp
Beam Angle : 1.8°
COLOR SYSTEM
Optics: 200mm large diameter
Color wheel: 14 colors+ white, colorful rainbow effect + atomization function
GOBO SYSTEM
Gobo wheel: 13 fixed gobo + white
EFFECTS
Focusing: Electronic linear HD dynamic focusing, using high density glass optical lens
Prism: 8 prism, rotatable
Material: die-cast aluminum + aviation die-cast magnesium alloy
Dimming: 0%-100% linear dimming
Cooling system: copper tube fully closed radiator, gyroscope automatically adjust the heat dissipation system, effectively control the temperature of the lamp
Dehumidification system: intelligent dehumidification and fog removal system, effectively ensure the life of the lamp
Positioning technology: magnetic coding positioning system, the use of magnetic devices instead of the traditional Hall positioning system, higher precision, reliable performance
MOVEMENT PARAMETER
Horizontal/Vertical: 540° horizontal or 270° vertical scanning
CONTROL AND PROGRAMMING
Control mode : DMX512/auto-run/master slave/sound
Channels: 16/20CH
Motherboard: Support RDM, display programming
POWER SUPPLY
Voltage: 110V-240V 50-60Hz
Power: 800w
DIMENSION AND WEIGHT
Product size: 484*376*805mm
Package size: 920*585*495mm
Net weight: 38Kg
Gross weight: 44KG
IP RATE
IP rating: IP66
Excellent color mixing effect
Video:
Waterproof 800W Beam Moving Head Light with Osram Lamp and IP66 Protection

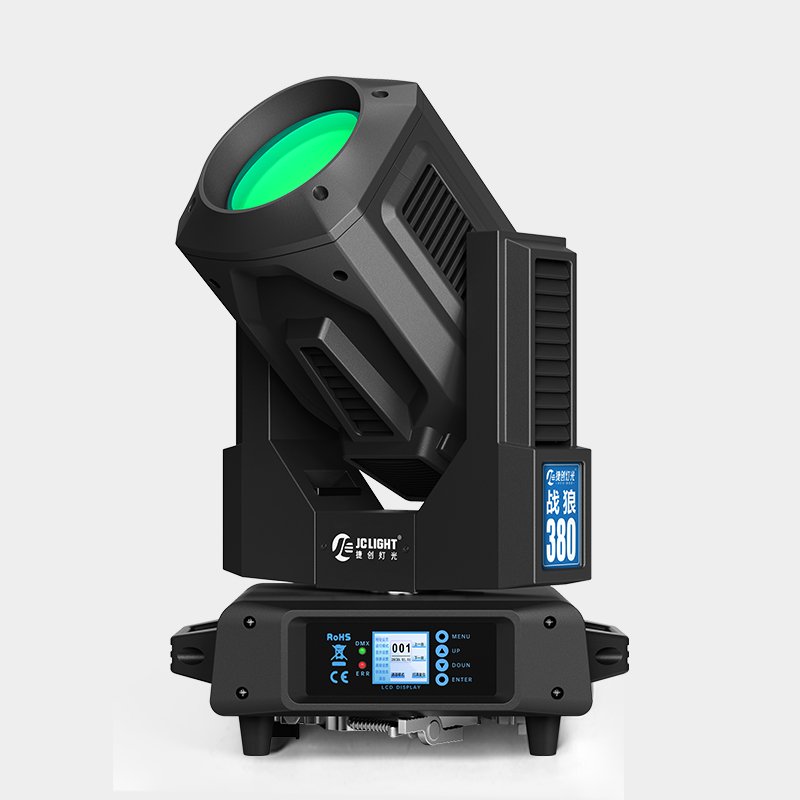

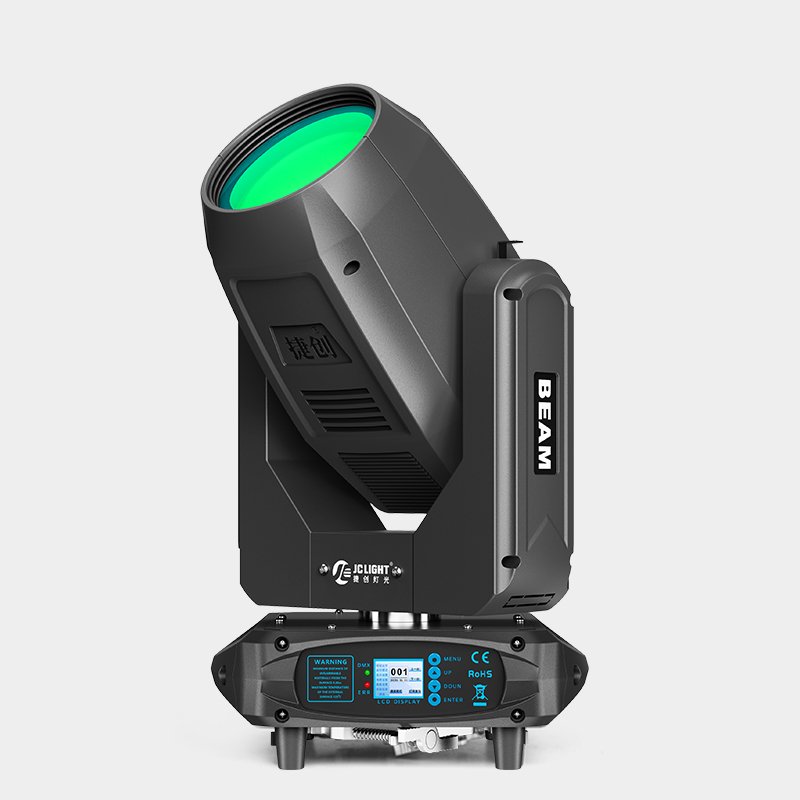

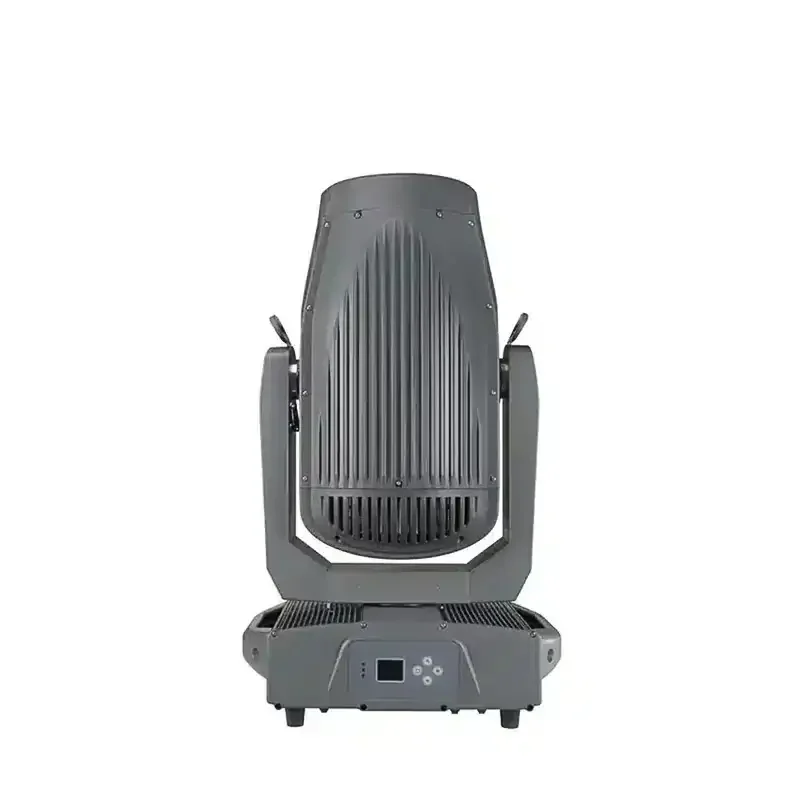

The JC LIGHT F800C Waterproof 800W Beam Moving Head Light is a high-performance professional beam fixture designed for large-scale outdoor and indoor stage applications. Featuring an original Osram 550W lamp, large 200mm optical lens system and IP66 waterproof protection, it delivers powerful beam output with excellent stability for concerts, festivals, touring productions and outdoor events.
Equipped with a 14-color wheel plus white, 13 fixed gobos plus white, 8-facet rotating prism, advanced focusing system and 0-100% linear dimming, the F800C provides rich beam effects and precise lighting control. The magnetic encoding positioning system ensures accurate movement and reliable performance during professional productions.
Key Features
- Professional waterproof 800W beam moving head light
- Original Osram 550W lamp source
- Large 200mm diameter optical lens system
- High brightness narrow beam output
- IP66 waterproof protection rating
- 14 colors plus white color wheel
- 13 fixed gobos plus white
- 8-facet rotating prism effect
- Advanced electronic focusing system
- 0-100% linear dimming
- Magnetic encoding positioning system
- Advanced heat dissipation system
- Bulb dehumidification protection system
- Suitable for indoor and outdoor applications
Technical Specifications
| SKU | F800C |
| Product Type | Waterproof Beam Moving Head Light |
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 800W |
| Light Source | Original Osram 550W Lamp |
| Optical System | 200mm Large Diameter Optical Lens |
| Color Wheel | 14 Colors + White |
| Gobo Wheel | 13 Fixed Gobos + White |
| Prism | 8-Facet Rotating Prism |
| Dimming | 0-100% Linear Dimming |
| Focus | Advanced Electronic Focusing System |
| Positioning System | Magnetic Encoding System |
| IP Rating | IP66 |
| Cooling System | Advanced Heat Dissipation and Dehumidification System |
Original Osram 550W Lamp Source
The F800C uses an original Osram 550W lamp to provide powerful brightness, stable output and reliable performance for professional beam lighting applications.
200mm Large Diameter Optical System
The integrated 200mm large diameter optical lens system enhances beam concentration and projection distance, creating sharp and powerful aerial beam effects for large venues.
Professional Waterproof IP66 Design
With an IP66 waterproof rating, the fixture is designed for demanding outdoor environments, protecting internal components against dust and water exposure during outdoor events.
Rich Color and Gobo Effects
The F800C features a 14-color wheel plus white and 13 fixed gobos plus white, providing multiple creative options for stage designers and lighting programmers.
Rotating Prism Beam Effects
The integrated 8-facet rotating prism splits the beam into multiple rays, creating expanded aerial effects and dynamic stage visuals.
Precision Magnetic Encoding Positioning
The magnetic encoding positioning system improves movement accuracy and repeatability, ensuring stable operation during complex lighting programs and touring productions.
Advanced Cooling and Dehumidification System
The advanced thermal management system controls operating temperature and protects the lamp system, helping extend fixture reliability during long-duration performances.
Professional Beam Performance
With powerful output, precise focus and advanced optical design, the F800C creates strong beam effects suitable for large stages, outdoor shows and professional entertainment projects.
Application Scenarios
- Outdoor concerts
- Music festivals
- Large stage performances
- Stadium events
- Touring productions
- Nightclub outdoor events
- Wedding ceremonies
- Theme parks
- Professional rental lighting systems
- Large entertainment venues
Why Choose JC LIGHT
- Professional waterproof beam moving head manufacturer
- 800W high-performance beam lighting solution
- Original Osram 550W lamp technology
- IP66 outdoor protection design
- Large diameter optical system
- Advanced positioning accuracy
- Rich gobo and prism effects
- Suitable for rental companies and large projects
- OEM and ODM lighting solutions available
F800C Waterproof 800W Beam Moving Head Light FAQ
What lamp source does the F800C use?
The F800C uses an original Osram 550W lamp source.
Is the F800C suitable for outdoor events?
Yes. The fixture features an IP66 waterproof rating for outdoor stage applications.
What optical system does this beam light use?
It uses a 200mm large diameter optical lens system.
How many colors does the fixture have?
The color system includes 14 colors plus white.
How many gobos are included?
The fixture includes 13 fixed gobos plus white.
Does the F800C include prism effects?
Yes. It includes an 8-facet rotating prism system.
What dimming range does the fixture support?
It supports 0-100% linear dimming.
What makes the positioning system more accurate?
The fixture uses a magnetic encoding positioning system to improve movement accuracy and reliability.
Need wholesale pricing for the JC LIGHT F800C Waterproof 800W Beam Moving Head Light? Contact JC LIGHT for professional outdoor beam lighting solutions, OEM, ODM and rental project support.
