JC LIGHT 295W Beam Moving Head Light China Manufacturer
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT 295W Beam Moving Head Light China Manufacturer
Get factory pricing, OEM support and delivery information for this product.
- Description
- Detail
Description
Product Model Name: TLX295A-1
Parameters
Voltage: AC 100-240V/50-60Hz
Power consumption: 550W
Light source: original Phoenix 13R 295W lamp,
Color temperature: 12000K
Luminous output: 90,000 lumens
Fixed luminous output: 46,500 lumens
Maximum luminous intensity: 3,000,000 cd
Lamp life: 10,000 hours
Optics: 145mm diameter
Zoom range 1:7 (field angle 8.0° – 54°)
High resolution projection system
Color palette: 1 palette of 6 colors
Color wheel: 14 colors + open mode, half color
Gobo wheel: 18 gobos + open, with jitter function, water flow effect
Prism: 16-sided prism, 16+16 prism, with two-way rotation function.
Focus: Effective 6-layer all-film focusing lens
Atomization: 0-100%
Dimmer: Linear dimming 0-100%
Lifespan: 30,000 hours
Flashing: double chip flash, variable flashing effect (0-15t/s)
Pan & Tilt: Pan 540°, Tilt 270°
Control mode: DMX512/master-slave/sound/automatic/integrated RDM program
Control channel: 16CH/22CH
IP protection level: IP20, special materials at high temperature
Product dimensions: 330x260x520 mm
Weight: 14.3 Kg
Excellent color mixing effect
Video:
Download

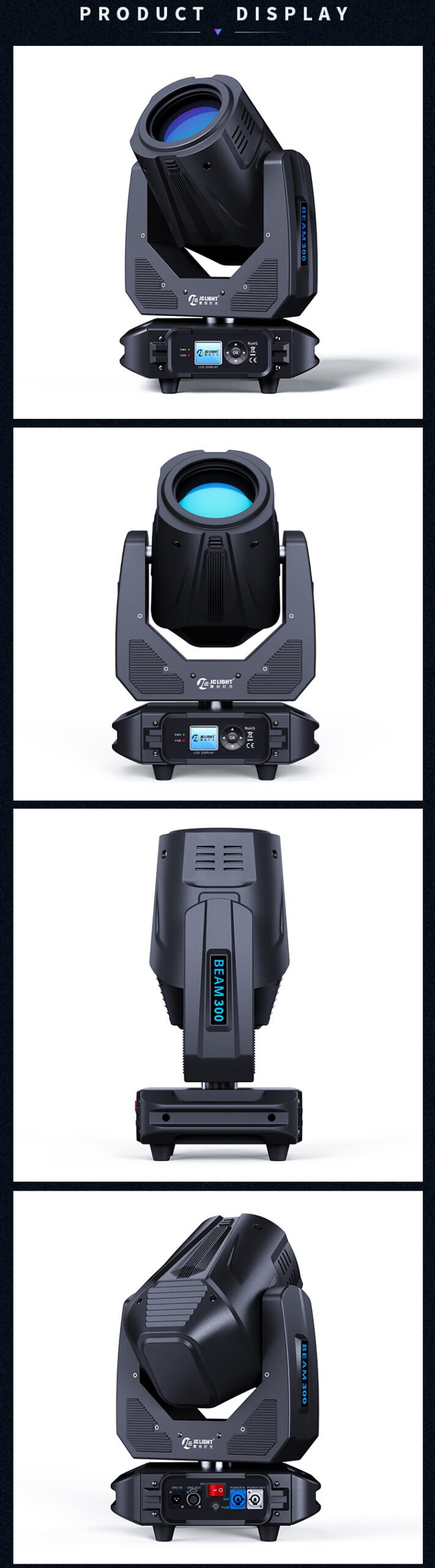

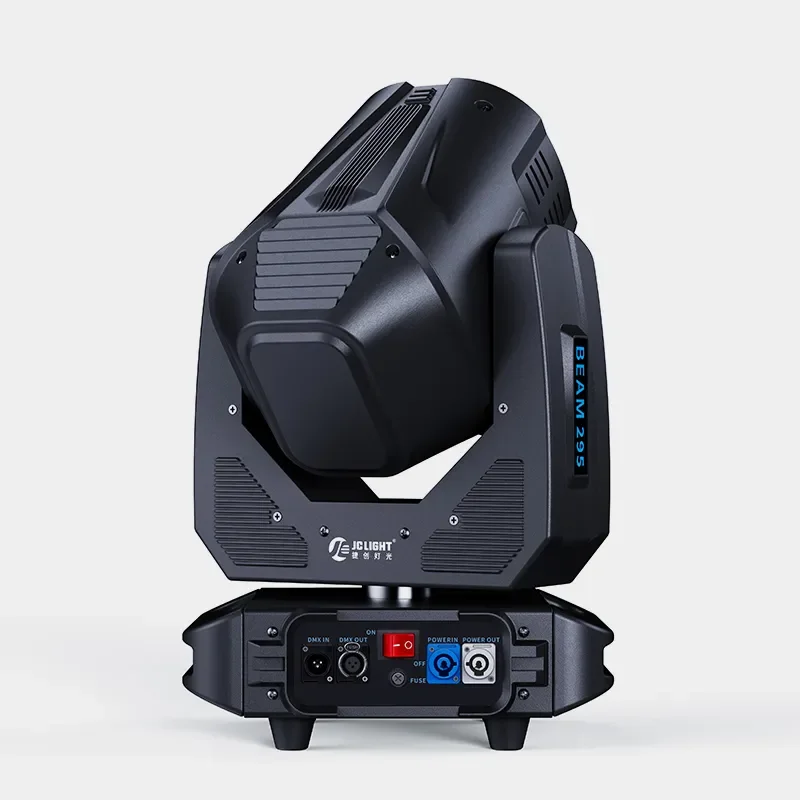

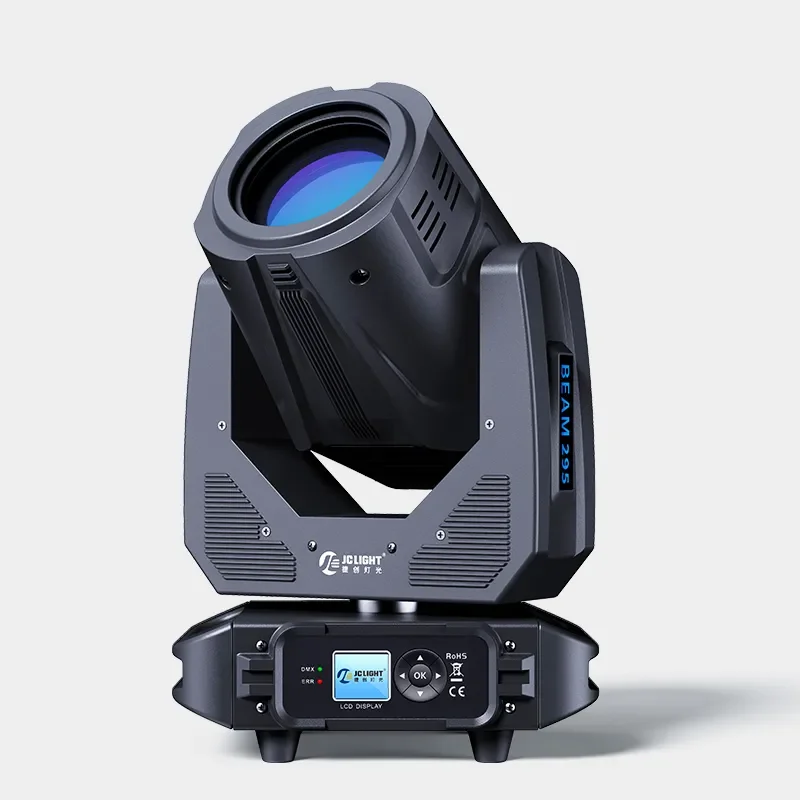

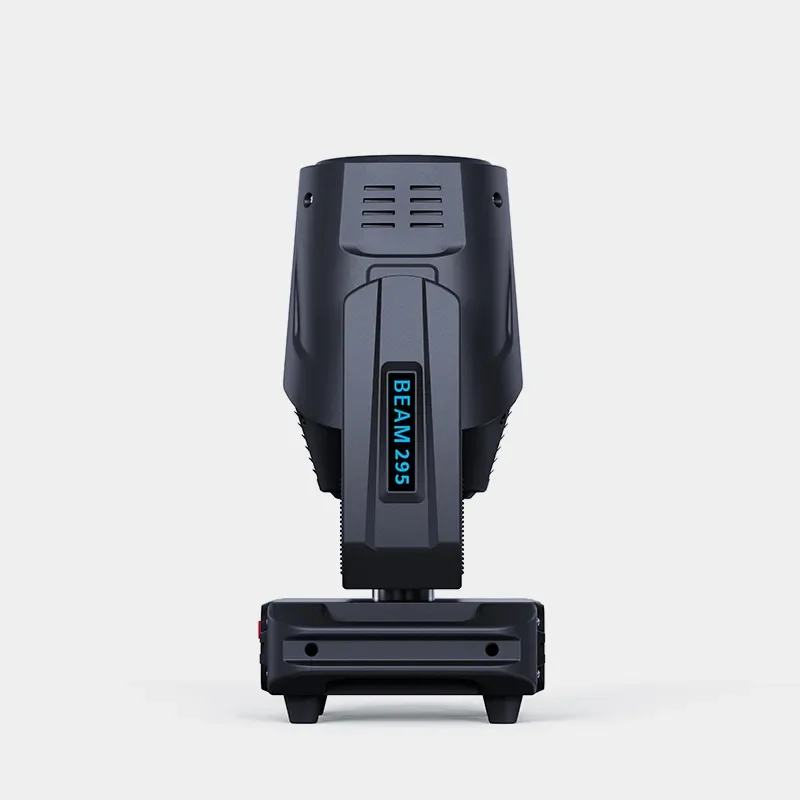

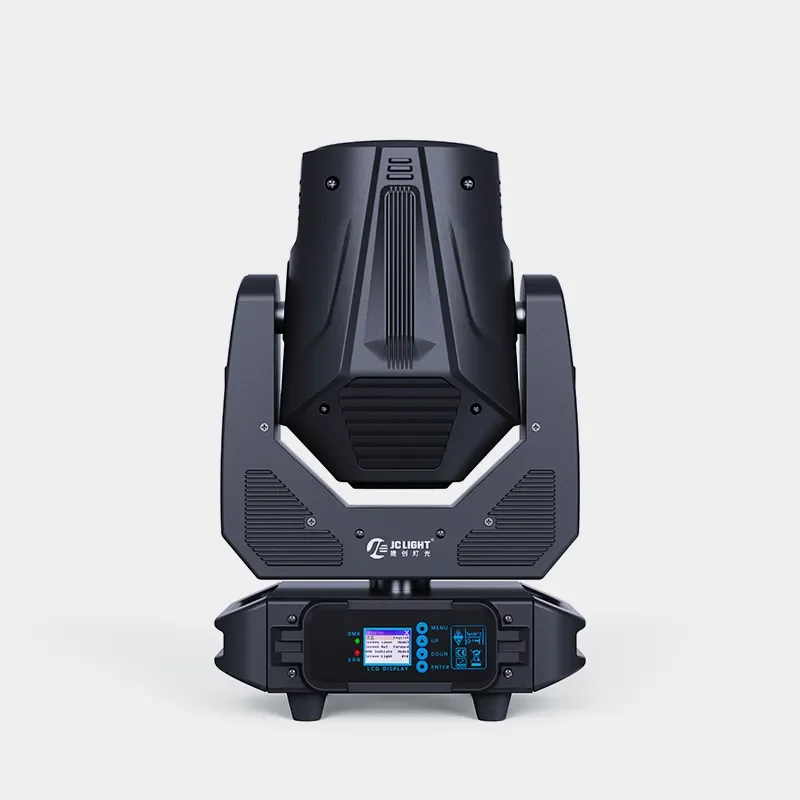

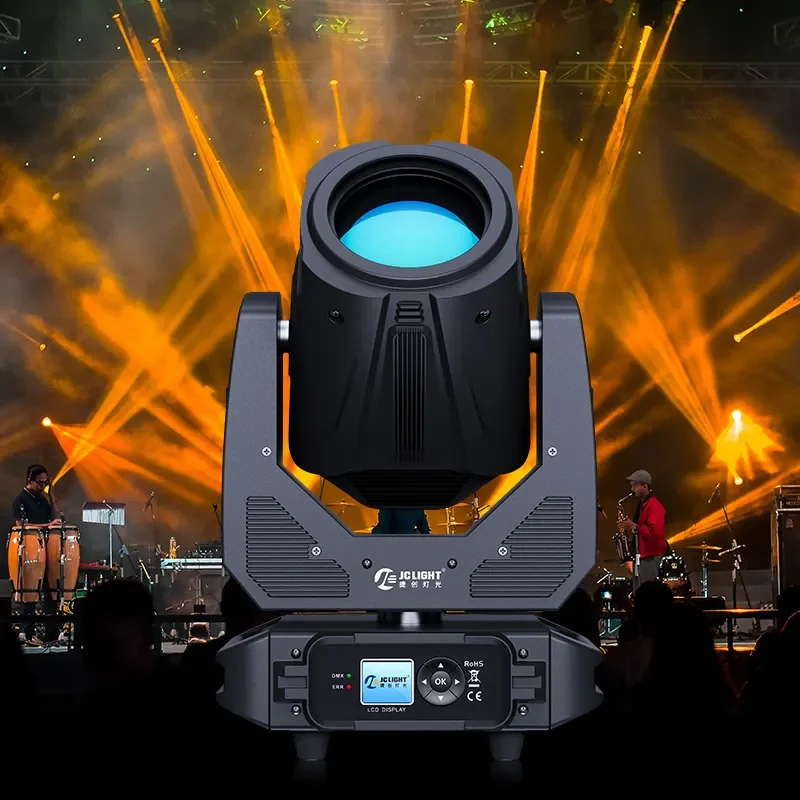

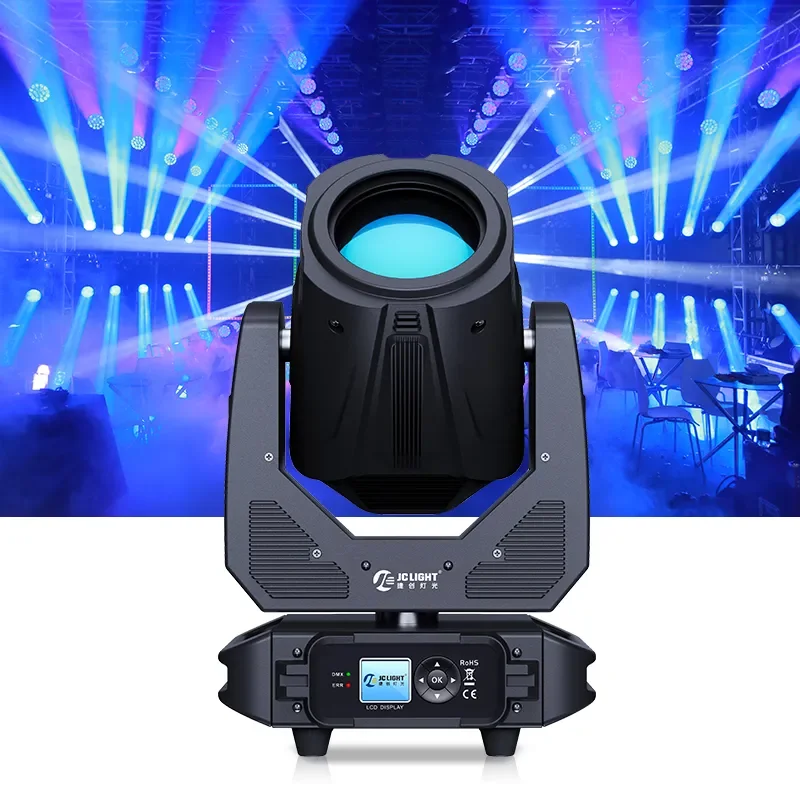

TLX295A 13R Beam Profile Moving Head Light with 295W Lamp and 1:7 Zoom System

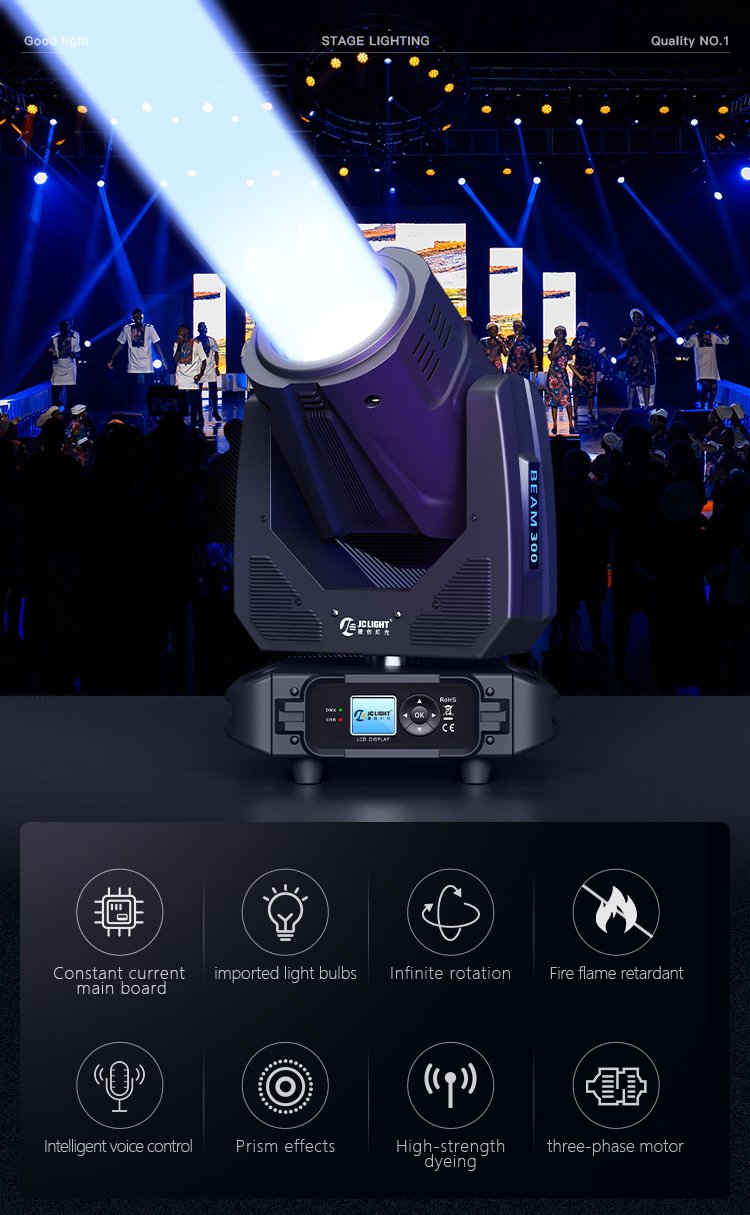

The JC LIGHT TLX295A Beam Profile Moving Head Light is a professional high-output moving head fixture designed for concerts, theatres, stages, rental productions and large-scale events. Equipped with an original Phoenix 13R 295W discharge lamp, it delivers up to 90,000 lumens luminous output with powerful beam projection and high-resolution imaging performance.
Featuring a 145mm optical system, 1:7 motorized zoom range, color wheel, gobo wheel, prism, focus and atomization effects, the TLX295A combines beam, spot and profile lighting functions for versatile professional stage applications.
Key Features
- Original Phoenix 13R 295W lamp source
- 90,000 lumens maximum luminous output
- 12000K high color temperature
- 145mm high-resolution optical system
- 1:7 zoom ratio
- 8°-54° adjustable beam angle
- 14 colors plus open color wheel
- 18 gobos with jitter and water flow effects
- 16-sided prism and 16+16 prism effects
- 0-100% atomization effect
- 0-100% linear dimming
- Double chip variable strobe effect
- Pan 540° / Tilt 270° movement
- DMX512 and RDM control support
Model and SKU Information
| Short Model Number | TLX295A |
| SKU | TLX295A |
| Product Type | 13R Beam Profile Moving Head Light |
Technical Specifications
| Short Model Number | TLX295A |
| SKU | TLX295A |
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 550W |
| Light Source | Original Phoenix 13R 295W Lamp |
| Color Temperature | 12000K |
| Luminous Output | 90,000 Lumens |
| Fixed Luminous Output | 46,500 Lumens |
| Maximum Luminous Intensity | 3,000,000 cd |
| Lamp Life | 10,000 Hours |
| Optics | 145mm Diameter Optical System |
| Zoom Range | 1:7 Zoom Ratio |
| Beam Angle | 8°-54° |
| Color Wheel | 14 Colors + Open, Half Color Effect |
| Color Palette | 1 Palette with 6 Colors |
| Gobo Wheel | 18 Gobos + Open, Jitter Function, Water Flow Effect |
| Prism | 16-Sided Prism + 16+16 Prism, Two-Way Rotation |
| Focus | 6-Layer All-Film Focusing Lens |
| Atomization | 0-100% |
| Dimmer | 0-100% Linear Dimming |
| Strobe | Double Chip Flash, 0-15t/s Adjustable |
| Pan & Tilt | Pan 540° / Tilt 270° |
| Control Mode | DMX512 / Master-Slave / Sound / Auto / RDM |
| Control Channel | 16CH / 22CH |
| IP Rating | IP20 |
| Product Size | 330 × 260 × 520mm |
| Weight | 14.3kg |

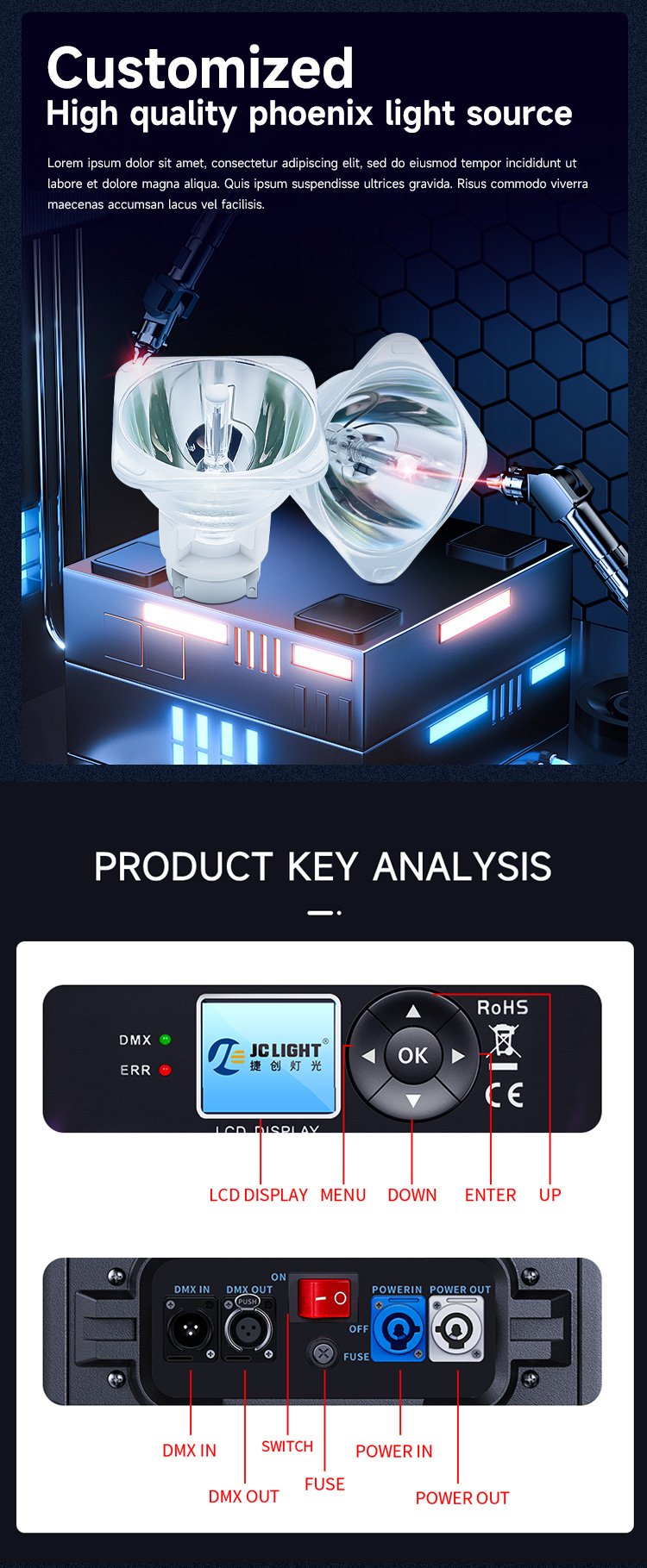

High Output Phoenix 13R Lamp System
The TLX295A uses an original Phoenix 13R 295W lamp, delivering powerful output suitable for professional stages requiring long-distance projection and high brightness performance.
High Resolution Zoom Optical System
Equipped with a 145mm optical lens system and 1:7 zoom ratio, the TLX295A provides flexible beam adjustment from narrow beam effects to wide-area projection.
Professional Beam and Profile Effects
The fixture integrates multiple professional effects including color mixing, gobo projection, prism effects, focus adjustment, atomization and strobe functions.
Advanced Gobo and Prism Effects
The rotating gobo system includes 18 gobos plus open mode with jitter and water flow effects. The prism system supports 16-sided prism and 16+16 prism overlay effects.
Precise Movement and Control
With 540° pan and 270° tilt movement, plus DMX512 and RDM support, the TLX295A integrates easily into professional lighting systems.
Application Scenarios
- Concert stages
- Theatres
- Live performances
- Large events
- Rental lighting projects
- TV productions
- Entertainment venues
- Professional stage installations
Why Choose JC LIGHT
- Professional moving head lighting solutions
- High-output 13R lamp technology
- Advanced beam and profile functions
- High-resolution optical projection
- DMX512 and RDM professional control
- Suitable for concerts and large productions
- OEM and ODM customization support
TLX295A 13R Beam Profile Moving Head Light FAQ
What lamp does the TLX295A use?
The TLX295A uses an original Phoenix 13R 295W lamp.
What is the luminous output of the TLX295A?
The maximum luminous output reaches 90,000 lumens.
What zoom range does the TLX295A support?
It supports a 1:7 zoom range with 8°-54° beam angle adjustment.
How many gobos does the TLX295A have?
It includes 18 gobos plus open mode with jitter and water flow effects.
Does the TLX295A support DMX512 control?
Yes. It supports DMX512, master-slave, sound, auto and RDM programming.
What prism effects are included?
The fixture includes 16-sided prism and 16+16 prism effects.
What are the pan and tilt ranges?
The TLX295A supports 540° pan and 270° tilt movement.
Where can the TLX295A be used?
It is suitable for concerts, theatres, stages, rental productions and large events.
Need wholesale pricing for the JC LIGHT TLX295A 13R Beam Profile Moving Head Light? Contact JC LIGHT for OEM, ODM and professional stage lighting solutions.
