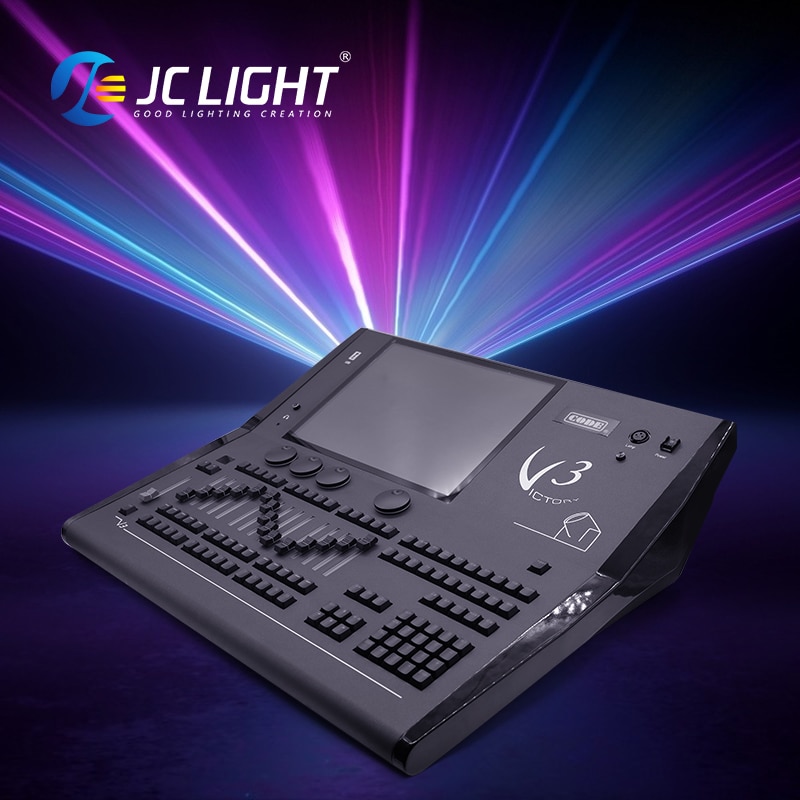

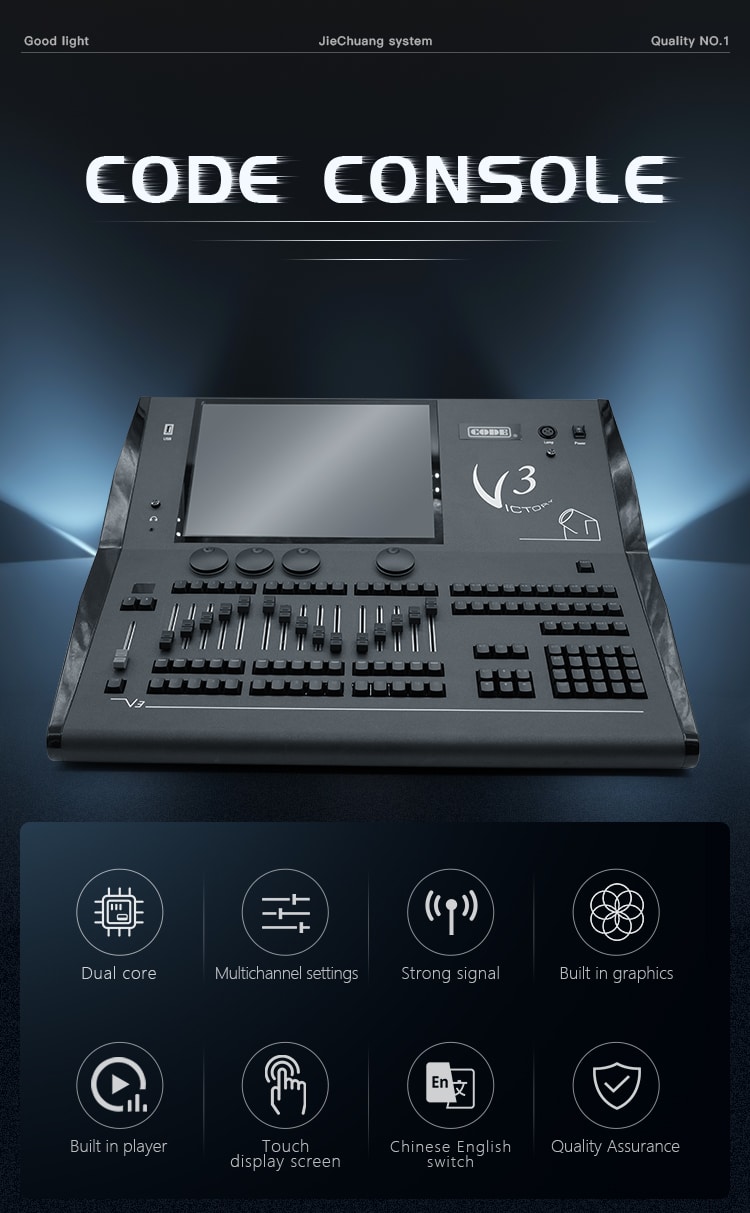

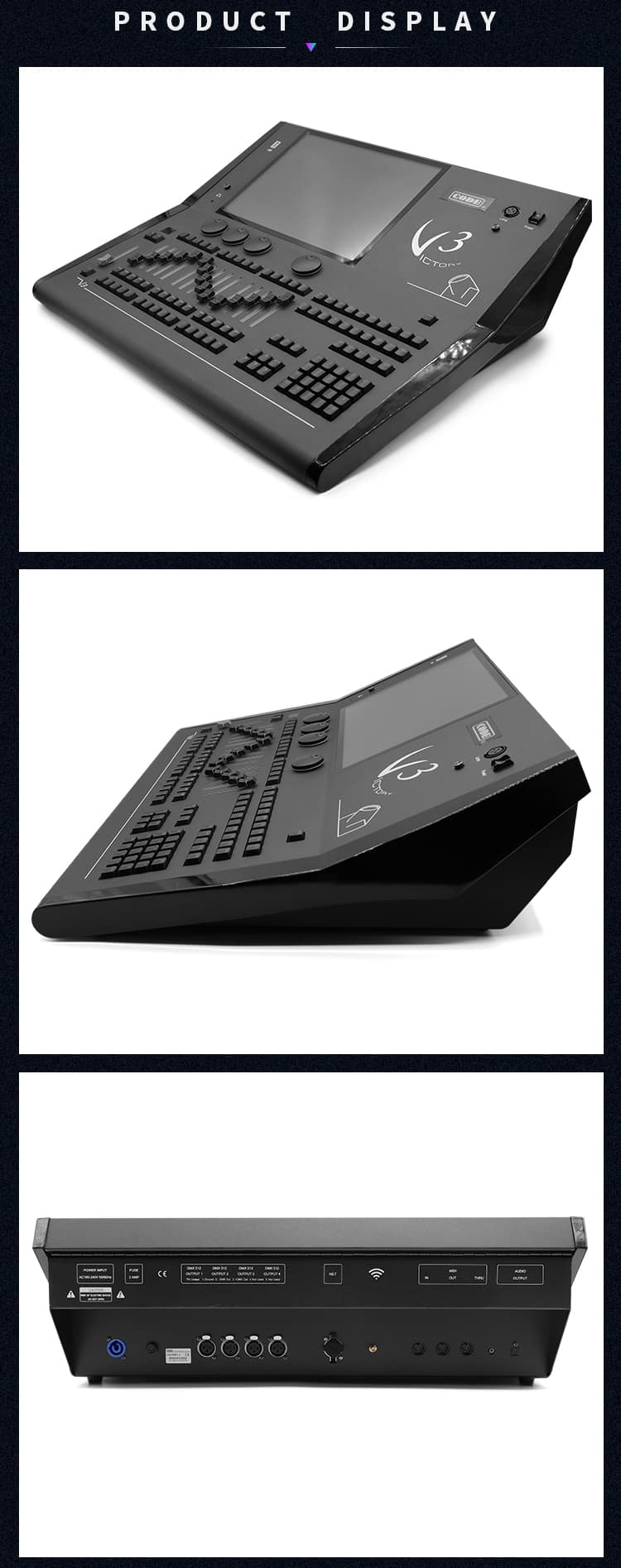

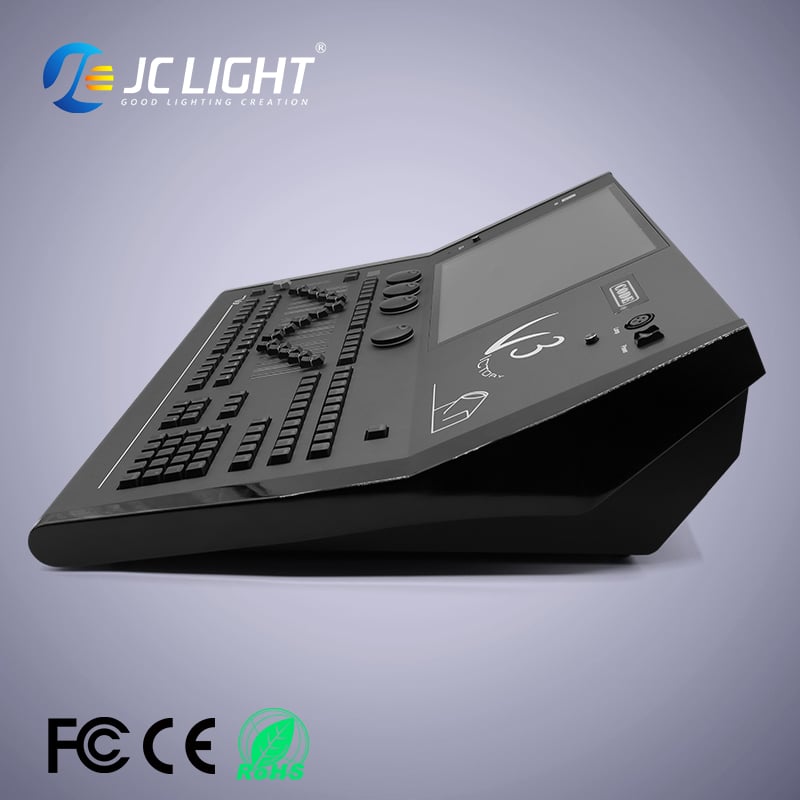

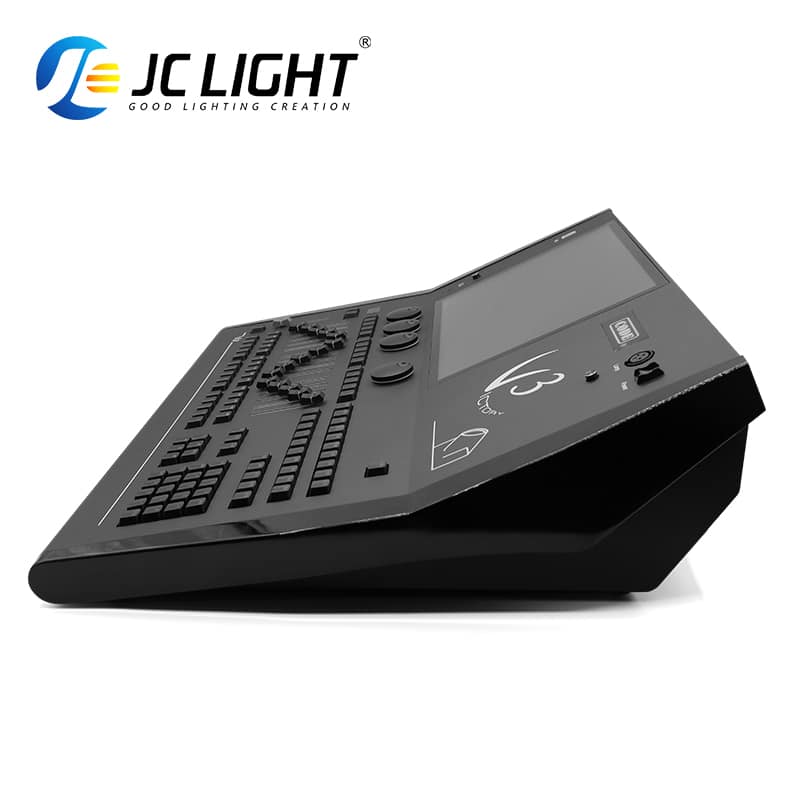

JC LIGHT Code Victory 3 Lighting Controller Console OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
Request Quote For JC LIGHT Code Victory 3 Lighting Controller Console OEM
Get factory pricing, OEM support and delivery information for this product.
- Description
- Details
Description

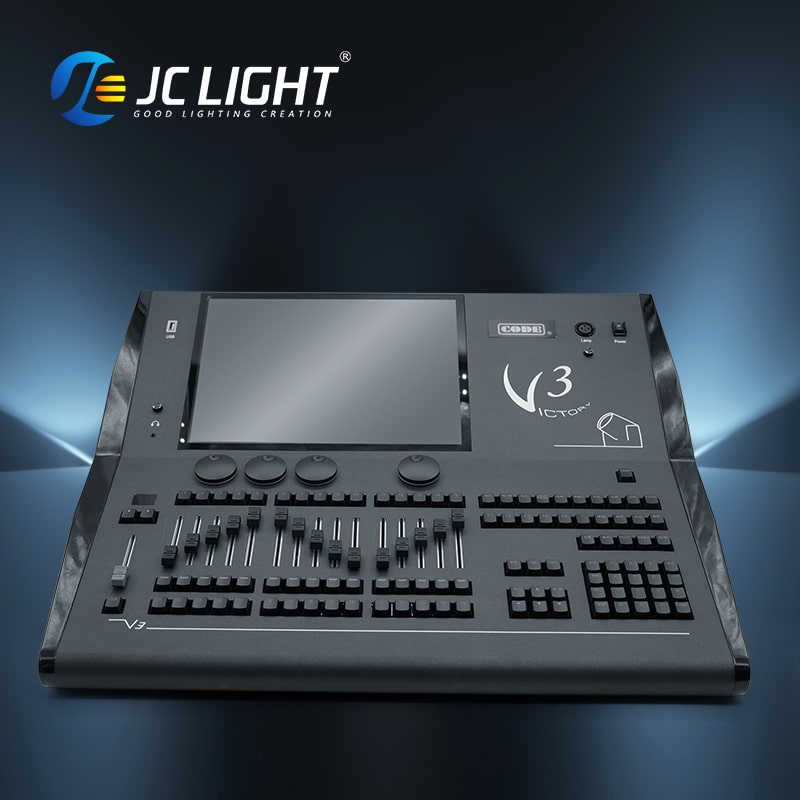

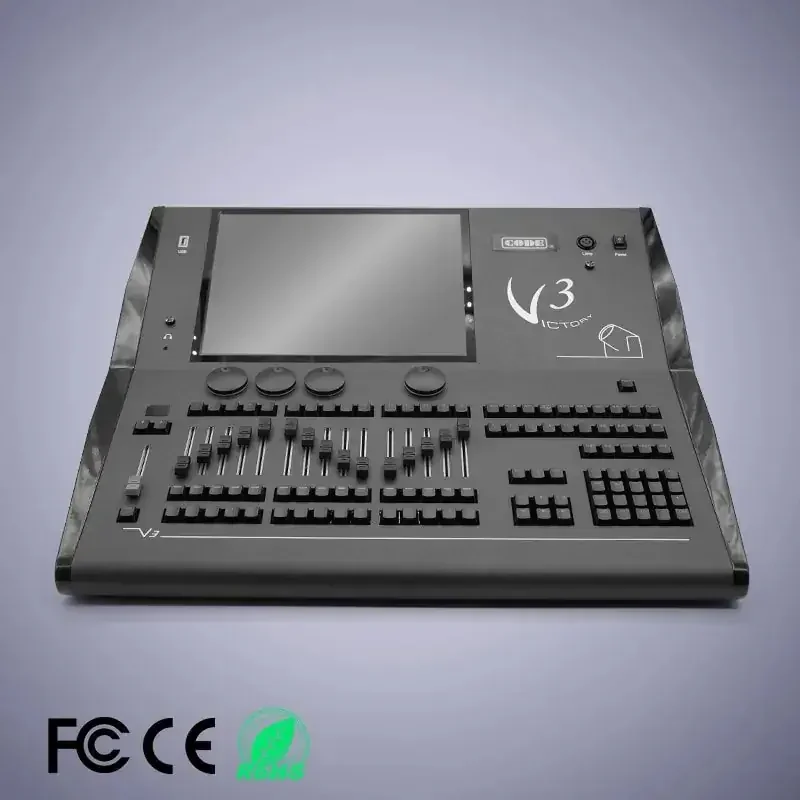

DMX 2048 Lighting Console with Art-Net, RDM and Advanced Programming System
The JC LIGHT DMX 2048 Lighting Console is a professional-grade lighting control system designed for concerts, theatres, touring productions and large-scale stage projects. With 2048 DMX channels, Art-Net network support and powerful programming functions, it provides complete control for complex intelligent lighting systems.
Featuring a 15-inch capacitive touchscreen, advanced replay management, built-in fixture library, timecode synchronization and mobile APP control, this console delivers an efficient workflow for professional lighting programmers.
Key Features
- 2048 DMX channels with 4 optically isolated DMX outputs
- Art-Net network interface for DMX transmission and 3D simulation connection

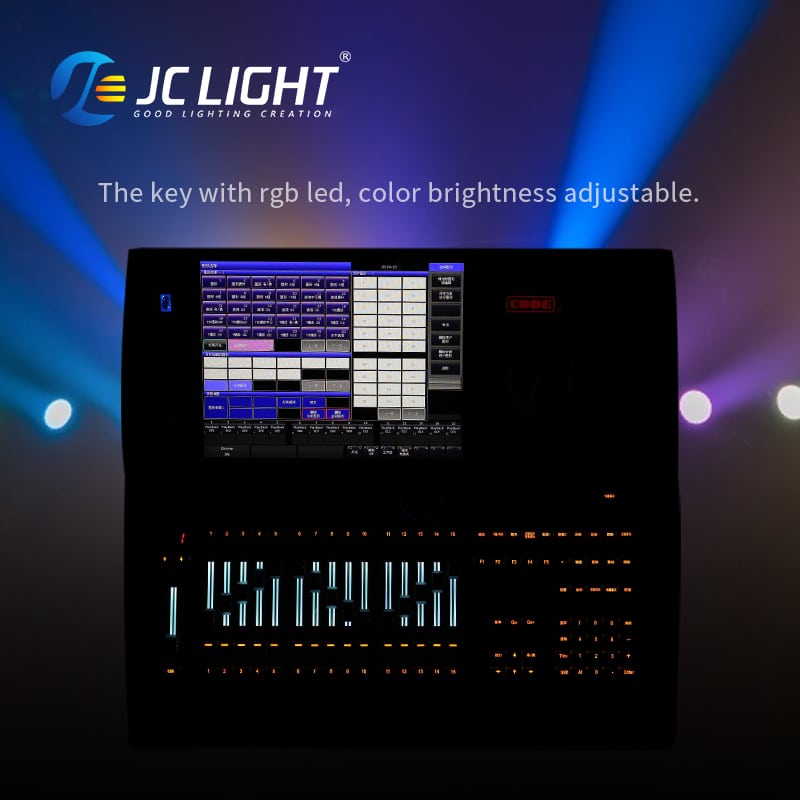

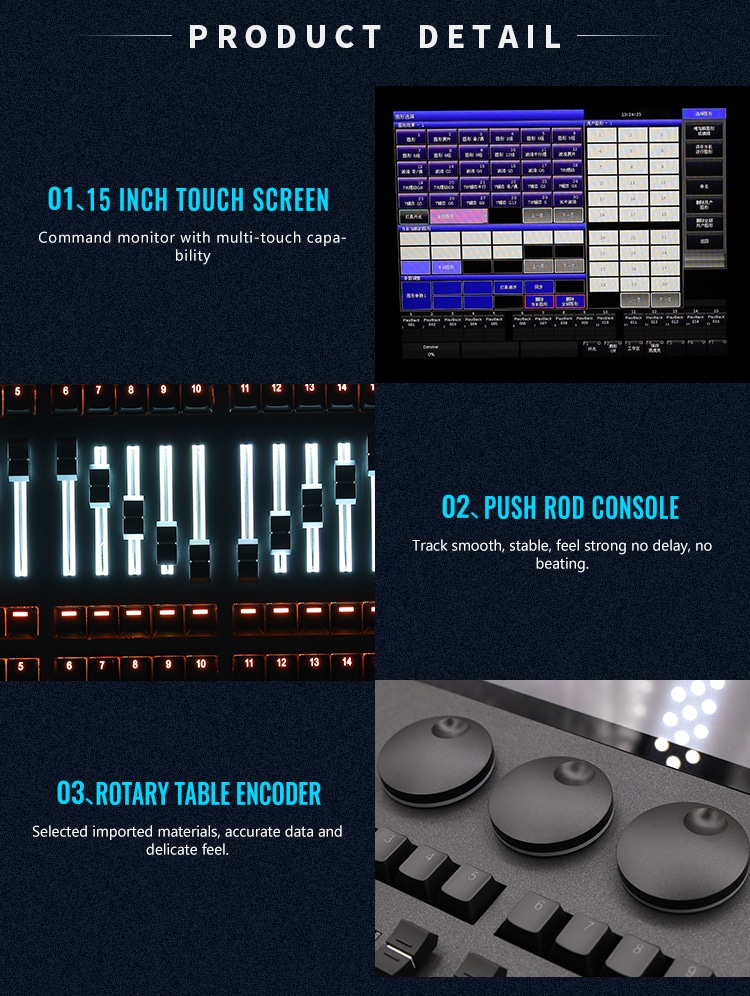

- 15-inch TFT-LCD capacitive touchscreen
- Chinese and English operation interface switching
- 15 playback faders × 80 pages + 15 playback buttons × 80 pages
- Stores up to 2400 playback programs
- Supports 30 playback outputs simultaneously
- 4 high-precision photoelectric encoder wheels with backlight
- Vector fixture position layout for intuitive programming
- Workspace creation and quick interface access
- Multi-mode fan and sector generator functions
- Text, handwriting and frame color naming functions
- Built-in timecode and MIDI trigger system
- Built-in music player supporting MP3 and FLAC formats
- Independent CMY/RGB color mixing management
- Advanced graphic effects and user-defined shapes
- Program priority management system
- RDM two-way communication support
- Built-in WIFI for mobile APP control
- USB backup and system update support
Technical Specifications
| DMX Channels | 2048 channels |

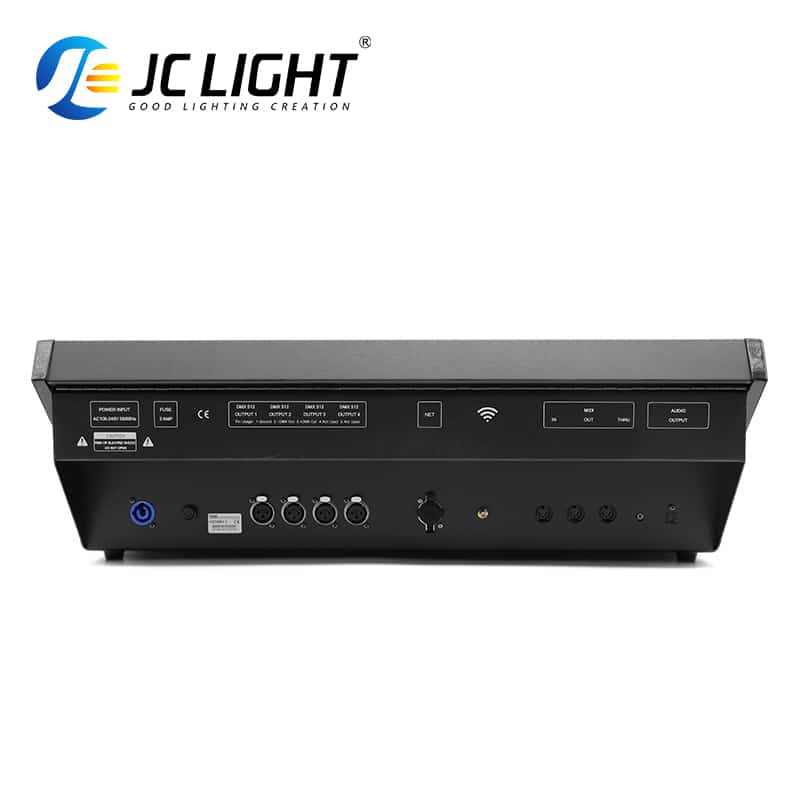

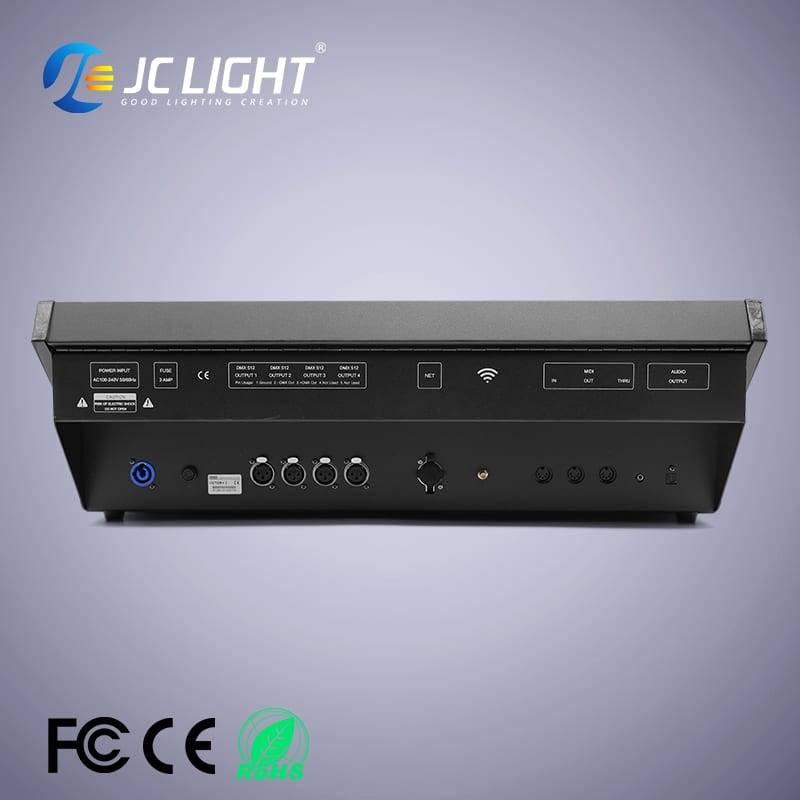

| DMX Output | 4 optically isolated DMX output ports |
| Network Protocol | Art-Net |
| Display | 15-inch TFT-LCD capacitive touchscreen |
| Language | Chinese / English switchable |
| Playback Faders | 15 faders × 80 pages |
| Playback Buttons | 15 buttons × 80 pages |
| Playback Storage | 2400 playback programs |
| Simultaneous Output | 30 playback programs |
| Encoder Wheels | 4 high-precision photoelectric coding wheels |
| Fixture Library | Nearly 10,000 fixture data |
| Fixture Capacity | Up to 1000 fixtures |
| Group Storage | Up to 1000 groups |
| Material Storage | Up to 1000 materials |
| Macro Shows | Up to 1000 lighting shows |
| Fixture Library Format | R20, D4 and external library import support |
| RDM Function | Two-way communication and remote addressing |
| MIDI | MIDI IN / OUT / THRU |
| Wireless Control | WIFI mobile APP control |
| Audio Interface | 3.5mm audio output, optical port, headphone monitoring |
| Working Light Port | 12V indicator port |
| Storage | Built-in electronic hard disk + USB backup |
| Voltage | AC100-240V, 50/60Hz |

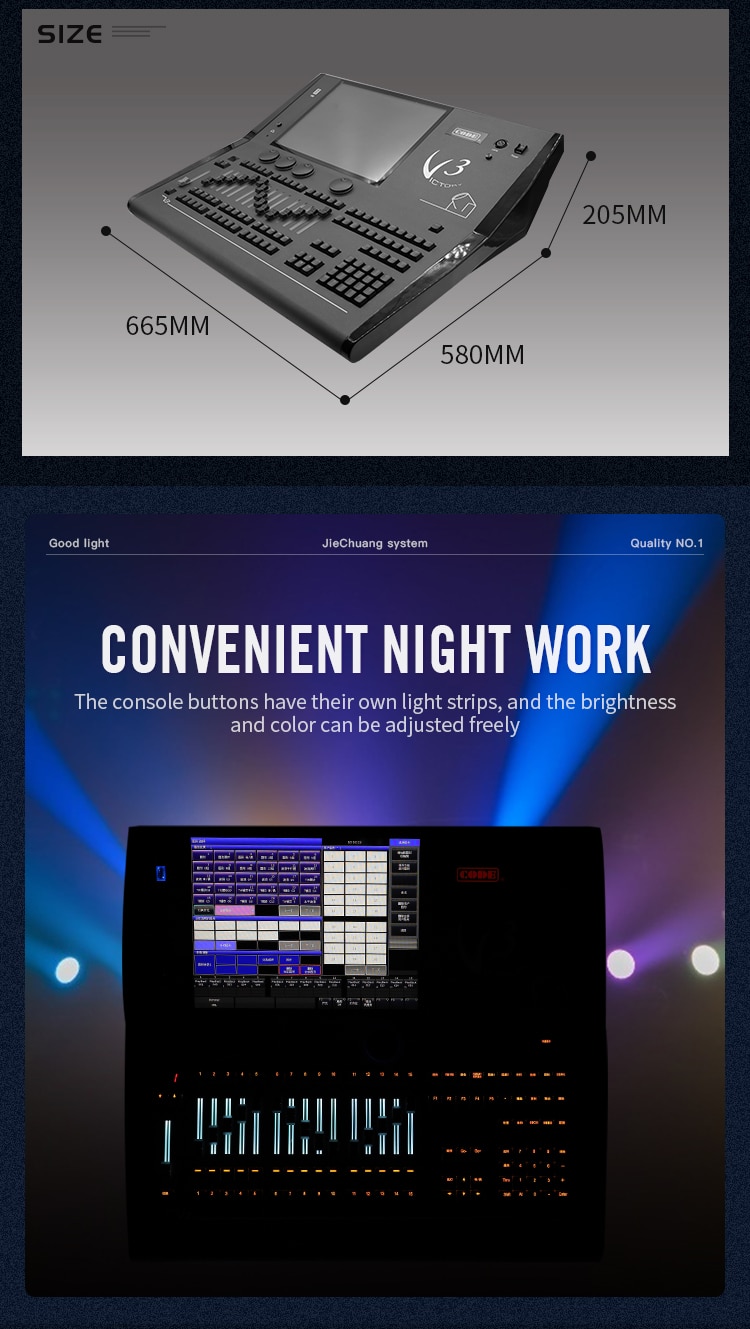

| Console Size | 665 × 580 × 205 mm |
| Flight Case Size | 78 × 72 × 32 cm |
| Net Weight | 14.5 kg |
Advanced Control Functions
- Professional Fixture Management:
Built-in fixture library with support for editing, importing and exporting fixture data. - RDM Communication:
Remote fixture information viewing and configuration through two-way communication. - Timecode Synchronization:
Supports internal player, MIDI and multiple trigger modes for synchronized lighting shows. - Offline Programming:
Create and edit lighting programs before arriving at the venue. - Mobile APP Control:
Control the console through WIFI using mobile devices.
Application Scenarios
- Concert and festival lighting control
- Theatre and auditorium lighting systems
- Large-scale event productions
- Professional rental lighting projects
- TV studio and entertainment venues
- Touring stage lighting systems
Why Choose JC LIGHT
- Professional stage lighting equipment supplier
- Advanced DMX and Art-Net control solutions
- Powerful programming workflow for professional users
- Stable hardware for large-scale productions
- OEM and ODM customization support available
DMX 2048 Lighting Console FAQ
How many DMX channels does this console support?
It supports 2048 DMX channels with four optically isolated DMX output ports.
Does it support Art-Net networking?
Yes. It supports Art-Net network output and can connect with 3D simulation software.
How many fixtures can be controlled?
The console can connect and manage up to 1000 fixtures.
Does it support RDM control?
Yes. It supports RDM two-way communication for fixture information and remote configuration.
Can it synchronize lighting with music?
Yes. It supports timecode, MIDI trigger and built-in music playback.
Does it support mobile control?
Yes. Built-in WIFI allows control through mobile phones and tablets using the dedicated APP.
Do you provide OEM customization?
Yes. JC LIGHT provides OEM and ODM services for professional lighting control equipment.
Need a quotation for professional DMX lighting consoles? Contact JC LIGHT with your project requirements and quantity.
