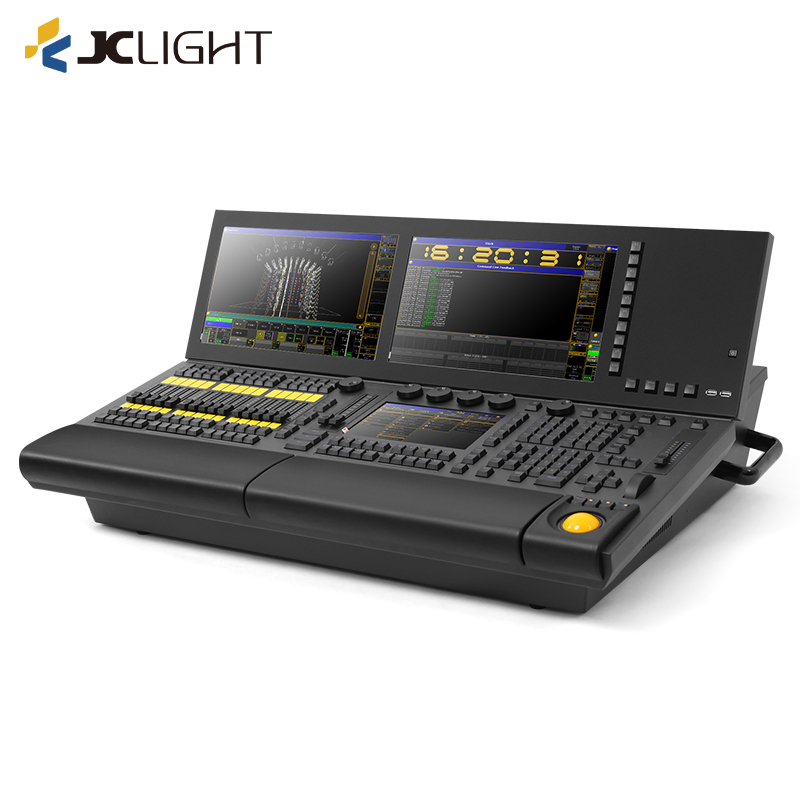

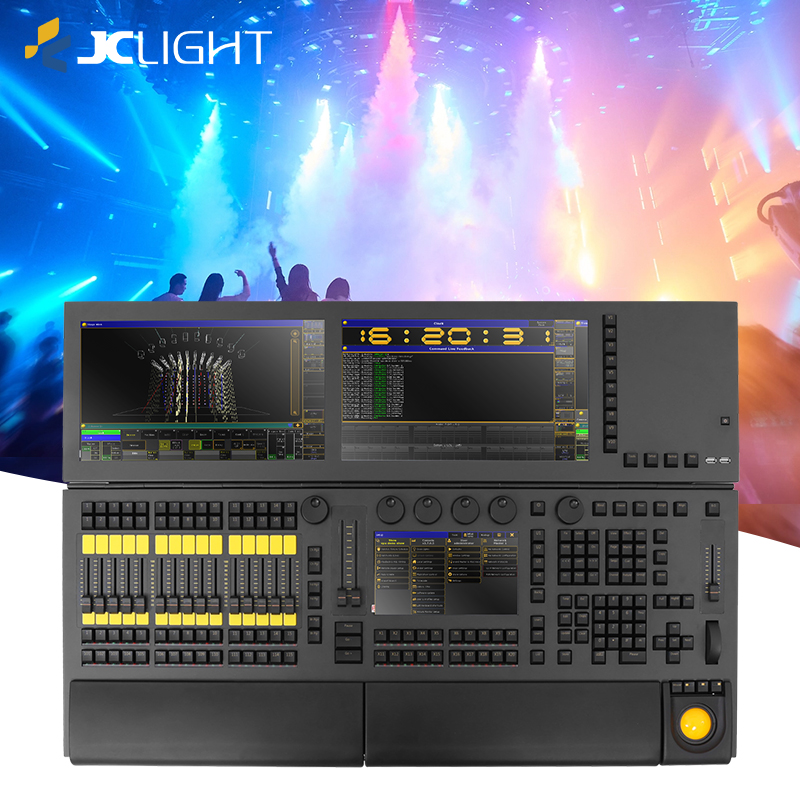

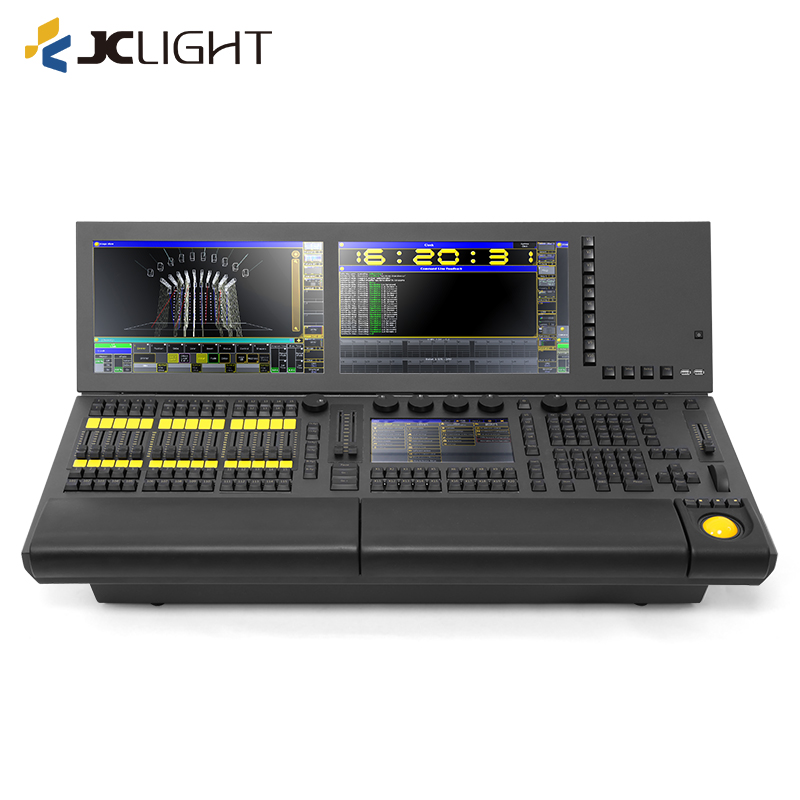

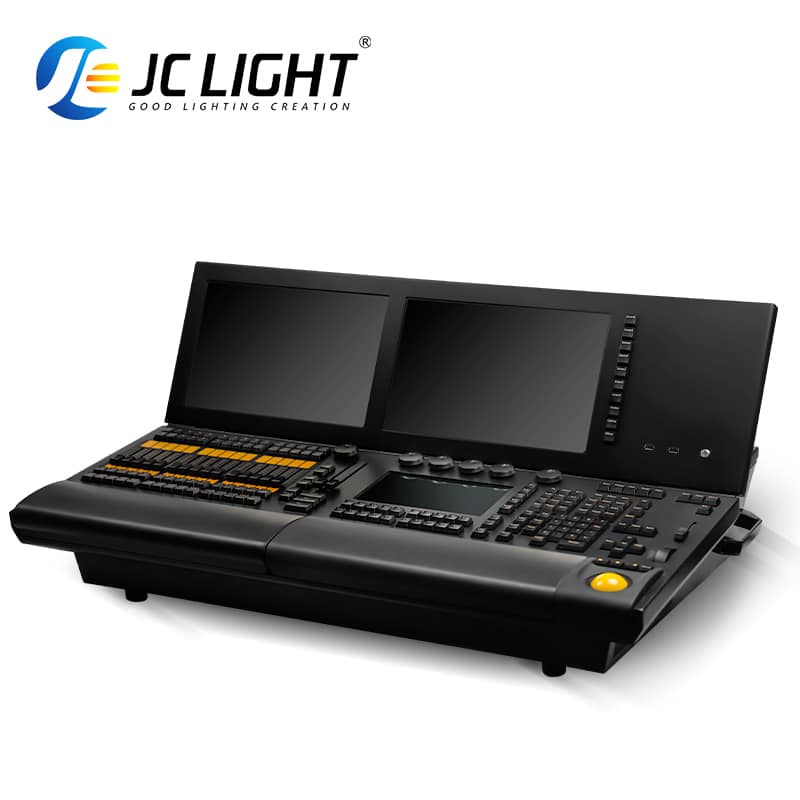

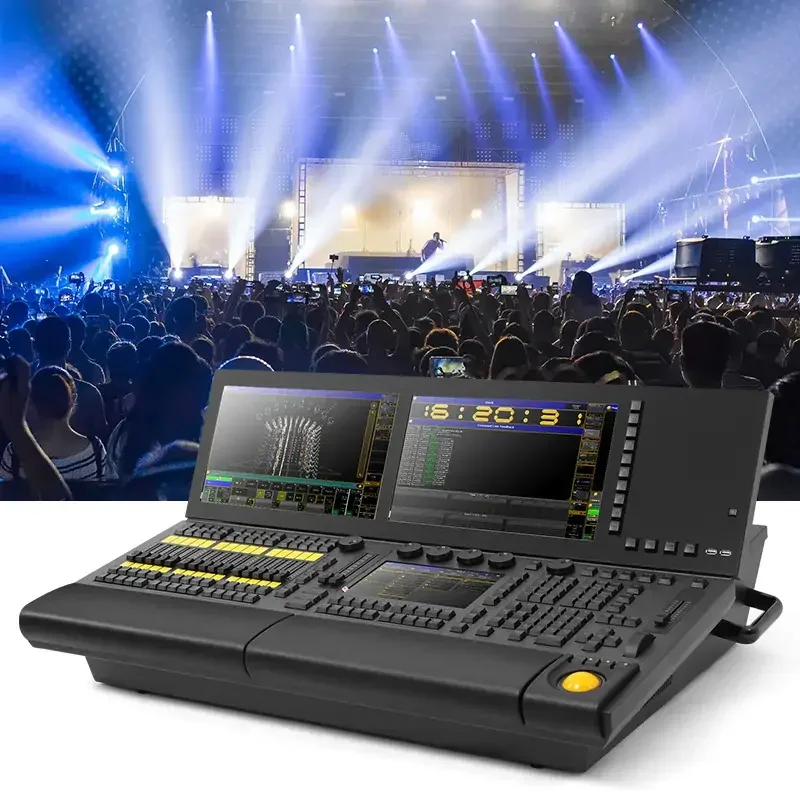

L2 MA2 Professional Linux Stage Lighting Console with 65536 DMX Channels
The JC LIGHT L2 MA2 Professional Lighting Console is a high-performance stage lighting control system designed for concerts, theaters, festivals, TV productions and professional lighting rental projects. Built with a professional Linux operating system, industrial-grade motherboard, Intel i5 CPU, 8GB RAM and built-in SSD, it provides reliable control for large-scale lighting systems.
Featuring dual motorized 15.4-inch industrial touch screens, one 9-inch touch screen, 6 DMX outputs and support for up to 65536 channels through NPU expansion, the L2 delivers powerful programming capability for complex stage lighting environments. It supports MA NET, Art-Net, RDM programming, MIDI, DVI expansion and advanced motorized playback control.
Key Features
- Professional Linux operating system
- MA2 professional lighting control platform
- Built-in dual motorized 15.4-inch industrial full-view touch screens
- Built-in 9-inch touch screen
- Industrial-grade motherboard
- Intel i5 CPU
- 8GB RAM memory
- Built-in SSD storage
- 6 DMX outputs
- 1 composite DMX input (can be configured as output)
- Supports up to 65536 channels through NPU expansion
- 15 motorized playback faders with sensing function
- 80 executive keys
- 1 master control fader
- 1 dimmer wheel
- High-precision imported XY trackball
- 2 motorized A/B faders
- 7 industrial-grade wear-resistant encoders with push function
- MA NET and Art-Net network support
- MIDI input and output support
- Built-in high-power UPS power supply
- Automatic startup with or without 220V power connection
- Built-in 18W fast charging USB port
- RDM programming support
- Dual DVI display expansion support

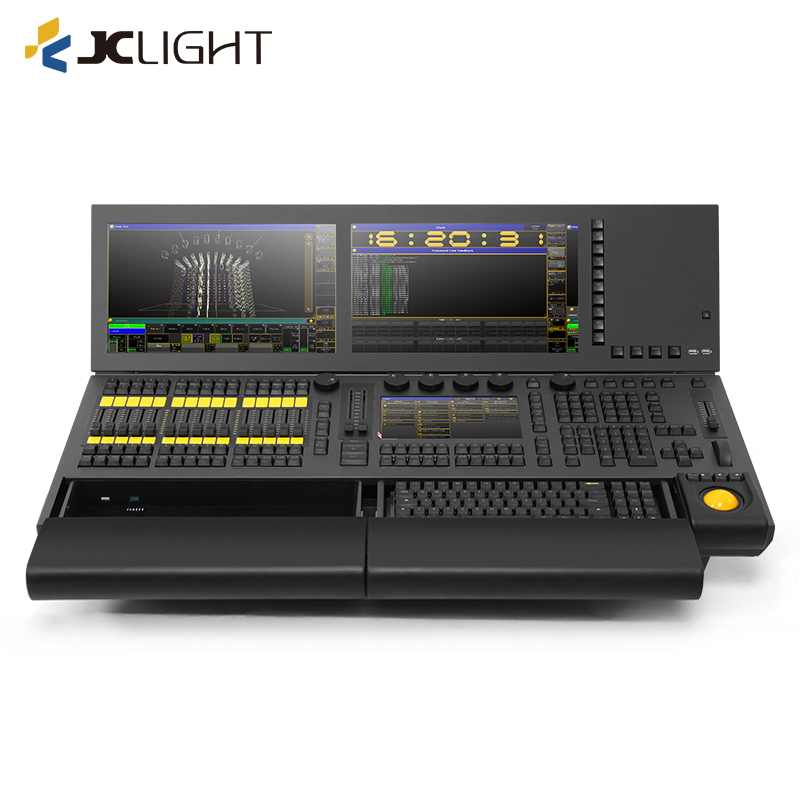

- Built-in mechanical keyboard with adjustable yellow backlight
Technical Specifications
| Short Model Number | L2 |
| Product Type | Professional MA2 Linux Lighting Console |
| Operating System | Professional Linux System |
| Processor | Intel i5 CPU |
| Memory | 8GB RAM |
| Storage | Built-In SSD |
| Main Touch Screens | 2 × 15.4-Inch Motorized Industrial Full-View Touch Screens |
| Additional Display | 1 × 9-Inch Touch Screen |
| DMX Output | 6 DMX Outputs |
| DMX Input | 1 Composite DMX Input (Configurable Output) |
| Maximum Channels | Up to 65536 Channels with NPU Expansion |
| LTC Time Code | 1 LTC Trigger Port |
| Playback Faders | 15 Motorized 60mm Playback Faders with Sensing Function |
| Executive Keys | 80 Keys |
| Master Control | 1 Master Fader + 1 Dimmer Wheel |
| XY Control | Imported High Precision Trackball |
| A/B Faders | 2 Motorized 100mm A/B Faders |
| Encoders | 7 Industrial Grade Push Encoders |
| Network | 2 Gigabit Network Ports |
| Network Protocol | MA NET / ART-NET |
| USB Ports | 5 USB Ports + 1 Backup USB Port |
| Working Light Interface | 2 Interfaces |
| DVI Expansion | 2 DVI Interfaces |
| MIDI | MIDI Input / Output |
| UPS | Built-In High Power UPS |
| Power Supply | 100V-240V 50/60Hz |
| RDM Programming | Supported |

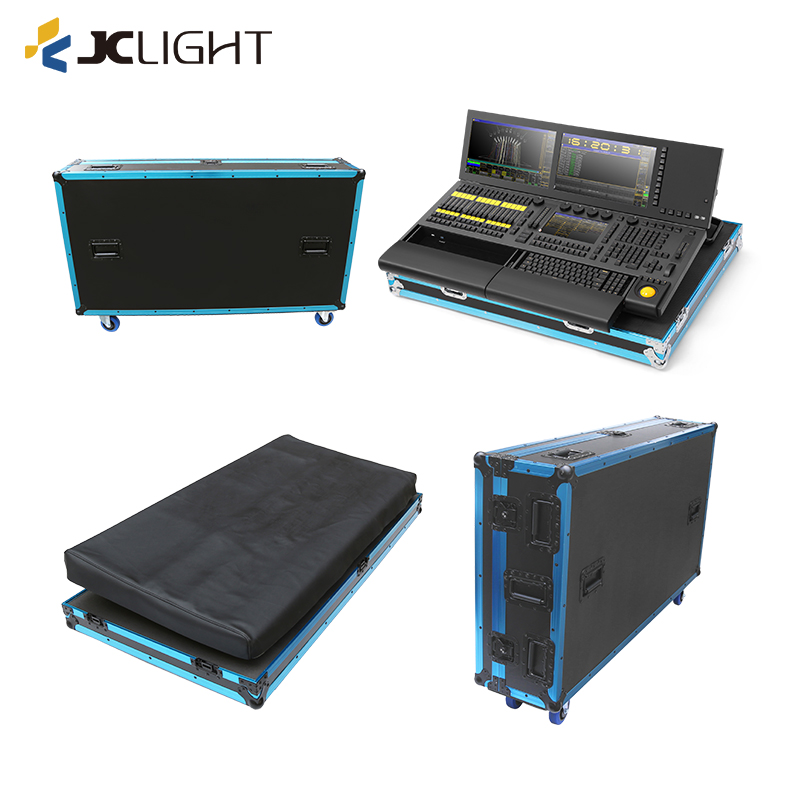

| Flight Case Size | 82 × 33 × 102 cm |
| Weight | 78 kg |
Professional MA2 Lighting Control System
The L2 is designed around the MA2 lighting control workflow, providing professional programming functions for large-scale stage productions, concerts and entertainment projects.
65536 Channel Large-Scale Control Capability
Through NPU expansion, the L2 supports up to 65536 DMX channels, making it suitable for complex lighting networks with hundreds of fixtures.

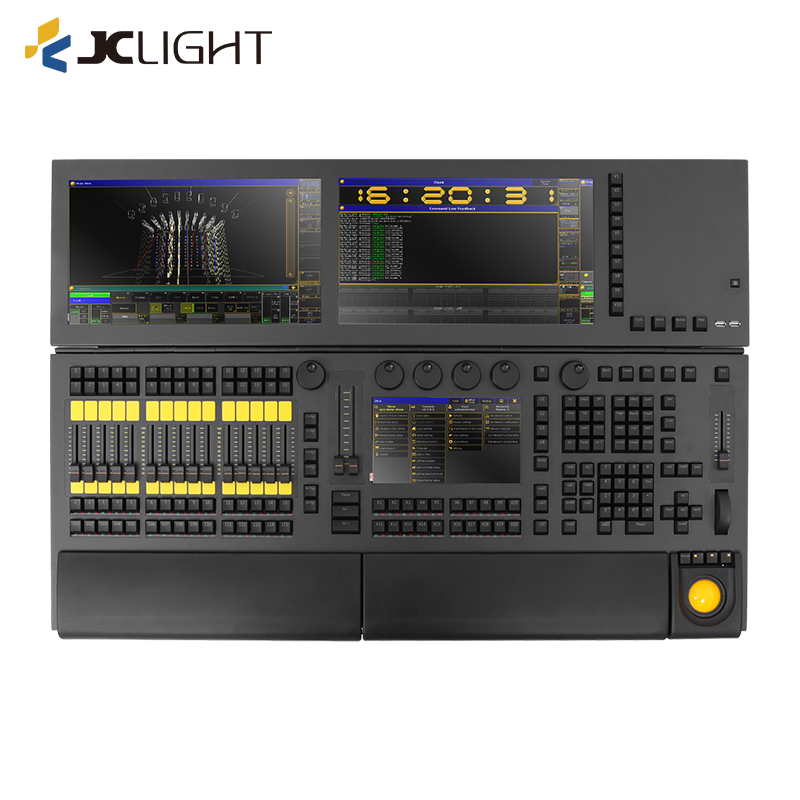

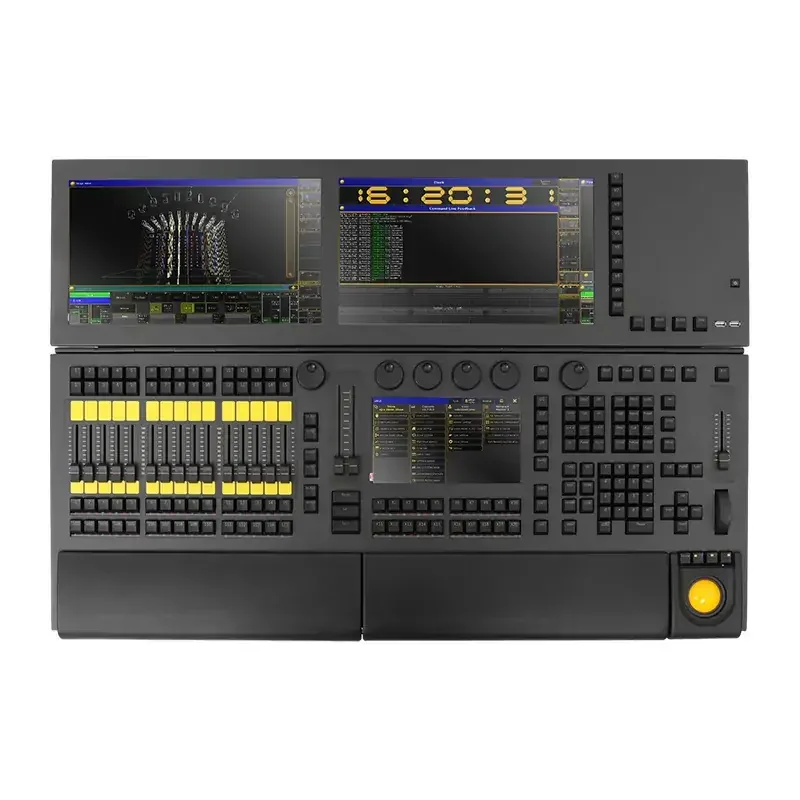

Motorized Touch Screen and Playback Control
The console features two motorized 15.4-inch touch screens and one 9-inch touch screen. The motorized playback system includes 15 sensing faders, 80 executive keys and motorized A/B faders for professional live operation.
Advanced Network Lighting Control
Supporting MA NET and Art-Net protocols, the L2 can integrate with advanced lighting networks, visualization systems and professional stage control environments.
Professional Hardware Configuration
The industrial-grade hardware platform includes an Intel i5 processor, 8GB RAM, SSD storage and high-precision imported control components for stable operation during demanding productions.
UPS Power Protection System
The built-in high-power UPS allows the console to start automatically and continue operating even without direct connection to 220V AC power.
MIDI, LTC and RDM Support
The L2 supports LTC time code, MIDI input/output and RDM programming, providing professional synchronization and remote fixture management functions.

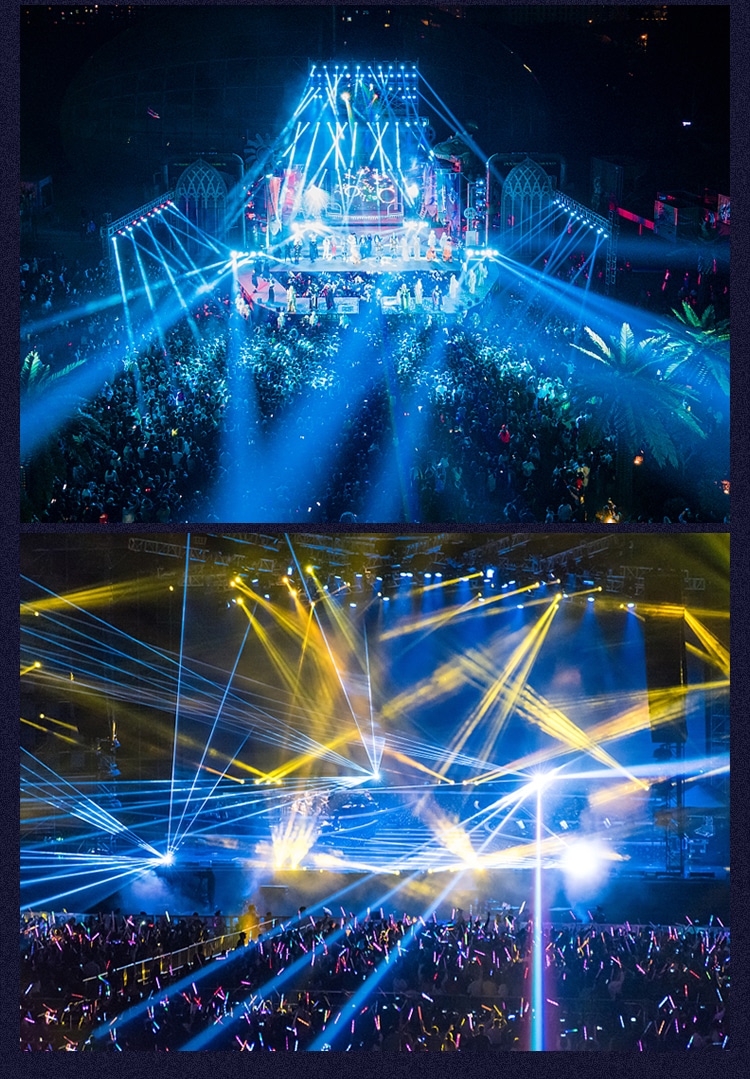

Application Scenarios
- Large concert stages
- Theaters
- Music festivals
- TV studios
- Live entertainment productions
- Professional lighting rental companies
- Large event lighting systems
- Permanent installation projects
Why Choose JC LIGHT
- Professional MA2 lighting console solutions
- Large-scale DMX channel expansion capability
- Motorized touch screen and fader operation
- Advanced network and synchronization functions
- Industrial-grade hardware reliability
- Suitable for professional stage lighting projects
- OEM and ODM lighting control solutions available
L2 MA2 Professional Lighting Console FAQ
What operating system does the L2 use?
The L2 uses a professional Linux operating system.
How many DMX channels can the L2 support?
The L2 supports up to 65536 channels through NPU expansion.
How many DMX outputs does the L2 have?
The console provides 6 DMX outputs and 1 composite DMX input.
Does the L2 support MA NET and Art-Net?
Yes. It supports MA NET and ART-NET network protocols.
How many touch screens does the L2 have?
It includes two 15.4-inch motorized touch screens and one 9-inch touch screen.
Does the L2 support RDM programming?
Yes. The L2 supports RDM programming functions.
Does the L2 include UPS power protection?
Yes. It includes a built-in high-power UPS system.
Does the L2 support MIDI and LTC time code?
Yes. It supports MIDI input/output and LTC time code control.
Where can the L2 MA2 console be used?
It is suitable for concerts, theaters, festivals, TV productions and professional lighting rental projects.
