Professional Linux Lighting Console with 4 Touch Screens and 65536 Channel Control

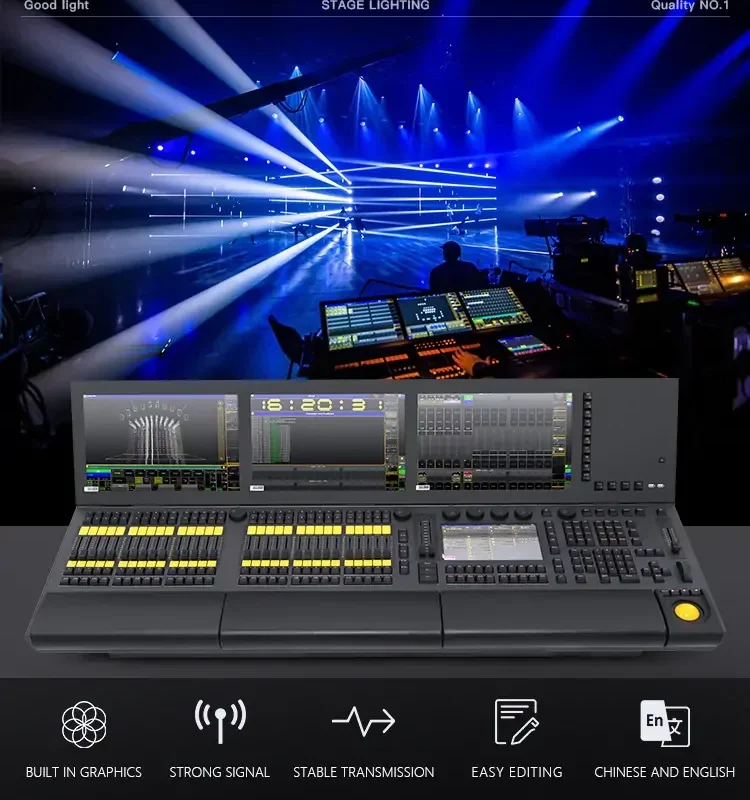

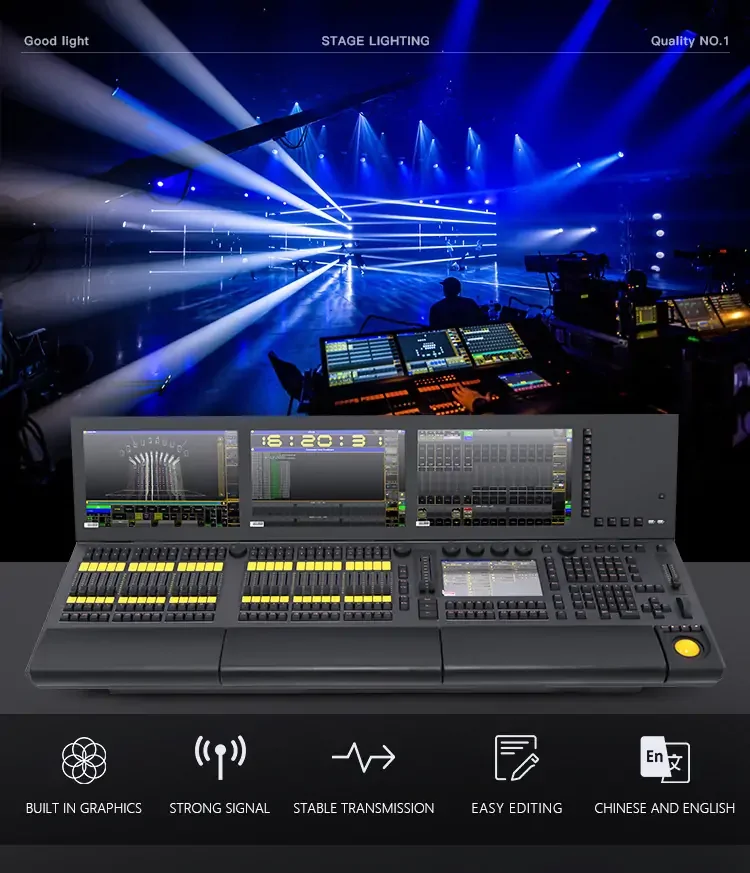

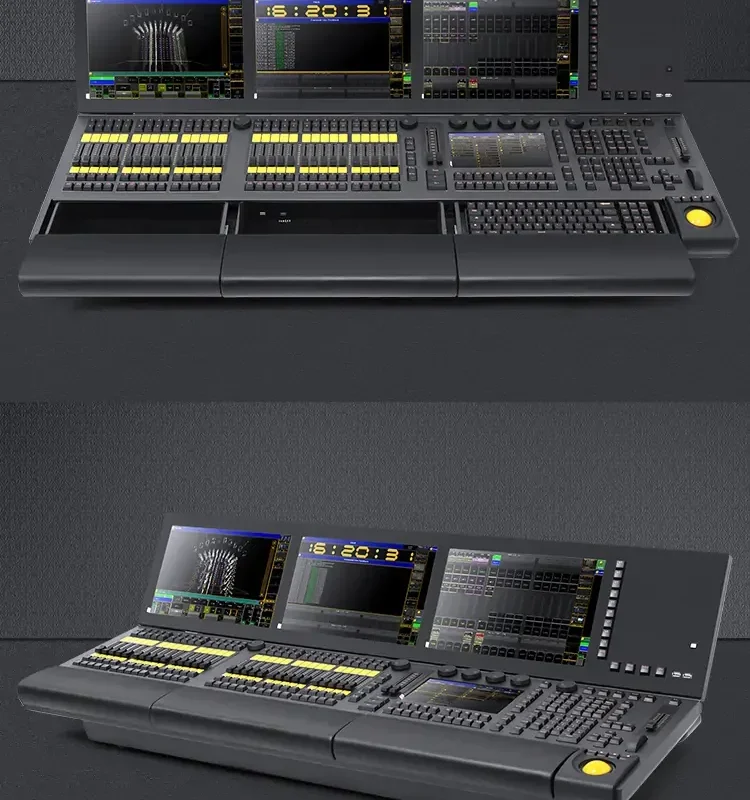

This professional stage lighting console runs on a Linux operating system and features an industrial-grade motherboard with an i5 processor, 8GB memory and a 120GB solid-state drive. The control surface integrates three 15.4-inch electric lifting touch screens and one 9-inch touch screen, providing a large multi-screen workspace for complex stage lighting programming and live show operation.

Designed for concerts, festivals, theatres, touring productions and large professional lighting systems, the console includes 6 DMX outputs, a configurable composite DMX input/output port, RDM support, dual Gigabit network ports and support for up to 65,536 channels when connected to NPU. Thirty motorized replay faders with induction, 80 execution buttons, precision encoders, a controllable XY trackball, MIDI connectivity and LTC timecode provide extensive hands-on control for demanding productions.

Key Features

• Professional Linux operating system
• Industrial-grade motherboard with i5 CPU
• 8GB memory and 120GB solid-state drive
• 3 × 15.4-inch electric lifting touch screens
• 1 × 9-inch touch screen
• Supports 2 additional displays through DVI
• 30 motorized replay faders with induction
• 80 program execution buttons
• 2 × 100mm A/B motorized faders
• 1 motorized master control fader
• 1 dedicated dimmer wheel
• 7 industrial-grade wear-resistant encoders with push function
• High-precision controllable XY trackball
• 6 built-in DMX output ports
• 1 composite DMX input port configurable as output
• Supports up to 65,536 channels when connected to NPU
• Dual Gigabit network ports
• Supports NET, Art-Net and other network signals
• RDM function supported
• LTC timecode trigger input
• MIDI input and output interfaces
• 5 USB ports + 1 backup USB port
• Dedicated 18W fast-charging USB port
• 2 work light interfaces
• 2 built-in drawers
• Mechanical keyboard with adjustable yellow backlight
• Built-in high-power UPS uninterruptible power supply

Technical Specifications

Four Integrated Touch Screens

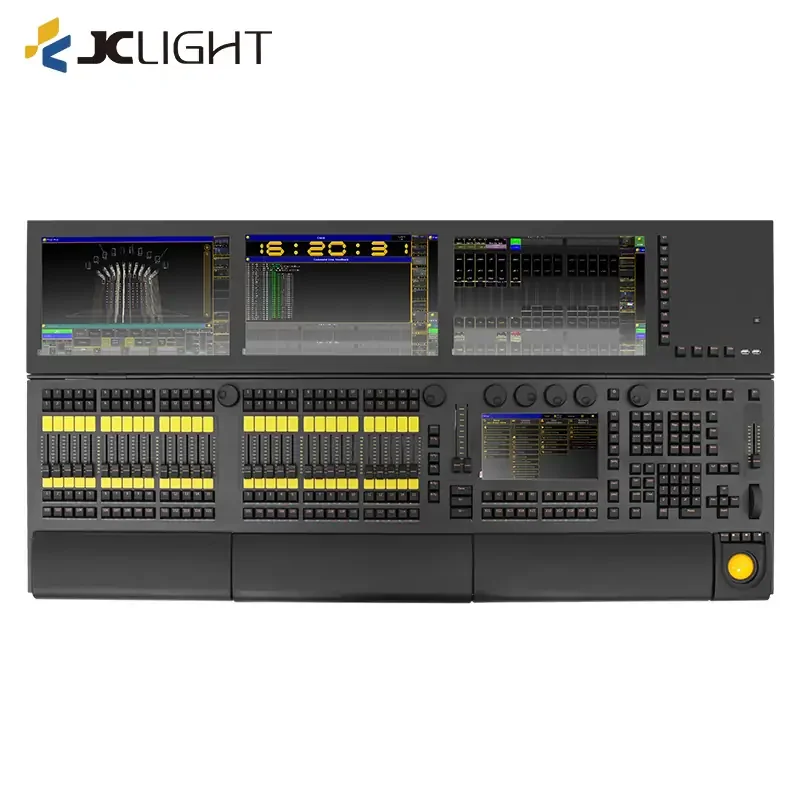

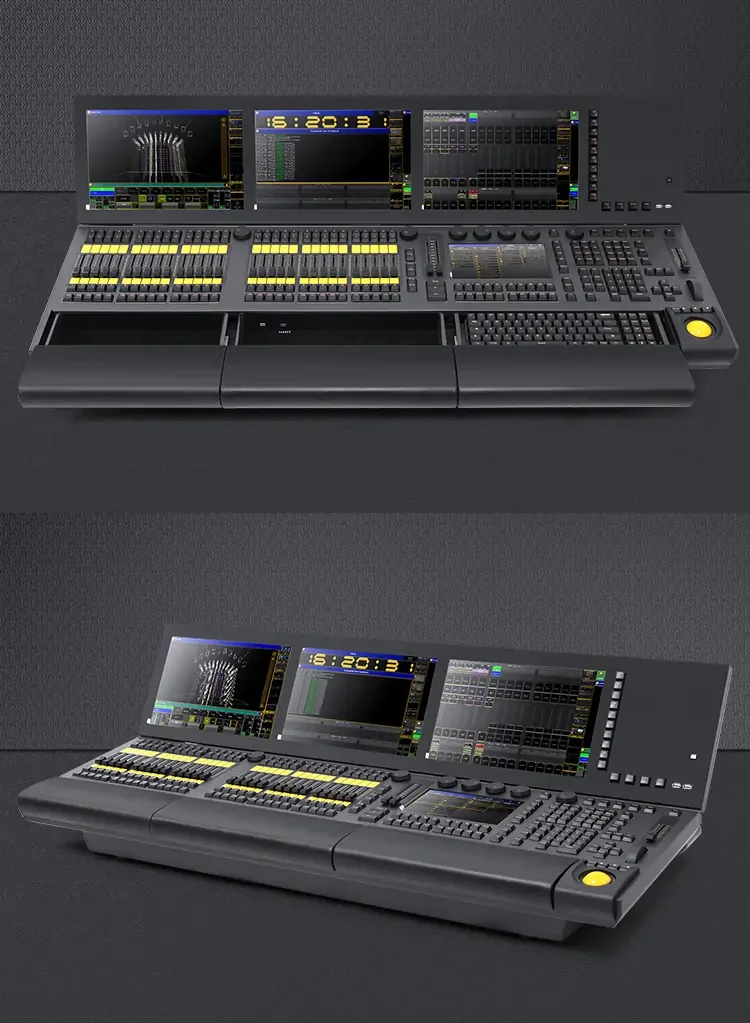

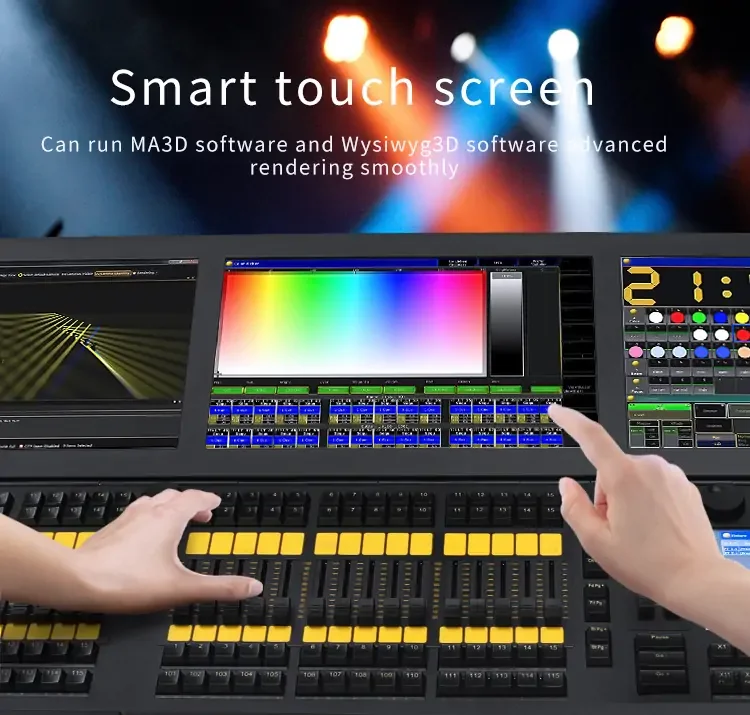

The console provides a large professional programming workspace through three electric lifting 15.4-inch touch screens and one 9-inch touch screen. Two DVI outputs also allow two additional displays to be connected when an expanded visual workspace is required for complex show programming.

30 Motorized Replay Faders and 80 Execution Buttons

The control surface features 30 induction-enabled 60mm motorized replay faders and 80 program execution buttons for extensive playback control. Two 100mm A/B motorized faders, an electric master fader and a dedicated dimmer wheel provide additional hands-on control during live productions.

Up to 65,536 Channels with NPU Expansion

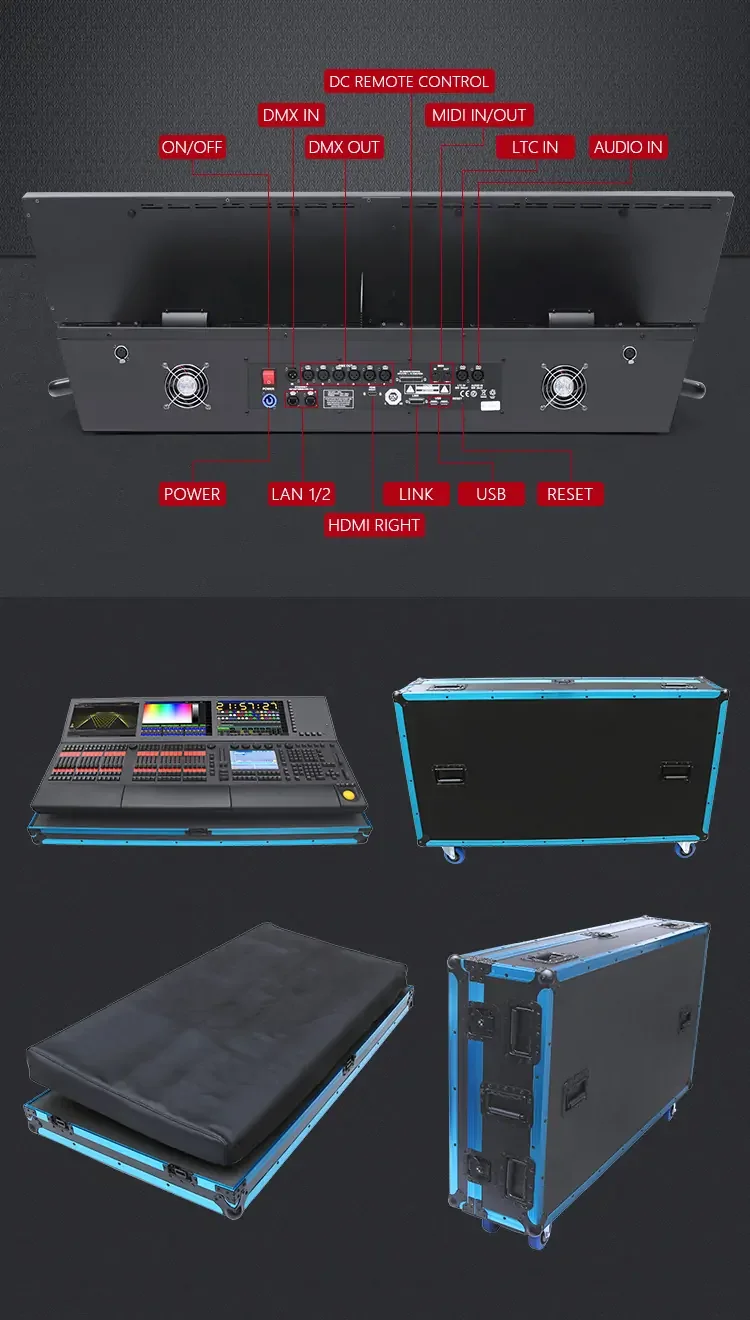

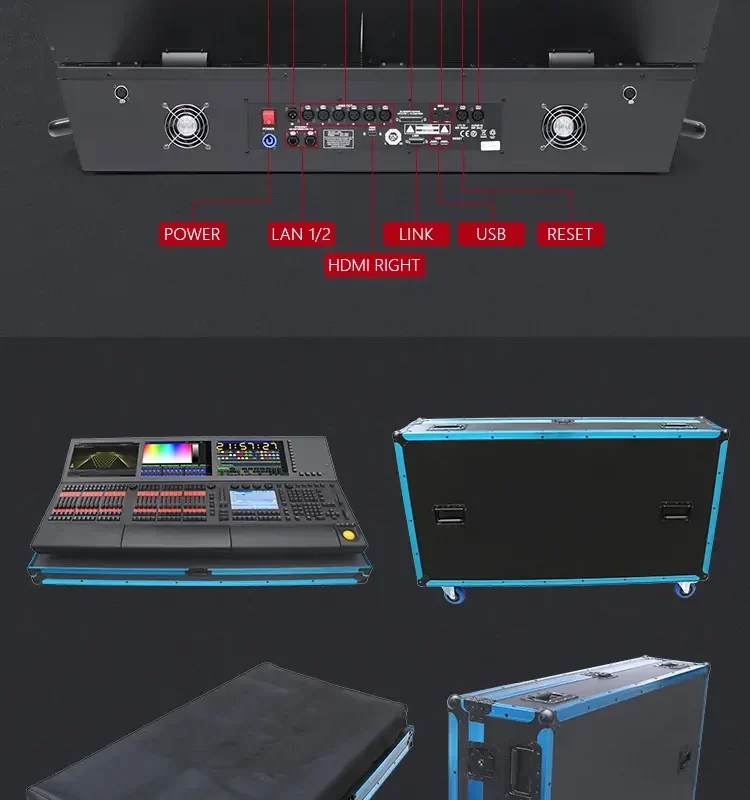

For large lighting systems, the console supports up to 65,536 channels when connected to NPU. Six DMX output ports are built directly into the console, while the composite DMX input can also be configured as an output according to system requirements.

Gigabit Network, Art-Net and RDM Support

Two Gigabit Ethernet ports provide connectivity for NET, Art-Net and other supported network signals. RDM functionality further supports professional fixture management in compatible lighting systems, making the console suitable for large network-based stage installations.

Professional Timecode and Show Synchronization

A dedicated LTC timecode trigger port allows programmed lighting cues to be synchronized with external show systems. MIDI input and output interfaces provide additional options for integrating the lighting console with other professional production equipment.

Precision Programming Controls

Seven industrial-grade wear-resistant encoders with push functions and a high-precision controllable XY trackball provide detailed control during fixture programming. The integrated mechanical keyboard features adjustable yellow backlighting for operation in dark stage and front-of-house environments.

Built-In UPS for Professional Show Operation

The console includes a built-in high-power UPS uninterruptible power supply, providing additional protection against unexpected power interruptions during programming and live show operation.

Application Scenarios

• Large concert lighting control
• Touring stage productions
• Music festivals and live events
• Theatre and auditorium productions
• TV studio and broadcast lighting
• Large nightclub and entertainment venues
• Professional rental lighting systems
• Large DMX and Art-Net lighting networks

Why Choose JC LIGHT

• Professional stage lighting console supplier
• Four integrated touch screens for complex show programming
• 30 motorized replay faders and 80 execution buttons
• Up to 65,536 channels with NPU expansion
• 6 built-in DMX outputs with RDM support
• Dual Gigabit network ports for professional network control
• LTC and MIDI connectivity for synchronized productions
• Built-in UPS for demanding live show environments
• OEM and ODM solutions for distributors, rental companies and system integrators
