Description
Excellent color mixing effect
Video:

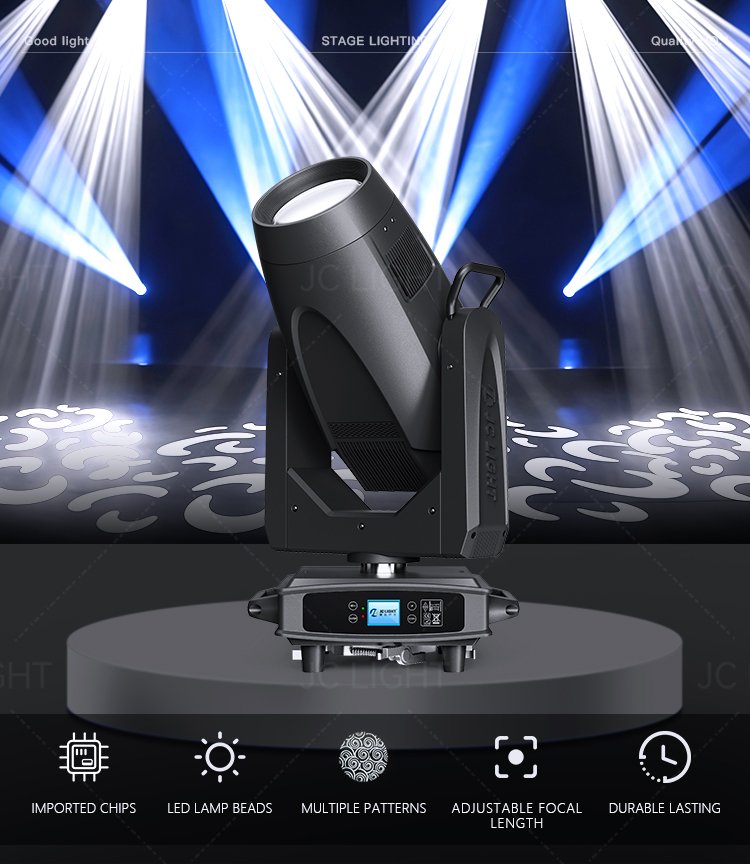

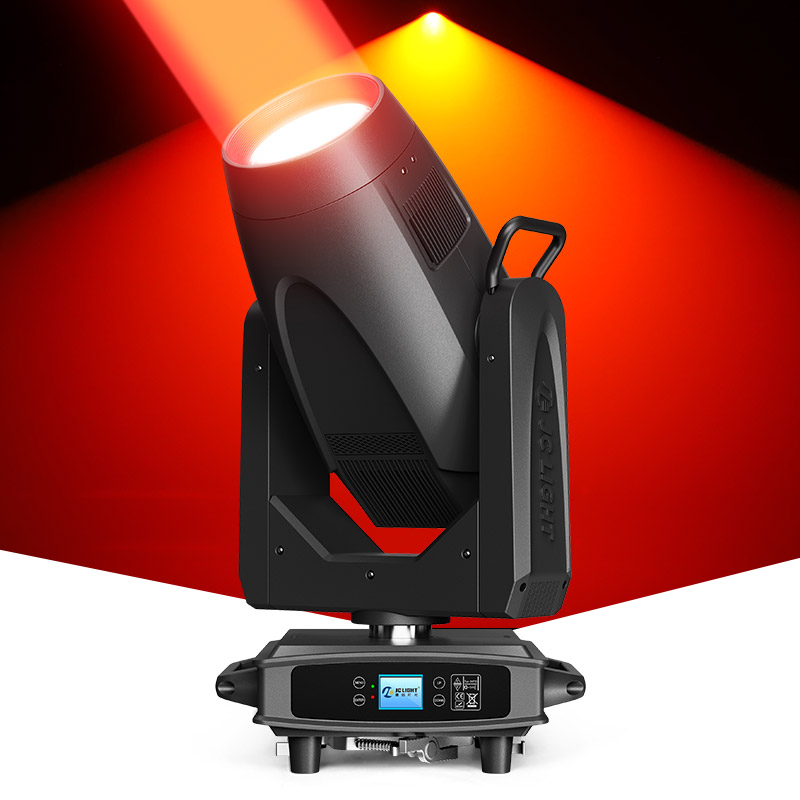

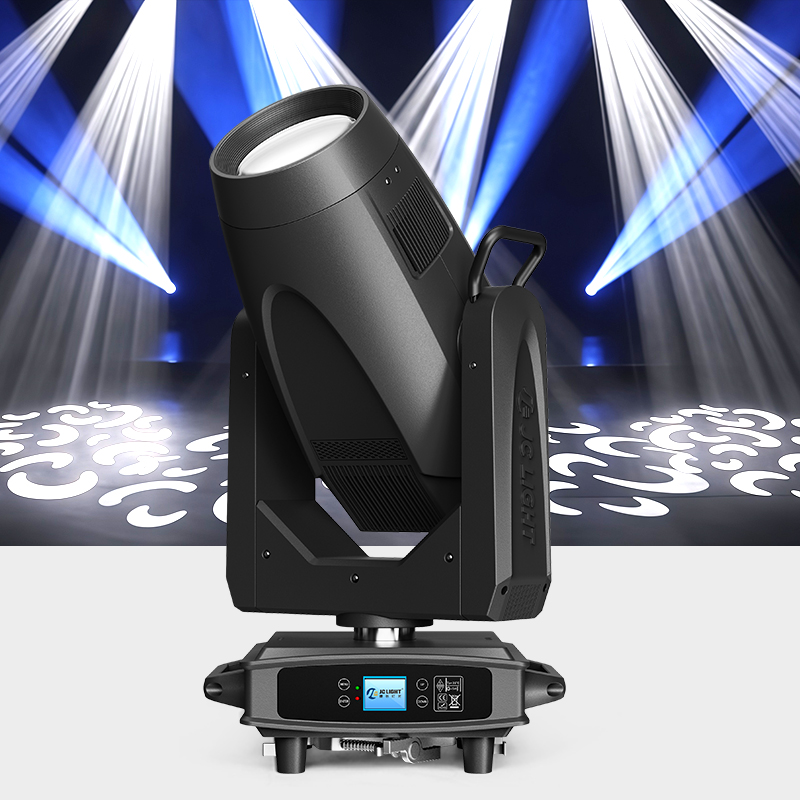

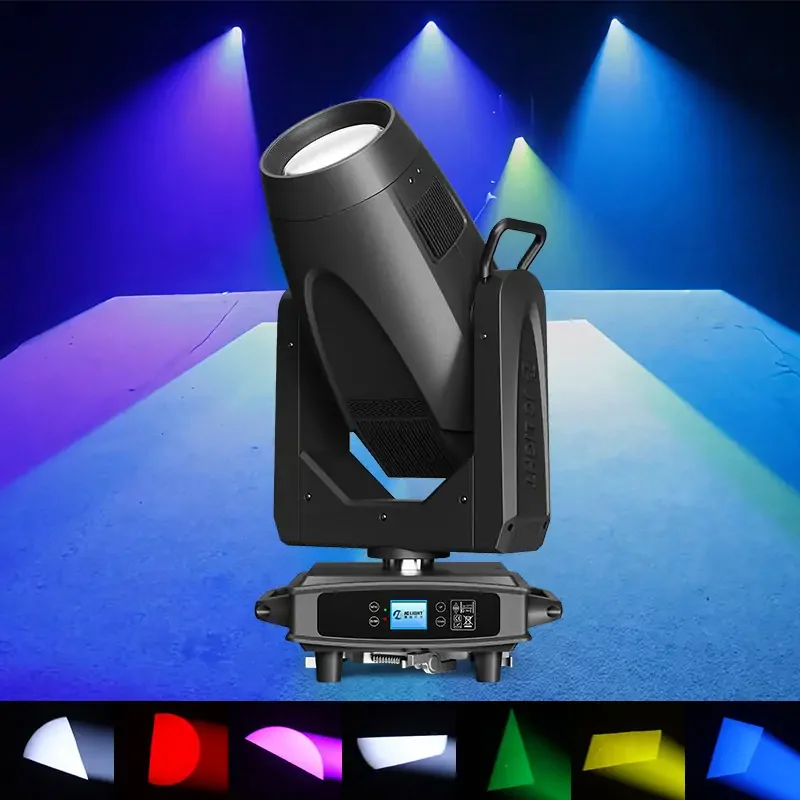

500W 600W 700W LED Profile Moving Head Light with CMY CTO and Dual Gobo System

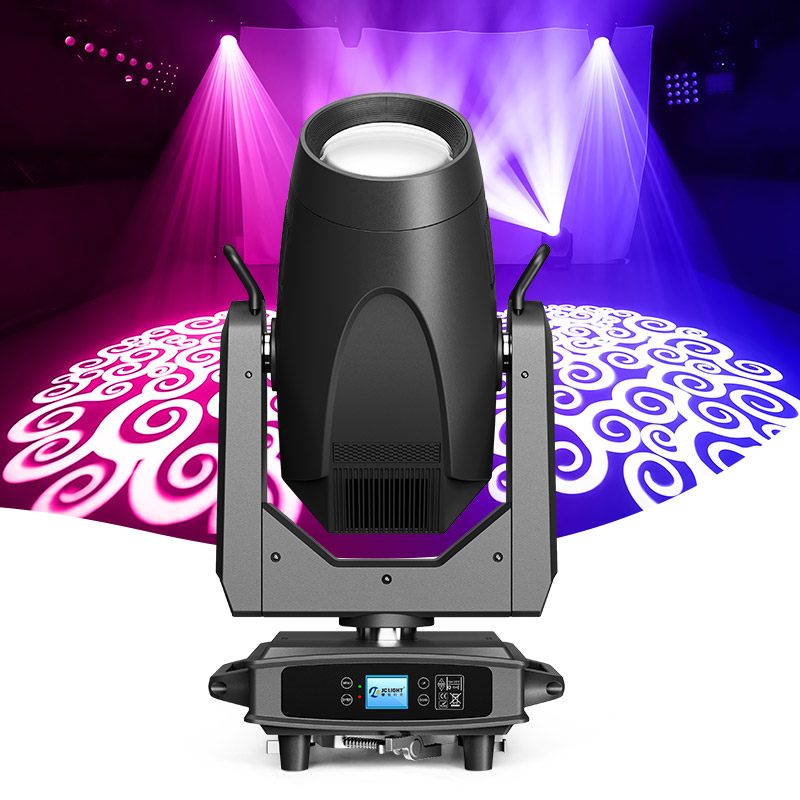

The JC LIGHT AK5 / AK6 / AK7 is a professional LED profile moving head light designed for concerts, theatres, large-scale events and rental lighting applications. Equipped with a powerful 500W/600W/700W LED module, advanced CMY color mixing system and precision framing effects, it delivers high brightness, accurate colors and versatile beam shaping performance.
Featuring independent CMY color mixing, CTO color temperature adjustment, dual gobo wheels, multiple prism effects, motorized zoom and RDM-supported DMX control, this moving head profile fixture provides professional lighting solutions for demanding stage environments.
Key Features
- Available in 500W / 600W / 700W LED module versions
- Independent CMY color mixing system for unlimited color combinations
- Independent CTO color temperature adjustment system
- 7°–42° linear motorized zoom range

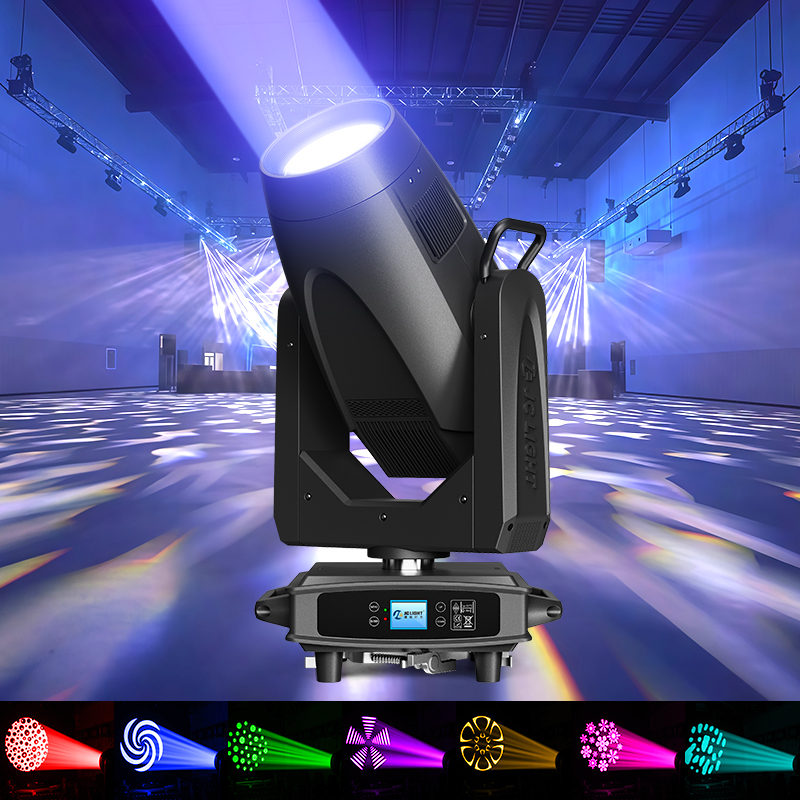

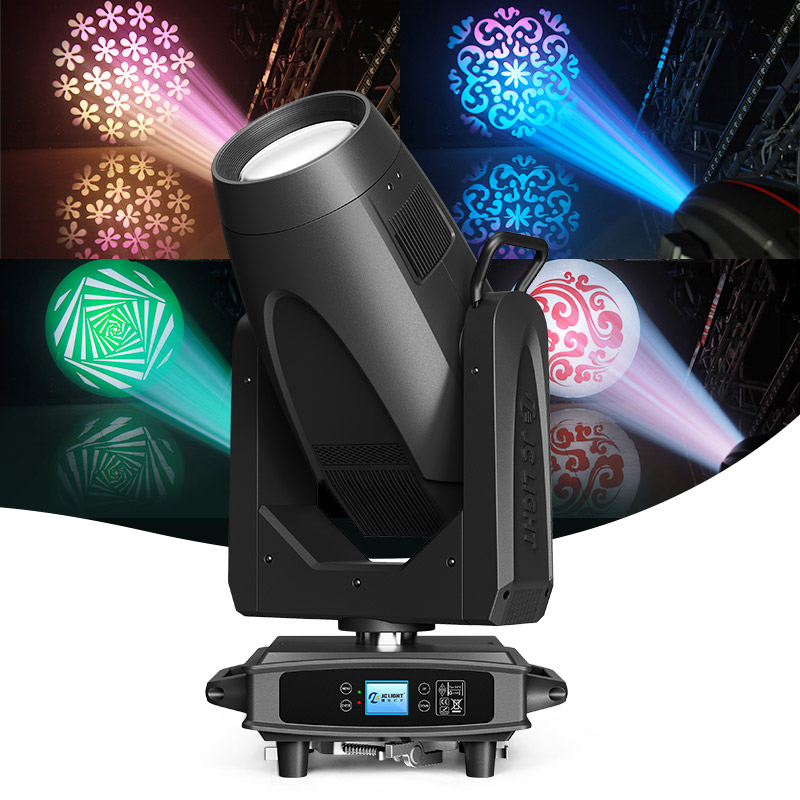

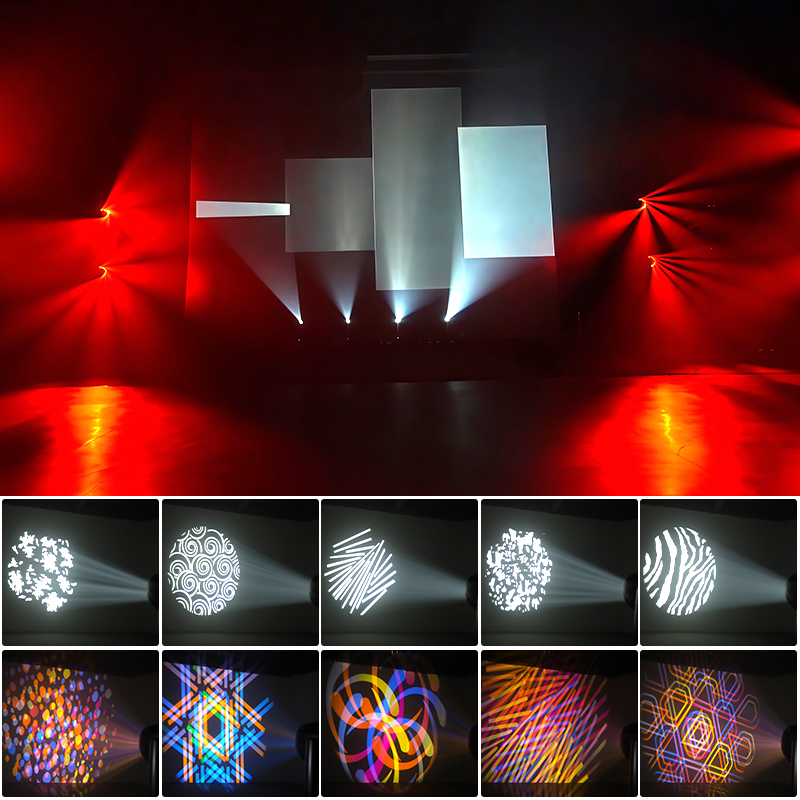

- 12 fixed gobos + white with jitter and water flow effects
- 7 rotating gobos + white with jitter and water flow effects
- Double prism system with multiple rotating prism effects
- Independent atomization effect for soft wash projection

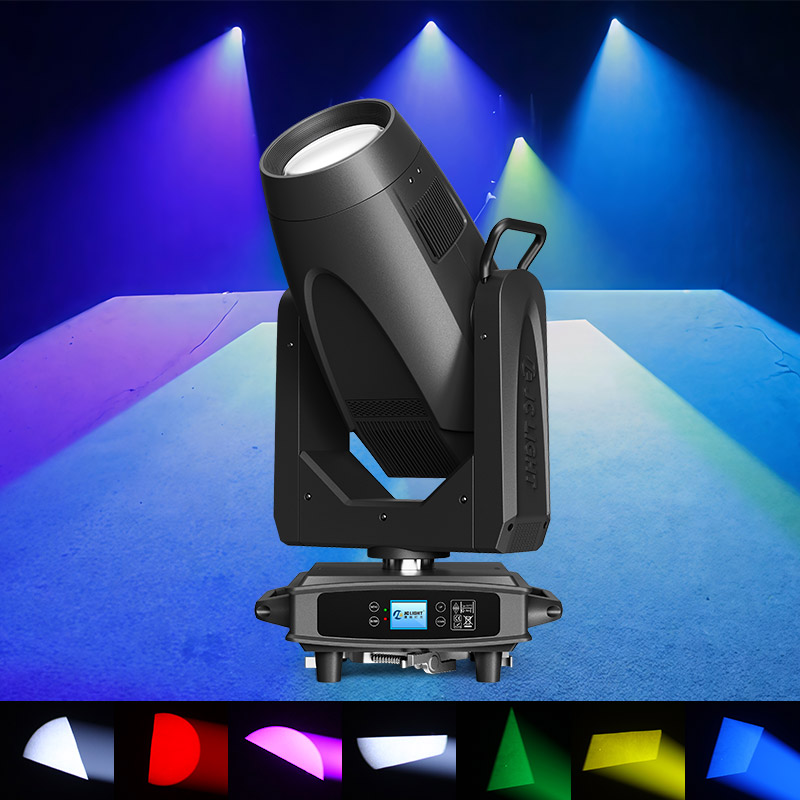

- 8 colors + white color wheel with rainbow rotation
- 2.8-inch touch LCD display with Chinese and English interface
- RDM supported DMX control system
- 16-bit precision pan and tilt movement
Technical Specifications
| Model | AK5 / AK6 / AK7 |
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 600W / 700W / 800W |
| Light Source | 500W / 600W / 700W LED Module |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Pan/Tilt Resolution | 16-bit Precision Positioning |
| Color System | 3 Independent CMY Color Mixing System |
| CTO System | Independent Color Temperature Adjustment |
| Color Wheel | 8 Colors + White |
| Color Effects | Half Color Effect, Arbitrary Positioning, Bidirectional Rainbow |
| Static Gobo Wheel | 12 Fixed Gobos + White |
| Rotating Gobo Wheel | 7 Rotating Gobos + White |
| Gobo Effects | Jitter + Bidirectional Water Flow |
| Prism System | Double Prism, 3 Prism, 4 Row Prism |
| Prism Function | Bidirectional Rotation + Macro Function |
| Atomization | Independent Atomization Effect |

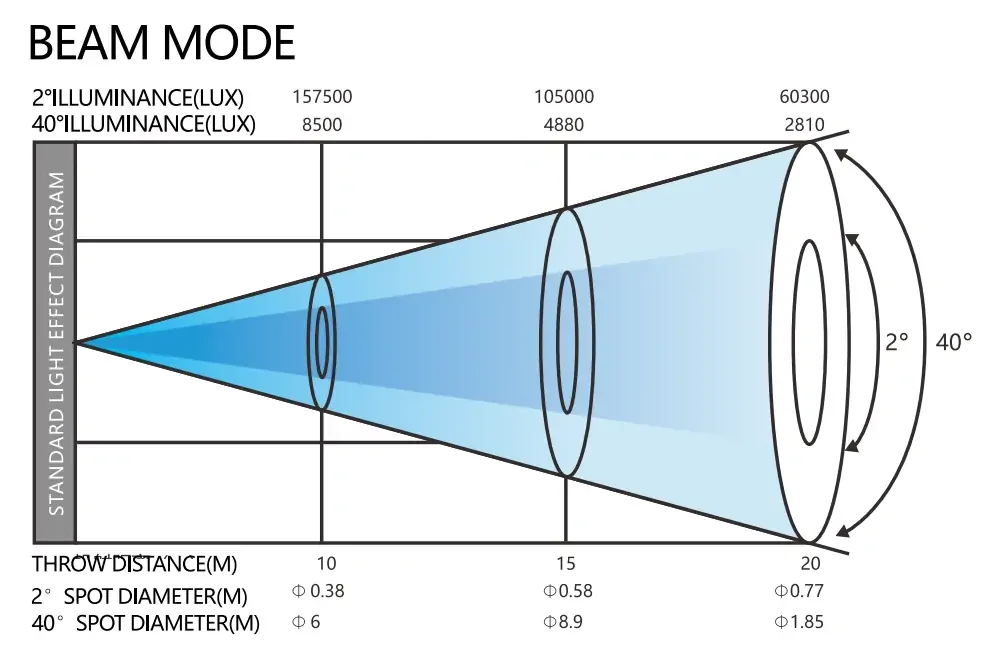

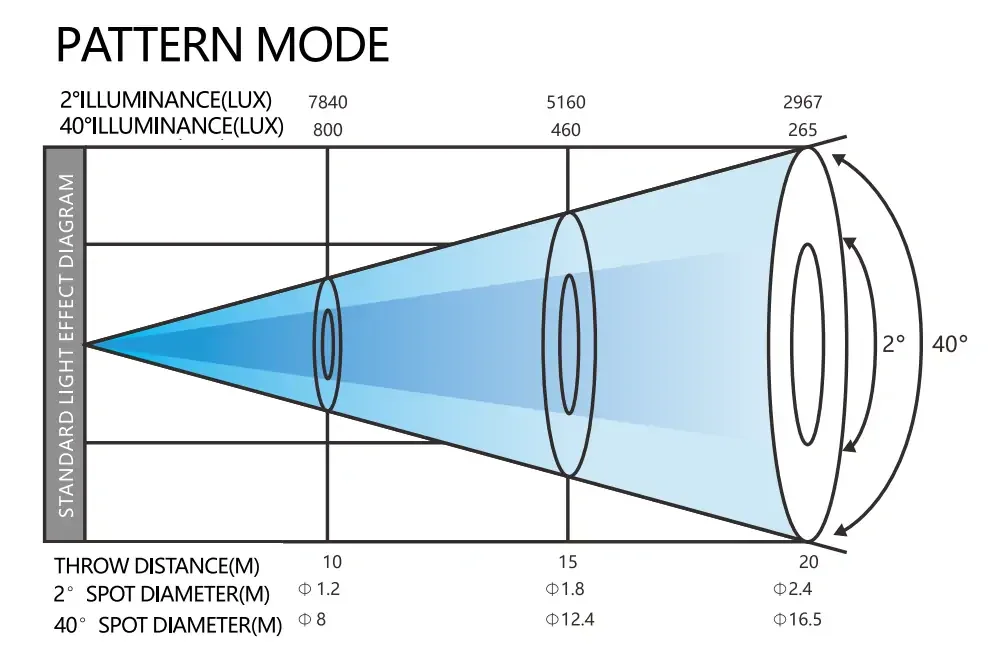

| Zoom | 7°–42° Linear Zoom |
| Dimming | 0-100% Linear Electronic Dimming |
| Strobe | 1-25Hz High-Speed Strobe Effects |
| Control Mode | DMX512 / Master-Slave / Auto Run / Sound / RDM |
| DMX Channel | 22CH / 27CH |

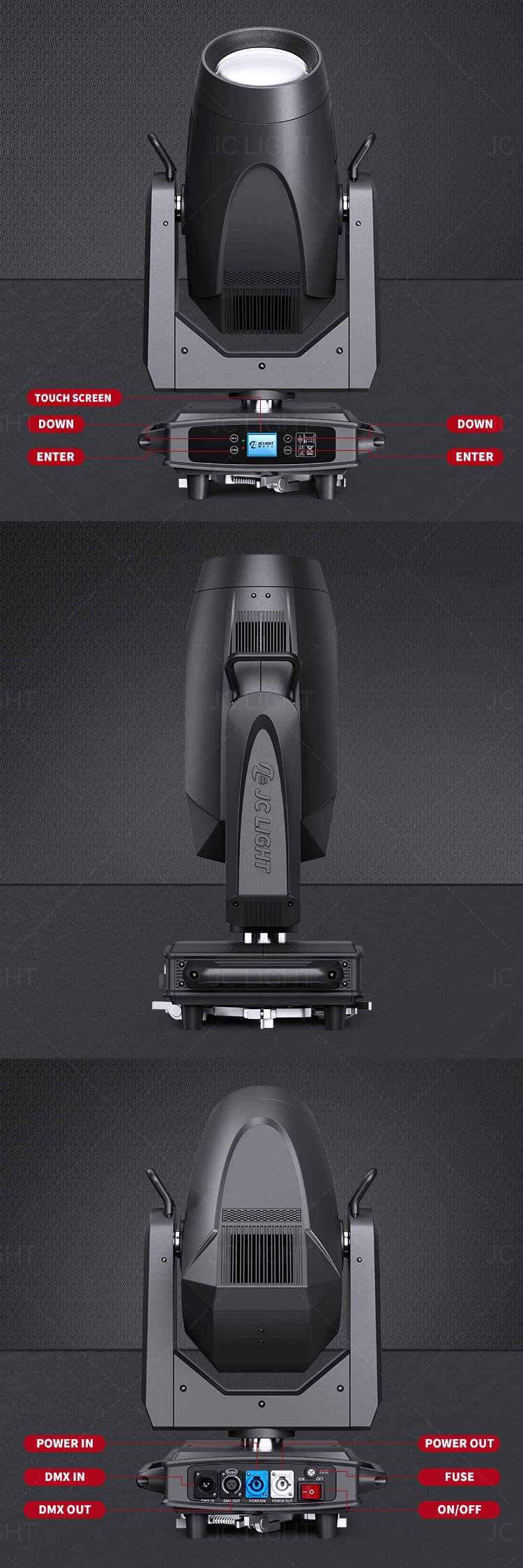

| Display | 2.8-inch Touch LCD Screen |
| Display Language | Chinese / English Switchable |
| Product Size | 37.2 × 29 × 68.3 cm |
| Package Size | 74 × 35.5 × 45.5 cm |
| Net Weight | 21 kg |
| Gross Weight | 23 kg |

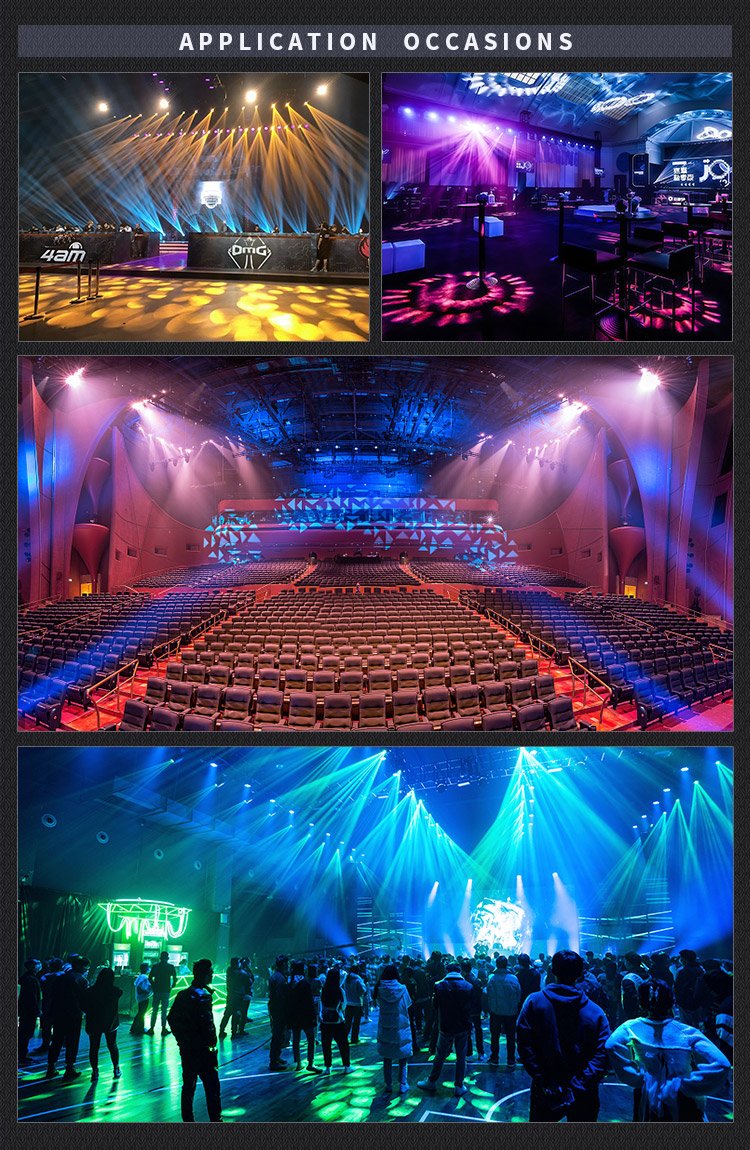

Application Scenarios
- Concert stage lighting systems
- Theatre and auditorium productions
- Large event and festival lighting
- Professional rental lighting projects
- TV studio and entertainment venues
- Corporate event stage productions
Why Choose JC LIGHT
- Professional LED profile moving head manufacturer
- High-output LED modules for large stage applications
- Advanced CMY CTO color control technology
- Complete gobo, prism and framing effects system
- Reliable quality for global professional lighting projects
- OEM and ODM customization support available
LED Profile Moving Head Light FAQ
What power versions are available for AK5 AK6 AK7?
The series is available with 500W, 600W and 700W LED modules for different brightness requirements.
Does this moving head support CMY color mixing?
Yes. It features an independent CMY color mixing system with CTO temperature adjustment.
What zoom range does this profile moving head support?
It supports a 7°-42° motorized linear zoom range for flexible beam shaping.
Does it have gobo and prism effects?
Yes. It includes dual gobo wheels and multiple prism effects including double prism, 3 prism and 4 row prism systems.
Is it suitable for theatre and concert applications?
Yes. The precise CMY system, zoom, gobos and prism effects make it suitable for concerts, theatres and professional stage productions.
Does it support RDM control?
Yes. It supports DMX512 with RDM function for professional lighting system management.
Do you provide OEM customization?
Yes. JC LIGHT provides OEM and ODM services for professional stage lighting equipment.
