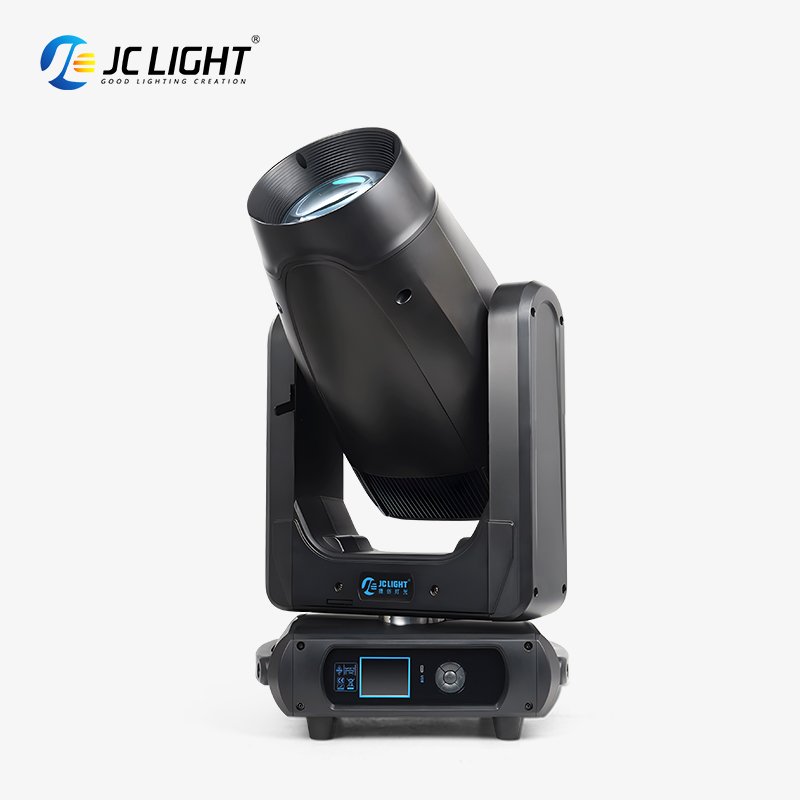

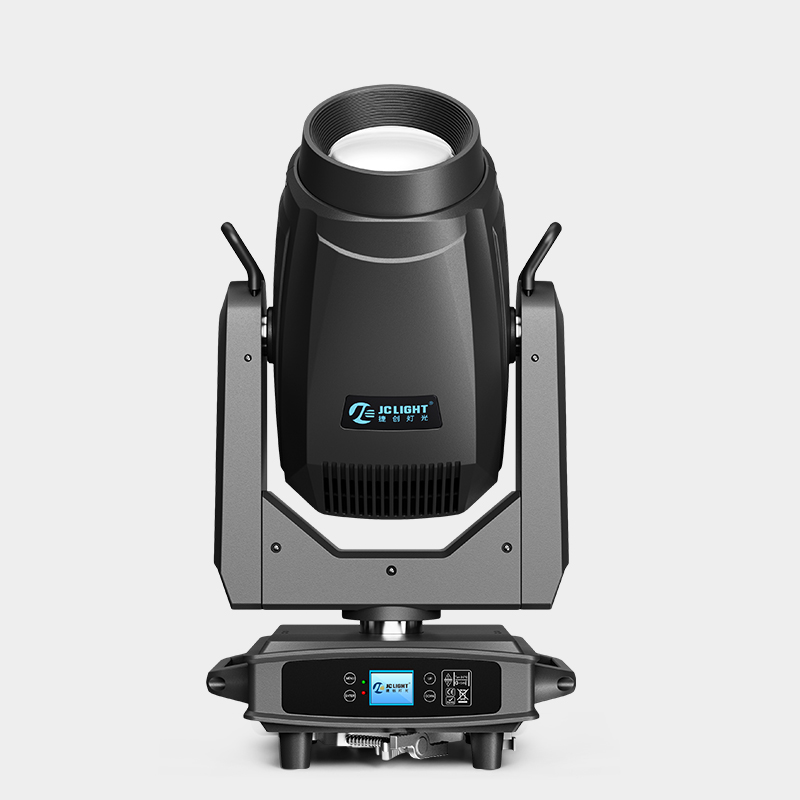

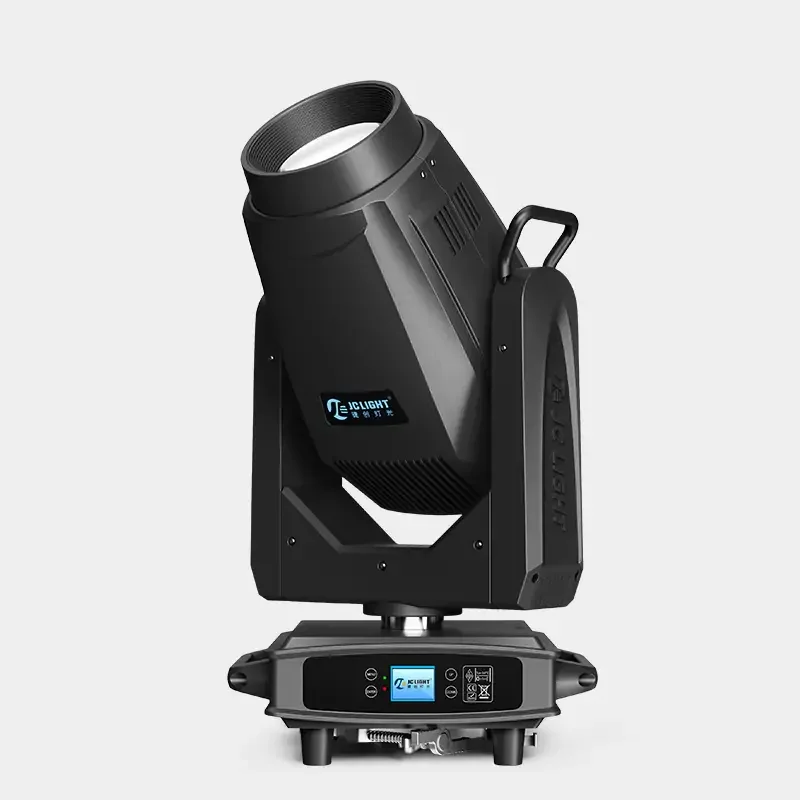

800W LED Profile Moving Head Light with CMY CTO, Framing System and RDM Control
The JC LIGHT AK800 is a high-performance 800W LED Profile Moving Head Light designed for professional stage lighting, concerts, theatres and large-scale event productions. Equipped with a powerful 700W LED module, high CRI optical system and advanced CMY+CTO color mixing technology, it delivers excellent brightness, accurate colors and professional projection performance.
Featuring a 4-blade rotating framing system, dual gobo wheels, dynamic effects, multiple prism options, motorized zoom and RDM-supported DMX control, the AK800 provides complete creative control for demanding lighting applications.
Key Features
- High-power 700W LED module with 7000K color temperature
- High CRI output: CRI ≥90, R9 up to 95
- CMY + CTO color mixing system for precise color control
- Wide 4.5°–50° automatic linear zoom range
- 4-blade rotating cutting system with 180° rotation

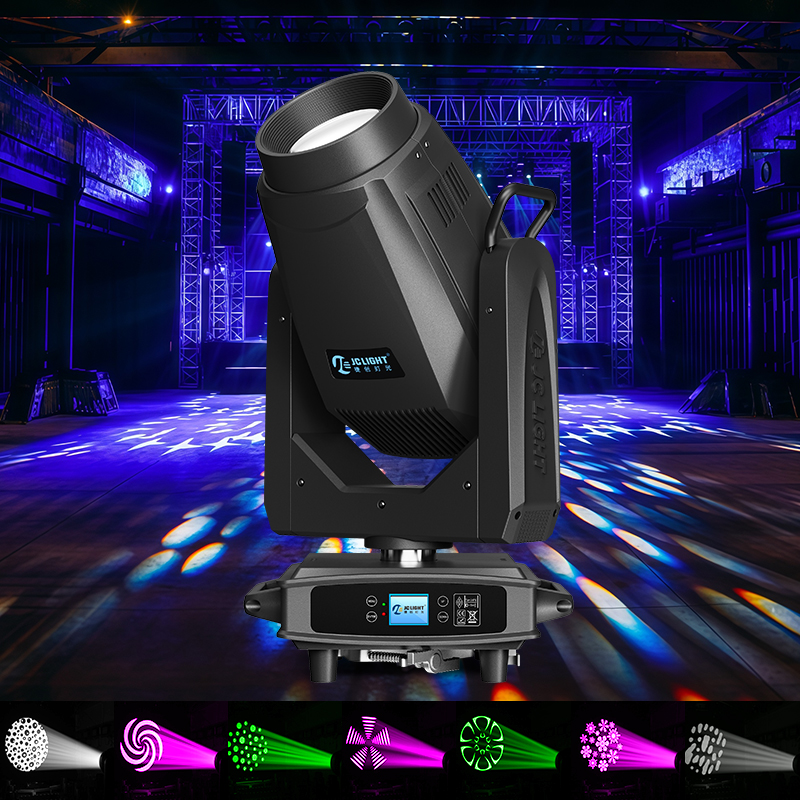

- Dual gobo system with fixed and rotating gobos
- Dynamic effect wheel for creative projection effects
- 4 prism and 4-row prism system with overlay function
- Light and heavy atomization effects
- 5–100% aperture adjustment system
- Colorful LCD touch screen with RDM function

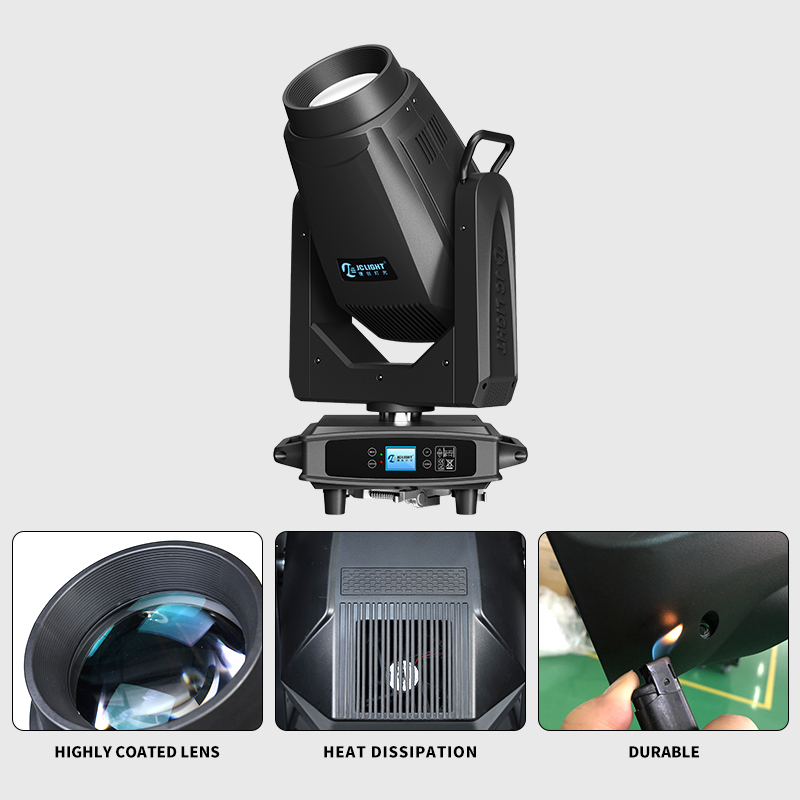

- High temperature protection and input signal isolation protection
Technical Specifications
| Model | AK800 |
| Voltage | AC100-240V, 50/60Hz |
| Power Consumption | 800W |
| Light Source | 700W High Power LED Module |
| Color Temperature | 7000K |
| CRI | ≥90, High CRI Mode up to 95, R9 up to 95 |
| Pan Movement | 540° / 630° |
| Tilt Movement | 270° |
| Pan/Tilt Resolution | 16-bit Precision Scan |
| Spot Uniformity | 90% |

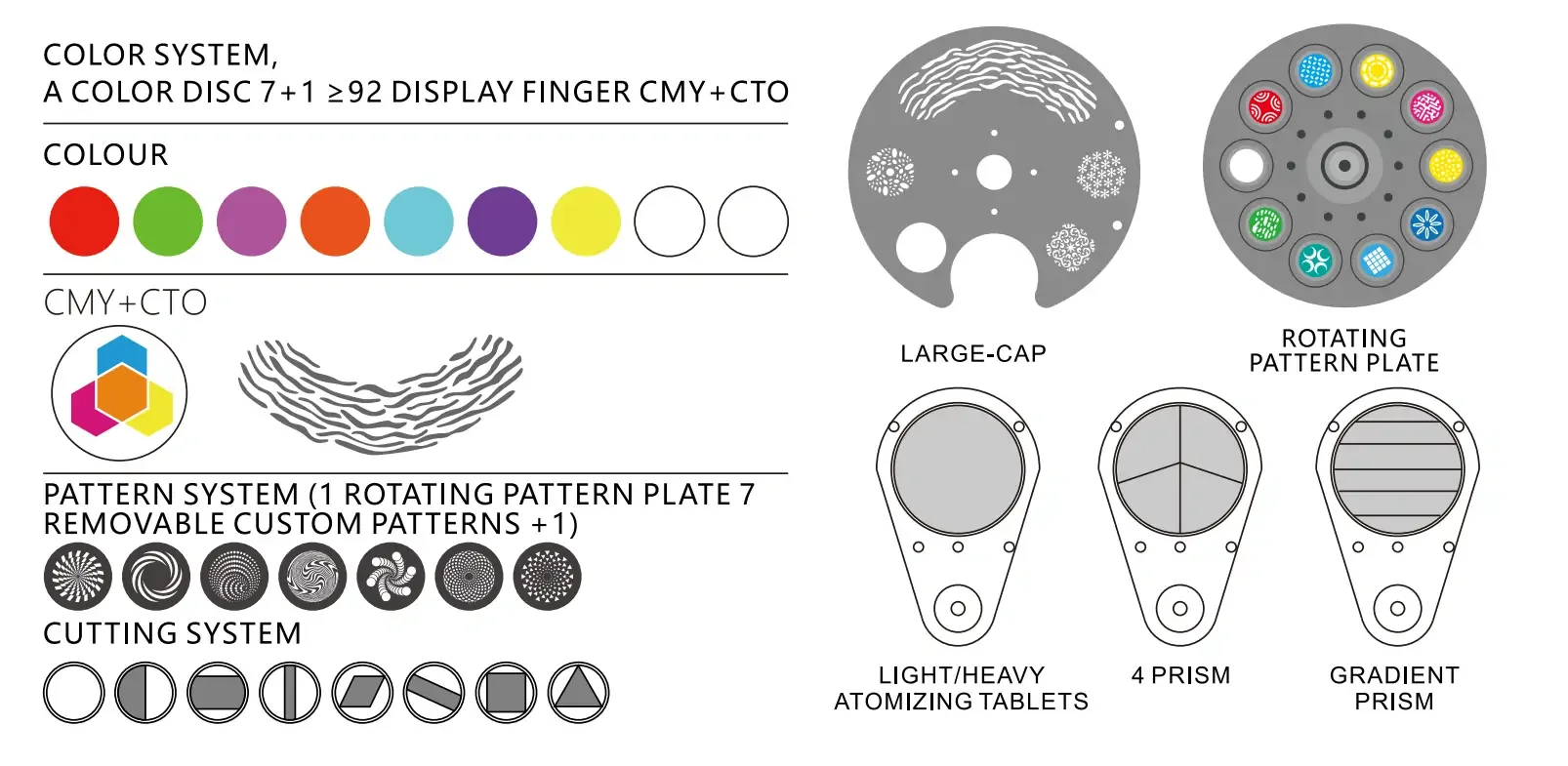

| Color System | CMY + CTO Mixed Color System |
| Color Wheel | 10 Colors + White |
| Color Effects | Half Color Effect, Positioning, Bidirectional Rainbow |
| Static Gobo Wheel | 10 Pluggable Fixed Gobos + White |
| Rotating Gobo Wheel | 7 Pluggable Rotating Gobos + White |
| Gobo Function | Jitter Effect and Arbitrary Positioning |
| Dynamic Effect Wheel | 1 Dynamic Effect Wheel |
| Prism System | 4 Prism + 4 Row Prism |
| Prism Function | Bidirectional Rotation, Overlay and Positioning |
| Cutting System | 4 Blade Framing System, 180° Rotation |
| Atomization | Light and Heavy Atomization |
| Dimming | 0-100% Linear Dimming |
| Aperture | 5-100% Linear Adjustment |
| Strobe | Up to 25Hz, Random and Pulse Strobe |

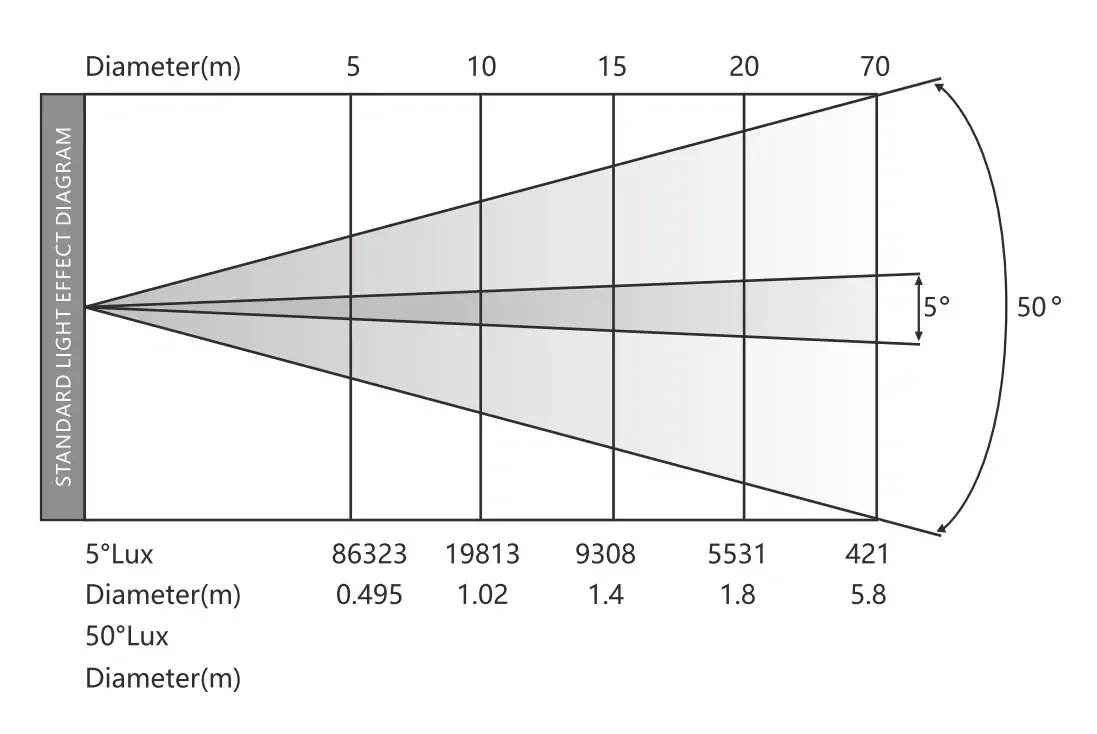

| Zoom | 4.5°-50° Automatic Linear Zoom |
| Control Mode | DMX512 / Auto Run / Master-Slave / Sound / RDM |

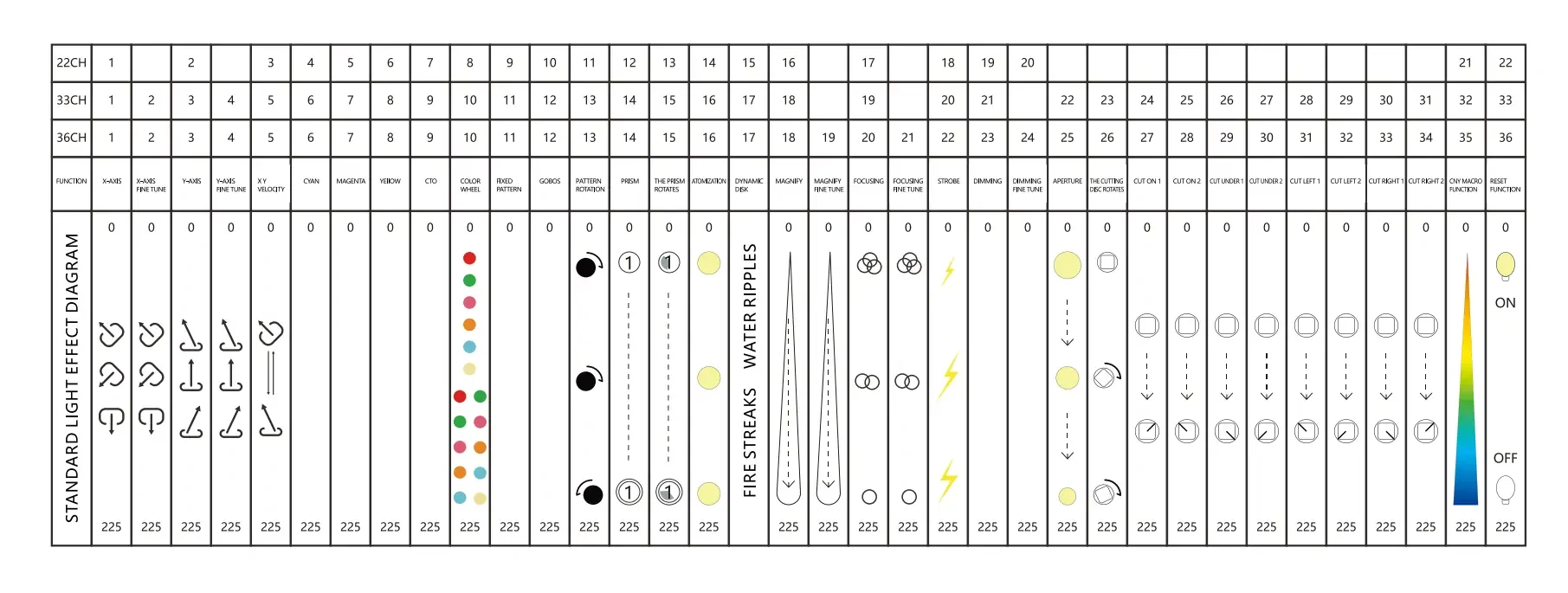

| DMX Channels | 36CH / 40CH / 65CH |
| Display | Color LCD Touch Screen with RDM |
| Protection Function | High Temperature Protection, Signal Isolation Protection |
| Product Size | 40 × 27.5 × 70 cm |
| Package Size | 71.5 × 55.5 × 49.5 cm |
| Net Weight | 26.3 kg |
Application Scenarios
- Professional concert lighting systems
- Theatre and auditorium stage lighting
- Large-scale event productions
- TV studio and broadcast lighting
- Festival and touring stage applications
- High-end rental lighting projects
Why Choose JC LIGHT
- Professional LED profile moving head manufacturer
- High-output 700W LED solution for large venues
- Advanced CMY CTO color technology
- Precision framing and projection control
- Stable performance for professional stage applications
- OEM and ODM customization support available
AK800 LED Profile Moving Head Light FAQ
What type of LED module does AK800 use?
The AK800 uses a 700W high-power LED module with 7000K color temperature and high CRI performance.
Does AK800 support CMY color mixing?
Yes. It features a professional CMY + CTO color mixing system for precise color adjustment.
What is the zoom range of this profile moving head?
It supports a wide 4.5°-50° automatic linear zoom range.
Does it have a framing shutter system?
Yes. The fixture includes a 4-blade controllable cutting system with 180° rotation.
What gobo and prism effects are available?
It includes fixed and rotating gobos, dynamic effects, 4 prism and 4-row prism systems with overlay functions.
Does it support RDM control?
Yes. The AK800 supports DMX512 with RDM protocol for professional lighting management.
