JC LIGHT LED 4IN1 Cutting Moving Head Light OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
- Description
Description

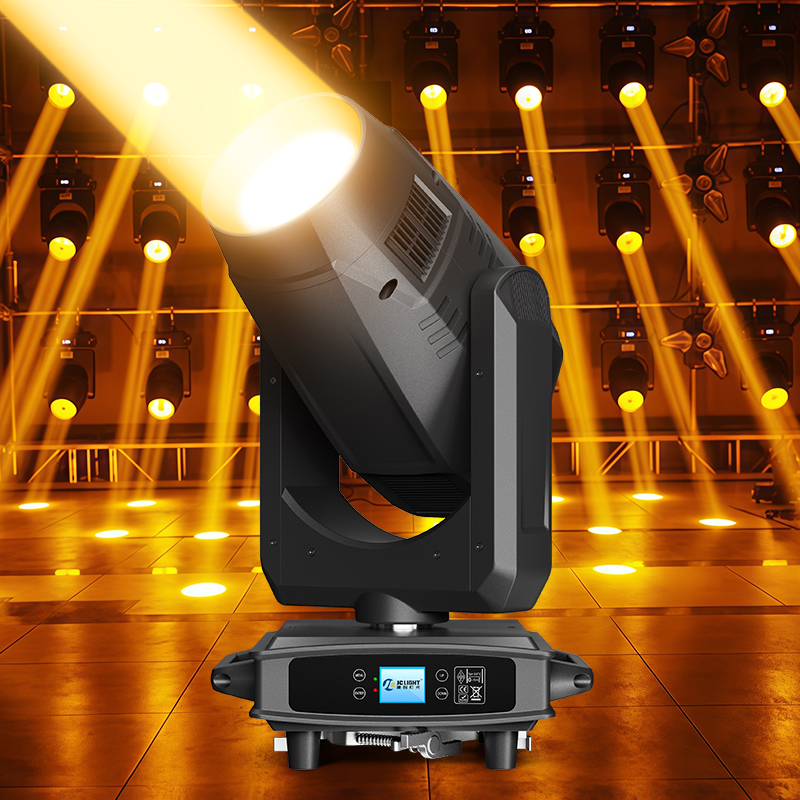

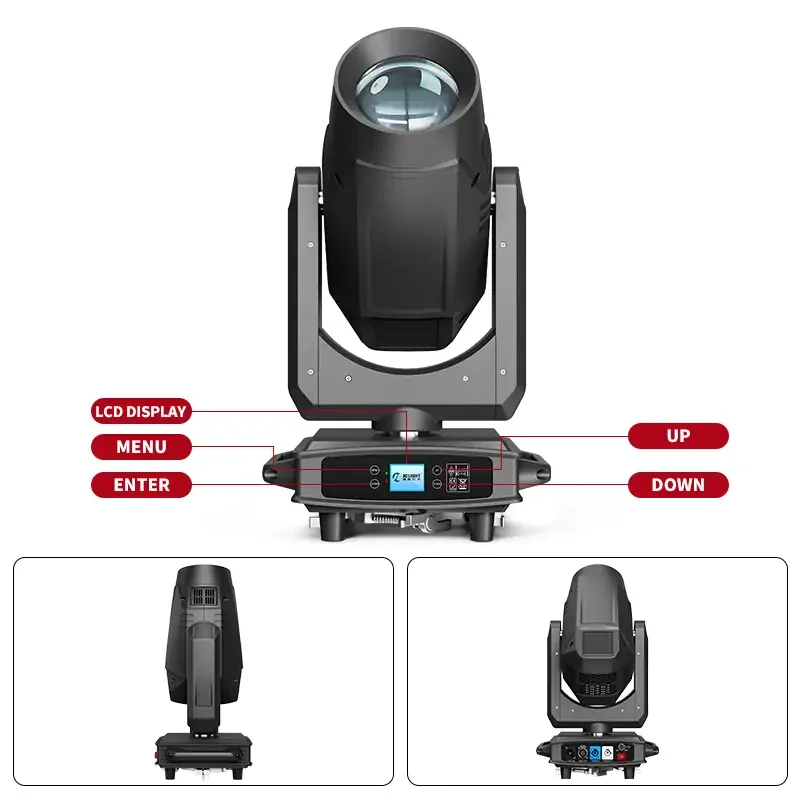

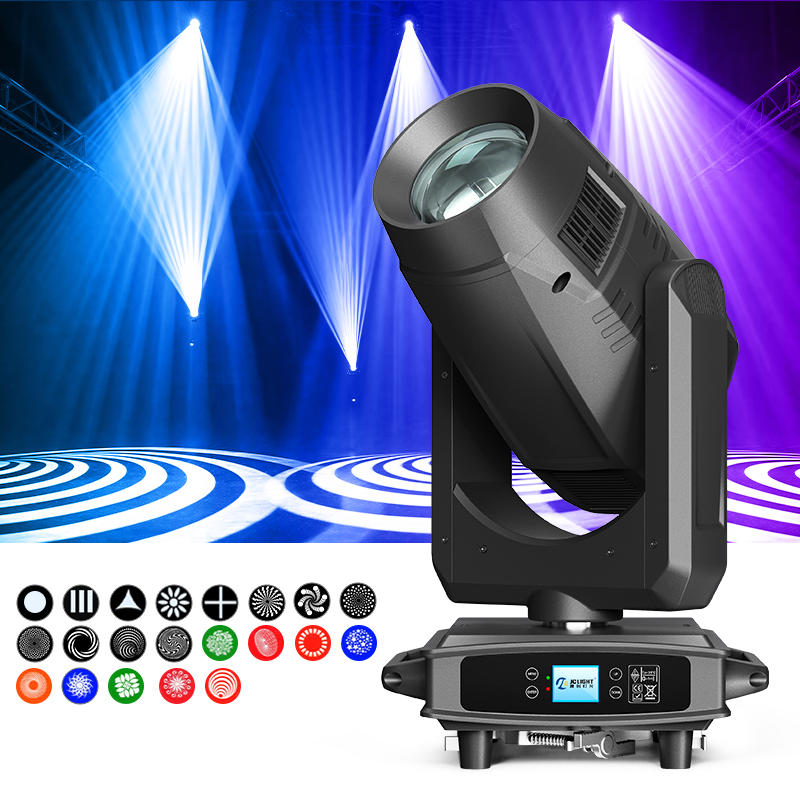

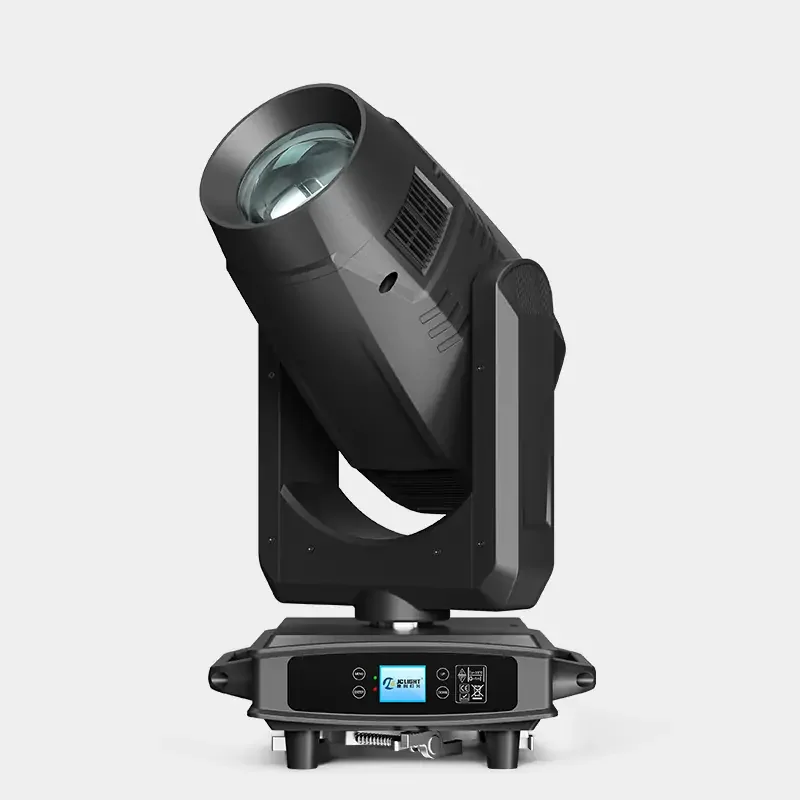

400W 500W 600W LED Profile Moving Head Light with CMY CTO and Framing System
The JC LIGHT AK4 / AK5 / AK6 is a professional LED profile moving head light designed for theatre, stage and high-end event lighting. Featuring a high-brightness LED module and advanced optical system, it delivers powerful output, precise beam shaping and excellent color performance.
Equipped with CMY+CTO color mixing, dual gobo wheels, dynamic effects and a 4-blade framing system, this fixture provides full creative control for professional lighting designers. Its high CRI ensures accurate color reproduction, making it ideal for broadcast and stage applications.
Key Features
- High brightness LED module options (400W / 500W / 600W)
- High CRI ≥90 (up to 95 for professional color rendering)
- CMY + CTO color mixing system with rich color transitions
- 7 colors + white color wheel

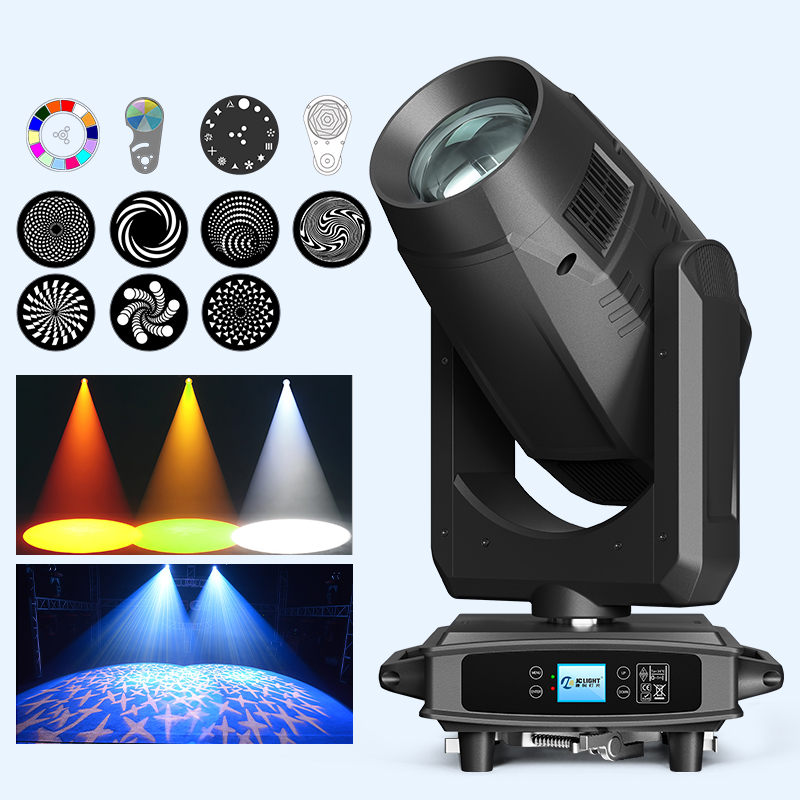

- Static and rotating gobo wheels with dynamic effects
- Dynamic effect wheel (flame and water simulation)
- Motorized zoom (4.5°–35°) with linear focusing
- Dual prism system (3-facet and 8-facet prisms)
- Dual frost (light and heavy) for beam-to-wash effect
- Professional 4-blade framing system with rotation
- Adjustable aperture (5–100%) for beam shaping
- 0–100% smooth dimming and high-speed strobe up to 25Hz
- 16-bit precision pan and tilt movement
- RDM support for remote configuration
Technical Specifications
| Model | LED Power | Total Power |
|---|---|---|
| AK4 | 400W LED | 500W |
| AK5 | 500W LED | 600W |
| AK6 | 600W LED | 700W |
| Voltage | AC100-240V, 50/60Hz |
| CRI | ≥90 (up to 95, R9 up to 95) |
| Zoom | 4.5° – 35° |
| Focus | Linear focusing |
| Color System | CMY + CTO color mixing |
| Color Wheel | 7 colors + white |
| Static Gobo | 8 fixed gobos + white |
| Rotating Gobo | 7 rotating gobos + white |
| Effect Wheel | Dynamic flame and water effects |
| Prism | 3-facet prism, 8-facet prism |
| Frost | Light and heavy frost |
| Aperture | 5–100% adjustable |
| Dimming | 0–100% linear dimming |
| Strobe | Up to 25Hz |
| Framing System | 4-blade cutting system with 90° rotation |
| Pan / Tilt | 540° / 270° (16-bit precision) |

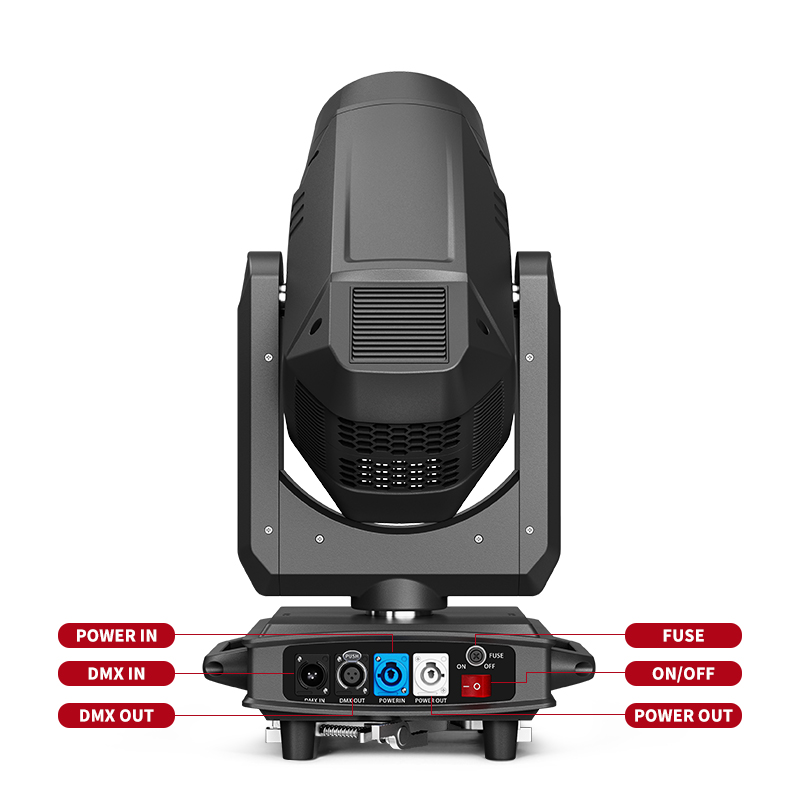

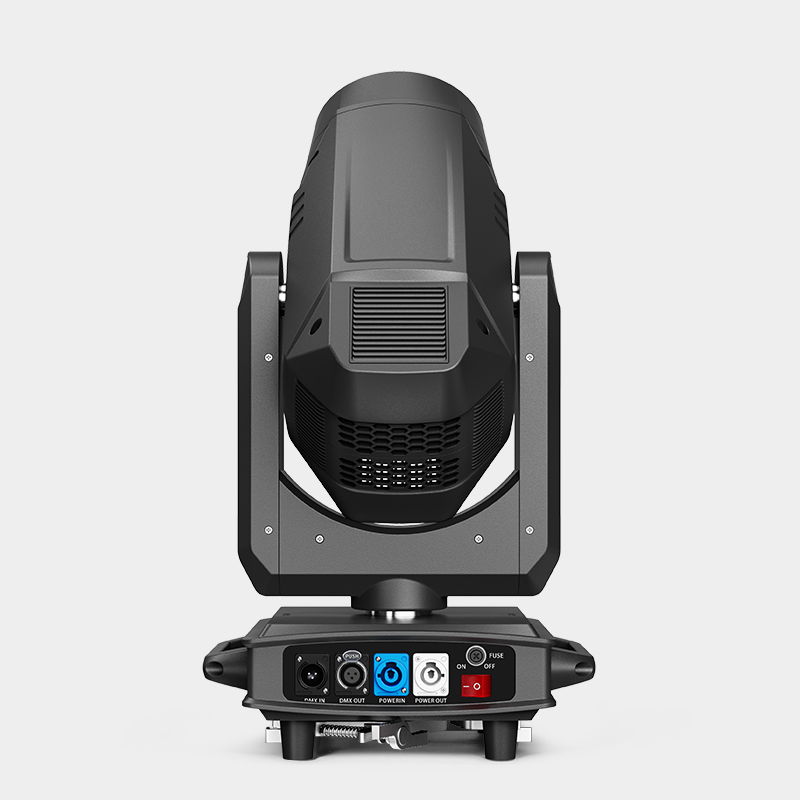

| Control Mode | DMX512 / Auto / Master-slave / Sound / RDM |
| Channel | 22CH / 26CH |
| IP Rating | IP20 (indoor use) |
| Product Size | 621 × 315 × 263 mm |
| Net Weight | 16.65 kg |
| SKU | AK4 / AK5 / AK6 |

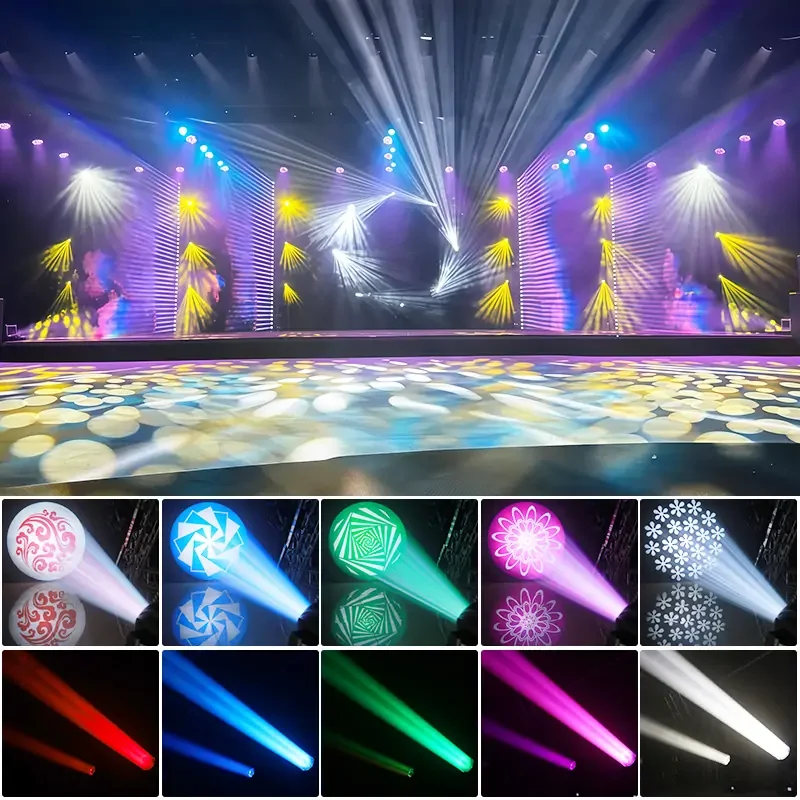

Application Scenarios
- Concert and stage lighting systems
- Theatre and auditorium lighting
- TV studio and broadcast production
- High-end event and exhibition lighting
- Professional rental and touring applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- Advanced LED profile lighting with framing system
- Strong OEM and ODM customization capability
- High CRI lighting for accurate color reproduction
- Fast response and technical support for projects
LED Profile Moving Head Light FAQ
What is the difference between AK4, AK5 and AK6?
The difference is the LED power and brightness level, suitable for different stage sizes and applications.
Does it support framing effects?
Yes. It includes a 4-blade framing system for precise beam shaping.
Is it suitable for theatre and broadcast use?
Yes. With high CRI up to 95, it is ideal for theatre and TV production.
What effects are included?
It supports gobo, prism, zoom, frost, strobe and dynamic effects.
Does it support RDM?
Yes. It supports RDM for remote configuration and monitoring.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and product customization.
