500W 600W 700W LED Profile Moving Head Light with CMY CTO and Framing System

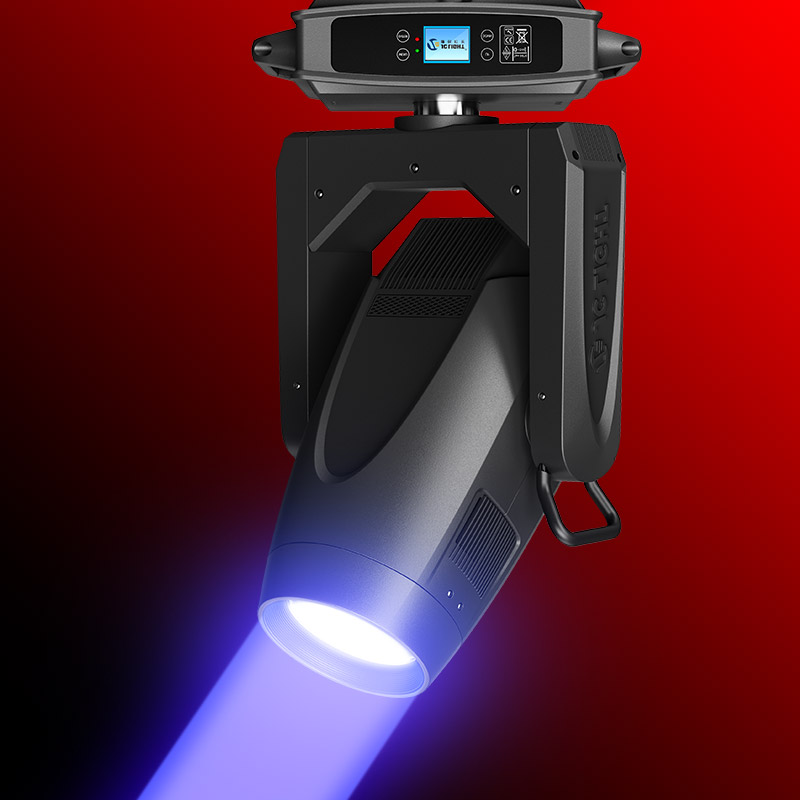

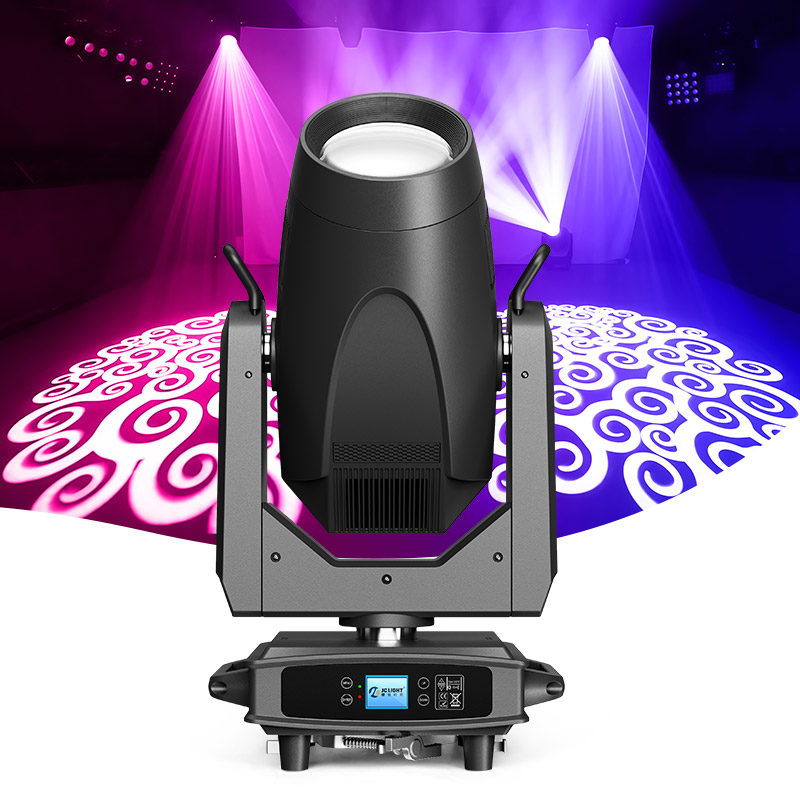

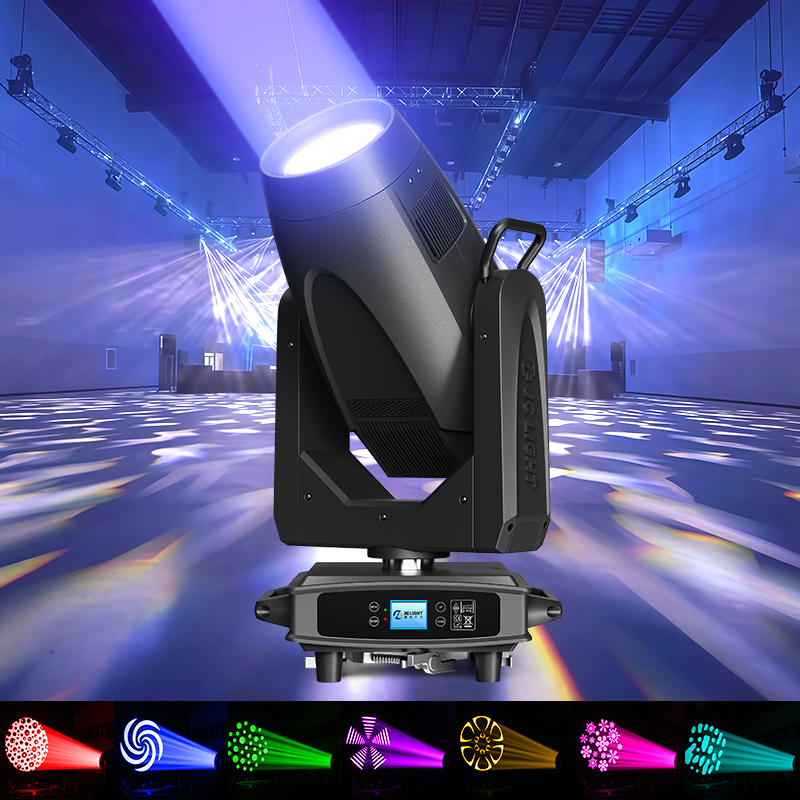

The JC LIGHT AK500 / AK600 / AK700 is a high-end LED profile moving head light designed for concerts, theatre productions and large-scale stage applications. Featuring a powerful LED module with high CRI performance, it delivers exceptional brightness, color accuracy and precision beam shaping.

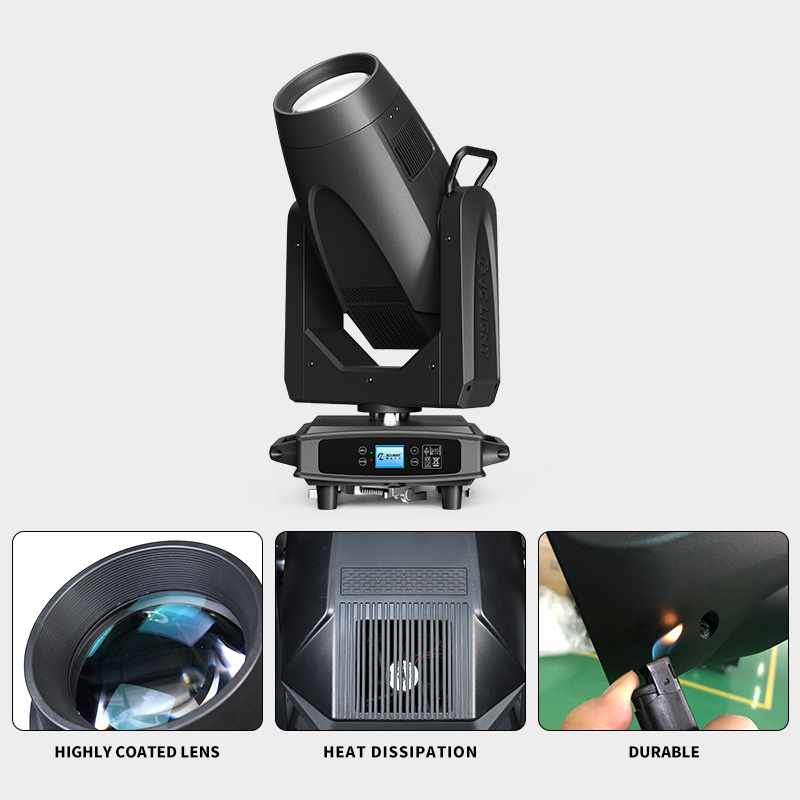

Equipped with CMY+CTO color mixing, dual gobo wheels, dynamic effects and a professional framing system, this fixture provides advanced lighting control for creative stage design. Its wide zoom range and high-definition optics ensure versatile performance across various environments.
Key Features
- High brightness LED module options (500W / 600W / 700W)
- High CRI ≥90 (up to 95 for precise color rendering)
- Wide zoom range from 4.5° to 50° with auto focusing
- CMY + CTO color mixing system with color macros
- Color wheel with 6 colors + white and rainbow effect
- Static and rotating gobo wheels with interchangeable gobos
- Professional 4-blade framing (cutting) system with rotation
- Multiple prism effects with overlay and rotation
- Dual frost (light and heavy) for beam-to-wash transition
- Dynamic effect wheel for additional visual effects
- 16-bit precision pan and tilt movement
- RDM support for remote configuration
Technical Specifications
| Model | LED Power | Total Power |
|---|---|---|
| AK500 | 500W LED | 600W |
| AK600 | 600W LED | 700W |
| AK700 | 700W LED | 800W |
| Voltage | AC100-240V, 50/60Hz |
| Color Temperature | 7000K |
| CRI | ≥90 (up to 95) |
| Zoom | 4.5° – 50° |
| Focus | Automatic focusing |
| Color System | CMY + CTO color mixing |

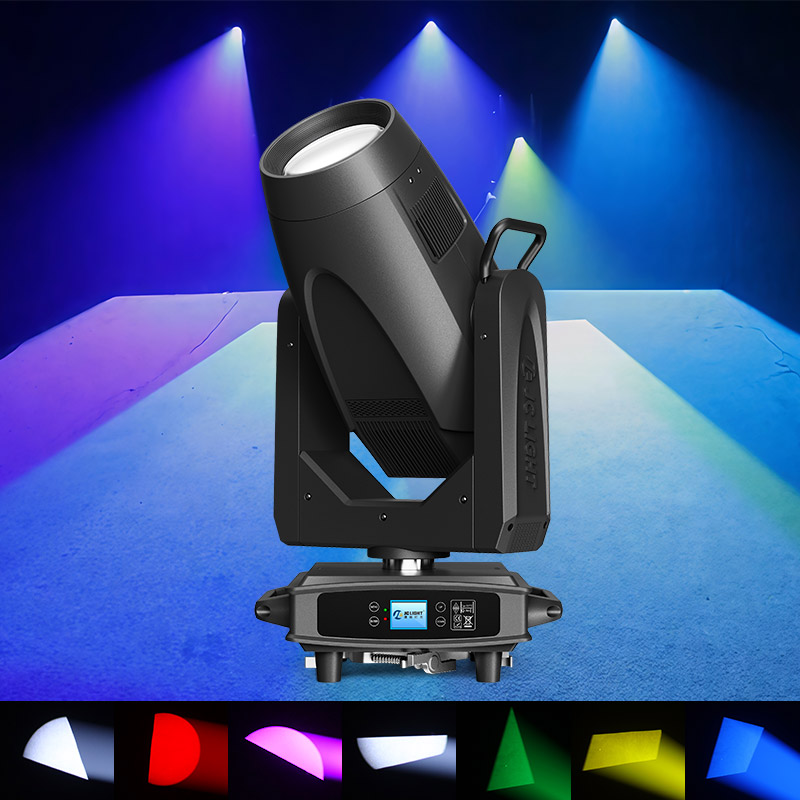

| Color Wheel | 6 colors + white |

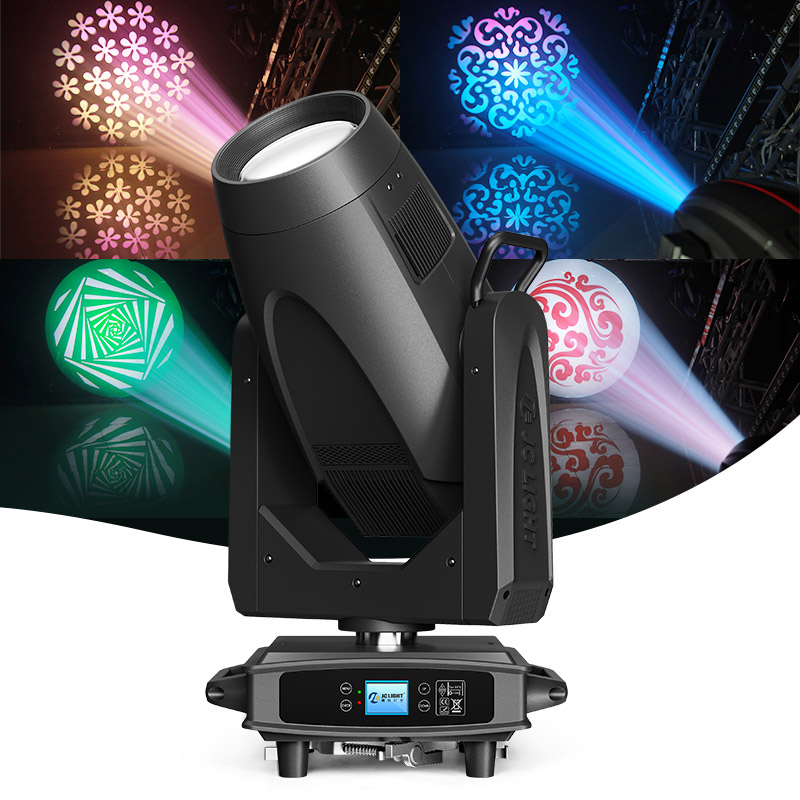

| Static Gobo | 7 replaceable gobos + white |
| Rotating Gobo | 7 rotating gobos + white |
| Effect Wheel | 1 dynamic effect wheel |
| Prism | 16 prism, 8-row prism (overlay and rotation) |
| Frost | Light frost and heavy frost |
| Strobe | 1–25Hz with random and pulse modes |
| Dimming | 0–100% linear dimming |
| Optical Iris | 5–100% linear adjustment |
| Framing System | 4-blade cutting system with 90° rotation |
| Pan / Tilt | 540°/630° Pan, 270° Tilt (16-bit) |

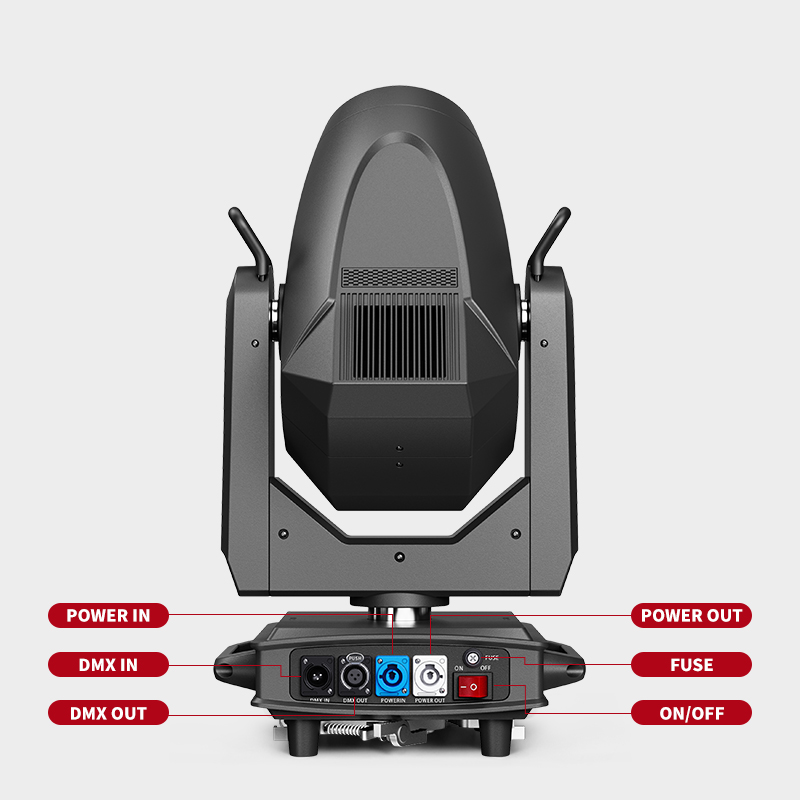

| Control Mode | DMX512 / Auto / Master-slave / Sound / RDM |

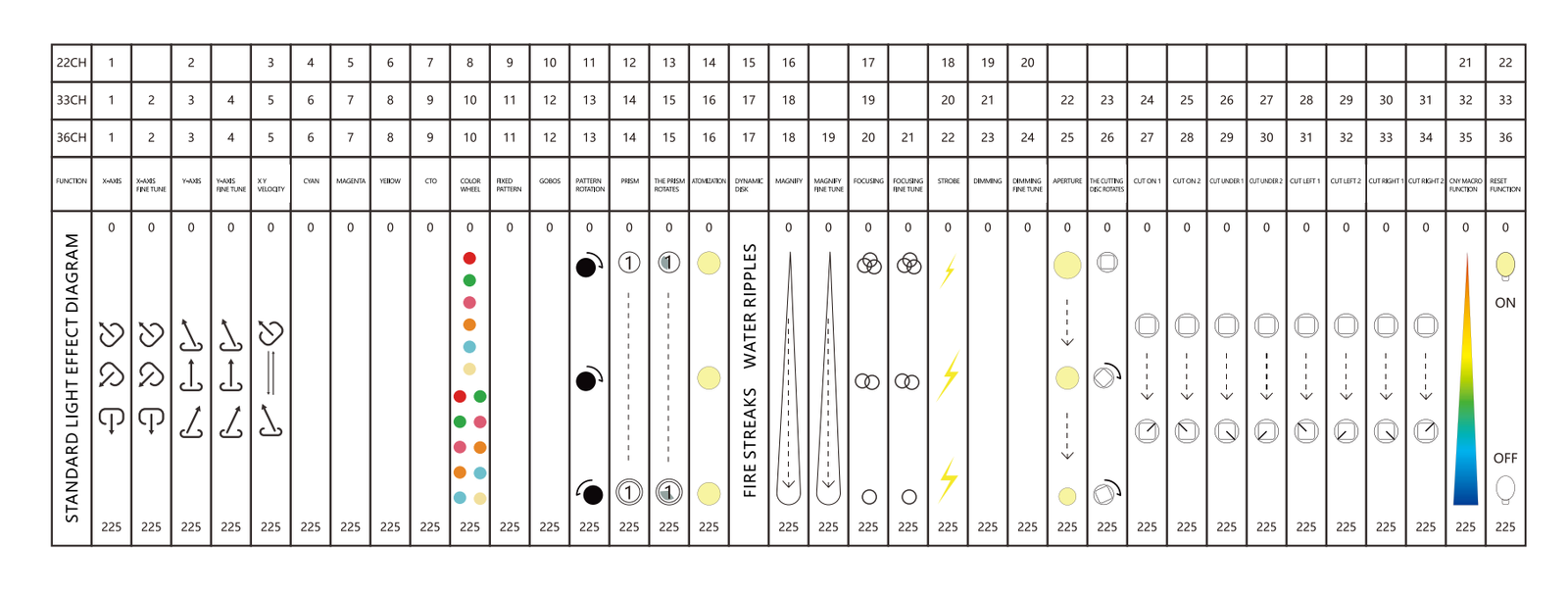

| Channel | 28CH / 37CH |

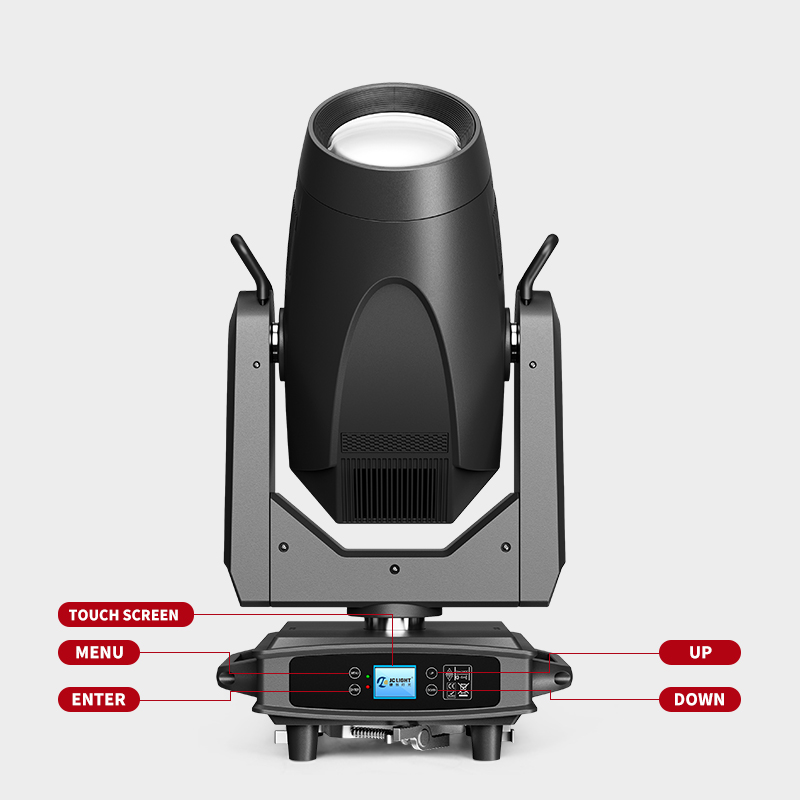

| Display | LCD display |
| Product Size | 372 × 290 × 683 mm |
| Package Size | 740 × 355 × 455 mm |
| Net Weight | 22.5 kg |
| Gross Weight | 24.0 kg |
| SKU | AK500 / AK600 / AK700 |
Application Scenarios
- Concert and large stage lighting systems
- Theatre and auditorium lighting
- TV studio and broadcast production
- High-end event and exhibition lighting
- Professional rental and touring applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- High-end profile lighting solutions with framing system
- Strong OEM and ODM customization capability
- High CRI lighting for professional visual performance
- Fast response and technical support for projects
LED Profile Moving Head Light FAQ
What is the difference between AK500, AK600 and AK700?
The difference is the LED power and brightness level, suitable for different stage sizes and applications.
Does it support framing effects?
Yes. It features a 4-blade framing system for precise beam shaping.
Is it suitable for professional theatre use?
Yes. With high CRI and CMY color mixing, it is ideal for theatre and broadcast lighting.
What effects are included?
It supports gobo, prism, zoom, frost, strobe and dynamic effects.
Does it support RDM?
Yes. It supports RDM for remote addressing and monitoring.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and product customization.
