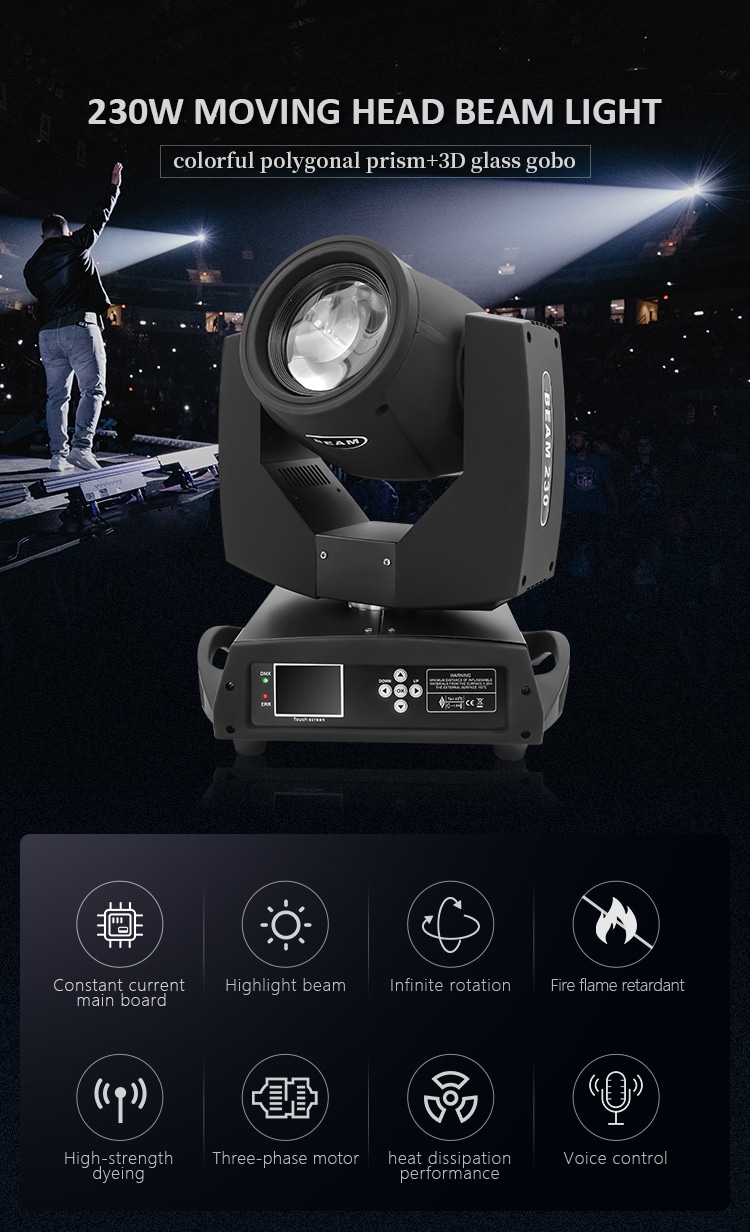

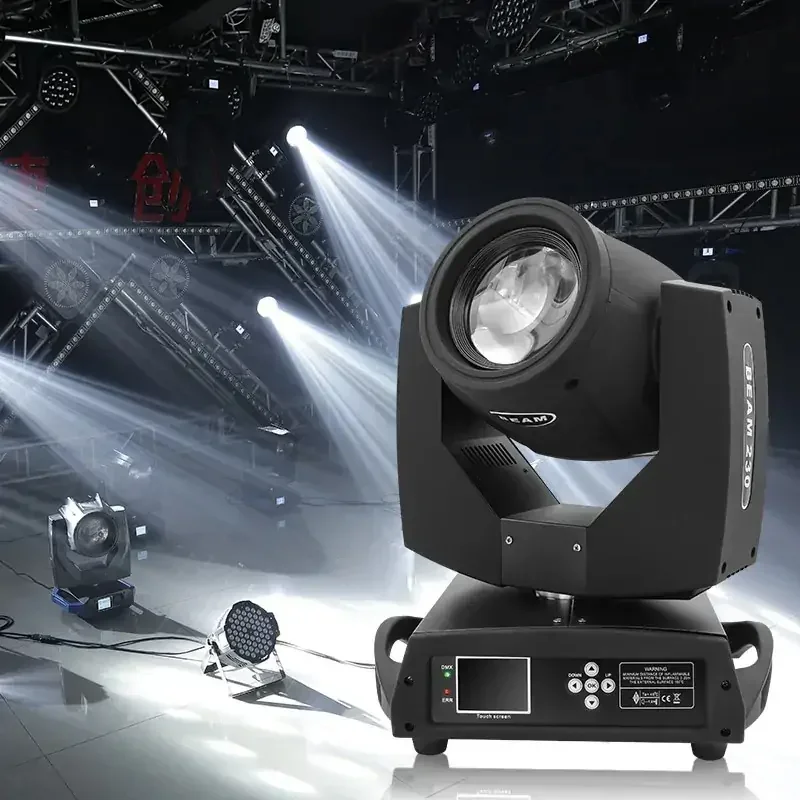

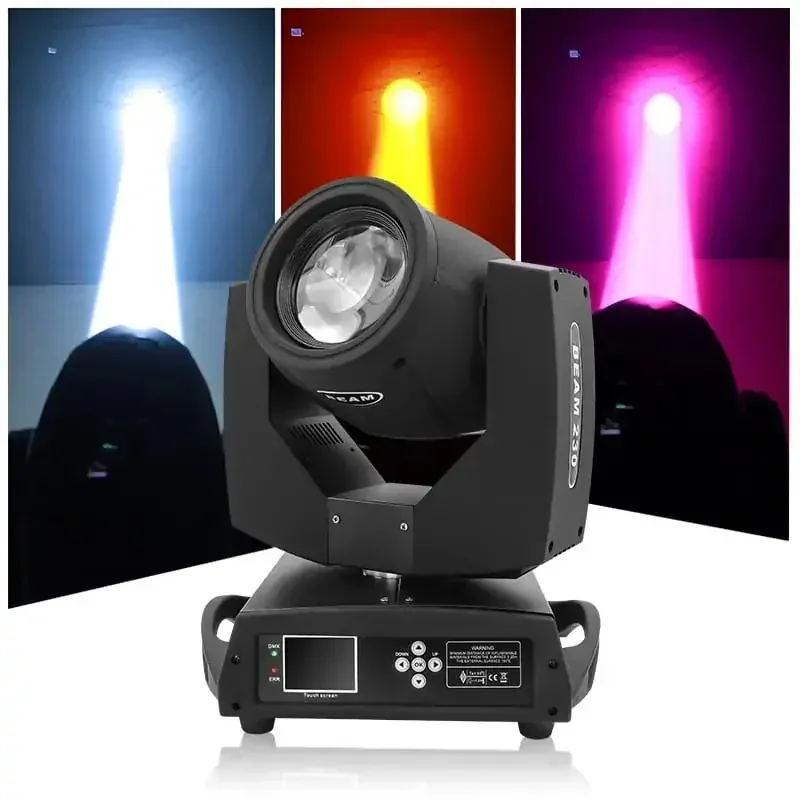

7R 230W BEAM LIHGT
※※※※※Suitable for almost ALL SCENAIROS with Factory Direct Sales※※※※※
Feature:
◎Remote DMX control system with long lifespan;
◎Intelligent fan noise control;
◎Input signal isolation protection function, to ensure stable signal transmission, free from interference;
◎Automatic error correction: use photo-electricity reset system, self-correction;
◎Intelligent microcomputer self-check function.
- Description
- Details
- Download
- VIDEO
Description
Can only choose between the colorful function and the atomization function. The atomization can be customized for the colorful models or above.
OPTICAL SYSTEM

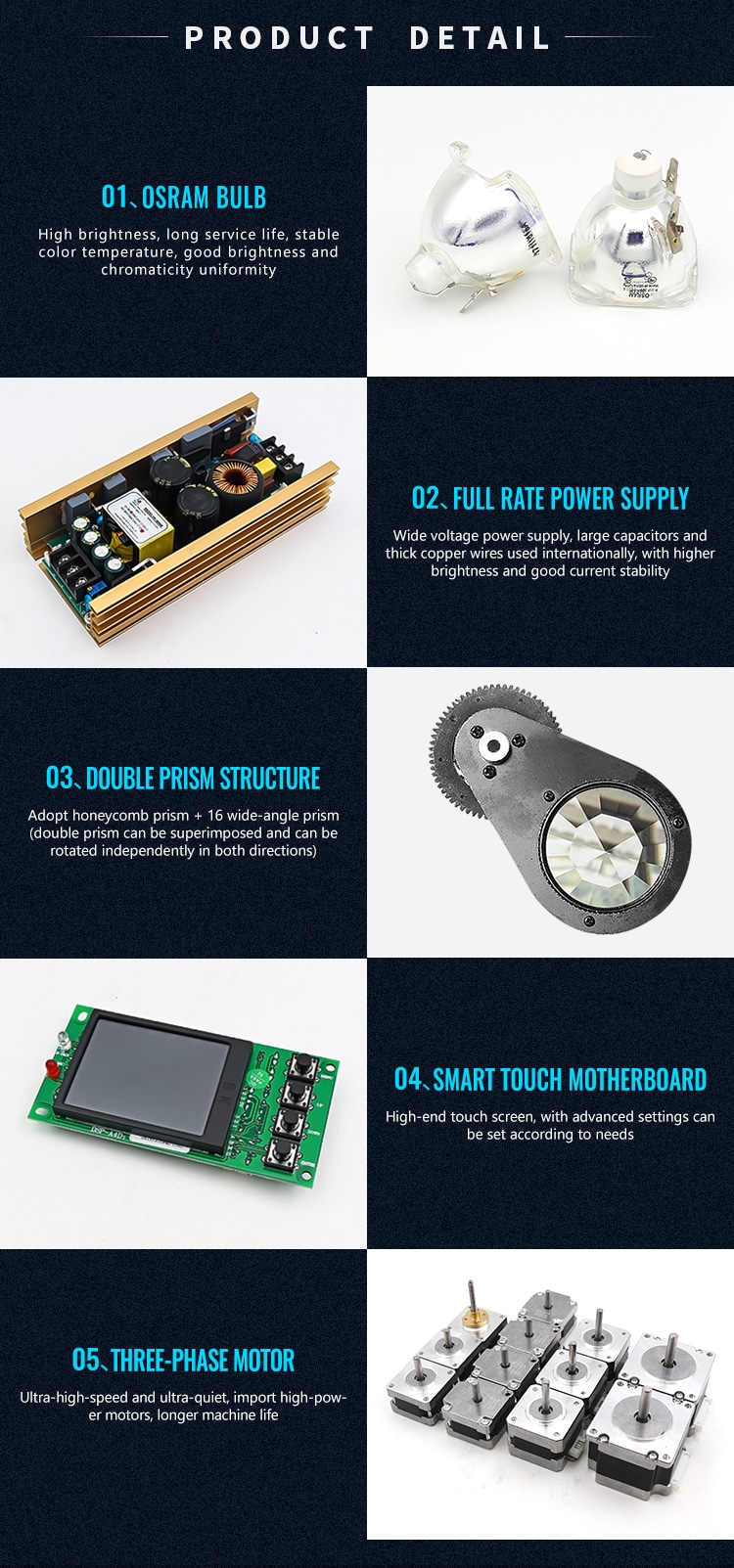

Light source: Yodn/ Philips /Germany Osram bulb
Lamp: 7R 230W
COLOR SYSTEM
CCT: 8000K
Color wheel:14 dichroic colors + open, rainbow effect with bidirectional rotation, full color effect and half color effect modes switch
GOBO SYSTEM
Gobos:1 fixed gobo wheel, 17 gobos+white, with gobo fast shaking effect
EFFECTS
Prism: 8+16+24 prism, rotating prism can be positioned
Atomization: 0%-99% atomization soft light effect
Dimming: 0%-100% linear dimming
Strobe:1-13 t/s,free strobe and pulse strobe
Focus: electronic focusing, ultra-fine smooth adjustment of focal length
MOVEMENT PARAMETER
Pan& tilt: Pan 540°/ Tilt 270°(16bit)
Outlet aperture：120mm
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 16/20CH
POWER SUPPLY
Motor: three-phase motor (fast running speed, accurate positioning)
Voltage：AC110-220V/50-60HZ
Power consumption:350W

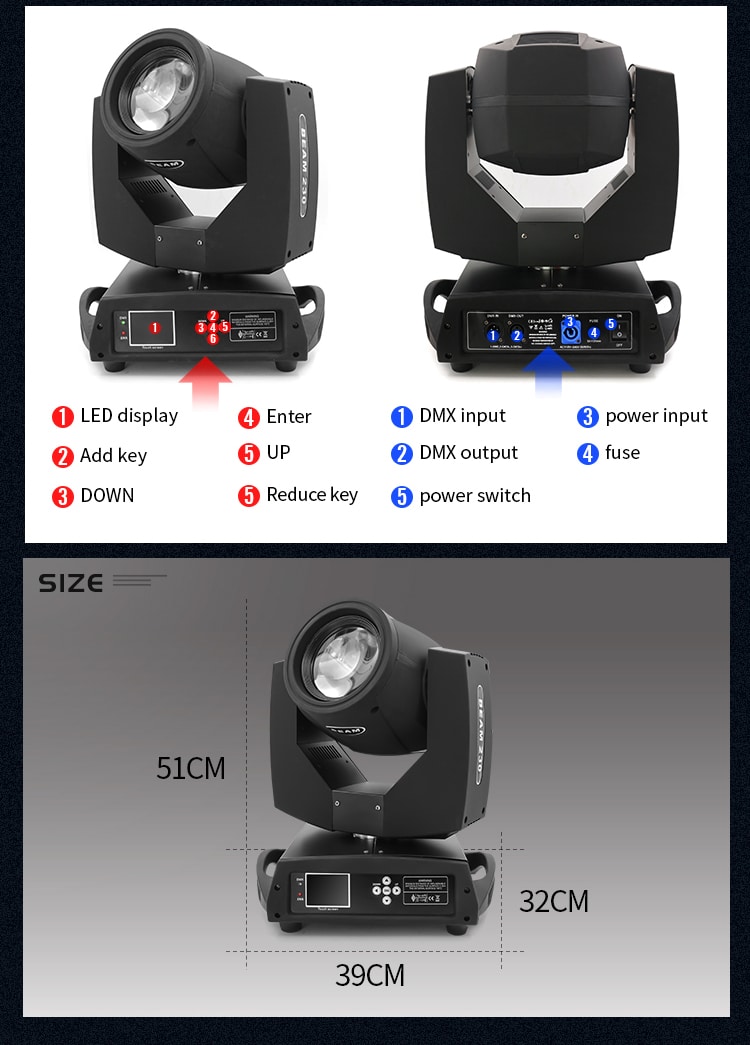

DIMENSION AND WEIGHT
Product Size：39X32X51cm
Package Size: 45X42X55cm（carton);
Flight case package:
45x37x67cm(1pcs pack); 71x75x43cm(2pcs pack); 87.2×83×58cm(4pcs pack)
N.W:17.45KGS
G.W:19.00KGS
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: A1
