Description

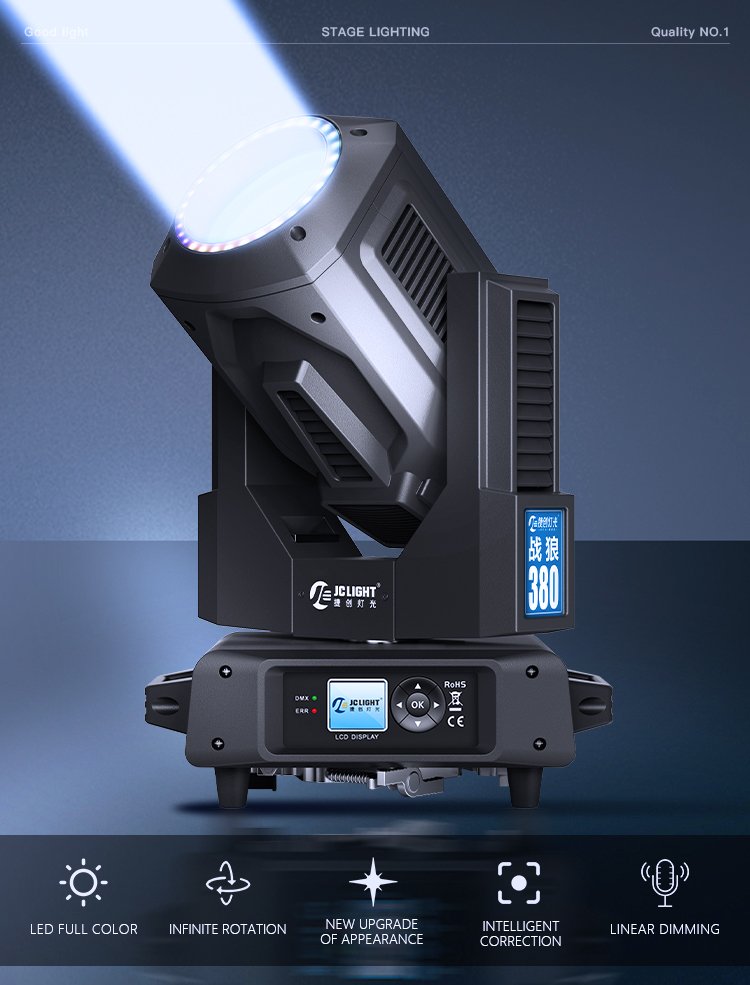

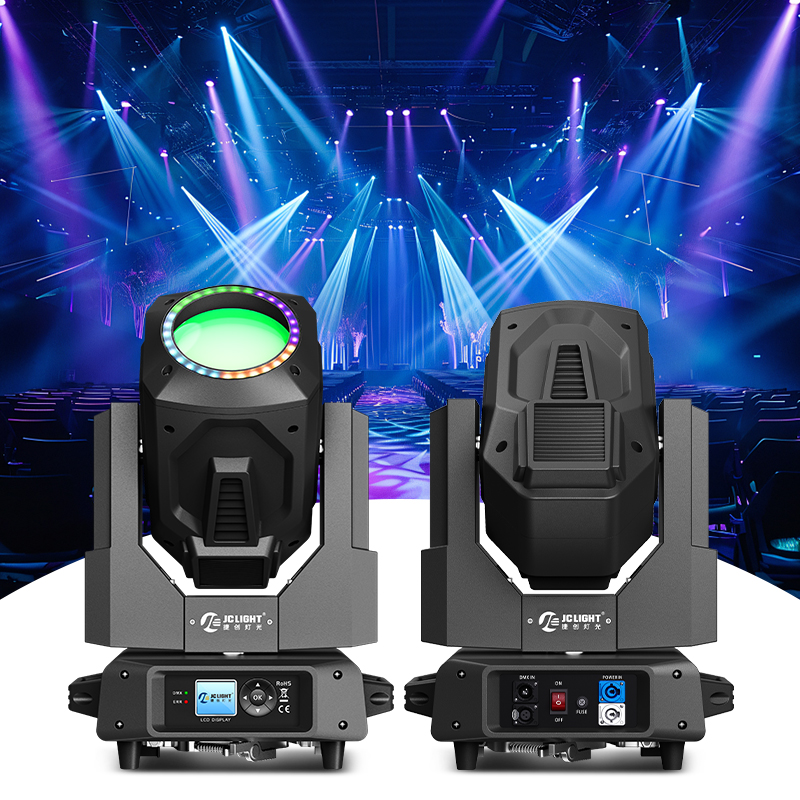

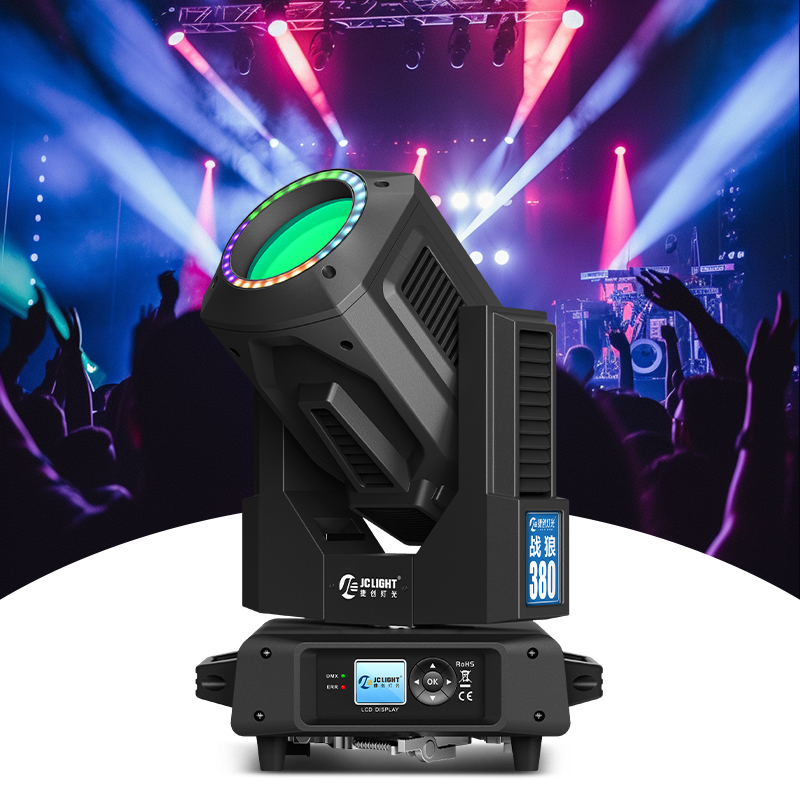

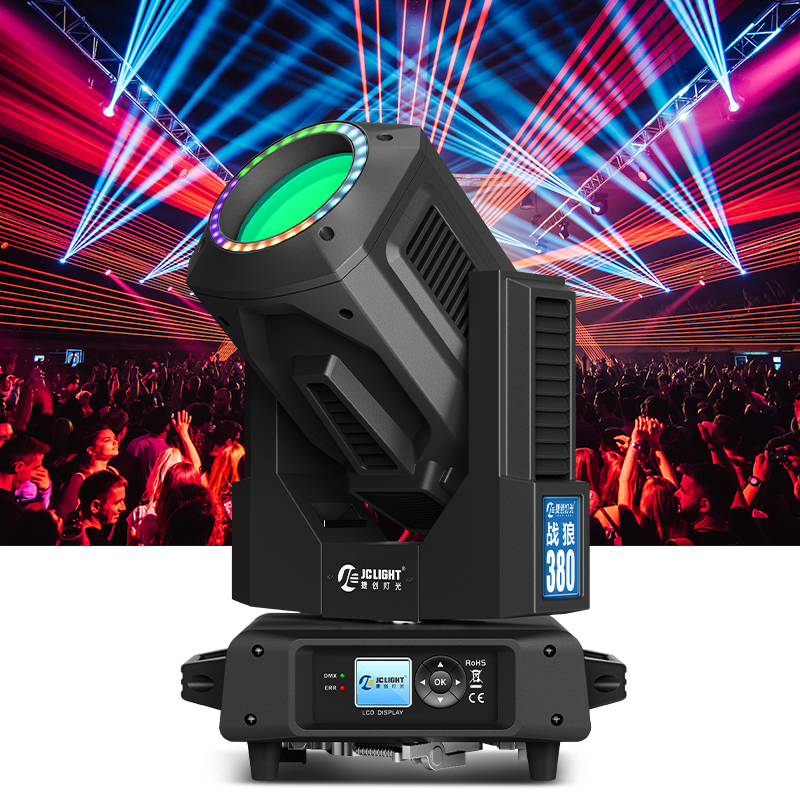

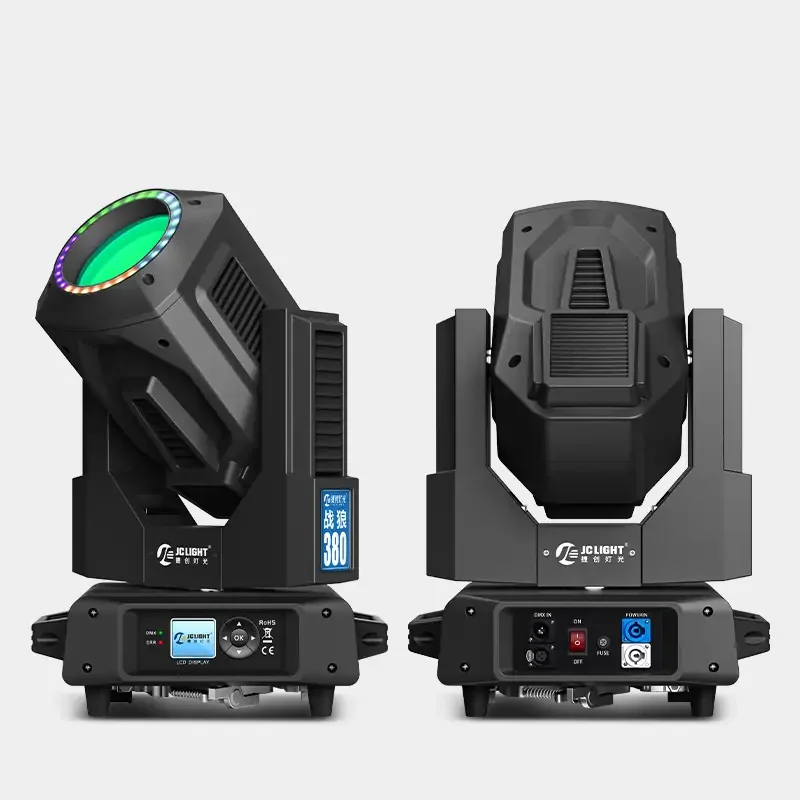

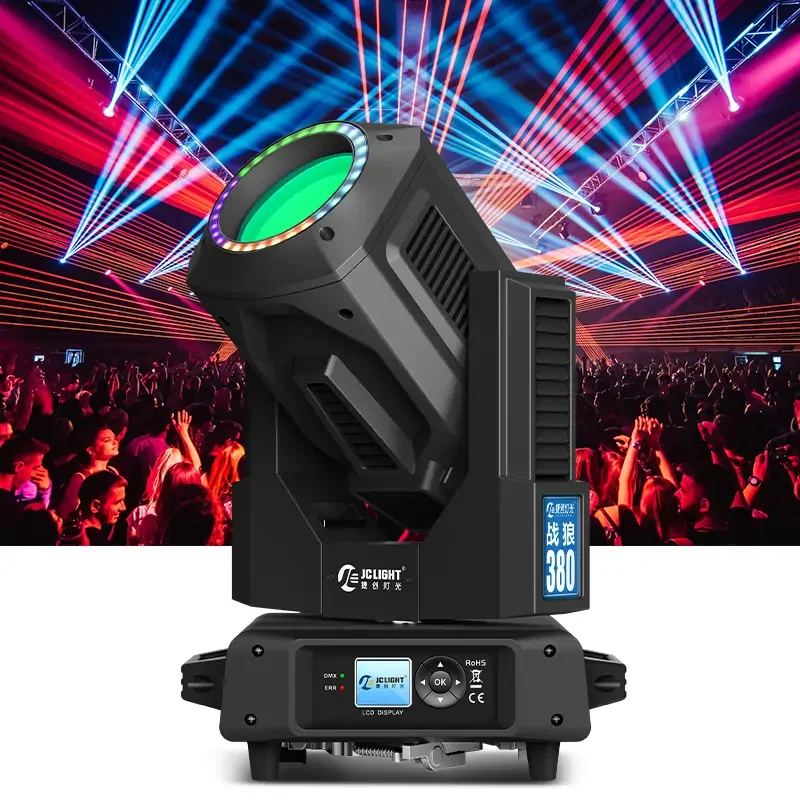

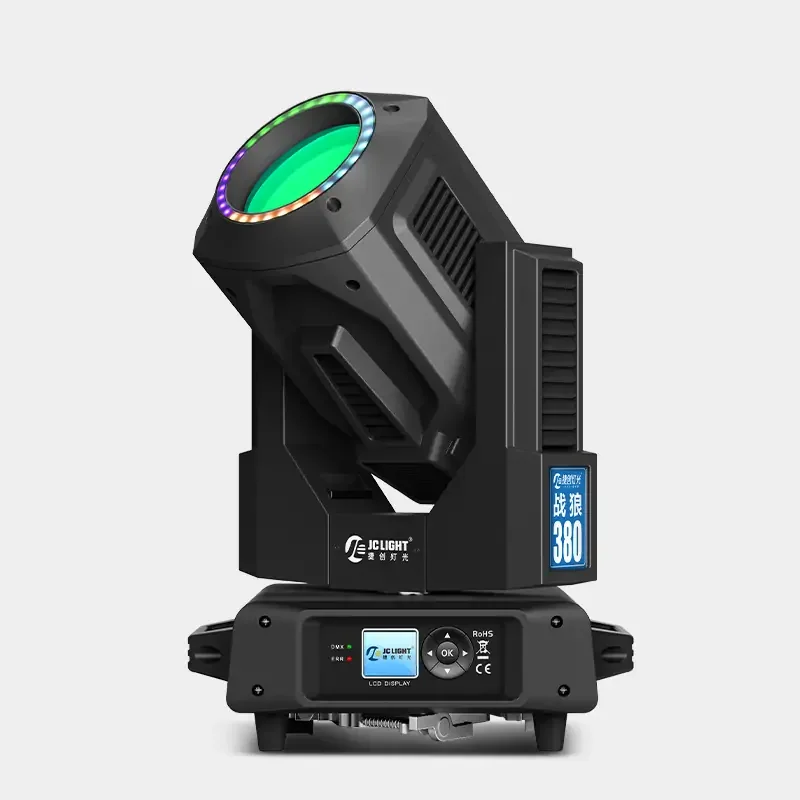

380W 18R Beam Moving Head Light with Dual Prism and 1.8° Ultra Beam
The JC LIGHT ZL380A (A16) “Wolf Warriors” is a professional 18R beam moving head designed for stage, concert and large-scale lighting applications. Equipped with a high-performance 380W discharge lamp, it delivers ultra-narrow and powerful beam effects with outstanding brightness and long-distance projection.
Featuring a large optical lens, dual prism system and advanced focusing technology, this fixture creates sharp beams and dynamic layered effects. Its durable structure and intelligent cooling system ensure reliable performance for continuous operation in demanding environments.
Key Features
- 380W high-performance discharge lamp (YODN / Philips / Osram optional)
- Ultra narrow 1.8° beam angle for long-distance projection
- 165mm large diameter lens for thicker and stronger beam output
- 13 colors + white with rainbow effect
- 13 static gobos + open for pattern effects
- Dual rotating prism system with multiple combinations
- Electronic focusing for sharp beam control
- 0–100% linear frost (atomization) effect
- 0–100% smooth dimming and high-speed strobe
- RDM two-way communication support
- Three-phase motor for fast and precise movement
- Compact structure with advanced heat dissipation system
Technical Specifications
| Light Source | 380W discharge lamp (YODN / Philips / Osram) |
| Lamp Lifespan | 3000 hours |
| Optics | 165mm large diameter lens |
| Beam Angle | 1.8° |
| Color Wheel | 13 colors + white |
| Gobo Wheel | 13 static gobos + open |
| Prism | 8 prism, 8+16+24 prism combinations, rotation and overlay |
| Focus | Electronic linear HD focusing |
| Frost | 0–100% linear frost effect |
| Dimming | 0–100% linear dimming |
| Strobe | High-speed strobe effect |

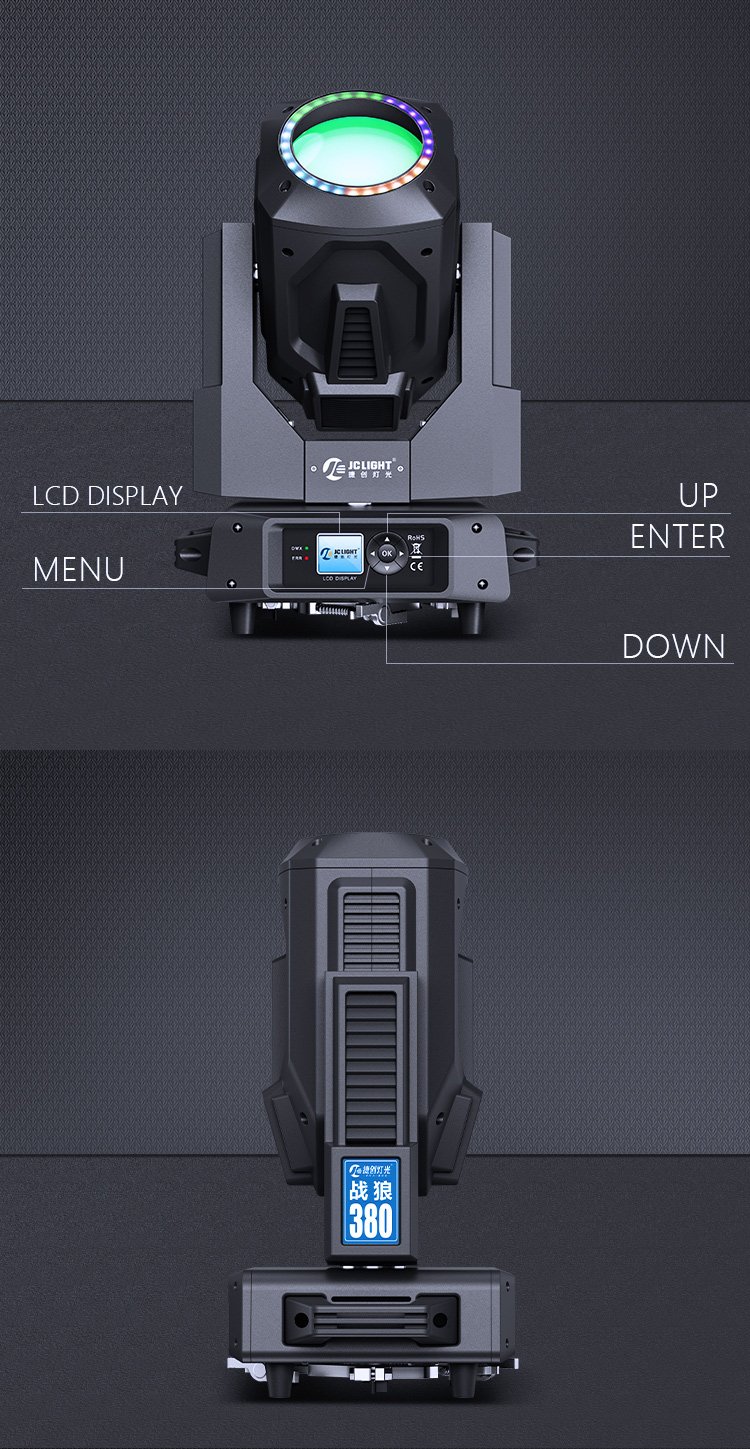

| Display | LCD screen |
| Movement | XY axis three-phase motor |
| Control Mode | DMX512 / Auto / Master-slave / Sound / RDM |
| Channel | 16CH / 20CH |
| Voltage | AC110-240V, 50/60Hz |
| Power | 450W |

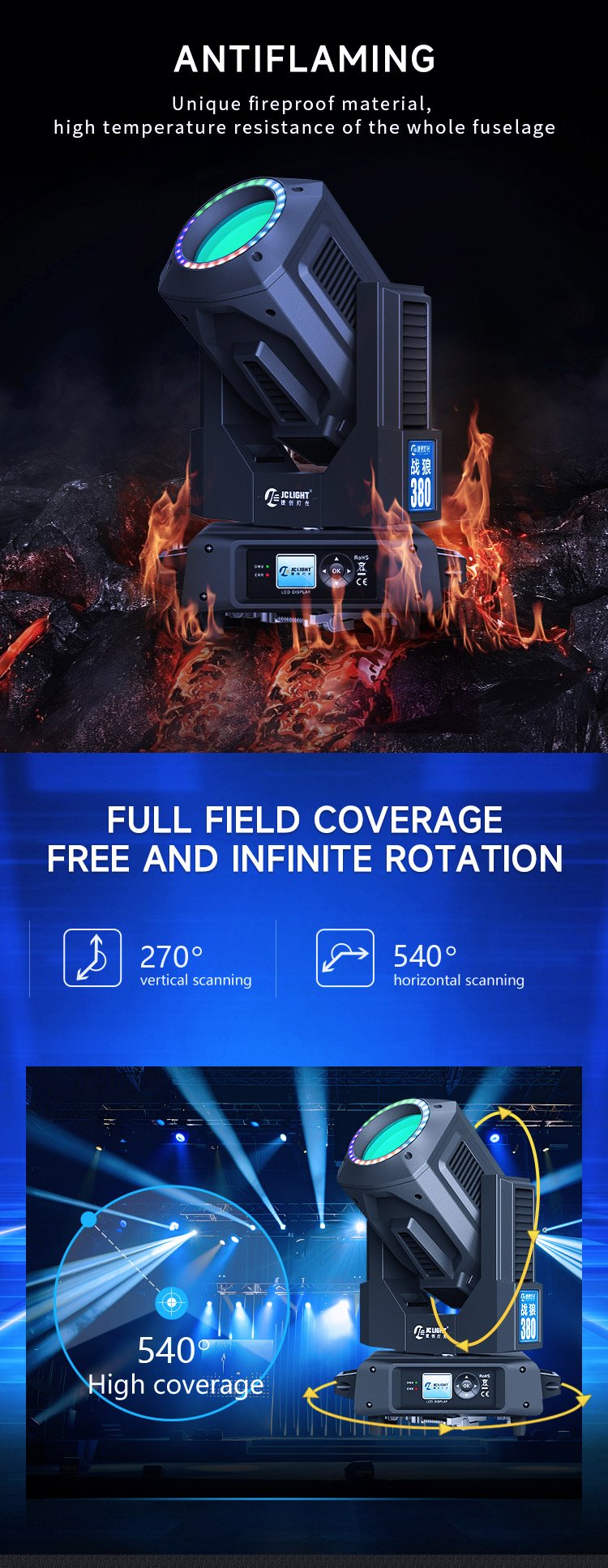

| Material | Engineering nylon + die-cast aluminum |
| IP Rating | IP20 (indoor use) |

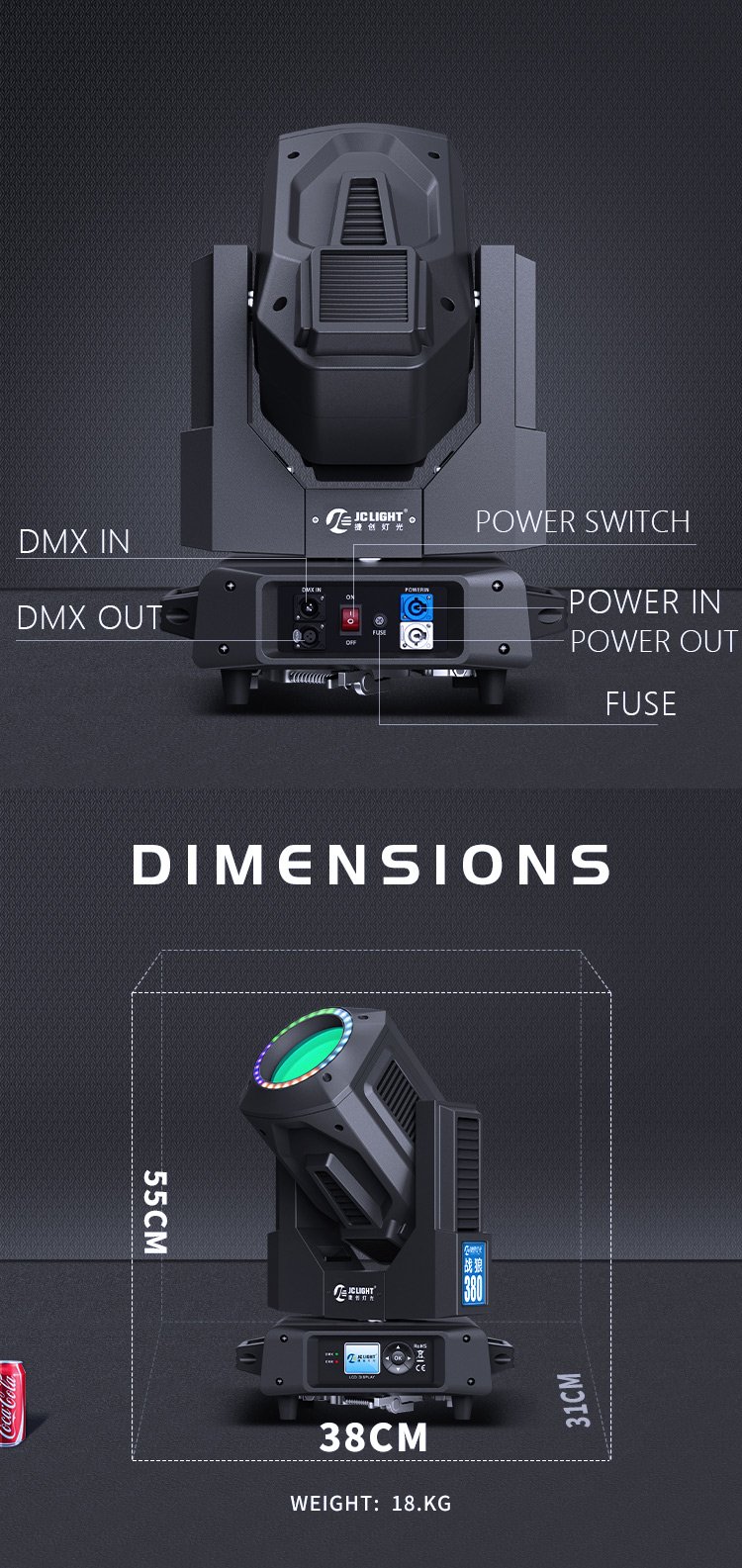

| Product Size | 376 × 270 × 617 mm |
| Package Size | 480 × 420 × 590 mm |
| Net Weight | 19 kg |
| Gross Weight | 22 kg |
| Model | A16 |
| SKU | ZL380A |
Application Scenarios
- Concert and large stage lighting systems
- DJ and nightclub beam lighting setups
- Festival and live event lighting
- Stage performance and touring productions
- Professional rental lighting applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- High-intensity beam lighting solutions for large venues
- Strong OEM and ODM customization capability
- Stable performance for long-duration use
- Fast response and technical support for projects
380W Beam Moving Head Light FAQ
What makes this beam light suitable for large stages?
It features a 1.8° ultra-narrow beam and high brightness output, ideal for long-distance projection.
What prism effects are available?
It includes multiple prism combinations (8, 16, 24 facets) that can rotate and overlap.
Does it support RDM control?
Yes. It supports RDM two-way communication for remote configuration.
Is it suitable for rental use?
Yes. Its durable construction and stable performance make it suitable for rental and touring applications.
What type of environments is it designed for?
With IP20 rating, it is designed for indoor stage and event environments.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and product customization.
