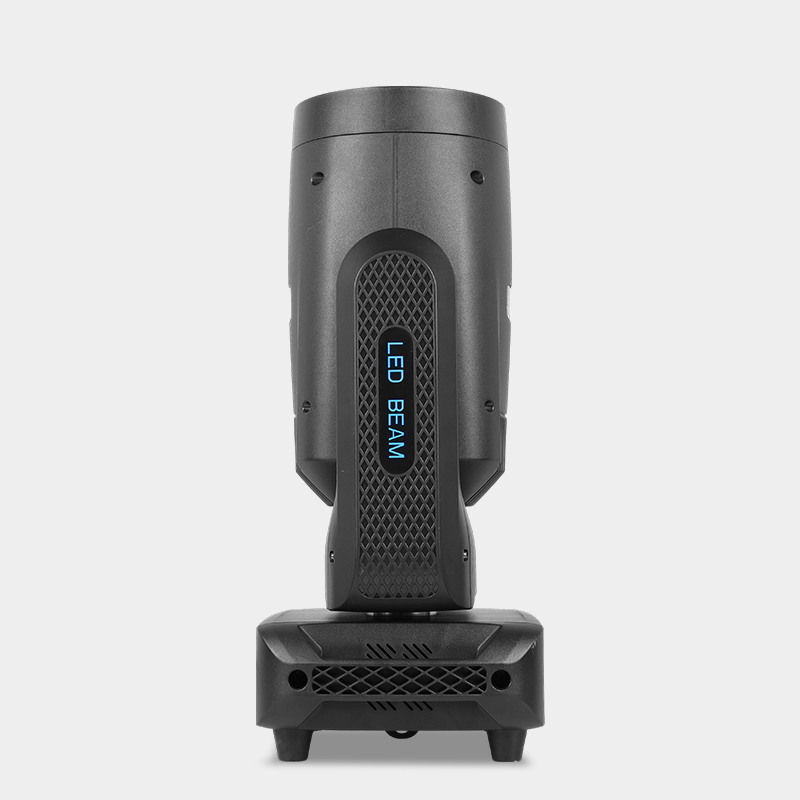

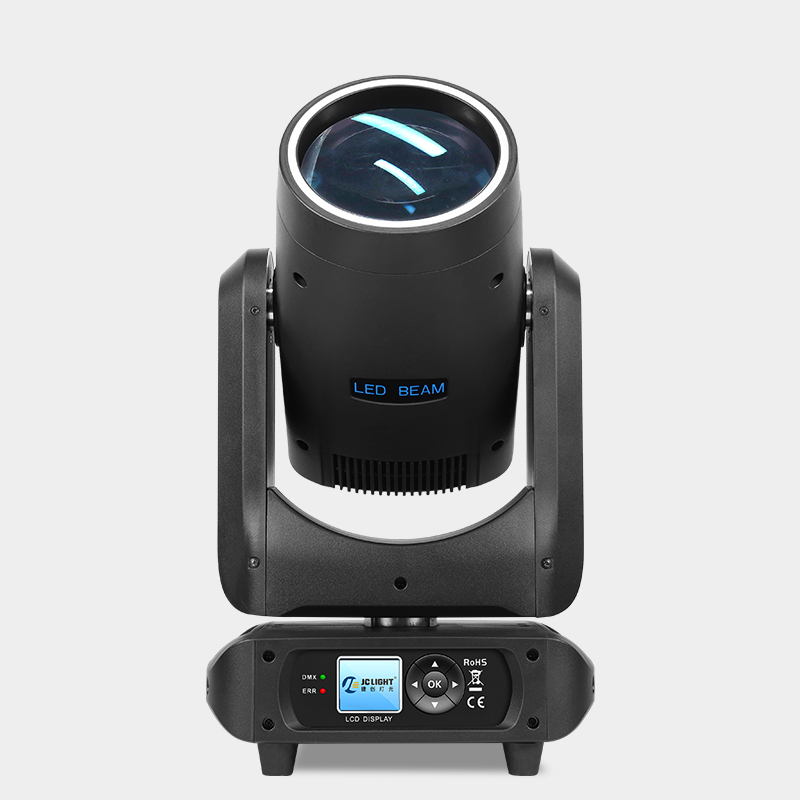

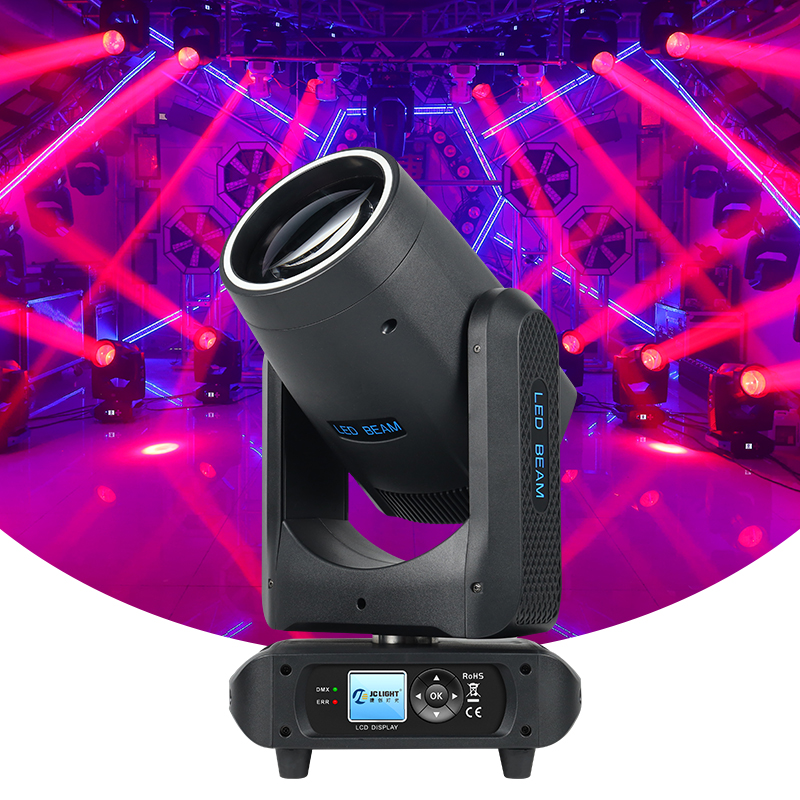

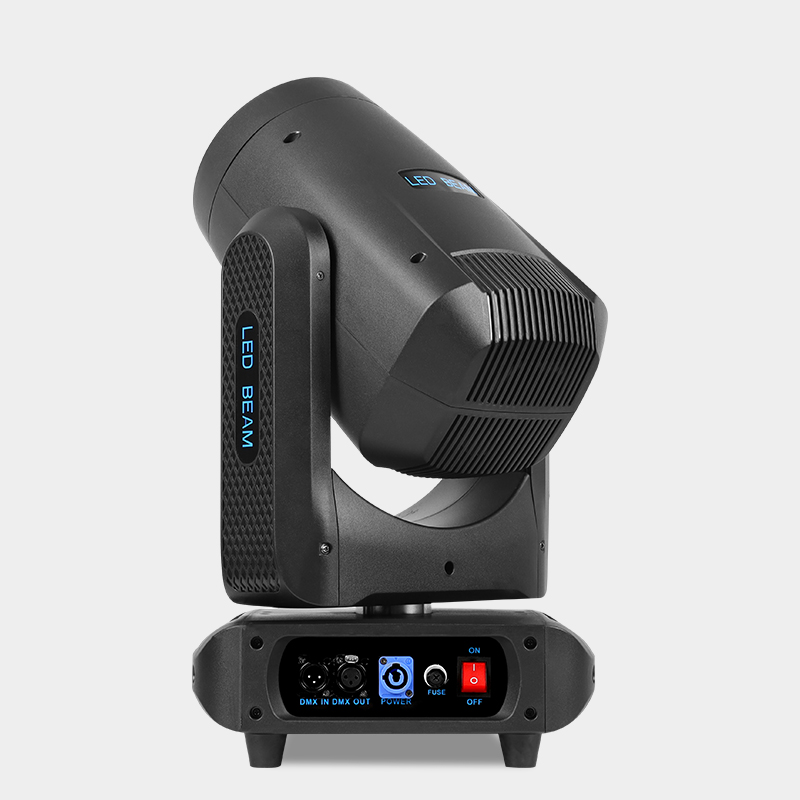

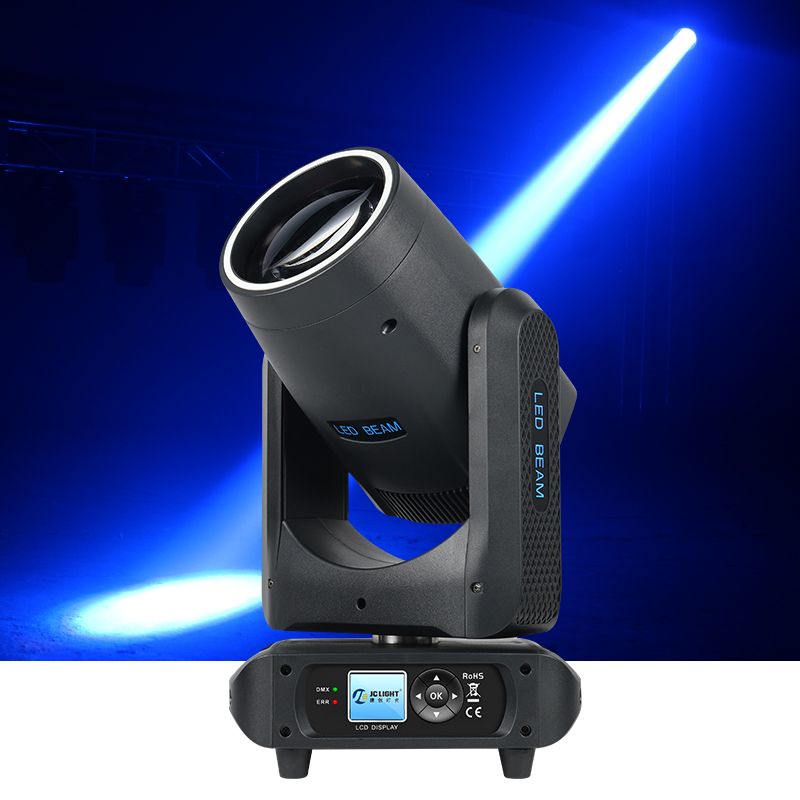

JC LIGHT LED Beam Moving Head Light with Ring OEM
- Warehouse Stock · Bulk Orders Supported
- OE / OEM Matching · Verified Before Order
- Export Packing · Standard for Overseas
- Global Shipping · Air and Sea Available
- Description
- Details
Description
Effect:

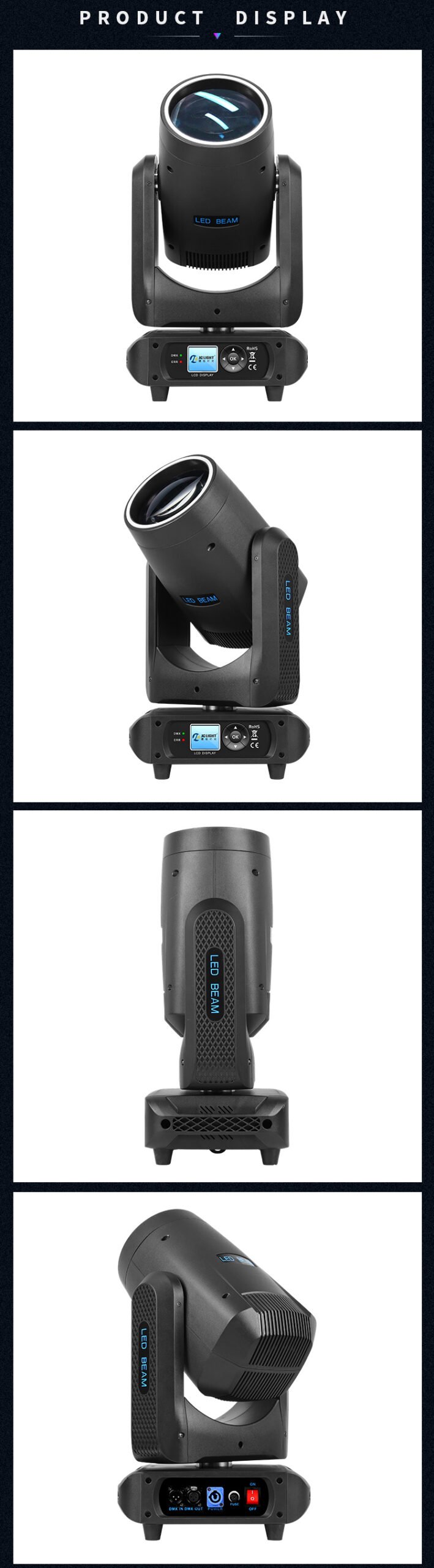

200W 300W 400W LED Moving Head Beam Light with Prism and Gobo Effects
The JC LIGHT LED200A / LED300A / LED400A series is a powerful moving head beam light designed for stage, concert and club lighting. Featuring high-brightness LED sources and advanced optical systems, it delivers sharp beams, rich colors and dynamic visual effects.
Equipped with multiple prisms, gobos and color effects, this fixture provides versatile lighting performance for professional applications. Its RGB LED strip adds additional visual depth, making it ideal for creative stage designs.
Key Features
- High brightness LED options: 200W / 300W / 400W
- Sharp beam output with 7800K color temperature
- 13 colors + white color wheel for vivid effects
- 17 gobos for dynamic pattern projection
- Multiple prism effects including honeycomb prism
- Frost and rainbow effects for beam variation

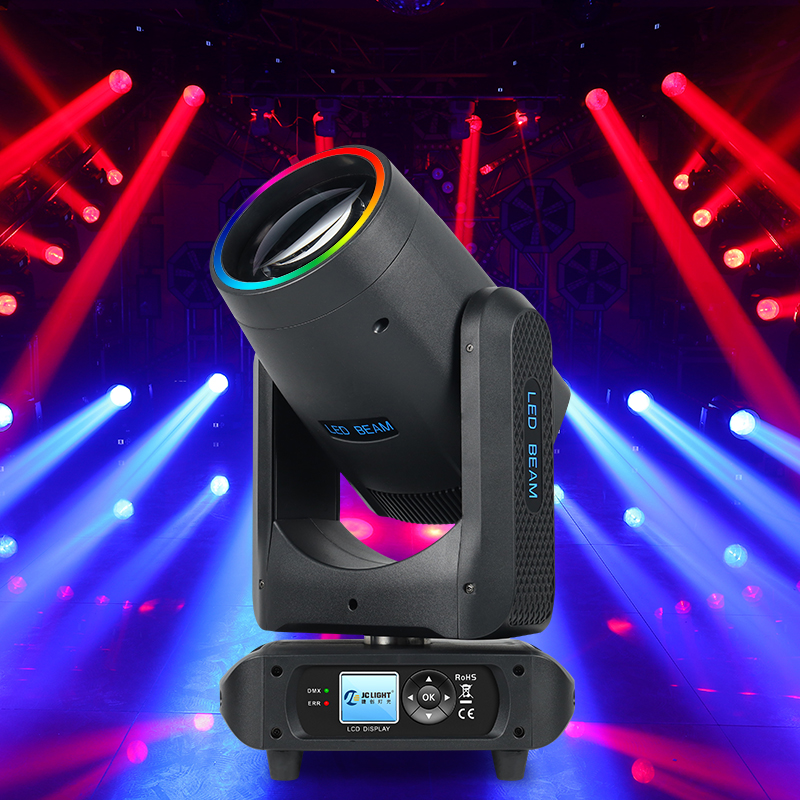

- RGB LED strip for enhanced visual effects
- 0–100% smooth linear dimming
- High-speed strobe up to 25Hz
- Precise pan and tilt movement with 16-bit control
Technical Specifications
| Model | Power |
|---|---|
| LED200A | 200W |
| LED300A | 300W |
| LED400A | 400W |
| Voltage | AC110-240V, 50/60Hz |
| Color Temperature | 7800K |
| Light Source | High brightness LED |
| LED Strip | RGB color |
| Color Wheel | 13 colors + white |
| Gobo Wheel | 17 gobos |
| Prism | Double prism, 8-facet prism, 8+16 honeycomb prism |
| Effects | Frost + rainbow |
| Dimming | 0–100% linear dimming |
| Strobe | 1–25Hz |

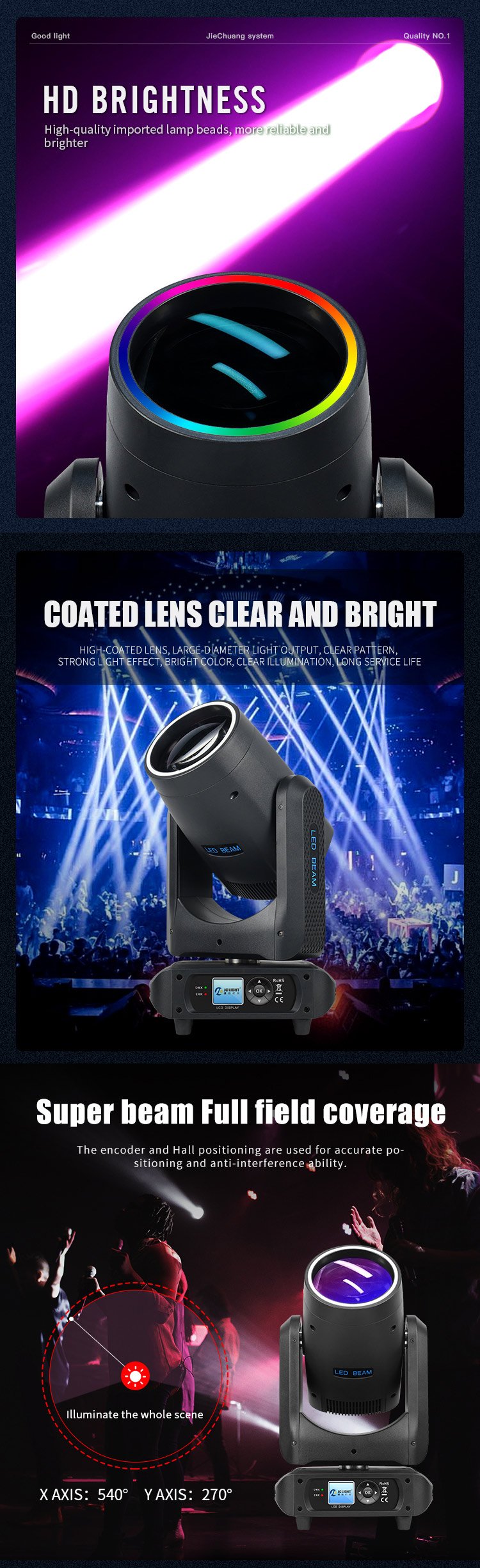

| Pan / Tilt | 540° / 270° (16-bit precision) |
| Control Mode | DMX512 / Master-slave / Auto / Sound |
| Product Size | 300 × 555 × 230 mm |
| Package Size | 580 × 460 × 420 mm |
| Net Weight | 13.45 kg |
| Gross Weight | 15.80 kg |
| SKU | LED200A / LED300A / LED400A |

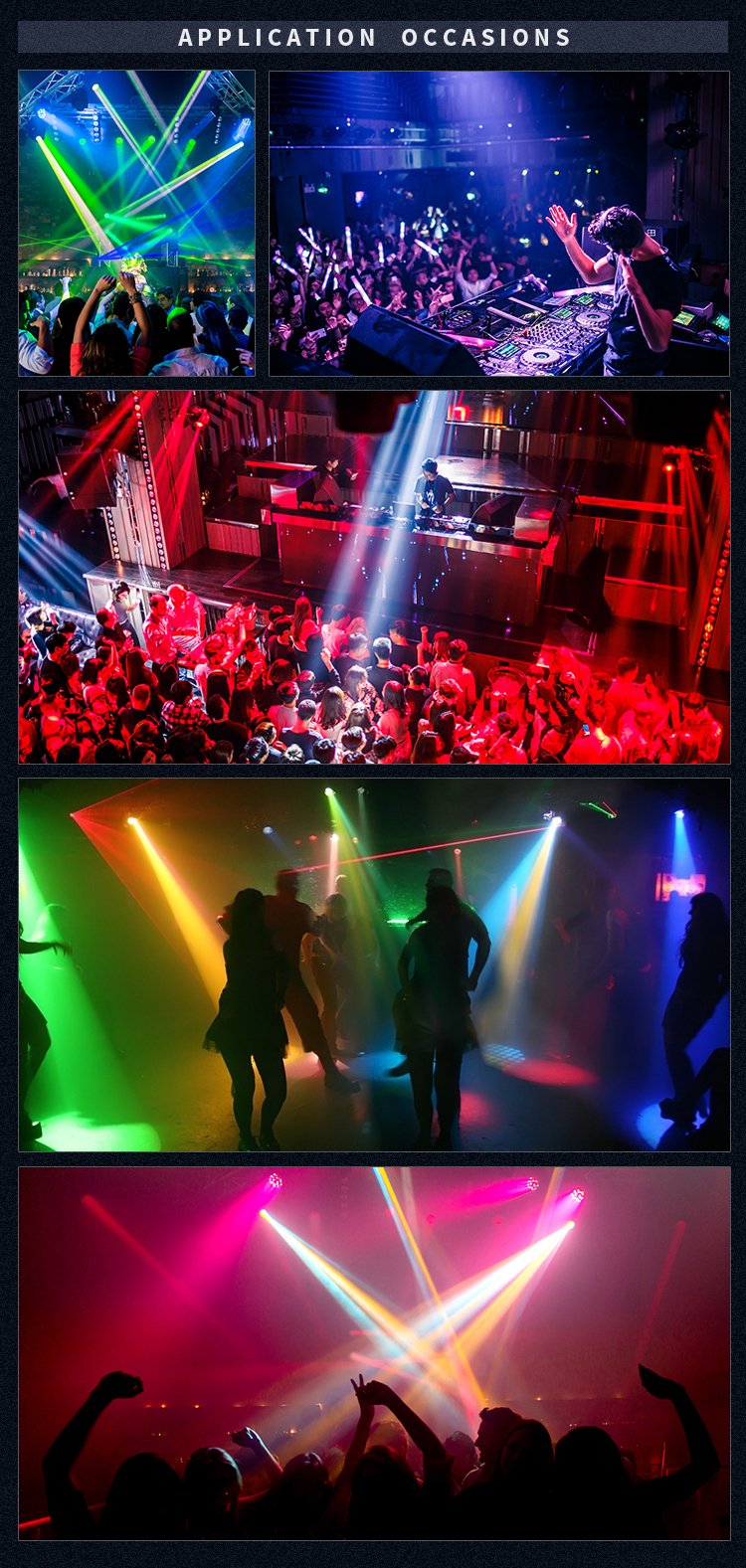

Application Scenarios
- Concert and stage lighting systems
- DJ and nightclub lighting setups
- Festival and event lighting installations
- Stage performance and touring shows
- Professional rental lighting applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- High-performance beam lighting solutions
- Strong OEM and ODM customization capability
- Stable performance suitable for rental use
- Fast response and technical support for projects
LED Moving Head Beam Light FAQ
What are the differences between the models?
The main difference is the power level (200W, 300W, 400W), which affects brightness and application scenarios.
What effects does this fixture provide?
It includes beam, gobo projection, prism, frost and rainbow effects for dynamic lighting design.
Does it support prism effects?
Yes. It supports multiple prism types including honeycomb prism for complex beam effects.
Is it suitable for professional use?
Yes. Its powerful output and multiple effects make it suitable for professional stage and event lighting.
Does it support DMX control?
Yes. It supports DMX512 with multiple control modes.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and configuration customization.
