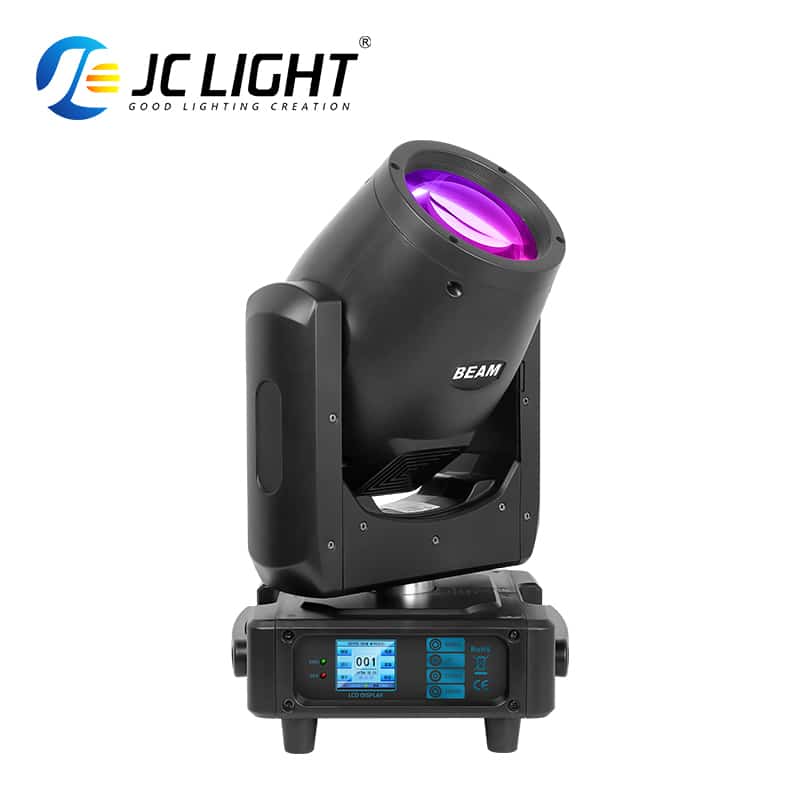

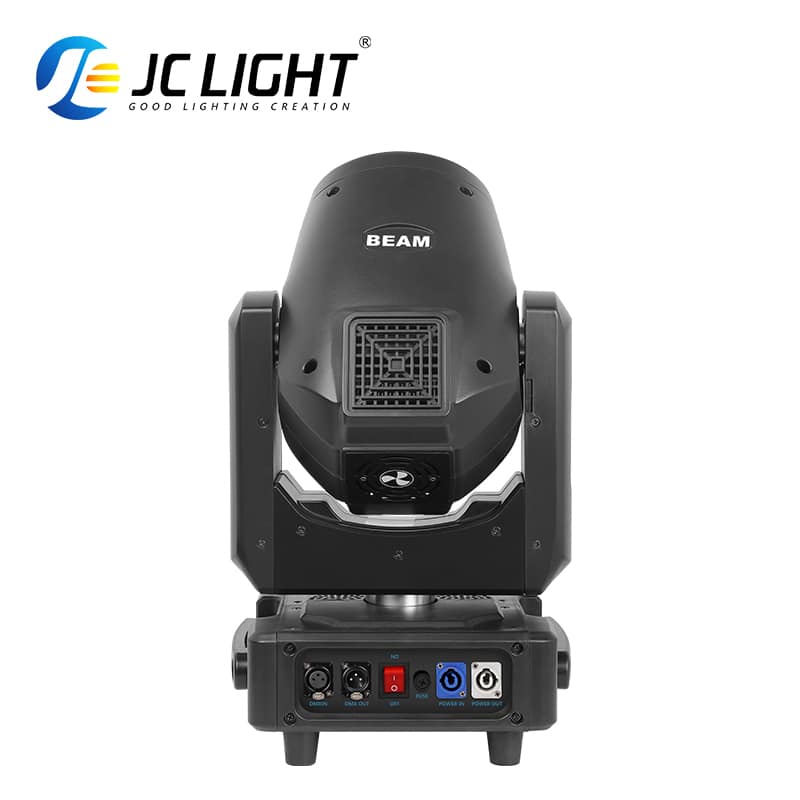

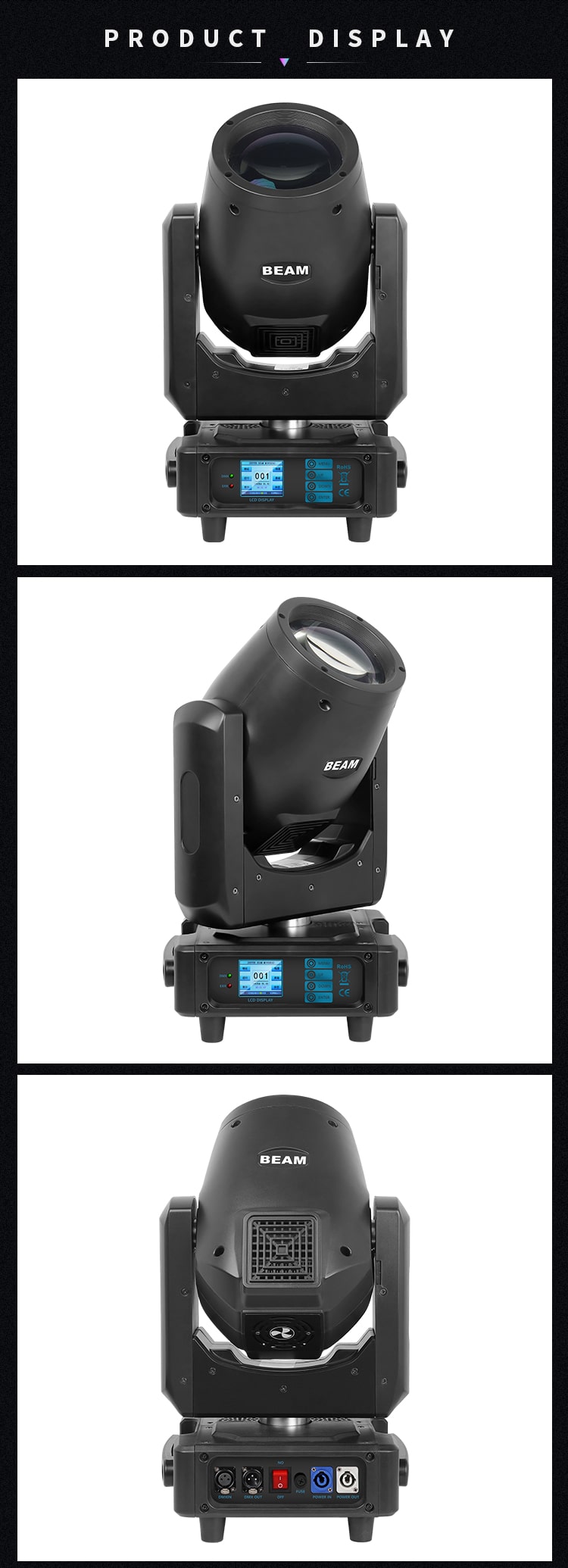

MINI 230W BEAM LIGHT – A3

※※※※※Mini, light noise 230 beam with Factory Direct Sales※※※※※

Mini 230 is a new generation of mini beam moving headlights launched by JCLIGHT. It equipped with a 300W laser light engine, it can work for 10,000 hours continuously. The beam is full and strong penetrating power without hollow. The 20-meter illuminance exceeds 400,000lux, which can produce a beam effect that is unmatchable by traditional discharge bulbs. The product has 1pc built-in color wheel, 1pc rotating gobo wheel, and 5 prism effects. It is very suitable for outdoor, cultural and tourism projects, entertainment, TV stations, variety shows and other application scenarios.

Description

OPTICAL SYSTEM
Light source: Yodn/ Philips /Germany Osram bulb
Lamp: 7R 230W

COLOR SYSTEM
CCT: 8000K

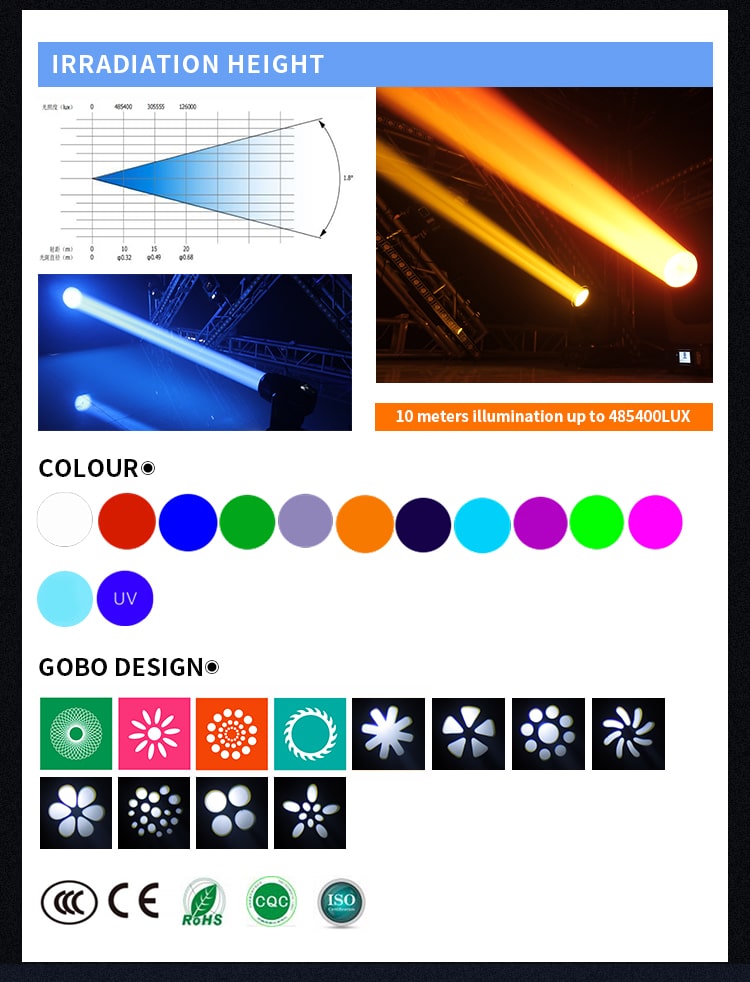

Color wheel: 13 colors+open

GOBO SYSTEM
Gobos Wheel:1 fixed gobo wheel, 14 gobos+open

EFFECTS
Prism: 8+16+24 prism (optional)
Dimming: 0%-100% mechanical dimming

MOVEMENT PARAMETER

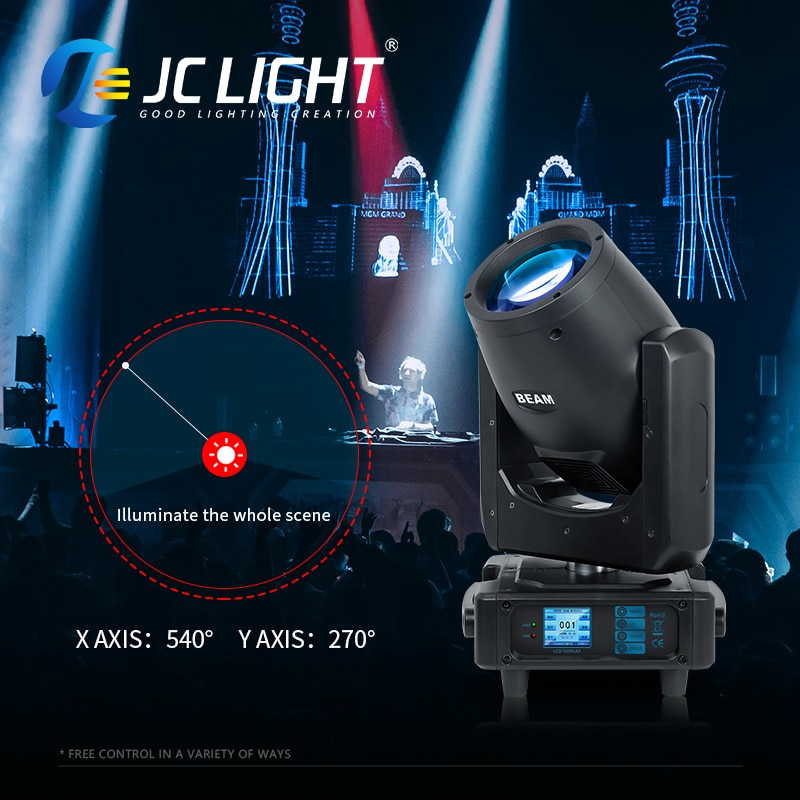

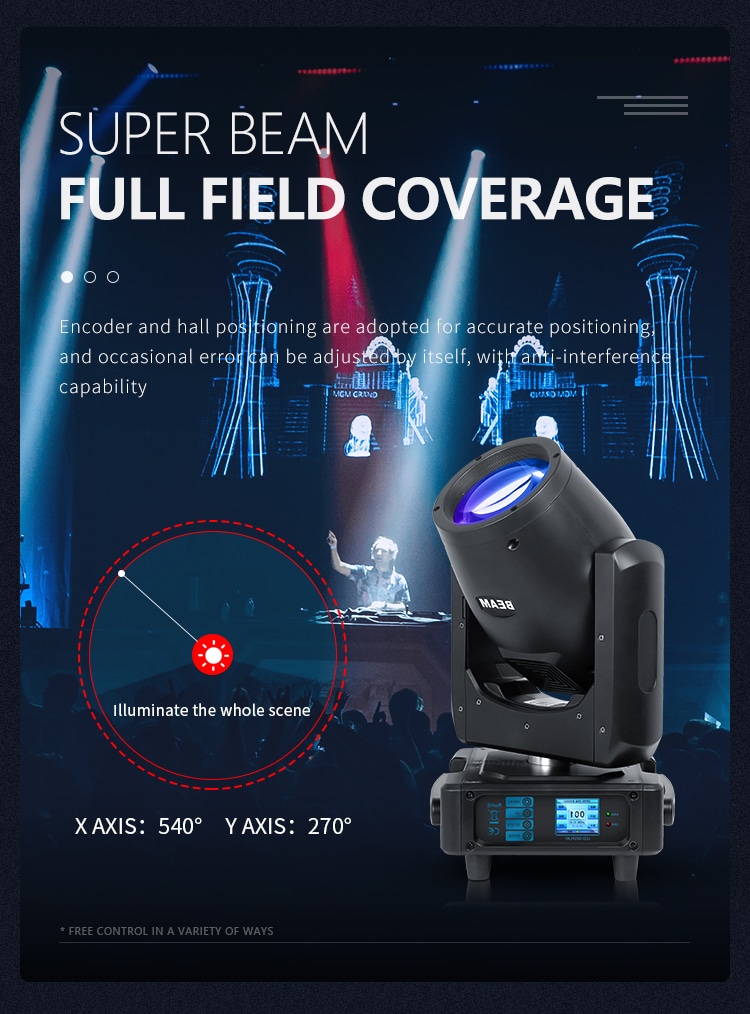

Pan& tilt: Pan 540°/ Tilt 270°

CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 14CH

POWER SUPPLY
Voltage:AC110-240V/50-60HZ
Power consumption:300W

DIMENSION AND WEIGHT
Product Size:26X23.5X45cm
Package Size: 51X37X40cm
N.W:10.8KGS
G.W:11.0KGS

IP RATE
IP Rating: IP20

SHORT MODEL NUMBER: A3-2

Effect:

MINI 230W BEAM LIGHT A3
