UPGRADED LED 3IN1 SPOT MOVING HEAD LIGHT(JUNNO)
JUNNO 400W/500W LED module with a 7°-42° beam angle and a 20,000-hour lifespan. It offers 12 colors, a CMY+CTO mixing system, 8 static and 7 rotating gobos, and various effects like three rotating prisms, water/flame effects, and soft light atomization. It supports 0-100% dimming, high-speed strobe, and precise focusing. With 540° pan and 270° tilt movement, it can be controlled via DMX512 or auto modes. The light has a 2.8-inch LCD touchscreen, measures 396×289×694mm, and weighs 25kg.
- Description
- MORE
Description
Parameters
OPTICAL SYSTEM
Light source: high brightness 400w/500w LED moudle
Optical angle: 7°-42°
LED lifespan: 20,000 hours
COLOR SYSTEM

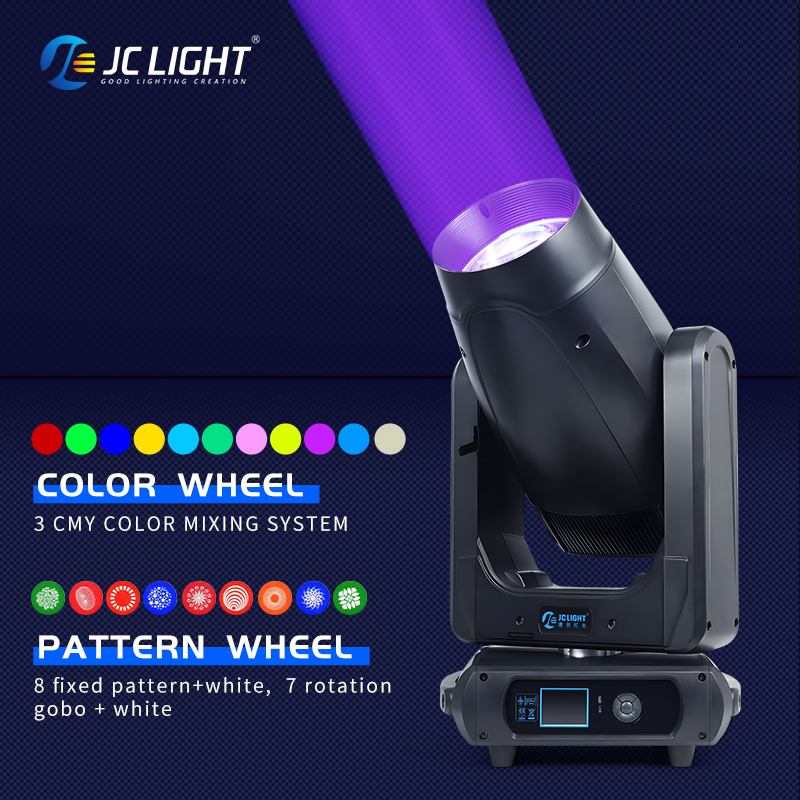

Color wheel: 12 colors + white
Color mixing system: linear CMY+CTO color mixing system
GOBO SYSTEM
Static gobo wheel: 8 static gobos + white
Rotating gobo wheel: 7 rotating gobos + white, with two-way flowing, jitter effect, can be positioned
EFFECTS
Prism: 3 prism, which can be bidirectional rotation independently
Dynamic effect plate: 1 effect plate, can do water pattern + point + flame effect
Atomization: 1 independent atomization effect, soft and natural light spot
Dimming: electronic 0-100% linear adjustment
Focusing system: linear adjustment
Strobe: 0-25t/s, high-speed stroboscopic, multiple stroboscopic mode
MOVEMENT PARAMETER
Pan& tilt: 540°Pan scaning,270°Tilt scanning(16bit)
CONTROL AND PROGRAMMING
Control: DMX512/auto-run/master-slave/sound
Channel: Internation Standard 21 DMX Channel with RDM function
Display: 2.8-inch LCD touch screen + buttons, Chinese and English languages switch, fonts can be automatically displayed in reverse 180 degrees
POWER SUPPLY
Voltage: AC100-240V,50/60Hz
Power: 500W/600W
DIMENSION AND WEIGHT

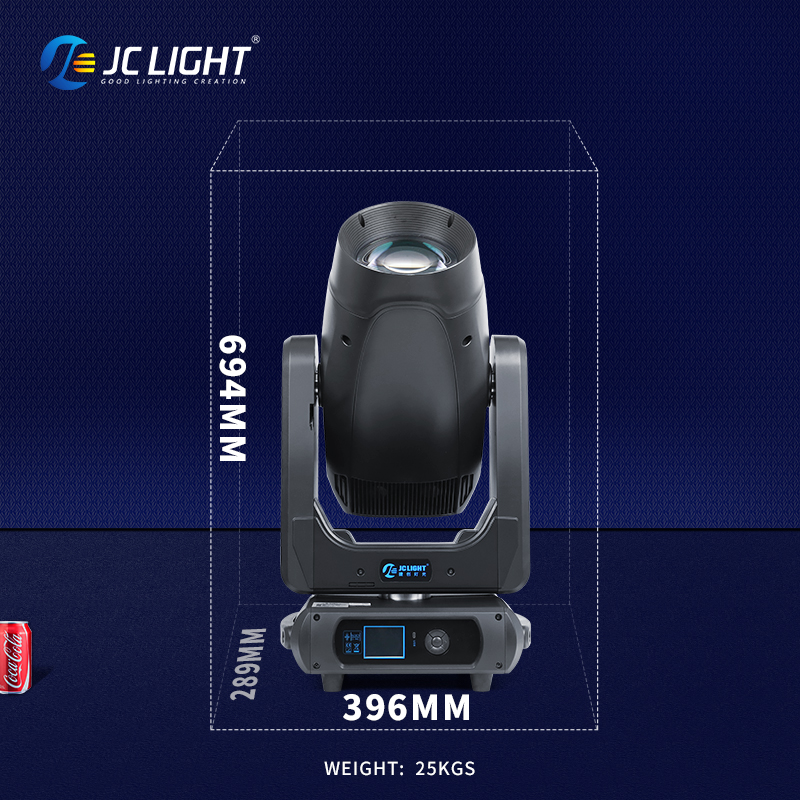

Product size: 396×289×694mm
N.W: 25kg
