SEARCHLIGHT
Voltage: AC220V(±10%)/50-60HZ
Power: 1000W/2000W/3000W/4000W/5000W/6000W/7000W
IP rating :IP55, with temperature protection and rain proof,waterproof function
Bulb: Xenon gas bulb
Electrical resistance :1.5KV
Insulation resistance :>2MQ
Control mode: Single-machine mode
Color effect: White, R/G/B/A/UV optional.
Rotation Angle: horizontal 110 degrees (automatic rotation), vertical 60 degrees (manual positioning)
Dimming function: positioning function
Cooling mode: forced air cooling
Material: aluminium alloy
Application: Widely used in TV station, outdoor performance, sport hall, hotel, amusement park, landscape, building etc.
Power Color distance Product size Package size N.W
1000W White 500-800M 55*50*88(cm) 60*54*90(cm) 42kg
2000W White 1000-1500M 58*68*102(cm) 63*74*104(cm) 58kg
3000W White 1500-2000M 63*63*100(cm) 64*73*104(cm) 63kg
4000W White 2000-3000M 63*63*100(cm) 64*73*104(cm) 68kg
5000W White 3000-4000M 68*58*100(cm) 74*63*104(cm) 73kg
6000W White 4000-5000M 68*58*100(cm) 74*63*104(cm) 90kg
7000W White 5000-6000M 83*70*120(cm) 90*75*125(cm) 95kg
Short model number: A26
- Description
Description
Parameters
EFFECTS
Dimming function: positioning function
Insulation resistance :>2MQ
Color effect: White, R/G/B/A/UV optional.
Cooling mode: forced air cooling
Material: aluminium alloy
MOVEMENT PARAMETER
Rotation Angle: horizontal 110 degrees (automatic rotation), vertical 60 degrees (manual positioning)
CONTROL AND PROGRAMMING
Control mode: Single-machine mode
POWER SUPPLY
Voltage: AC220V(±10%)/50-60HZ
Power: 1000W/2000W/3000W/4000W/5000W/6000W/7000W
Electrical resistance :1.5KV
DIMENSION AND WEIGHT
1000W White 500-800M 55*50*88(cm) 60*54*90(cm) 42kg
2000W White 1000-1500M 58*68*102(cm) 63*74*104(cm) 58kg
3000W White 1500-2000M 63*63*100(cm) 64*73*104(cm) 63kg
4000W White 2000-3000M 63*63*100(cm) 64*73*104(cm) 68kg
5000W White 3000-4000M 68*58*100(cm) 74*63*104(cm) 73kg
6000W White 4000-5000M 68*58*100(cm) 74*63*104(cm) 90kg
7000W White 5000-6000M 83*70*120(cm) 90*75*125(cm) 95kg
IP RATE

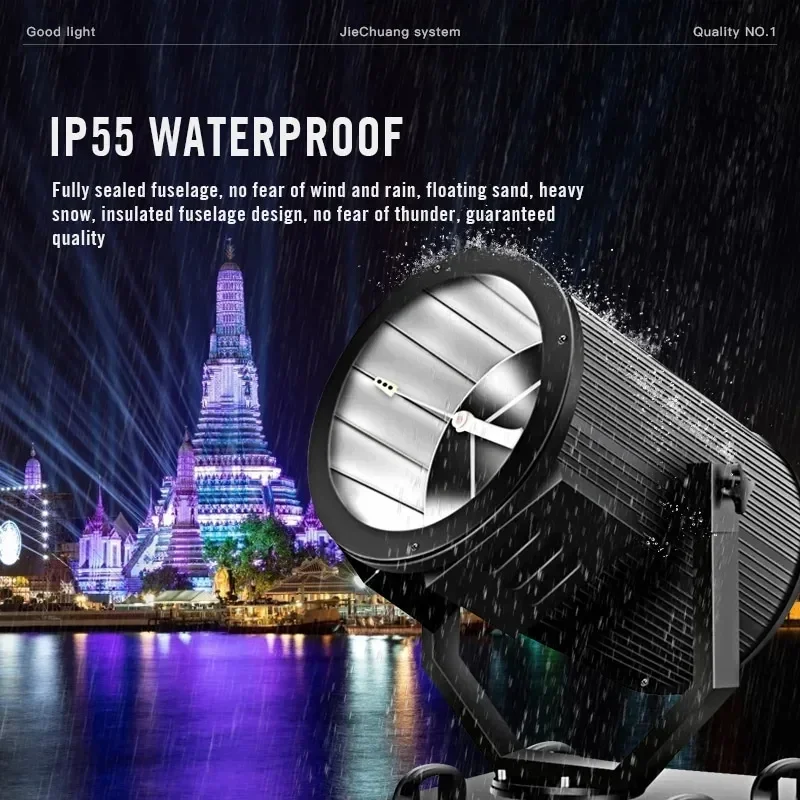

IP rating :IP55, with temperature protection and rain proof,waterproof function
Application: Widely used in TV station, outdoor performance, sport hall, hotel, amusement park, landscape, building etc.
SHORT MODEL NUMBER: A26
Excellent color mixing effect
