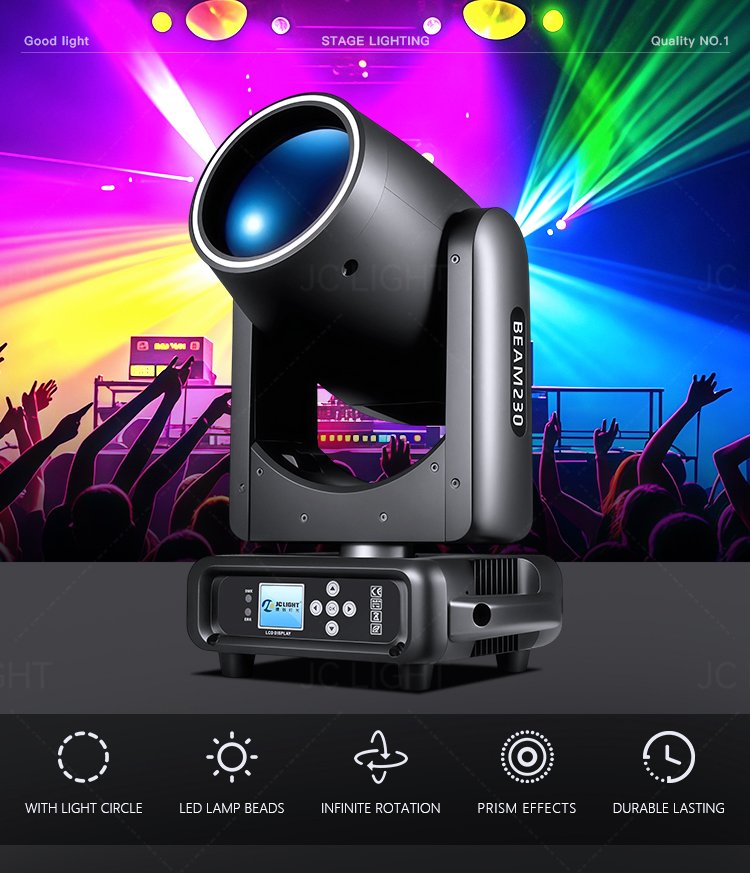

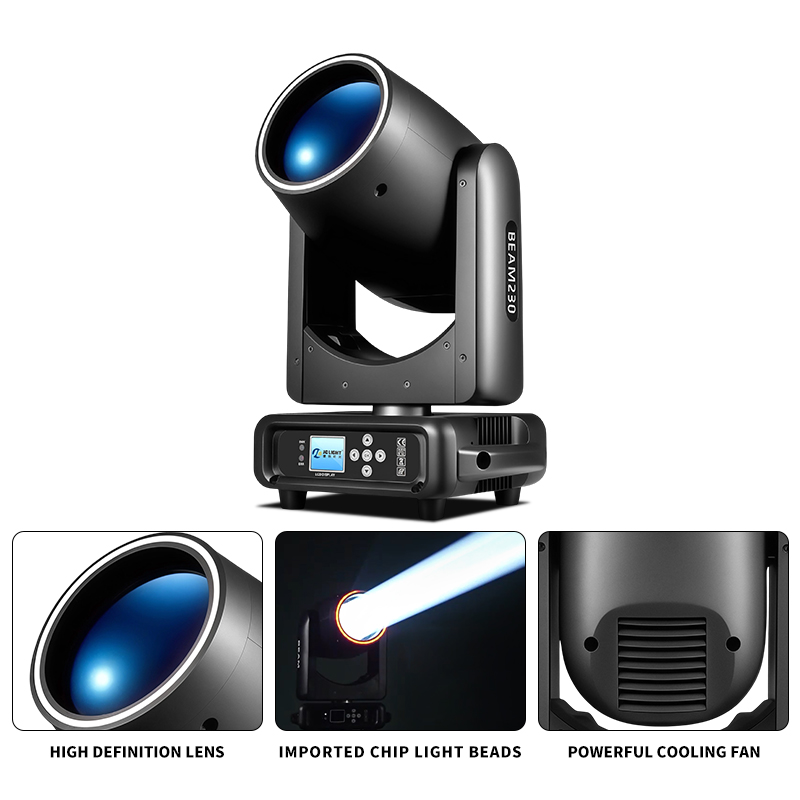

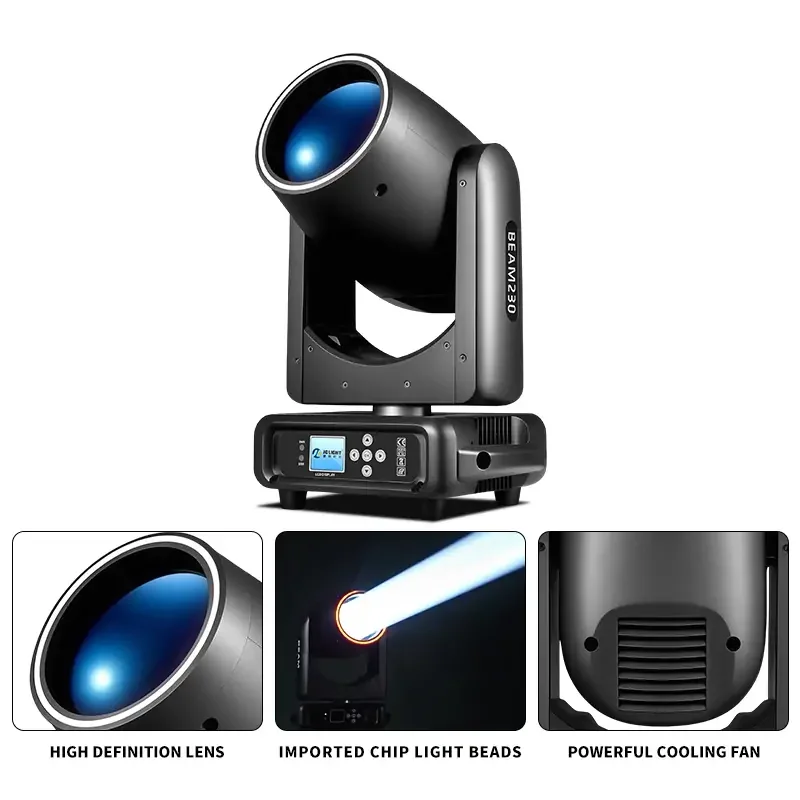

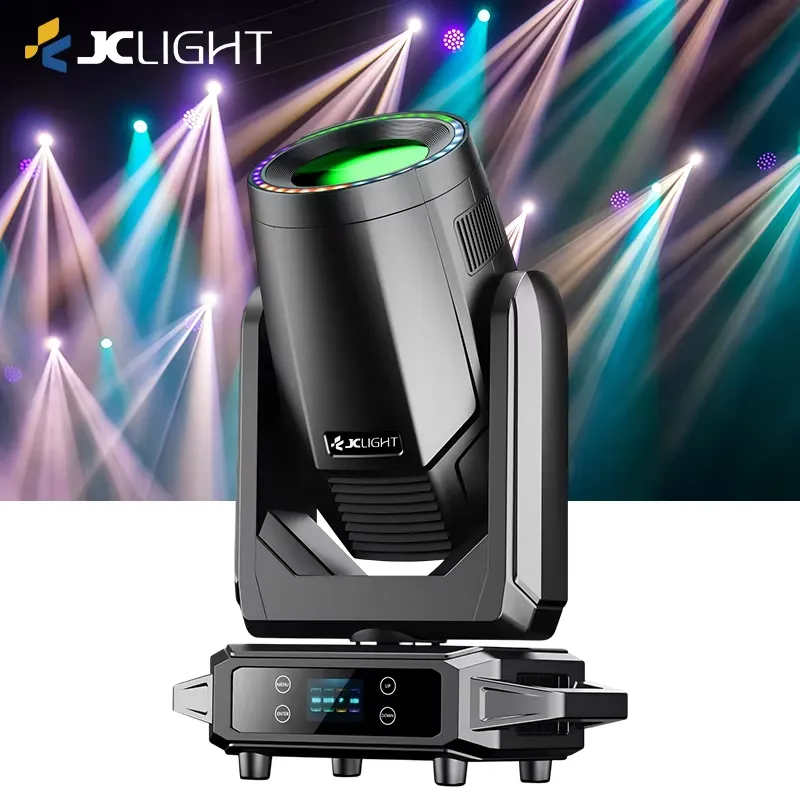

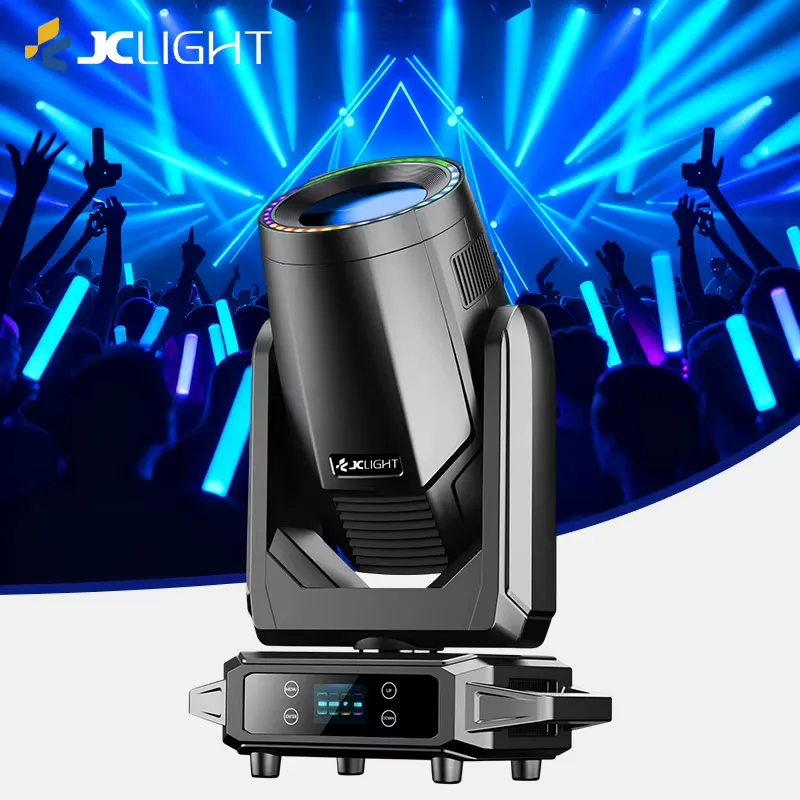

230W 260W 295W Beam Moving Head Light with LED Ring Effect

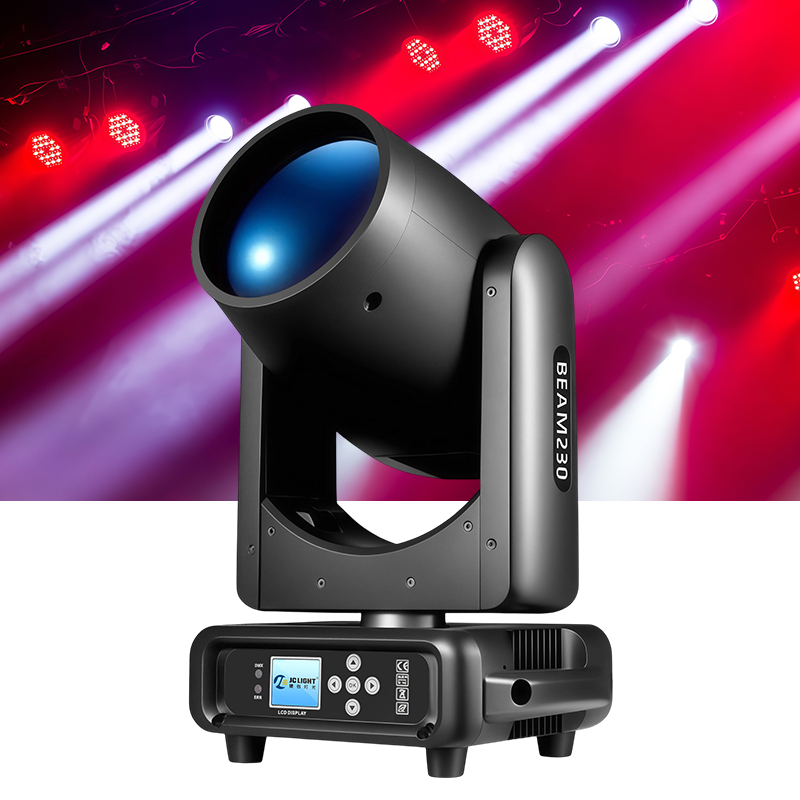

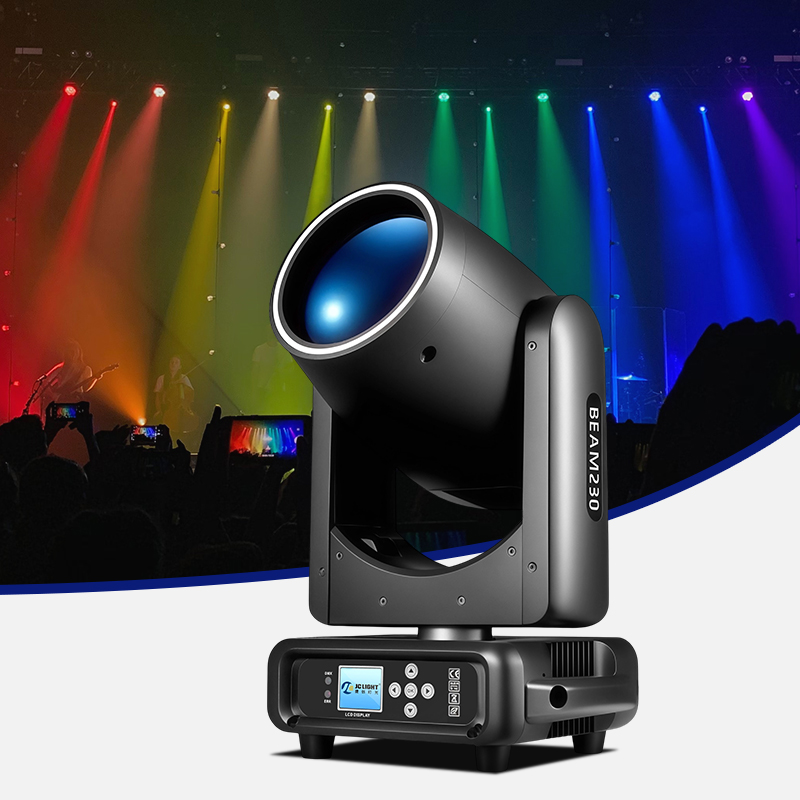

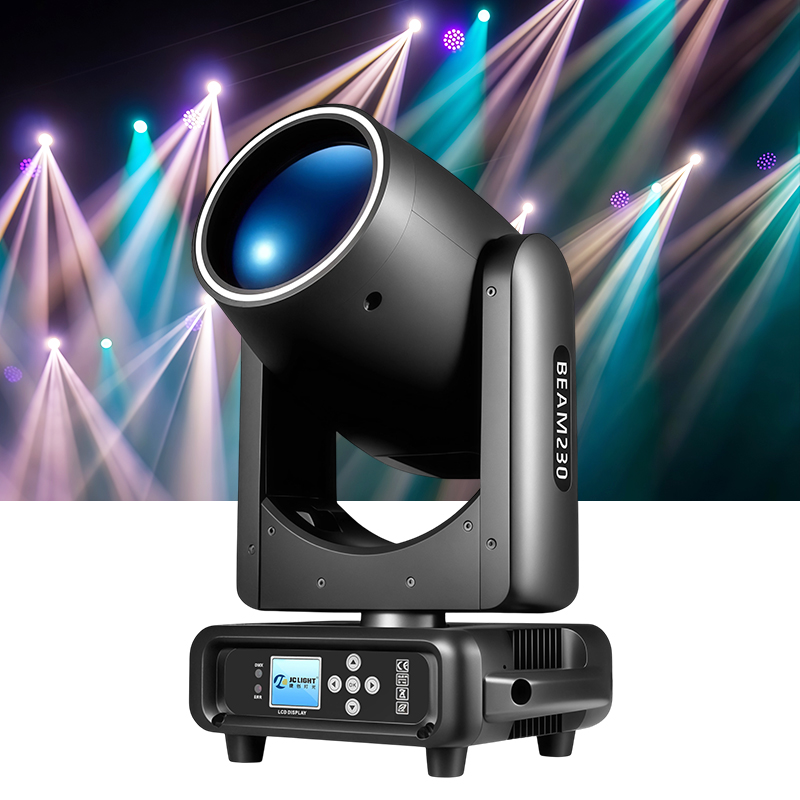

The JC LIGHT K230 / K260 / K295 is a professional beam moving head light with LED ring effect, designed for concerts, clubs, stage performances and rental lighting applications. Equipped with original Phoenix lamp sources and a 145mm large diameter optical system, it delivers a sharp 1.8° beam with powerful long-distance projection.

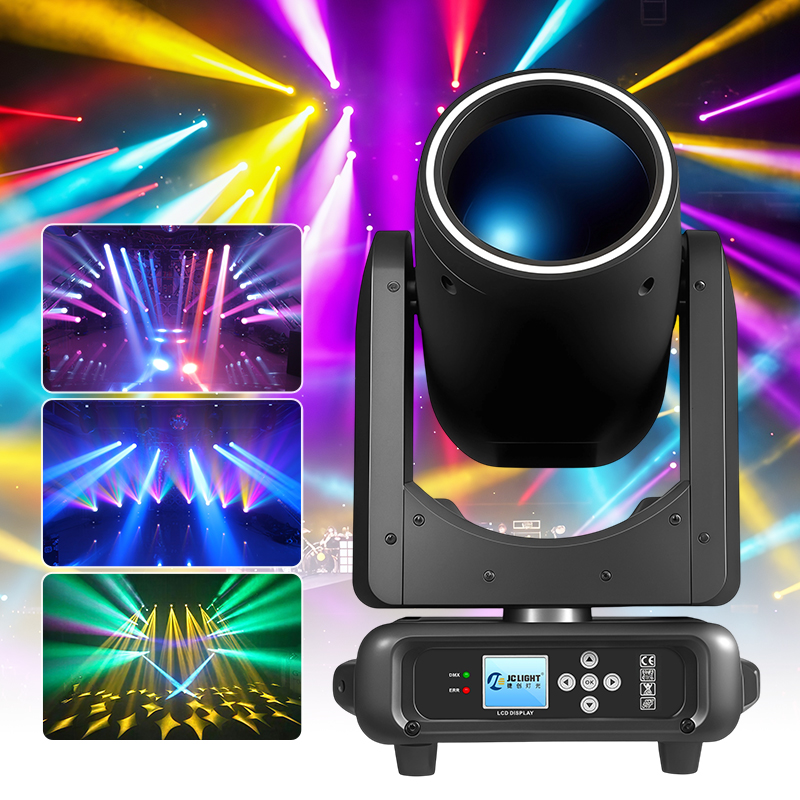

Featuring a high-performance beam system combined with an RGB LED ring effect, multiple prism combinations and dynamic gobo effects, this fixture creates stunning aerial beams and colorful stage visuals for professional entertainment environments.
Key Features
- Available in 230W / 260W / 295W beam versions
- Original Phoenix 7R / 8R / 13R lamp options

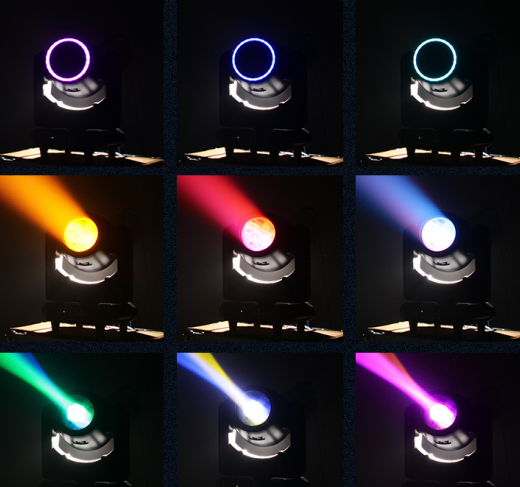

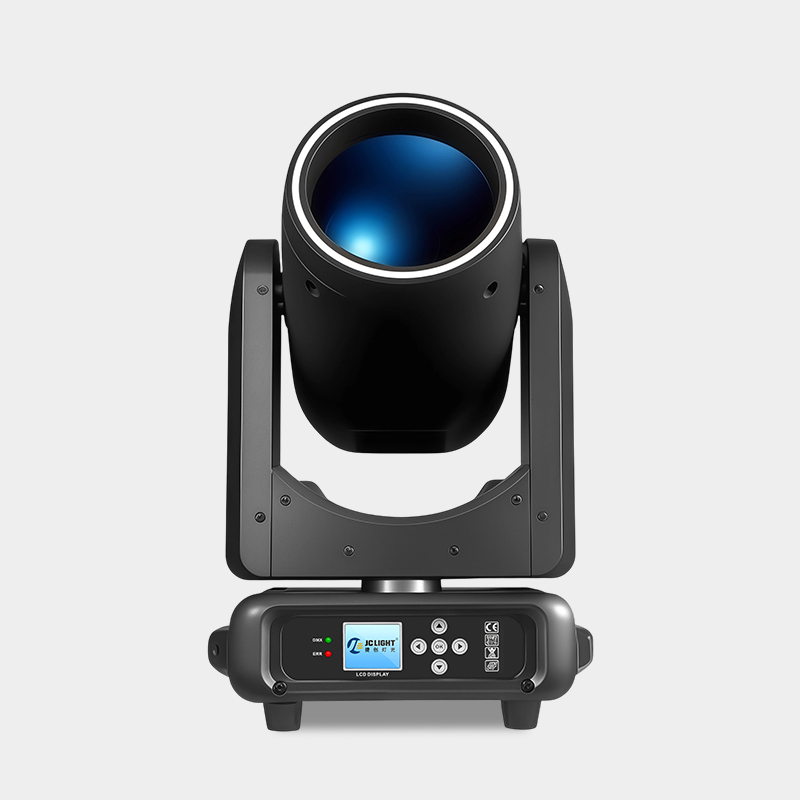

- Integrated LED Ring effect for additional visual impact

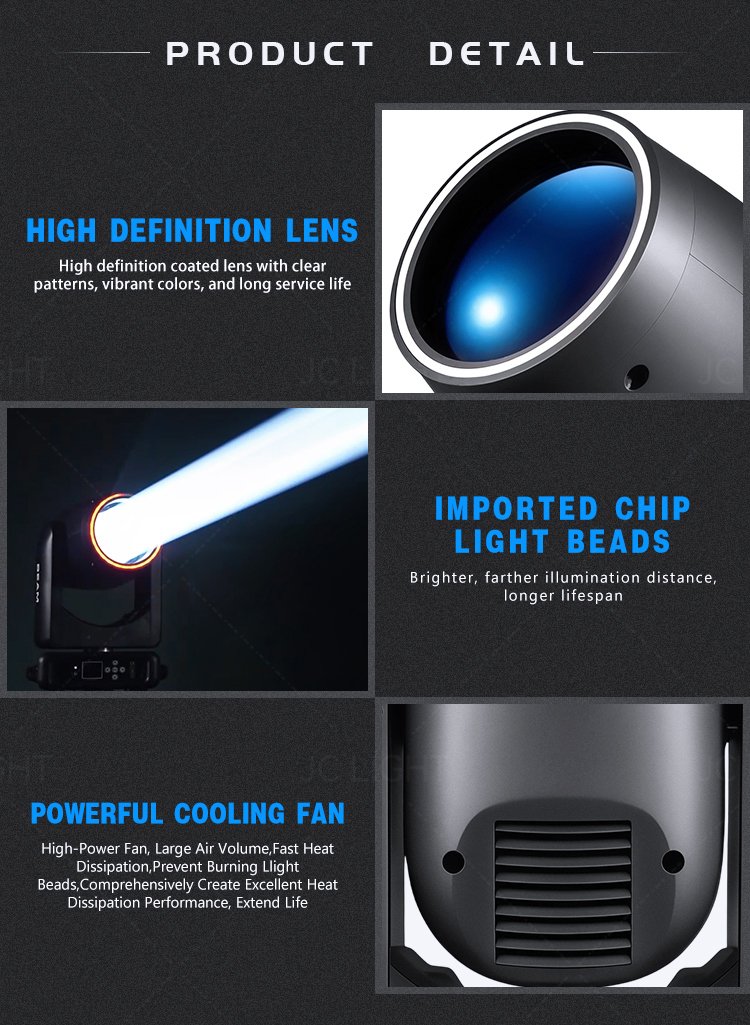

- 145mm large diameter optical lens system
- Ultra sharp 1.8° narrow beam angle

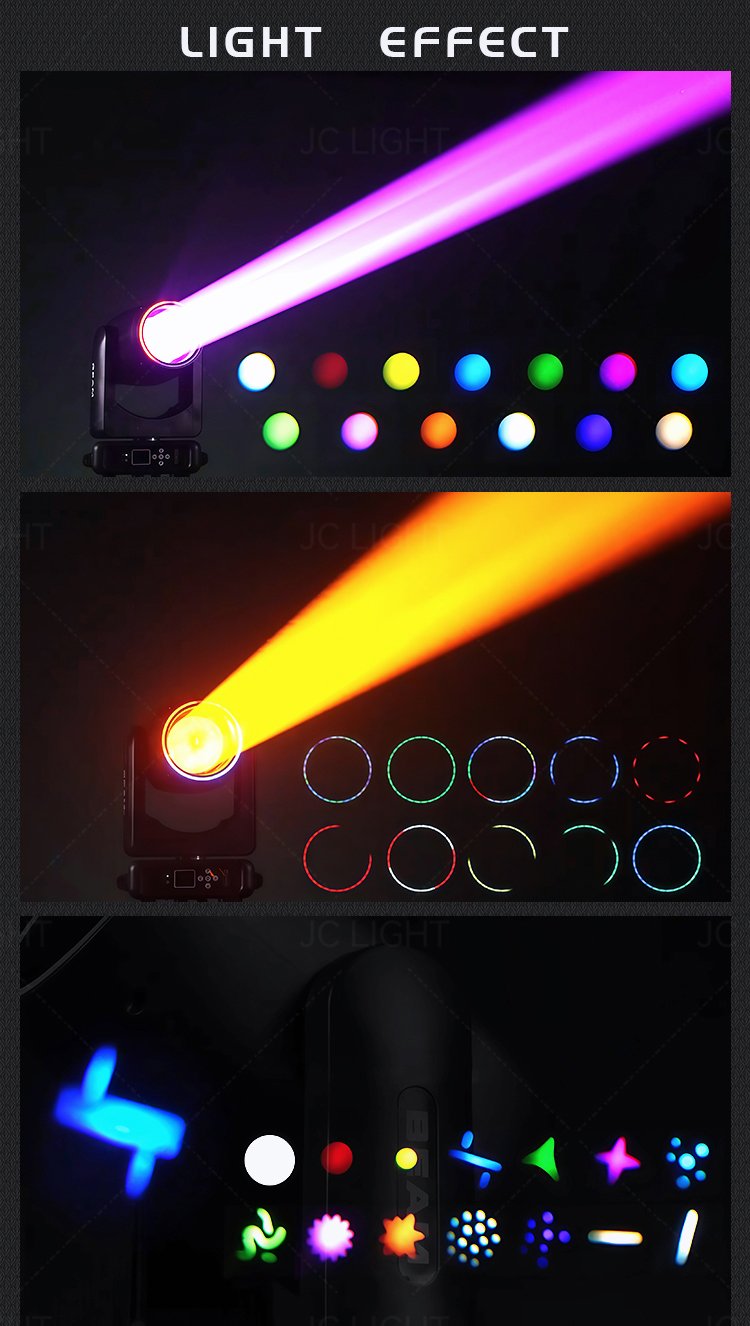

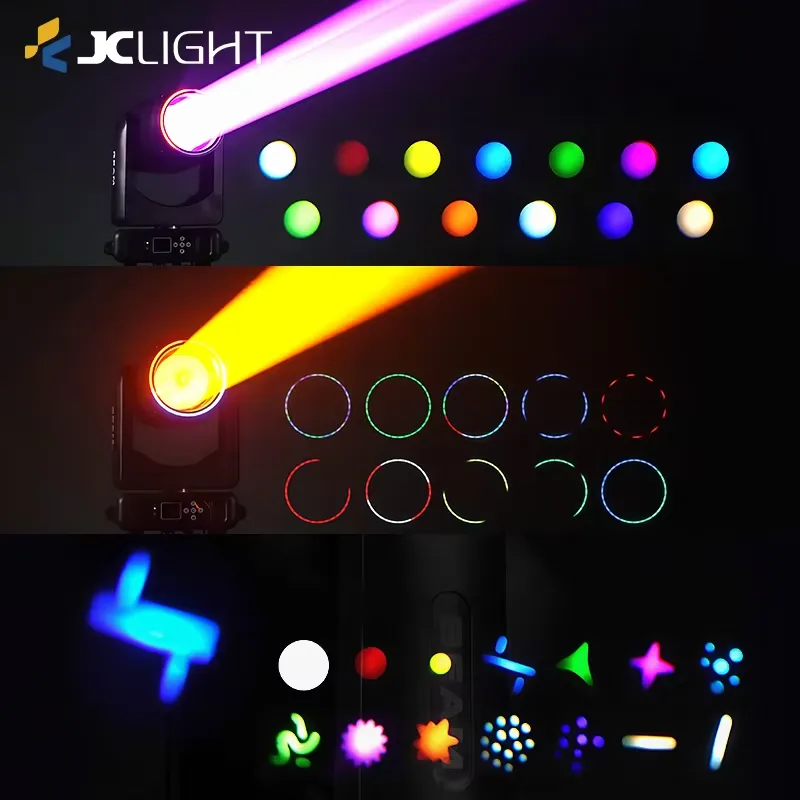

- 12 colors + white color wheel
- Half-color and rainbow rotation effects
- 13 fixed gobos + open with gobo shake effect
- 8 prism and 8+16+24 prism overlay effects
- 0-100% mechanical dimming
- 8-bit / 16-bit precision pan and tilt movement
- DMX512 professional control system
Technical Specifications
| Model | K230 / K260 / K295 |
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 350W / 380W / 400W |
| Light Source | 7R / 8R / 13R Phoenix Lamp |
| Lamp Power | 230W / 260W / 295W |
| Optical System | 145mm Large Diameter Lens |
| Beam Angle | 1.8° |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Pan/Tilt Resolution | 8-bit / 16-bit |
| Ballast | Electronic Ballast |
| Color Wheel | 12 Colors + White |
| Color Effect | Half Color + Rainbow Effect |
| Gobo Wheel | 13 Fixed Gobos + Open |
| Gobo Effect | Gobo Jitter Effect |
| Prism | 8 Prism, 8+16+24 Prism Overlay |
| Dimming | 0-100% Mechanical Dimming |
| Control Mode | DMX512 / Master-Slave / Auto Run / Sound |
| DMX Channel | 16CH |
| Product Size | 31 × 20 × 46 cm |
| Package Size | 51 × 37 × 40 cm |
| Weight | 9.0 kg |
Application Scenarios
- Concert stage lighting
- DJ club and nightclub lighting
- Festival and live event production
- Professional rental lighting
- Entertainment venue installations
Why Choose JC LIGHT
- Professional beam moving head manufacturer
- High brightness optical system for long-distance beam projection
- LED Ring effect creates more dynamic stage visuals
- Stable Phoenix lamp performance for rental applications
- OEM and ODM customization support
Beam Moving Head Light with LED Ring FAQ
What is the difference between K230, K260 and K295?
The difference is the lamp power output. K230 uses 230W, K260 uses 260W and K295 uses 295W lamp sources, providing different brightness levels.
What is the beam angle of this moving head?
It features a professional 1.8° narrow beam angle for sharp aerial lighting effects.
What is the LED Ring function?
The LED Ring provides additional visual effects around the main beam, creating more dynamic and colorful stage lighting effects.
Does it support prism effects?
Yes. It supports 8 prism and 8+16+24 prism overlay effects.
Is it suitable for rental companies?
Yes. The compact size, powerful beam output and stable lamp system make it suitable for professional rental applications.
Do you provide OEM customization?
Yes. JC LIGHT provides OEM and ODM services for professional stage lighting products.
