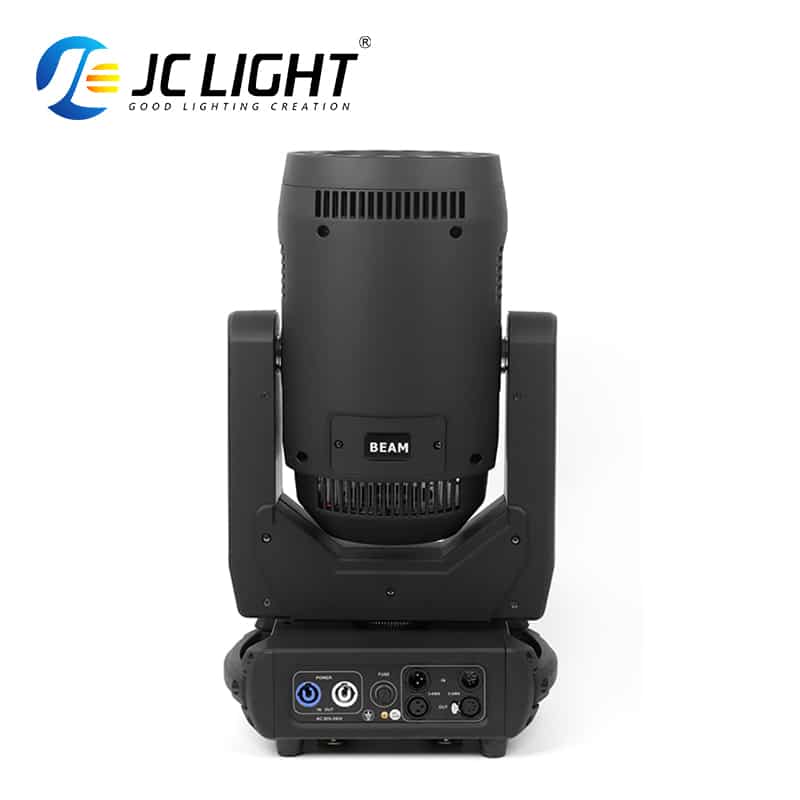

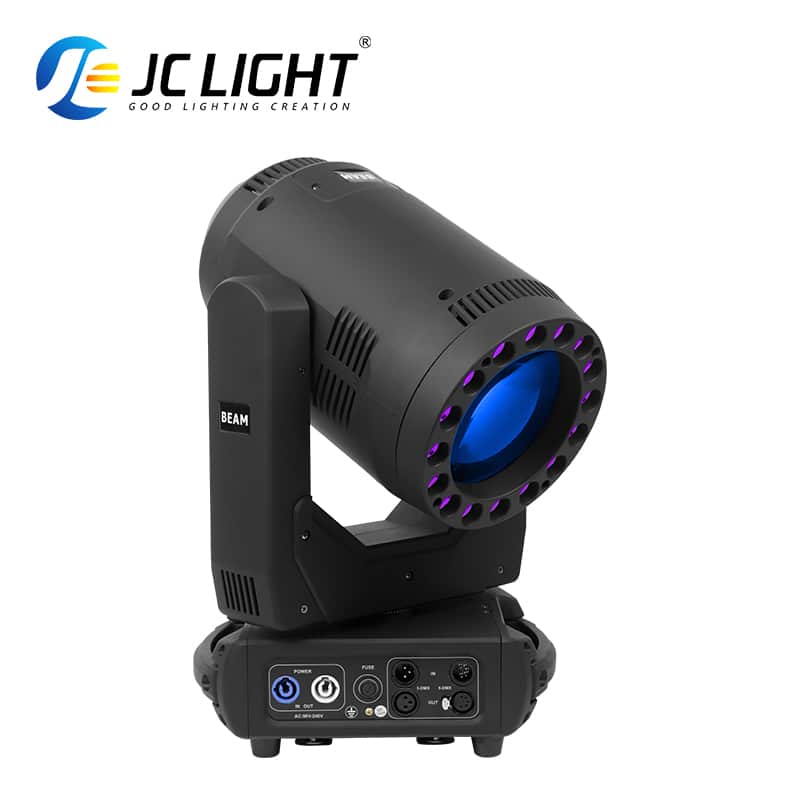

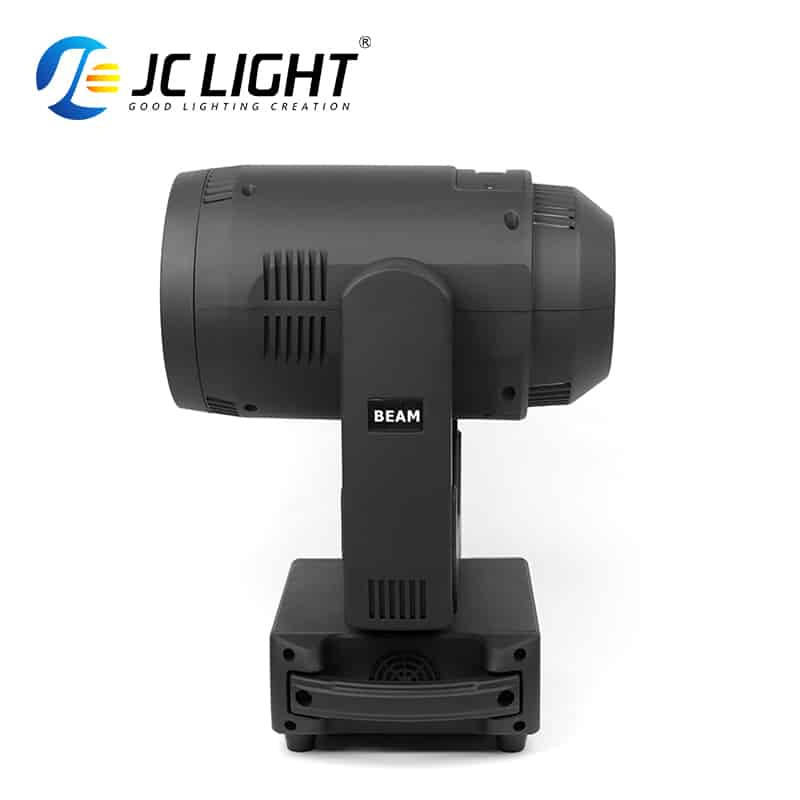

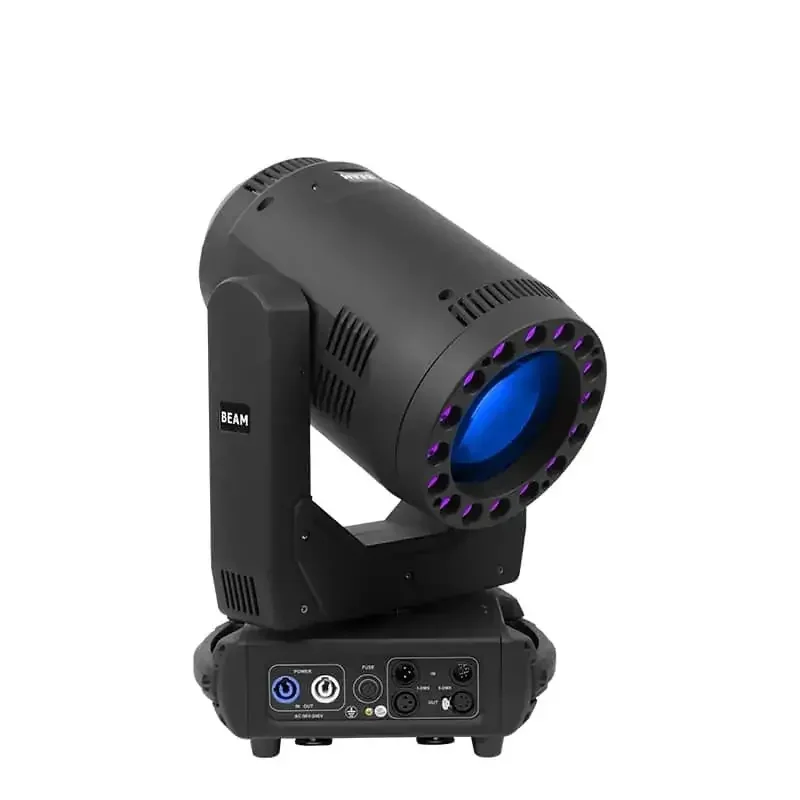

300/330/350/380W LED BEAM MOVING HEAD LIGHT
VOLTAGE：AC100-240V/50-60HZ
POWER CONSUMPTION：500W/550W/600W/650W
LIGHT SOURCE：300W/330W/350W/380W Cree LED, hight breightness white lamp, CCT: 8000K, Lifespan: 20000H
PAN& TILT: Horizontal: 540°, Vertical: 270°(16bit, electric correction)
DIMMER: 0-100°linear dimming
STROBE: 1-13t/s,M-shutter, high speed stroboscopic effect is adjustable
Color wheel: 7 colors+white, half color effect
Gobo Wheel: 8 gobos+white, high speed jitter effect; rotation gobo wheel: 7 gobo+ white (gobo can be customized)
Prism: 1×16-facet prism+ 1x honeycomb prism, can be overlay with variable speed rotation
Atomization: independent atomization effect
Display: LCD display
Lens: optical glass lens
CONTROL MODE: DMX512/master slave/auto-run/sound
Channel: 13CH
Dmx input/output: 3pin or 5pin XLR singal interface
Product Size：330X360X560mm
N.W：13.6KGS
G.W：14.0KGS
Short model number: B9
- Description
Description
Parameters
OPTICAL SYSTEM
LIGHT SOURCE：300W/330W/350W/380W Cree LED, hight breightness white lamp, Lifespan: 20000H
Lens: optical glass lens
COLOR SYSTEM
CCT: 8000K
Color wheel: 7 colors+white, half color effect
GOBO SYSTEM
Gobo Wheel: 8 gobos+white, high speed jitter effect; rotation gobo wheel: 7 gobo+ white (gobo can be customized)
EFFECTS
Prism: 1×16-facet prism+ 1x honeycomb prism, can be overlay with variable speed rotation
Atomization: independent atomization effect
DIMMER: 0-100°linear dimming
STROBE: 1-13t/s,M-shutter, high speed stroboscopic effect is adjustable
MOVEMENT PARAMETER
PAN& TILT: Horizontal: 540°, Vertical: 270°(16bit, electric correction)
CONTROL AND PROGRAMMING
CONTROL MODE: DMX512/master slave/auto-run/sound
Channel: 13CH
Display: LCD display
POWER SUPPLY
VOLTAGE：AC100-240V/50-60HZ
POWER CONSUMPTION：500W/550W/600W/650W
Dmx input/output: 3pin or 5pin XLR singal interface
DIMENSION AND WEIGHT
Product Size：330X360X560mm
N.W：13.6KGS
G.W：14.0KGS
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: B9
Excellent color mixing effect
